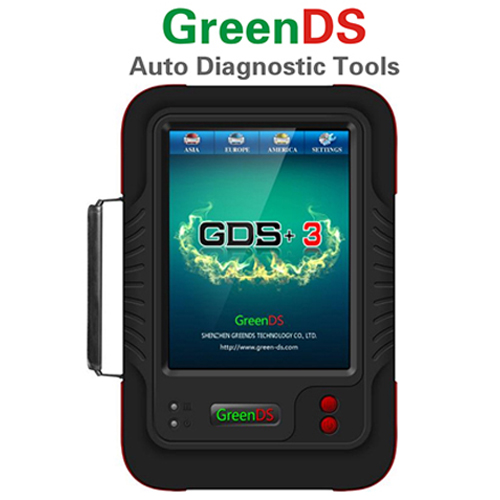

Name: OEMScan GreenDS GDS+ 3

Description:

The GreenDS GDS+3 are the latest auto diagnostic solutions which are simple and easy to use and has been designed for professional technicians and body shops to supply basic functions and individual specialized systems, like Reading DTC, Clearing DTC, Oil Reset, SAS Reset, TPMS, DPF, etc. They provide a quick and easy solution to everyday tasks in the workshop that can not be completed without the use of an OEM Tool.

Functions:

1. Testing the global mainstream gasoline + 12V diesel vehicles, reaching to the same effect with the OEM scanners. Built-in high and low speed CAN-BUS, one diagnostic connector can test all the CAN-BUS vehicles. Support almost all OBD-II protocols.

2. Supported Functions:

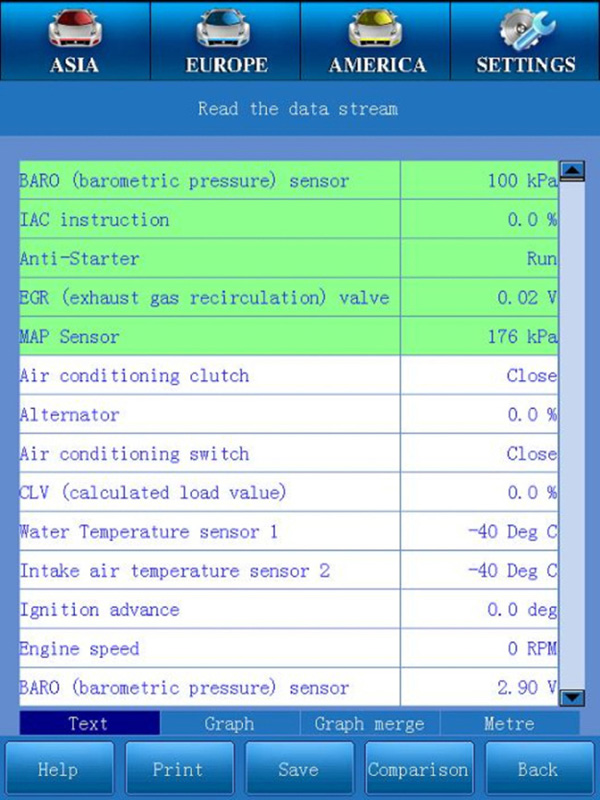

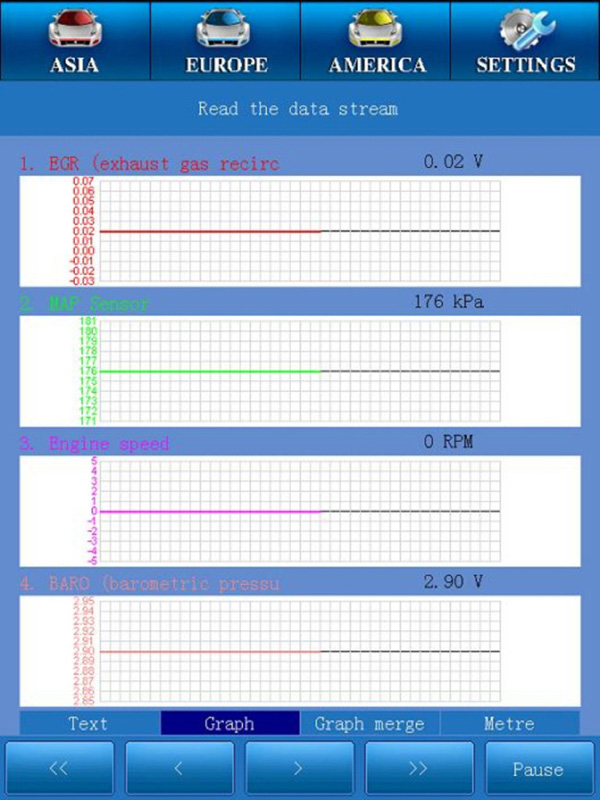

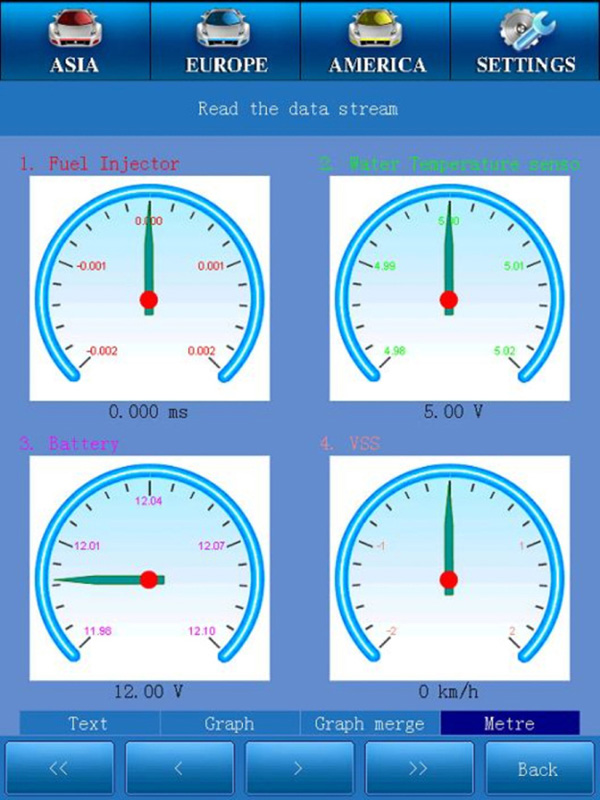

Readout DTC, Readout Engine Model, Readout Computer Edition Information, Readout QR Code, Readout System Parameter Number, Readout Data Stream, Clear DTC, Component Test, Compression Test, Maintenance Help, Study Online and so on.

Features:

1. Exquisite Display: Super large 8-inch color display
2. Use Conveniently: Completely touch operation platform
3. Detect Automatically: Can detect engine electronic control system automatically
4. Simply and Practicably: Can Support almost all OBD-II protocols with one OBD Connector
5. Function Uniquely: Unique data stream to select quickly for the display and comparison function
6. Study Conveniently: Built-in operation manual and help system
7. Advanced Technology: ARM32 digits compare to hardware configuration of industry level
8. Comprehensive Configurations: equipped with various interfaces and micro- printer
9. Diagnose automatically: Can diagnose the relevant software and hardware automatically
10. Upgrade Quickly: Can upgrade software data and maintenance data randomly every week
11. Use Widely: Can be applicable to training institutions and engine service enterprises

Advantages:

1. One year Free Update online (300USD/year after one year, much cheaper than Autel & Launch).
2. 51+1 Vehicle coverage: 51 Cars+ Extra 1 Benz Truck (GreenDS supports all 24V trucks.  Now it supports only Benz trucks, more other trucks are coming later.).

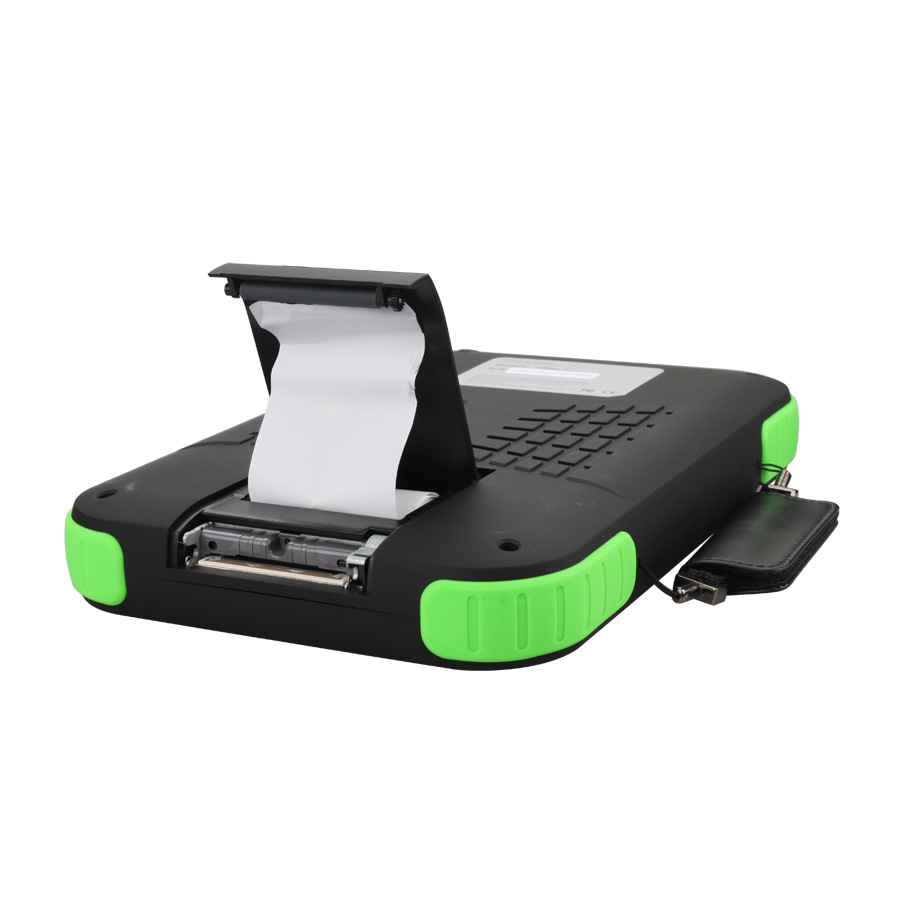

3. OEMscan GreenDS has a built-in Printer for printing out the information.
4. Large touch screen (Real Color Screen).
5. Including Benz connectors and BMW connectors.
6. Works excellent for America Cars and Japan cars
7. GreenDS function is more powerful and 100% high quality warranty, but price is much cheaper than other Universal Scanner.

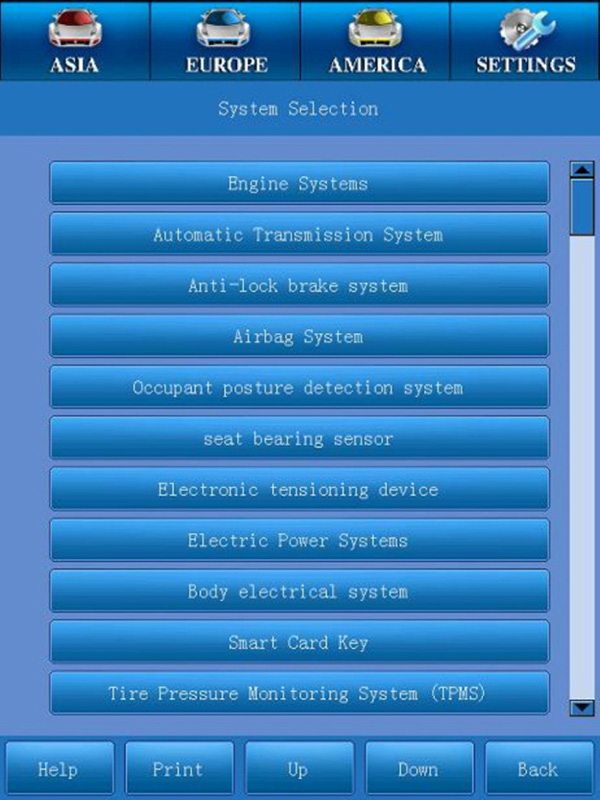

Support Systems:

Engine, ABS, Transmission, Airbag, Body Electronic equipment, Anti-theft System, Power Steering, Cruise System, Instrument System, Gateway, Air Conditioning System, Sound System, Light System...

Specifications:

Dual Processor: ARM9+ARM7
Memory: 4/8 GB SD card
Display: 8" TFT (800*600dpi) color display with resistive touch panel
Printer: 58MM thermal printer
Input Voltage: 8.0-30.0v power provided via vehicle battery
Operating Temperature: 0 to 50 degree centigrade
Storage Temperature: -10 to 60 degree centigrade
Dimension: 283*190*42mm
Unit Weight: 1.09Kg

Software Supported Language: English, Spanish, Japanese

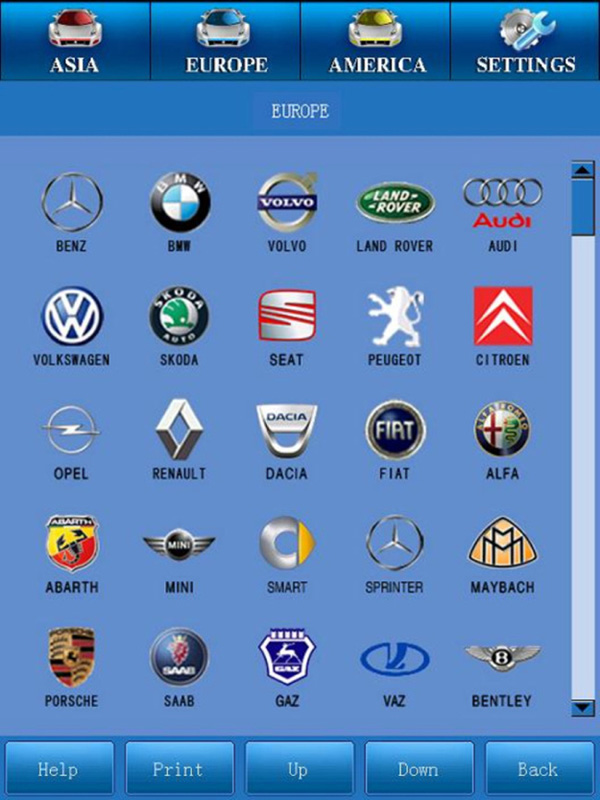

Supported Cars:

1. America-Ford
2. America-GM
3. America-Chrysler
4. Europe-Audi
5. Europe-Volkswagen
6. Europe-Skoda
7. Europe-Seat
8. Europe-Bently
9. Europe-BMW
10. Europe-Mini
11. Europe-Benz
12. Europe-Smart
13. Europe-Sprinter
14. Europe-Maybach
15. Europe-Porsche
16. Europe-Opel
17. Europe-Citroen
18. Europe-Peugeot
19. Europe-Runuo(Renault)
20. Jaguar
21. Vauxhall
22. Europe-Rover
23. Europe-Land Rover
24. Europe-Saab
25. Europe-Volvo
26. Europe-Fiat
27. Europe-Abarth
28. Europe-Dacia
29. Europe-Alfa
30. Asian-Honda
31. Asian-Acura
32. Asia-Nissan
33. Asia-Infiniti
34. Asia-Toyota
35. Asia-Lexus
36. Asia-Mitsubishi
37. Asia-Mazda
38. Asia-Suzuki
39. Asia-Isuzu
40. Asia-Daihatsu
41. Asia-Daewoo
42. Asia-Hyundai
43. Asia-Kia
44. Asia-Sangyong
45. Asia-Subaru
46. Asia-Weili
47. Chery
48. Geely
49. Great Wall
50. Chang An
51. Hafei

Supported Truck: Benz

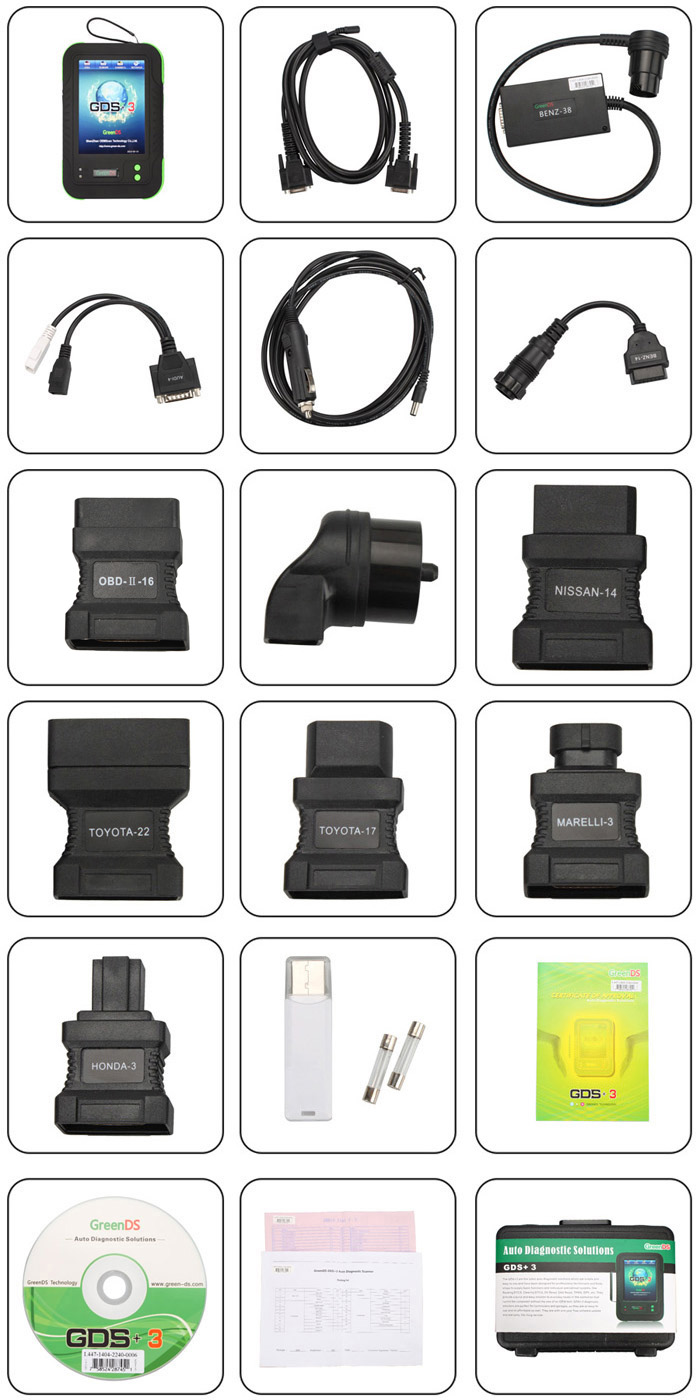

Set Includes:

GreenDS main unit
F3S-2/3 main diagnostic cable
Cigarette lighter power cable
F3S-2 BMW 20 pin connector

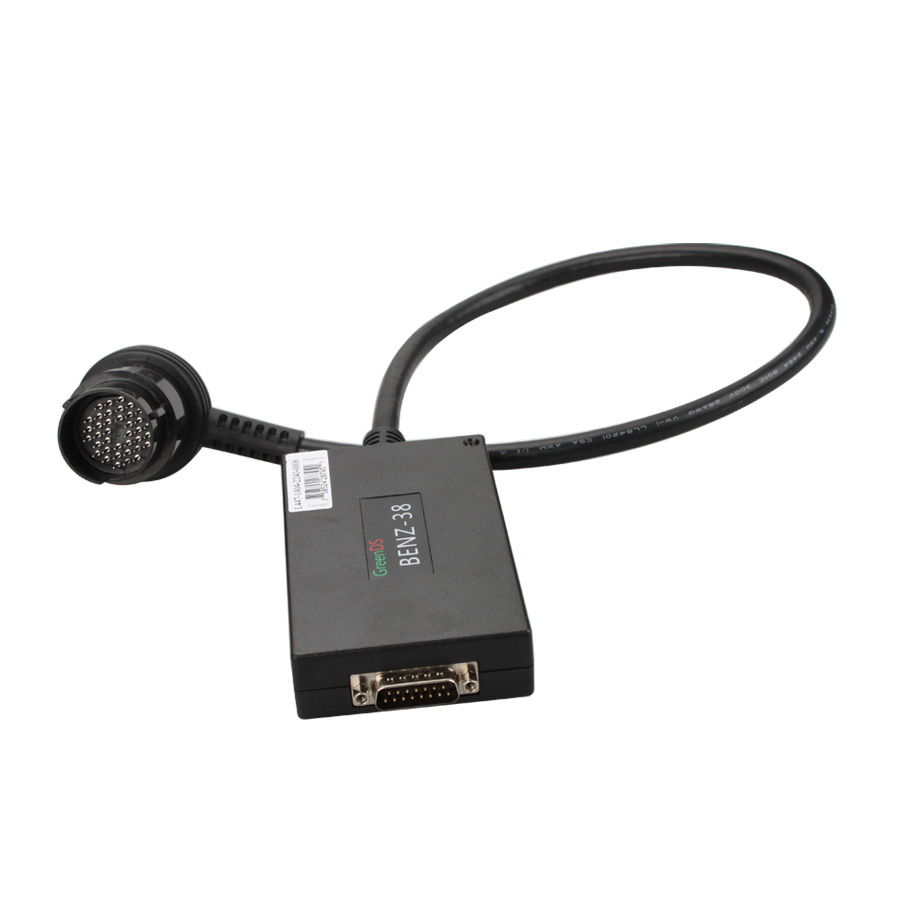

Benz 38 pin connector
Benz 14 pin connector
Audi 4 pin Connector
F3S-2/3 OBD-II 16 pin connector
Marjorie 3 pin connector
Protective tube
SD card reader
Pinter paper
DVD
Warranty card
Carrying case

Attention:

GreenDS GDS+ 3 can not sell to the following countries:

Middle East: Iraq, Lebanon, Syria, UAE, Saudi Arabia
Asia: Burma, Thailand, Korea
South America: Columbia
Africa: Nigeria ,South Africa
Europe: Germany

Especially in South Africa, Iraq, Lebanon, Syria, UAE, Burma, Columbia, Nigeria, Australia and Germany, GreenDS GDS+ 3 Software can not be updated, even get locked.

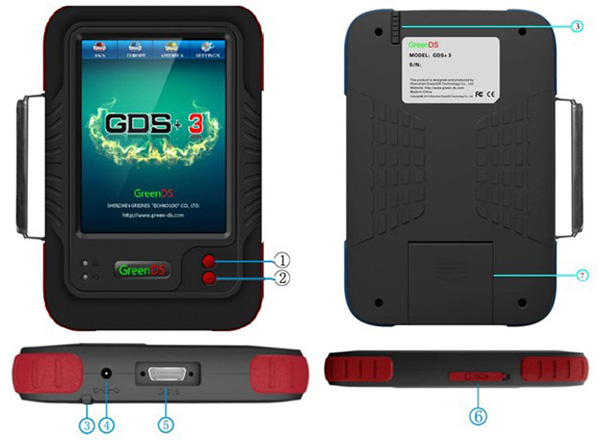

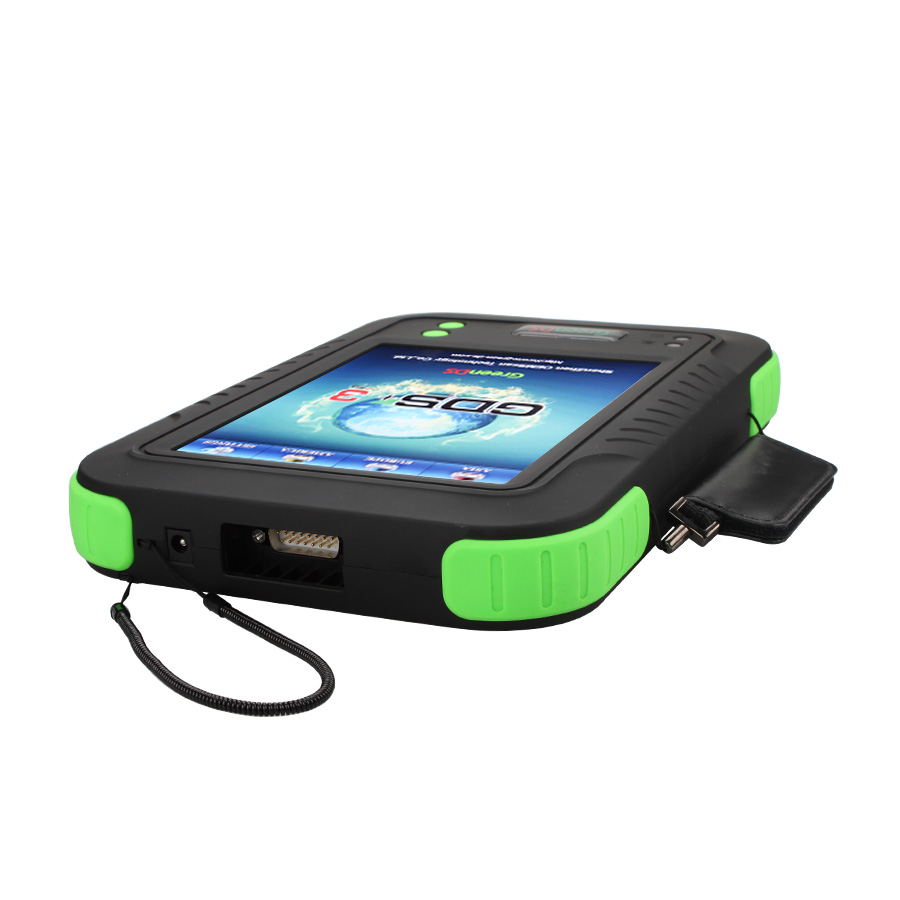

1. Print Button
2. Power On/Off Button
3. Touch Pen
4. Power Interface
5. Main Diagnosis Cable Socket
6. SD Slot
7. Printer Cover
