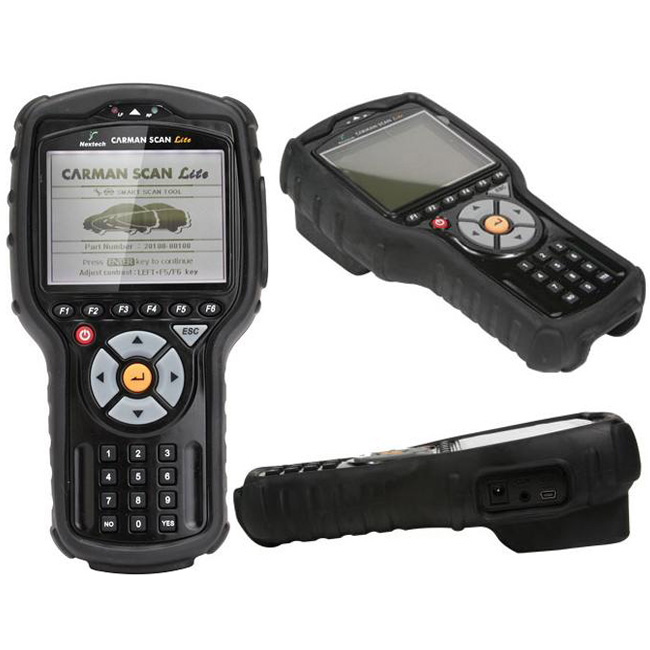

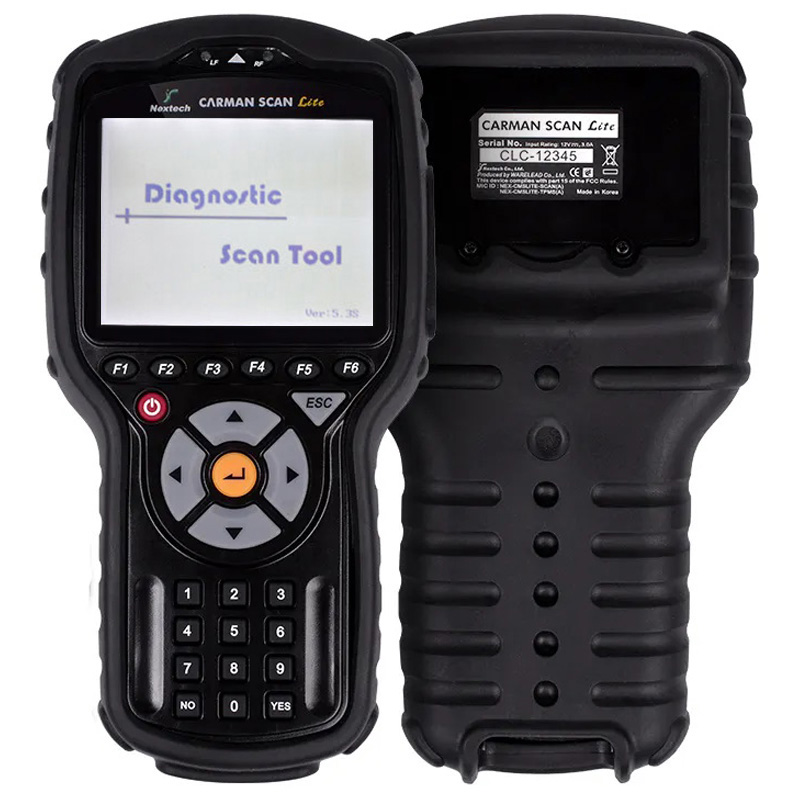

Name: Carman Scan Lite

Description:

Carman Scan Lite is designed as a compact, robust tool for use in the workshop. Compare with other low price scan tools, all the functions that Carman Scan II provides to the mechanics up dated information with OBD-1 level diagnosis functions.

Moreover, we design the SDK (Software Development Kit) for overseas business partners development.

Without deep knowledge of our hardware and software logic, most of foreign engineers can integrate their having ECU data and develop new scan test software easily.

Communication Protocol Compatibility:

ISO 9141-2, ISO-14230,
SAE J1850 (PWM, VPW) ,
KWP2000
CAN BUS Communication support

Extensive Vehicle Coverage:

Korean, Japanese, European, American cars
Malaysian, Chinese, Australian and Latin American locals

User Interface:

Fast update via USB terminal
Compact Size: 223*125*68mm
LED indication of communication status: Tx / Rx

Sufficient Memory Capacity:

Main Memory: 32MB built-in (Extended up to 128MB)
No external memory is required
Enough to contain extensive supplements

Eligibility for strategic cooperation with other firms:

Provision of Open Platform Hardware
Provision of Software after the SDK development
Development of programming and coding tools
Enables faster development by multiple groups

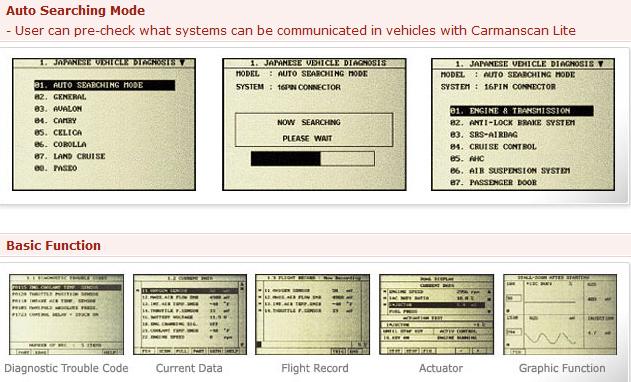

Functions:

On board diagnostic communication
Special vehicle test emulation
The combination provides for easy and comprehensive diagnosis of the electronically
Controlled systems used across the aftermarket model range.
Diagnostic communication with all Hyundai and Kia electronic control systems
Diagnostic communication with Japanese, European, U. S. A. vehicles
OBD-II communication protocol support
Actuator diving function with predefined frequency and duty ratio
High resolution LCD display
Easy and soft touch key
VisualLED of communication state
Bright screen (Auto backlight)
English and French languages are available.
Online supports for diagnostic trouble code or current data operations
Online "HELP" key operating support
Secondary large memory card for software update and information storage
PC communication facility

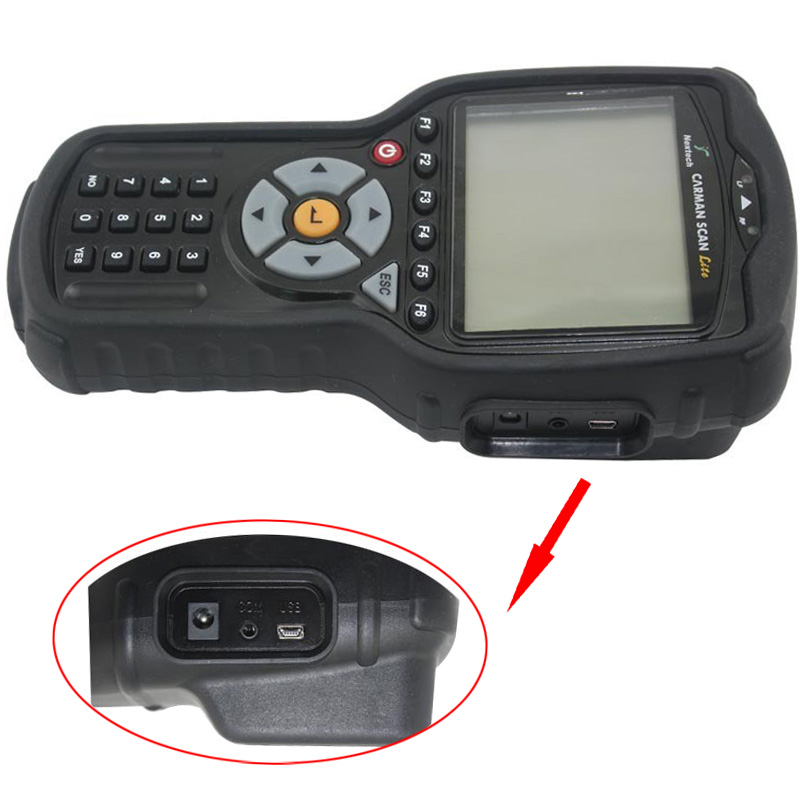

USB support (PC connection etc.)

Technical Parameters of Components:

Case:
Dark gray color
High strength ABS material
Compact design and easy to carry

LCD specification:
320*240 resolution LCD with backlight
Standard output: 40 rows*12 lines

Keypad:
Power ON/OFF key
6 flexible function keys
4 fixed function keys
4 arrow keys
10 digit keys(0-9)
Keypad Type: soft touch

Operating Environment:
Operating Voltage: 7 ~ 36V DC input
Operating Temperature: 0~50 degree centigrade

Supported Languages: English

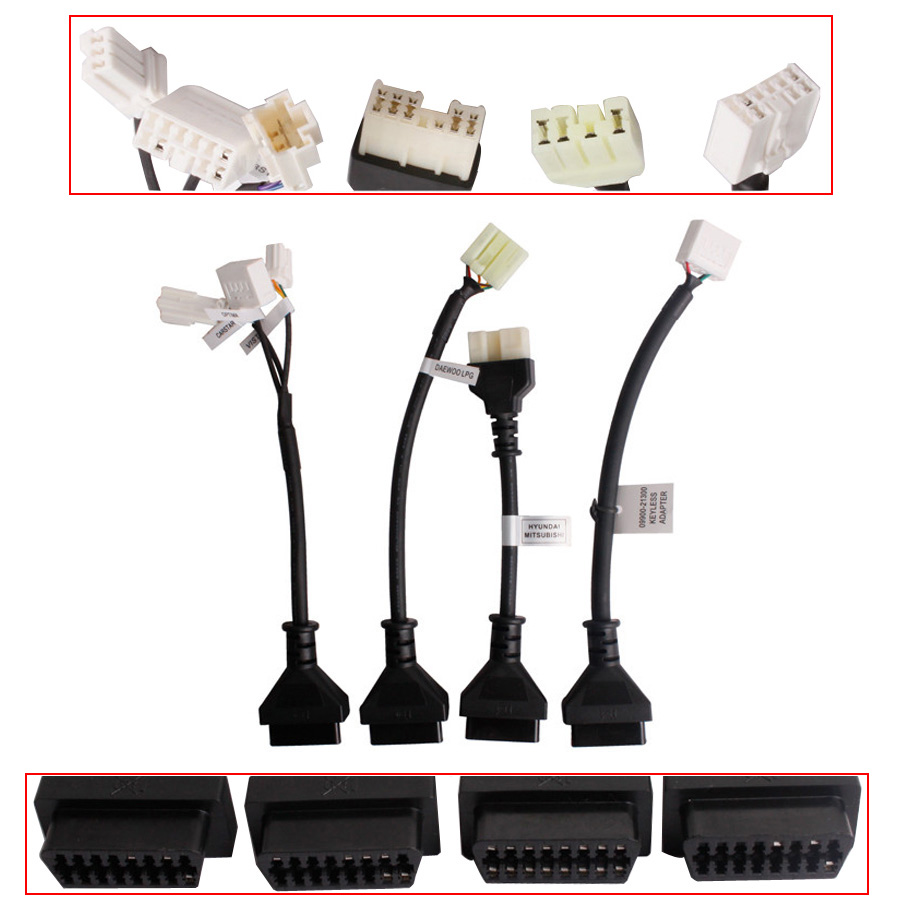

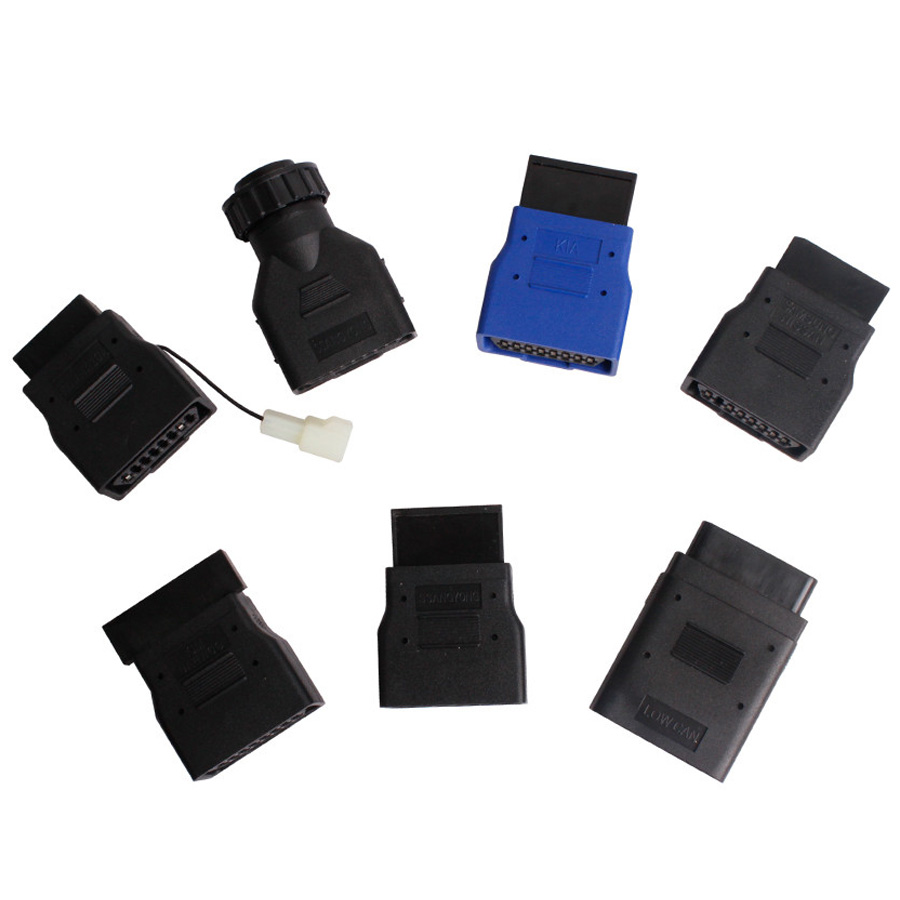

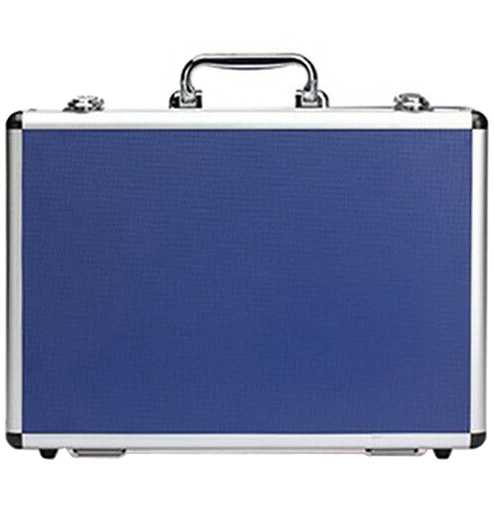

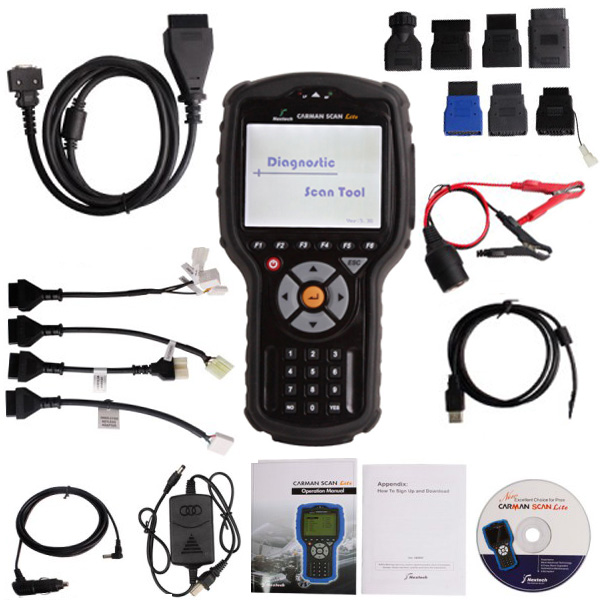

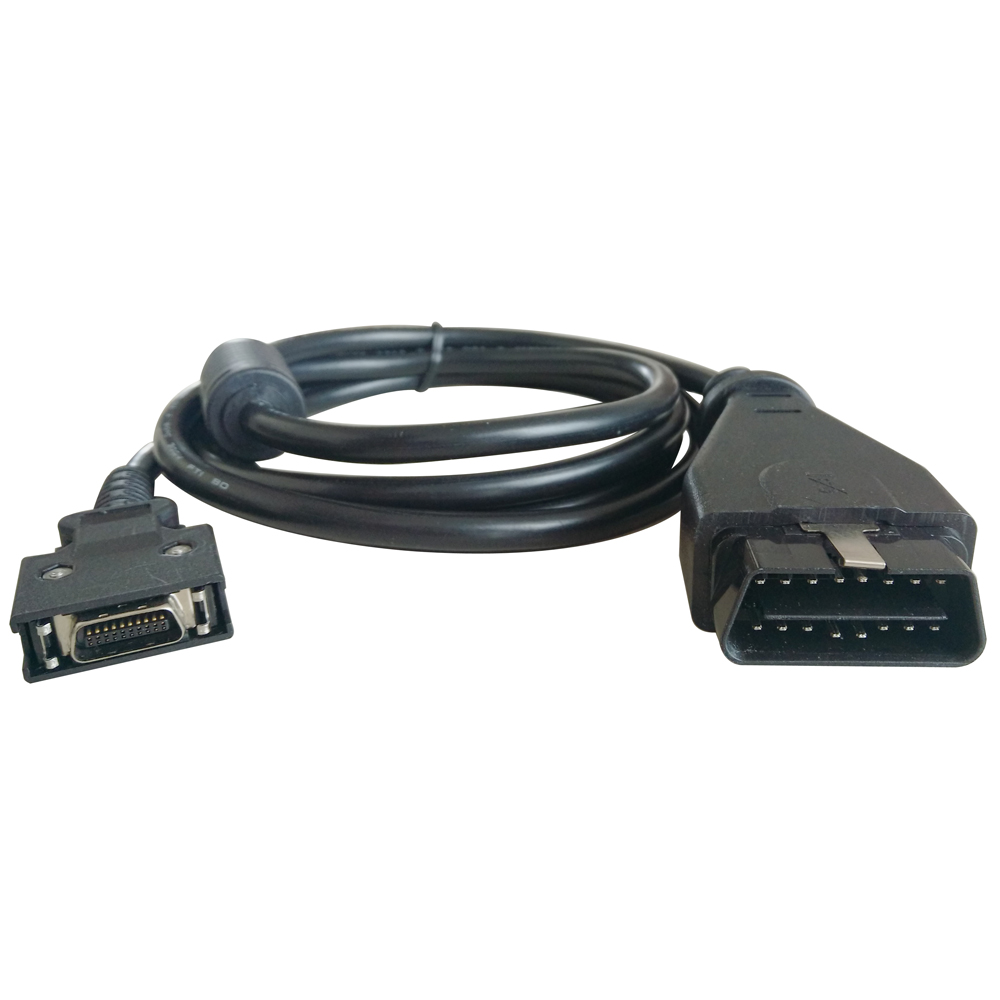

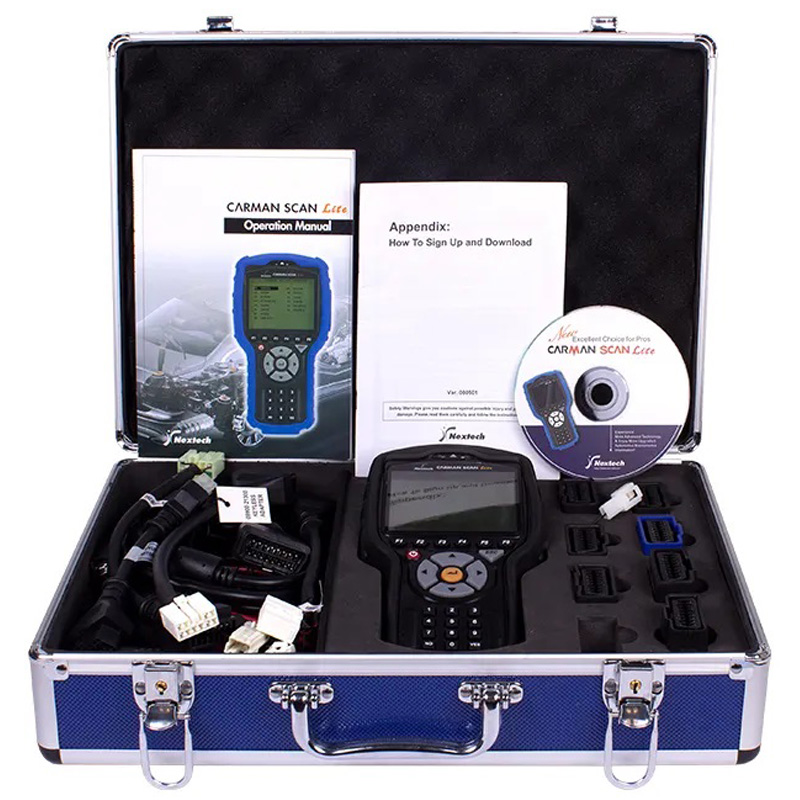

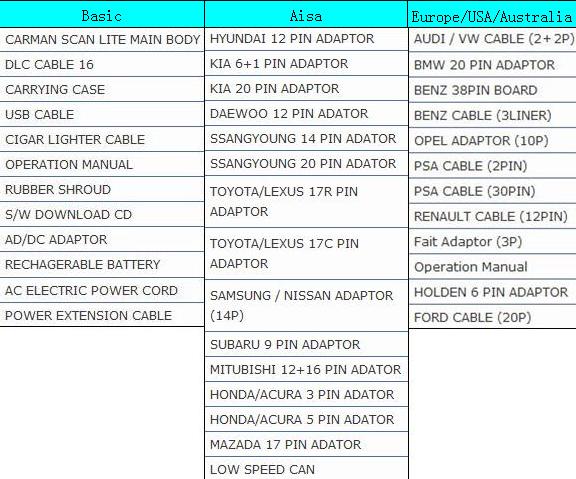

Packing List:
