Name: Automotive Sensor Simulator & Tester ADD71

Description:

Measure the signals of automotive sensors:

The most complete hand held diagnostic tester for sensors, wiring, connectors and on-board computers
DC voltage ,lambda, frequency and pulse signals can be measured
Digital display shows actual output of signals
Measures any voltage AC or DC, resistance or frequency output

Allows Simulation of most Sensor and computer management components:

Simulating temperature sensors, throttle potentiometers, switches, airflow meters and lambda/oxygen sensors
Features AC voltage output to simulate Vehicle Speed Sensors(VSS), CAM, CRANK and ignition reluctors
Simulates actual working condition of any sensor without having to remove it from the vehicle ABS., Crank, CAN, Coolant, Oxygen, MAP, MAF, MAT, VSS, etc.

Cheeks basic ECU operation:

Controlling the signals being produced allows you to check ECU response and operation. This prevents mis-diagnosis where the fault may lie in the ECU itself or in the wiring between the component and the ECU. Works independently or with any scan tool ever made
Can be used on any domestic or import vehicle
Eliminates unnecessary replacement of non-defective sensors
Can drive computer into open or closed loop

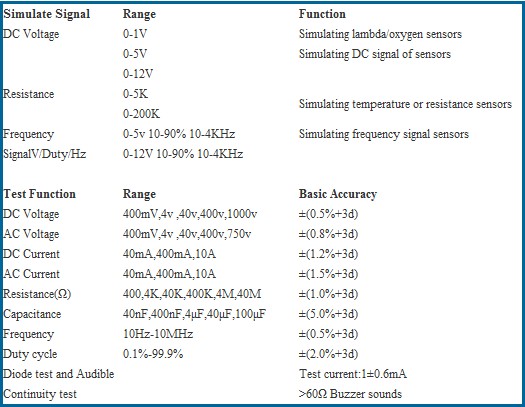

Specifications:
