Name: OBDSTAR X200 Pro A Configuration for Oil Rest + OBD Software

Description:

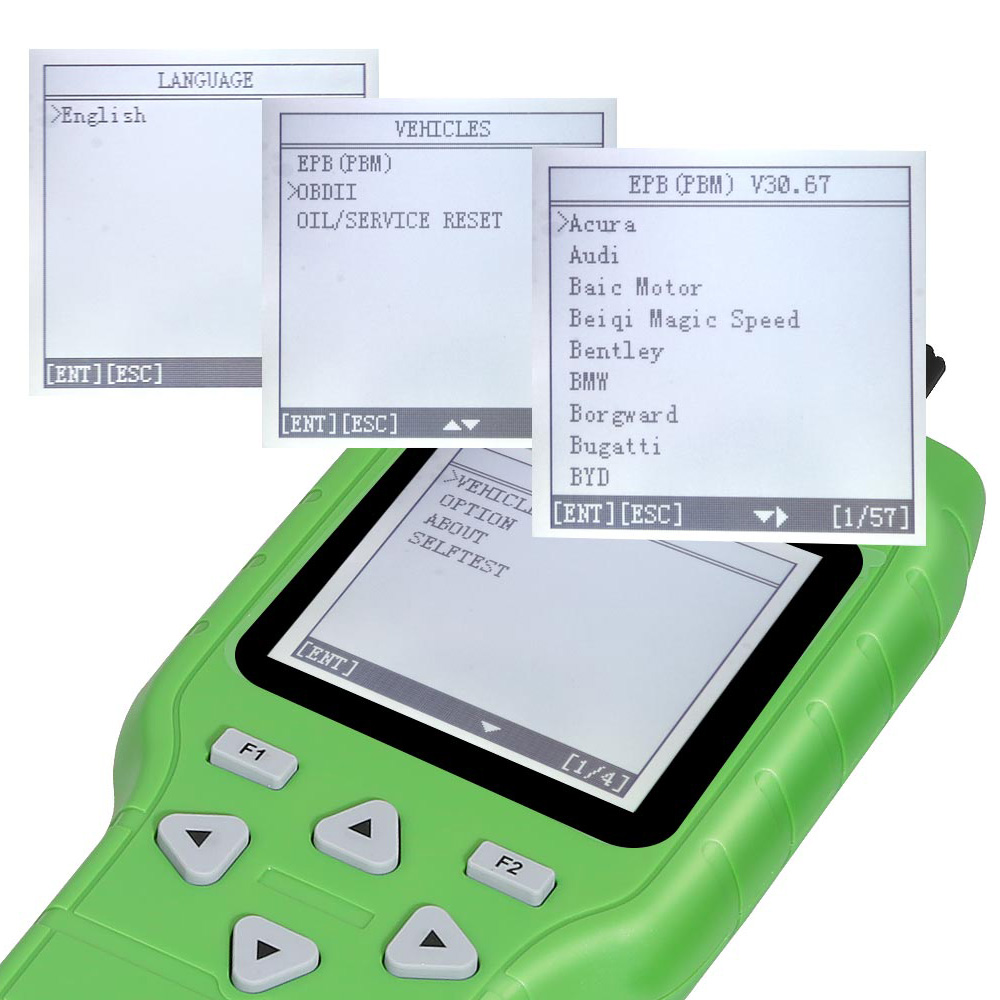

X200 Pro Reset Tool is a professional handheld device for Oil Resetting.

Functions:

1. Oil Reset / Engine Oil Light Reset

2. Tire pressure warning light reset (manual operation)

3. Timing belt light reset (manual operation)

4. OBD-II engine diagnosis

5. EPB Electronic Brake changes brake pad

6. Throttle matching (GM, Honda, Nissan, Acura)

7. Supports the latest vehicles with CAN BUS and UDS protocols



Features:



1. One click reset VW/ Audi. No need to input any channel number. It supports the vehicles till 2012. For A8L, A7, A6L, A5, A4L, A3, A1, Q5, Q7, Q3, TT, New for Magotan, CC, new Lavida, new Sagitar, new Passat, Superb, Fabia, Tiguan, Tiguan, Scirocco Touareg etc., small maintenance or big maintenance inputs the service miles and days directly for automatic setting.

2. Supports the replacement of EPB electronic brake pad for V.W / Audi.

3. Supports engine oil, spark plugs, front brake pads, back brake pads, air conditioner, brake liquid, coolant liquid, vehicle checking , etc. reset for BMW(F01/F02/F03/F04/F07/F10/F11/F12/F13/F18/F20/F30,etc.).

4. Support the lifespan percentage setting of engine oil for Buick, for Cadillac etc.(0~99, you can input different value according to the quality of engine oil)

5. Supports for Mercedes for Benz CAR series and for Mercedes for Benz VITO/for VIANO/for SPINTER. You can choose automatic setting according to the engine models.

6. Supports for Porsche for Cayenne, for Panamera till 2012

7. Supports most of Europe, America, Asia and Chinese brands vehicles (some models do not support the device to reset, only support manual reset, we have installed the materials of manual reset for most models.)

8. Supports maintenance light reset for Volvo for Land Rover .

9. Supports the diagnosis for the engine with OBD- and OBD-CAN deal.

10. The method of part tire pressure warning light reset, timing belt light reset has been installed.

11. Detailed and clear instructions make the operation easier .(some models do not support the device to reset, only support manual reset, we have installed the materials of manual reset for most models. )

12. Supports online update. Please use large capacity TF card to guarantee the updating successfully.

Note:

Input the service miles and days directly, namely you can set the service miles according to the using oil model of your vehicle. e.g.: for Audi 2.0T with the engine of spiral increase, in general, after the maintenance, mileage setting is 5000KM and days is 180D. So you can directly follow the prompt to input 5000KM,180D.

For VW / Audi models, set cycle and mileage as following:



1. VW / Audi with T engine: (e.g. : 1.8T, 2.0T etc) 5000KM, 180D

2. VW / Audi without T engine: 7500KM, 180D

3 . VW / Audi big maintenance: (e.g.: A4L, Q5, A7 in 2012, A8L in 2012) 30000KM, 730D



FAQ:



Q1: Can it reset VW / Audi models by manual method?



​A1: Small maintenance for some models can reset, e.g.: A4L, but manual reset can only reset according to default value, most for VW, for Audi models the default value of small maintenance is 15000KM,365D. This cycle is obviously unsuitable for the environment of China. In addition most models do not support manual reset. Big maintenance (30000KM, 730D) must use the device to reset.



Q2: Does X200 Pro Oil Reset Tool support the new model A8L, A7, A3, A1, Tiguan, Magotan in 2012?

A2: Supports all the latest VW / Audi adopt UDS protocol, at present, most devices do not support checking and resetting for them. But X-200 Pro can do that.

Supported Cars:



1. EPB Brake Pad Replacement:

VW ( R36, CC, Magotan etc.)

Audi ( A4L, A6L, Q5 etc.)

Seat

Skoda



2. Tire Pressure Warning Light Reset (Manual Operation):

Mercedes-for Benz

GM

VW

BMW

Toyota



3. Timing Belt Light Reset (Manual Operation):

Toyota

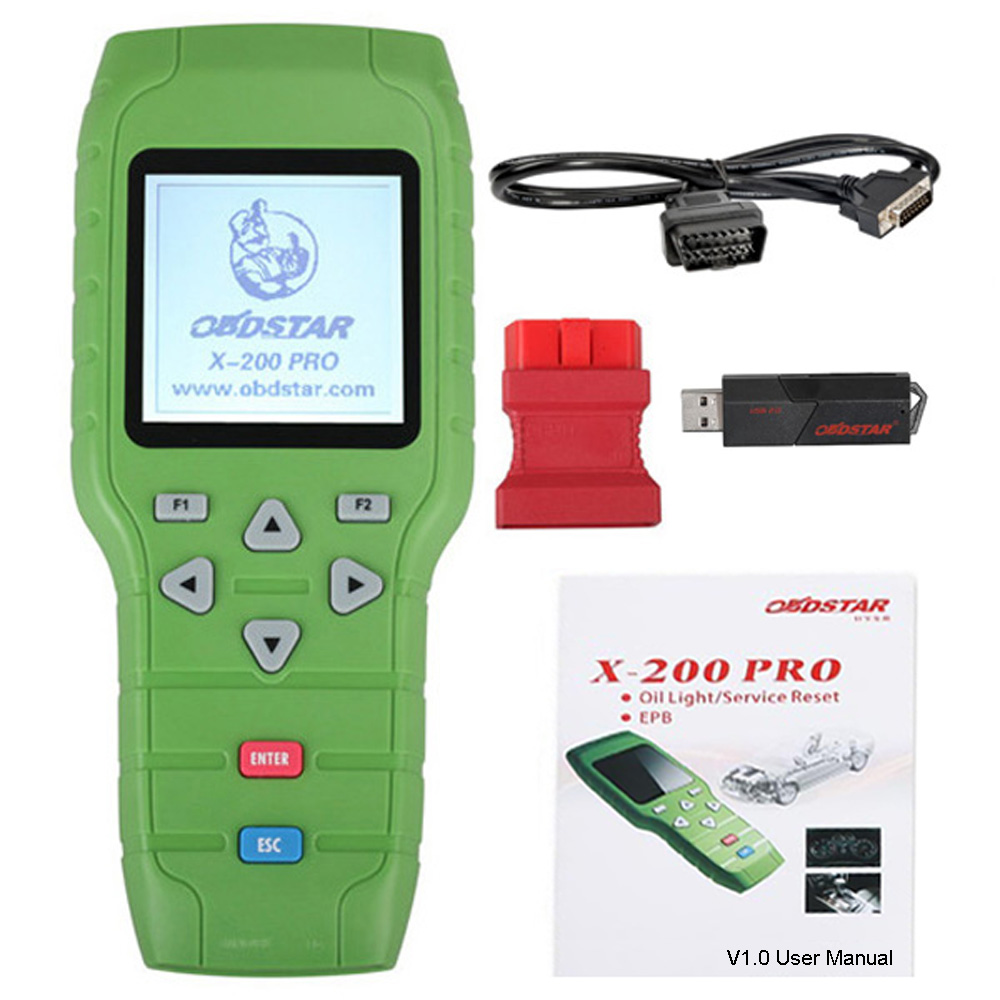

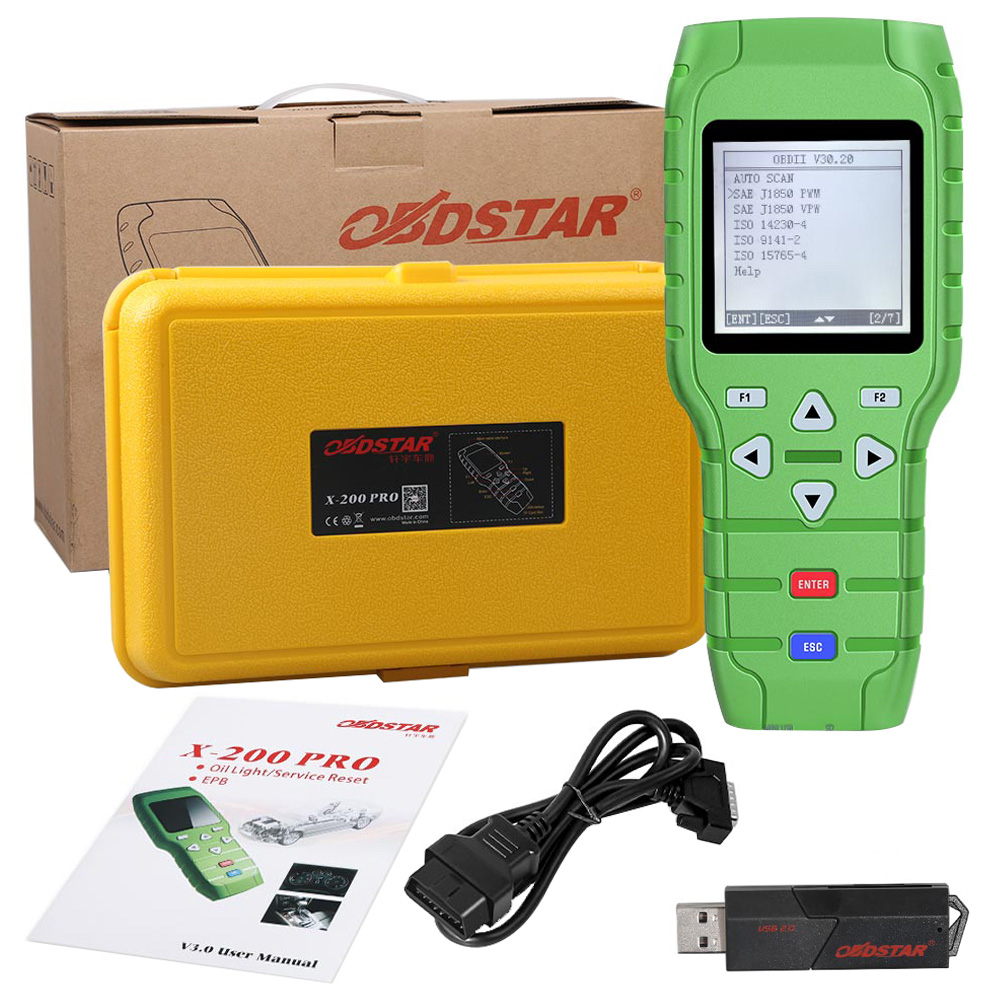

Packing List:



OBDSTAR X200 Pro

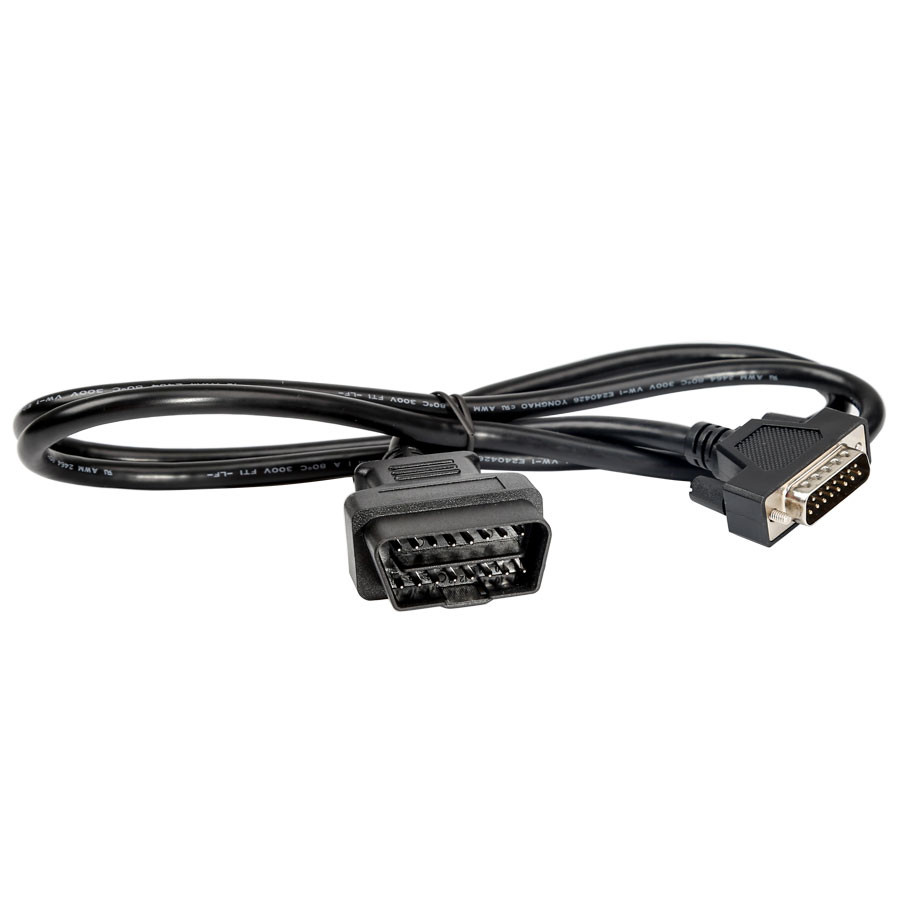

Main Cable

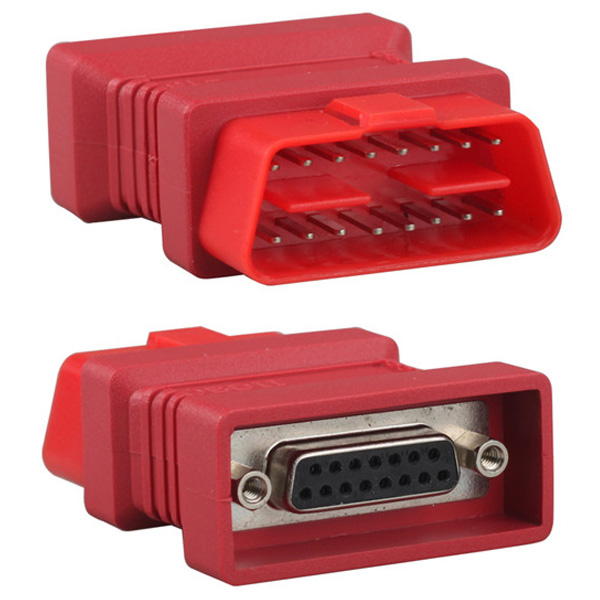

OBD-II Connector

TF Card

TF Card Reader

User Manual

Packing List

Plastic Toolbox

Packing Box
