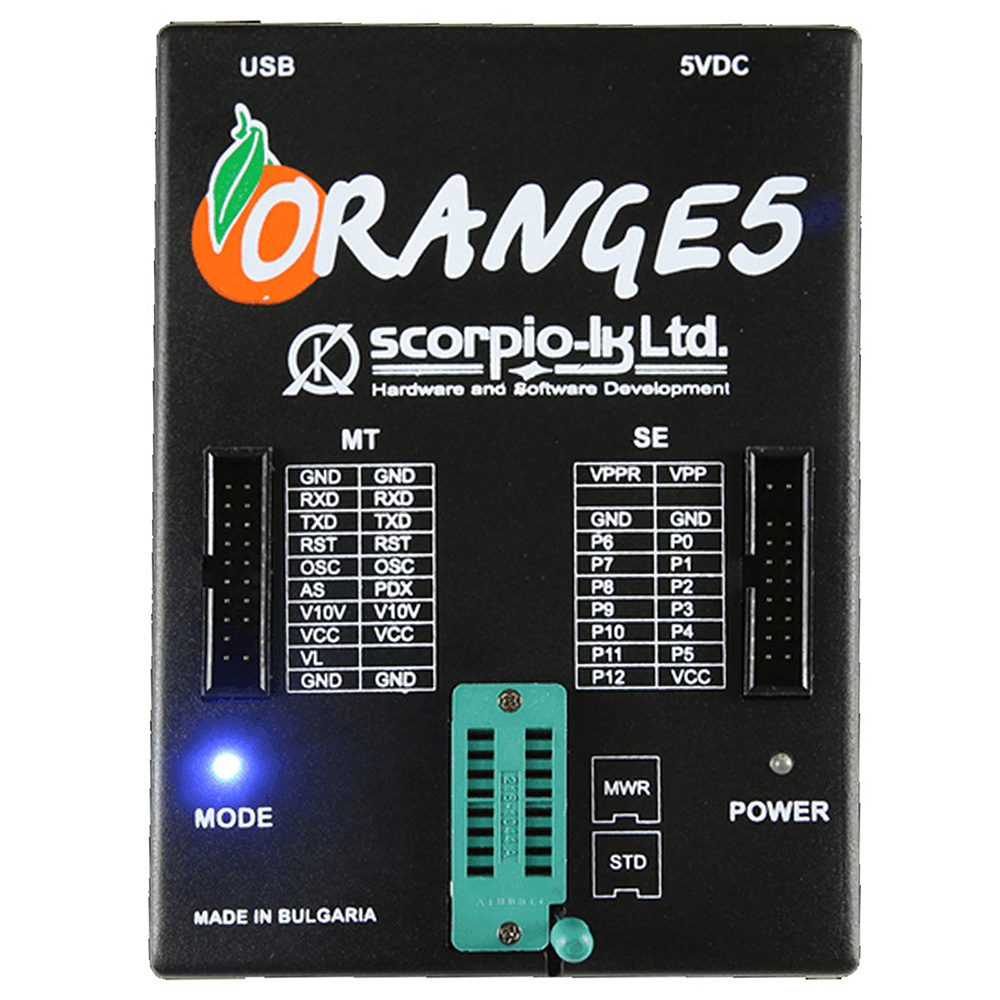

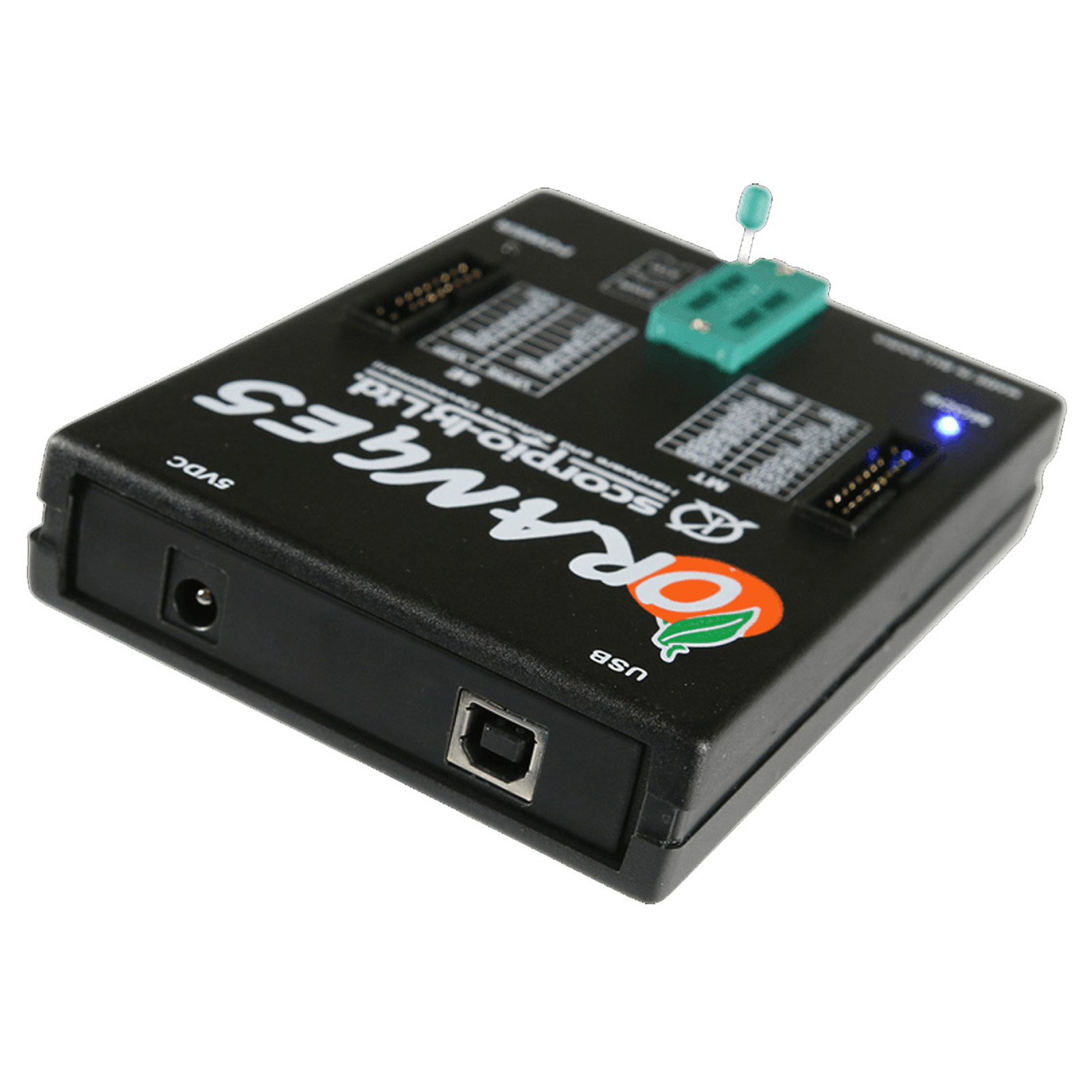

Name: Original Orange 5 Memory and Microcontrollers Professional Programming Device

Description:

Orange5 is a professional programming device for memory and microcontrollers. Unique feature of the current series programmers is built-in macro language for writing down protocols, which gives fast and easy capability to add new types of micro schemes, precisely meeting manufacturers' requirements to read/write algorithms.

Technical Parameters:

USB power supply (USB2.0/3.0)
Universal easy to plug panel ZIF16 for EEPROM
Control of contacts in the sockets
Two expansions compatible with Orange4 and Omega MTRK
Protection against over current
Overload voltage protection
2 types of power supply: Standard (USB) and enhanced (USB + external power supply)
3 adjustable voltage and current control: voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers
High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
Wave cycle generator with frequency ( up to 24 MHz) and out voltage(2.0...5.0V) adjustment
Capability of functional emulation of class CDC USB devices
Built-in 32-bit virtual machine
Supported Interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
Programmer is enclosed in a functional box. Supported Windows XP/7 32bit.

Packing List:

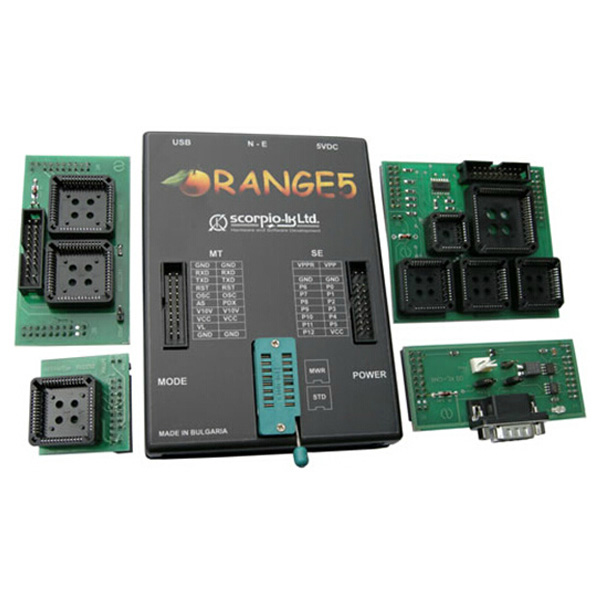

01. Orange-5 (include 05BP2&HC11A/Exx; TMS; K/CAN)

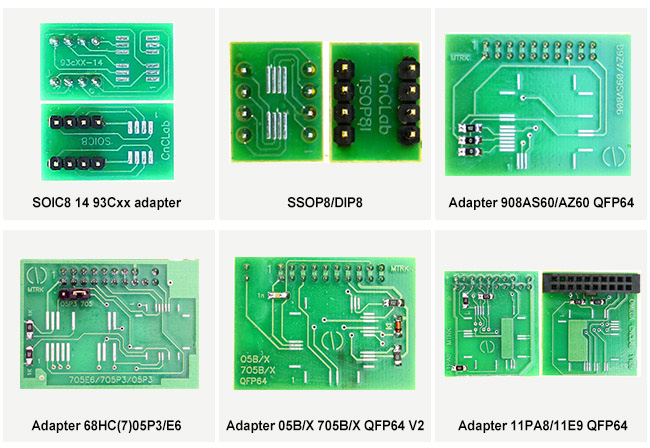

02. Adapter SOIC8 14 93Cxx
03. Adapter SSOP8/DIP8
04. Adapter 908AS60/AZ60 QFP64
05. Adapter 68HC(7)05P3/E6
06. Adapter 05B/X 705B/X QFP64 V2
07. Adapter 11PA8/11E9 QFP64

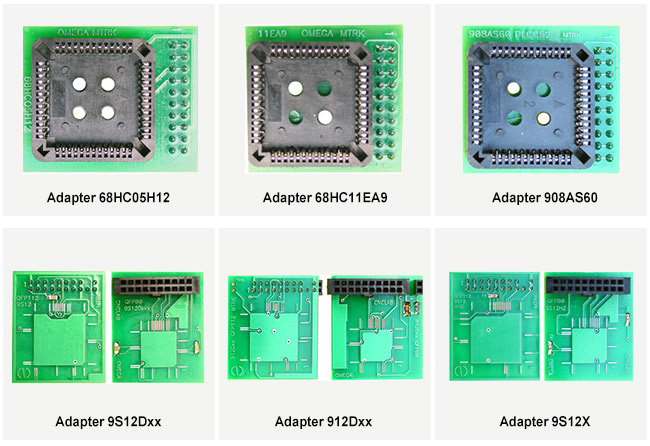

08. Adapter 68HC05H12
09. Adapter 68HC11EA9
10. Adapter 908AS60
11. Adapter 9S12Dxx
12. Adapter 912Dxx
13. Adapter 9S12X

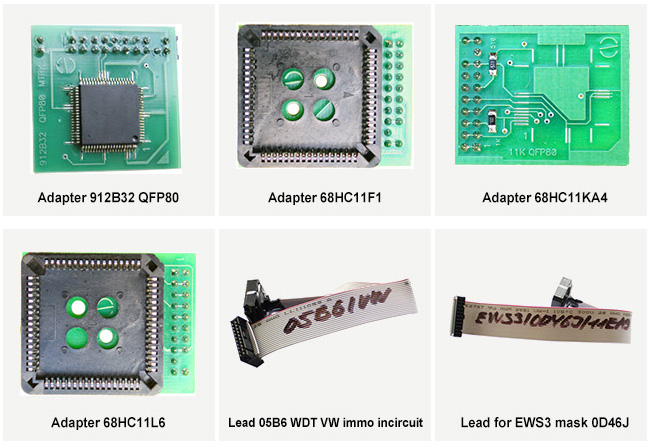

14. Adapter 912B32 QFP80
15. Adapter 68HC11F1
16. Adapter 68HC11KA4
17. Adapter 68HC11L6
18. Lead 05B6 WDT VW IMMO incircuit
19. Lead for EWS3 mask 0D46J

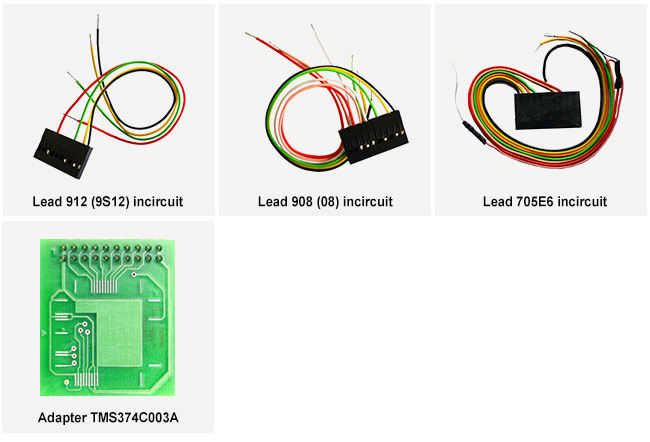

20. Lead 912 (9S12) incircuit
21. Lead 908 (08) incircuit
22. Lead 705E6 incircuit
23. Adapter TMS374C003A
24. Special software ImmoHPX
