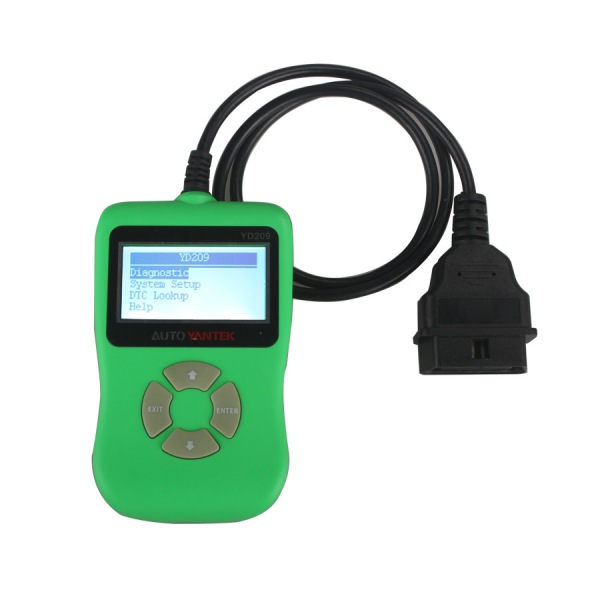

Name: YD209 DIY Auto OBD2 Code Scanner

Description:

Supports one year free online update.
Compatible with all 1996 and newer vehicles (OBD-II & CAN).
Supported Language: English

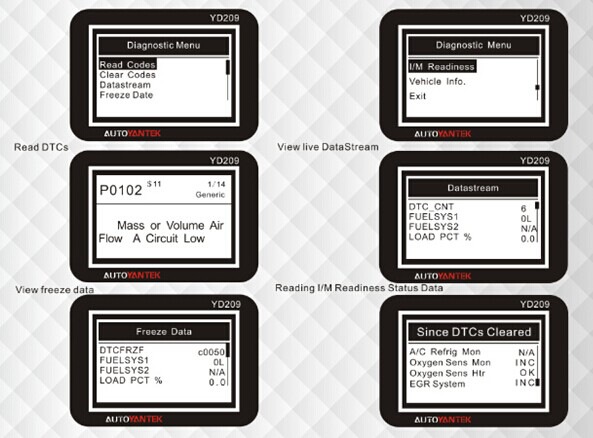

Features:

Read DTCs.
Clear DTCs.
View live Datastream.
View freeze data.
Reading I/M readiness status data.
Restrieve vehicle information.
Compatible with all 1996 and newer vehicles(OBDII & CAN).
Supported protocols: J1859-41.6, J1850-10.4, ISO9141, KWP2000(ISO 14230), and CAN(control Area Network ISO 11898).

Specifications:

CPU: ARM
Display: Backlit, 128*64 pixel display with contrast adjustment
Working Temperature: 0 to 60 degree centigrade
Storage Temperature: -20 to 70 degree centigrade
Power: 8-18 Volts powered by vehicle battery
Dimension(L*W*H): 126*75*25mm (4.9*2.96*0.98 inch)
Weight: 380g

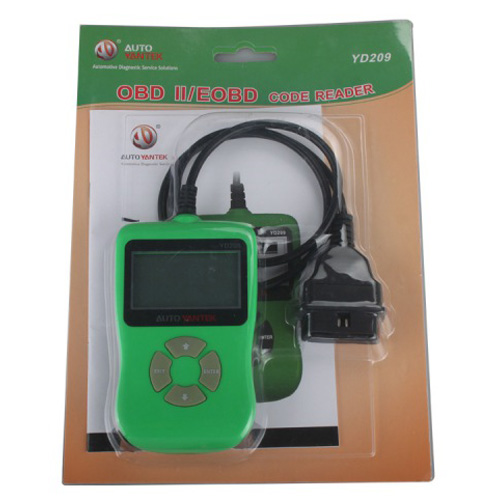

Set Includes:

YD209 OBDII/EOBD Code Reader
User manual
