Name: VXDIAG for Toyota Honda JLR with WiFi

Description:

VXDIAG is the latest diagnostic software platform. Diagnostic software can be operated on Laptop or PDA with Windows or Windows CE.

Automotive Diagnostic language (VDL) exploitation platform based on XML by self-determination and high efficiency database management system makes it easily to explore the vehicles.

Software Version:

Toyota Techstream V10.30.029
Honda HDS V3.014
Land Rover/Jaguar JLR V141

Features:

1. VXDIAG supports Toyota, Honda, Land Rover/Jaguar.

2. You can buy and add more original software to work with VXDIAG hardware in future.

Current available original software: Toyota, Honda, Land Rover, Jaguar, Ford, Mazda, Subaru, Porsche.

Software will be released soon: Volvo, Chrysler, GM, Kia, Hyundai, GMC, Nissan, Suzuki, VAG, BMW, Benz, Ferrari, Maserati.

3. Support both of 12V and 24V gasoline and diesel car.

4. Hardware supports 4-way CAN BUS and 2-way K - Line/L-Line, support multi-protocols high-speed and concurrent communication.

5. Innovation design of OBD-II intelligent BUS protocol routing hardware. A diagnostic plug can be intelligent identification test all models, fully meet the future demand for all kinds of BUS communication.

Features:

1. Adopt 16 digit Dual Cell specialize CPU. Fully compliant with all vehicles protocols.
2. Diagnostic software accord with international standard, collocate communication port flexibly, less connectors
3. Self-determination design for connectors and cables.
4. Hardware accord with CE and FCC standard.
5. Support almost all vehicles socket.

PC Requirements:

Processor: Pentium 4 / 1.6GHz.
Memory: minimum 1GB
Hard disk: minimum 40G.
Display Resolution: 1024*768 or higher.
Network Interfaces: LAN 10 / 100M or 802.11b/g.
Communication Interface: USB 2.0 or USB 3.0

Specifications:

RAM: 32bit 180MHz ARM
Flash1MB Flash

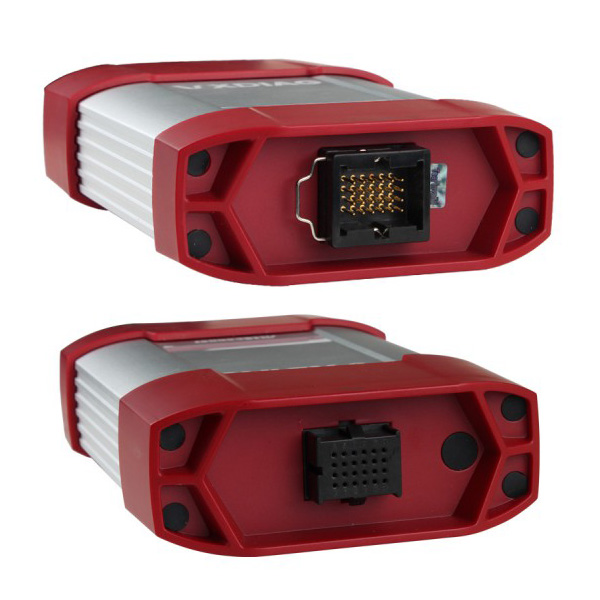

Diagnostic Port: 24-pin self-determination design
LED: 4 LEDs indicate power and working status
Power: DC 9V-36V
Consumption: 3W
Working Temperature: -20 to 70 degree centigrade
Storage Temperature: -40 to 85 degree centigrade

Supported Protocols:

ISO-9141 K-Line
ISO-14230 K-Line
ISO-15765 CAN
SAE-J1850-VPW (GM Class2)
SAE-J1850-PWM (FORD SCP)
ISO-11898-2 DWCAN
ISO-11898-3 DWFTCAN
SAE-J2411 Single Wire CAN (GMLAN)
SAE-J2610 SCI (Chrysler)
SAE-J1567 CCD BUS (Chrysler)
SAE-J2740 GM ALDL
SAE-J2809 (HONDA DIAG-H)
CAN125/CAN250/CAN500/CAN1000
SAE-J1939 CAN
SAE-J1708/J1587 On RS485
CAT DATALINK (Catepillar)
ATA DATALINK (Catepillar)

Notice:

1. VXDIAG can not support All Keys Lost.
2. When original newer software is available, we will send you download link.

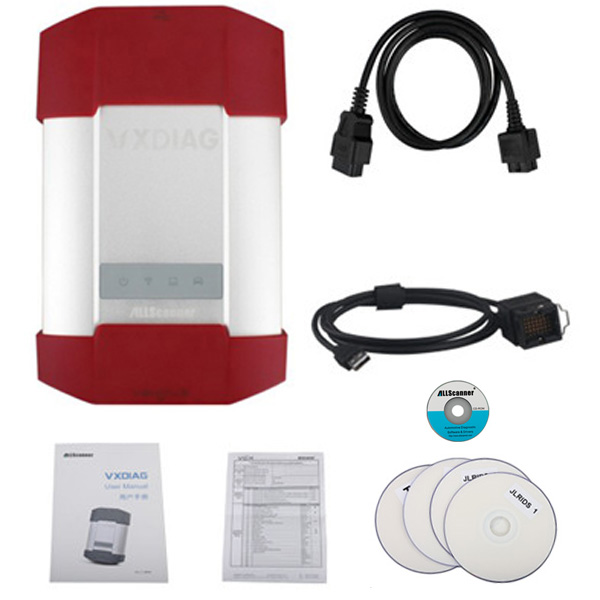

Packing List:

Allscanner VXDIAG Multi Diagnostic Tool
OBD2 cable

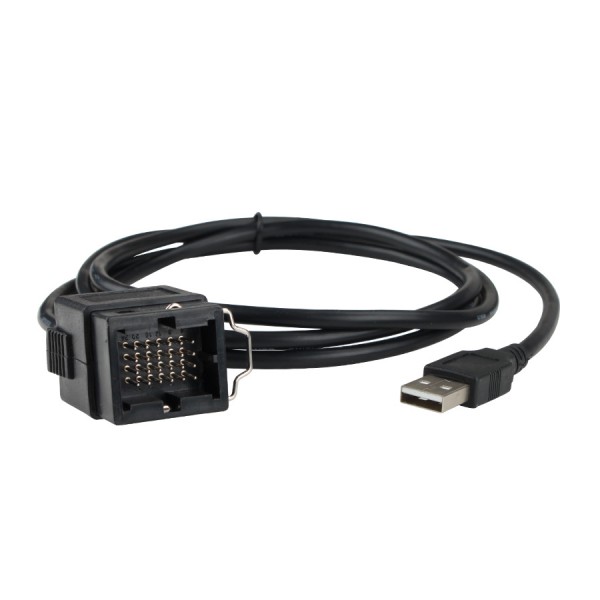

USB cable
Software CDs
Carrying case
