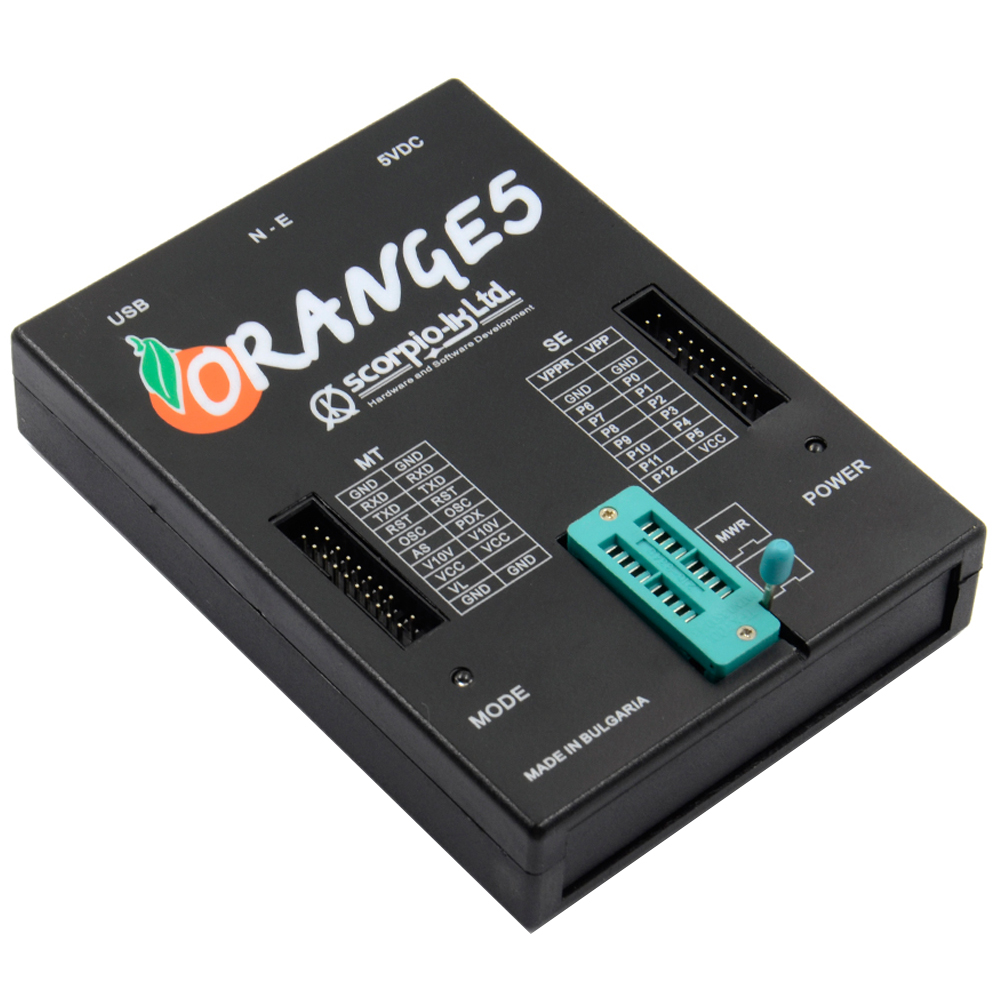

Name: Orange5 Programmer with Full Packet Hardware + Enhanced Function Software
Description:
Software Version: V1.38 (Nov. 2015)
Supported Languages: English, Russian
Supported OS: Windows XP / 7 / 8
Software Licenses:
MTRK (Included in Orange-5 base)
TMS (Included in Orange-5 base)
M08V NEW
IMMO HPX 9V0
NEC V850ES/SJ3 V850ES/SG3 UART
NEC V850E2 NEW
Notice:
1. Please do not update Orange5 Programmer online. Use only our software on CD.
2. Please only use USB cable for getting power supply, do not use power supply adapter to offer power.
Features:
* USB power supply (USB2.0/3.0)
* Universal easy to plug panel ZIF16 for EEPROM
* Control of contacts in the sockets
* Two expansions compatible with Orange4 and Omega MTRK
* Protection against over current
* Overload voltage protection
* 2 types of power supply: Standard (USB) and enhanced (USB + external power supply)
* 3 adjustable voltage and current control: Voltage of power supply (2.0 to 5.0V ), programming voltage (2.0 to 21.0V), additional static 10V for microcontrollers
* High-speed bidirectional pin drivers with adjustable voltage (2.0 to 5.0V)
* Wave cycle generator with frequency (up to 24 MHz) and out voltage(2.0 to 5.0V) adjustment
* Capability of functional emulation of class CDC USB devices
* Built-in 32-bit virtual machine
* Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
* Programmer is enclosed in a functional box.
CnCterm - Terminal program for work with COM ports:
Supports any COM ports includes virtual ones from 1 to 20
Works with text (ASCII) and HEX mode
Creating a list of commands that allows editing and fast sending
Fine-tuning the exchange rate
Saving files including command and port settings.
Saving incoming data in binary files
File transfer via serial port.
Delay settings for bytes and blocks
"Echo" mode
Delay settings between incoming data
Management of DTR, RTS chains, visualising DSR, CTS, CD, RI
Program does not need to be installed
Supports Orange5 Programmer in emulation mode.

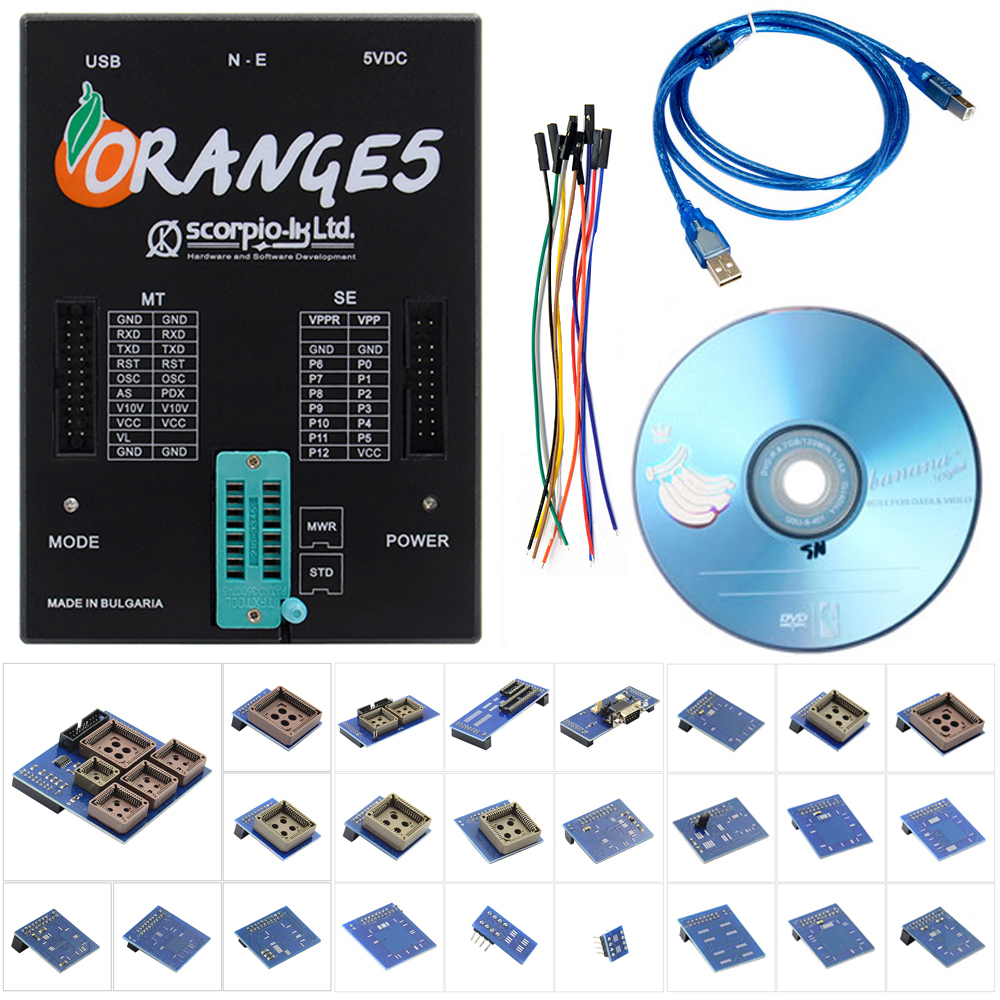

Package List:
Orange-5 Programmer
USB cable
Incircuit wire (10 pcs)
Lead with clips SOIC8 & DIP8
Lead 11E9(20) with power
Lead for EWS3 mask 0D46J

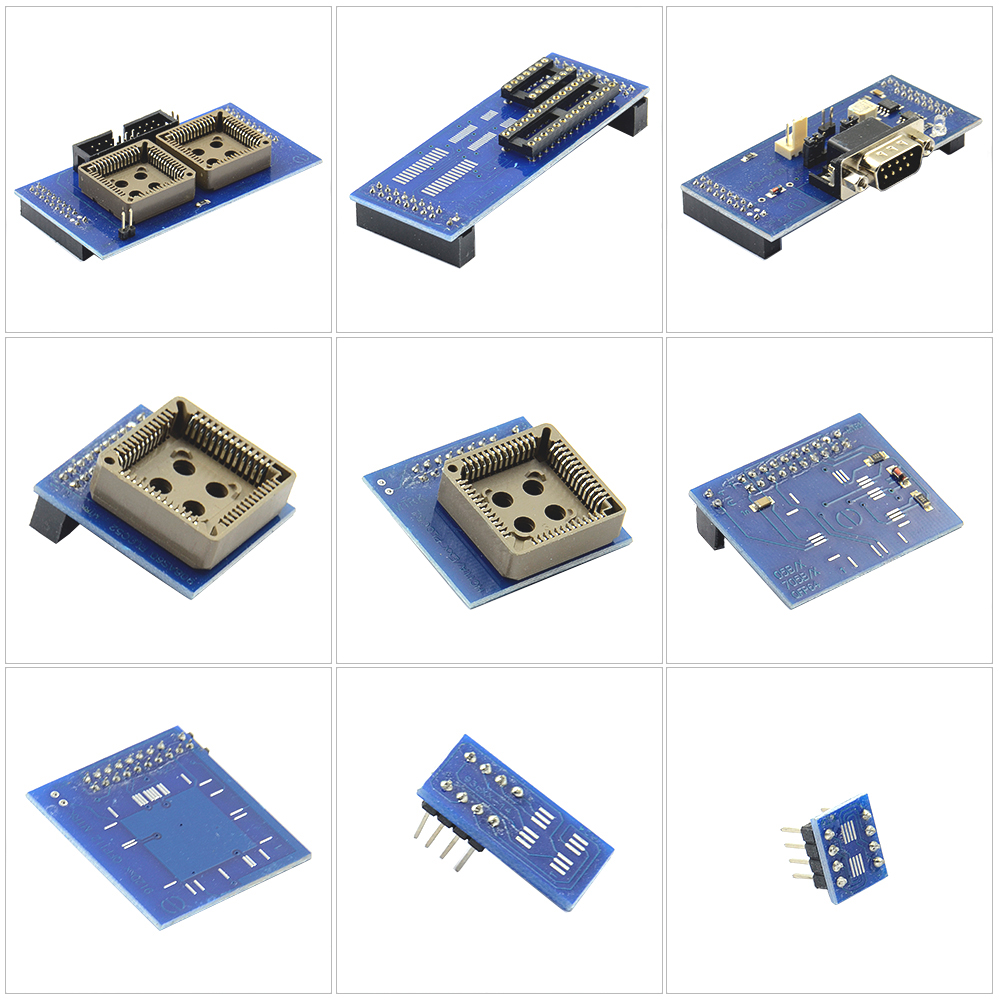

SOIC8/DIP8 expert adapter
SOIC8/DIP8 adapter
SOIC8_14_93Cxx adapter
SSOP8/DIP8 adapter

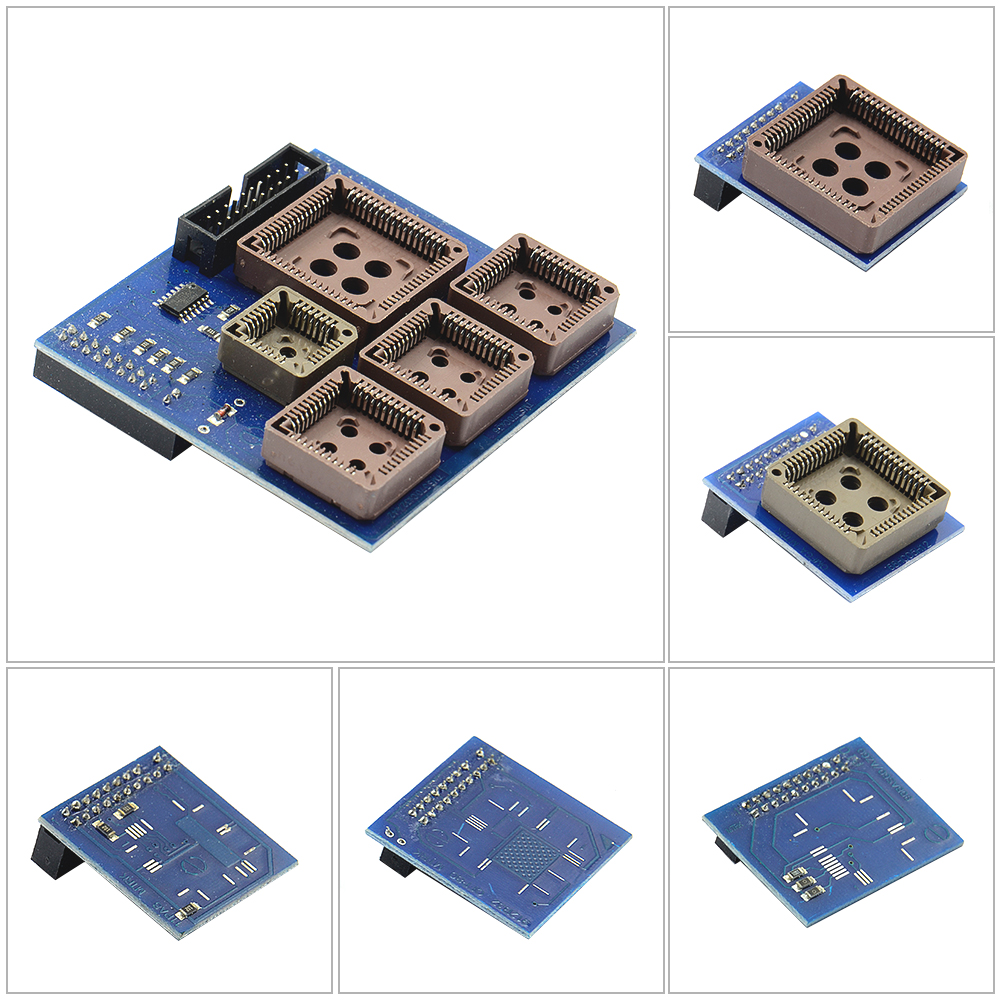

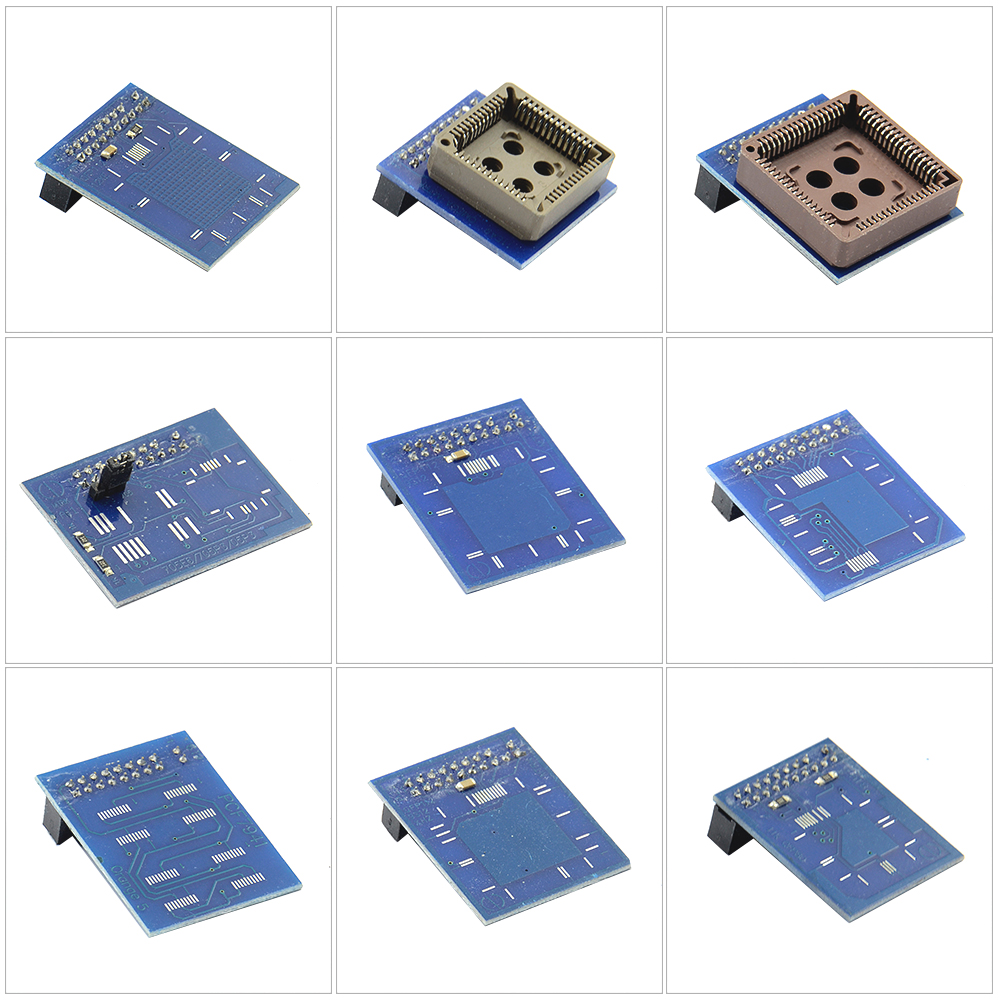

Adapter 05L28/05B
Adapter 908AS60/AZ60 QFP64
Adapter 68HC(7)05P3/E6
Adapter 05B/X_705B/X QFP64 V2
Adapter 11PA8/11E9 QFP64
Adapter 68HC05H12
Adapter 68HC11EA9
Adapter 908AS60
Adapter 9S12Dxx
Adapter 912Dxx
Adapter 9S12X
Adapter 912B32 QFP80
Adapter 68HC11F1
Adapter 68HC11L6
Adapter 68HC11KA4
Adapter TMS374C003A
Adapter MSP430F
Adapter 68HC11KA4 PLCC68
Adapter 908JL
Adapter PCF7941
Adapter 9S12XE
Software CD
Packing box
Supported Chips:
IMMO HPX 9V0
PCF
PCF7941 Reset
Alfa Romeo
BSI
147
Audi
BCM2
Ver.1 uPD70F3239
Ver.1 uPD70F3380
Ver.2 uPD70F3380
Ver.1 uPD70F3634
Dash
A2 VDO crypto 93C86
A3 UKNSI 93C56
A3 VDO '97/99 93C66
A3 VDO crypto 93C86
A3 MM 912DG128
A4 UKNSI 0012-003 93C56
A4 UKNSI 0014-001 93C56
A4 UKNSI 0016-001 93C56
A4 UKNSI '97/98 93C56
A4 VDO '97/99 93C66
A4 VDO '99/01 93C86
A4 MM 912DG128
A6 UKNSI 0012-001 93C56
A6 UKNSI 0014-001 93C56
A6 UKNSI 0016-001 93C56
A6 VDO '97/99 93C66
A6 VDO '99/01 93C86
A6 VDO crypto 93C86
A6 MM 912DG128
S3/S6 MM 912DG128
TT MM 912DG128
IMMO
'94/97 4A0 953 234 93C46
Delphi 8D0 953 234 93C46
ECU
'00/04 ECU EDC15 24C04
A3 1.8T 0261204678 24C02
A4 1.8T 0261204778 24C02
A4 '02 8E0 909 xxx 95040
ELV
MC68HC908GR16A[4L35K]
MC68HC908GR16A[0M76Z]
BMW
Dash
Dash with M35080
IMMO
EWS-3 HC11EA9 clips [0D46J]
EWS-3 HC11EA9 wires [0D46J]
EWS-3 HC11EA9 adap [2D47J]
EWS-3+ HC11EA9 clip [0D46J]
EWS-3+ HC11EA9 adap [2D47J]
Chery
All Chery with 0L72A
All Chery with 0L59X
Chevrolet
IMMO
Captiva MC9S08DZ60 [3M05C]
Chrysler
IMMO
SKIM IMMObox 24C02
Ram uPD70F3626
Citroen
BSI
Berlingo 03/06 BSI v1 95160
Berlingo 03/06 BSI v2 95160
Berlingo 03/09 BSI v3 95160
C2 '03/04 BSI 95160
C3 '02/04 BSI v1 95160
C3 '02/04 BSI v2 95160
C5 '01/04 BSI 912DG128
C5 '02/04 BSI 95160
C8 '03/04 BSI 912DG128
Picasso '03/04 BSI 95160
Xsara II '01/03 BSI 95040
IMMO
Berlingo Valeo 93C46
Jumper '99/06 Delphi 93C56
Jumpy 705E6 [F82B]
Relay Delphi 93C56
ECU
Xsara ECU EDC15C2 95P08
DAF
IMMO
MC68HC908AZ60 [2J74Y]
MC68HC08AZ32A [2L52H]
Dodge
IMMO
SKIM IMMObox 24C02
Fiat
Automotive K/CAN
IMM 009.10
BSI
Albea 912DG128 [3K91D]
Panda '02 BSI [1L40K]
Stilo 912DG128 [3K91D]
Stilo BSI [1K79X]
Strada BSI [1K79X]
IMMO
IMM001.11 [1K59H]
IMM009.01 [1K59H]
IMM009.01 [0L72A]
IMM100.01 [1K59H]
IMM110.01 [1K59H]
Bravo 705E6 [G72G]
Bravo 705E6 Clips [G72G]
Bravo 08AZ32 [1H56A]
Cinquecento '96 93C46
Coupe '96 IMMObox BOSCH 93C46
Ducato Delphi 93C56
Marea 08AZ32 [1H56A]
Punto 93C46
Punto Delphi 93C66
Scudo 705E6 [F82B]
Palio '09 [0L72A]
Seicento Delphi 93C56
ECU
Scudo '01 JTD EDC15C2 95P08
Ford
BSI
Focus '03- 9S12XEP768 [5M48H]
Dash
4M5T MC9S12H128[1K78X]
8VT4 MC9S12XHZ256[1M80F]
ECU
Focus '00 ECU 77012
Gilera
ECU
Fouco 500 [ST10F269]
Great Wall
IMMO
With 0L72A
Hyundai
ECU
Accent KEFICO ECU M95160
Elantra KEFICO ECU M95160
Honda
IMMO
Acord '06 IMMO HIS-5 93C46
Legend '07 IMMO HIS-5 93C46
Valeo HC05B6 [0F10V]
Valeo HC05B8 [3D33J]
Valeo HC705B16 [0D28J]
KEIHIN 38770-MFJ-D04 93C66
Jeep
IMMO
Grand Cherokee 08AZ32 0J66D
Grand Cherokee '13 uPD70F3626
Grand Cherokee '09 uPD70F3629
SKIM IMMObox 24C02
KIA
IMMO
'99/01 IMMObox 93C46
ECU
Cerato KEFICO ECU M95160
Lancia
IMMO
Kappa IMMObox BOSCH 93C46
Mahindra
Automotive K/CAN
XYLO
Mazda
IMMO
Lucas 19AS HC05B8 [3D33J]
SKLC
2 '09- MC9S12XDT384
Demio '09- MC9S12XDT384
ECU
6 ECU 93A66
Mercedes Benz
IMMO
Sprinter 05X16 [0D62J]
Sprinter/Vito 08AZ32 [0J66D]
Sprinter/Vito 08AZ32A [L52H]
EZS
W203 908AZ60 [1J35D]
W203 908AZ60 [1J35D]
W203 908AZ60 [4J74Y]
W220 908AZ60 [1J35D&4J74Y]
W639 Vito '03/up [1L02M]
W639 Vito '03/up [3K85K]
W639 Vito '03/up [4J74Y]
Nissan
IMMO
IMMObox with TMS370Cx2x
BSI
Skyline [1L15Y] Wires
Automotive K/CAN
NATS-2 (Motorola)
NATS-2+ 5WK4 652
NATS-4 (TMS)
NATS-5 (TMS)
NATS-5 (ST)
NATS-5 (TMS in 5WK48645)
Opel
IMMO
IMMO HC05B6 [0F10V]
IMMO TMS370C002 (PLCC28)
IMMO 5WK4 7631[0L72A]
Peugeot
BSI
307 '01/03 BSI 912DG128
307 '01/03 BSI 912DG128A
307 '02/05 BSI 95160
807 '04/05 BSI 912DG128
807 '05/06 BSI 95128
IMMO
Boxer Delphi 93C56
106 Valeo 93C46,
Partner Valeo 93C46
Piaggio
IMMO
Vespa '95 AEC302C 705E6 [0F82B]
Renault
IMMO
Clio-I IMMObox Sagem 93C46
Clio-II '98 BMT Sagem 93C46
Kangoo IMMObox Sagem 93C46
Master '99-01 IMMObox Sagem 93C46
UCH
Clio III Sport [3L91N]
Megane [4L91N]
IR key
Clio key with MC68HC05K3
Rover
IMMO
Valeo HC05B6 [0F10V]
Valeo HC05B8 [3D33J]
Valeo HC705B16 [0D28J]
EWS 9S12DG128 [3L40K]
Seat
Dash
Cordoba VDO '99/01 93C86
Cordoba VDO '03/05 93C86
Cordoba MM 9S12H256
Ibiza VDO '00 93C66
Ibiza VDO '99/01 93C86
Ibiza VDO '03/04 93C86
Ibiza VDO crypto 93C86
Ibiza MM 9S12H256
Ibiza 6J0 920 801A 24C32
Ibiza 6J0 920 802H 24C64
Ibiza 6J0 920 804L 24C64
Leon VDO v.1 93C86
Leon VDO v.2 93C86
Leon VDO v.3 93C86
Leon VDO v.4 93C86
Toledo VDO v.1 93C86
Toledo VDO v.2 93C86
Toledo VDO v.3 93C86
ECU
EDC15 '00/04 24C04
EDC16U1 '04/06 95320
EDC16U31 '03/05 95320
Skoda
Dash
Fabia VDO '00/01 v1 93C86
Fabia VDO '00/01 v2 93C86
Fabia VDO '04 93C86
Fabia VDO crypto 93C86
Felicia VDO 93C66,
Felicia VDO '01/02 93C86
Oktavia VDO 93C66
Oktavia VDO '00/05 93C86
Oktavia VDO crypto 93C86
Roomster VDO crypto 93C86
SuperB VDO '02/04 93C86
SuperB VDO crypto 93C86
ECU
'00/04 ECU EDC15 24C04
'05/06 ECU EDC16U1 95320
SsangYong
IMMO
87110-0930 MSP430F1232
87110-0910 MSP430F1232
MSP430F1232 (universal)
VDO MC68HC05B16 [0D60J]
Suzuki
IMMO
Baleno '99- 93C66
Swift '99- 93C66
Alto 24C01
Ignis 24C01
Jimny 24C01
SX4 [0L72A]
Toyota
IMMO
IMMObox 89780-12070 93C66
IMMObox 89780-20010 24C04
IMMObox 89780-42030 93C66
ECU
ECU 89661-50440 93C56
VW
BCM2
uPD70F3634
VW Beetle dash
Beetle 912D60
Beetle '03/05 912DG128
Beetle 03/05 912DG128C L05H
Beetle 05/06 9S12H256 K78X
VW Beetle ECU
Beetle EDC16U31 95320
VW Bora dash
Bora MOT'99/00 24C02
Bora VDO 93C66
Bora VDO '99/00 93C86
Bora VDO '01 93C86
Bora VDO '01/03 93C86
Bora VDO '03/05 93C86
VW Caravelle ECU
T5 '04/06 EDC16U1 95320
T5 '04/06 EDC16U31 95320
VW Fox dash
Fox MM 9S12H256
VW Golf dash
G4 MOT 24C02
G4 MOT '01/03 24C08
G4 BOSCH '02/03 24C08
G4 VDO 93C66
G4 VDO '99/00 93C86
G4 VDO '01 93C86
G4 VDO '01/03 93C86
G4 VDO '02/03 93C86,
G4 MOT addr.line 24C02
G6 5K0 920 870C 24C32
G6 5K0 920 872A 24C64
G6 5K0 920 873A 24C64
VW Jetta dash
Jetta VDO '00 93C66
Jetta VDO '99/01 93C86
Jetta VDO '01 93C86
VW Passat dash
Passat B5 MM HC11KG4
B5 VDO 93C66
B5 VDO '99/01 93C86
B6 VDO '01/02 93C86
B6 VDO '03/04 93C86
MOT addr. line 24C02
VW Pointer dash
Pointer '05/06 93C66
VW Polo dash
Polo VDO '01/02 93C86
Polo VDO '01/04 93C86
Polo VDO crypto 93C86
VW Polo ECU
Polo '04 ECU 1.4 MM 95320
VW Sharan ECU
Sharan '00/04 EDC15 24C04
Sharan 06/07 EDC16U31 95320
VW Touran ECU
ECU EDC16U34 '06/07 95320
VW Transporter dash
T4 VDO '01/03 93C86
T5 VDO '03/07 93C86
VW Transporter ECU
'00/04 ECU EDC15 24C04
'03/06 ECU EDC16U1 95320
'03/07 ECU EDC16U31 95320
IMMO
Fox '08 Brazil 93LC56
IMMO HC05B6 [0F10V]
IMMO HC05B6 [0B91T]
IMMO HC05B8 [3D33J]
IMMO TMS370C002 (PLCC28)
ECU
00/04 ECU EDC15
03/06 ECU EDC16U1
03/07 ECU EDC16U31
06/07 ECU EDC16U34
EEPROM
I2C
24C01
24C02
24C04
24C08
24C16
24C32
24C65
24C128
24C256
24C512
24LC21
MicroWire
93C06
93S06
93C46
93C46
93S46
93C56
93C56
93S56
93C66
93C66
93S66
93C76 WP0
93C76 WP1
93C76 WP0
93C76 WP1
93C86 WP0
93C86 WP1
93C86 WP0
93C86 WP1
4Wire
59C11
59C22
64C10
64C20
64C40
64C80
SPI
25C010
25C020
25C040
25C080
25C160
25C320
25C650
25C128
25C256
Adesto
AT25SF041
AKM
AK6410
AK6420
AK6440
AK6480
AK93C55
AK93C65
Altera
EPCS1
EPCS4
EPCS16
EPCS16
EPCS128
Amic
A25L512
A25L40
A25L080
A25L80
A25L016
A25L16
A25L032
A25LQ16
A25LQ32
Atmel
AT17C65 FPGA configurators
AT17C128
AT17C256
AT17LV65
AT17LV128
AT17LV256
AT24C01
AT24C01A
AT24C02
AT24C04
AT24C08
AT24RF08
AT24C16
AT24C164
AT24C21
AT24C32
AT24C64
AT24C128
AT24C256
AT24C512
AT24C1024
AT25010(8)
AT25020(8)
AT25040(8)
AT25080
AT25160
AT25320
AT25640
AT25128
AT25256
AT25DF021
AT25DF041
AT25DF081
AT25DF161
AT25DF321
AT25F512
AT25F1024
AT25F2048
AT26DF081
AT26DF161
AT26DF321
AT26F004
AT34C02
AT45D011 * Data Flash
AT45DB011 *
AT45D021 *
AT45DB021 *
AT45D041 *
AT45DB041 *
AT45D081 *
AT45DB081 *
AT45DB161 *
AT59C11
AT93C46
AT93C56
AT93C56A
AT93C56B
AT93C57
AT93C66
AT93C66A
AT93C66B
AT93C86
BOSCH
B34AB
B43AB
B46AJ
B49AJ
B52AP
B54AH
B81AB
B58252
B58253
B58256
B58258
B58379
B58380
B58608
B58813
Catalyst
CAT1023
CAT1024
CAT1025
CAT24WC08
CAT24FC32
CAT24WC32
CAT24C44
CAT24WC64
CAT25C32
CAT34C02
CAT35C102
CAT35C102
CAT35C104
CAT35C104
CAT59C11
CAT64LC10
CAT64LC20
CAT64LC40
CAT93C46
CAT93C56
CAT93C57
CAT93C57
CAT93C66
CAT93C76
CAT93C86
Chingis
Pm25LD512
Pm25LD010
Pm25LD020
PM25LV512
PM25LV010
PM25LV020
PM25LV040
PM25W020
Dallas/Maxim
DS1307
DS18B20
DS18B20U (uSOP)
DS18B20Z (SOIC)
DS1973
DS1990
RW1990
DS1992
DS1993
DS2401
DS2430
DS2432
DS2433
DS2502
DS Id
EON
EN25B05
EN25B05T
EN25F10
EN25P10
EN25F20
EN25B40
EN25B40T
EN25F40
EN25F40 + OTP
EN25S40
EN25S40 + OTP
EN25B80
EN25B80T
EN25D80
EN25D80 + OTP
EN25F80
EN25F80 + OTP
EN25T80
EN25T80 + OTP
EN25B16
EN25F16
EN25F16 + OTP
EN25T16
EN25T16 + OTP
EN25QH16
EN25QH16 + OTP
EN25F32
EN25F32 + OTP
EN25M32
EN25Q32
EN25Q32 + OTP
EN25B64 + OTP
EN25Q64
EN25Q64 + OTP
ESMT
F25L004A
F25L08PA
F25L016A
EXEL
XLS24C02
XLS24C04
XL93LC06
XL93LC46A
XL93LC46B
XLS93LC46
XL93LC56
XL93LC56A
XL93LC56B
Fairchild
FM24C02
FM24C03
FM24C04
FM24C08
FM24C09
FM24C16
FM24C17
FM93C66
FM93C66A
NM24C02
NM24C03
NM24C04
NM24C05
NM24C08
NM24C09
NM24C16
NM24C17
NM24U17
NM24C32
NM24C65
NM34C02
NM34W02
NM93C86
Ford
7002MN010
77005MC
77005PC
77007MC
77014
Fujitsu
MB85RC04
MB85RC16
GI
BAW574252
BAW658049
ER59256
ER59C11
ER1400
ER1450
PCD85C82
GigaDevice
GD25Q40
GD25Q80
GD25Q16
GD25Q32
Grundig
GRN-001
GRN-002
GRN-005
GRS-003
GRX-008
HOLTEK
HT93C46
HT93C66
Hynix
H27U2G8F ECC
HY27UF081G
HY27UF081G ECC
HY27UF084G 512MB, 4 pages
HY27UF084G ECC 512MB, 4 pages
HY27UH088G 1GB - 8 pages
HY27UH088G ECC 1GB - 8 pages
HY27US08121
HY27US08121 ECC
HY27US08281
HY27US08281 ECC
HY27US08561
HY27US08561 ECC
HY27UT084G 512MB, 4 pages
HY27UT084G ECC 512MB, 4 pages
HY27UT088G 1024MB, 8 pages
HY27UT088G ECC 1024MB, 8 pages
ITT
NVM3060
MDA2061
MDA2062
KHIC
KH25L4005
KH25L8036
Macronix
MX25L512
MX25L1005
MX25L2005
MX25L2006
MX25L2025
MX25L2026
MX25L4005
MX25L4006
MX25L8005
MX25L8006
MX25L1605
MX25L1606
MX25L1608
MX25L1635
MX25L1636
MX25L3205
MX25L3205D
MX25L3205D + OTP
MX25L3206
MX25L6405D
MX25L6405D + OTP
MX25L6406
MX25L6445
MX25L6445 + OTP
MX25L12805D *
MX25L12835E
MX25L12835E + OTP
MX25L12845E
MX25L12845E + OTP
MX25L25635F
MicroChip
24LC00
24LC01B
24AA02
24C02
24LC02
24AA04
24C04
24LC04
24AA08
24LC08
24AA16
24LC16
24AA164
24LC164
24LC21
24AA32
24C32
24LC32
24LC64
24AA65
24LC65
24AA128
24LC128
24AA256
24LC256
24AA512
24LC512
24AA1026
24FC1026
24LC1026
25AA040
25AA080
25AA160
25C040
25C080
25C160
25LC040
25LC080
25LC160
25LC320
25LC640
25AA1024
25LC1024
ER5911
93C06
93AA46
93C46
93LC46
93LC46A
93LC46B
93AA56
93AA56A
93AA56B
93AA56C
93C56
93C56A
93C56B
93C56C
93LC56
93LC56A
93LC56B
93LC56C
93AA66
93AA66A
93AA66B
93AA66C
93C66
93C66A
93C66B
93C66C
93LC66
93LC66A
93LC66B
93LC66C
93AA76
93C76
93LC76
93AA86
93C86
93LC86
HCS200
HCS300
MCP79410
PCD8572
Micron
M25PE80
M25PX16
M25PX32
W25PX64
N25Q016Ax1
N25Q032Ax1
N25Q032Ax3
N25Q064Ax1
N25Q064Ax3
Mitsubishi
M58653P *
M58655P *
M58657P *
M58658P *
M6M80011
M6M80021
M6M80041
Motorola
MCM2814
NEC
uPD6252
uPD6253
uPD6254
NSC
NM93C06
NM93C13
NM93C14
NM93C46
NM93C56
NM93C66
NM93CS56
NM93CS66
NMC9306
NMC9307
NMC9314
NMC9345
NMC9346
NMC93C56
NMC93C66
NMC93CS06
NMC93CS46
Numonyx
M25P05A
M25P16
M25P128
M25PE10
M25PE20
M25PE40
M25PE80
M25PX16
M25PX32
W25PX64
N25Q016Ax1
N25Q032Ax1
N25Q032Ax3
N25Q064Ax1
N25Q064Ax3
N25Q128Ax1
N25Q128Ax3
QB25F016S33B
OKI
MSM16811
MSM16812
MSM16851
MSM16911
MSM16951
ON Semi
CAT1023
CAT1024
CAT1025
CAT24WC08
CAT24FC32
CAT24C44
CAT24C512
CAT25C32
CAT34C02
CAT35C102
CAT35C102
CAT35C104
CAT35C104
CAT59C11
CAT64LC10
CAT64LC20
CAT64LC40
CAT93C46
CAT93C56
CAT93C57
CAT93C57
CAT93C66
CAT93C76
CAT93C86
PCT
PCT25VF032B
Philips
PCA8581
PCD8582
PCF8582
PCF8594
PCF8598
PCF85116
Pioneer
PDG011
PDH001
PDH004
PMC
Pm25LD512
Pm25LD010
Pm25LD020
PM25LV512
PM25LV010
PM25LV020
PM25LV040
PM25W020
Ramtron
FM24C04
FM24CL04
FM24C16
FM24CL16
FM24C64
FM24CL64
FM24C256
FM24CL256
FM24C512
FM25160
FM25C160
FM25L16
FM25L256
Rohm
BR24C01
BR24C02
BR24C32
BR24C65
BR9010
BR9020
BR9021
BR9040
BR9080
BR9016
BR93H56
BR93L56
BR93LC56
BR93RL56
BR93H66
BR93L66
BR93LC66
BR93H76
BR93H86
Samsung
K9F1208U
K9F1208U ECC
K9F1G08U 128MB
K9F1G08U ECC 128MB
K9F2808U
K9F2808U ECC
K9F2G08U 256MB - 2 pages
K9F2G08U ECC 256MB - 2 pages
K9F4008
K9F4G08U 512MB - 4 pages
K9F4G08U ECC 512MB - 4 pages
K9F5608U 32MB
K9F5608U ECC 32MB
K9F6408U 8MB
K9F6408U ECC 8MB
K9G8G08U 1024MB, 8 pages
K9G8G08U ECC 1024MB, 8 pages
K9K1G08U
K9K1G08U ECC
K9K4G08U 512MB, 4 pages
K9K4G08U ECC 512MB, 4 pages
K9K8G08U 1024MB, 8 pages
K9K8G08U ECC 1024MB, 8 pages
K9LAG08U 2048MB, 16 pages
K9LAG08U ECC 2048MB, 16 pages
KM29W040
KM93C06
KM93C07
KM93C46
KS24A021
KS24A041
KS24L161
S524A40X21
CLP300(Printer)
Seiko
S-2100R
S-24C01
S-24C02
S-24C04
S-24C08
S-24CS16
S-2430
S-2444
S-2445
S-24CS08
S-2900A
S-29130A
S-29131A
S-2914
S-29153
S-29190A
S-29220A
S-29255A
S-29290A
S-29230A
S-29330A
S-29355A
S-29390A
S-29430
S-29530
S-29590
S-29630
S-29690
S-93C46
S-93C56
S-93C66
S-93C76
S-93C86
Siemens
SDA2506
SDE2506
SDA2516
SDA2526
SDA2546
SDA2586
Sony
CXK1011
CXK1012
CXK1013
CXK1024
Spansion
S25FL001
S25FL002
S25FL008
S25FL016
S25FL032
S25FL064A
S25FL064P
S25FL128
S25FL256S
S99-50084
SST
SST25LF020A
SST25LF040A
SST25VF512
SST25VF010
SST25VF020
SST25VF040
SST25VF080
SST25VF016
SST25VF016B
SST25VF032B
ST
M24C01
M24C02
M24C04
M24C08
M24C16
M24C32
M24C64
M24C128
M24C256
M25P05 M25P20.hpl
M25P05A M25P20.hpl
M25P10 M25P20.hpl
M25P20
M25P28
M25P40 M25P20.hpl
M25P80 M25P20.hpl
M25P16
M25P128
M25PE10
M25PE20
M25PE40
M25PE80
M25PX16
M25PX32
W25PX64
M34C02
M34F04
M35080
M35160
M35560
M45PE20
M8571
M93C46
M93CS46
M93S46
M93C56
M93CS56
M93S56
M93C66
M93CS66
M93S66
M93C76
M93C86
M95020
M95040
M95080
M95160
M95160-R
M95160-V
M95160-W
M95320
M95320-R
M95320-V
M95320-W
M95640
M95640-R
M95640-V
M95640-W
M95128
M95128-S
M95128-V
M95128-W
M95256
M95256-S
M95256-V
M95256-W
M95M01-R
M95M02-DR
NAND128
NAND128 ECC
NAND256
NAND256 ECC
ST24C01
ST24C02
ST24W02
ST24C04
ST24W04
ST24C08
ST24C16
ST24E16
ST24E32
ST24W16
ST25C01
ST25C02
ST25C04
ST25C08
ST25C16
ST25E16
ST25E32
ST77014
ST93C46
ST95010
ST95011
ST95020
ST95021
ST95022
ST95040
ST95041
ST95080
ST95160
ST95320
ST95640
ST95128
ST95P02
ST95P04
ST95P08
Toshiba
TC89101
TC89102
TC89121
TC97101
Winbond
W25D80
W25P10
W25P20
W25P40
W25P80
W25P16
W25P32
W25Q80
W25Q16
W25Q32
W25Q64
W25Q128
W25Q256
W25X10
W25X20
W25X40
W25X80
W25X16
W25X32
W25X64
Xicor
X1226
X24C00
X24C01
X2402
X24C02
X24C04
X24C08
X24C16
X24164
X24325
X24645
X2430
X2444
X25160
X5043
X5045
XUSSR
1084PP1 *
1506PP1 *
1609XP1
1609XP21 * no need 20V
1566PP1
1568PP1
1568PP2
1628PP1 *
1628PP2 *
1628PP3
5509PP02
558XP3
YMC
Y25F05
MCU
Atmel
AT89C1051 *
AT89C2051 *
AT89C4051 *
AT89S51 *
AT89S52 *
AT89S53 *
AT89S8252 *
Attiny4
Attiny5
Attiny9
Attiny10
ATtiny11 HV
ATtiny12
ATtiny12 HV
ATtiny13
ATtiny13 HV
ATtiny15
ATtiny15 HV *
ATtiny24
ATtiny25
ATtiny25 HV
ATtiny26 *
ATtiny261
ATtiny44
ATtiny45
ATtiny45 HV
ATtiny461
ATtiny84
ATtiny85
ATtiny85 HV
ATtiny861
ATtiny2313 *
AT90CAN32
AT90CAN64
AT90CAN128
AT90S1200
AT90S2313
AT90S8515
ATmega103
ATmega103L
ATmega128
ATmega128L
ATmega1280
ATmega1281
ATmega1284A
ATmega1284PA
ATmega16
ATmega16A
ATmega162
ATmega164
ATmega168
ATmega168A
ATmega168PA
ATmega169/L/V
ATmega169P/PV
ATmega2560
ATmega2561
ATmega32 *
ATmega324
ATmega328
ATmega329
ATmega3290
ATmega48
ATmega48A
ATmega48PA
ATmega64 *
ATmega640
ATmega644A
ATmega644PA
ATmega649
ATmega6490
ATmega8
ATmega8A
ATmega8515
ATmega8535
ATmega88
ATmega88A
ATmega88PA
AT91SAM7S64
AT91SAM7S128
AT91SAM7S256
Fujitsu
MB90F038S
MB90F345
MB90F387S
MB90F394H
MB90F395
MB90F438L/LS
MB90F439/S
MB90F455/S
MB90F456/S
MB90F457/S
MB90F462A
MB90F497/G
MB90F498G
MB90F546G/GS
MB90F548GS
MB90F562/B
MB90F568
MB90F591A
MB90F594G
MB90F867ES
Infineon
XC2060M-104F
XC2080-96F
XC2336B-24F
XC2336B-40F
XC2361A-56F
XC2361A-72F
XC2765X-72F
XC2765X-104F
MediaTek
MT1389 ext.FLASH 1Mb
MT1389 ext.FLASH 2Mb
MT1389 ext.FLASH 4Mb
MicroChip
PIC10F200
PIC10F202
PIC10F204
PIC10F206
PIC10F220
PIC10F222
PIC12C508
PIC12C508A
PIC12C509
PIC12C509A
PIC12F508
PIC12F509
PIC12F510
PIC12F609
PIC12HV609
PIC12F615
PIC12HV615
PIC12F617
PIC12F629
PIC12F635
PIC12F675
PIC12F683
PIC12F1822
PIC16C620
PIC16C620A
PIC16C621
PIC16C621A
PIC16C622
PIC16C622A
PIC16C623
PIC16C624
PIC16C625
PIC16C63
PIC16C63A
PIC16C710
PIC16C711
PIC16C715
PIC16C73A
PIC16C77
PIC16C84
PIC16F54
PIC16F505
PIC16F526
PIC16F610
PIC16F616
PIC16F627
PIC16F627A
PIC16F628
PIC16F628A
PIC16F630
PIC16F631
PIC16F636
PIC16F639
PIC16F648A
PIC16F676
PIC16F677
PIC16F684
PIC16F685
PIC16F687
PIC16F688
PIC16F689
PIC16F690
PIC16F716
PIC16F72
PIC16F722
PIC16LF722
PIC16F723
PIC16LF723
PIC16F724
PIC16LF724
PIC16F726
PIC16LF726
PIC16F727
PIC16LF727
PIC16F73
PIC16F74
PIC16F76
PIC16F77
PIC16F818
PIC16F819
PIC16F83
PIC16F84
PIC16F84A
PIC16F87
PIC16LF87
PIC16F873
PIC16F873A
PIC16F876
PIC16F876A
PIC16F877
PIC16F877A
PIC16F88
PIC16LF88
PIC16F882
PIC16F883
PIC16F884
PIC16F886
PIC16F887
PIC16F913
PIC16F914
PIC16F916
PIC16F917
PIC16F946
PIC16F1503
PIC16LF1503
PIC16F1507
PIC16LF1507
PIC16F1508
PIC16LF1508
PIC16F1509
PIC16LF1509
PIC16F1823
PIC16LF1823
PIC16F1824
PIC16LF1824
PIC16F1825
PIC16LF1825
PIC16F1826
PIC16LF1826
PIC16F1827
PIC16LF1827
PIC16F1828
PIC16LF1828
PIC16F1829
PIC16LF1829
PIC16LF1902
PIC16LF1903
PIC16LF1904
PIC16LF1906
PIC16LF1907
PIC16F1933
PIC16LF1933
PIC16F1934
PIC16LF1934
PIC16F1936
PIC16LF1936
PIC16F1937
PIC16LF1937
PIC16F1938
PIC16LF1938
PIC16F1939
PIC16LF1939
PIC16F1946
PIC16LF1946
PIC16F1947
PIC16LF1947
PIC18F1220
PIC18F1320
PIC18F13K50
PIC18LF13K50
PIC18F14K50
PIC18LF14K50
PIC18F242
PIC18F248
PIC18F252
PIC18F258
PIC18F442
PIC18F452
PIC18F458
PIC18F2220
PIC18F2221
PIC18F2320
PIC18F2321
PIC18F23K20
PIC18F2410
PIC18F2420
PIC18F2423
PIC18F2450
PIC18F2455
PIC18F2458
PIC18F2480
PIC18F24J10
PIC18LF24J10
PIC18F24J11
PIC18LF24J11
PIC18F24J50
PIC18LF24J50
PIC18F24K20
PIC18F2510
PIC18F2515
PIC18F2520
PIC18F2523
PIC18F2525
PIC18F2550
PIC18F2553
PIC18F2580
PIC18F2585
PIC18F25J10
PIC18LF25J10
PIC18F25J11
PIC18LF25J11
PIC18F25J50
PIC18LF25J50
PIC18F25K20
PIC18F2610
PIC18F2620
PIC18F2680
PIC18F2682
PIC18F2685
PIC18F26J11
PIC18LF26J11
PIC18F26J13
PIC18LF26J13
PIC18F26J50
PIC18LF26J50
PIC18F26J53
PIC18LF26J53
PIC18F26K20
PIC18F27J13
PIC18LF27J13
PIC18F27J53
PIC18LF27J53
PIC18F4220
PIC18F4221
PIC18F4320
PIC18F4321
PIC18F43K20
PIC18F4410
PIC18F4420
PIC18F4423
PIC18F4450
PIC18F4455
PIC18F4458
PIC18F4480
PIC18F44J10
PIC18LF44J10
PIC18F44J11
PIC18LF44J11
PIC18F44J50
PIC18LF44J50
PIC18F44K20
PIC18F4510
PIC18F4515
PIC18F4520
PIC18F4523
PIC18F4525
PIC18F4550
PIC18F4553
PIC18F4580
PIC18F4585
PIC18F45J10
PIC18LF45J10
PIC18F45J11
PIC18LF45J11
PIC18F45J50
PIC18LF45J50
PIC18F45K20
PIC18F4610
PIC18F4620
PIC18F4680
PIC18F4682
PIC18F4685
PIC18F46J11
PIC18LF46J11
PIC18F46J13
PIC18LF46J13
PIC18F46J50
PIC18LF46J50
PIC18F46J53
PIC18LF46J53
PIC18F46K20
PIC18F47J13
PIC18LF47J13
PIC18F47J53
PIC18LF47J53
PIC18F6527
PIC24F08KA101
PIC24F08KA102
PIC24F16KA101
PIC24F16KA102
Nordic
nRF24LU1
NSC
CR16MCS9
CR16MCT9
Philips
P89LPC901
P89LPC902
P89LPC903
P89LPC920
P89LPC921
P89LPC922
Renesas R8C
R5F21112
R5F21113
R5F21114
R5F21244
R5F21245
R5F21246
R5F21247
R5F21254
R5F21255
R5F21256
R5F21257
R5F21258
R5F21262
R5F21264
R5F21265
R5F21266
R5F21272
R5F21274
R5F21275
R5F21276
R5F212BA
R5F212C7
R5F212C8
R5F212CA
R5F212CC
R5F212D7
R5F212D8
R5F212DA
R5F212DC
R5F21357
Renesas M16
M30245FC
M30624FG
R5F3650K
Renesas M32
M30833FJ
M30853FH
M30855FW
M30873FH
M30875FH
M30876FJ
M30878FJ
M30879FK
M30879FL
M3087BFK
M3087BFL
Renesas M32R
M32192F8
M32196F8
Renesas R32C
R5F64213JFB
R5F64524KFD
Renesas V850 UART
uPD70F3230
uPD70F3231
uPD70F3232
uPD70F3233
uPD70F3234
uPD70F3235
uPD70F3236
uPD70F3237
uPD70F3238
uPD70F3239
uPD70F3333
uPD70F3334
uPD70F3335
uPD70F3336
uPD70F3340
uPD70F3341
uPD70F3342
uPD70F3343
uPD70F3344
uPD70F3345
uPD70F3346
uPD70F3347
uPD70F3348
uPD70F3349
uPD70F3350
uPD70F3351
uPD70F3352
uPD70F3353
uPD70F3354
uPD70F3355
uPD70F3356
uPD70F3357
uPD70F3358
uPD70F3364
uPD70F3365
uPD70F3366
uPD70F3367
uPD70F3368
uPD70F3370
uPD70F3371
uPD70F3372
uPD70F3373
uPD70F3374
uPD70F3375
uPD70F3376
uPD70F3377
uPD70F3378
uPD70F3379
uPD70F3380
uPD70F3381
uPD70F3382
uPD70F3383
uPD70F3384
uPD70F3385
uPD70F3402
uPD70F3403
uPD70F3421
uPD70F3422
uPD70F3423
uPD70F3424
uPD70F3425
uPD70F3426
uPD70F3427 test
uPD70F3433(A)
uPD70F3438
uPD70F3461GJ(A1)
uPD70F3464
uPD70F3465
uPD70F3466
uPD70F3469M2(A1)
uPD70F3470
uPD70F3471
uPD70F3472
uPD70F3474
uPD70F3475
uPD70F3476
uPD70F3477
uPD70F3478
uPD70F3479
uPD70F3480
uPD70F3481
uPD70F3482
uPD70F3483
uPD70F3486
uPD70F3487
uPD70F3488
uPD70F3610
uPD70F3611
uPD70F3612
uPD70F3613
uPD70F3614
uPD70F3615
uPD70F3616
uPD70F3617
uPD70F3618
uPD70F3619
uPD70F3620
uPD70F3621
uPD70F3622
uPD70F3623
uPD70F3624
uPD70F3625
uPD70F3626
uPD70F3627
uPD70F3628
uPD70F3629
uPD70F3630
uPD70F3631
uPD70F3632
uPD70F3633
uPD70F3634(A)
uPD70F3635(A)
uPD70F3636
uPD70F3637
uPD70F3638
uPD70F3809
uPD70F3810
uPD70F3811
uPD70F3812
uPD70F3813
uPD70F3814
uPD70F3815
uPD70F3816
uPD70F3817
uPD70F3818
uPD70F3819
uPD70F3820
uPD70F3821
uPD70F3822
uPD70F3823
uPD70F3824
uPD70F3825
uPD70F3925
uPD70F3926
uPD70F3927
uPD70F3931
uPD70F3932
uPD70F3933
uPD70F3934
uPD70F3935
uPD70F3936
uPD70F3937
uPD70F3938
uPD70F3939
uPD76F0117
uPD76F0192
Renesas V850 SPI
uPD70F3333
uPD70F3334
uPD70F3335
uPD70F3336
uPD70F3340
uPD70F3341
uPD70F3342
uPD70F3343
uPD70F3344
uPD70F3345
uPD70F3346
uPD70F3347
uPD70F3348
uPD70F3349GJ
uPD70F3350
uPD70F3351
uPD70F3352
uPD70F3353
uPD70F3354
uPD70F3355
uPD70F3356
uPD70F3357
uPD70F3358
uPD70F3364
uPD70F3365
uPD70F3366
uPD70F3367
uPD70F3368
uPD70F3370
uPD70F3371
uPD70F3372
uPD70F3373
uPD70F3374
uPD70F3375
uPD70F3376A
uPD70F3377A
uPD70F3378
uPD70F3379
uPD70F3380
uPD70F3381
uPD70F3382
uPD70F3383
uPD70F3384
uPD70F3385
uPD70F3421
uPD70F3422
uPD70F3423
uPD70F3424
uPD70F3425
uPD70F3426
uPD70F3427
uPD70F3469
uPD70F3623
uPD70F3624
uPD70F3625
uPD70F3626
uPD70F3627
uPD70F3628
uPD70F3629
uPD70F3630
uPD70F3631
uPD70F3632
uPD70F3633
uPD70F3634
uPD70F3635
uPD70F3636
uPD70F3637
uPD70F3638
uPD76F0117
uPD76F0192
Samsung
S3F9444
S3F9454
S3F9488
SiLabs
C8051F310
C8051F311
C8051F312
C8051F313
C8051F314
C8051F315
C8051F316
C8051F317
C8051F320
C8051F321
C8051F340
C8051F341
C8051F342
C8051F343
C8051F344
C8051F345
C8051F346
C8051F347
C8051F348
C8051F349
C8051F34A
C8051F34B
C8051F34C
C8051F34D
C8051F350
C8051F351
C8051F352
C8051F353
C8051F360
C8051F361
C8051F362
C8051F363
C8051F364
C8051F365
C8051F366
C8051F367
C8051F368
C8051F369
C8051F920
C8051F921
C8051F930
C8051F931
ST
ST6220 *
ST6230 *
ST6232 *
ST6240 *
ST6245 *
ST6249 *
ST6260 *
ST10F168
ST10F269
ST10F273
ST10F275
ST10F276
ST10F280
STM8AF51
STM8AF6126
STM8AF6146
STM8AF6148
STM8AF6166
STM8AF6168
STM8L051F3
STM8L151K4
STM8L151K6
STM8L151R6
STM8L151R8
STM8L152C4
STM8L152C6
STM8L152C8
STM8L152K4
STM8L152K6
STM8L152R6
STM8L152R8
STM8S003F3
STM8S005C6
STM8S005K6
STM8S103F2
STM8S103F3
STM8S103K3
STM8S105K4
STM8S207C6
STM8S207C8
STM8S207CB
STM8S207MB
STM8S207RB
STM8S207S6
STM8S207S8
STM8S207SB
STM8S208S6
STM8S903K3
STM32F030C6T
STM32F030C8T
STM32F030CCT
STM32F030F4T
STM32F030K6T
STM32F030R8T
STM32F030RCT
STM32F031C4T
STM32F031C6T
STM32F031F4T
STM32F031F6T
STM32F050C4T
STM32F050C6T
STM32F050F4T
STM32F050F6T
STM32F051C4T
STM32F051C6T
STM32F051C8T
STM32F051K4T
STM32F051K6T
STM32F051K8T
STM32F051R4T
STM32F051R6T
STM32F051R8T
STM32F100C4T
STM32F100C6T
STM32F100C8T
STM32F100CBT
STM32F100R4T
STM32F100R6T
STM32F100R8T
STM32F100RBT
STM32F101C6T
STM32F101C8T
STM32F101CBT
STM32F101R4T
STM32F101R6T
STM32F101R8T
STM32F101RBT
STM32F101RCT
STM32F101RDT
STM32F101RET
STM32F101RFT
STM32F101RGT
STM32F101V8T
STM32F101VBT
STM32F101VCT
STM32F101VDT
STM32F101VET
STM32F101VFT
STM32F101VGT
STM32F103C4T
STM32F103C6T
STM32F103C8T
STM32F103CBT
STM32F103R4T
STM32F103R6T
STM32F103R8T
STM32F103RBT
STM32F103RCT
STM32F103RDT
STM32F103RET
STM32F103RFT
STM32F103RGT
STM32F103VFT
STM32F103VGT
STM32F205RBT
STM32F205RCT
STM32F205RET
TI
MSP430F1121 BSL
MSP430F122 BSL
MSP430F122 JTAG
MSP430F123 BSL
MSP430F123 JTAG
MSP430F1232 BSL
MSP430F1232 JTAG
MSP430F135 JTAG
MSP430F2001 JTAG
MSP430F2011 JTAG
MSP430F2002 JTAG
MSP430F2012 JTAG
MSP430F2003 JTAG
MSP430F2013 JTAG
MSP430F2111 JTAG
MSP430F2121 BSL
MSP430F2132 BSL
MSP430F2132 JTAG
TMS370C002
TMS370C032
TMS370C036
TMS370C042
TMS370C056
TMS370C058
TMS370C059
TMS370C736
TMS370C756
TMS370C758
TMS370C759
TMS374C003A
TMS374CD13A
TMS375C006
Motorola, Freescale
MC68HC05
MC68HC05B4
MC68HC05B6
MC68HC05B6 WDT
MC68HC05B8
MC68HC05B8 WDT
MC68HC05B16
MC68HC05B16 WDT
MC68HC05B32
MC68HC05H12
MC68HC05K3
MC68HC05L28
MC68HC05P3 [1E25B]
MC68HC05X16
MC68HC05X32
MC68HC05X32 div5
MC68HC705B16
MC68HC705B16 EPROM
MC68HC705B16N
MC68HC705B16N EPROM
MC68HC705B32
MC68HC705B32 EPROM
MC68HC705D9
MC68HC705E6 [F82B]
MC68HC705E6 [G72G]
MC68HC705E6 [H51A]
MC68HC705E6 [F75B]
MC68HC705P3 [F47V]
MC68HC705P3 [F75B]
MC68HC705X32
MC68HC705X32 div5
MC68HC705X32 EPROM
MC68HC08
MC68HC08AB16A
MC68HC08AS20
MC68HC08AS32
MC68HC08AS32A
MC68HC08AZ32
MC68HC08AZ32A
MC68HC08AZ32A [1K59H]
MC68HC08AZ48A
MC68HC08AZ60 [1J35D]
MC68HC08AZ60A
MC68HC908AB32
MC68HC908AP8A
MC68HC908AP16A
MC68HC908AP32A
MC68HC908AP64
MC68HC908AS60
MC68HC908AS60A
MC68HC908AZ32A
MC68HC908AZ60
MC68HC908AZ60 [4J74Y]
MC68HC908AZ60A
MC68HC908GP32
MC68HC908GR16A
MC68HC908GR32A
MC68HC908GR48A
MC68HC908GZ60
MC68HC908JB8
MC68HC908JB16
MC68HC908JK3
MC68HC908JL3
MC68HC908JL8
MC68HC908JL16
MC68HC908KX2
MC68HC908LJ12
MC68HC908LJ24
MC68HC908LK24
MC68HC908QC4
MC68HC908QC8
MC68HC908QC16
MC68HC908QY2
MC9RS08KA1
MC9RS08KA2
MC9RS08LA8
MC9S08AC8
MC9S08AC32
MC9S08AC48
MC9S08AC60
MC9S08AC96
MC9S08AC128
MC9S08AW16
MC9S08AW32
MC9S08AW48
MC9S08AW60
MC9S08DV32
MC9S08DV96
MC9S08DZ60
MC9S08DZ128
MC9S08EL32
MC9S08FL16
MC9S08GB60
MC9S08GT32
MC9S08GT60A
MC9S08JM32
MC9S08JM60
MC9S08JS16
MC9S08QD2
MC9S08QD4
MC9S08QE8
MC9S08QG4
MC9S08QG8
MON08
MC68HC11
MC68HC11A1
MC68HC11A8
MC68HC11E1
MC68HC11E9
MC68HC11E20
MC68HC11E32
MC68HC11EA9
MC68HC11EA9 [2D47J]
MC68HC11F1
MC68HC11K4
MC68HC11KA2
MC68HC11KA4
MC68HC11KG4
MC68HC11KS2
MC68HC11KW1
MC68HC11L6
MC68HC11P2
MC68HC11PA8
MC68HC11PH8
MC68HC711E9
MC68HC711E9 EPROM
MC68HC711E20
MC68HC711E20 EPROM
MC68HC711EA9
MC68HC711EA9 EPROM
MC68HC711PH8
MC68HC12
MC68HC12BC32
MC68HC12BE32
MC68HC12D60
MC68HC912B32
MC68HC912BC32
MC68HC912BE32
MC68HC912D60
MC68HC912D60A
MC68HC912D60P
MC68HC912DG128
MC68HC912DG128A
MC68HC912DG128C
MC68HC912DG128P
MC68HC912DJ128A
MC68HC912DT128A
MC68HC912DT128C
MC68HC912DT128P
MC9S12A64
MC9S12A128
MC9S12B64
MC9S12B128
MC9S12C32
MC9S12C64
MC9S12C128
MC9S12D64
MC9S12DB128
MC9S12DG128
MC9S12DG256
MC9S12DJ64
MC9S12DJ128
MC9S12DJ256
MC9S12DP256
MC9S12DP512
MC9S12DT128
MC9S12DT256
MC9S12DT512
MC9S12E64
MC9S12E128
MC9S12GC32
MC9S12H128
MC9S12H256
MC9S12HA32
MC9S12HY64
MC9S12HZ64
MC9S12HZ128
MC9S12HZ256
MC9S12KG256
MC9S12P64
MC9S12P96
MC9S12P128
MC9S12XB128
MC9S12XB256
MC9S12XD64
MC9S12XD128
MC9S12XD256
MC9S12XDG128
MC9S12XDG256
MC9S12XDG512
MC9S12XDP512
MC9S12XDT256
MC9S12XDT384
MC9S12XDT512
MC9S12XEG128
MC9S12XEG384
MC9S12XEP768
MC9S12XEP100
MC9S12XEQ384
MC9S12XEQ512
MC9S12XET256
MC9S12XET512
MC9S12XF512
MC9S12XHY128
MC9S12XHY256
MC9S12XHZ256
MC9S12XHZ384
MC9S12XHZ512
MC9S12XS64
MC9S12XS128
MC9S12XS256
HC12 ALL
|
EUR
.jpg)
