Name: VXDAS VSPSP200 Electrical System Circuits Tester

Description:

VXDAS VSP200 Power Scan Tool Circuit Tester is the most revolutionary circuit tester to date, featuring AVOmeter, test light, built -in flashlight, short circuit indicator, relay/component tester, continuity tester and bad ground indicator, the power scan is truly the ultimate in power and affordability, allowing users to check circuitry in one single step. An absolute easy-to-use tool must for every technician looking for a fast and accurate solution to electrical systems diagnostics.

VXDAS VSP200 Electrical System Diagnostics Circuit Tester is used as Power Probe for testing vehicle electrical circuit.

20 foot jumper lead
Continuity tester
Relay and component tester
Works on 12-24V sources
Once you connect a power probe to the power source you will have a multitude of testers right at your fingertips
Bad ground indicator
Short circuit tester

Functions:

1. Performs every type of service including power injection, measurement, ground testing, polarity checks, continuity testing and components activation.

2. Easy to read AV0 meter allows you to read voltage, current and resistance at the fingertip.

3. With a flip of the power switch, you have an instant hot/ground lead for powering up electrical components like cooling fans, relays, etc.

4. Simultaneously uses the hot lead and the found lead to activate components right in your hand.

5. Instantly identifies positive, negative and open circuits.

6. Circuit breaker protected.

7. Built-in flashlight enables you to work in the dark.

8. Audio tone indicator allows for no-look menu scrolling once user are familiar with menu tone assignment.

9. 20 feet extension cable provides excellent accessibility to test along the vehicle.

10. Extremely easy to use and highly reliable.

Features:

The Ultimate in Circuit Testing
The VXDAS VSP200 Circuit Tester (Red) with the ability to supply Power or Ground with an indicator tone and bright-white LED headlamps.
Features Digital Voltmeter, Min/Max, Audible Circuit Monitoring, 4mm Standard Banana Jack and Auxiliary Ground for component testing.
Includes case and 20 foot extension lead and 12V power port adapter works with 12 - 24V DC Systems.

Comparison between VSP200 and PS100:

1. PS100 test without the diode but only the sound

2. PS100 transforms sound waveform when testing the alternating current (AC) adapter, the sound varies as waveform changes, while VSP200 directly displays that.

Comparison between VSP200 and YD208:

1. When testing the diode, YD208 can only display the negative, while VSP200 Vehicle Super Probe shows the values.

2. When testing AC, YD208 only displays a square wave (an analog signal) while VXDAS VSP200 Circuit Tester can show the real waveform.

Specifications:

Display: TFT color display (160*128dpi)
Operating Temperature: 0 to 60 degree centigrade
External Power: 12.0 or 24.0 V power provided via vehicle battery

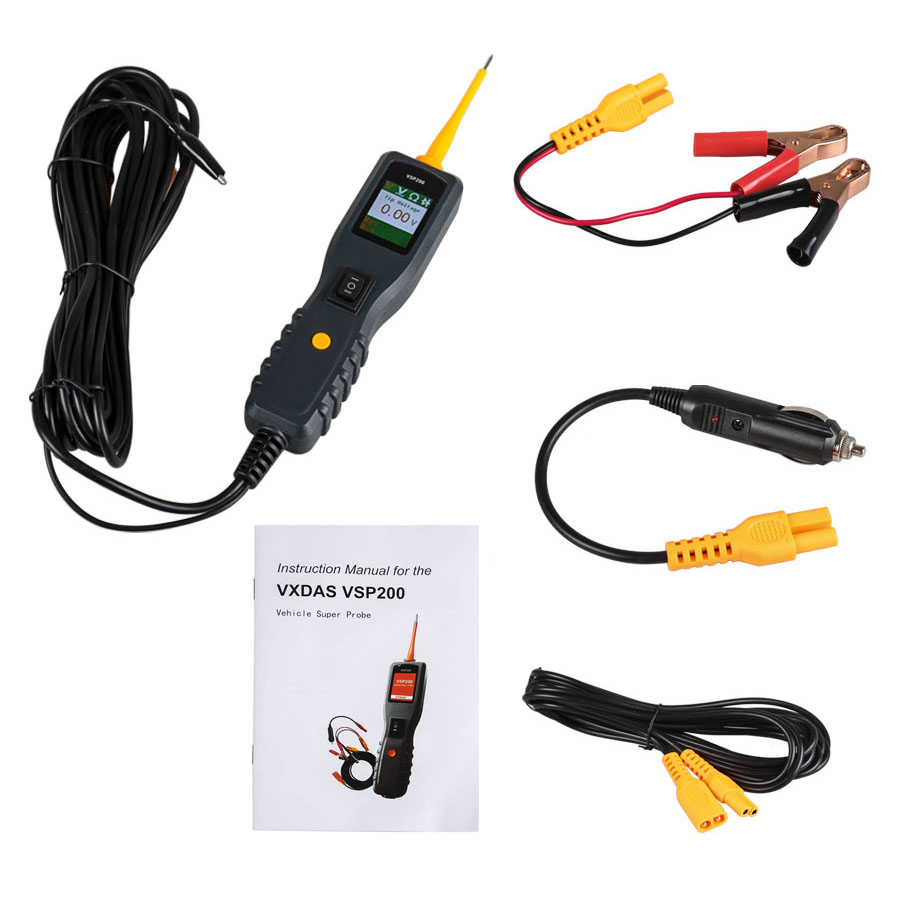

Packing List:

VSP200 Circuits Tester
20 Feet Extension Cable
Cigarette Lighter Adapter
Battery Hookup Clips Probe Tip
User Manual

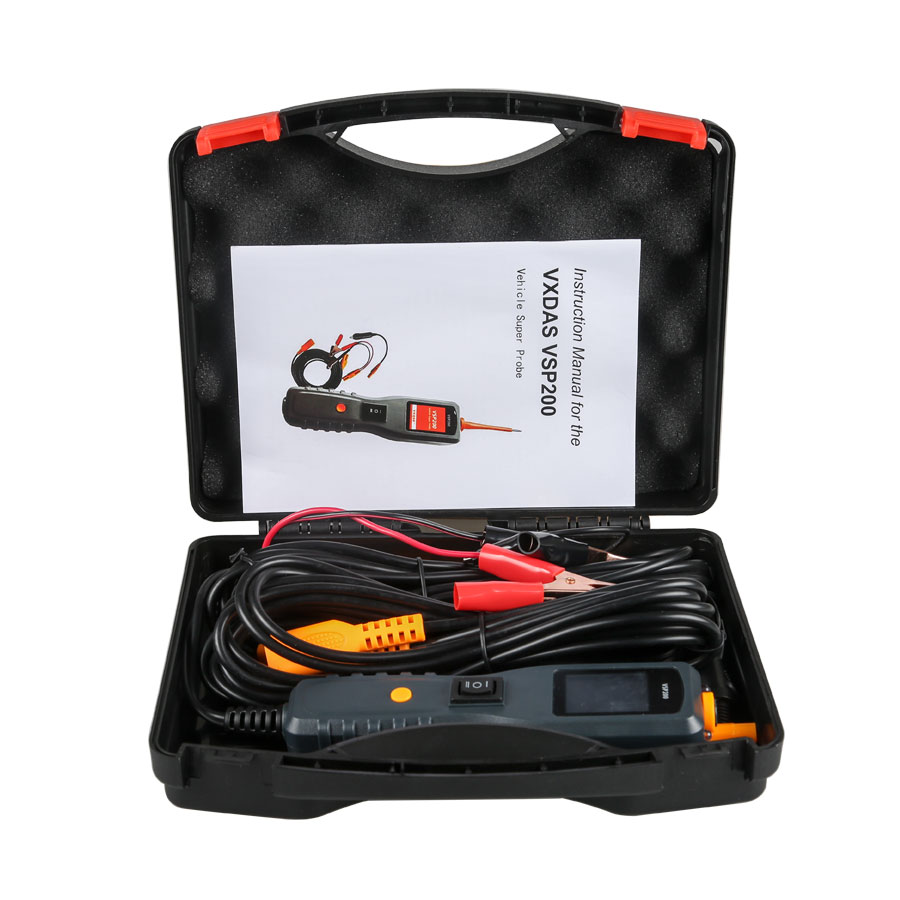

Carrying Case
