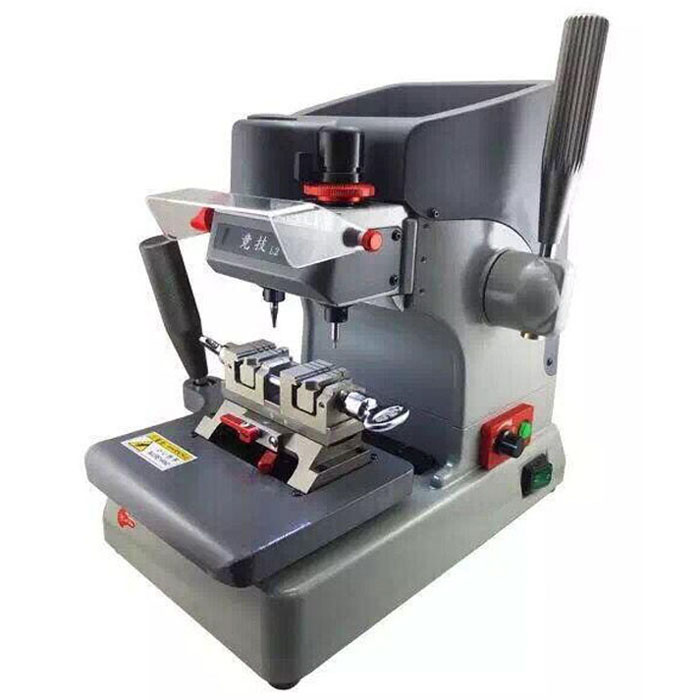

Name: JINGJI L2 Vertical Key Cutting Machine

Description:

1. Calibration system indicated by LED light make precisely cutting
2. Cutter speed regulated to 8500rpm
3. Straight line slide carriage makes cutting smooth and effortless
4. Cutting depth locking mechanism makes accurate result
5. Removable jaw with two grooves makes cutting more convenient
6. Vertical movement backwards makes more space to install clamp
7. Spring loaded tracer point make perfect depth alignment
8. Structured with aluminum alloyed casting technique
9. Armrest support makes the cutting forward stable and smooth

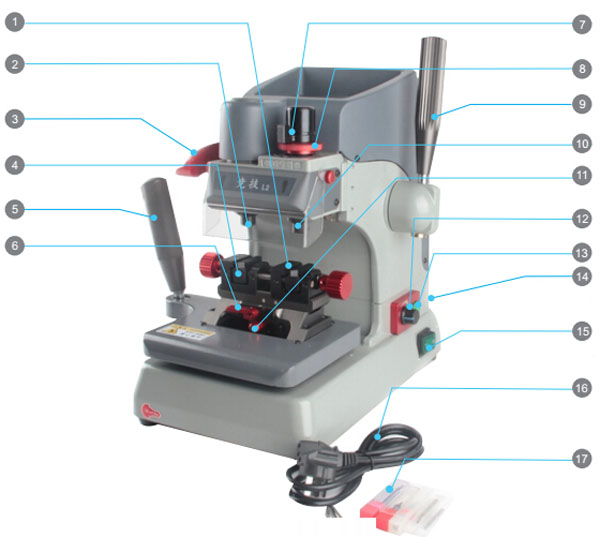

1. Clamp to secure original key
2. Cutter insert axis
3. Armrest support
4. Clamp to secure key blank
5. X,Y axis slide handle
6. Jaw secure/remove bar
7. Tracer grip lock ring
8. Tracer depths adjustment knob
9. Cutting depth locking handle
10. Tracer insert axis
11. X axis movement locking bar
12. Cutting Speed control knob
13. Calibration button
14. Power socket AC11 0V/220 V
15. Main power switch
16. Power cable
17. Tracer and cutter
