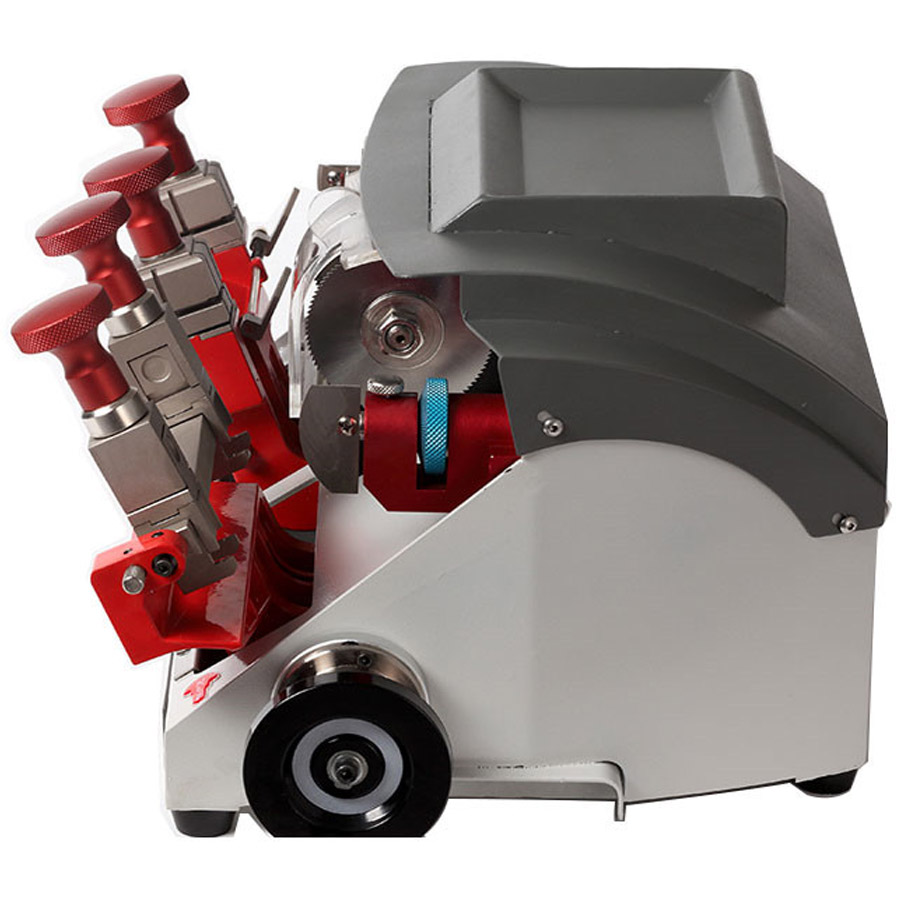

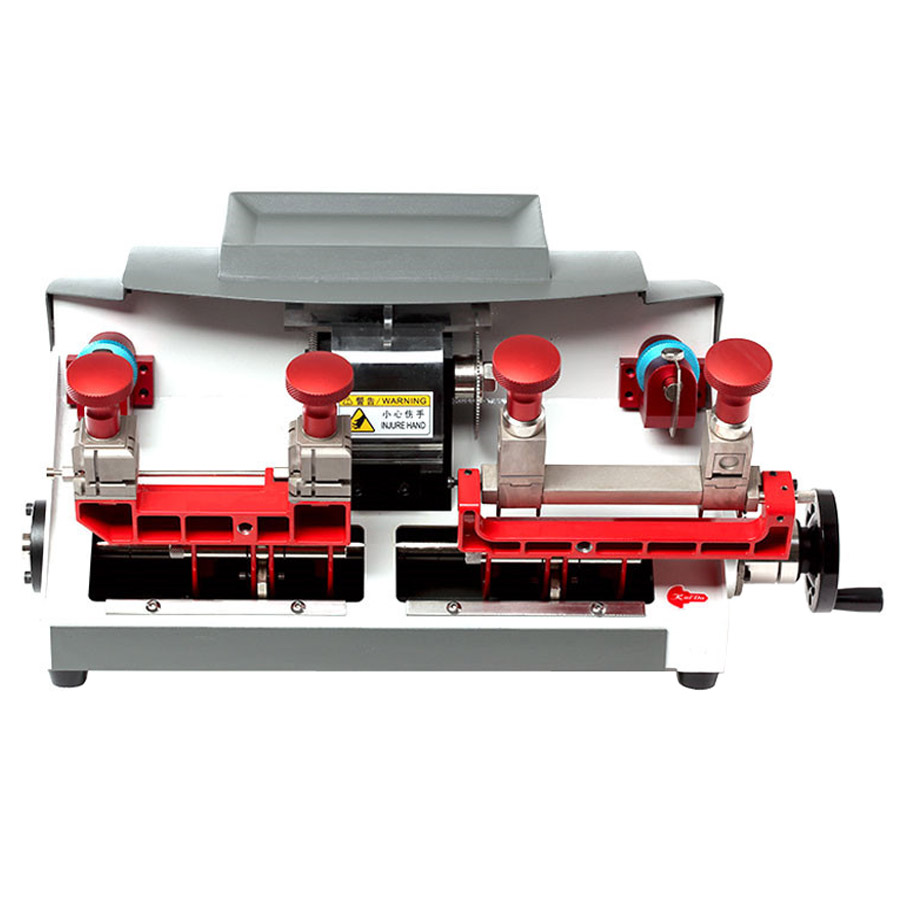

Name: JINGJI P2 Flat Key Cutting Machine

Description:

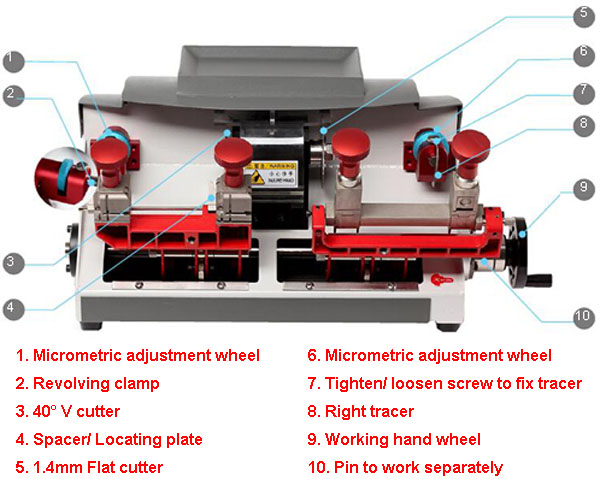

1. Sheet meta l stamping welding structure is durable and long-lasting.
2. Left outer diameter Φ 80mm 40° V cutter and right outer diameter Φ 80mm flat cutter.
3. Left and right clamps working separately and move smoothly.
4. Micrometric (Patent) tracer adjustment mechanism for precise calibration with the cutter.
5. 4-sided revolving clamp and super wide space between clamps make flip key cutting possible.
6. Y axis ballscrew

Specifications:

Working Method: manual
Error Scope: ≤0.02mm
Keys: cylinder and special keys
Jaw: 4-sided revolving clamp
Revolution:1200rpm/min
Voltage: AC 220V
Current: 10A
Power: 120W 50-60Hz
Voice: nearly silent
Material: sheet metal stamping welding
Dimension(L*W*H): 535*290*270mm
G.W.: 27Kg
N.W.: 25Kg
