Name: JBT V-GP II IMS C91 Car Diagnostic and Matching Tool (English version)

Description:

JBT V-GPII is a car diagnostic and matching tool based on mobile phone display and operation, cloud platform supplies strong technical support, software update and value-added services.

With JBT V-GP II VCI and a 16-pin OBD2 cable, and then your mobile phone (Android operation system or Apple operation system) will become auto diagnostic tool (auto scanner).

Bluetooth VCI enables our diagnostic and matching application programs access to vehicle electronic control system via wireless communication mode. That means if users install our application program in their cell phone, they can communicate with vehicle through Bluetooth. It is well suitable for auto manufacturing, after-sale service, and trial run.

Functions:

IMMO - IMMO system matching
ODO RESTORING - odometer calibration
TEC - tooth learning
TPMSRESET - tire pressure indicator resetting
PBM - electronic brake matching
PM - throttle matching
SAS - steering angle calibration
CBSRESET - maintenance lamp return-to-zero
OBDII – OBD-II diagnosis

VCI Info:

VCI mainly consists of an interface with 15-pins, a power indicator, a communication indicator, and a Bluetooth indicator. It is a general diagnostic interface supporting Bluetooth connection with an effective range of 10 meters (It will be affected by electromagnetic interference or blockage). Serial port profile is used in data transmission via Bluetooth. It supports multi-Bluetooth security levels.

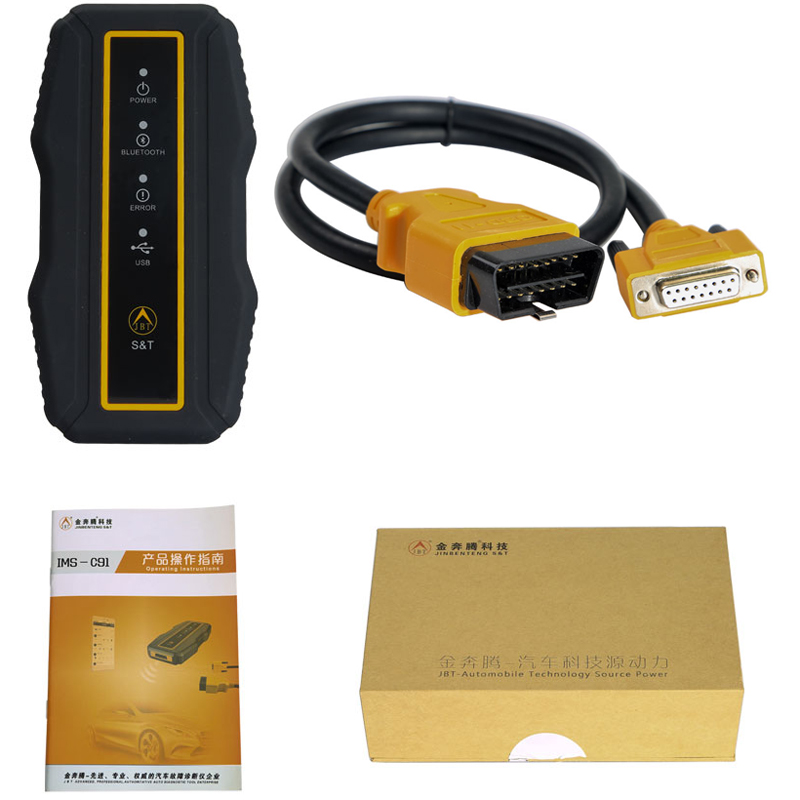

Packing List:

JBT V-GPII VCI
OBD2 Cable
User Manual
Carrying Case
