Name: Autel MaxiCOM MK808TS Auto TPMS Relearn Tool
Description:
Autel MaxiCOM MK808TS Auto TPMS Relearn Tool Universal Tire Sensor Activation Pressure Monitor Reset Scanner Programming MX-Sensor Service OBD Diagnostic Tool with Oil Reset EPB SAS BMS Immobilizer.
Together with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, Autel MaxiCOM MK808TS provides you with superior special functions, including Oil Reset, EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), BMS (Battery Management System), DPF (Diesel Particulate Filter) and IMMO. In addition to OBD-II diagnostics and special service, Autel MK808TS enables you to carry out complete TPMS functions, including TPMS health check, sensor activation & programming and TPMS relearn.
Features:
1. Read/erase codes for all available modules
2. Supports IMMO functions/Oil Reset/EPB/SAS/BMS/DPF/and TPMS
3. Relearn parking brake pad position after replacement; Supports forced diesel particulate filter regeneration and injector adjustments
4. Asian and European vehicles after 1996, Auto VIN technology automatically identifies the vehicle’s make, model and year
5. Update online, the update can improve the MaxiCOM application capabilities

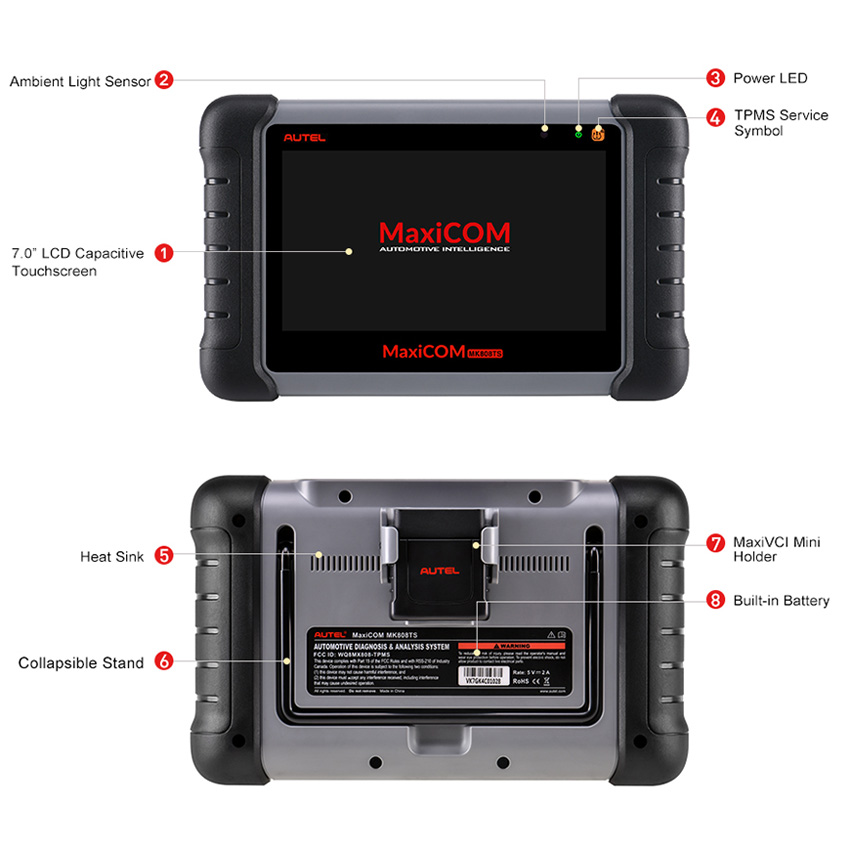

6. 7.0 inch LCD capacitive touch screen
7. Ambient Light Sensor – detects ambient brightness.
8. Power LED – indicates battery level & charging or system status.

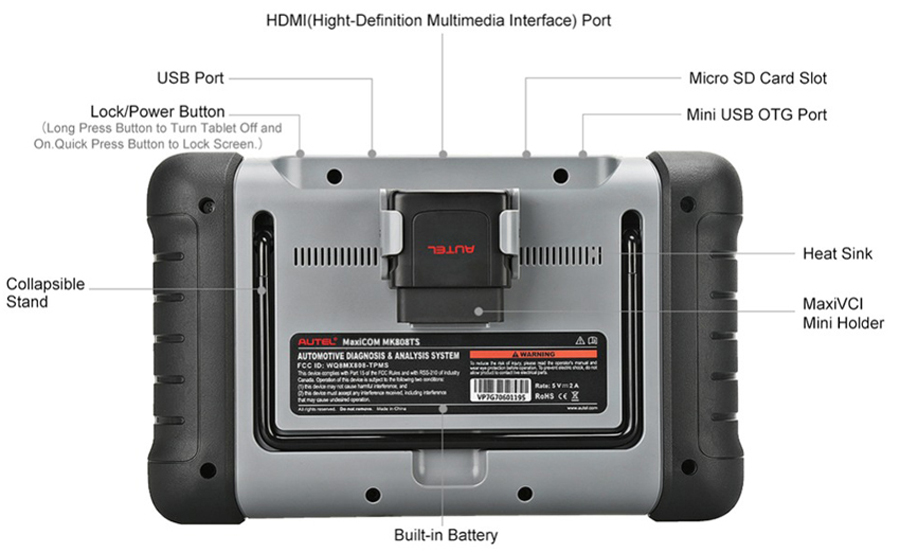

9. TPMS Service Symbol – indicates the position of the embedded TPMS antenna
10. Collapsible Stand – extends from the back to allow hands-free viewing of the Display Tablet.
11. Heat Sink

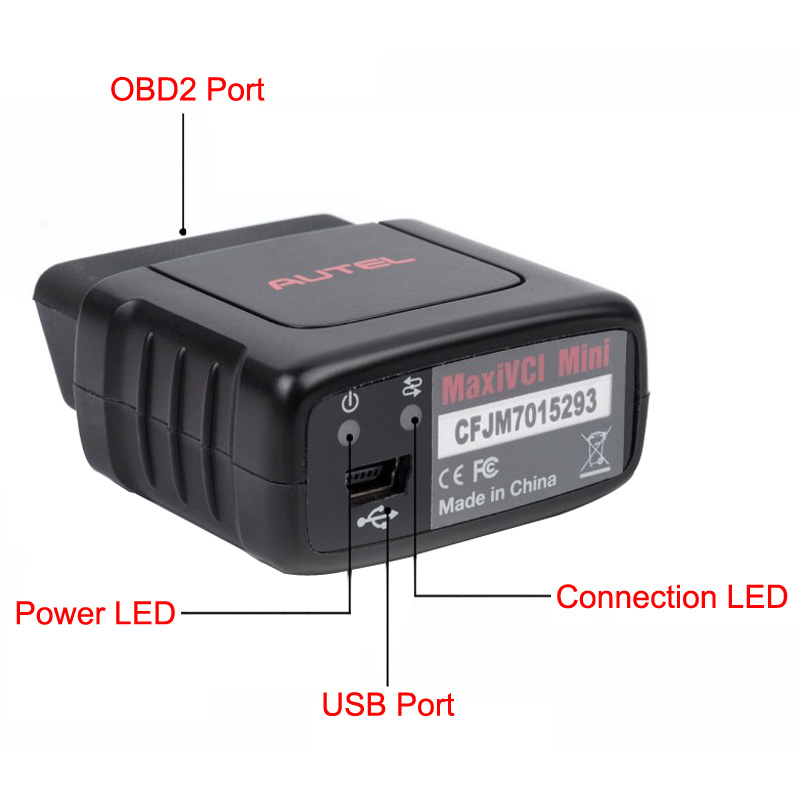

12. MaxiVCI Mini Holder
13. Built-in Battery
14. Mini USB OTG Port
15. Micro SD Card Slot – holds the micro SD card.
16. HDMI (High-Definition Multimedia Interface) Port
17. USB Port
18. Lock/Power Button – turns the device on & off with long press, or locks the screen with short press.
Complete TPMS Functions:
Advanced TPMS diagnostics for complete TPMS health check
Activate 98% of all known TPMS sensors
Program Autel MX-Sensors
Comprehensive OBD relearn coverage
Onscreen relearn procedure
Basic Diagnostic Functions for All Systems:
Read/clear codes for all available systems.
Display live data in text, graph ,analog for easy data review
ECU information
OBD Diagnostic Functions:
Read/erase codes
View live data
View freeze data
View I/M readiness status
View vehicle information
O2 monitor test
Onboard monitor test
Component test
Modules present
DTCs help

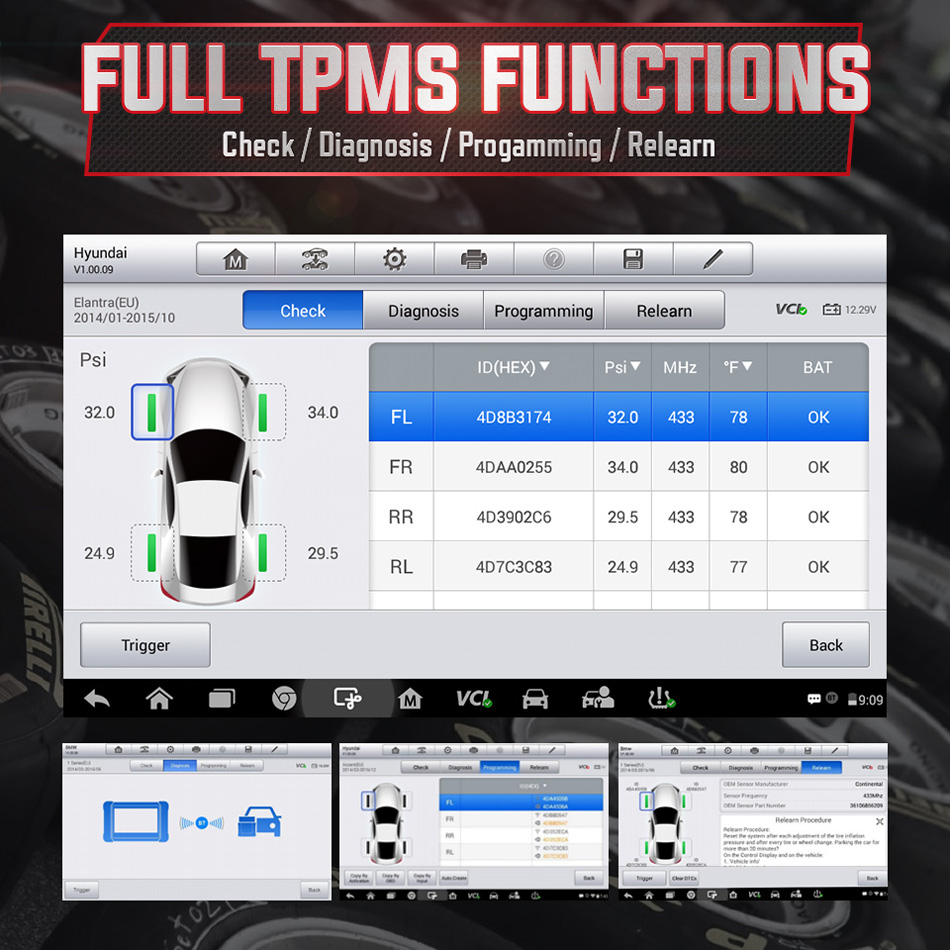

Complete TPMS Functions:
Autel MaxiCOM MK808TS is being available to activate 98% of all-known TPMS sensors, provides the most advanced TPMS diagnosis and the most comprehensive OBD relearn coverage for a complete TPMS health check, allowing technicians to solve TPMS related problems with a series of quick and effective operations:
TPMS Check:
The Check function allows users to activate TPMS sensors to view sensor data – sensor ID, tire pressure, tire temperature, battery condition and sensor location.
TPMS Diagnosis:
The Diagnosis function is used to check the status of the TPMS system. Communicating with ECU and to retrieve sensor IDs and DTCs in the TPMS ECU，view the data stream of the sensor information, Special Functions, Active Test, initiate desired vehicle lamp function list
Sensor Programming:
The Programming function allows users to program the sensor data to the MX-Sensor and replace faulty sensor with low battery life or the one that is not functioning. There are 4 options available when programming MX-Sensor:
1. Copy by Activation - Once the sensors mounted on the vehicle have been triggered and the sensor information displayed on the tool, the Copy by Activation can be used to program a new MX-Sensor.
2. Copy by OBD - By using this function, the tablet will program the sensor IDs retrieved from the ECU of the test vehicle to the new MX-Sensors.
3. Copy by Input - The Copy by Input allows users to program a new MX-Sensor with the ID of an original TPMS sensor.
4. Auto Create - The Auto Create function is used to automatically create a random sensor ID to program a new MX-Sensor.
TPMS Relearn:
This function is used to write the newly programmed sensor IDs into the vehicle ECU for sensor recognition. There are 3 ways for Relearn:
1. Stationary Relearn
2. Active Relearn
3. OBD Relearn.
TPMS by OEM Part No.:
If the sensor OEM part number is known, this function is an efficient method to activate and program MX-Sensors.
22 Advanced Service:
As an advanced diagnostic tool, Autel MK808TS has all kinds of services accessible for complete diagnoses and maintenance. You can quickly access to the vehicle systems within this function.
Oil Reset Service
Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.
Electronic Parking Brake (EPB)
Service has a multitude of usages to maintain the electronic braking system safely and effectively. The applications include deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement,
Battery Management System (BMS)
Service allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.
DPF Service
Particle Filter Test is advisable to carry out a series of particle filter tests as a result of constant DPF regeneration, such as checking oil level, oil change interval for diesel contamination, swirl flaps, backpressure sensors and particle filter soot remains.
Adjusting Injectors
Start fuel delivery matching, adjust the injection volume，adjust the injector rate for individual cylinders
Steering Angle Sensor (SAS) Service
Steering Angle Sensor Calibration permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM. In addition, the vehicle identification number is also read from the instrument cluster and stored permanently in the steering angle sensor EEPROM.
Immobilizer (IMMO) Service
It is mainly used to disable the lost vehicle keys and program a new replacement key fob.
Supported Languages:
English, French, German, Spanish, Portuguese, Russian, Italian, Dutch, Polish, Swedish, Korean, Japanese, Traditional Chinese, Simplified Chinese
Specifications:
Operating System: Android 4.4.2 KitKat
Processor: Cortex-A9 processor (1.5 GHz)
Memory: 32GB
Display: 7-inch LCD capacitive touch screen with 1024*600 resolution
Connectivity: mini USB 2.0/USB 2.0/Wi-Fi/HDMI type A/micro SD card (supports up to 32GB)
Sensors: light sensor for brightness auto changing
Audio Input/Output: Input: N/A; Output: buzzer
Power and Battery: 3.7V/5000mAh lithium-polymer battery charges via 5V DC power supply
Tested Battery Life: around 7 hours of continuous use
Battery Charging Input: 5V/1.5 A
Power Consumption: 600mA (LCD on with default brightness, Wi-Fi on) @ 3.7V
Operating Temperature: 0 to 55 degree centigrade
Storage Temperature: -20 to 60 degree centigrade
Operating Humidity: 5% - 95% non-condensing

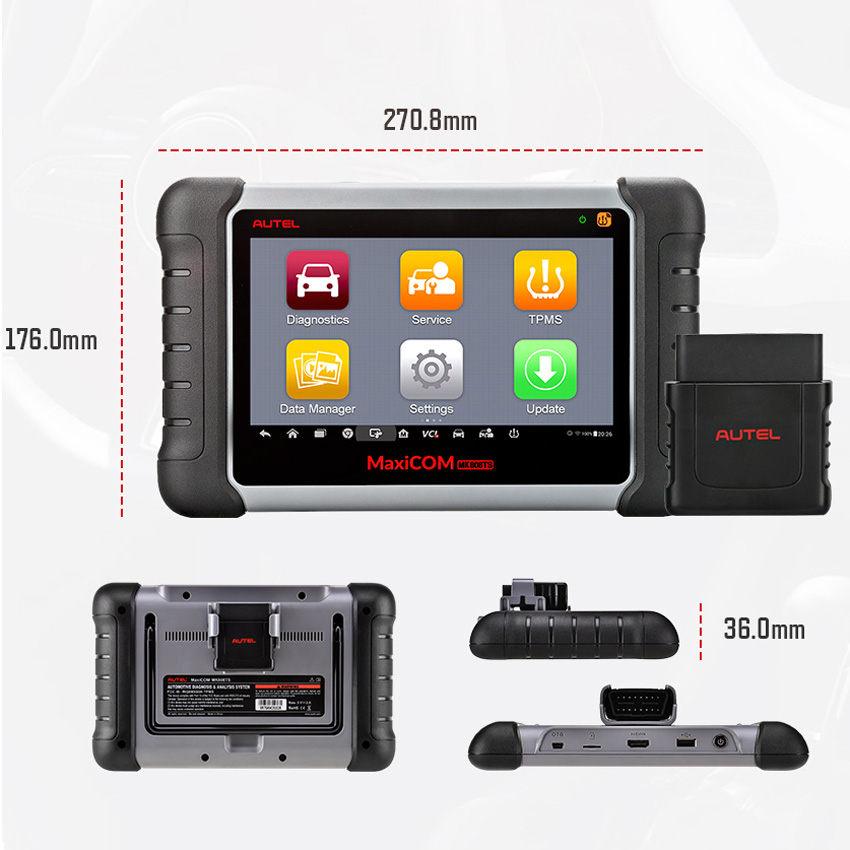

Dimensions: 270.8*176*36mm
Net Weight: 885g
Protocols: ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (High-Speed/Middle-Speed/Low-Speed/Single-Wire CAN, Fault-Tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

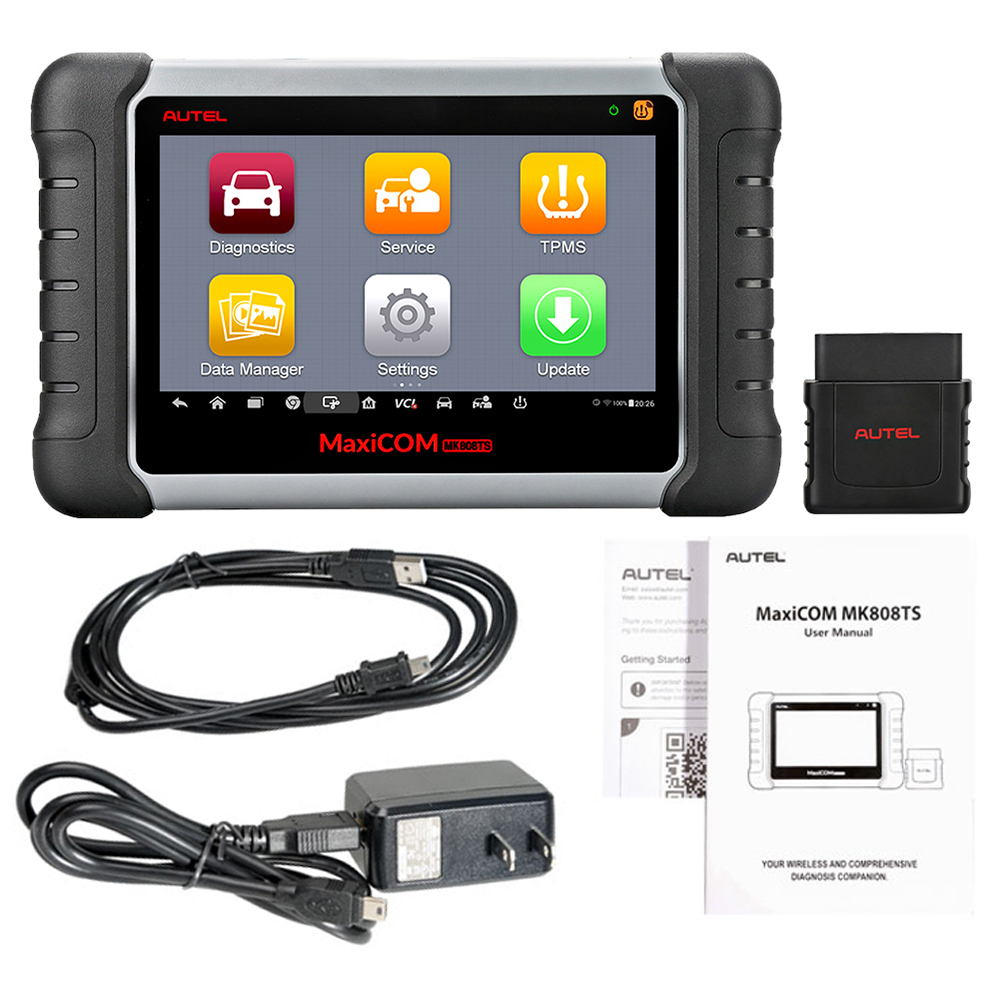

Packing List:
Autel MK808TS
MaxiVCI Mini
USB Cable
Power Supply Adapter
User Manual
Quick Reference Guide

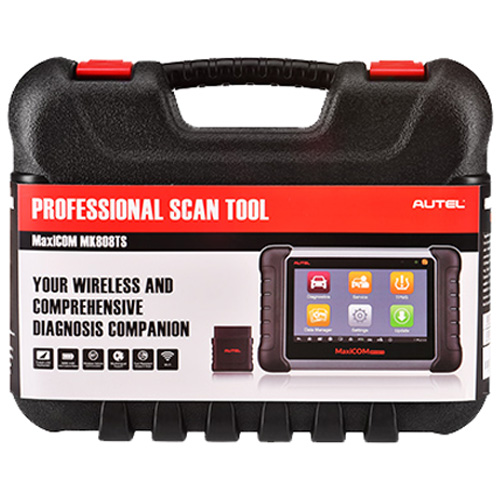

Plastic Toolbox
|
