Name: V1.95 KTMFlash ECU Programmer & Transmission Power Upgrade Tool
Description:
KTMFlash ECU Programmer & Transmission Power Upgrade Tool supports VAG DQ200 DQ250 Infineon Bosch & 271 MSV80 MSV90.
KTMFlash ECU Prog reads the chip data, reads and writes ECU data, reads transmission data etc. with a very high speed.
V1.95 New Updated Functions:
China: MG MED17(MED17.8.10)
VAG: VL382 Boot (MICRO)
VAG: VL382 Boot (EEPROM)
Functions:
1. Read Chinese car via OBD
2. Read BOOT mode according to the chip model
3. Read the encrypted ECU password (Read the password of encrypted ECU first, then read data)
4. Support Chinese car ME17 TC1728/1767 data reading & writing and password reading
What are differences among KTM Bench, KTMFlash and KTMOBD?
KTM Bench Boot is the latest ECU programming tool for ECU reading and writing via boot mode or on bench.
KTMFlash ECU programmer can read the chip data, read & write ECU data. Read transmission data etc. at a high speed.
KTMOBD Programmer is for reading chip data, reading and writing data of ECUs and a few types of gearbox. Read / write data via OBD. Supports most Japanese cars.
Workable Transmission Models:
VAG: DQ200 (0AM)
VAG: DQ200MQB/G2 (0CW)
VAG: DQ250C (02E) K-Line
VAG: DQ250E/F (02E)
VAG: DQ250MQB (0D9)
VAG: VL300/V30 (01J/0AN) K-Line
VAG: VL300/V30 (01J/0AN)
VAG: VL381 (0AW)
VAG: DQ500 (0BH/0BT)
VAG: DL501/G2 (0B5)
VAG: DQ200/MQB Boot (MICRO)
VAG: DQ200/MQB Boot (EEPROM)
VAG: DQ200G2 Boot (MICRO)
VAG: DQ200G2 Boot (EEPROM)
VAG: DQ250E/F/MQB Boot (MICRO)
VAG: DQ250E/F/MQB Boot (EEPROM)
VAG: VL300/V30 BSL (FLASH)
VAG: VL300/V30 BSL (EEPROM)
VAG: VL381 Boot (MICRO)
VAG: VL381 Boot (EEPROM)
VAG: VL382 Boot (MICRO)
VAG: VL382 Boot (EEPROM)
VAG: DL501 Boot (MICRO)
VAG: DL501 Boot (EEPROM)
VAG: DL501G2 Boot (MICRO)
VAG: DL501G2 Boot (EEPROM)
Read Chinese car via OBD
China: Chery, Great Wall, Lifan, SAIC ME17 (ME17.8.8)
China: Chery, Great Wall, Lifan MT80 K-Line Calibration (Delphi MT80)
China: Chery, Great Wall, Lifan MT80 CAN-bus (Delphi MT80)
China: MG MED17(MED17.8.10)
Read BOOT mode according to the chip model
Infineon: TC1762/TC1766 MICRO (1504KB)
Infineon: TC1762/TC1766 EEPROM (32KB)
Infineon: TC1792/TC1796 MICRO (2048KB)
Infineon: TC1796 MICRO+EXT (4096KB/6144KB)
Infineon: TC1796 EXT (2048KB/4096KB)
Infineon: TC1796 EEPROM (128KB)
Infineon: TC1792 EEPROM (64KB)
Infineon: TC1738/TC1767 MICRO (2048KB)
Infineon: TC1738/TC1767 EEPROM (64KB)
Infineon: TC1797 MICRO (4096KB)
Infineon: TC1797 MICRO+EXT (6144KB/8192KB)
Infineon: TC1797 EXT (2048KB/4096KB)
Infineon: TC1797 EEPROM (64KB)
Infineon: TC1724/TC1728 MICRO (1536KB)
Infineon: TC1724/TC1728 EEPROM (64KB)
Infineon: TC1782/TC1784 MICRO (2560KB)
Infineon: TC1782/TC1784 EEPROM (128KB)
Infineon: TC1793/TC1798 MICRO (4096KB)
Infineon: TC1793/TC1798 MICRO+EXT (6144KB/8192KB)
Infineon: TC1793/TC1798 EXT (2048KB/4096KB)
Infineon: TC1793/TC1798 EEPROM (192KB)
Read the encrypted ECU password (Read the password of encrypted ECU first, then read data)
Bosch: Support Chinese car ME17 TC1728/1767 data reading & writing and password reading
Bosch: BMW/MB/VAG GPT
Bosch: Ford/Opel/Volvo GPT
Bosch: BMW TPROT8+
Bosch: VAG TPROT8+
Bosch: Kia/Hyundai/Honda TPROT8+
Bosch: Chrysler/Jeep/Dodge/Fiat TPROT8+ [Test]
Bosch: VAZ/UAZ ME17.9.71
Continental: Kia/Hyundai/SsangYong SIM2K-24X/C201
Continental: Ford EMS2204
Continental: Ford EMS2207
Continental: Ford EMS2211
Continental: Ford SID208
Continental: Ford SID209
Continental: Ford Mondeo 4 SID807EVO
Continental: Ford Focus 3/Transit Connect SID807EVO
Continental: Citroen/Peugeot SID208
Kia/Hyundai: Delphi MT86 EEPROM (16KB)
Mercedes-Benz: Delphi CRD3.1 EEPROM (32KB)

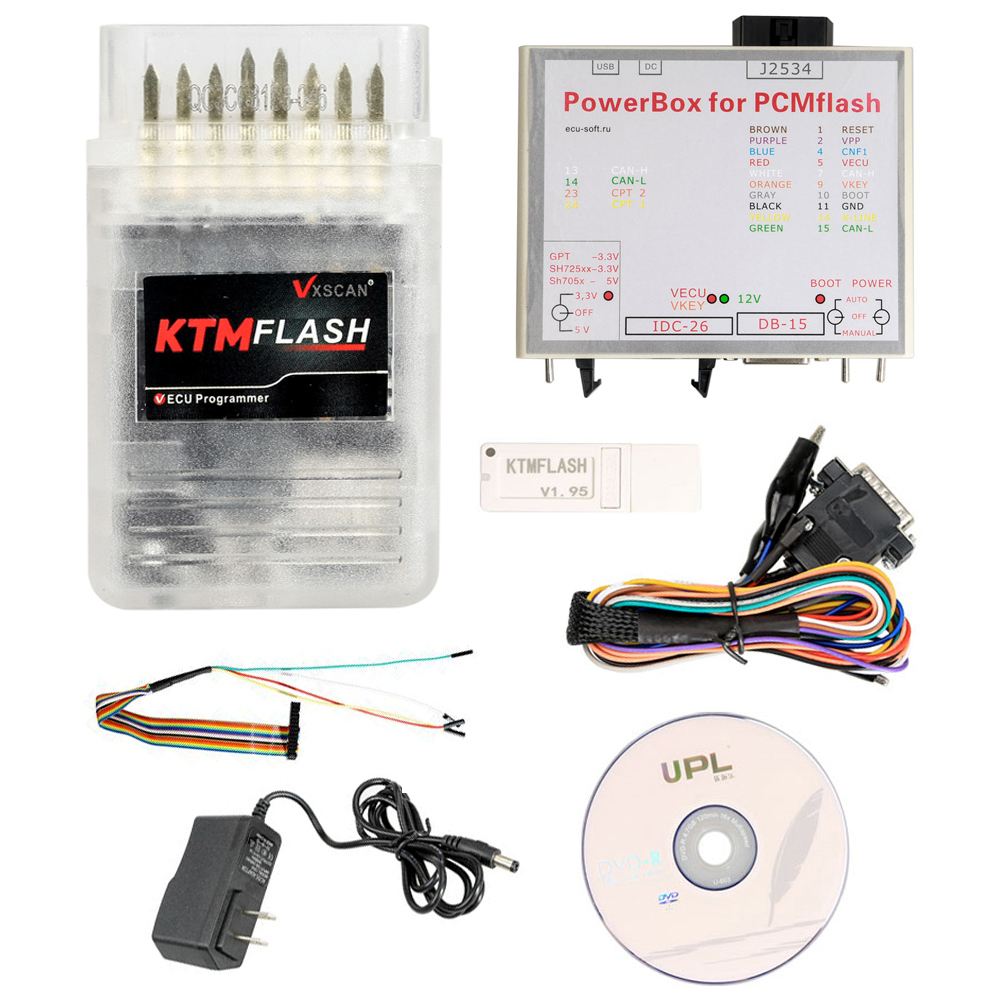

Packing List:
KTMFlash ECU Programmer

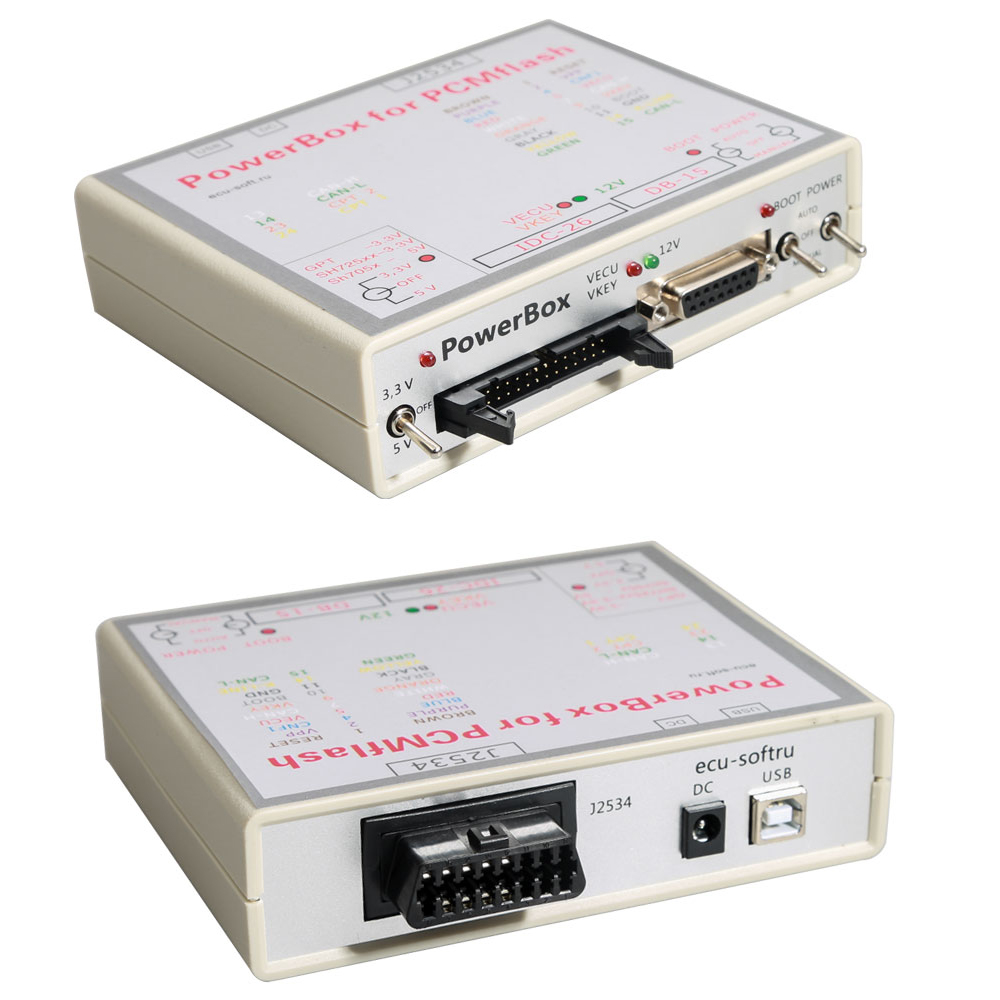

PowerBox for PCMFlash KTM JTAG for Hitachi
14P 600KT02 DB15 MED17-EDC17 cable
14P 600KT06 F34NTA15 GPT cable
USB cable
Power supply adapter
Software CD
USB dongle
|
