Description:

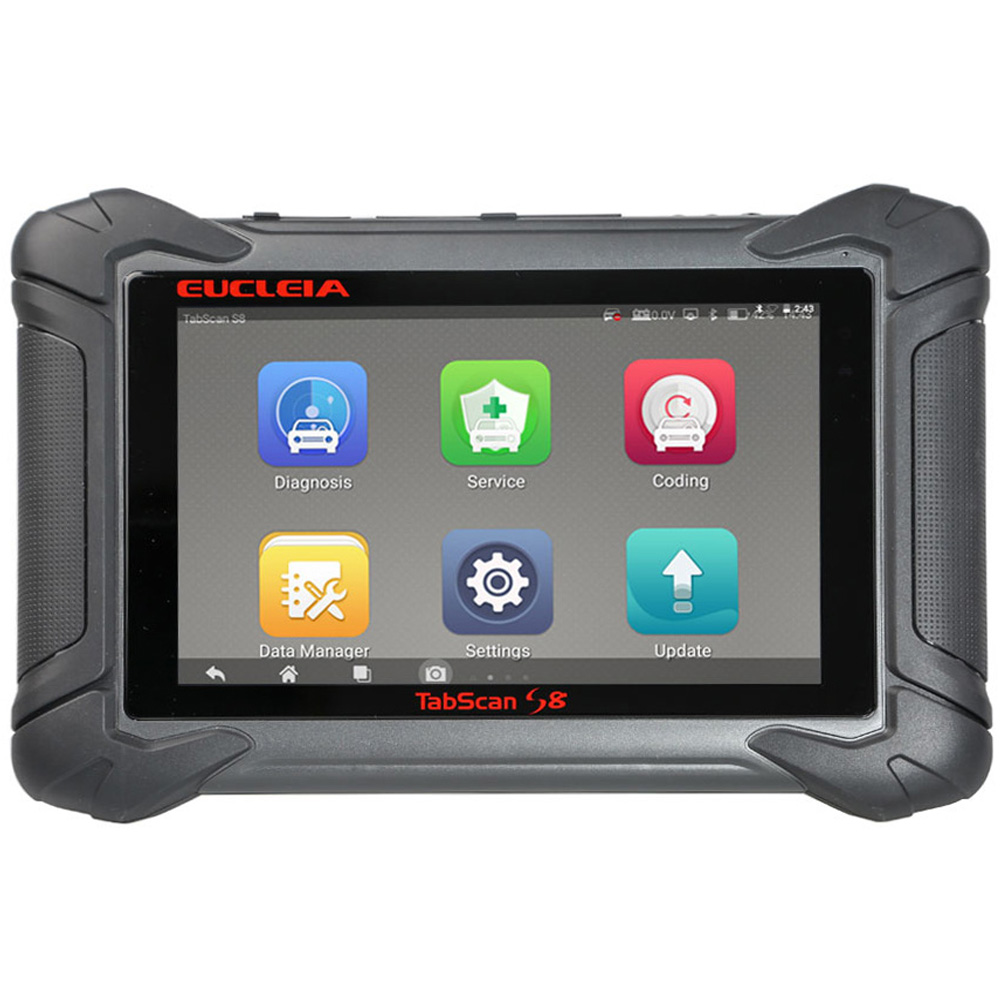

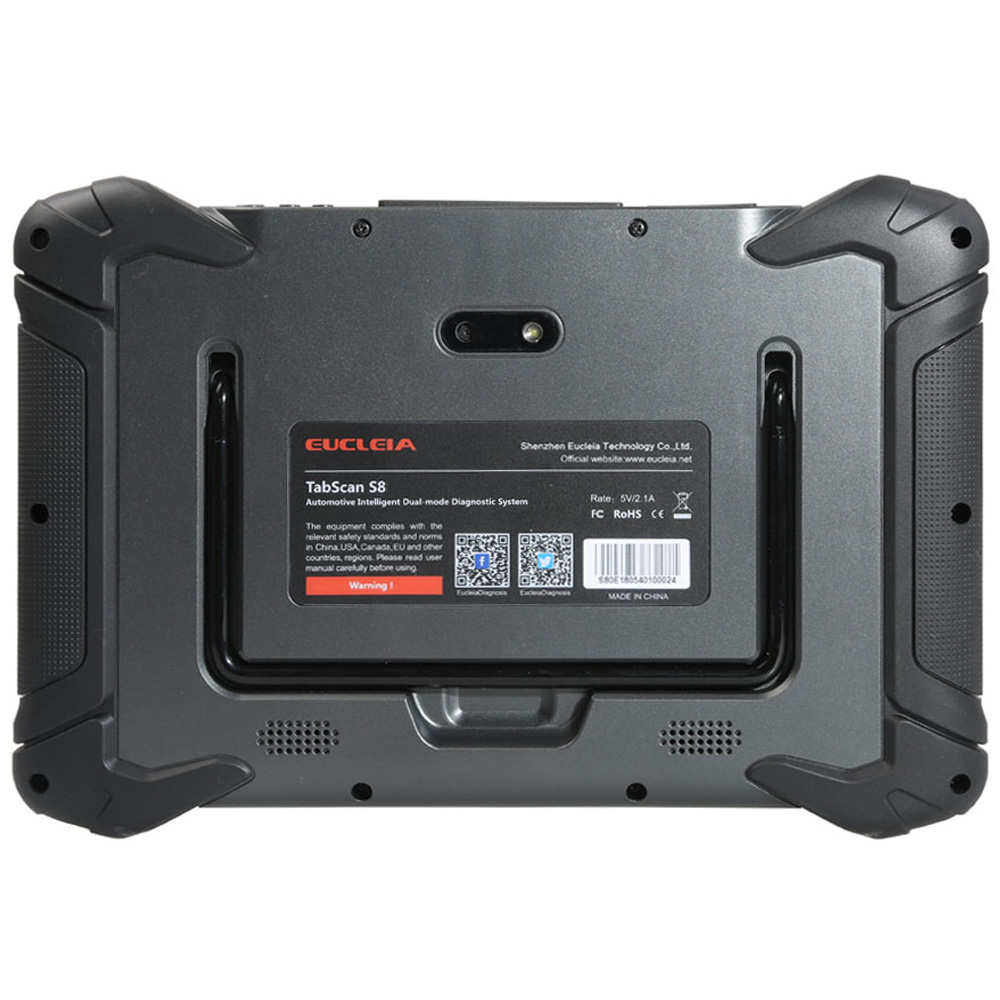

EUCLEIA TabScan S8 is an innovative high-end diagnostic scanner which invest one million mold, strict IP65 industrial design to enhance the stability. Combined the third-party diagnostic device, J2534 and PDU programming tools which achieved the multi-purpose, multi-connected, powerful dual-mode vehicle diagnosis.



With the TabScan S8 coming into market, it identifies new diagnostic experience and cost performance, it is the best choice for working shops, garages, auto service stations etc.



Breakthrough into the age of high-end dual-mode:



High-end Dual-mode: Perfect adapt with software, more powerful in universal and original manufacturer diagnosis.

Multi-purpose: wiScan T6 VCI can be connected with tablet PC and phone APP to achieve multi-purpose.

Built with RK3288( Cortex-A17 1.8GHz CPU), 4G RAM, 32G ROM, and 8 inch capacitive HD touch screen, Tabscan S8 efficiently provides comprehensive vehicle diagnosis and analysis.



Features & Advantages:



1. RK3288 Tablet Solution: Cortex-A17 1.8GHz CPU, Faster Booting in 10 Seconds, Fast Loading APPs without Delay, Webpage Speedy Loading



2. Extending J2534: More PDU protocols and access were added，support programming voltage .



3. Unique Patent: Intelligent searching patent, tenfold faster than normal diagnosis.



4. Humanity Button: Real-time voltage and connection display, one-click reading VIN code.



5. Convenient Application: Provide PCBU Query, Remote Assistance, Workshop Management and other convenient service.



6. Easier Assistance: Feedbacks automatically send to server which makes service more easier.



Functions:



Diagnosis Function: Read and Clear DTC, Live Data, Active Test, ECU Information, Freeze Frame etc.

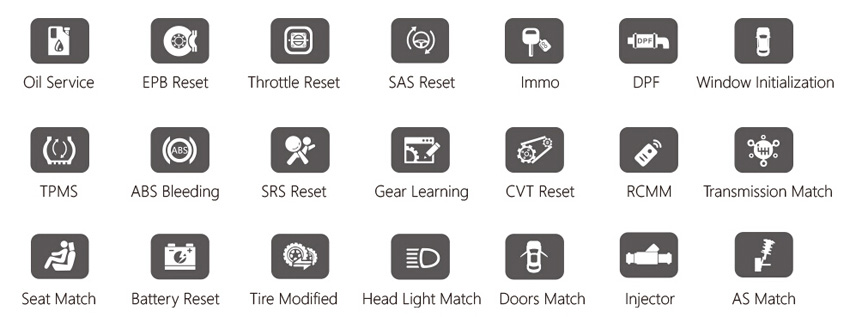

Service Functions: ABS Bleeding, EPB Reset, Service Reset, CKP Learning, Throttle Reset, SAS Reset, Battery Reset, CVT Reset, TPMS etc.



Coding Function: Brush Hiding Functions (VW, Audi, Skoda, Seat and constantly adding)



System Functions: The system also includes the most recent auto-VIN technology that identifies vehicles with one touch and exclusive auto-scan function. One-click clear DTCs, one-click update, data record and replay, workshop manager, database query, repair video research, vehicle data manager, etc.

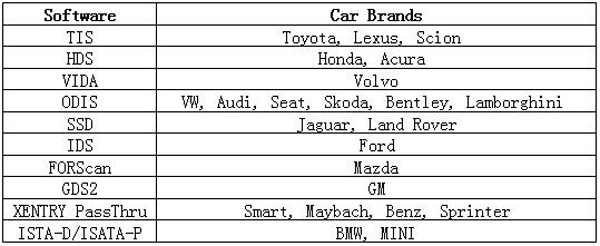

EUCLEIA TabScan S8 Mode Two: Original Manufacturer Diagnosis



Numerous brands, accurate diagnosis, coding ,online programming, date searching etc.

Software Update: free update online for 18 months; USD350/18 months for further update


Supported Protocols:



Compatible SAE-J2534-1&SAE-J2534-2

ISO-9141 K-Line

SO-14230 K-Line

ISO-15765 K-Line

ISO-11898 DWCAN

SAE-J1850-VPW（GM Class2）

SAE-J1850-PWM（FORD SCP）

SAE-J2411 Single Wire CAN（GMLAN）

SAE-J2610 SCI（Chrysler）

SAE-J2740 GM ALDL

SAE-J2809 (HONDA DIAG-H)

VAG TP16 CAN

VAG TP20 CAN（SAE J2819）

VAG KW81（SAE J2818）

BMW DS2

FORD UBP



Specifications:



TabScan S8

CPU: 1.8GHz quad-core

Screen: 8-inch capacitive HD 1280*800 pixels

Operation System: Android

RAM: 4GB

ROM: 32GB

External Storage: Support 32GB,up to 64GB

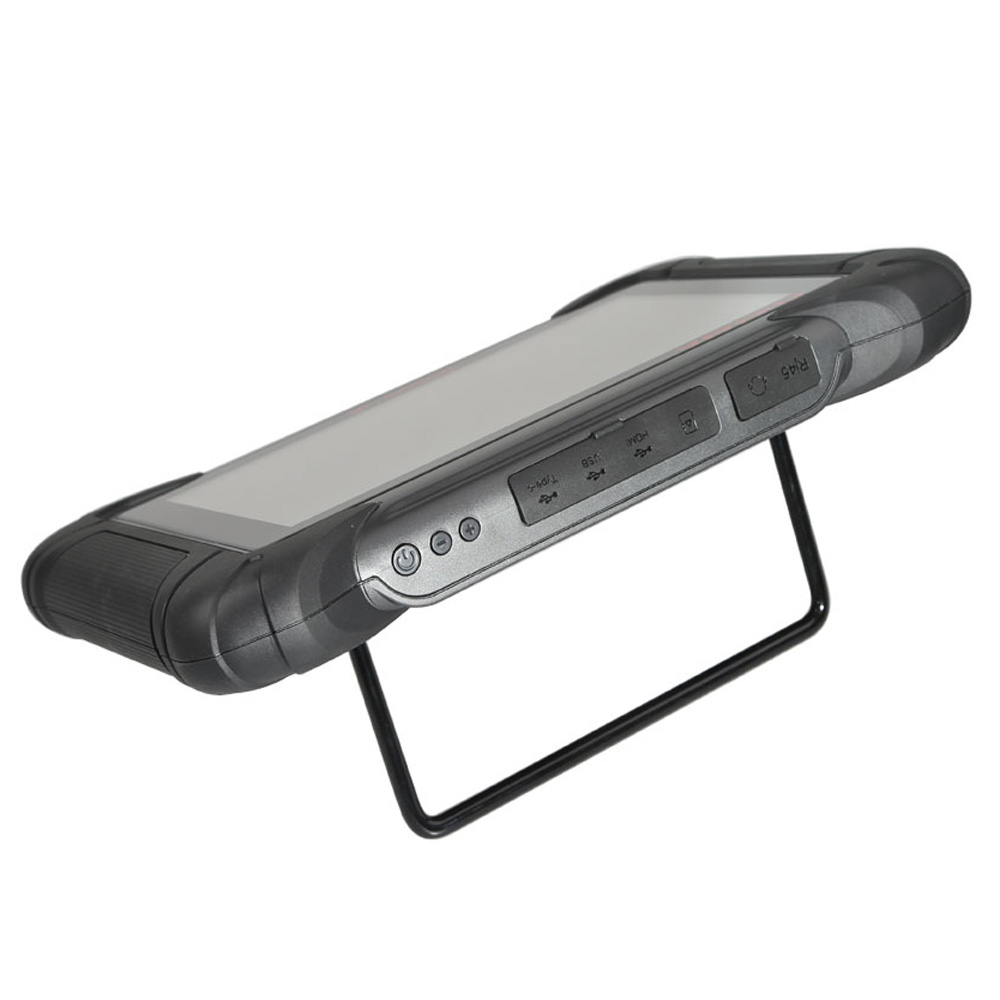

Interface: Micro USB 2.0, HDMI, RJ45

WIFI: 2.4/5G, FPC

Bluetooth: Bluetooth V4.0(Bluetooth low energy)

Connectivity: Bluetooth

Charging Method: DC charger and car charger

Battery: 7600mAh lithium battery

Diagnostic Connector: 7 connectors

Product Size: 265*175*27.5mm

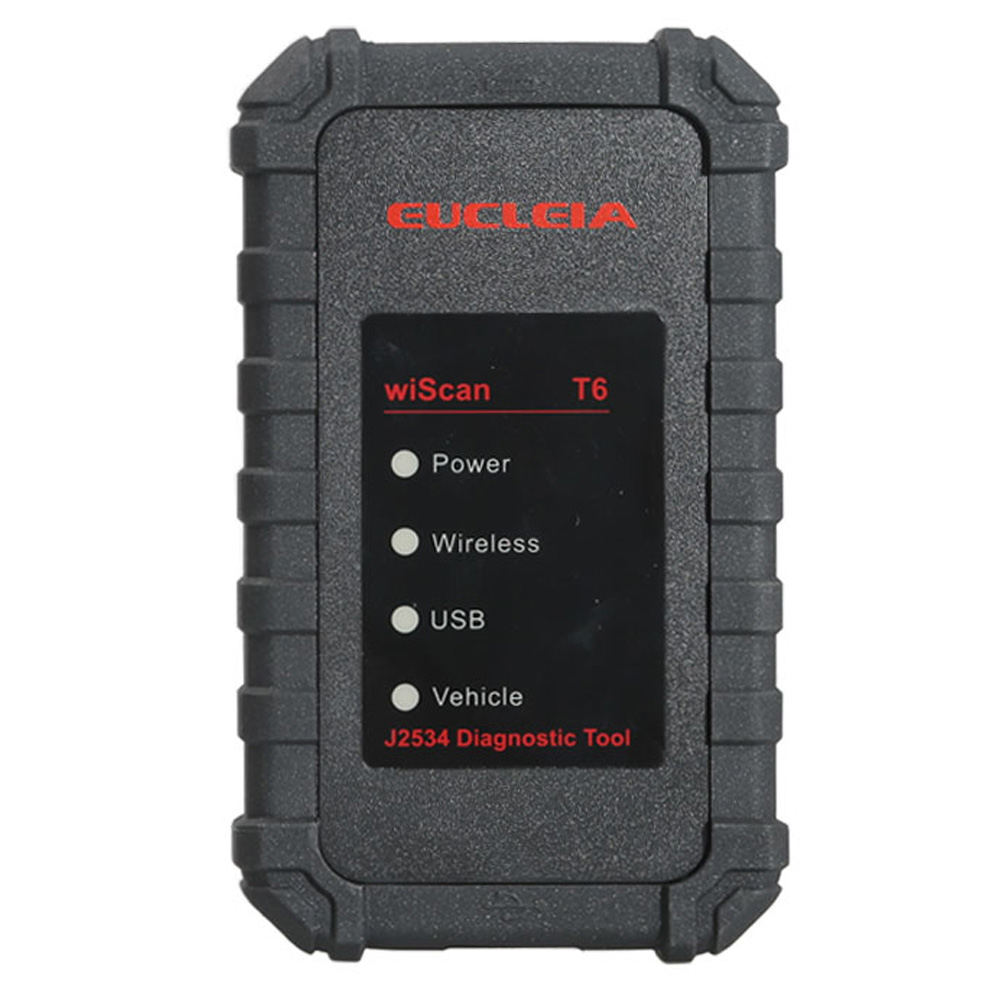

wiScan T6

Processor: ARM 32bit Cortex M3

Flash: 512KB

RAM: 128KB

Support OS: Windows XP/7/8/10

Communication Connector: DB15

Wired Connection: USB Type-B, USB 2.0

Wireless Connection: Bluetooth 3.0/4.0

Connectivity: Bluetooth / connect computer via USB cable

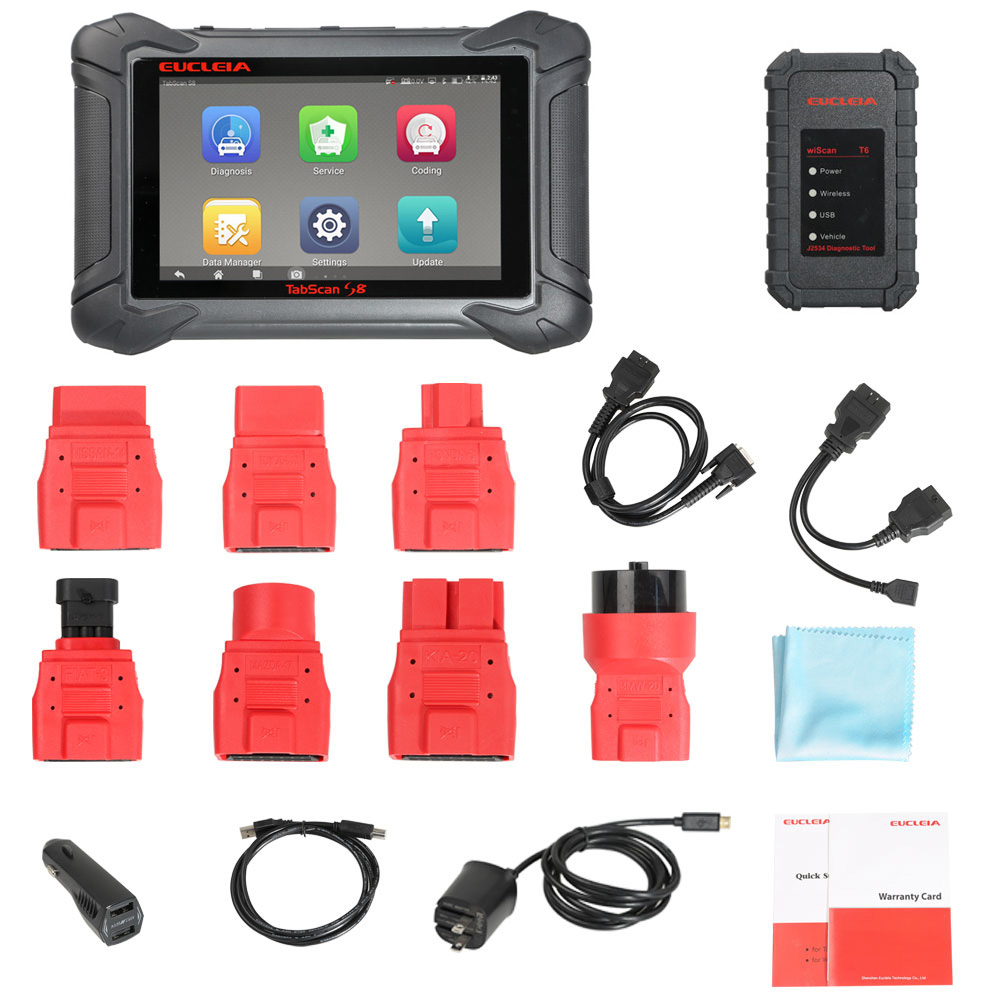

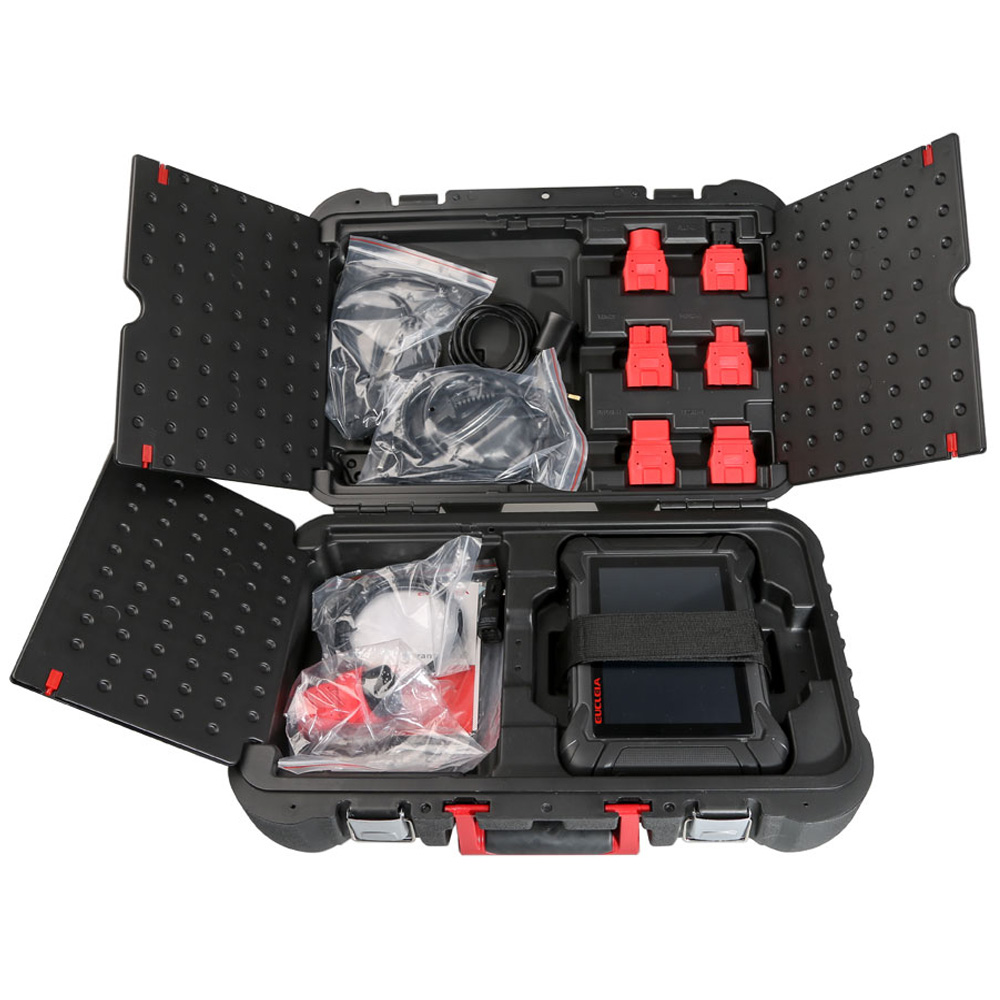

Packing List:



EUCLEIA TabScan s8

wiScan T6

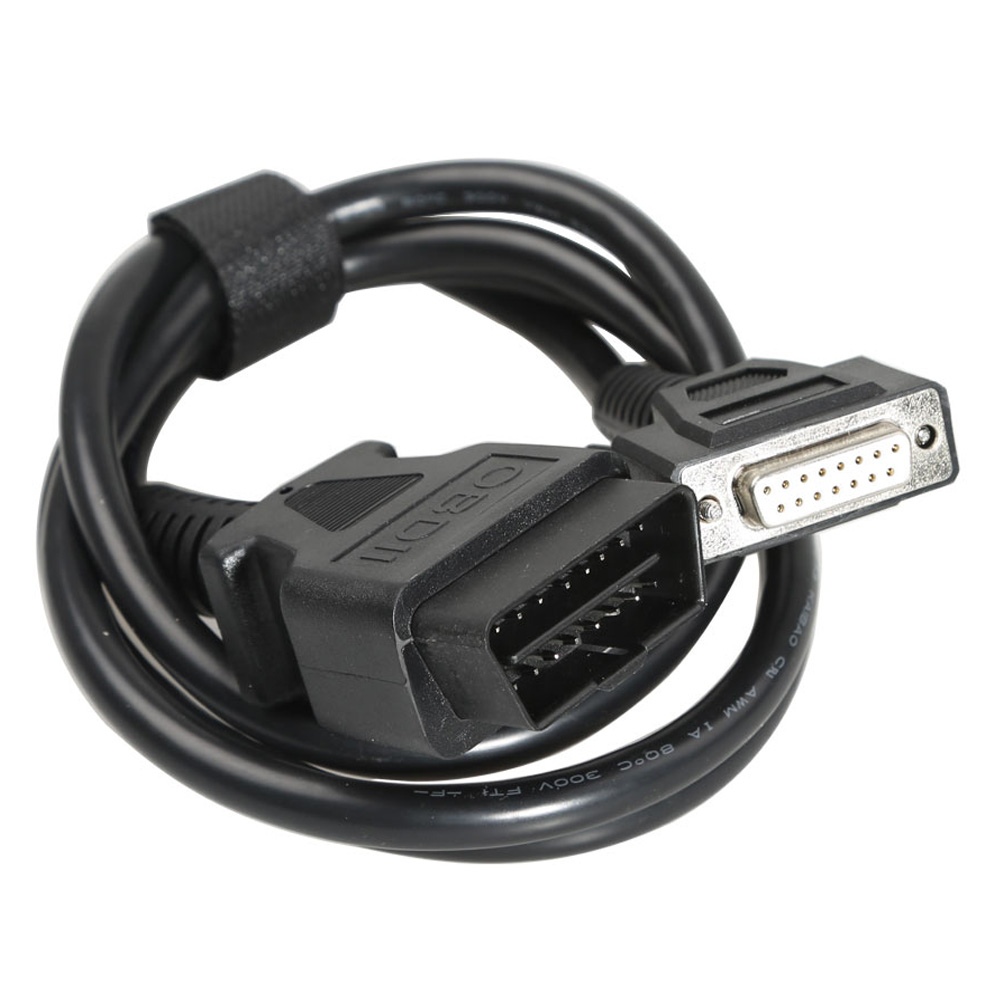

Main Cable

BMW Engineer Test Main Cable

BMW-20

Honda-3

Jinbei/Chery/Chang’an/Fiat-3

KIA-20

Mazda-17

Nissan-14

Toyota-17

USB Cable

Dual USB Charger

AC/DC Adapter

Warranty Card

User Manual

Plastic Toolbox

Packing Box
