Description:

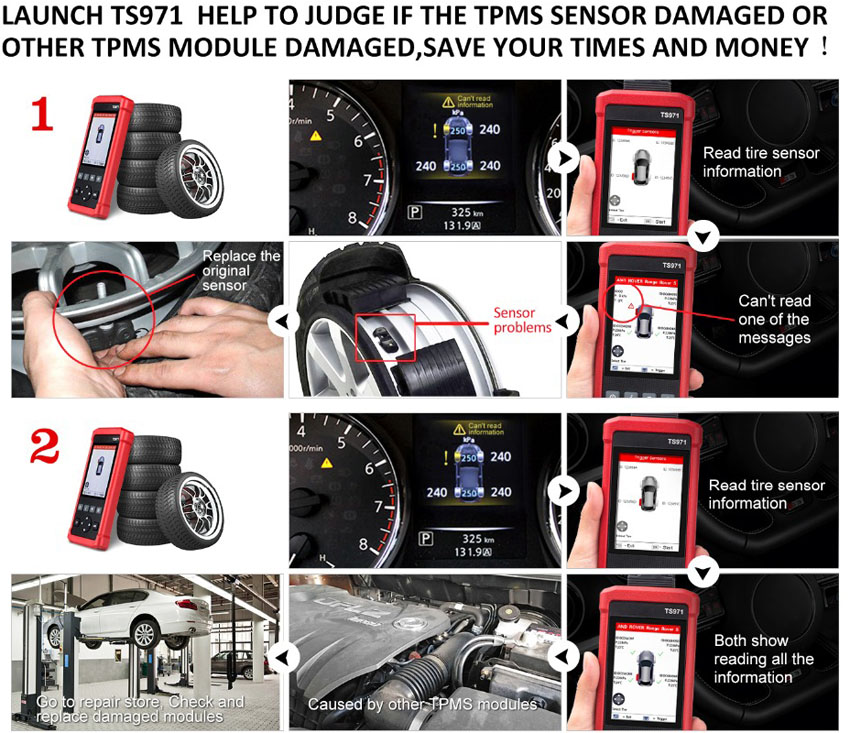

LAUNCH TS971 TPMS Bluetooth Sensor Tire Pressure Tester integrates diagnostic functions of a variety of car models, with TPMS trouble light reset, sensor ID, battery status, tire pressure and temperature read, TPMS sensor activation and matching as well.



It better meets the needs of auto repair shop, tire assembly line, individual owner and tire repair shop to diagnose, activate and match the TPMS system and the tire pressure sensors.

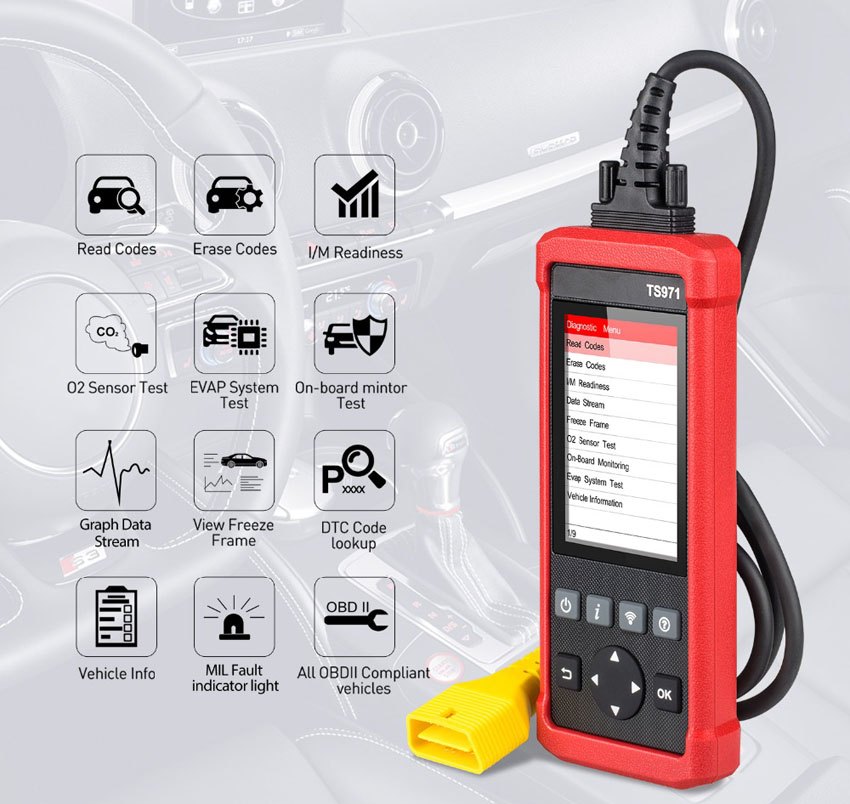

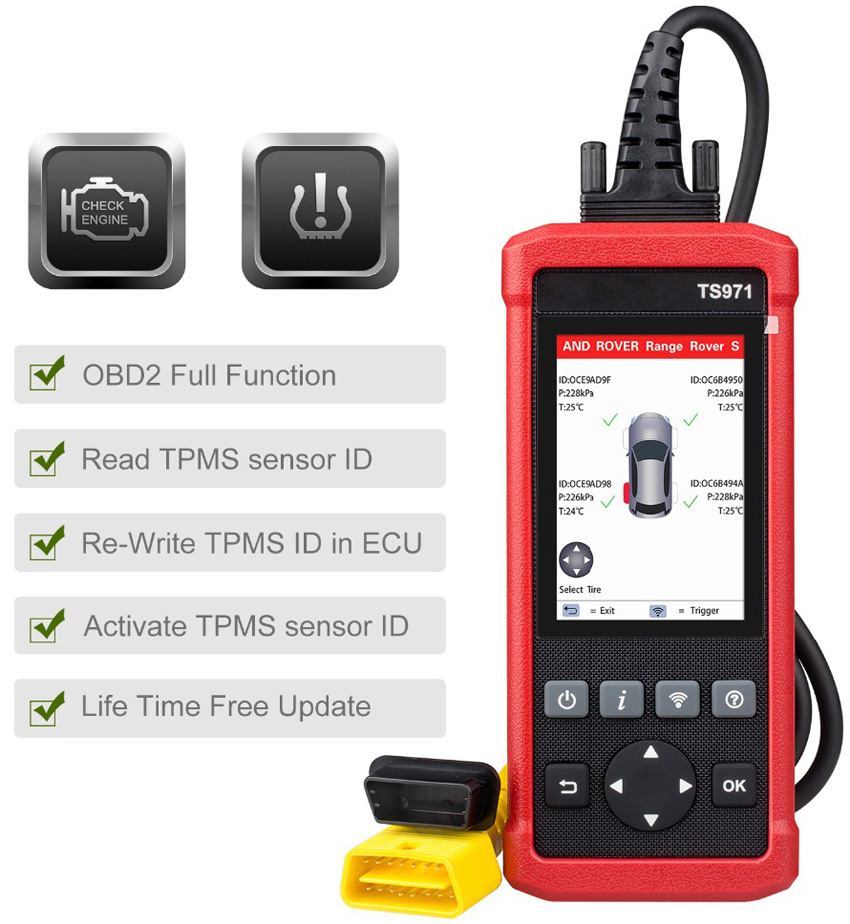

Features:

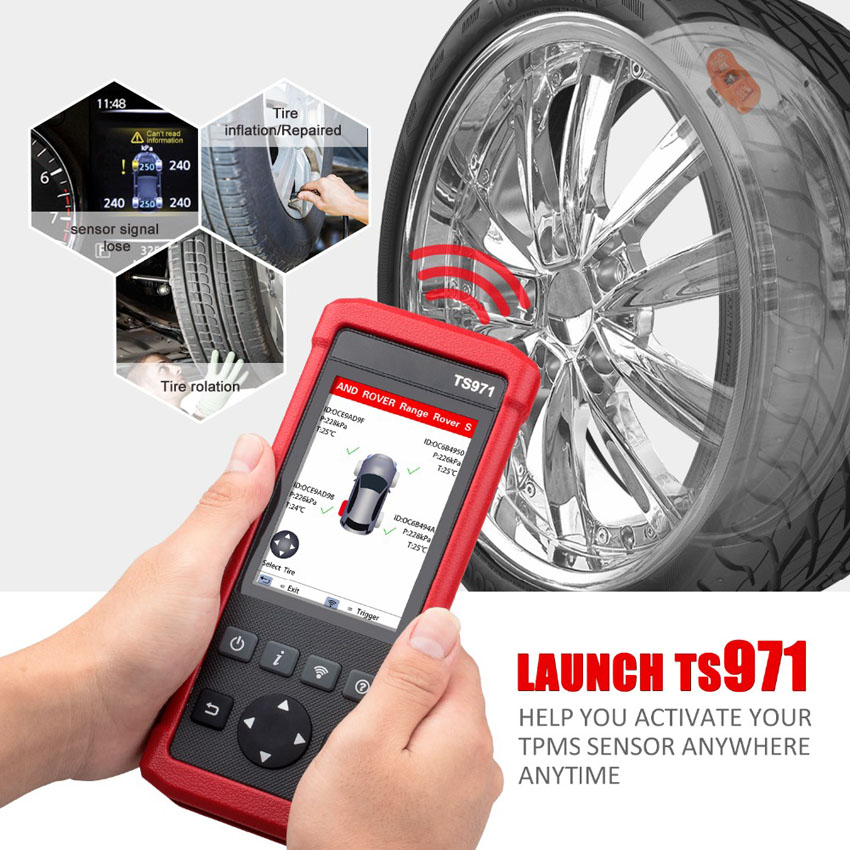

1. Activate the TPMS sensors of most vehicle brands globally with right protocols;

2. Read tire pressure, temperature sensor ID and battery level; Duplicate or generate the new sensor ID after sensor replacement;

3. Rewrite the sensor position into the ECU after sensor rotation;

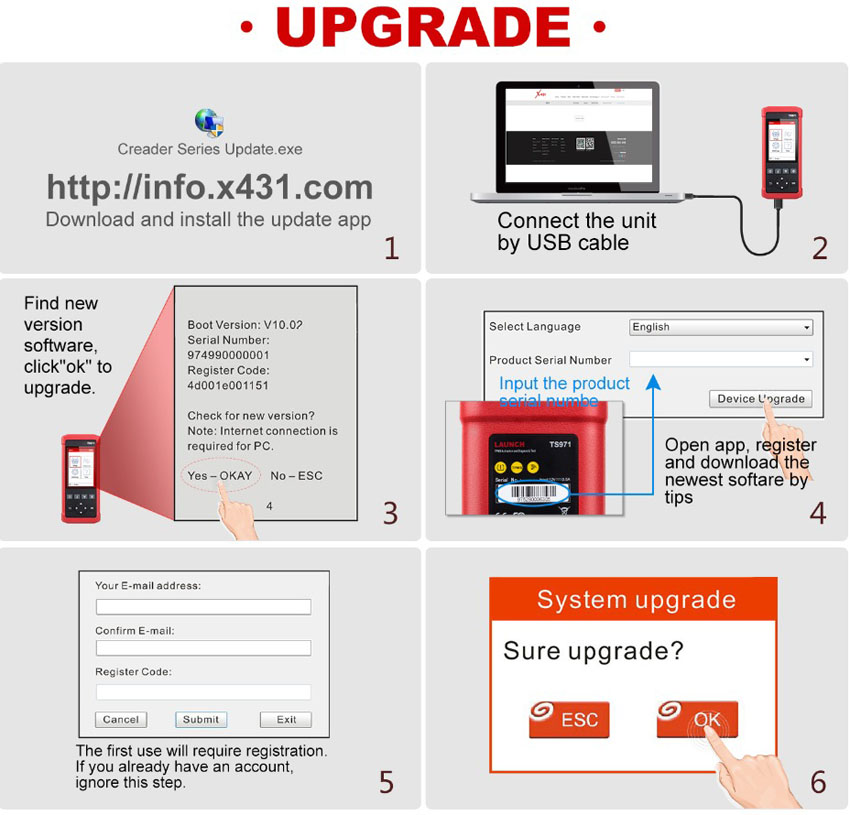

4. Help guide and software update subscription; Search by make-mode-year;

5. Tested sensor history query; Read and clear TPMS fault code.



Specifications:

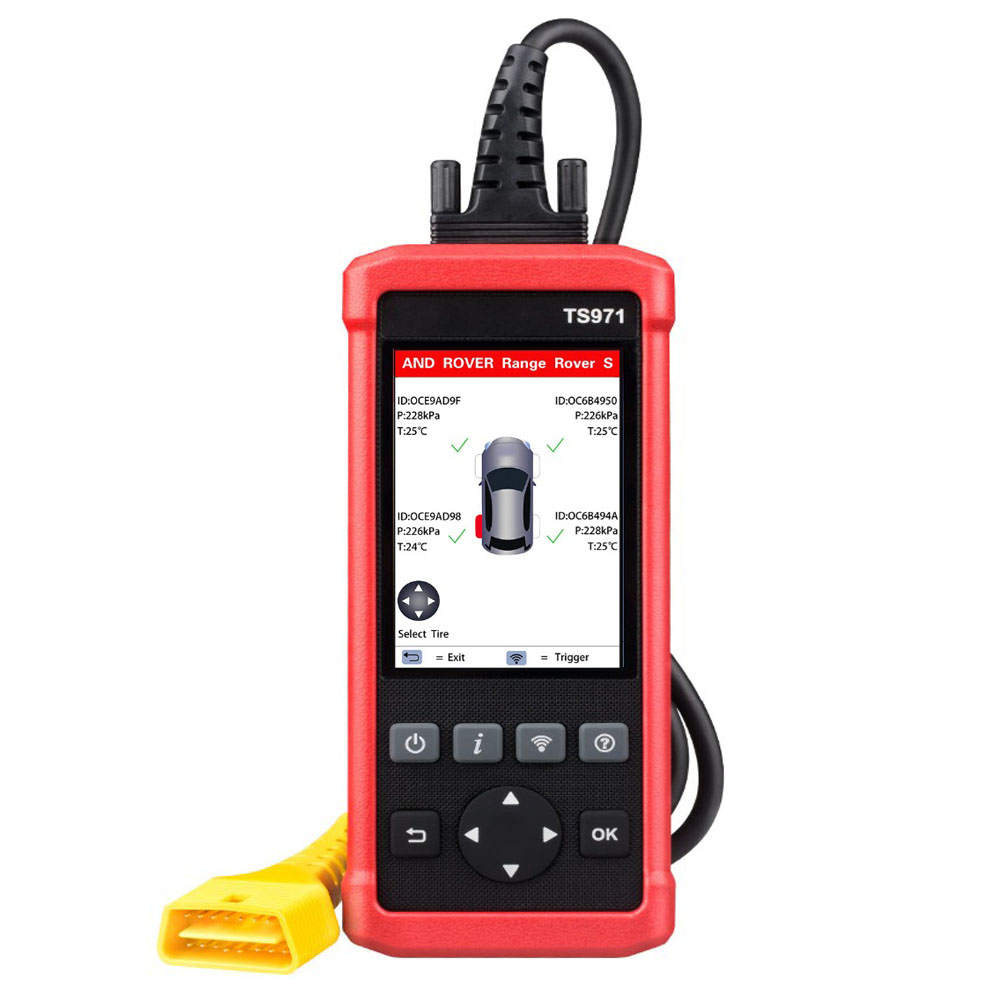

Display: 4-inch TFT screen with 320*480 resolution

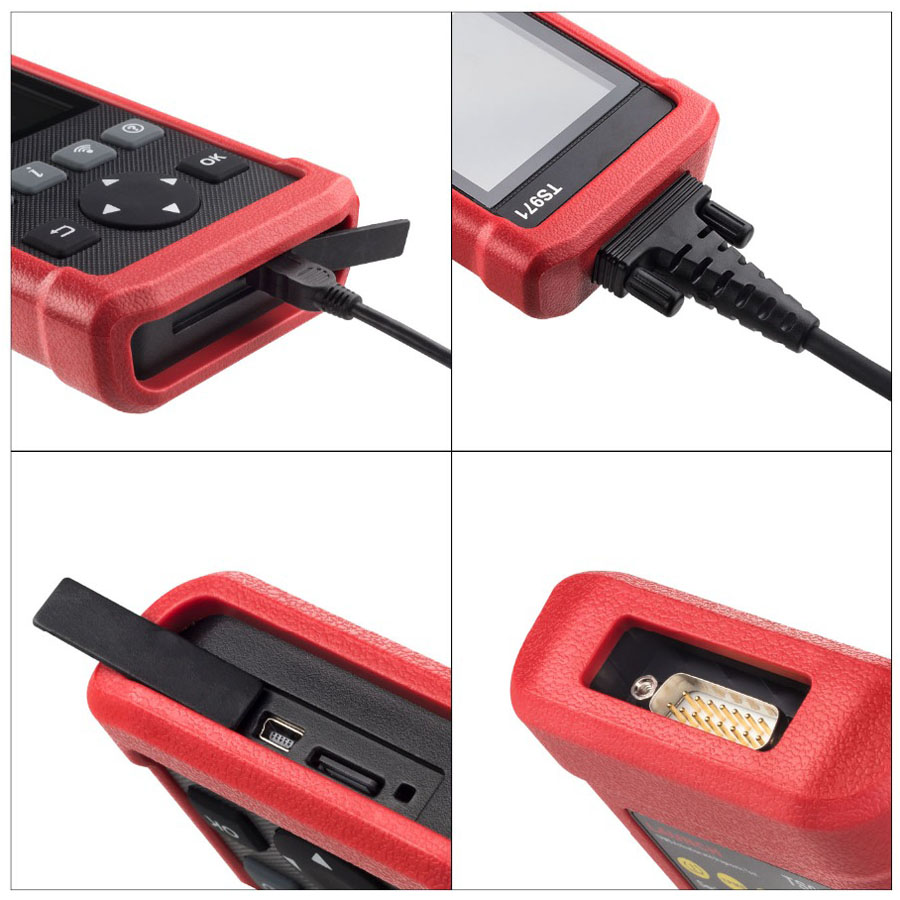

OBD Supply Voltage: 9 to 18V

USB Supply Voltage: 5V

Battery: 3100mAh/3.7V lithium-ion battery

Activate Sensor Frequency: 125KHz

Receive Sensor Frequency: 315MHz/433MHz

Working Temperature: -10 to 50 degree centigrade

Storage Temperature: -20 to 70 degree centigrade

Storage Humidity: 10% to 93%

Dimension: 195*86*32mm

Weight : <460g

Drop Test: It will not be damaged in case of falling from 1 meter high.

Boot Time: <5s, time from pressing power button to the main menu

Button Response: 1 second

Working Hour: one and a half year in power off state; 5.5 hours in working condition.



Supported Cars:



Acura, Alfa Romeo, Aston Martin, Audi, Bentley, BMW, Bugatti, Buick, Cadillac, Chevrolet,  Chrysler, Coda, Dodge, Ferrari, Fiat, Fisker, Ford, Freightliner, Genesis, GMC, Honda Motorcycle, Honda, Hummer, Hyundai, Infiniti, Isuzu, Jaguar, Jeep, Kia, Lamborghini, Land Rover, Lexus, Lincoln, Lotus, Maserati, Maybach, Mazda, Mclaren, Mercedes, Mercury, Mini, Mitsubishi, Nissan, Plymouth, Pontiac, Ram, Rolls Royce, Saab, Saturn, Scion, Smart, Subaru, Suzuki, Tesla, Toyota, Volkswagen, Volvo, VPG



Note:



The magnet is only used to activate the tire pressure sensors equipped by part old vehicle models. When using, please put the magnet near to the gas nozzle while receiving the signal sent from the sensor with the device.

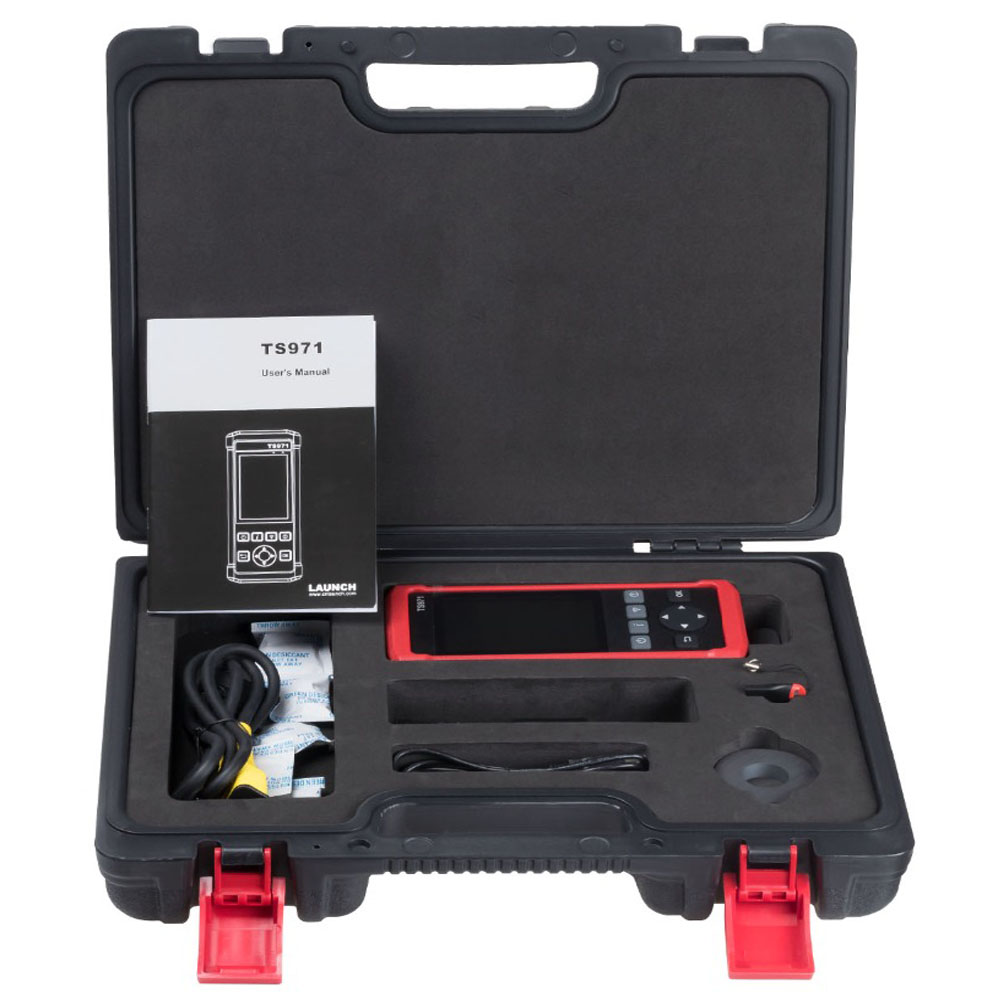

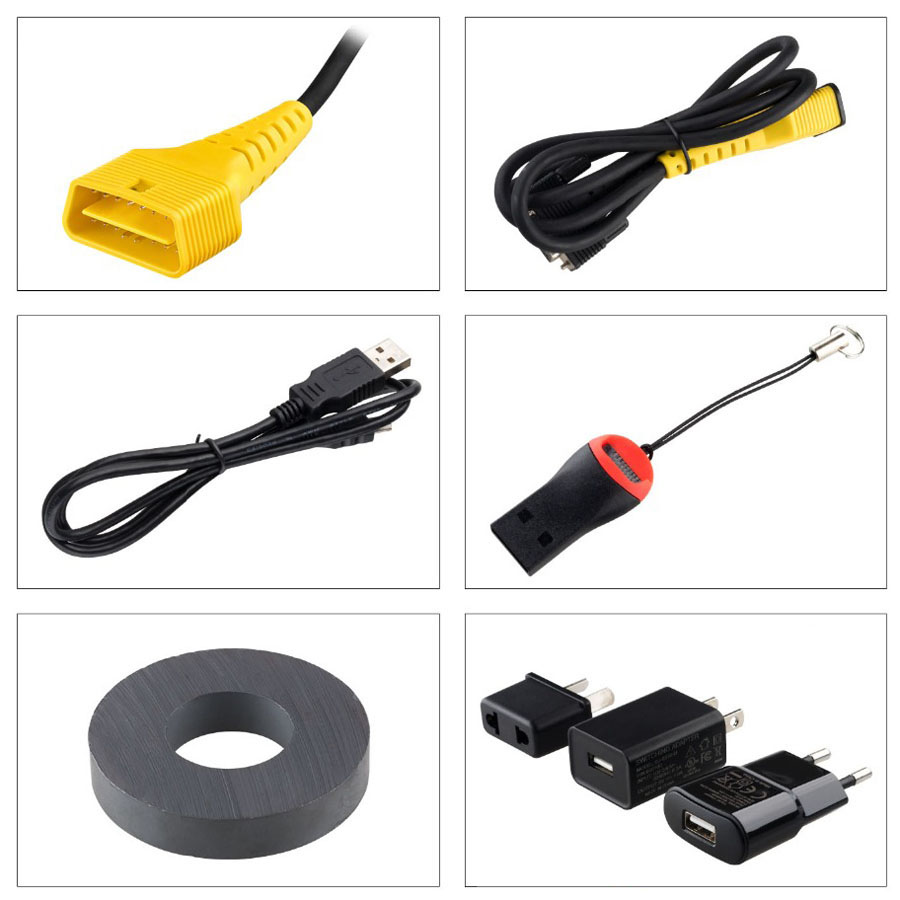

Packing List:



Launch TS971 TPMS Activation and Diagnostic Tool

OBD-II Cable

USB Cable

Magnet

Memory Card

Card Reader

Charger

User Manual

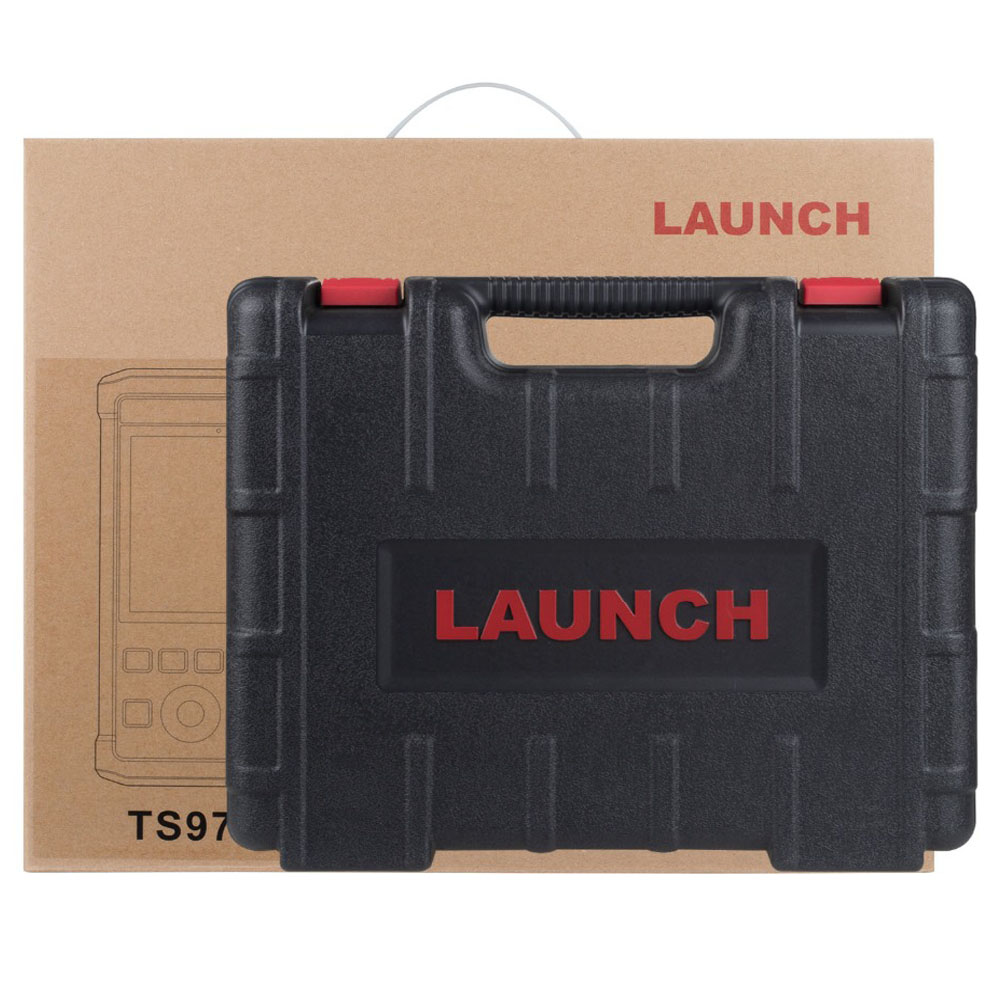

Plastic Toolbox

Packing Box
