Description:



1. Checks Land Rover sold worldwide since 2000, support 59 systems including Engine, A/T, ABS, Airbag, ENG, Body Control module, Chassis Control Module, Packing Brake Control, Steering Angle Sensor Module, Speed Control Module…



2. Checks the Engine of all vehicles OBD-II compliant after 1996.



3. Reads and erases the trouble codes



4. Defines the trouble codes on the screen.



5. Live data to view the live or real time PID data of vehicle computer modules.



Supported Language: English



Software Update: free online update



Features:

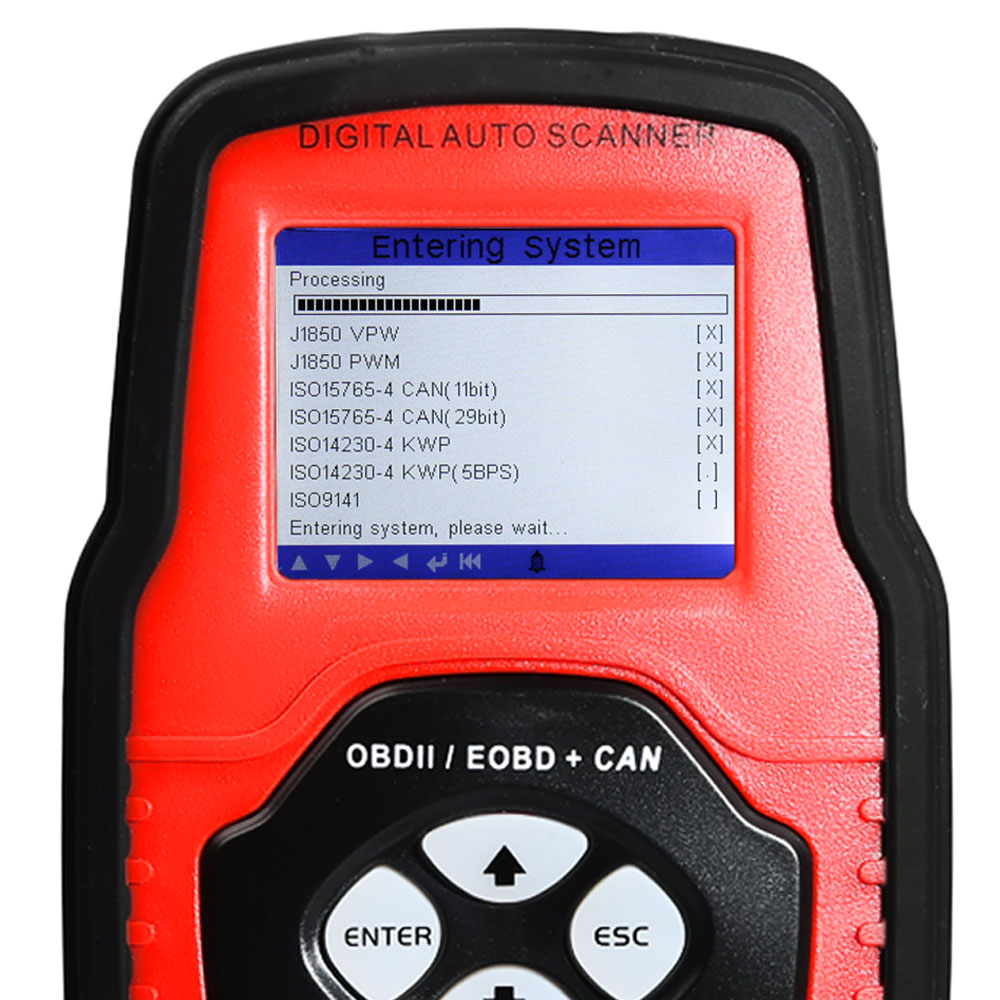

1. Works on all 1996 and newer cars & light trucks that are OBD-II compliant (including the VPW, PWM, ISO, KWP 2000 and CAN protocols).



Available Functions:

1). Reads and clears generic and manufacturer specific Diagnostic Trouble Codes (DTCs).

2). Shows the live data to view the live or real time PID data of Vehicle’s computer Modules.

3). Detects OBD2 freeze frame information.

4). Determines the malfunction indicator lamp(MIL) status.

5). Identifies and displays pending codes.

6). Retrieves VIN(Vehicle Identification Number) on 2002 and newer vehicles that support Mode 9.

7). Wider vehicles coverage with CAN protocol support.

8). Displays total # of codes retrieved.

9). Code definitions displayed on unit screen.

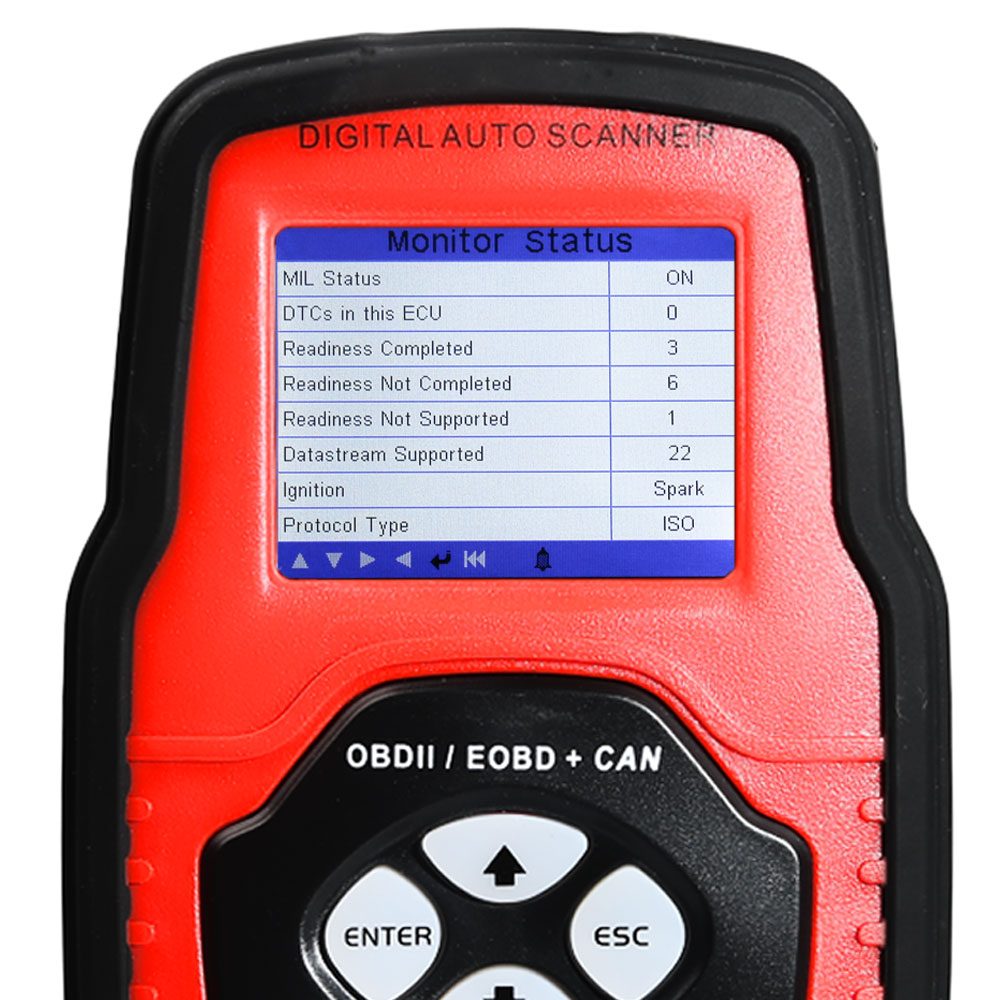

10). Displays I/M readiness status.

11). Code definitions displayed on unit screen.



2. Works on Land Rover sold worldwide since 2000, support 59 systems including Engine, A/T, ABS, Airbag, ENG, Body Control module, Chassis Control Module, Packing Brake Control, Steering Angle Sensor Module, Speed Control Module…



Available Functions:

1). Reads and clears generic trouble codes of cars using ISO 9141-2 (CARB), ISO 14230 (KWP-2000) and ISO-15765(CAN) protocols.

2). Displays total # of codes retrieved.

4). Code definitions displayed on unit screen.

5). Turns off MIL lights of engine, airbags, ABS, A/T and most other systems.

6). Views the ECU information.

7). Reset service for all brands of Land Rover.

 Oil Reset

 EPB Reset

 Brake Bleeding

 SLS Reset

 Battery Reset.



3. Trouble code lookup function in tool for OBD-II DTC

4. Auto-save diagnostic function via setting.



Supported Cars:


All OBD2 & EOBD compliant vehicles with a 16-pin Interface(include all 1996 and newer cars, light trucks and SUVs sold in the United States, all 2000 and newer sold in the Europe, Japan and Asian Area) CAN, VPW, PWM, ISO9141, KW2000 protocols compliant vehicles(including those equipped with the next-generation protocol Control Area Network.). Besides, also available for Land Rover after 2000, including Freelander 1997 and later, Discovery 1995 and later, Range Rover 1995 and later, Range Rover Sport 2005 and later, Range Rover Evoque 2012 and later, Defender1997 and later.



Specifications:



Supported Protocol: OBD-II, CAN, KWP

Supported Systems: Land Rover all systems

External Power: 8.0 to 18.0V power provided via vehicle battery

Display: TFT colorful display

Working Temperature: 0 to 60 degree centigrade

Storage Temperature: -20 to 70 degree centigrade

Certificate: CE, ROHS, FCC, PAHS, REACH

Size(L*W*H): 209*107*37mm

Weight: 730g



Packing List:



QUICKLYNKS BMW+OBDII Diagnostic Tool T86

OBD2 16 Pin Cable

USB Cable

User Manual

CD

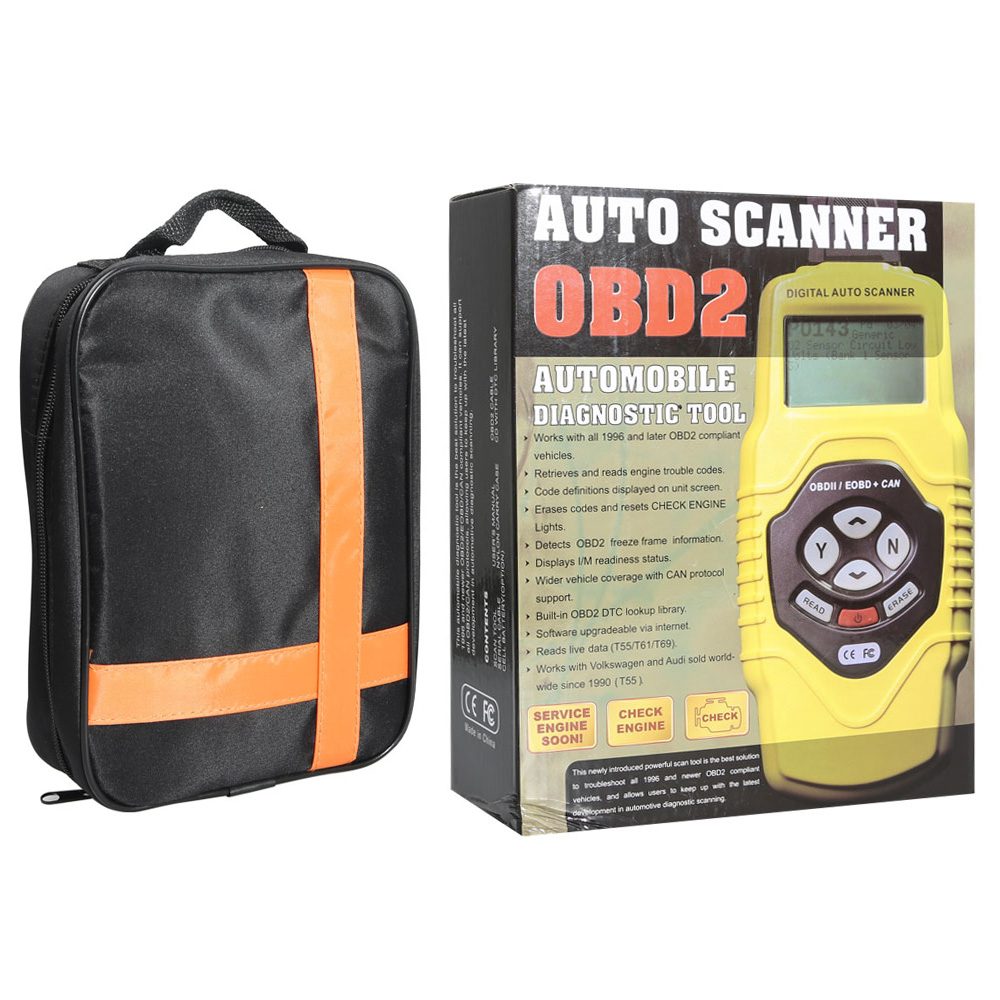

Carrying Pouch

Packing Box
