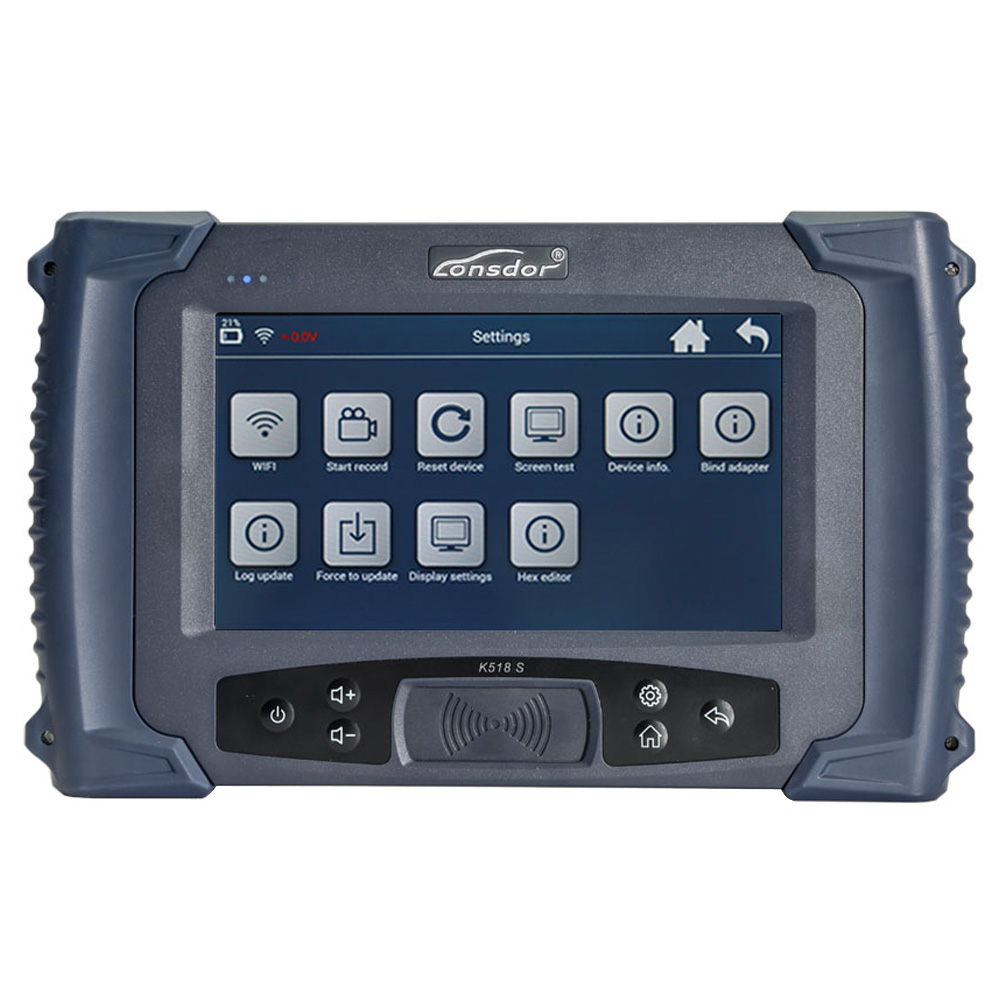

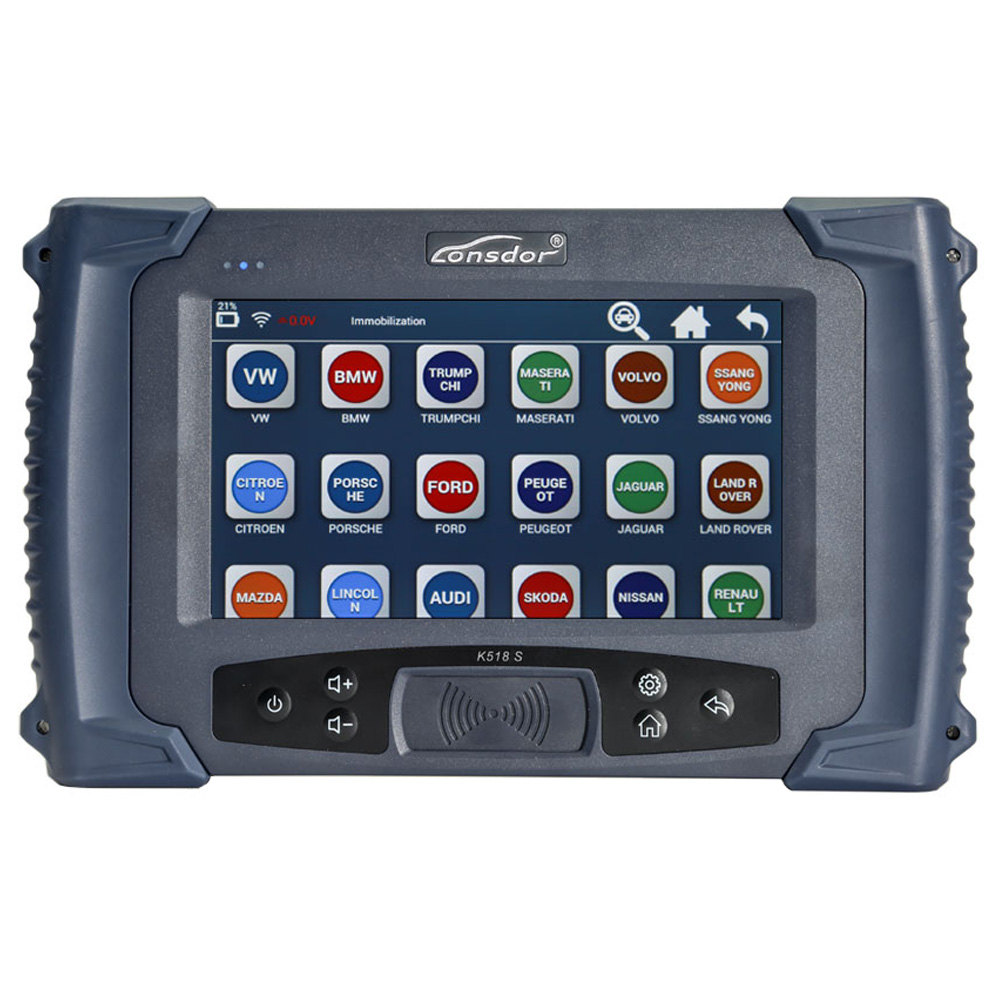

Lonsdor K518S can program Toyota/Lexus smart key all key lost via OBD by working together with extra SKE-LT Smart Key Emulator 4 in 1 Set (optional).

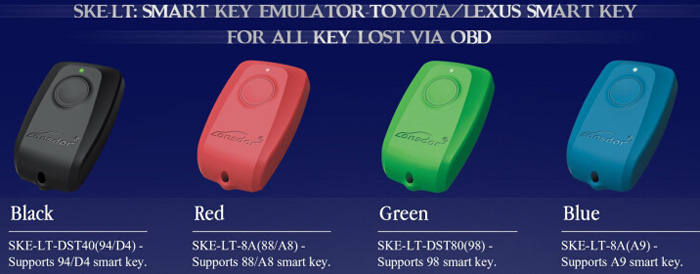

SKE-LT: Smart Key Emulator - Toyota/Lexus smart key for all key lost via OBD
Black:  SKE-LT-DST40(94/D4) - supports 94/D4 smart key.
Red: SKE-LT-8A(88/A8) - support 88/A8 smart key.
Green: SKE-LT-DST80(98) - supports 98 smart key.
Blue: SKE-LT-8A(A9) - supports A9 smart key.

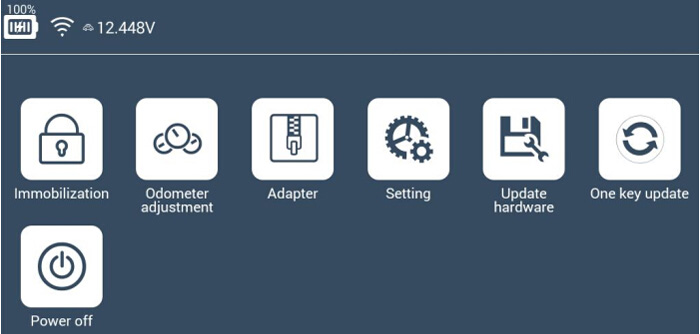

How to use Lonsdor K518S?

Here take the Toyota/Lexus smart key all key lost as example:

1) Binding
1.Go to the “Bind emulator key” function;
2.Turn on emulator key and put it into K518ISE key slot (put the status indicator down, make sure the key is active);
3. Following the system direction and click “OK” to start binding;
4. After binding completed, the system will indicate “Binding successful”.

Note:

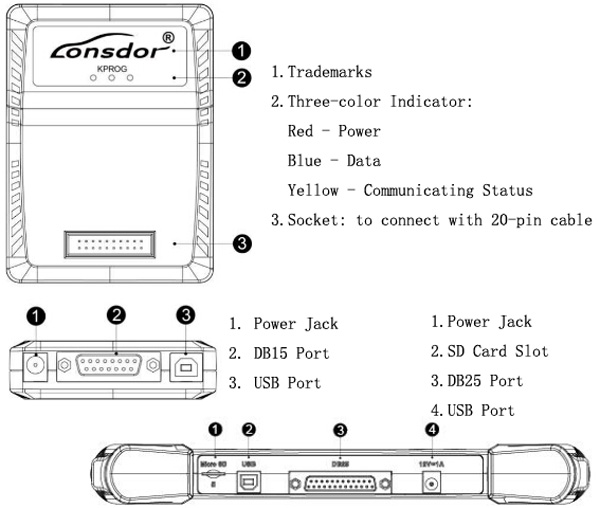

The KPROG adapter is specialized for part of Volvo car series and the new Maserati for the time being, we are still developing some more car models that the adapter can support in the near future, such as Jeep Grand Cherokee, please refer to our website or directly go to the “one key update” for latest news.

2)  Backup EEPROM data
Connect K518ISE with car OBD port, enter into “Backup immodata” to back up the data.

3)  Make emergency emulator key
After choosing the immo data, in a network environment, the system will indicate to choose the corresponding SKE emulator key model, please start the key and put it into K518ISE key slot(make sure the key is activate), follow the instruction to make an emulator key.

4)  Add smart key
Click the car start button, put the generated SKE emulator key close to the start button, with induction the car will automatically activated.
The system will read current key count, then follow the instruction to add key.

Precaution:
1. ”Bind emulator key” can identify the SKE emulator key binding state;
2. SKE emulator key need to bind K518ISE host and can bind only for one time;
3. When making emulator key, make sure well net connection and to choose the corresponding SKE emulator key model correctly.

Technical Parameter:

RFID:  support 125KHz ASK,134.2KHz FSK
CPU:   ARM Cortex-A7 Quad-core Processor Speed 1.34GHz
Display:   1024*600 7 inch IPS capacitive
Memory:   eMMC 8G RAM 1G
Battery Capacity: 3800 mAh
Power Supply: DC12V; 1A
Power Port:  5.5*2.1mm
OBD Port:  OBD-II
Communication Port: USB 2.0 Type B
OBD-II Protocols: ISO15765, ISO9141, ISO14230, SAEJ1850, VW TP1.6 TP2.0 etc

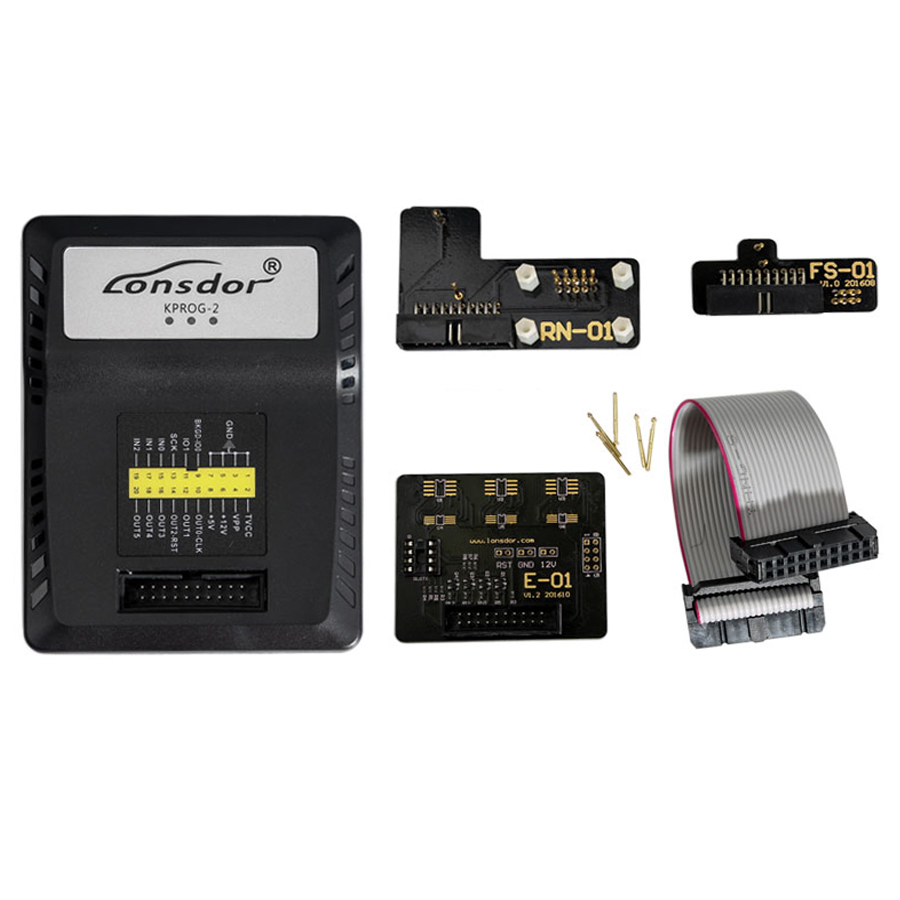

KPROG:  support programming MCU and EEPROM on ECU circuit board.
WIFI Communication Distance: 10m

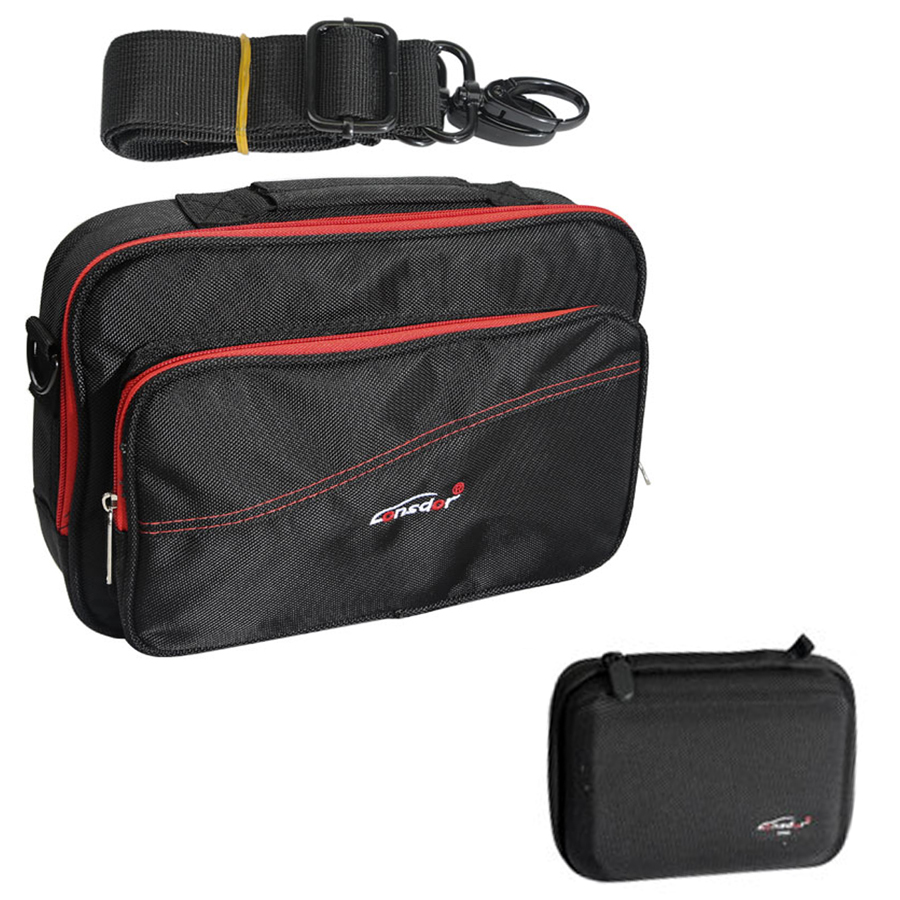

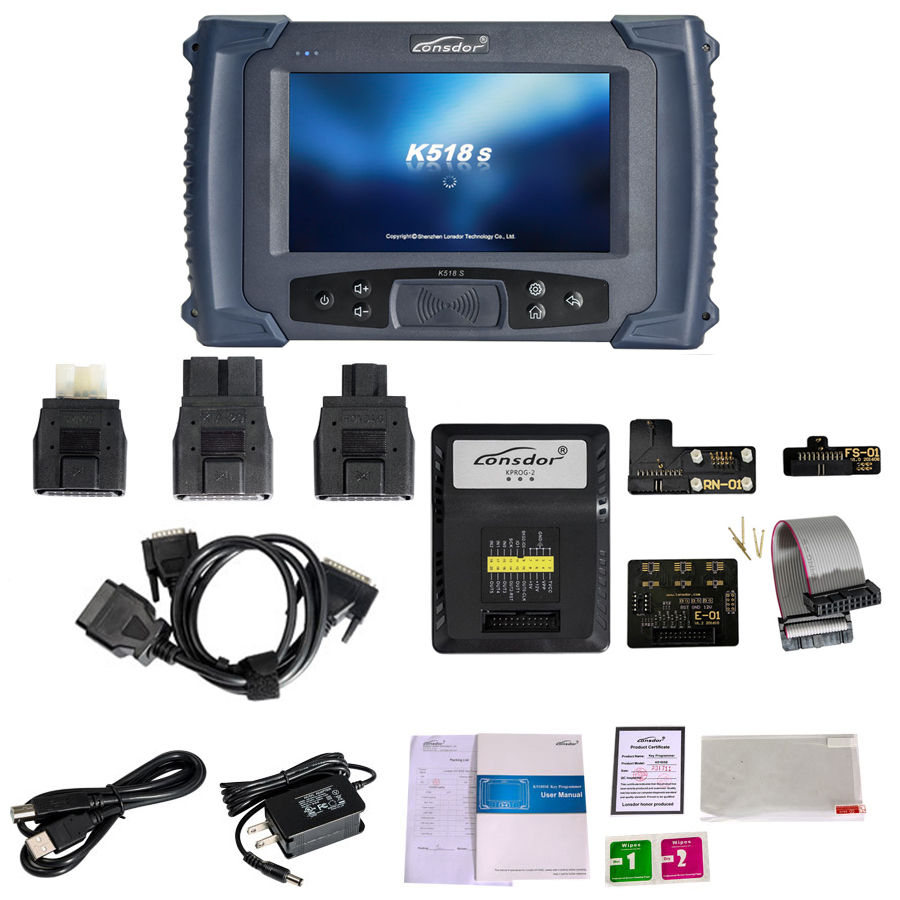

Packing List:

Update Info:

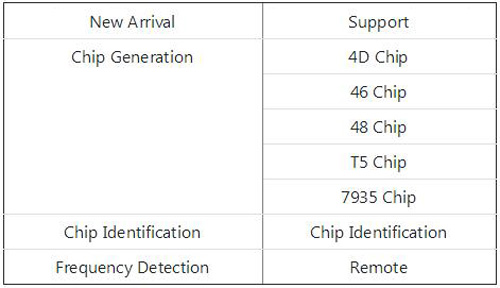

Free Update [2018-04-12] - Chip Generation & Chip Recognition & Frequency Detection
