Description:

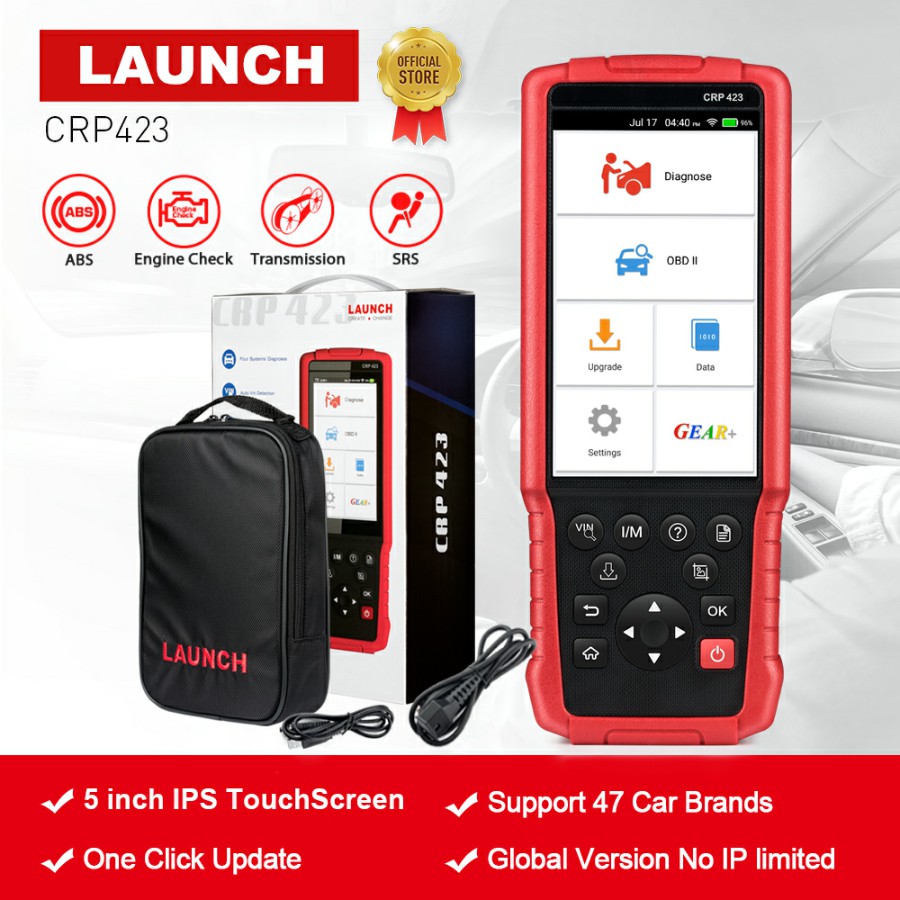

Launch X431 CRP423 OBD2 Code Scanner supports Engine/ABS/Airbag/AT. It is update version of Launch X431 CRP123



Launch CRP423 is in evolutionary smart solution for passenger car diagnosis. It inherits from Launch advanced diagnosing technology and is characterized by covering a wide range of vehicles.



Launch CRP 423 supports all 10 models of OBD-lI test for a complete diagnosis. CRP 423 also supports the system diagnosis of ABS, Airbag, Engine and Transmission System.



Supported Languages:  English, French, German, Spanish, Portuguese, Russian, Japanese



Functions and Features:



 1. Smart (Auto Detect Diagnosis): Once CRP 423 and the vehicle are properly connected, the system starts auto-detect process. Once the whole process is successfully finished, a diagnostic report will be automatically generated and sent to your Email (if bound).



2. Manual Diagnosis: If Auto-Detect failure occurs, manual diagnosis is also available. Diagnosis functions include: Version Information, Read DTCs., Clear DTCs and Read Data Stream (supports 3 display modes: Value, Graph and Merged)



3. OBD-II/EOBD Diagnosis: 10 modes of OBD-II test are supported, including EVAP, O2 Sensor, lM Readiness, MIL Status, VIN Info, and Onboard Monitors Testing etc.



4. Remote Diagnosis (optional: This option aims to help repair shops or technicians launch instant messaging and remote diagnosis, making there pair job getting fixed faster.)



5. One-click Update: Let you update your diagnostic software and APK online.



6. Diagnostic History: This function provides a quick access to the tested vehicles and users can choose to view the test report or resume from the last operation, without the necessity of starting from scratch.



7. Diagnostic Feedback: Use this option to submit the vehicle issue to us for analysis and trouble shooting.



8. DTC Library: Allows you to retrieve the definition of the diagnostic trouble code from the abundant DTC database. Displays battery real-time voltage once property connected to the vehicle Features screenshot capture. Screen shots and reports sharing are supported Touch & Keypad input are supported. Quick Dial buttons enables your to easily access the corresponding functions.



Supported Cars:



Demo, Alfa Romeo, Audi, Bugatti, Chrysler, Citroen, Dacia, Daewoo, Euro Ford, Fiat, Ford, GM, GM SA, Infiniti, lsuzu, Jaguar, Kia, Lancia, Land Rover, Lexus, Lincoln, Mazda, Mercedes, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Renault, SAAB, Samsung, Seat, Skoda, Smart, Sprinter, Subaru, Suzuki, TL Isuzu, Toyota, Vauxhall, Volvo, VW



Technical Parameters:



Screen : 5-inch 720P IPS touch screen

RMA: 1GB

ROM: 8GB

Battery: 4000mAh rechargeable Li-battery

OBD-II Input Voltage Range: 9 to 18V

Working Temperature: -10 to 50 degree centigrade

Storage Temperature: -20 to 70 degree centigrade

Product Size:  248.7*93.5*36mm

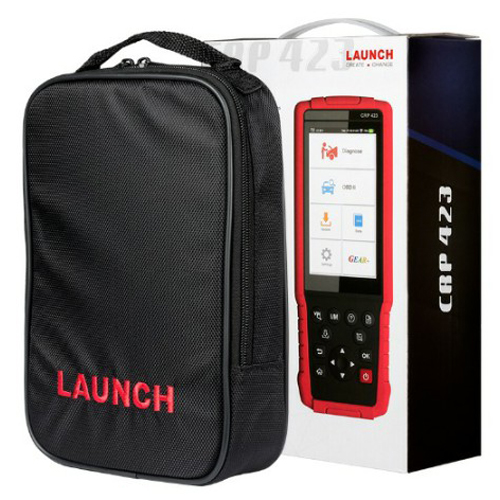

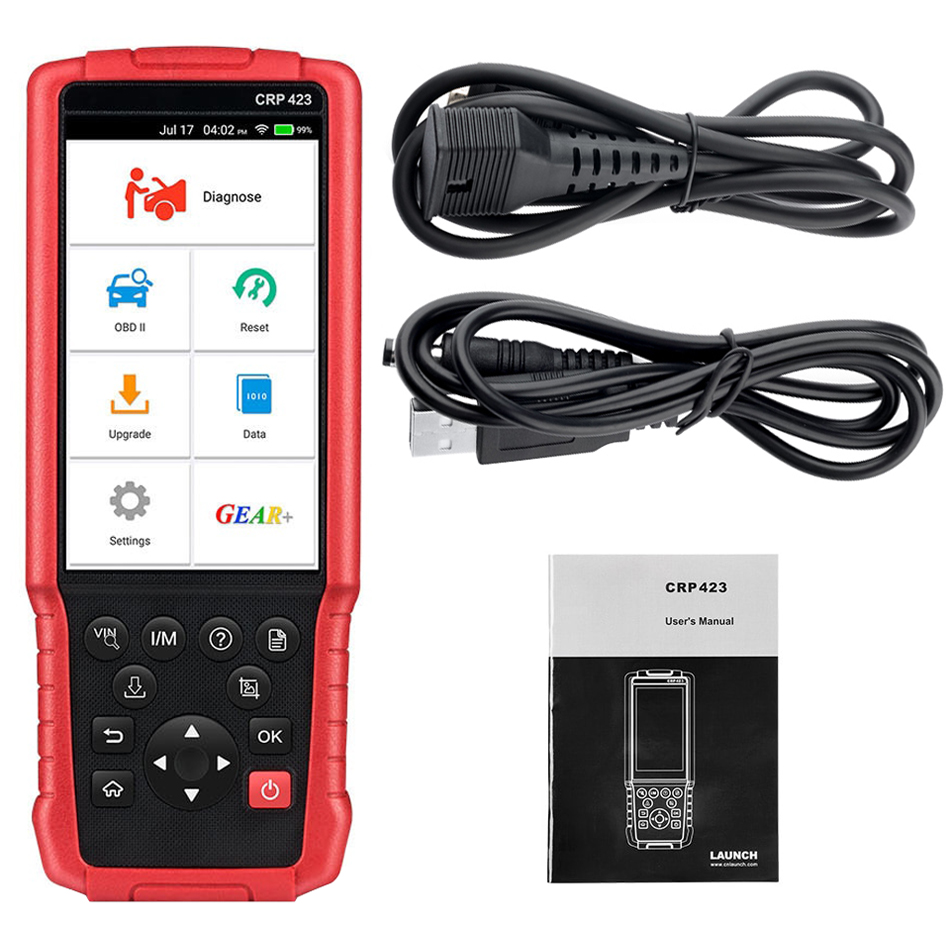

Packing List:



Launch CRP 423 Code Reader

OBD-II Diagnostic Cable

DC 5V Charging Cable

User manual

Carrying Pouch

Packing Box
