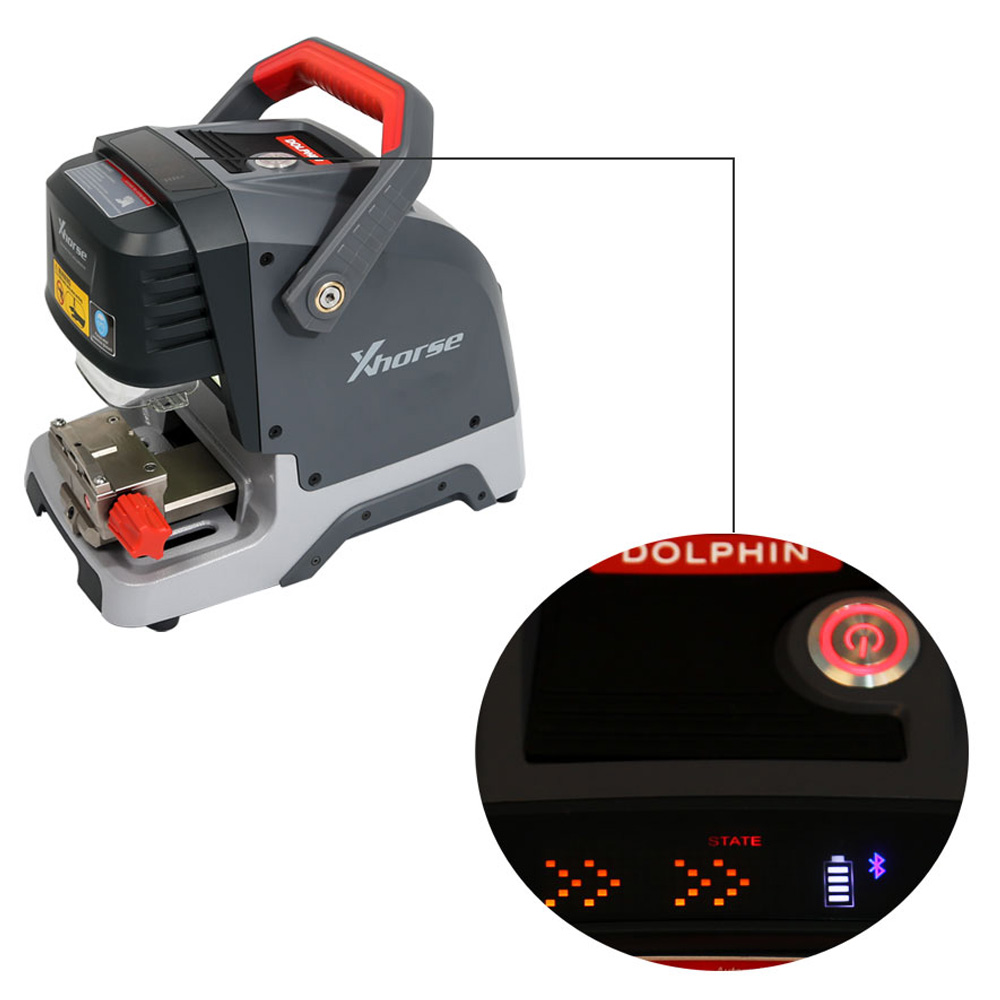

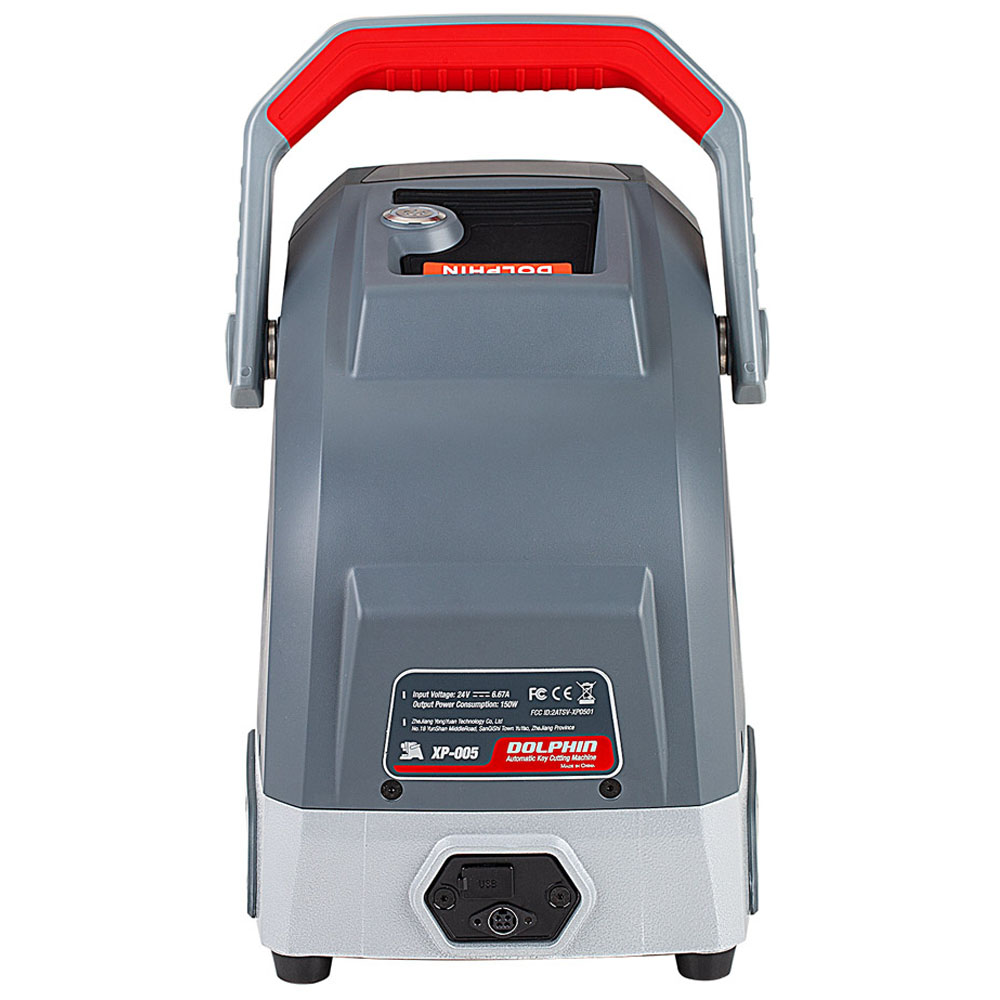

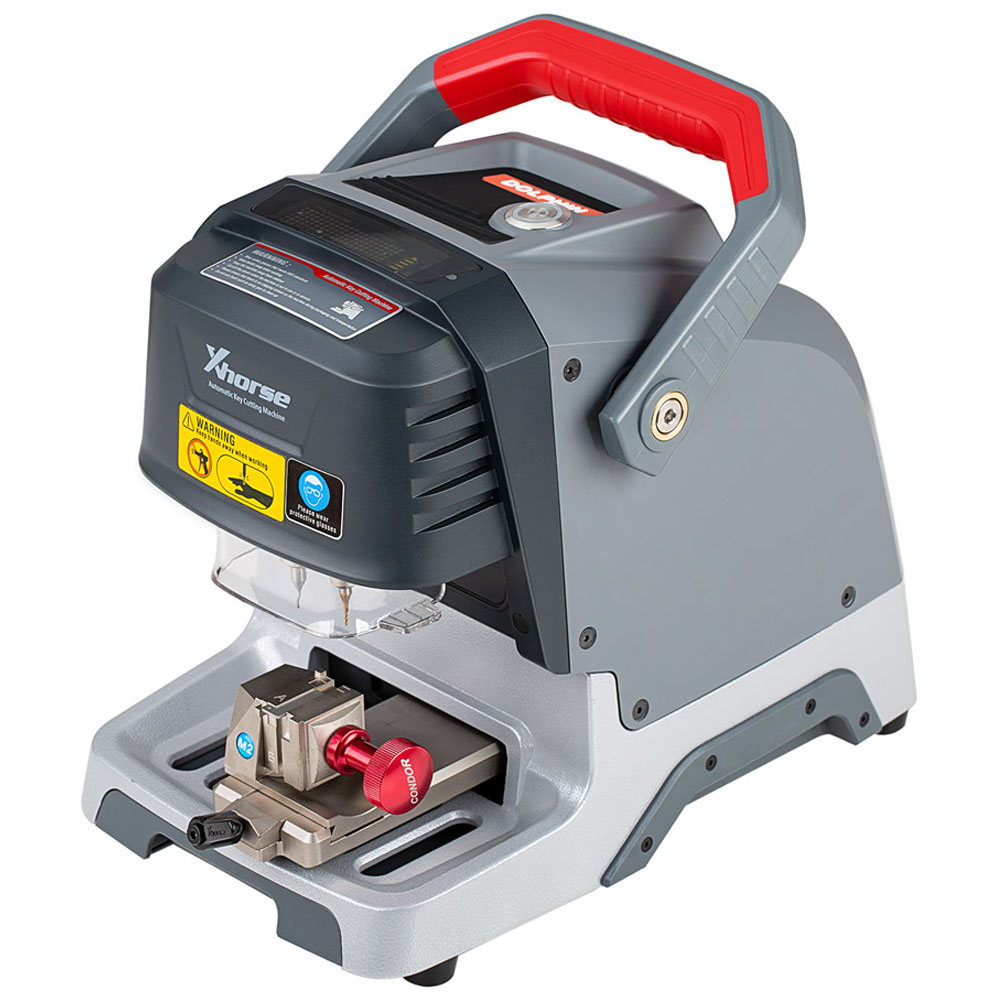

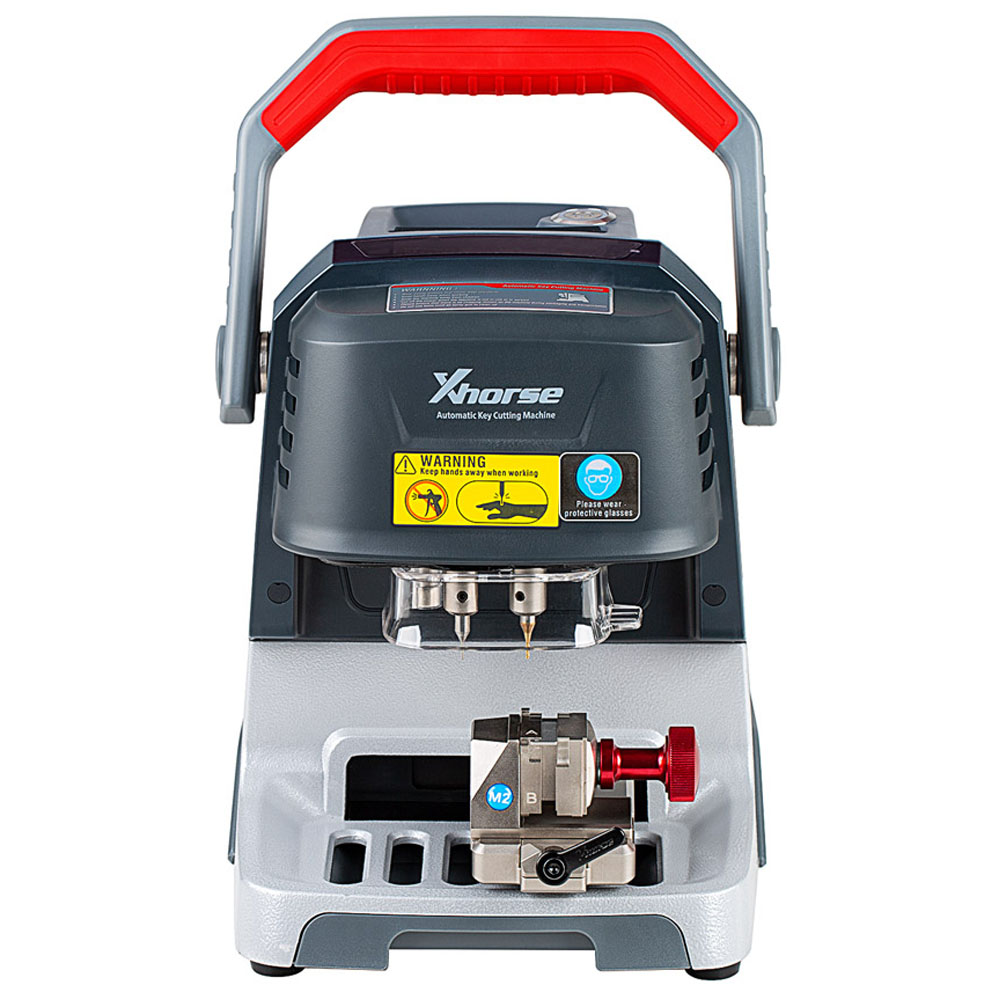

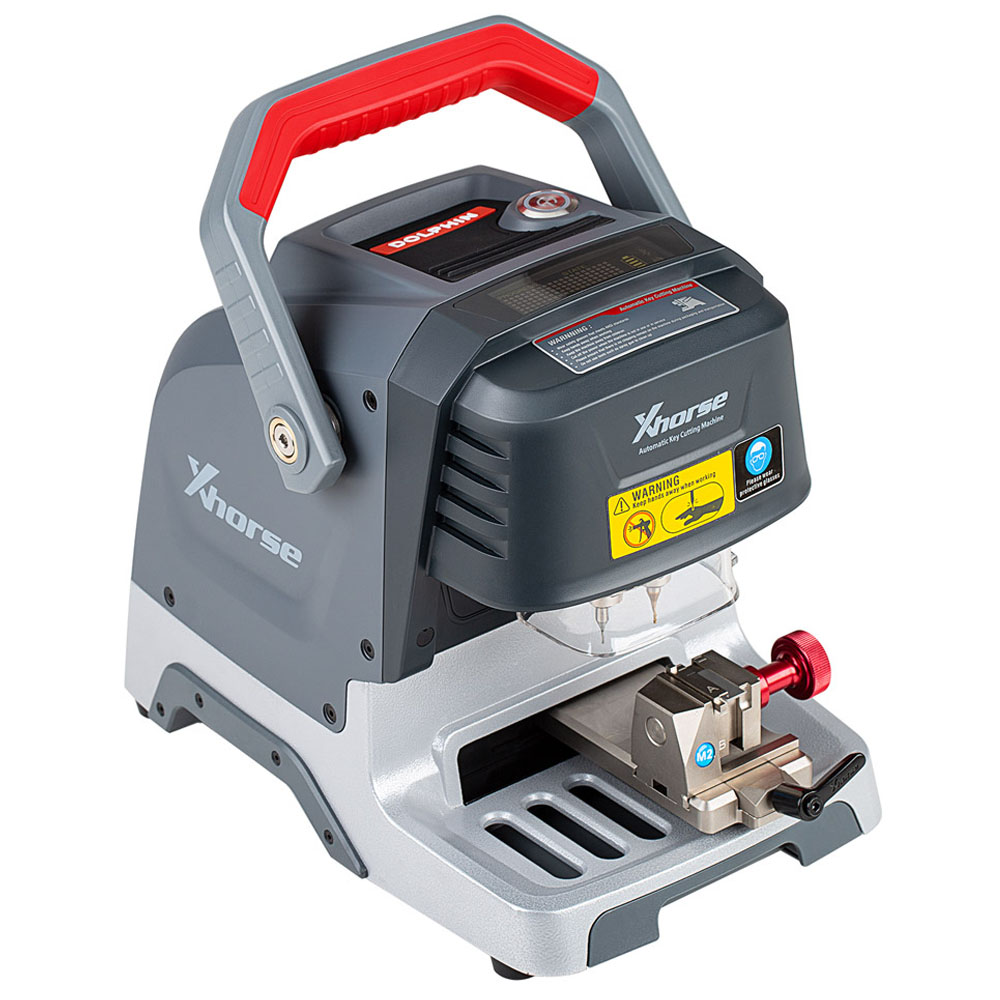

Name: XHorse Condor Dolphin XP005 Automatic Key Cutting Machine for iOS & Android via Bluetooth
Description:
1. Condor Dolphin XP-005 Key Cutter is the latest portable automatic key cutting machine with a built-in battery inside.
2. It has all the capabilities of Condor XC Mini Key Cutting Machine.
3. Dolphin works on mobile phone application via Bluetooth connection.
4. M1/M2 Clamps are included. M3/M4 Clamps is available for optional purchase.
5. Update online free.
Features:
APP Operation on Smart Mobile Phone
Built-in Bluetooth function, use smart mobile phone to download APP, easy and smart operations.
Portable and Convenient
Compact structure design, perfect space utilization; built-in lithium battery one-time full charge, machine will cut 30-50 keys stable solid handle for safe and portable movement, perfect experience
Standard Equipped 2 Clamps with Powerful Function

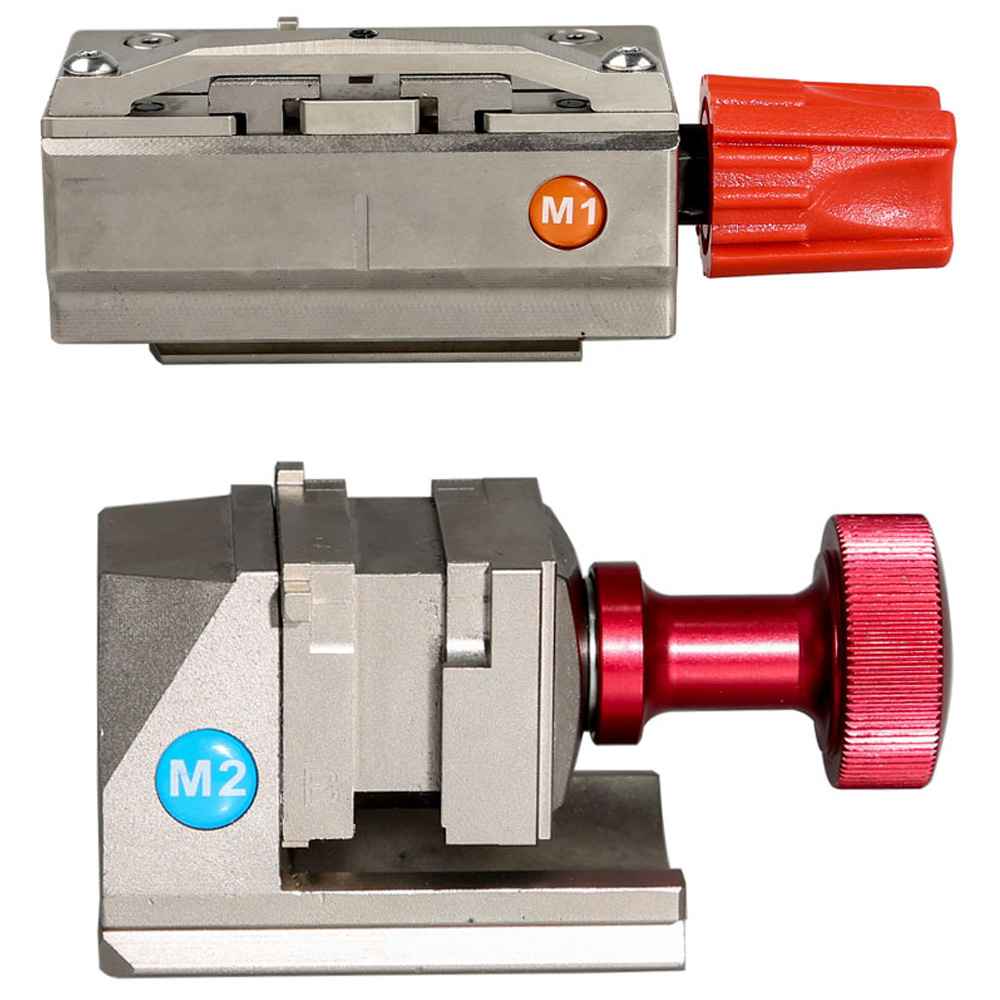

Standard equipped two clamps M1 and M2, supports Sided, Track, Dimple and Tibbe keys. Optional M3 Clamp and M4 clamp are available, M3 clamp is applicable to Ford FO21 & Citroen SX9 keys, M4 Clamp is applicable to single sided house-key.
Manufacture Process
All aluminum body structure manufactured by Germany-made DMG CNC machine;
American imported 3-Axis Precision Ball Screw with clearance function ensures high precision cutting.
Data Richness
Provide rich vehicle data, blank key data, the best tool of all key lost.
Intelligent Control
Provide powerful free app, support multi-languages, support mobile phone, tablet PC and other intelligent terminal control, easy for operations.
Built-in Lithium Battery
Optimized lithium battery of well-known brand, stable and reliable, supports cutting under no power conditions.
Online Update
Free online update software, the latest update information will be released timely, 24 hours support server online update, no need to ship back for update.
Technical Service
One-year warranty, free technical support, online service to provide remote control support
Parameters:
USB Port: USB 2.0
Input Voltage: 12 to 24V
Battery Capacity: 64.75Wh
Cutting Power: 100W
Standby Power: 15W
Motor Rotation Speed: 10000-13000RPM
Rated Torque: 0.15 Nm
Working Temperature: -10 to 50 degree centigrade
Machine Dimension: 315*218*270mm
Package Dimension: 510*315*345mm
Net Weight: 15Kg
Gross Weight: 18Kg

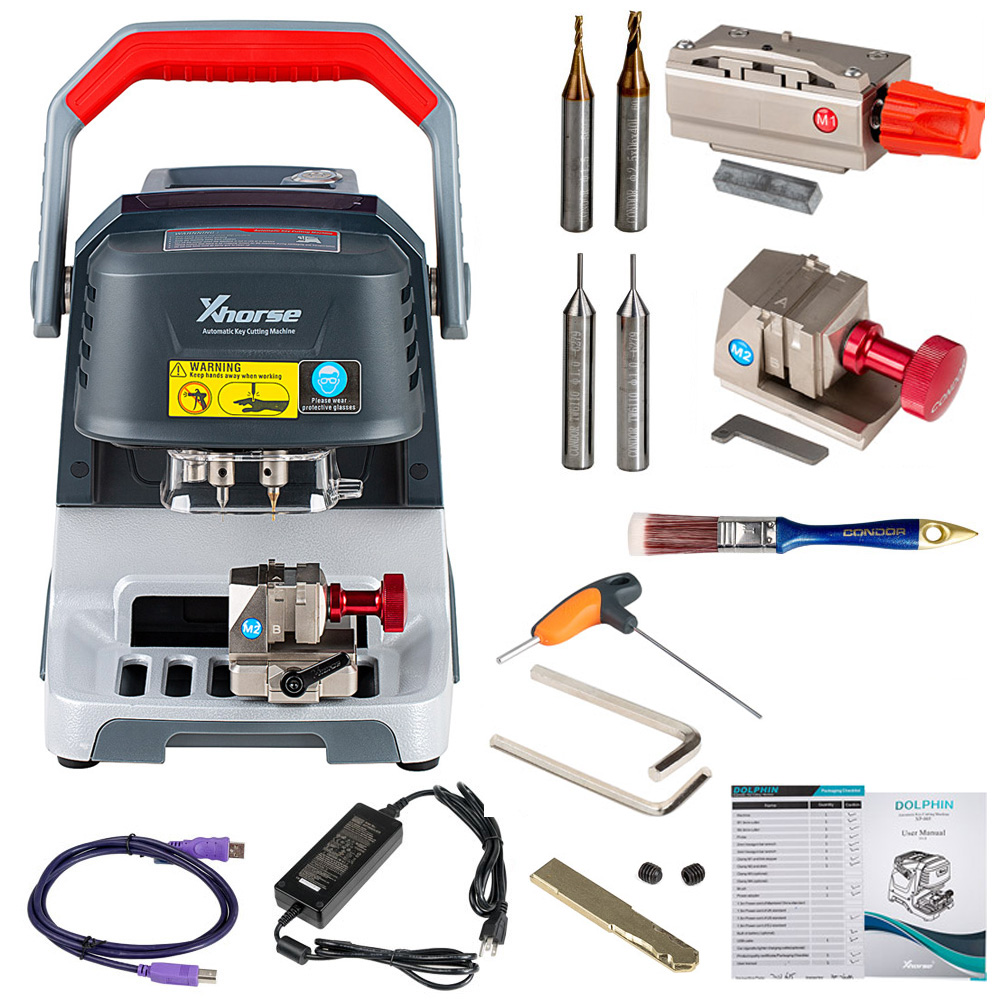

Packing List:
XHorse Condor Dolphin Key Cutting Machine XP-005

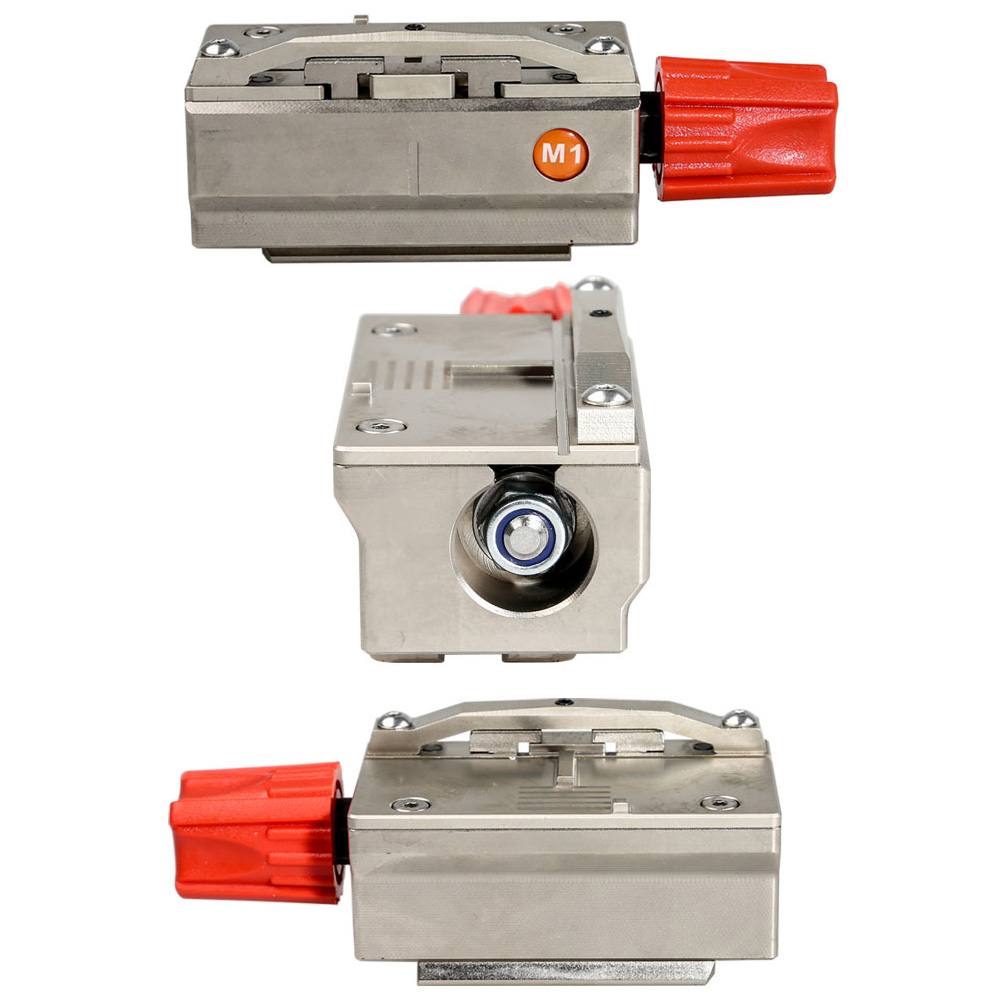

Clamp M1 & Link Stopper

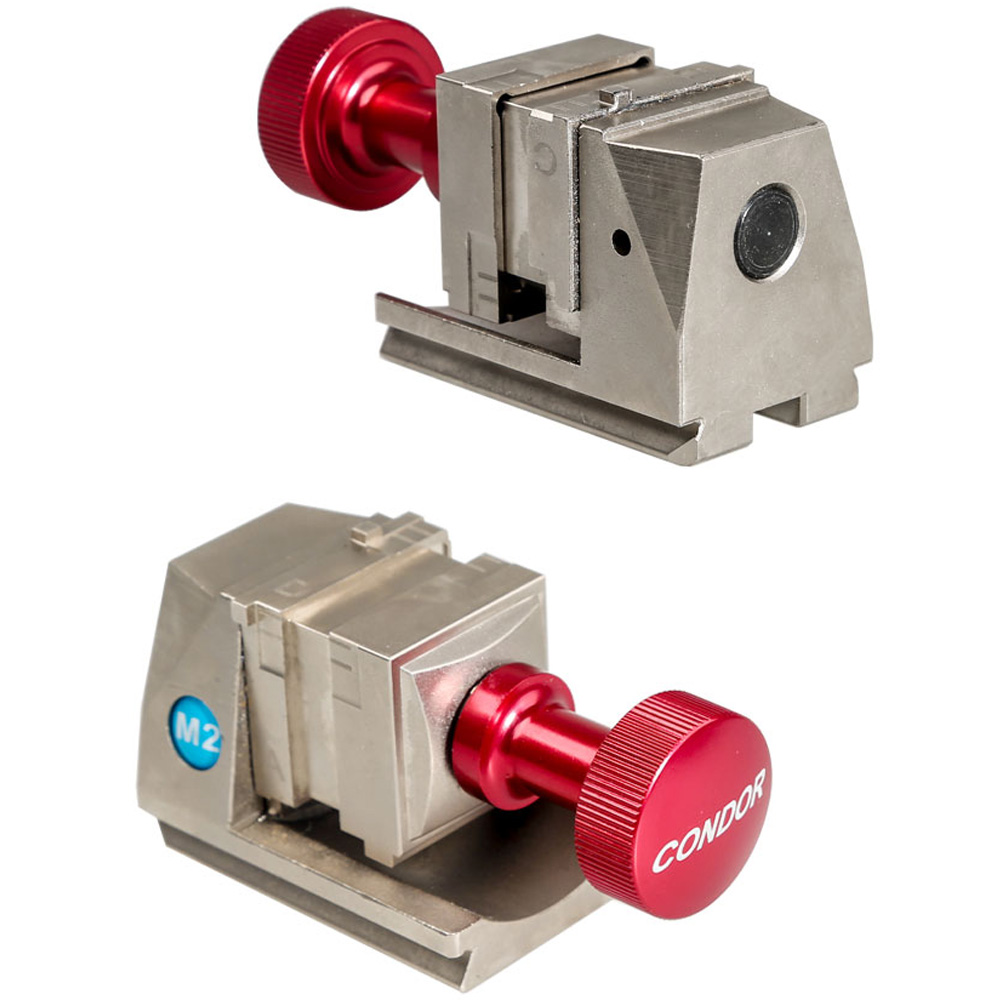

Clamp M2 & shim

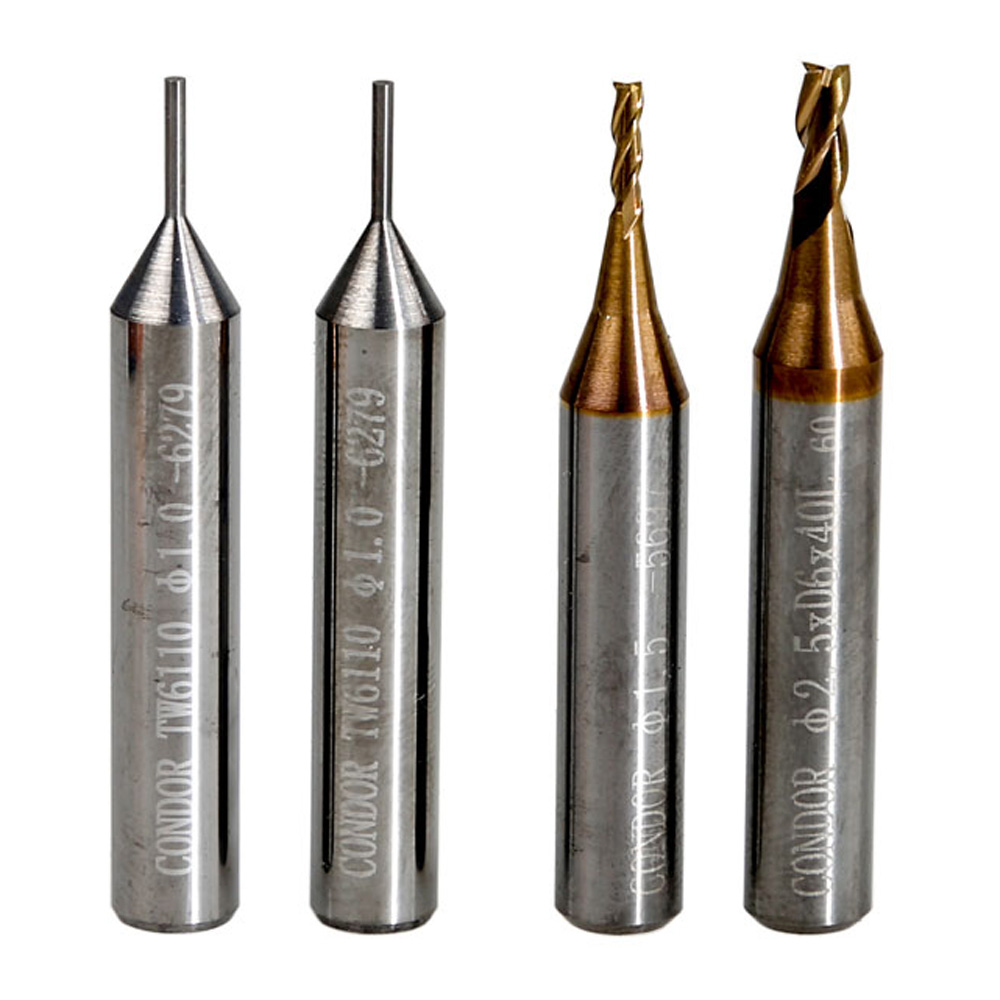

1.5mm Milling Cutter
2.5mm Milling Cutter
1.0mm Probe (2 pcs)
2mm Hexagon Bar Wrench
4mm Hexagon Bar Wrench
Brush
Power Adapter
Product Quality Certificate
User Manual
Packing List
Packing Box
Clamp M3 (optional)
Clamp M4 (optional)
Clamp M5 (optional)
2.0mm Milling Cutter (optional)
Condor XC-Dolphin VS Condor XC-Mini:
Condor XC-Dolphin Key Machine is an entry-level product of the CONDOR CNC machine family. The body design is simple, it is very suitable for mobile use in the mobile scene, without operating screen, you need to connect a mobile phone or tablet PC, and install a dedicated APN.
Update Info:
V1.1.3 Update (2019-05-13)
This version needs to update firmware
Fix HU101 tall cutting error problem
Fix HU83 tail cutting error problem
Fix Channel Track type key cutting error problem
Add use standard key width cutting option
Support jumping to the BIOS function when insert USB cable after Dolphin starting up
---------------------------------------------------------------------------------------------------------------------------------------
V1.0.7 Update(2018-12-27)
* This version needs to update firmware
* Fix for universal type key cutting reboot issue
* Fix battery indicator incorrect display issue
* Optimize prompts
+ Add M3 clamp key cutting
+ Add cutting key according to decode actual data from original key function.
|
