Name: VIDENT iAuto 702 Pro with 39 Special Functions



Description:

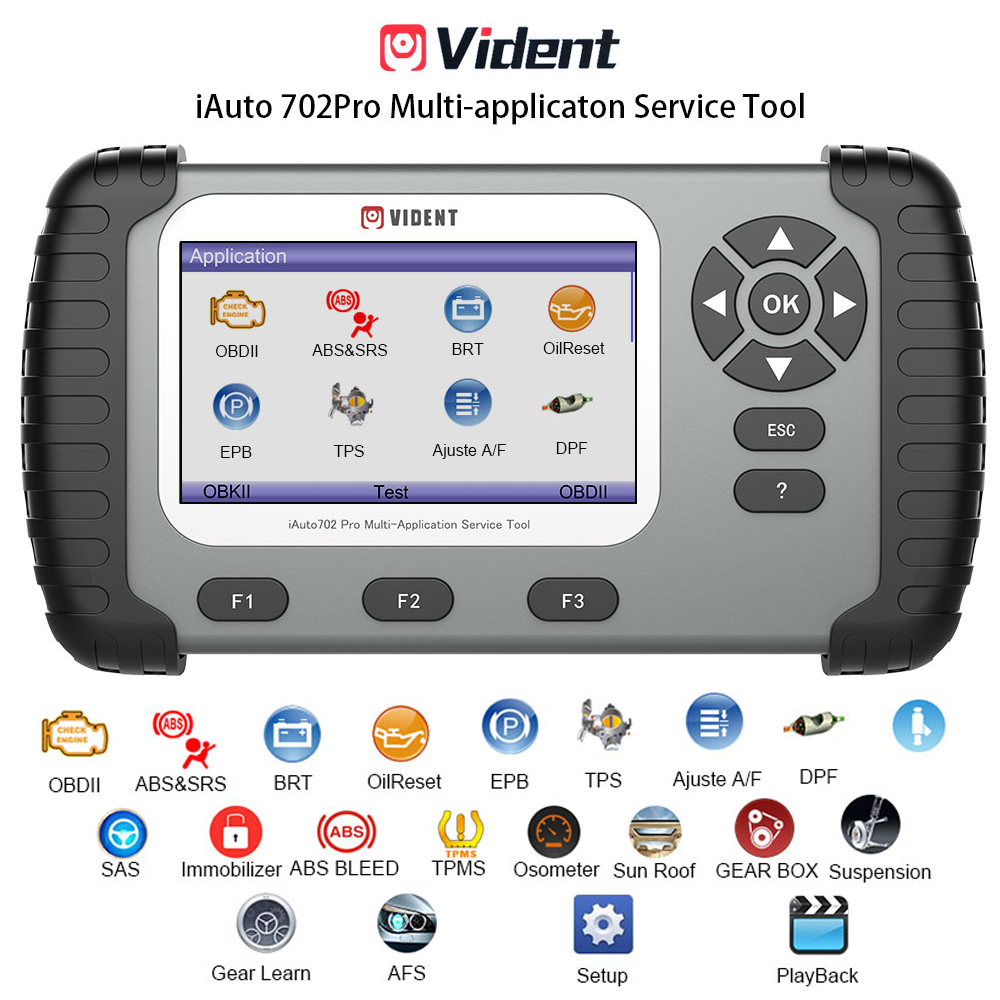

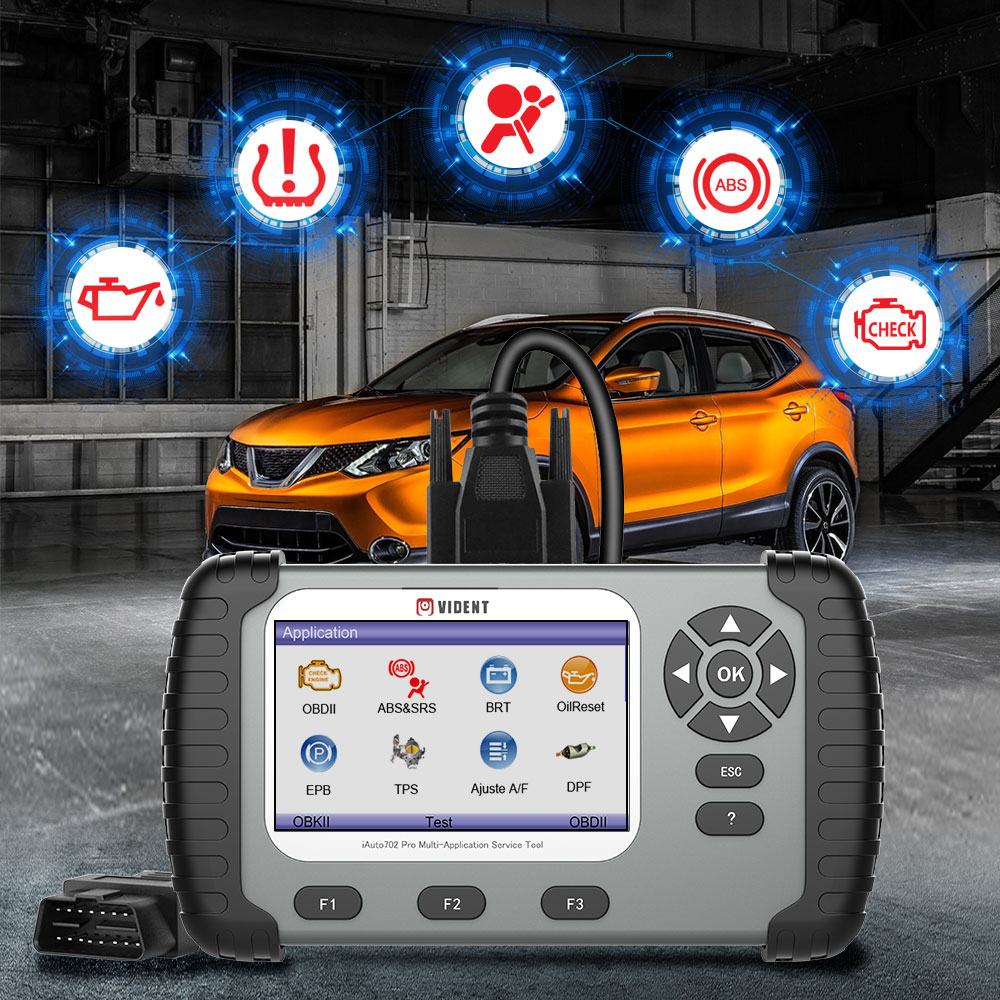

VIDENT iAuto702Pro is an upgraded powerful multi-application service tool which covers the majority of special functions available on all brands in the market.



Combined with Vident technical strength and popularity of iLink450 on market, covering ABS and SRS diagnosis, iAuto702Pro offers at least 39 Reset Service Functions to help workshops, technicians and enthusiasts alike in time and budget with 4.3 inch color screen and steady physical construction.



Software Update: 3 years free update online (USD60/year for further update)



Supported Languages:



English, French, German, Spanish, Portuguese, Italian, Russian, Dutch, Swedish, Thai, Japanese, Korean, Hungarian, Simplified Chinese, Traditional Chinese



Highlights:



1. Covers Over 65 Car Makes to Latest 2020/2021.



2. Support ABS/SRS Full Scan. Support most of the car brands in the market for ABS and SRS system scan.read codes,clear codes,vehicle information,live data,view freeze frame data,component test/active test,adaptation.



3. Support 39 Special Function like EPB/BRT/Oil Light Reset/TPS/TPMS/IMMO/DPF/ODOMETER/Injector Coding/SAS/Gear Learning/ABS Bleed/Gearbox Matching/Suspension Match/Sunroof Initialization/AFS/Adjust Fuel (Newly added ADblue, Coolant, Power Balance, HVOLBAT, Motor Angle, NOx Reset, Stop/Start and Transport)

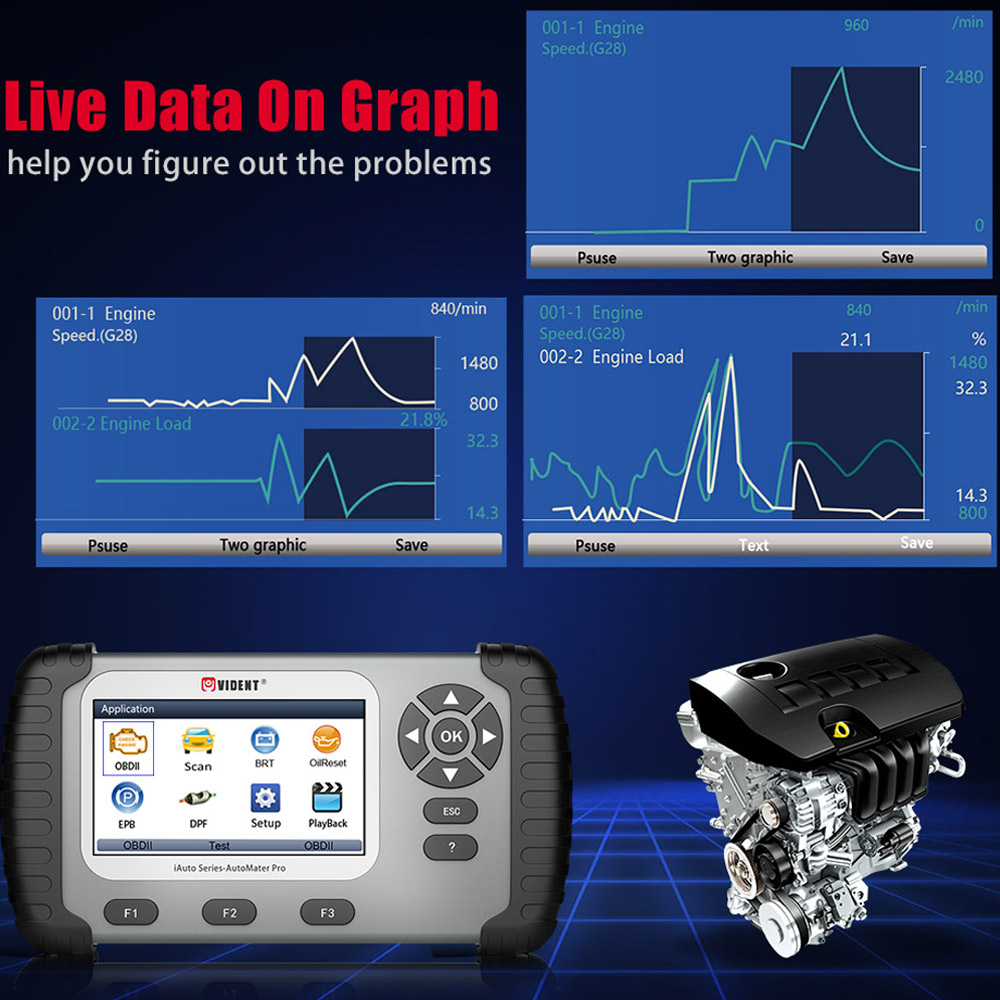

4. Support OBD-II/EOBD+CAN Functions: Read Codes, Clear Codes, Vehicle Information, Live Data, View Freeze Frame Data, I/M Readiness, O2 Monitor Test, On-Board Monitor Test, Component Test, Modules Present.

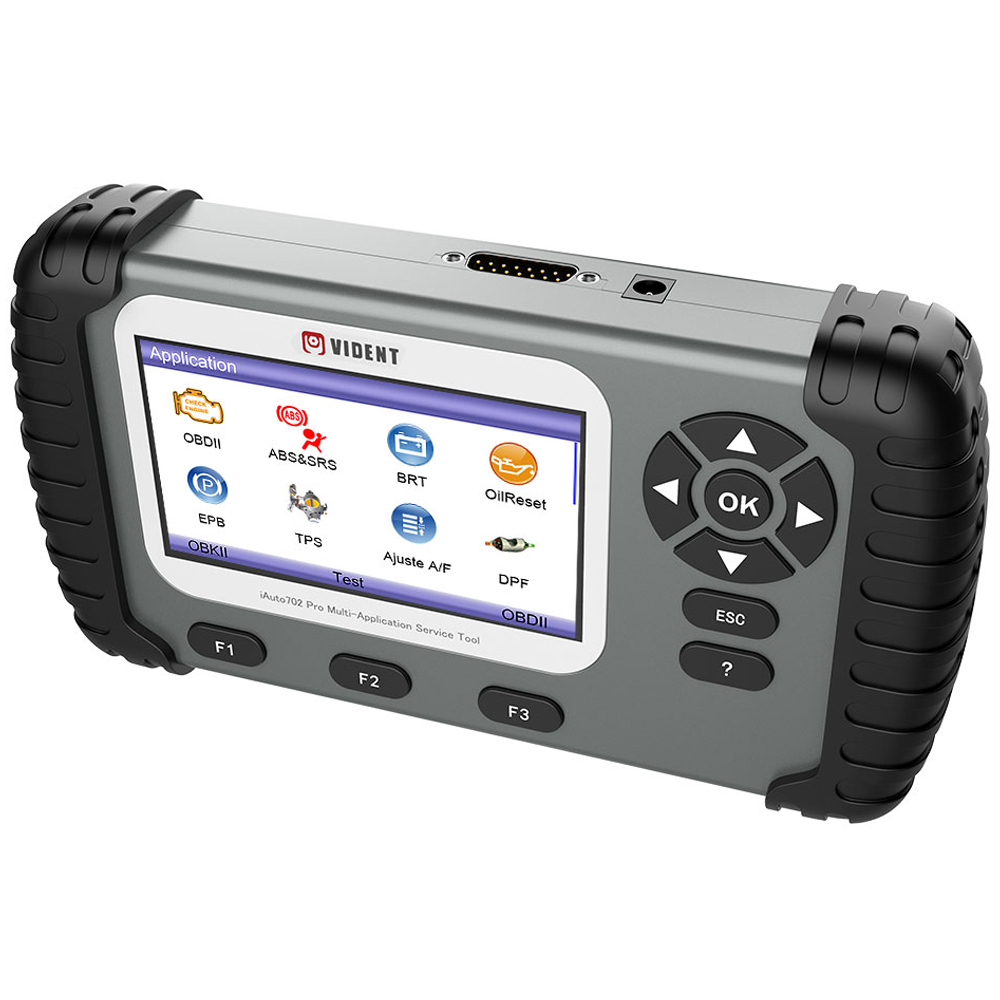

5. 4.3 inch LCD Color Display, clearly arranged keys, menu driven operation, and shortcuts together make this device extremely easy to use.



6. Its rugged design and rubber sleeve resist impact and damage in the tough workshop environment.



Functions:



1. OBD-II/EOBD+CAN Functions



3. 39 Special Function



Autel iAuto702Pro has most of Special Functions of the mainstream tools on the market. Besides, support most of car brand in market for ABS and SRS system scan.



1). ABS (Anti-lock Brake System) Reset

The auto bleed procedure is used on BOSH 5.3 equipped vehicles. This procedure uses a scan tool to cycle the system solenoid valves and run the pump in order to purge the air from the secondary circuits.



2). SRS Airbag Crash Data Reset

Your airbag crash data module will be restored back to its factory condition after accidents



3). SAS Steering Angel Sensor Reset

helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.



4). EPB (Electronic Park Brake) Reset

If the brake pad wears the brake pad sense line, the brake pad sense line sends a signal sense line to the on-board computer to replace the brake pad. After replacing the brake pad, you must reset the brake pad. Otherwise, the car alarms.



Reset must be performed in the following cases:

a. The brake pad and brake pad wear sensor are replaced.

b. The brake pad indicator lamp is on.

c.The brake pad sensor circuit is short, which is recovered.

d. The servo motor is replaced. It is important in the maintenance of electronic braking system safety and efficiency when replace brake pad or motor.



5). DPF (Diesel Particulate Filter) Reset

Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.



6). Oil Service Light Reset

allows you to perform reset maintenance mileage and data intervals for a new calculation of Engine Oil Life system once changed the oil.



7). TPMS (Tire Pressure Monitoring System) Reset

Makes TPMS sensor in displaying sensor IDs from the vehicle ECU, inputting TPMS sensor replacement IDs and activate TPMS sensors.



8). TBA/TPS Throttle Body Alignment Reset

Vehicle throttle position system sensor connected to the butterfly spindle and is primarily used to monitor the throttle position within an inner combustion engine. Due to its location, the throttle position sensor is able to effectively observe where the throttle butterfly valve is positioned.



9). CVT Transmission Function

On these CVT transmissions, the timing of the release and application of elements (clutch packs and bands) is controlled by the transmission control module (a microprocessor).



10). BRT Battery Management Service

Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the new battery replacement, and activate the rest state of the vehicle battery system.



11). Injector Coding

diesel injector code need programming ID and parameters to the ECU for accurate communication and Injection control system.



12). Camshaft Gear Learning

The scan tool monitors certain Camshaft position sensors signals to determine if all conditions are met to continue with the procedure for engine running.



13). Odometer Instrument Cluster Initialize

Instrument panel mileage calibration is used to copy, write, or rewrite mileages. That is, use the car diagnostic computer and data line to copy, write, or rewrite chip data on the instrument panel to make the instrument panel display actual mileages.



Usually, when the vehicle speed sensor is damaged or the mileage is incorrect due to instrument panel faults, you must perform mileage calibration after maintenance.



14). AFS (Adaptive Front Lighting System)

This function is used to initialize the adaptive headlight system. The adaptive headlight system determines whether to automatically turn on the headlight according to ambient light intensity, monitors driving speed and body posture, and adjusts the headlight lighting angle.



15). AF (Adjust Fuel)



16).Turbo

This routine is required if the secondary turbo charger is replaced.  This will learn the offset values for the turbine shut-off valve.



17). Immobilizer

To prevent the car being used by unauthorized keys, the anti-theft key matching function must be performed so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car.

When the ignition switch key, ignition switch, combined instrument panel, ECU, BCM, or remote control battery is replaced, anti-theft key matching must be performed.



18). Seat Match (Adjust Memory Seat)

A memory seat is essentially an electrically-adjustable car seat which can be moved into pre-set positions at the push of a button. As a result of the removal of the DCC fuse, the "driving position memory" function  of the driver and passenger side seat will be inoperative due to the loss of seat position memory stored in the seat ECU. The seat (position control) ECU may need to be initialized if the seat memory settings cannot be recorded.



19). Windows Door Match

When replacing door glass and after battery replacement on certain year, make, model vehicles special steps need to be taken in order to properly replace and reprogram the vehicle so the electric windows work properly, the door window glass position can be learned by executing this routine, which enables pinch  protection and one touch up function.



20). Language Change

This routine is to change language displayed in the instrument.



21). Sunroof Initialization

 This function is used to set sunroof lockup close, close on rainy days, slide/tilt sunroof memory function, outside temperature threshold, etc.



22). Gearbox Match

This function is used to learn the gearbox to improve shift quality.

After the gearbox is dismounted or repaired (after battery powered off for some car series), shift delay or impact is caused. In this case, perform this function to make the gearbox compensate automatically according to driving conditions so as to reach more comfortable and ideal shift quality.



23). Clutch Match (Clutch Pedal Free-Play)

Importance of clutch pedal free-play. Anything less than the correct amount of free play (or clearance) will result in clutch slip, because the pressure plate will be unable to exert its full pressure on the friction plate, clutch linkage adjustment to compensate for clutch wear.



24). Suspension Match

This function is used to adjust car body height.

When the car body height sensor and control module in the air suspension system are replaced or the car level is incorrect, perform this function to adjust the car body height sensor for horizontal calibration.



25). PFP (Prime Fuel Pump) Function

The program can detect the Prime Fuel Pump function.

Air often gets into the fuel line when a diesel vehicle change fuel or assembly  fuel system. This causes a vehicle to have problems starting, forcing you to "prime" the fuel system to remove the air.



26). AT Adaption

After each repair or transmission service, the transmission adaptation control will cause the Transmission Control Module (TCM) to relearn the change in transmission tolerances to improve the transmission quality, and to adjust the transition of the gear shift according to the driving style. This procedure is used to clear the adaptive values in the transmission control unit. This may be required when changing the transmission, downloading software, or performing any other gearbox-related activity. This command allows the adaptive shift points to be relearnt. CAUTION: Refer to workshop manual for correct procedure.



27). Change Tire Size

The vehicle's computer calculates your vehicle's speed based on the diameter of the stock tires. After changing the tire size, the vehicle's computer doesn't know how fast your vehicle is running, which will affect speedometer accuracy or transmission shift time. This routine is to recalibrate speedometer after changing the tire size..



28). EGR(Exhaust Gas Recirculation) Adaption

This Function Is used to learn EGR (Exhaust Gas Recirculation) Valve after it is cleaned or replaced.



29). Evaporative Test

The EVAP system monitor checks for fuel vapor leaks by performing either a pressure or vacuum test on the fuel system. This routine is will create a positive pressure in the tank to determine if there are any leaks in the fuel system.



30). Transmission Module Oil Life Reset

This program can be executed to Transmission control module oil counter reset.



31). Replace Airbag ECU



32). ADblue-urea Reset

33). Coolant-Electronic Water Pump Start

34). Power Balance-Engine Power Balance

35). HVOLBAT-High-Voltage Battery Health Detection

36). Motor Angle- Motor Angle Calibration

37). NOx Reset-NOx Reset

38). Stop/Start-Start and Stop Settings

39). Transport-Remove Transport Mode



Notice: These special function NOT for all car models.



Features:



1. OBD-II/EOBD+CAN Functions

Read codes

Clear codes

Vehicle information

Live data

View freeze frame data

I/M readiness

O2 monitor test

On-board monitor test

Component test

Modules present



2. ABS, SRS Diagnosis

Read codes

Clear codes

Vehicle information

Live data

View freeze frame data

Component test/active test

Adaptation

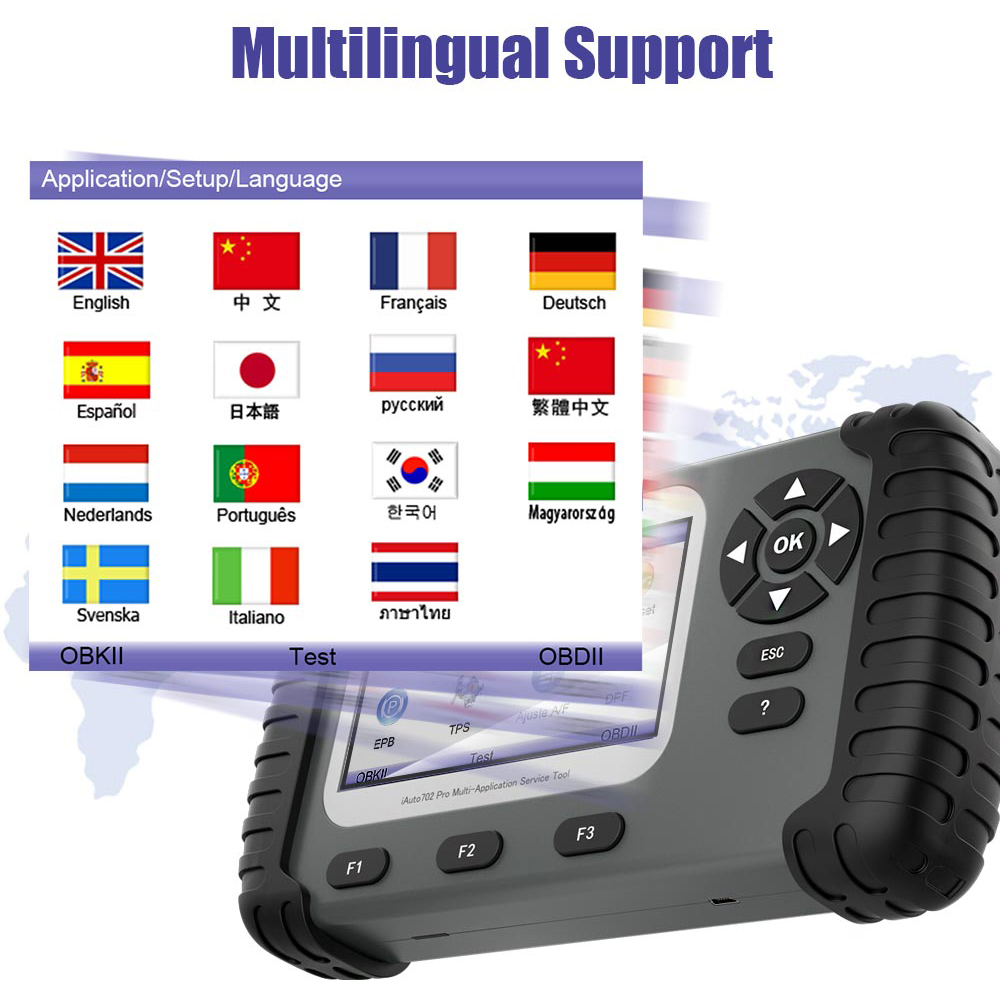

3. Multilingual Menu Options (15 languages):

English, Spanish, German, French, Portuguese, Dutch, Swedish, Italian, Simplified Chinese, Traditional Chinese, Russian, Japanese, Korean, Hungarian, Thai.

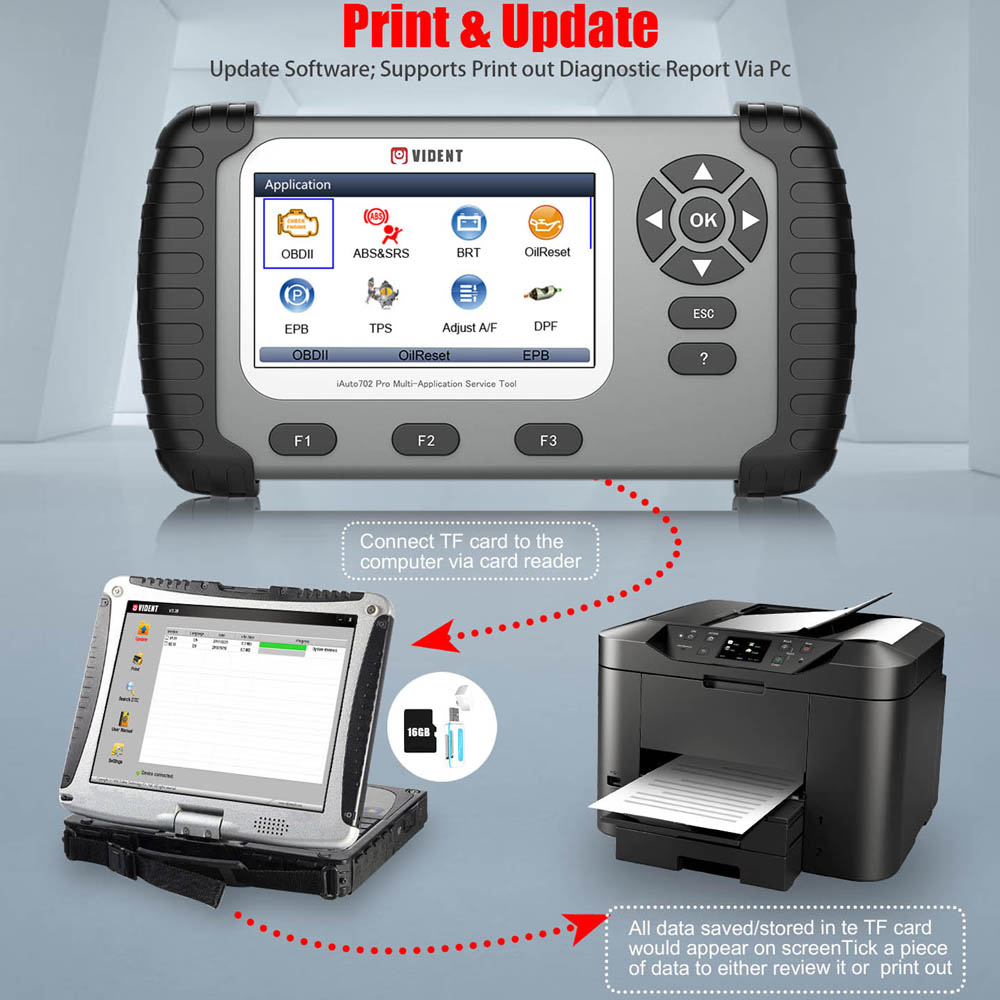

4. Online Updatable via USB Port



5. 4.3 inch LCD color display, clearly arranged keys, menu driven operation, and shortcuts together make this device extremely easy to use



6. Its rugged design and rubber sleeve resist impact and damage in the tough workshop environment.



7. Three Years Free Update Online



Supported Functions and Cars:



ABS, SRS Diagnosis:

Abarth, Acura, Alfa, Aston Martin, Audi, Bentley, BMW, Bugatti, Chrysler, Citroen, Dacia, Dawoo, EU_Ford, Ferrari, Fiat, Ford, GM, Holden, Honda, Hyundai, Infiniti, Isuzu, Jaguar, Kia, Lamborghini, LANCIA, Land Rover,  Lexus, Maserati, Maybach, Mazda, Mercedes-Benz,  MINI,  Mitsubishi, Nissan,  Opel,  Perodua,  Peugeot,  Porsche,  Proton,  Renault,  SAAB,  Scion, Seat, Skoda, Smart, Sprinter, Ssangyong, Subaru, Suzuki, Toyota, Vauxhall, Volvo, VW, VW_CV



Oil Light Service/Reset:

Abarth, Acura, Aston Martin, Audi, Baic, Bentley, BJXD, BMW, Bugatti, BYD, Chang An, Chery, Chrysler, Citroen, Dacia, Daewoo, DF Citroen,  DF Peugeot, DF Honda, FAW Car,  Ferrari,  Fiat,  Ford,  GM, GQ Honda, GQ Toyota, Great Wall, HC BMW, Holden, Honda,  Hyundai, Infiniti, Isuzu, JAC, Jaguar, Kia, Karry, Lamborghini, Lancia, Land Rover, Lexus, Luxgen, Maserati, Maybach, Mazda,  Mercedes-Benz,  Mini,  Mitsubishi, Nissan, Opel, Peugeot, Porsche, Proton, Rely, Renault, Riich, Rolls-Royce, Romeo, Rover, Saab, Scion, Seat,  SHVW, Skoda, Smart, Sprinter, Subaru, Suzuki,  Toyota, Vauxhall, Volvo, VW, Yema, YQ Mazda, YQ Toyota, YQ VW, Zotye



EPB(Electronic Parking Brake):

Abarth, Acura, Alfa, Audi, Bentley, BJXD, BMW, Bugatti, BYD, Chery, Chrysler, Citroen, Daewoo, DF Citroen, DF Honda, DF Peugeot,  FAW Besturn, Ferrari, Fiat, Ford, GM,  GQ Honda, GQ Toyota,  HC BMW, Honda, Hyundai, Jaguar, Kia, Lancia, Land Rover,  Lexus, Maserati,  Maybach, Mazda, Mercedes-Benz, Mini, Opel,  Peugeot, Porsche,  Renault, Rolls-Roye, Romeo, Saab,  Scion, Seat, SHVW,  Skoda,  Subaru, Toyota, Vauxhall,  Volvo, Vw, YQ Mazda,  YQ Toyota,  YQ VW, Zotye



BRT(Battery Configuration):

Audi, Bentley, BMW, Bugatti, Chang An Ford, Chrysler, Citroen,  DF Citroen, DF Nissan, DF Peugeot, FAW Car,  Fiat,  Ford,  GQ Toyota,  HC BMW, Hyundai, Infiniti, Jaguar,  Kia, Lamborghini, Lancia, Land Rover, Lexus, Mazda, Mini, Mitsubishi, Nissan, Opel,  Peugeot, Porsche, Seat, SHVW, Skoda, Toyota, Volvo, VW, YQ Mazda,  YQ Toyota, YQ VW



DPF(Regeneration of Diesel Particulate Filter):

ACURA, Audi, BMW, Chrysler, Citroen, Daewoo, DF Honda, Fiat, Ford, GM, GQ Honda, GQ Mazda, Honda, Hyundai, Infiniti, Jaguar, Kia, Lancia, Land Rover, Lexus, Maserati, Mazda, Mercedes-Benz, Mini,  Mitsubishi, Nissan, Opel, Peugeot, Porsche, Renault, Romeo, Scion, Seat, Skoda, Subaru, Suzuki, Toyota, Vauxhall, Volvo, VW



TBA/TPS(Throttle Body Alignment):

Acura, Audi, BJXD, BMW, Brilliance, BYD, Chang An, Chang An Ford, Chery, Chrysler, Citroen, Dacia, Daewoo, DF Citroen, DFFX, DF Honda, DF Nissan, DF Peugeot, DFPV, FAW Besturn, Faw Car, FAW Tianjin, Fiat, Ford, Geely, GM, GQ Honda, GQ Toyota, Great  Wall, Haima, Haima Zhengzhou, HC,  BMW, Honda, Huizhong, Hyundai, Infiniti, JAC, Jaguar, Kia, Lancia, Land Rover, Lexus, Lifan, Maybach, Mazda, Mercedes-Benz,  Mini, Mitsubishi,  Nissan, Nissan Zhengzhou,  Opel, Peugeot, Porsche, Proton, Rely,  Renault, Riich, Romeo, Saab, Seat, SHVW, Skoda, Suzuki, Toyota, Vauxhall,  Volvo, VW, Wuling, Young Lotus, YQ Toyota, YQ VW, Zhongxing



Injector Coding:

Acura, Audi, BMW, Chery, Chrysler, Citroen, Fiat, Ford, GM, DF Honda, Fiat, GQ Honda, Honda, Hyundai, Infiniti, Jaguar, Lancia, Land Rover, Lexus, Mazda, Mercedes-Benz,  Mini,  Mitsubishi, Nissan, Peugeot, Porsche,  Renault,  Romeo,  Smart, Seat, Skoda, Subaru,  Suzuki, Toyota, Volvo, VW



TPMS(Tire Pressure Measuring Sensor Reset):

Acura, Audi, BJXD, BMW, BYD, Chrysler, DF Honda, DF Nissan, Ferrari, Fiat, Ford, GQ Honda, GQ Toyota, Honda, Hyundai, Infiniti, Jaguar,  Kia, Lancia, Land Rover, Lexus, Maserati, Mazda, Mercedes-Benz,  Mini, Mitsubishi, Nissan, Peugeot, Porsche, Renault, Scion, SHVW, Seat,  Skoda, Smart, Subaru, Toyota, Volvo, VW, YQ Toyota, YQ VW



SAS(Steering Angle Sensor Reset):

Acura, Audi, BJXD, BMW, BYD, Changan Ford, Chery, Chrysler, Citroen,  Dacia, Daewoo, Daihatsu, DFCITROEN, DFFX, DF Honda, DF Nissan, DF Peugeot, DFPV, FAW Besturn,  Faw Car,  Ferrari,  Fiat,  Ford,  Geely,  GM,  GQ Honda,  GQ Toyota,  Great wall,  Haima,  HC BMW,  Honda,  Hyundai,  Infiniti,  JAC, Jaguar,  Karry,  Kia, Lancia, Land Rover, Lexus, Maserati, Maybach, Mazda, Mercedes-Benz,  Mini,  Mitsubishi,  Nissan,  Opel,  Peugeot,  Porsche,  Proton, Renault, Romeo, Scion, Seat, SHVW, Skoda, Smart, Subaru, Suzuki, Toyota,  Vauxhall, Volvo, VW,  Yinxiang, YQ Mazda, YQ Toyota, YQ VW



Immobilizer Programming:

Acura, Audi, BAIC, Beijing Jeep, BJXD, BMW, Brilliance, BYD, Chang An, Chang An Ford, Changhe, Chery, Chrysler, Citroen, DF Citroen, DFFX, DF Honda, DF Nissan, DF Peugeot, DFPV, Dong Nan, Faw Car, Faw Tianjin, Fiat, Ford, Geely, GM, GQ Honda,  GQ Toyota, Great Wall, Haima,  Honda, Huizhong, Hyundai, Infiniti, JAC, Jaguar, Kia, Lancia, Land Rover, Lexus, Mazda, Mercedes-Benz, Mitsubishi,  Nissan, ZZ Nissan, Peugeot, Renault,  Romeo, Scion, Seat, Shvw, Skoda, Smart,  Ssangyong, Suzuki, Toyota, VW,  Wuling, Yongyuan,  Young Lotus, YQ Mazda, YQ Toyota, YQ VW, Zhonghua



Gear Learning: Chang An, Chery, DFFX, Geely, JAC, Nissan ZhengZhou, Great Wall



ABS Bleed:

Acura, BJXD, BMW, BYD, Chang An, Chang He, Chery, Chrysler, Citroen, Daewoo, Daihatsu, DFFX, DF Honda, FAW Besturn, Ferrari, Fiat, Ford, Geely,

GQ Honda, GQ Toyota, Great Wall, Haima, HC BMW, Honda, Hyundai,  JAC, Jaguar, Jiachuang, Karry, Kia,  Lancia, Land Rover,  Lexus, Liebao,

Maserati, Mazda, Mercedes-Benz, MINI, Mitsubishi,  MYHR, NJYWK,  Opel, Peugeot, Proton,  Rely, Renault, Riich, Romeo, SAAB, Scion, Smart,  Ssangyong, Toyato, Vauxhall, Yema, Yinxiang, YQ Mazda, YQ Toyota, Zhongshun



Gearbox Match: Ford



Suspension Match: Jaguar, Land Rover, Mercedes-Benz



Sunroof Initialization: BMW



AFS (Adaptive Front Lighting System): Audi, BAIC, Bentley, BYD, Chang An, Chery, Great Wall, Haima, Jaguar, Landrover, Roewe, Seat, Skoda, VW, Zotye



Adjust Fuel: Fiat, Ford, GM, VW



Odometer Calibration: GM, Infiniti, Nissan, Opel, Roewe, Vauxhall



Specification:

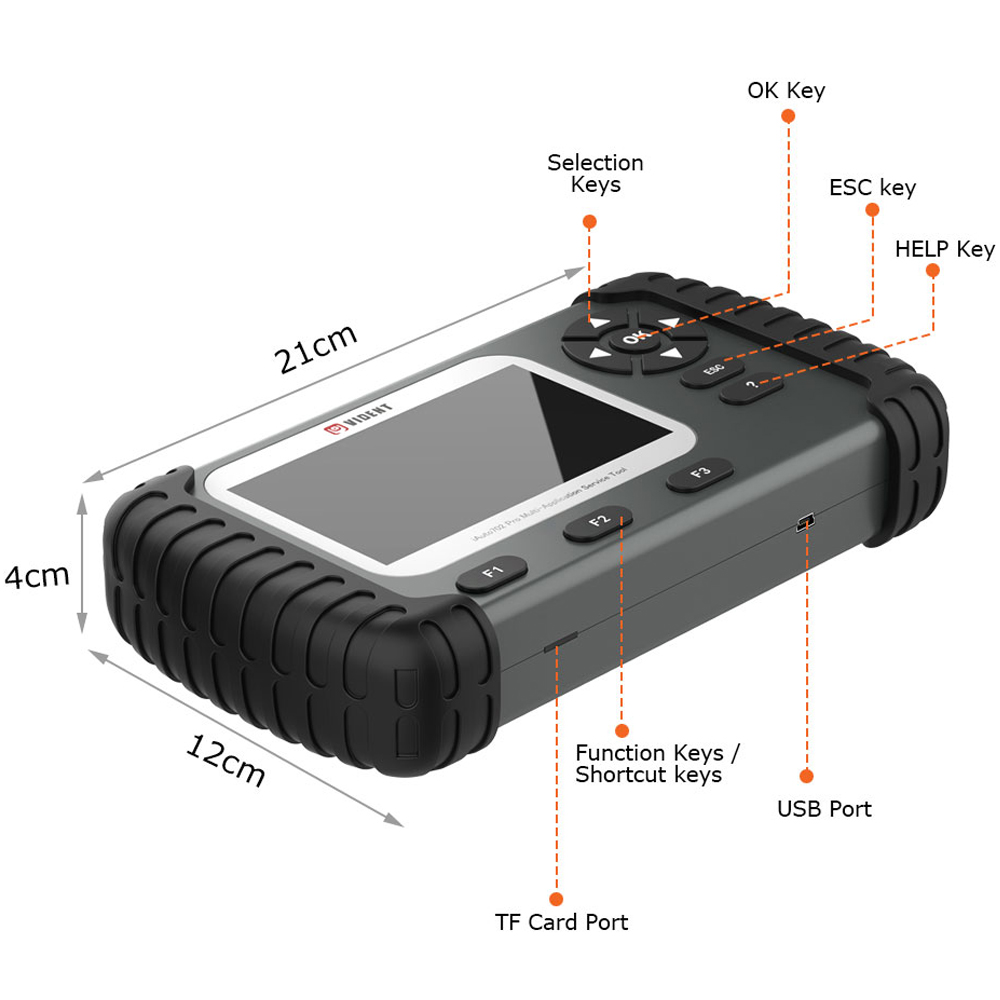

Display: 4.3 inch 480*272 TFT color screen with backlight

Operating Temperature: 0 to 60 degree centigrade

Storage Temperature: -20 to 70 degree centigrade

Power: 8V to 18V provided via vehicle



Supported Protocols:



ISO15765(CANBUS 11bit & 29bit TP16, TP20, UDS, FIAT CAN, VOLVO CAN), ISO14230(KWP2000), ISO9141-2, J1850VPW, J1850PWM, KWP1281, KWP2089, KW81, KW82, ALDL, SCI, DSI, DSII, LUCAS, MELCO, BENIX, ISO7800, SIMENMS_ISO1, SIMENMS_ISO2, MIT MODE1, MIT MODE2, Mitsubishi Negative Logic Protocol, Nissan Specific Protocol

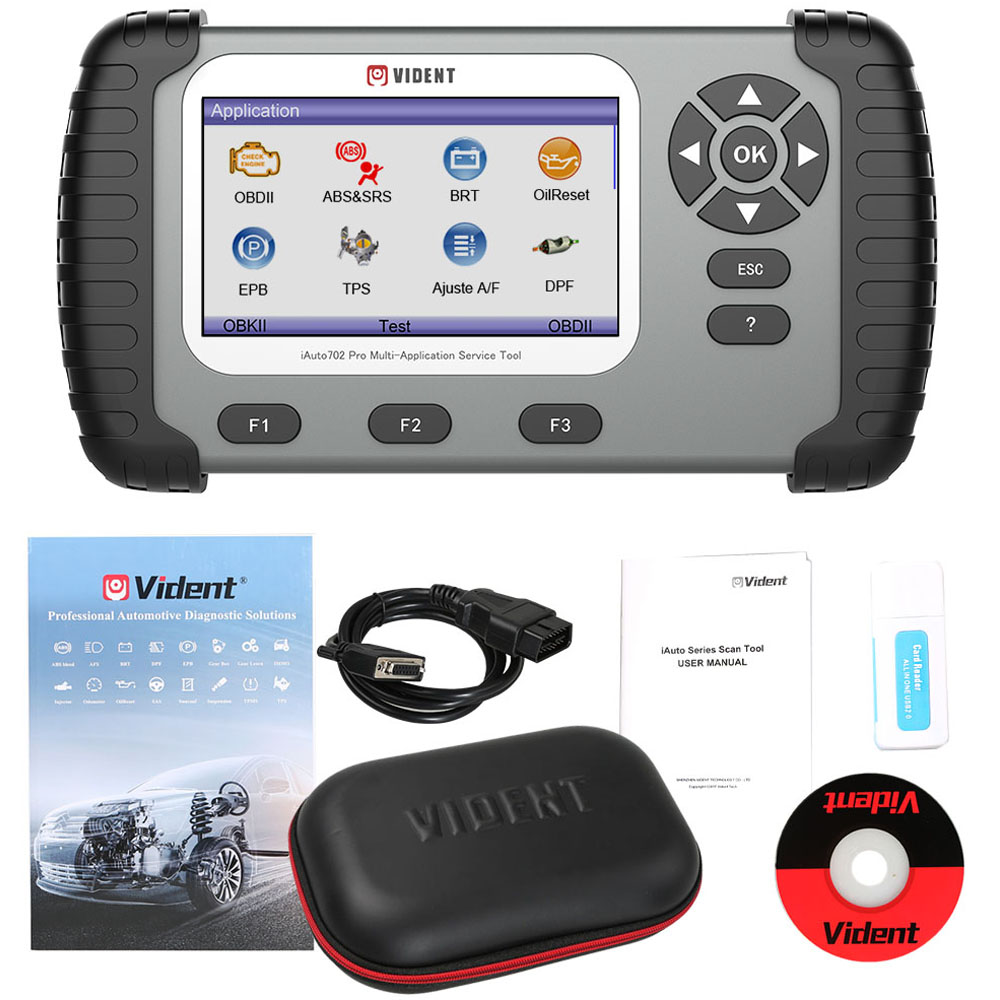

Packing List:

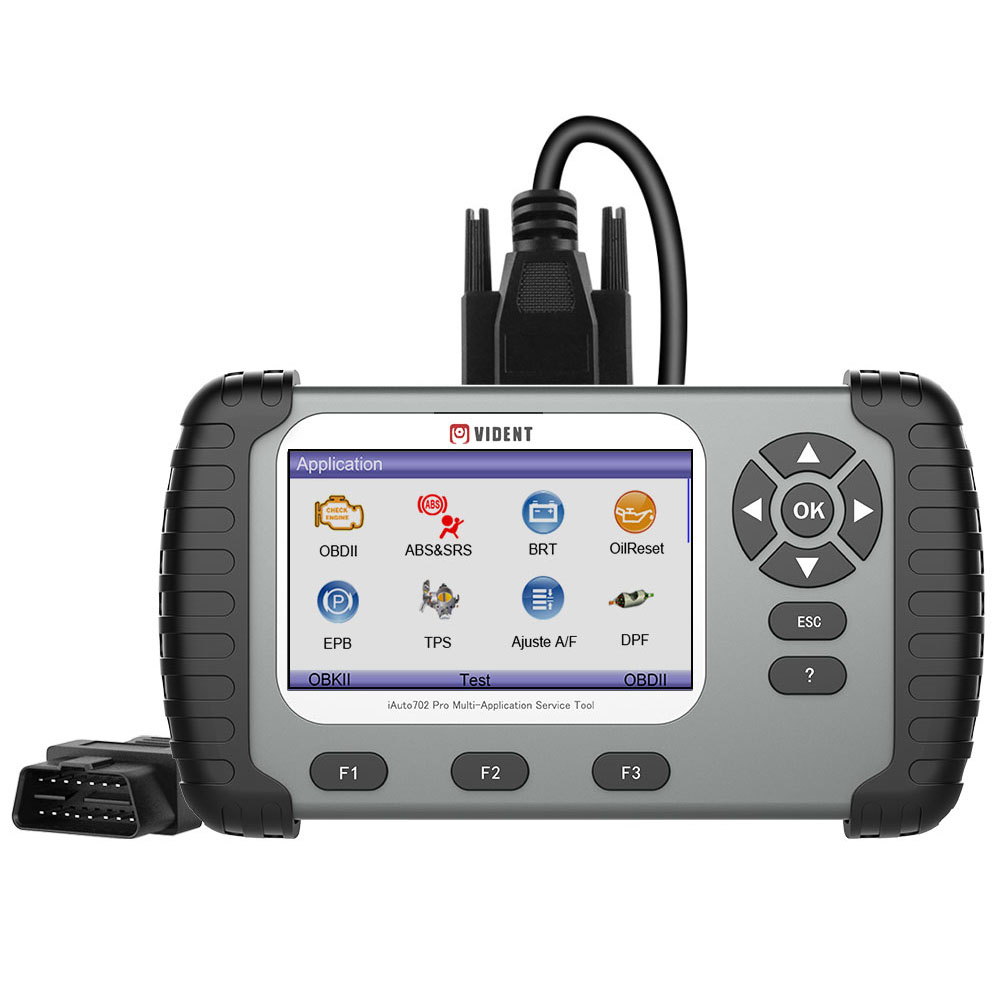

VIDENT iAuto 702Pro Multi-applications Service Tool

Main OBD2 Cable

Memory Card
Card Reader

User Manual

Password Envelope

Carrying Pouch

Packing Box
