Description:

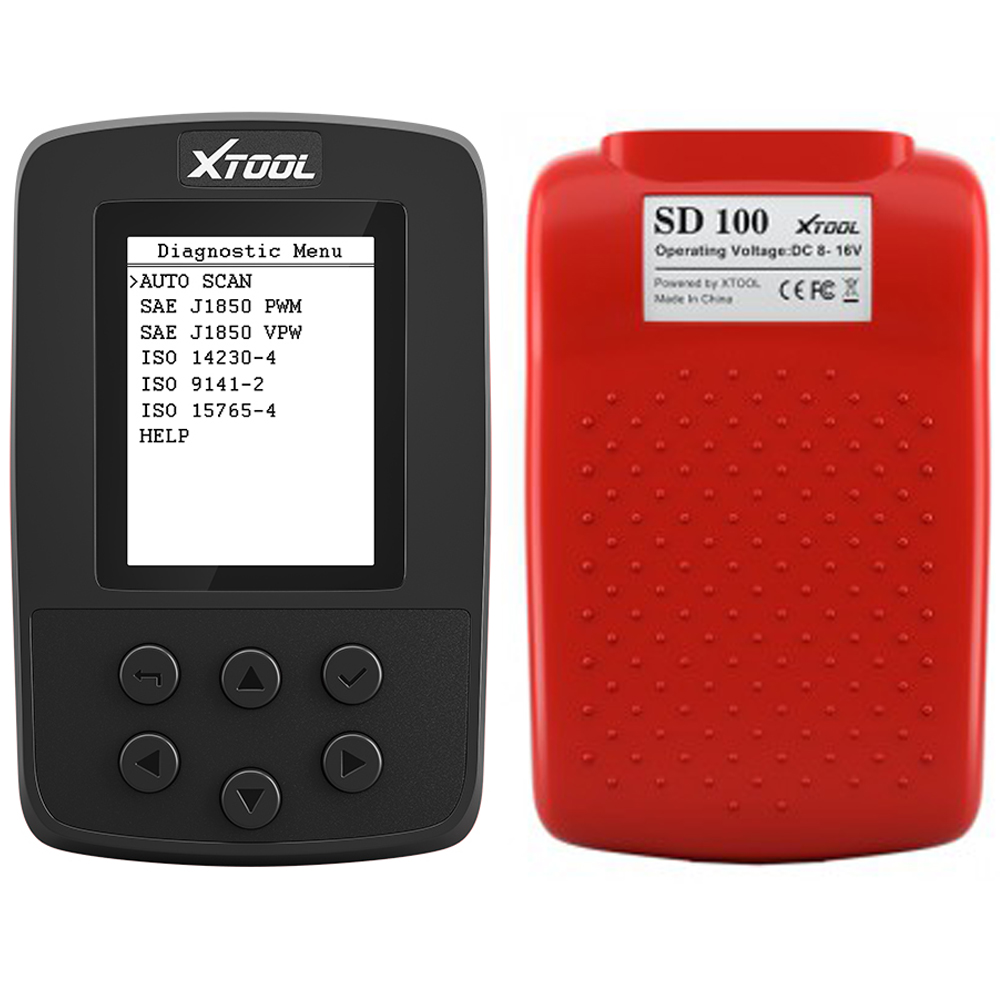

XTOOL SD100 Volle OBD2 Code Reader is a new product launched by XTOOL. It is a unique solo model. It has basic functions of 9 modes on engine.



Features:



1. Supports 9 test modes of the latest OBD-II test specifications

2. Works on all 1996 and newer cars & light trucks that are OBD2 compliant (including the VWM, PWM, ISO, KWP2000 and CAN protocols)

3. One year free update online



Supported Languages: English, France, German, Spanish, Portuguese, Russian



Functions:



Read codes

Erase codes

Live data

Freeze frame

Vehicle Information

Component test

On-Board monitor test

O2S monitoring test

I/M Readiness



Supported Cars:



Acura, Audi, AU Ford, Bentley, Benz, BMW, Bugatti, Buick, Chrysler, Cadillac, Chrysler, Chevrolet, Citroen, CVVW,  Dacia, Daihatsu, Dodge, Daewoo, Ford, Fiat, GM, GMC, Holden,  Honda, Hummer, Hyundai, Infiniti, Isuzu, Jaguar, Jeep, Kia,  Land Rover, Lexus, Maybach, Mazda, MINI, Mitsubishi, Nissan, Opel, Porsche, Peugeot, Pontiac, Peugeot, Renault, SAAB, Scion, Seat, Skoda, Smart, Sprinter, Subaru, Suzuki, Toyota, Vauxhall, Volvo, Volkswagen, VW



Technical Parameters:



CPU: 32bit Cortex M3 72MHz

Display: 2.8 inch TFT-LCD Display

Program Memory: 512K Flash

RAM: 64K RAM

Internal Memory: 16MB

External Interface: DB15 / mini USB

Input Voltage: DC 11-36V

Operating Temperature: -20 to 50 degree centigrade

Humidity: <90%

Dimension(L*W*H): 138*88*31mm

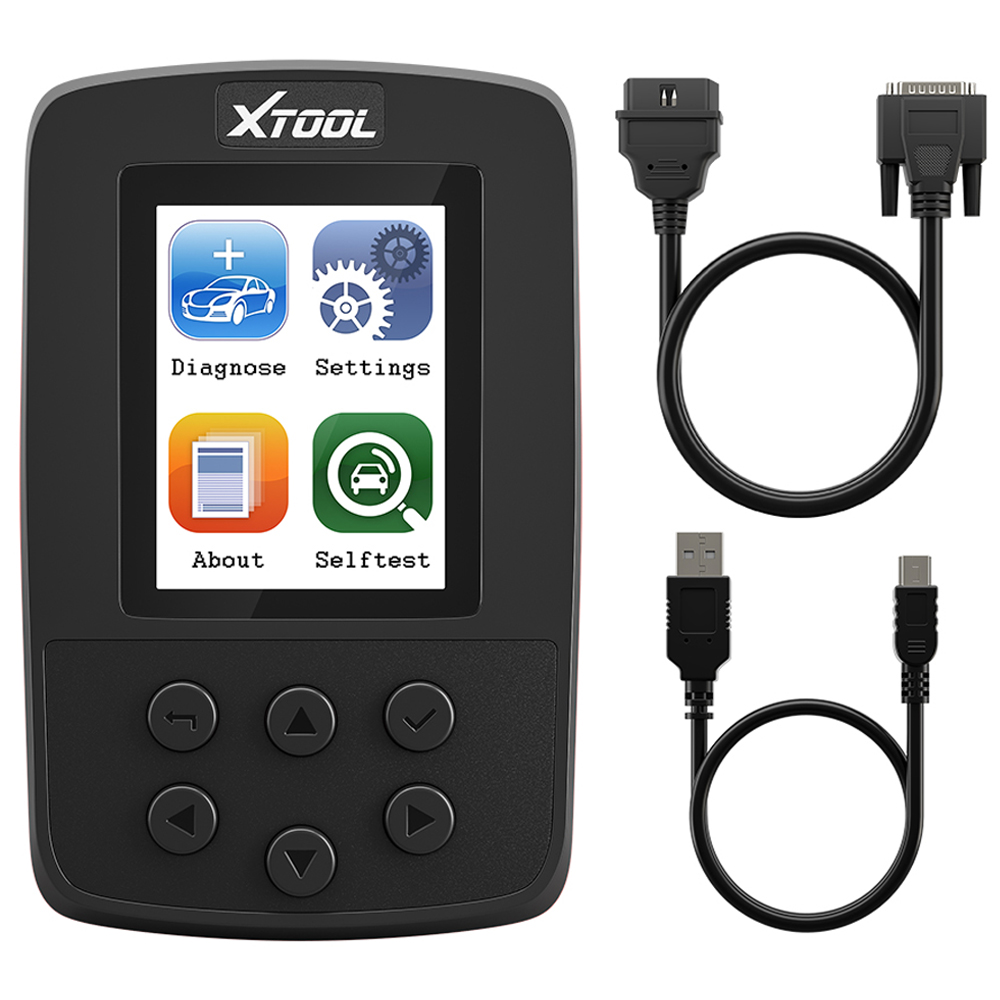

Packing List:



XTOOL SD100 OBD2 Code Reader

OBD2 Cable

USB Cable
