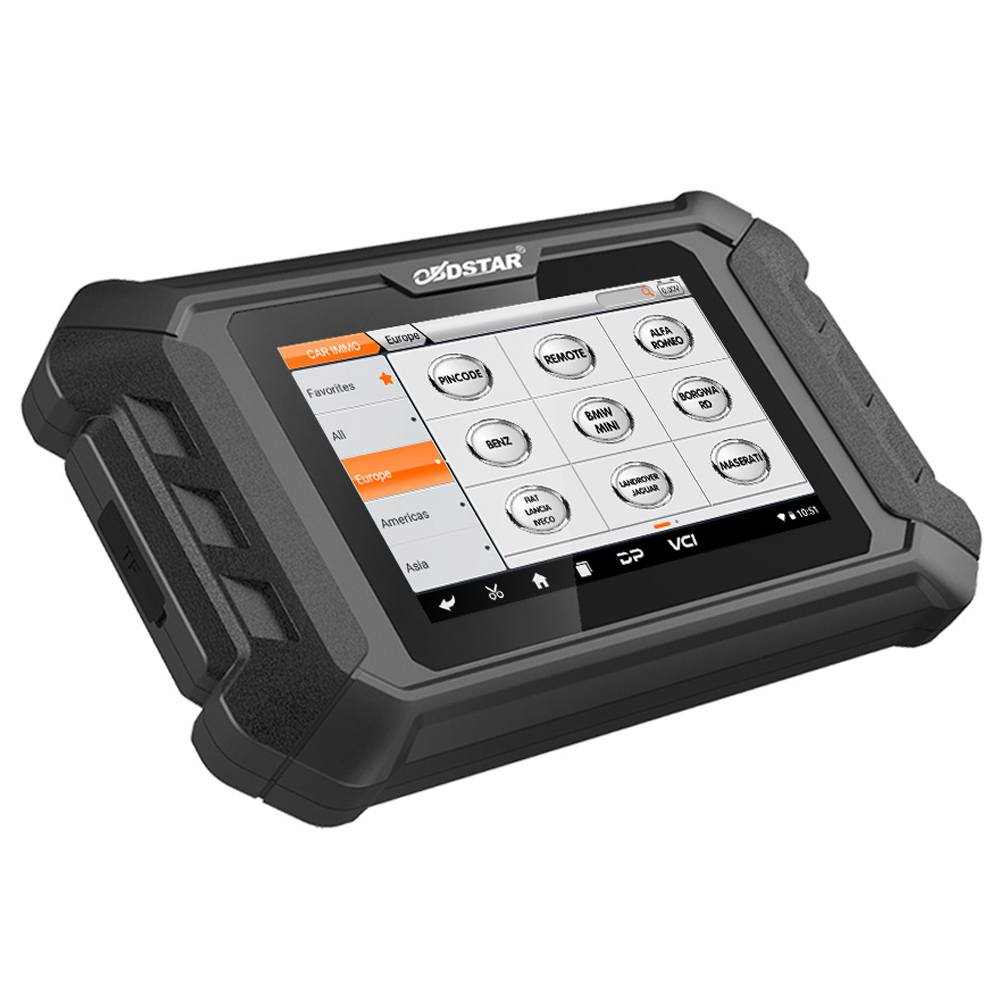

Name: OBDSTAR X300 Pro 4 PAD IMMO System Key Programmer
Description:
OBDSTAR X300 Pro4 PAD IMMO System Key Programmer is an all-purpose immobilizer programming device meticulously designed by OBDSTAR for locksmith. X300 Pro 4 inherits the automobile immobilizer programming technology from OBDSTAR with a lot of advantages of early start, wide model coverage, fast programming speed and special features All-in-one machine structure, more convenient to use full optimization hardware, running more stable, faster and smoother.
Dealer Code: 860755B1
Software Update: free update online for one year; USD250/year for further update
Supported Language: English
Highlights:

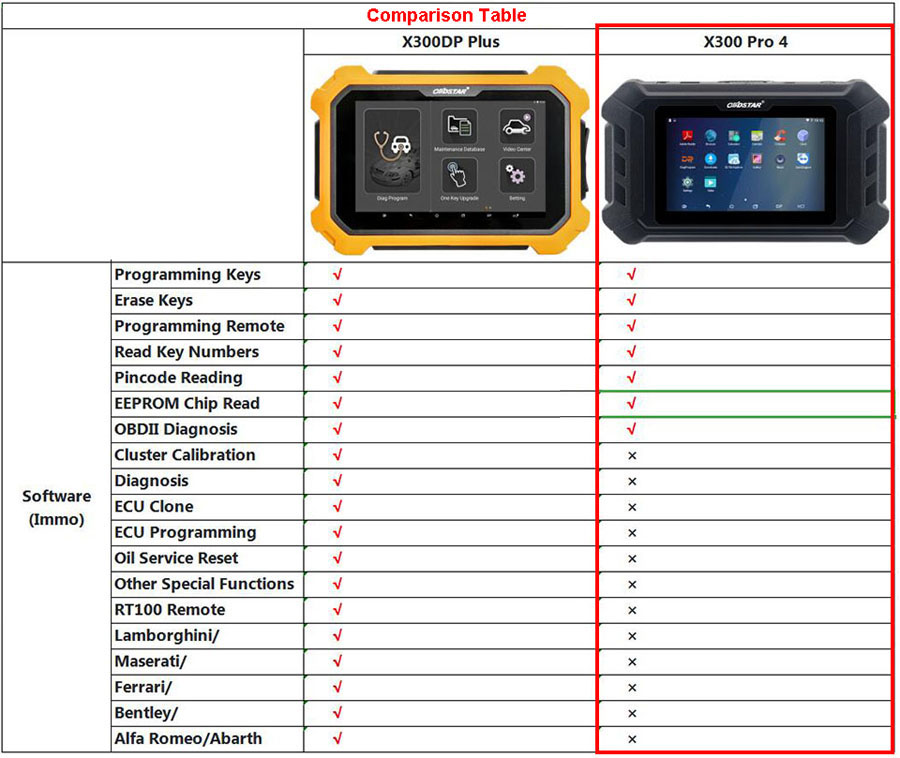

1. OBDSTAR X300 Pro4 covers same IMMO function as OBDSTAR X300 DP Plus.
2. The update is frequent (updated every 2-3 days).
3. Strong competitiveness and industry advantage
4. Support 2018/2019 years models for some brands (such as GM/Mazda/Renault)

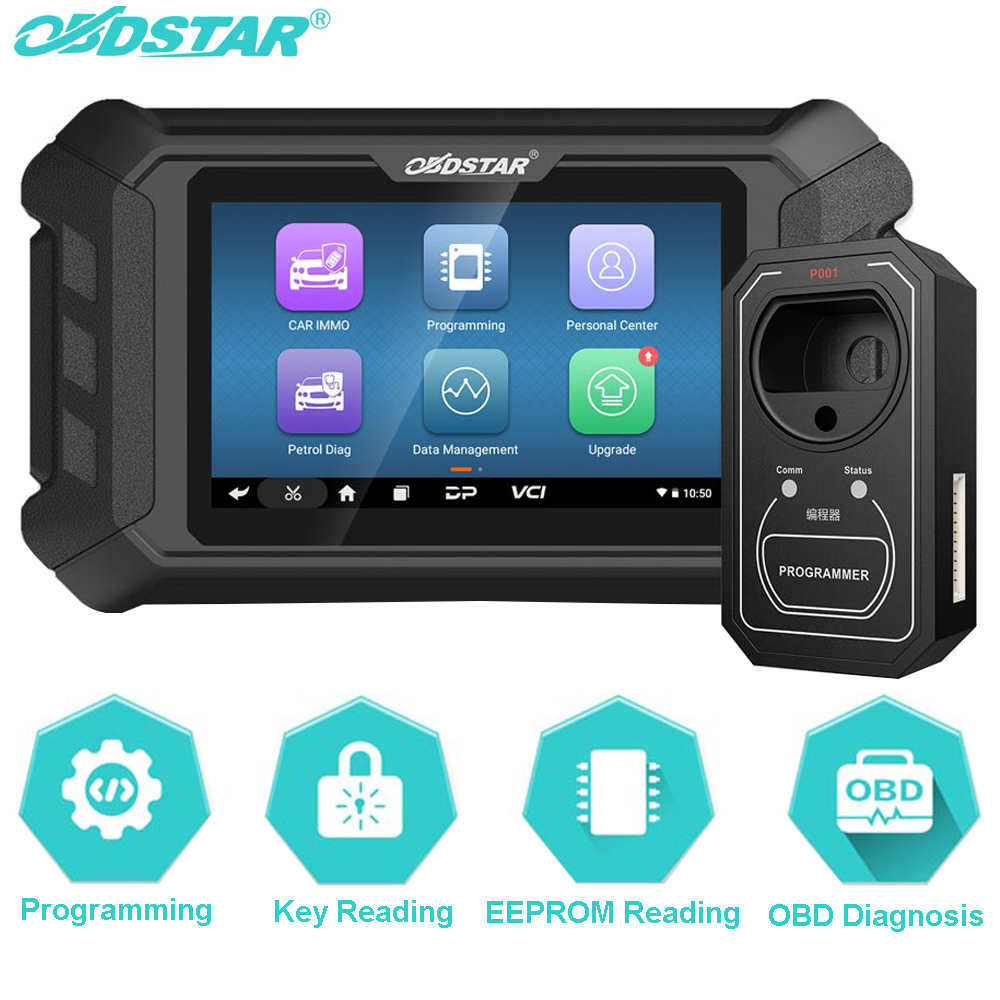

Functions:
Programming Keys
Erase Keys
Programming Remote
Read Key Numbers
Pincode Reading
EEPROM Chip Read
OBD-II Diagnosis

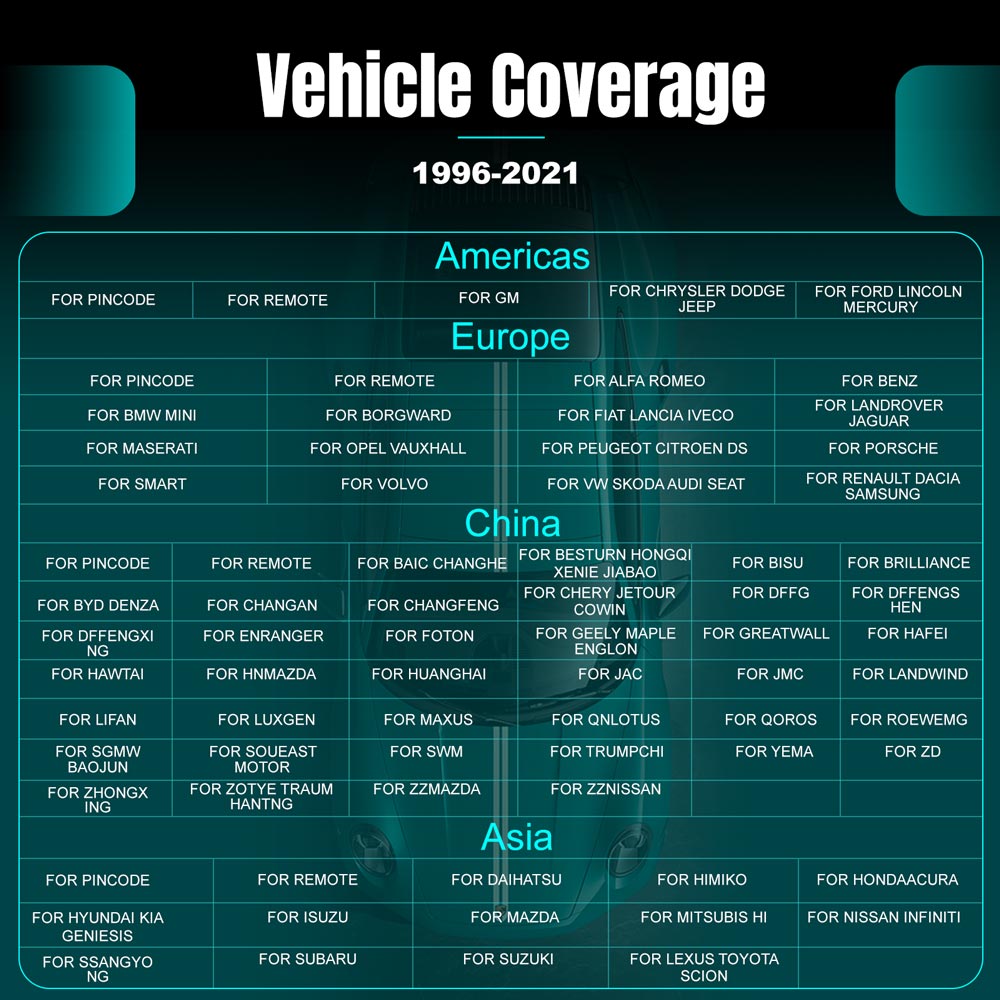

Supported Cars:
Europe:
BMW, Benz, Borgward, Peugeot, Citroen, DS, Dacia, Fiat, Jaguar, Lancia, Land Rover, Opel, Porsche, Renault, Smart, Volvo, Iveco, VW/Audi/Skoda/Seat
Japan:
Honda, Isuzu, Mazda, Mitsubishi, Nissan, Subaru, Suzuki, Toyota, Lexus
Korea:
Hyundai, Kia, Ssangyong
America:
Ford, Chrysler, GM
China:
BAIC, Besturn, BISU, Brilliance, BYD, Changan, Changhe, Chery, Cowin, DF Fengshen, DFFG, DF Liuzhou, Enranger, Foton, Geely, Great Wall, Hafei, Hanteng, Hawtai, Himiko, Hongqi, Huanghai, JAC, Jiabao, JMC, Lifan, Lufeng, Luxgen, Maxus, Qnlotus, Qoros, Roewe, SGMW, SWN, Soueast, TJ FAW, Traum, Trumpchi, Xenia, Yema, ZD, Zhongxing, Zotye, Changfeng

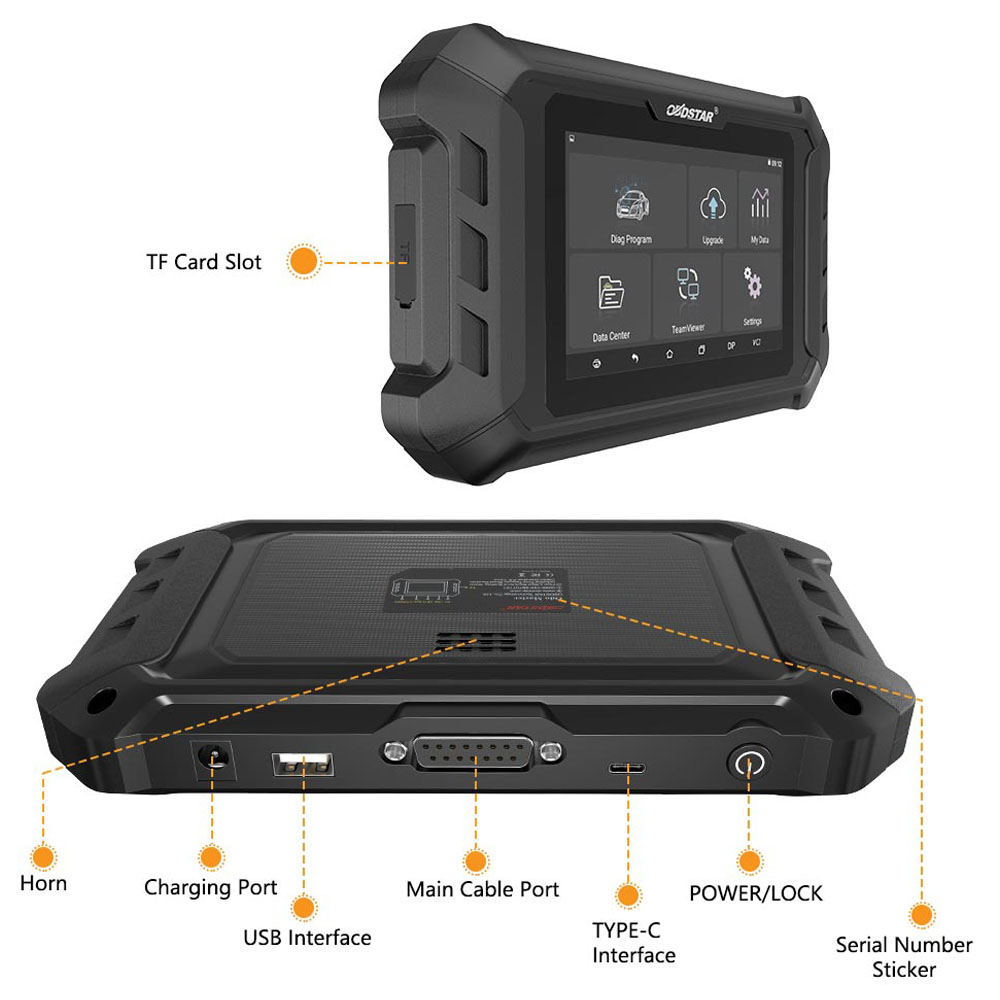

Specifications:
Operation System: Android5.1.1
CPU: RK3128 quad-core, ARM Cortex A7@1.2Ghz
Battery: 2600Ma lithium ion
Extension Memory Card: 32G micro SD(TF) card supported
Storage Capacity: 16GB
LCD: 5.0 inch
LCD Resolution: 800*600
Touch Screen: capacitive touch screen
WiFi: supported
Working Temperatures: -20 to 55 degree centigrade
Storage Temperature: -20 to 70 degree centigrade
Weight: about 700g

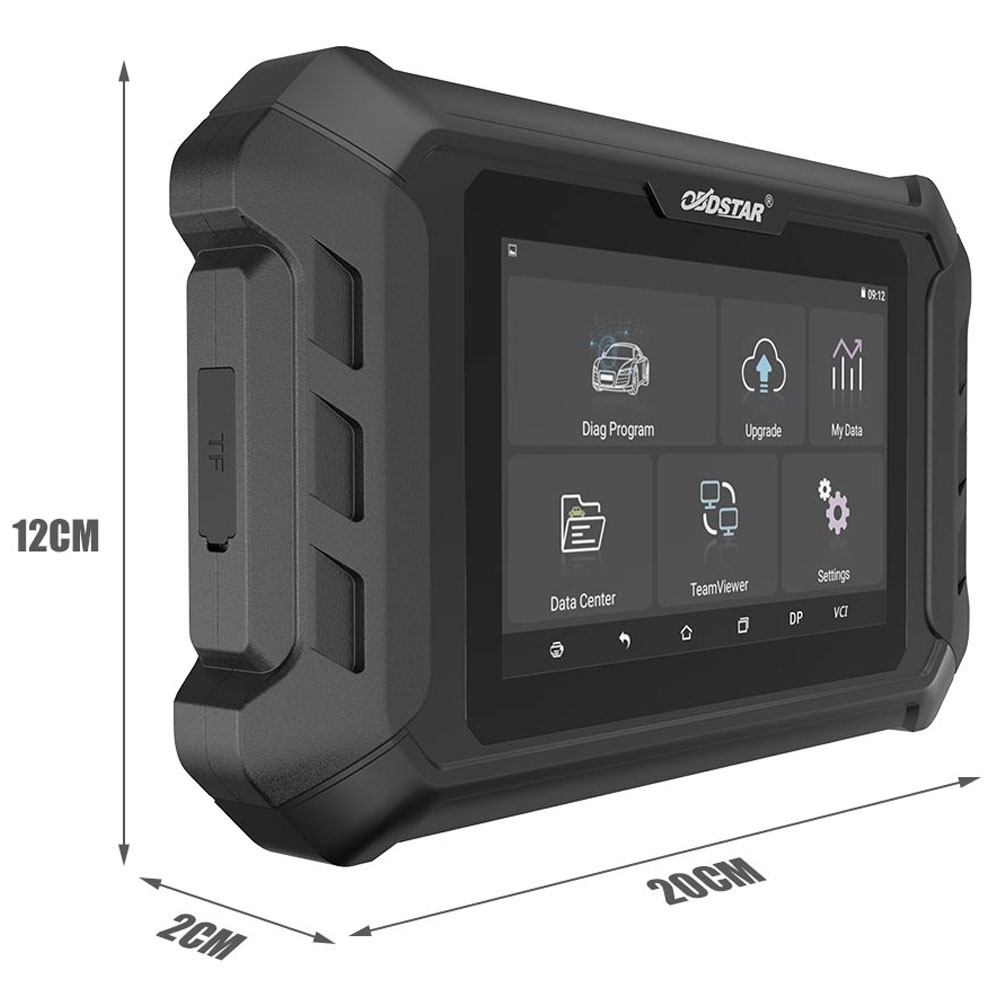

Dimension: 140*89*18mm

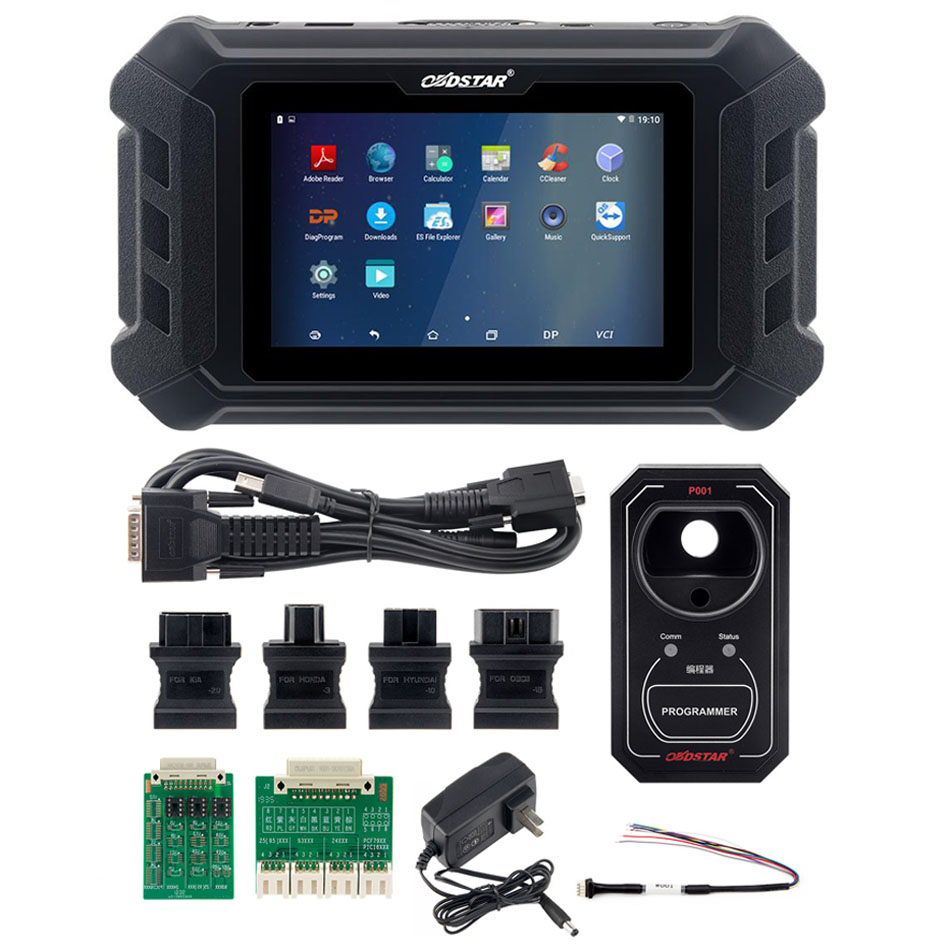

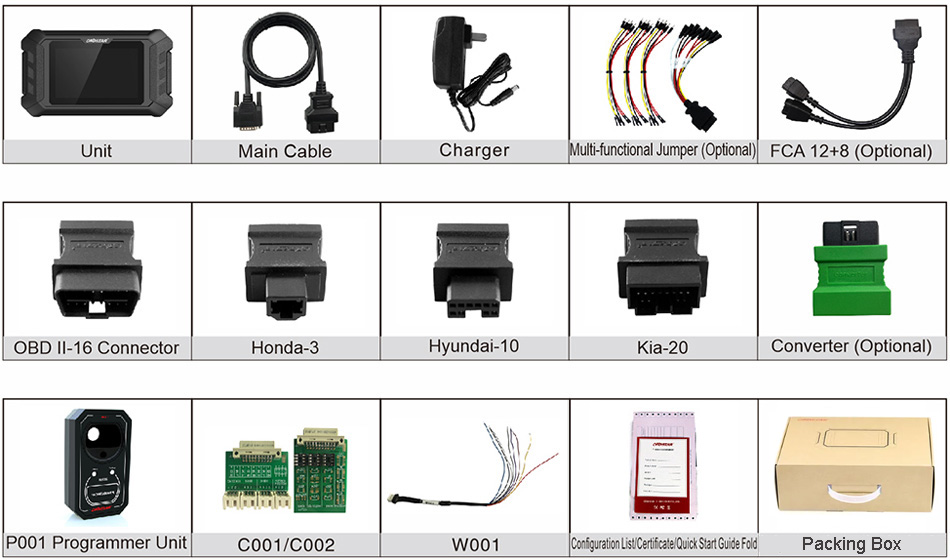

Packing List:
OBDSTAR X300 Pro 4 Pad
Main Cable
OBD2-16 Connector
HYUNDA-10 Connector
KIA-20 Connector
HONDA-3 Connector

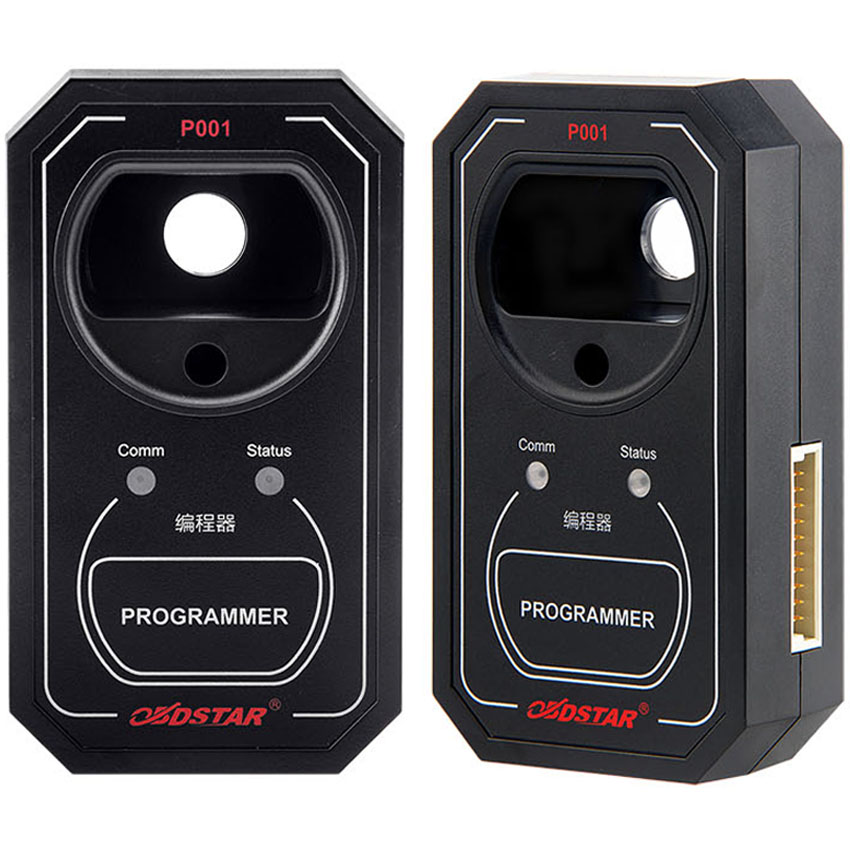

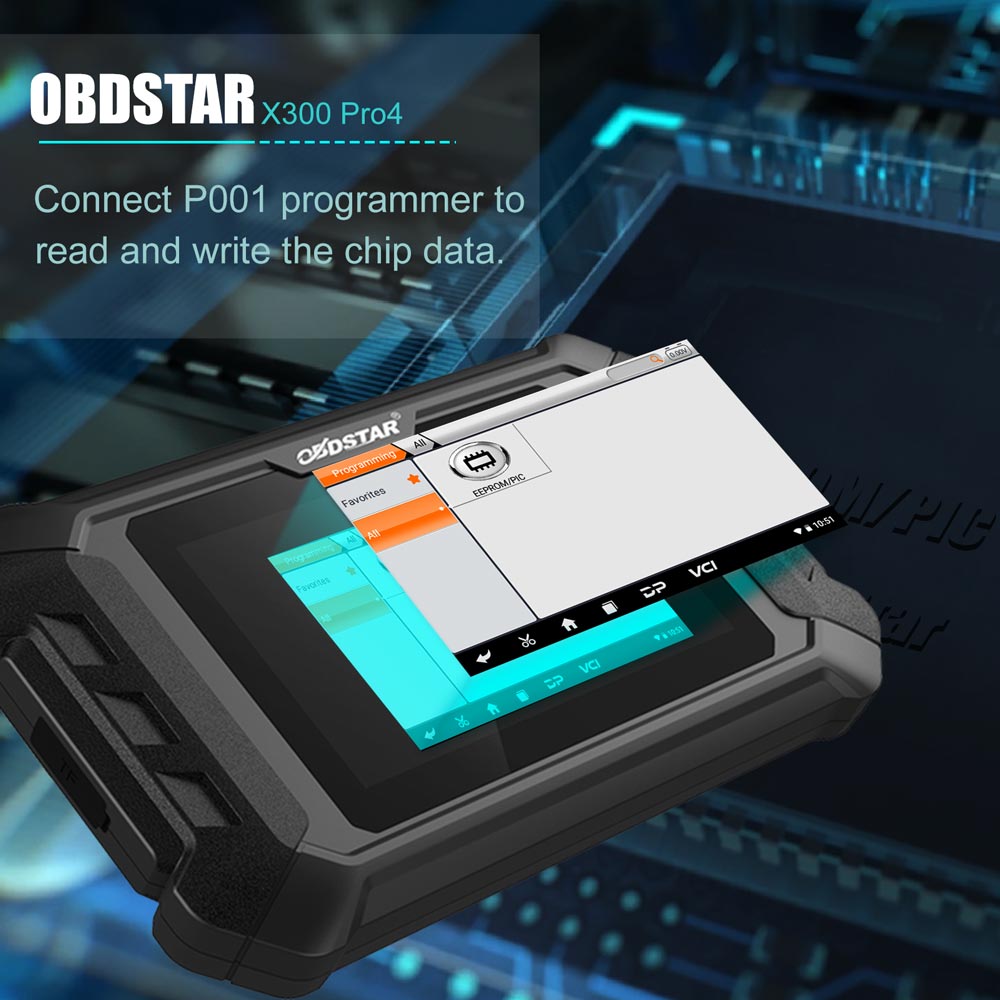

P001 Programmer
C001 Circuit Board
C002 Circuit Board
W001 Data Cable
Converter (optional)
FCA 12+8 (optional)
Multifunctional Jumper (optional)
Power Charger
Quick Start Guide
Certificate
Packing List
Packing Box
Update Log:
OBDSTAR Toyota & Lexus IMMO V32.74 Update (2022.11.24)
1. Add 2018- proximity(8A-A8) all keys lost(free pincode) for below models:
TOYOTA CROWN
TOYOTA LAND CRUISER
TOYOTA HIGHLANDER(petrol)
TOYOTA PRADO
2. Add 2018- proximity(8A-A9) all keys lost(firee pincode, smart key ECU with 24 pin) for below models:
TOYOTA ALPHARO
TOYOTA VELLFIRE
3. Add proximi1y(8A-A9) key programming(free pincode, smart key ECU with 27 pin)
4. Add proximity(8A-AA) key programming(free pincode, smart key ECU with 27 pin)
5. Add proximity(4A) key programming(free pincode, smart key ECU with 27 pin)
6. Add read smart key ECU IMMO data by OBD for below models(more models in testing):
TOYOTA ALPHARO
TOYOTA CAMRY
TOYOTA C-HR
TOYOTA CROWN
TOYOTA HIGHLANDER
TOYOTA IZOA
TOYOTA LAND CRUISER
TOYOTA LC200
TOYOTA PRADO
TOYOTA PRIUS
TOYOTA RAV4
TOYOTA VELLFIRE
LEXUS LC
LEXUS LC570
LEXUS RX series
LEXUS RX450H
Toyota & Lexus IMMO V32.73 Update
Gateway vehicles read smart box immo data by OBD (8A-A9, no need adapter) including but not limited below models:
1. Toyota Camry 2017-
2. Toyota Prius 2016-
3. Toyota C-HR
4. Lexus LC570 2016-
5. Toyota LC200 2016-
6. Lexus RX 2015-
TOYOTA & LEXUS IMMO V32.70 Update(2022-9-9)
Add 2018- 8A-AA Proximity Add Keys & All Keys Lost(Free PinCode)
HONDA & ACURA IMMO V31.56 Update (2022-9-9)
Add 2019- 47 Proximity All Keys Lost(OBD)
NISSAN & INFINITI IMMO V32.28 Update(2022-04)
Support Nissan Kicks/Micra K14 proximity/Blade 22-Digit(Actually 20-Digit) Rolling Code Key Programming(Free Pincode)
Peugeot & Citroen & DS IMMO V32.51 Update (2022.03)
Add PSA DCM7.1, MD1, MG1, EDC17C60, V56 read pin code,Supports China VI, European VI, Delphi BSI mode all keys lost read pin code
Peugeot 2008 2019-2021 blade/proximity key programming
Citroen C3 Aircross 2017-2021 proximity key programming
Citroen C5 Aircross 2018-2020 proximity key programming
Peugeot & Citroen IMMO V32.46 Update (2021-06):
Add Delphin BSI All keys lost pin code read (OBD)
Toyota IMMO V32.45 Update (2021-06)
Support 8A H non-smart transponder no need to disassemble or replace the IMMO box all keys lost programmming for RAV4, HILUX, CROWN, KLUGER, COROLLA, CAMRY, LEVIN, PRADO, REIZ.
Need to work with P002 Adapter, Key SIM, Toyota-1/2 Cable, multi-functional cable.
Ford/Lincoln/Mustang IMMO V34.45 Update (2021-06)
ALK in alarm active (No need to repeatedly disconnect/connect battery cables.)
