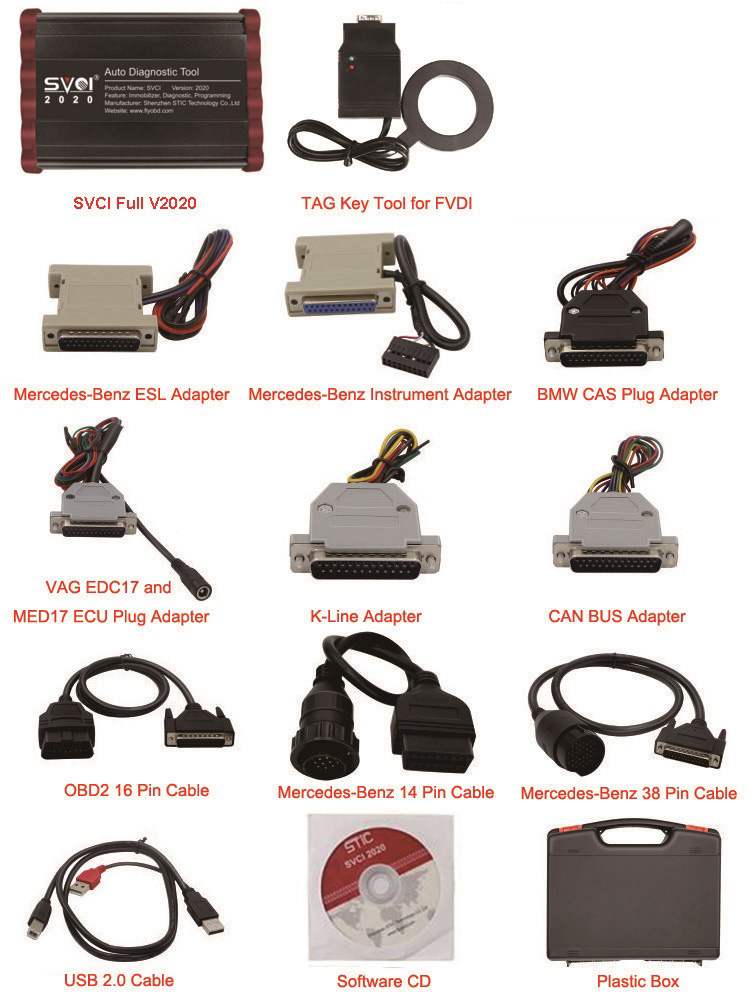

Plastic Toolbox
Update Info:

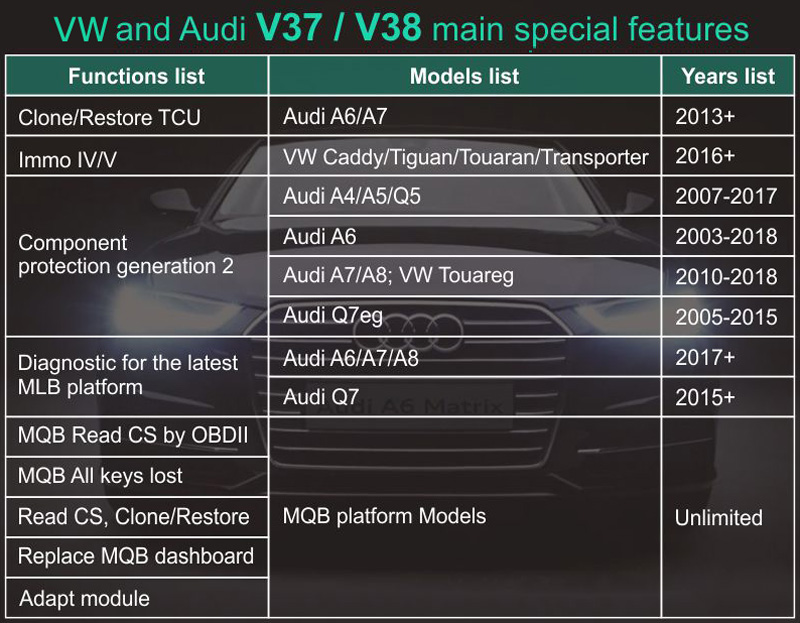

New in V37.0
- MQB Read CS by OBDII (VDO TFT, VDO Virtual Cockpit, JCI)
- MQB All keys lost - added possibility to make it if also the car is with automatic transmission
- Read MQB transmission control units - Read CS, Clone/Restore
- Read DL501 Generation 2 transmission control unit (A6/A7 2013+) - Clone/Restore
- Replace MQB dashboard - possibility to clone an existing dashboard
- Adapt modules to MQB cars - Engine control unit, Transmission control unit, Steering lock
- Possibility to adapt manually any IMMO V parts (MQB/BCM2) if the CS of the parts is known
- For cars with IMMO IV dashboard (CS is 12 bytes) and Immo V engine control unit (CS is 16 bytes) - e.g. Caddy/Tiguan/Touaran/Transporter 2016+ - possibility to extract the CS (16 bytes) of the key and of the ECU from the CS of the dashboard
- Unsupported VDO NEC dashboards added - both for mileage and keys (e.g. VW Fox)
New in V37.1
- Read MQB transmission control units - Read CS, Clone/Restore - added some unsupported DQ200x modules
New in V37.2
- Some fixes for the MQB dealer key preparation
New in V37.3
- For Delphi DCM3.7 added for reading - PIN/CS/Flash
New in V38.0
- Component protection generation 2 - new online functionality used for adaptation on second hand modules for Audi (A4/A5/Q5 2007-2017, A6 2003-2018, A7 2010-2018, A8 2010-2018, Q7 2005-2015),
VW Touareg 2010-2018 and For Audi/VW/Skoda MQB. Includes also MQB, but doesn't include MLB cars.
New in V38.1
- Added modules for diagnostic for the latest MLB platform (A6/A7/A8 2017+, Q7 2015+)
Note: Does not support online functions
New in V7.4:
- Automatical recognition of swapped files in dump tool. In the most cases the no need to flip bytes manually
- Added support for unsupported till now subtype of Simos7.1 engine control units - Login (PIN) and component security are now available
New in V7.7:
- Added support for VDO instruments cluster 2006+ - odometer changing, reading PIN codes, read/write immobilizer data. Initially only first VDO versions are supported.
- Key-learning - adding key for 15 seconds (old keys continue to work) for VDO CAN instruments
New in V7.9:
- When reading ME7 the MAC is also displayed. Possible to change MAC for ME7 in dumptool too.
- Prepare dealer keys for Q7/A6/Allroad directly from the EZS-Kessy dump
- Learn keys for Q7/A6/Allroad directly in the EZS-Kessy dump
New in V17.0
1. Component protection generation 1:
- For Audi A8 2003-2010 (Instrument cluster, seat memory driver, seat memory passenger),
- For Audi A6 2004-2008 (MMI, ILM Beifahrer, Central electric, MP3 CD-Changer)
For the A8 seat memory (driver and passenger) also the vehicle identification number is synchronized automatically.
2. EZS-Kessy adaptation for Audi A8 (2003-2008) and VW Touareg (2007-2008)
3. VDO instrument SW version VK354608LL - V09.00.00 added - no need of working key!
4. VDO instrument SW version V354608ML - V08.00.00 added - no need of working key!
5. VDO instrument SW version VK354607LL - V09.00.00 added - no need of working key!
6. VDO instrument SW version VK354608LL - V08.00.00 added - no need of working key!
7. Johnson Controls Instrument Cluster - mileage recalibration, EEPROM Read/Write.
8. Common user interfaces for all CAN instrument clusters. Now the instrument cluster type is autodected
and all CAN dashboards are read/write in one common place (mileage, immobilizer data, keys)
9. For VW Touareg and Audi A6/A7/A8 2010+ added to AN038 and AN039 if there is a working key (or a dealer key)
10. Johnson Controls Instrument Cluster - key-learning completely by OBDII, no need of working key.
New in V23.0
1. Component protection generation 1 for Audi A8 DSP Bose 2003-2010
2. Component protection generation 2 for Siemens Airbags (UDS) (need to modify EEPROM dump)
3. Component protection generation 2 - improved functionality and added SW versions for Climate Control for A6/Q7/Allroad (C6) 2005-2010
4. A6/Q7/Allroad (C6) 2005-2010 simplified transmission adaptation procedure with just one click.
5. EDC17 Boot-Mode - added possibility to change the PIN/CS/MAC/ImmoNumber/Vin directly in the dump
6. Replace of defective BCM2 improvement. Now all BCM2 are covered and no more problem with component protection int MMI2G and MP3 CD-Changer after exchange.
7. TC1767 and TC1797 write flash by boot-mode added
8. Added new versions of VDO NEC dashboards both of mileage and key learning
9. Component protection generation 1 for Audi A8 Bosch Airbag 2003-2010
10. DPF OFF for EDC16/EDC17
