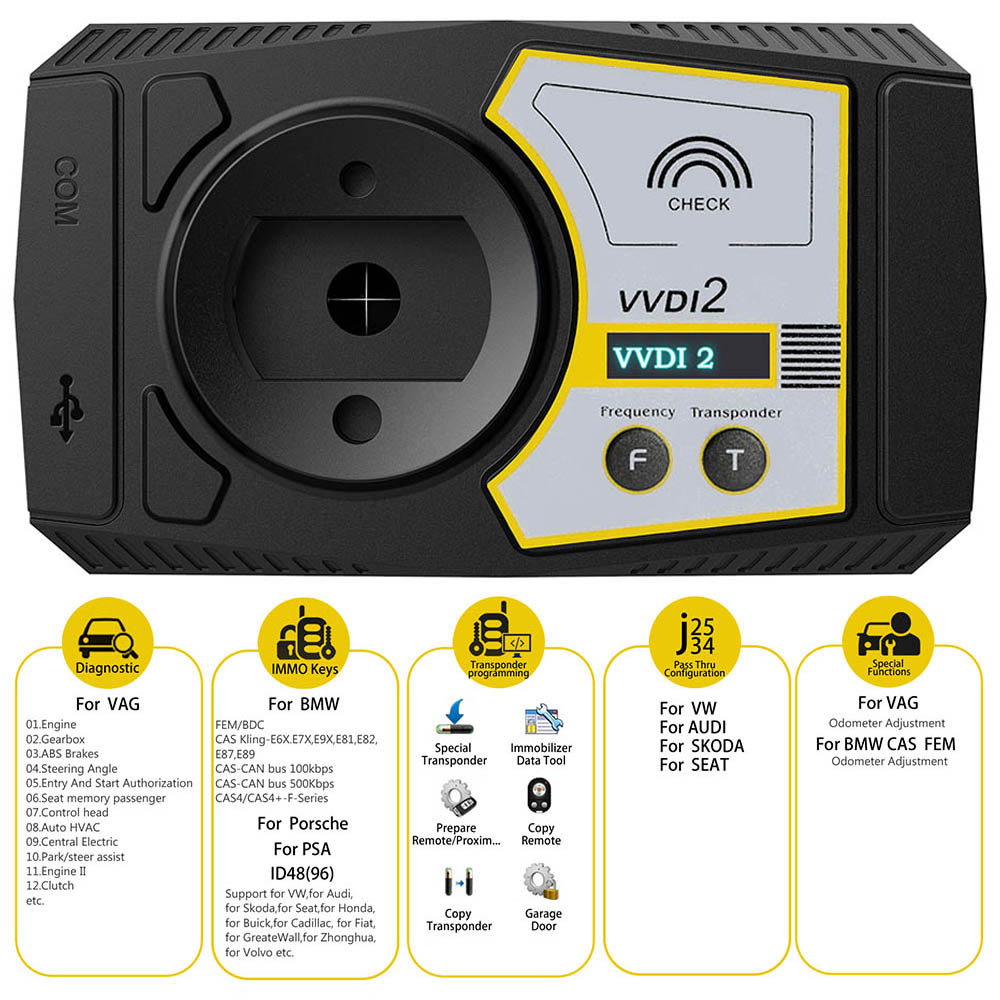

Name: XHorse VVDI2 Full Kit with OBD48 + 96Bit 48 + MQB + BMW FEM/BDC
Description:
XHorse VVDI2 Full Kit with All 13 Software Authorization including OBD48 + 96Bit 48 + MQB + BMW FEM/BDC.
VVDI2 Full Version Includes All 13 Software Authorizations:
1. VV-01 VAG 4th Immobilizer
2. VV-02 VAG 5th Immobilizer
3. VV-03 VAG Copy 48 Transponder by OBD-II
4. VV-04 ID48 96Bit Copy
5. VV-05 VAG MQB Immobilizer
6. VB-01 BMW OBD
7. VB-02 BMW CAS4
8. VB-03 FEM / BDC Function
9. VP-01 Porsche IMMO Data Tool
10. VPSA-01 PSA
11. VK-01 Transponder Programmer
12. VJ-01 PassThru J2534
13. Toyota H Chip
14. VW MQB48 NEC35xx (Pay Separately)
15. VB-04 BMW Motorcycle OBD Key Learning (Pay Separately)
Highlights:
1. Support VW, Audi, BMW, Porsche, Toyota and PSA (PSA software only supports learning key and reading pin code).
2. Open OBD read MED17/ EDC17 PIN/ CS/ MAC for Free, Calculate OBD Data Online, Calculate EEPROM/ FLASH for PIN / MAC / CS.
3. Support VW 2019-5C (MQB49) Models:
1). FAW-VW (Bora, Magotan CC, Sagitar, T-Roc, Tayron, Tacqua, etc.)
2). SA/C-VW (Polo Plus, T-Cross, Tharu, Tiguan Teramont, Viloran, etc.)
4. VVDI2 CAS4 / CAS4+ via OBD Free Update
Support CAS4 / CAS4+ (XEP100 series, 5M48H / 1N35H) type with OBD-II
1). Support all CAS4 / CAS4+ encrypted version with 5M48H / 1N35H chip.
2). Support preparing dealer key with OBD (We recommend to prepare key by ignition switch.).
3). Support resetting mileage in CAS4 module.
Software Update: free online update for lifetime
Supported Languages:
BMW Software: English, Spanish, German, Italian, Polish, Hungarian, Chinese
VAG Software: English, Spanish, Polish, Chinese
Porsche Software: English, Spanish, Polish, Chinese
PSA Software: English, Spanish, Polish, Chinese
Transponder Programmer Software: English, Spanish, Polish, Chinese
Notice:
1. VVDI2 connects to the server and synchronizes every 31 days. This process is done automatically with connection to the Internet.
2. Toyota H Chip is already activated from now on.
If it is not in your device, please follow the procedure: Download the XHorse APP, register with your phone number, select in XHorse Upgrade Kit Software bind, log in Customer Self Service, click "Activate H". Then update your VVDI2 firmware.
3. Please use the newest software and firmware version, or you will get "not connect" error.
4. VVDI2 ID48 Clone needs VVDI2 ID48 Data Collector. Each ID48 96Bit Online Calculation will cost 100 Points or 1 ID48 96Bit Token.
Functions:
1. Volkswagen Software (Support Volkswagen, Audi, Skoda, Seat, Porsche, Bentley, ect.):
Diagnose, 4th IMMO, 5th IMMO, Key learning
Remote Adaptation
Mileage Correction
Engine Control Unit
K-line Instrument and Panel / IMMO Box
Replace 2nd-hand Parts;
Adapt Unit Module;
Component Protection;
Data Manipulation Tool
...
2. BMW Software:
Unit Coding
OBD Key Learn (CAS1/CAS2/CAS3/CAS3+)
File Make Key (CAS1/CAS2/CAS3/CAS3+/CAS4/CAS4+)
Mileage Correction,
Read & Write EWS/CAS EEPROM
Synchronize DME-CAS, Synchronize CAS-ELV
Unlock Key
CAS Repaired
Fix CAS4 EEPROM Key Programmer
Immobilizer Data Processing
3. Porsche Software:
Support File Make Key Function;
Key Learning by OBD-II Function;
Supported EEPROM: 1L15Y, 2M25J, 5M48H, 1N35H.
4. For Toyota H Transponder
Activate Toyota H transponder generation function.
Support clone Toyota H transponder - Require VVDI Super Chip.
5. New Function (Add Unlock CAS4 Fast Mode(5M48H/1N35H/1L15Y):
Unlock CAS4 only requires 2 minutes.
Support backup D-FLASH (EEPROM), P-FLASH via OBD-II.
Support exchange CAS4 via OBD-II
6. Support Other Software
Peugeot/Citroen/DS OBD get the Pincode;
Key Learning;
Support PassThru J2534, can be used by the third-party software ODIS, etc.
Test Remote Frequency, etc.
ECU/CAS ISN: Support load and decode B38/B48 ISN with EEPROM dump;
KM Repair: Support ALL EEPROM read by VVDI Prog: M35080, 35160, 35128 (Note: VVDI2, VVDI MB Tool KM functions have no technical service.)

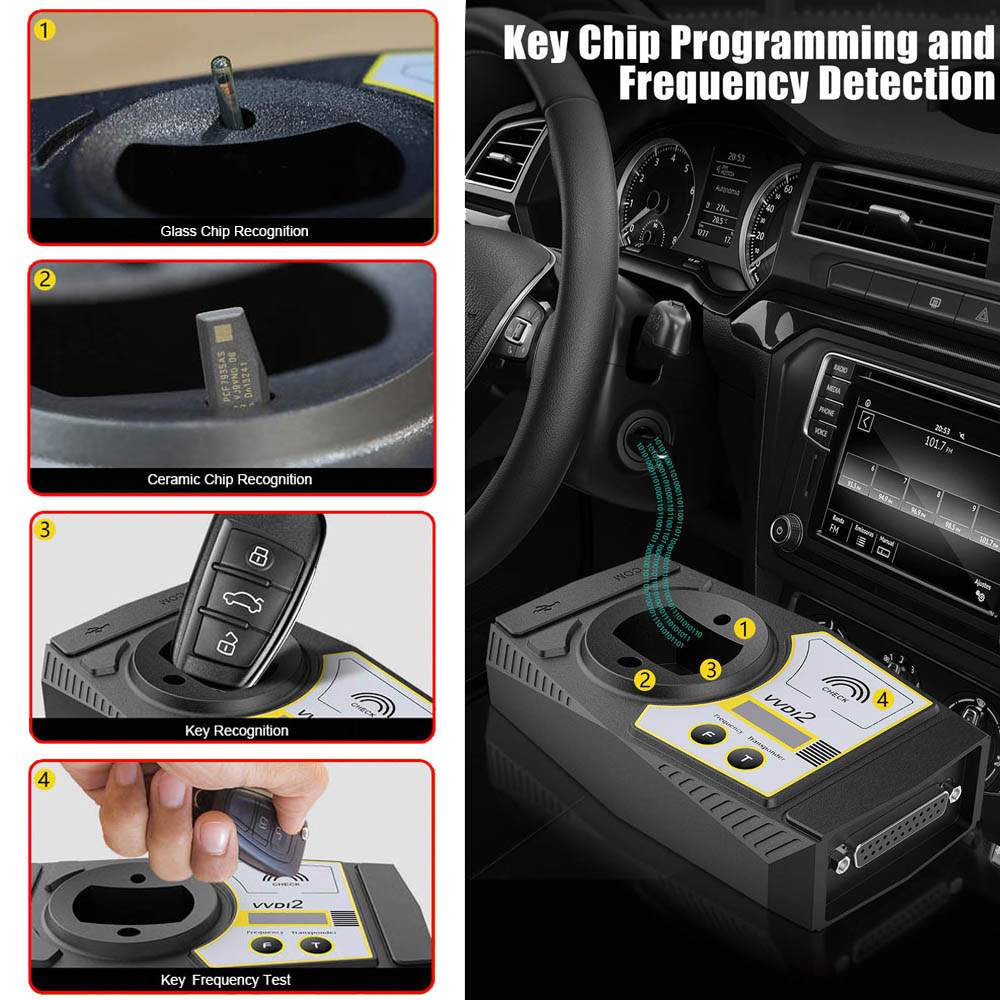

7. Transponder Programmer Introduction:
-Remote Transponder Programmer, with up to a hundred kinds of specific transponders and more than thousands of vehicles supported IMMO Data Tool;
-Able to Prepare Remote, Copy Remote, Copy Transponder (11, 12, 13, 40, 44, HITAG2(46), 48);
-Maintain other key tools (find 7th CS from working key), etc.
-Support VVDI Super Chip, you can change to any type in the list: 11, 12, 13, PCF7935, PCF7936, PCF7937, PCF7938, PCF7939, PCF7946, 48 4C, 4D, 4D(80), 4E, 8A, 8C, 8E
-Add Toyota 8A all key lost(Non-Smart Key): Menu->Toyota 8A immobilizer system, require 8A all key lost adapter;
-Immobilizer Data Tool: Asia-> for Suzuki->Swift->1996 93C66 bugfix;
-Immobilizer Data Tool: Asia-> for Toyota->Camry->ECU -2004 93C56(2) bugfix;
-Immobilizer Data Tool: Asia-> for Toyota->Avalon->ECU-93C56 bugfix;
-Fix bug for make for Chevrolet Epica with VVDI super remote;
-Support copy remote with VVDI super remote;
-Generate Toyota H chip with VVDI super chip no need bonus points;
-Special transponder: Add some special transponders (ID70 Excelle, ID82G Sabru, ID47 Honda A/G, ID49 USA Ford);
-Special transponder: Support use VVDI super transponder, it can use reusable, never lock;
-Copy transponder: Support clone 4D transponder; clone 4E transponder; clone Ford ID83, Kiv ID70; Support clone 8C/4C transponder - Require use VVDI super chip;
-Immobilizer Data Tool: Asia-> for Mazda->8C chip bugfix;
-Immobilizer Data Tool: Asia-> for Toyota->Corolla->2004 93C66(ID4C)
-Immobilizer Data Tool: Asia-> for SAIC->Roewe 360 95160;
-Immobilizer Data Tool: Asia-> for Nissan Micra 93C56 - 2005;
-Immobilizer Data Tool: Asia-> for Ssangyong Action 9S12 - 2011;
-Immobilizer Data Tool: Asia-> for SAIC Datong V80 95160;
-Immobilizer Data Tool: Asia-> for SAIC kaiyue 9S12 – 2013-;
-Immobilizer Data Tool: America-> for Ford Cargo 24C64-2014-;
-Immobilizer Data Tool: America-> for Buick Excelle 9S12-2013-;
-Immobilizer Data Tool: Europe-> for Fiat Palio 95160-2012-;
-Immobilizer Data Tool: Europe-> for MAN truck M29W160;
-Immobilizer Data Tool: Europe-> for Iveco 95640;
-Immobilizer Data Tool: Europe-> for Rover 95320 bugfix;
-Immobilizer Data Tool: Europe-> for Renault->Duster->2010-95040;
-Immobilizer Data Tool: Europe-> for Chevrolet->Silverado->2011 9S08
Specifications:
USB Interface: USB 2.0
Power: 1W
Working Temperature: -20 to 70 degree centigrade
Storage Temperature: -40 to 80 degree centigrade

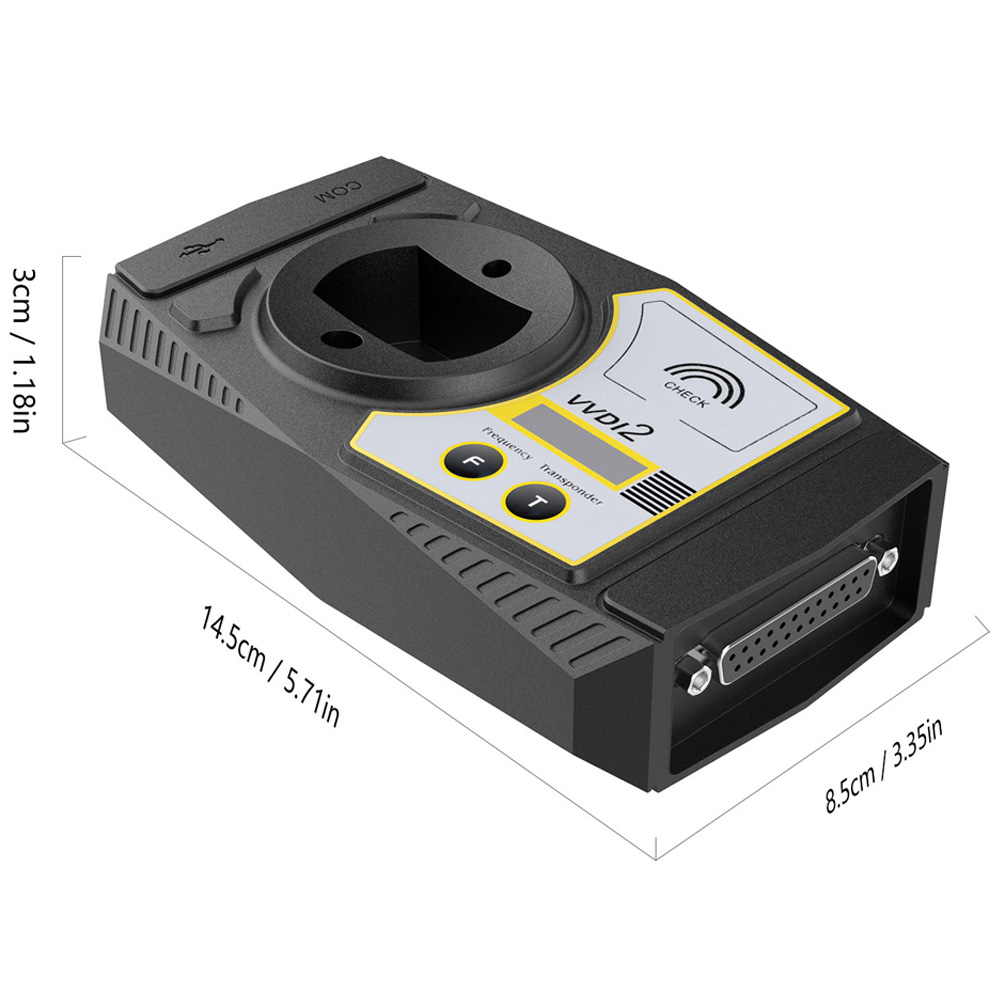

Dimension: 146*85*33mm
Net Weight: 0.23Kg
Gross Weight: 1.5Kg
Package Size: 355*283*87mm

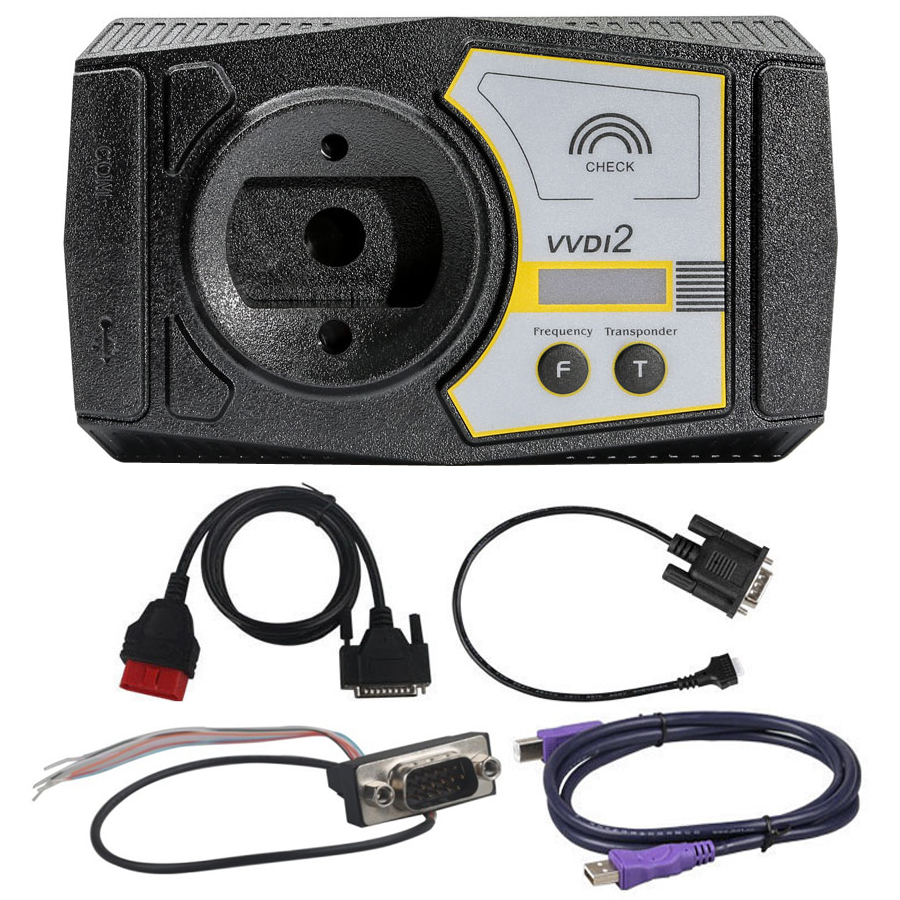

Packing List:
VVDI 2 Main Interface

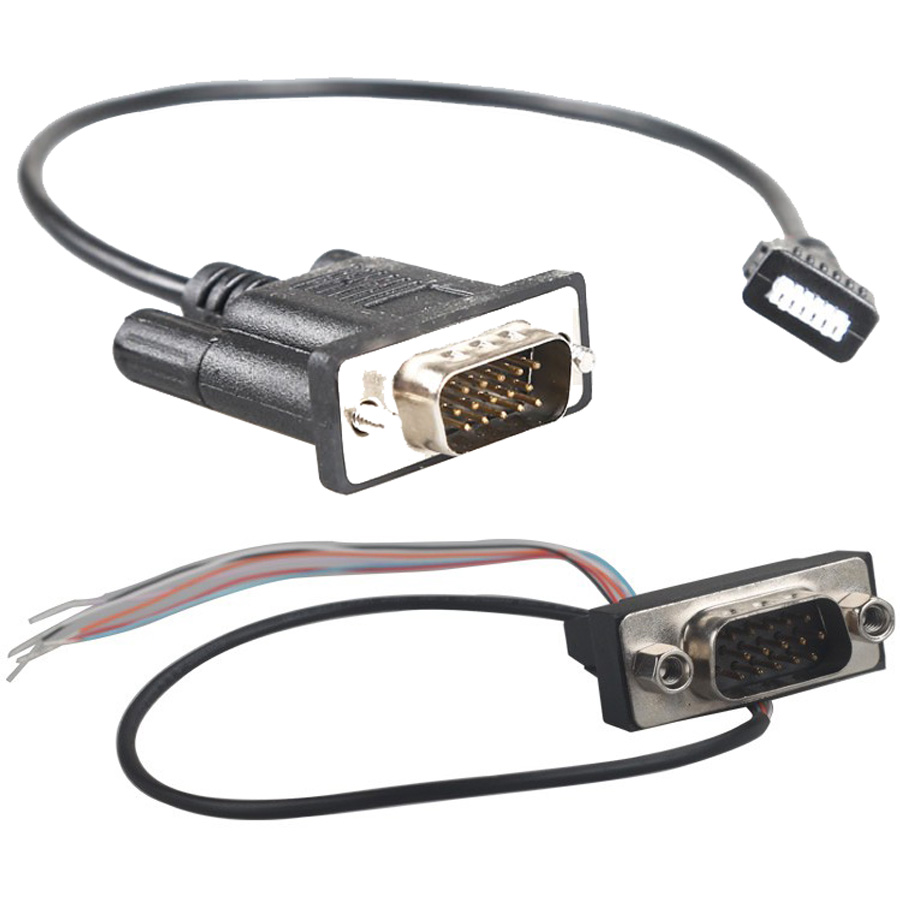

5th BDM Programmer
Remote Programmer
OBD2 Cable
USB Cable
Software

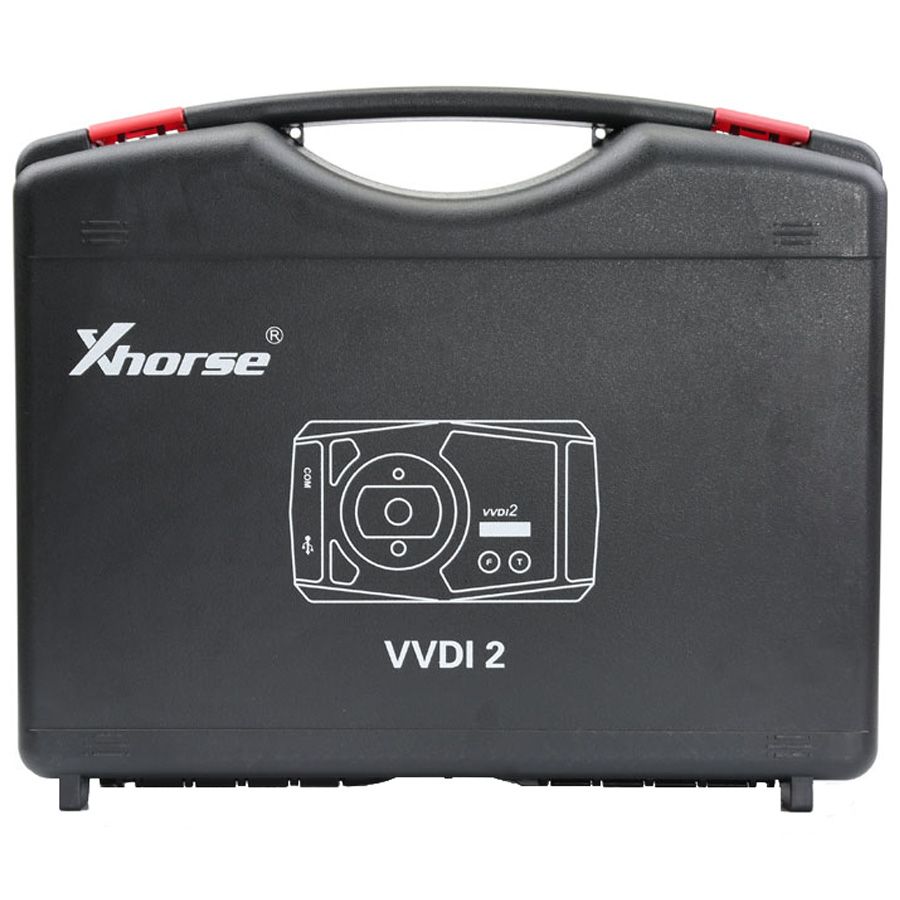

Plastic Toolbox
How To Activate Toyota H Chip Function on XHorse VVDI 2 Full?
1) Connect VVDI2 to computer via USB cable
2) Open Upgrade Kit, select VVDI2
then go to Bonus point
3) Click View my bonus points
4) Type Login Name and Password for your account on Customer Self-service System
5) Select Activate H
Update Info:
V7.3.2 Update Info 2023-04-18
Require firmware V7.3.0
VAG V7.3.2
1. Support Immo4-NEC35xx dashboard which not support OBD(All key lost and new VDO)- require MQB48-NEC35xx(Lock) license
2. Add key learn for Brazil NEC+95320(Marelli)(Menu->Key learn->Key learn->VW NEC95320(Marelli)Brazil)
3. Improvement for NEC+24C64: Support more type in Brazil
4. Imorovement for OBD read BCM2 immodata
5. Bugfix
BMW V7.3.2
1. Support unlock more BDC versions directly without program to other version
2. Bugfix
************************************************************************
V7.3.1 Update 2023-03-16
VAG V7.3.1
1.Support MQB48-NEC35xx(Lock) type-Contact dealer for license
1).Support all MQB48 with NEC35xx chip-Require read encrypt data with VVDIPROG
2).Support decode immodata, key learn, fix KM, update immodata etc.
3).Support VDO type, JCI type, and all key lost situation(require synchronize data)
2. Improvement autodetect for VAG immobilizer system
3. Bugfix
Transponder Programmer V7.3.1
1. Improvement prepare remote function
2. Immobilizer data tool: Asia->Jiao->Xinglang->95080 add new type
3. Immobilizer data tool: Euro->Benz->Car-ML EAM Bugfix
4. Immobilizer data tool: Euro->Benz->Car-ML AAM Bugfix
5. Bugfix
************************************************************************
V7.3.0 Update 2023-1-7
VAG V7.3.0
1. Improvement autodetect for VAG immobilizer system
2. Bugfix
BMW V7.3.0
1.Support make dealer key for motorcycle (Contact delaer for license)
1). Support 8A smart key via OBDII (Require XM38 Motor Remote)
2). Support 4D+ transponder key via OBDII (Require VVDI Super Chip)
2. Bugfix
Transponder Programmer V7.3.0
1. Improvement prepare remote function
2. Immobilizer data tool: Euro->Opel->IMMO-1->68HC05 bugfix
3. Bugfix
************************************************************************
V7.2.7 Update2022-11-30
Transponder Programmer V7.2.7
1. Improvement prepare remote function
2. Immobilizer data tool: Euro->BMW->Motorcycle->Immobox(R1200,C650,K1600,K1300,C600,F800) bugfix
3. Immobilizer data tool: Euro->BMW->Motorcycle->K19 bugfix
4. Bugfix
************************************************************************
V7.2.6 Update 2022-10-10
Require firmware V7.2.6
VAG V7.2.6
1. Improvement autodetect for VAG immobilizer system
2. Bugfix
Transponder Programmer V7.2.6
1. Improvement prepare remote function
2. Immobilizer data tool: Euro->Fiat->500 2008- ->93C86 bugfix
3. Immobilizer data tool: Euro->AlfaRomeo->MITO 2008- ->93C86 bugfix
4. Immobilizer data tool: Asia->Mazda->Demi->93C56 bugfix
5. Bugfix
************************************************************************
VVDI2 V7.2.3 Update:
Require update firmware V7.2.2
VAG V7.2.3
1. Improvement autodetect for VAG immobilizer system
2. Bugfix
BMW V7.2.3
1. Improvement for ISTAP CAS3+ function
2. Bugfix
Transponder Programmer V7.2.3
1. Improvement prepare remote function
2. Immobilizer data tool: Asia->Lifan->720->9S08
3. Bugfix
************************************************************************
V7.2.0 Update 2022-01-14:
Require firmware V7.1.9
VAG V7.2.0
1. Improvement autodetect for VAG immobilizer system
2. Bugfix
Transponder Programmer V7.2.0
1. Improvement prepare remote function
2. Bugfix
************************************************************************
6.6.8 Update (2019-12-18)
Require firmware V6.6.8
===== VAG V6.6.8 =====
1. German language-Require dealer license
2. Improvement for auto detect VAG immobilizer system
3. Improvement for update SGO/FRF file
4. Bugfix
===== BMW V6.6.8 =====
1. German language-Require dealer license
2. Add "Fix CAS4
(5M48H) no start" function: This function can fix car start after success
unlock CAS4 or after add new key
3. Bugfix
===== Porsche V6.6.8 =====
1. German language-Require dealer license
2. Bugfix
===== PSA V6.6.8 =====
1. German language-Require dealer license
2. Bugfix
===== Transponder Programmer V6.6.8 =====
1. German language-Require dealer license
2. Immobilizer data tool: USA->Chrysler->Pacifica->2005-95080 bugfix
3. Immobilizer data tool: Asia->Datong->V80 bugfix for PIN display
4. Bugfix
===== Copy 48 (96 bits) V6.6.8 =====
1. Add German language-Require dealer license
2. Bugfix
===== J2534 V6.6.8 =====
1. Add German language-Require dealer license
2. Bugfix
===== Online Upate Tool V6.6.8 =====
1. Add German language-Require dealer license
2. Bugfix
===== Quick Start V6.6.8 =====
1. Add German language-Require dealer license
2. Bugfix
************************************************************************
V6.6.7 Update (2019-11-21)
Require firmware V6.6.5
===== VAG V6.6.7 =====
1. Add German language
2. Improvement for autodetect VAG immobilizer system
3. Bugfix
===== BMW V6.6.7 =====
1. Improvement German language
2. Improvement for CAS4/CAS4+ key learning
3. Add CAS4-1L15Y type prepare dealer key via OBDII
4. Bugfix
===== Porsche V6.6.7 =====
1. Add German language
2. Bugfix
===== PSA V6.6.7 =====
1. Add German language
2. Bugfix
===== Transponder Programmer V6.6.7 =====
1. Add German language
2. Immobilizer data tool: Asia->China immobox->Delphi immobox support new type
3. Immobilizer data tool: Europe->Rover->Discovery->Discovery3 Support prepare dealer key with VVDI super chip
4. Immobilizer data tool: Europe->VW->VDO dashboard bugfix for PIN display
5. Immobilizer data tool: Asia->Datong->V80 bugfix for PIN display
6. Bugfix
===== Copy 48 (96 bits) V6.6.7 =====
1. Add German language
2. Bugfix
===== J2534 V6.6.7 =====
1. Add German language
2. Bugfix
===== Online Upate Tool V6.6.7 =====
1. Add German language
2. Bugfix
===== Quick Start V6.6.7 =====
1. Add German language
2. Bugfix
|
