Description:



All-Sun EM415pro Automotive Cable Wire Short Open Digital Finder, Car Repair Tool Tester Tracer, Diagnose Tone Line Finder.

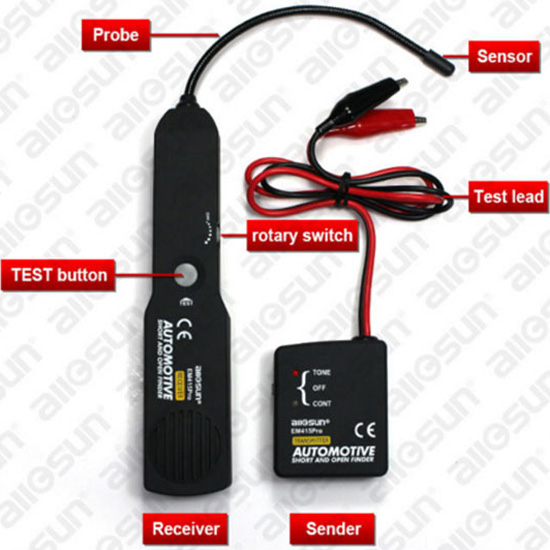

All-Sun EM415 pro is designed to identify and trace wires or cables without damaging the insulation. You can also use it in checking for short circuit and locating open circuit and so on. There are a Sender and a Receiver included in package.



Functions:



1. Tracing of wires is made possible even inside bundles, conduits, behind panels, under carpets, upholstery, etc.

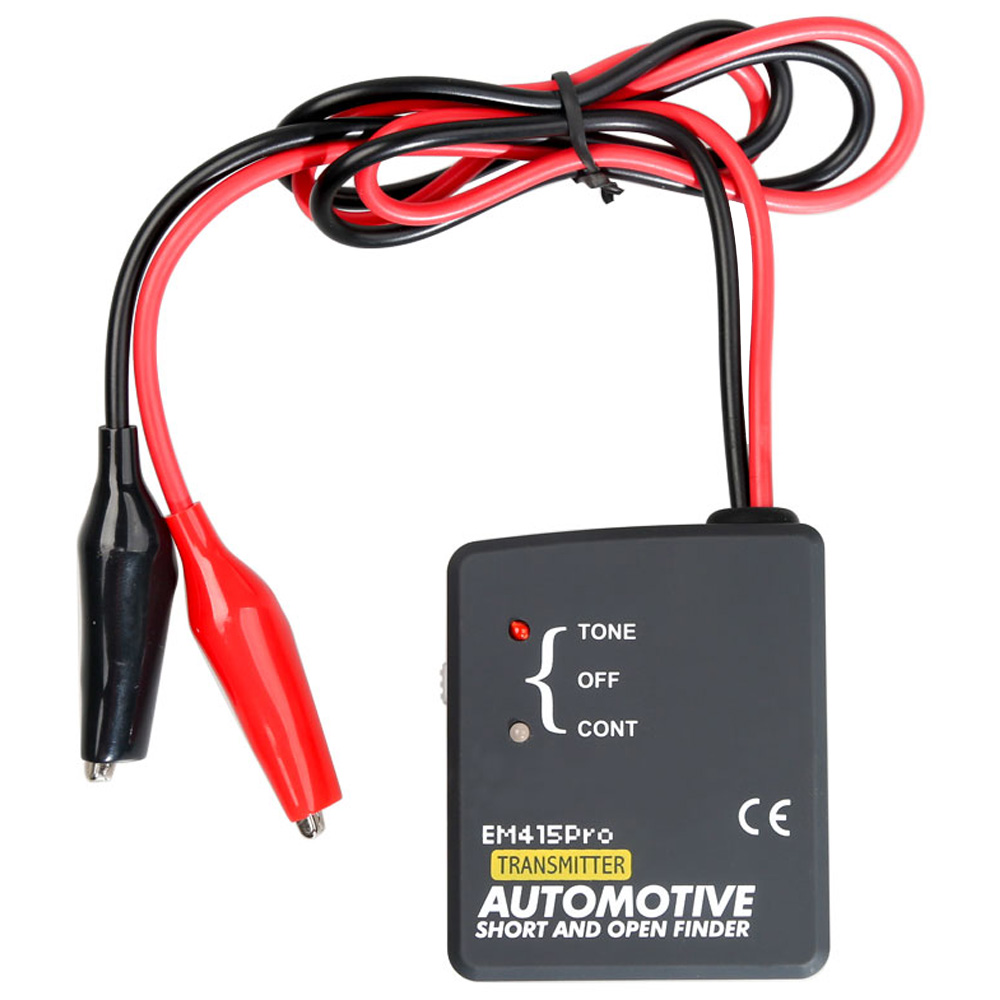

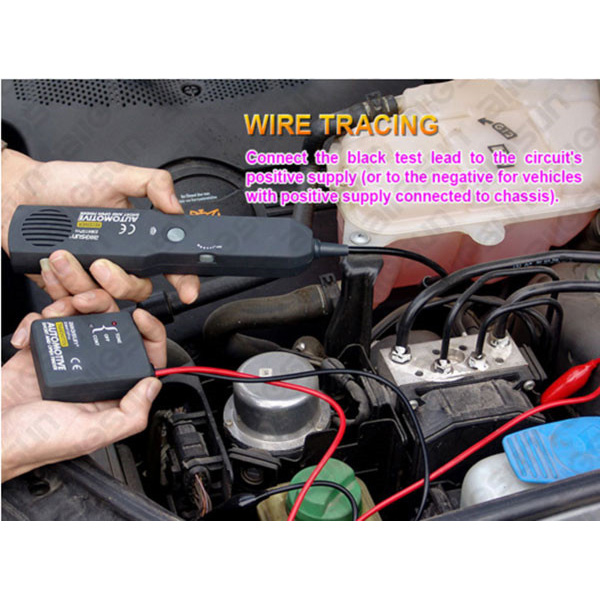

2. Easy to use: simply connect the transmitter in series with the circuit  or wire under test, (i.e.: in place of a blown fuse, across a connector, in series with an open wire, a light bulb socket, etc.), and scanning the circuit/wire with the tracers flexible probe to find the trouble spot.



3. 42V Ready: for use in the new generation of vehicles with mixed or single 42 Volt systems.



4. Operates on DC voltages from 6 to 42 volts.



5. Internally protected against power surges and overloads



6. 7 inch flexible probe allows reaching wires in congested places



7. Transmitter and Receiver LEDs show open or short circuit conditions



8. Adjustable sensitivity for all tracing situations



9. No wire piercing required, non-contact technology!



How to use the probe?



The probe of the Receiver is built of coiled steel and may be bent as needed, in order to reach wires in 了congested or difficult areas. Depending on the circuit characteristic and sensitivity settings, the probe will pick up the signal from the wire in a range of positions.



However, for the best possible range the Receiver's probe tip (black cap) should be positioned perpendicular (90 degree) to the wire being traced and either above or below it.



Specifications:



Brand Name: All sun

Power Type: battery-powered

DIY Supplies: electrical

With LCD Screen Or Not: Yes

Model Number: EM415pro

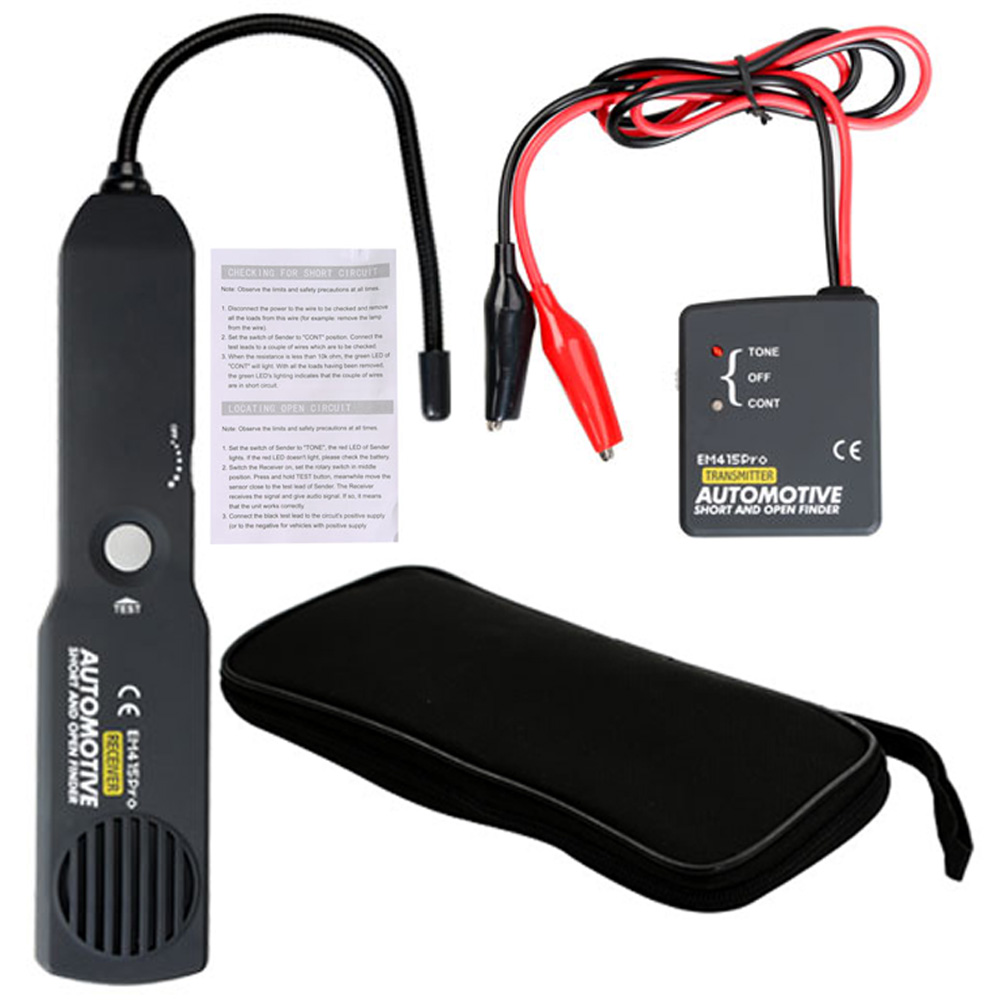

Package List:



EM415pro Automotive Circuit Short and Open Finder

Instruction Manual

Carrying Pouch
