Description:

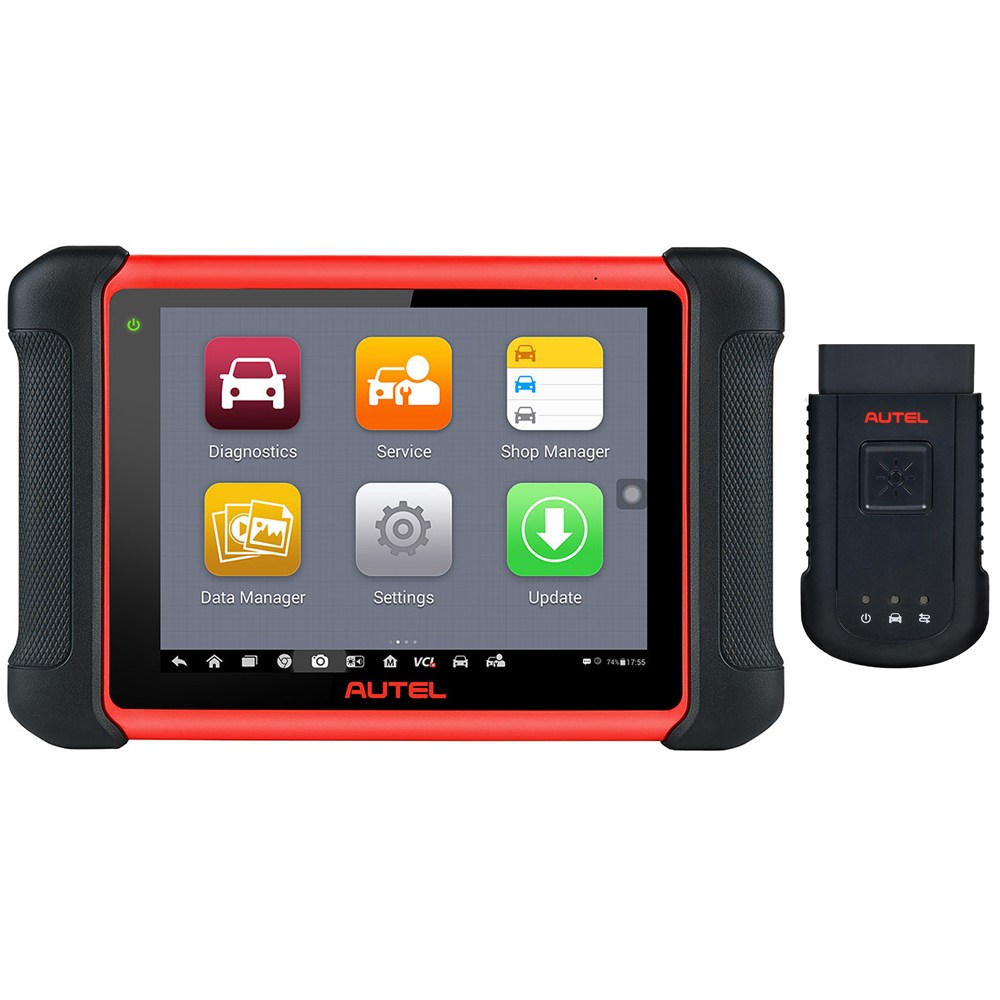

Autel MaxiSys MK906BT is the latest addition to the MaxiCOM product line of advanced wireless diagnostic devices. The device is based on the Android operating system featured with the best possible coverage of OE-level diagnostics and ECU coding capability. Utilizing the powerful Exynos 5260 6-core processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15), an 8 inch capacitive HD touch screen, and long-distance wireless communication, Autel MaxiCOM MK906BT efficiently provides comprehensive vehicle diagnostics and analysis.



Support Languages:



English, Spanish, Portuguese, French, German, Russian, Dutch, Italian, Polish, Swedish, Japanese, Korean, Simplified Chinese, Traditional Chinese



Features:



1. OE-Level Full-System Diagnostic:

Autel MK906BT is an affordable tool to access all vehicle systems like engine and transmission, performs OE-level diagnostics such as read/erase DTCs, view data stream, active test, ECU Replacement, Zero Point Calibration (Toyota), Signal Check (Toyota), Initialization (ECU), and Guided Functions (VAG), quickly presents accurate diagnosis results, and significantly improves the convenience of diagnosis.



2. 31+ Maintenance Functions:

As the latest version of 2021, the diagnostic tool is competent to perform Oil Reset, Injector Coding, Throttle Matching, ABS Bleeding, BMS Service, SAS Reset, IMMO, Key Fob Coding, and more. MK906BT diagnostic scanner is an all-around maintenance scanner for effectiveness and efficiency.



3. ECU Coding & Active Test:

Enhanced online ECU coding function works for 98% automobiles (including BMW, Volkswagen, Porsche, etc.), allows for enhancing ECU function to fix problems or unlocking hidden functions, such as Auto Lock and Mirror Folding. The active test covers the full systems of most vehicles, commanding the actuator to perform specific tests to pinpoint faults, such as rolling up / down a window, turning the fuel pump on and off, cycling the a/c clutch on and off, and helping with an emissions leak test.



4. Wide Coverage & Easy to Use:

The automotive scan tool serves 80 + car manufacturers and 140+ vehicle models worldwide, supporting Data Manager to uninstall manufacturer software, delete pictures and edit diagnostic records, helping you more quickly find repair records to facilitate the follow-up. Ergonomic design, as well as an 8.0-inch capacitive touch screen with 1024*768 resolution, gives you a good user experience.



5. Updated Version of MS906/MK908:

Autel MK906BT contains most of the functions of MS906/MK908 with performance improvements over MS906BT: faster wireless pairing, longer Bluetooth range (164ft/50m), and fastest software update frequency among its peers on the market.



Functions:



31+ Maintenance Functions:

Autel MK906BT performs all-around maintenance solutions to extend your vehicle’s life. Oil Reset, Injector Coding, Throttle Adaptation, BMS Service, SAS Calibration Reset, EPB Reset, ABS Bleeding, DPF Regeneration, Suspension Matching, Transmission Adaptation, Key Fob Coding (Add a new key after car keys loss), etc. Car maintenance can be done at your fingertips.



*Note: The TPMS function cannot program sensors.




Additional Functions:



Autel MK906BT automotive scan tool has additional features that take smart diagnostics to a new level:



Remote Control

Support at any time, from anywhere, real-time push notifications and software updates over the Internet.



Shop Manager

Records customer and vehicle information and for easy access and management.



Data Manager

Uninstall manufacturer software, delete pictures and edit diagnostic records.



MaxiFix (an online troubleshooter database)

To access a vast database of repair and diagnostic tips along with proven filed fixes.



ECU Coding

With the advanced ECU coding function, Autel MK906BT professional diagnostic scanner empowers you to establish full data links with electronic control units via VCI for vehicle diagnosis, repairs, or coding. It also features online coding and personalization for high-end vehicles:

Support online coding for BMW;

Support online coding, guided function, modifications for Volkswagen;

Support ECU coding, ECU online coding, and guided function of providing repair tips after reading DTCs for Porsche;

Support ECU online coding for Renault;

Support customized configuration for Toyota, Nissan, Peugeot, and more.



Active Test

Bypassing the electronic control module and communicating directly with the control unit is an efficient diagnosis method. Autel MK906BT car scanner can perform active tests to check the vehicle’s running states by receiving information from ECUs or by monitoring actuators (e.g., switching solenoids, relays, or on-off between two operations) to control the system or parts (e.g., ABS, windows, doors, roof).



Wide Coverage & Easy to Use

No need to worry about compatibility issues. The device currently supports 80+ car manufacturers and 140+ car brands worldwide. Also, you will be able to get more new car models through subsequent high-frequency software updates. It is compatible with: Chrysler, Dodge, Ford, GM, Jeep, Abarth, Alfa, Citroen, Fiat, Lancia, Opel, Peugeot, Porsche, Renault, Saab, Vauxhall, Volvo, Aston Martin, Audi, Bentley, Benz, Sprinter, BMW, Bugatti, Ferrari, Jaguar, Lamborghini, Land Rover, Maserati, Maybach, Mini, Rolls-Royce, Seat, Skoda, Smart, VW, VW CV, Dacia, Ford EU, LT3, Acura, Daewoo, Daihatsu, Honda, Hyundai, Hyundai CV, Infiniti, Kia, Lexus, Maruti Suzuki, Mazda, Mitsubishi, Nissan, Nissan GTR, Samsung, Scion, Ssang Yong, Subaru, Suzuki, Toyota, Isuzu, Mahindra, Perodua, Proton, TATA, HINO, UD, Fuso.



Auto VIN

Just one click can facilitate the vehicle diagnostic process. MK906BT scanner tool incorporates the latest Auto VIN technology that allows technicians or repairmen to easily identify vehicle information such as manufacturer, model, year and place of manufacture, etc.

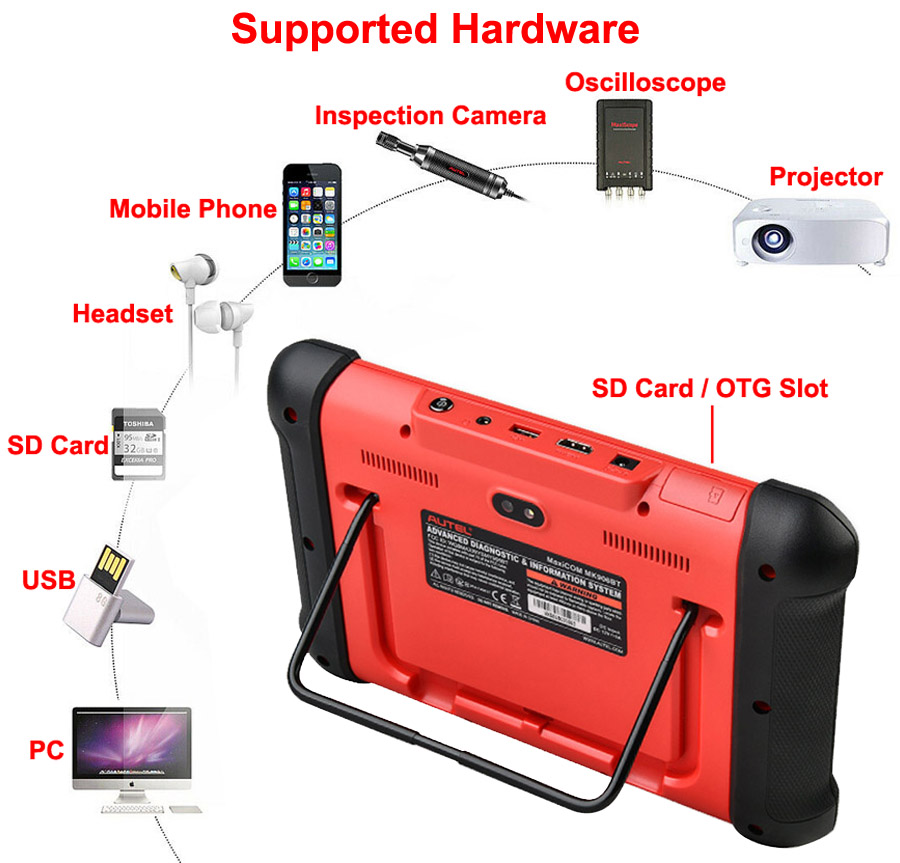

Technology Optimum Combination

We have always been seeking a comprehensive way of vehicle diagnosis. MK906BT can record digital images and videos, so we subtly combine different diagnostic tools to make it possible. It works with oscilloscopes to provide you with an insight into the inner workings of a vehicle’s electronic circuits, with an inspection camera to access the desired point of difficult-to-reach car interiors, with TPMS tool to program AUTEL MX-sensors or OE sensors.

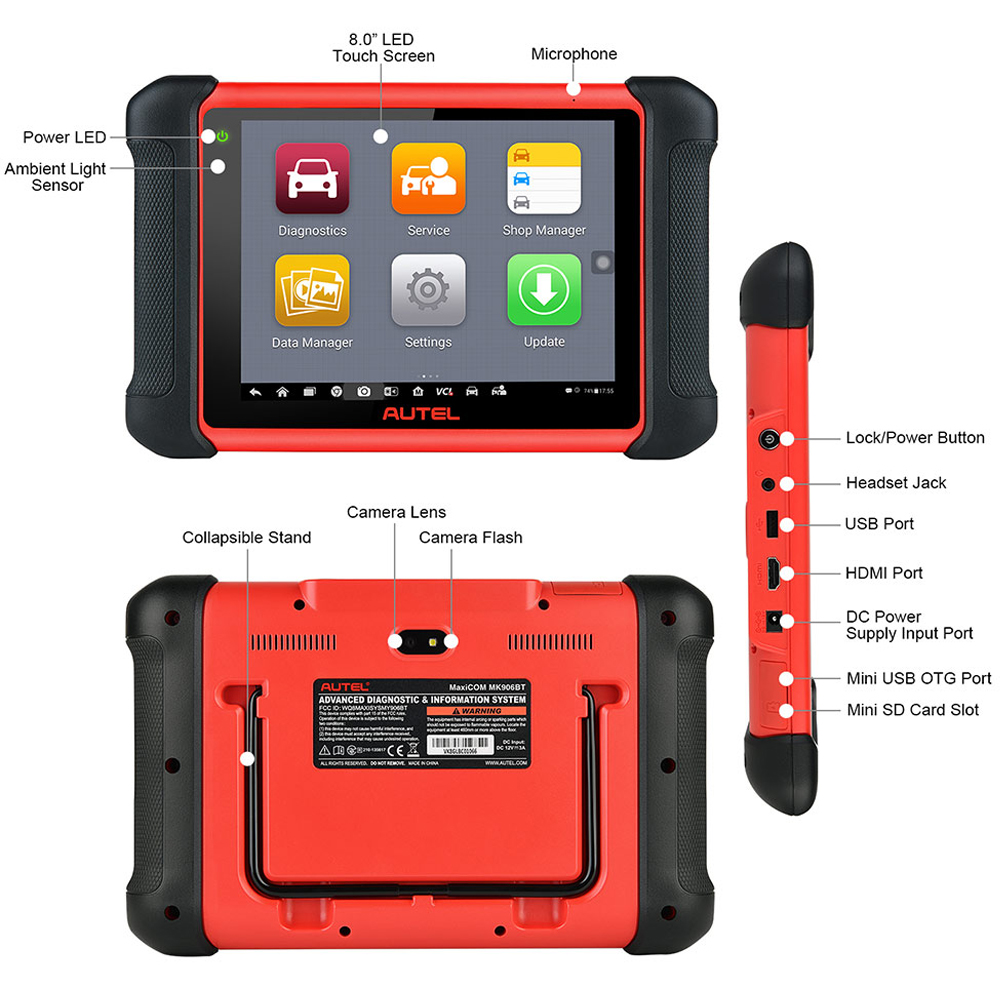

Specifications:



Operating System: Android™ 4.4.2, KitKat

Processor: Samsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)

Memory: 2 GB RAM & 32 GB ROM

Display 8.0 inch LED capacitive touch screen with 1024*768P resolution

Connectivity: Wi-Fi (802.11 b/g/n); USB: 2.0; Mini USB 2.0; Wireless BT V2.1+EDR Class1; HDMI 1.4a; SD Card (support up to 32 GB)

Camera: rear-facing, 8.0 Megapixel; AF with Flashlight

Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)

Audio Input/Output: Microphone; Single Speaker; 3-Band 3.5mm stereo/standard headset jack

Power and Battery: 10,000mAh 3.7V lithium-polymer battery charging via 12V AC/DC power supply

Input Voltage: 12V (9-35V)

Power Consumption: 5W

Dimensions (W*H*D): 270.8*176.0*36.0mm

Net Weight: 1.05Kgs

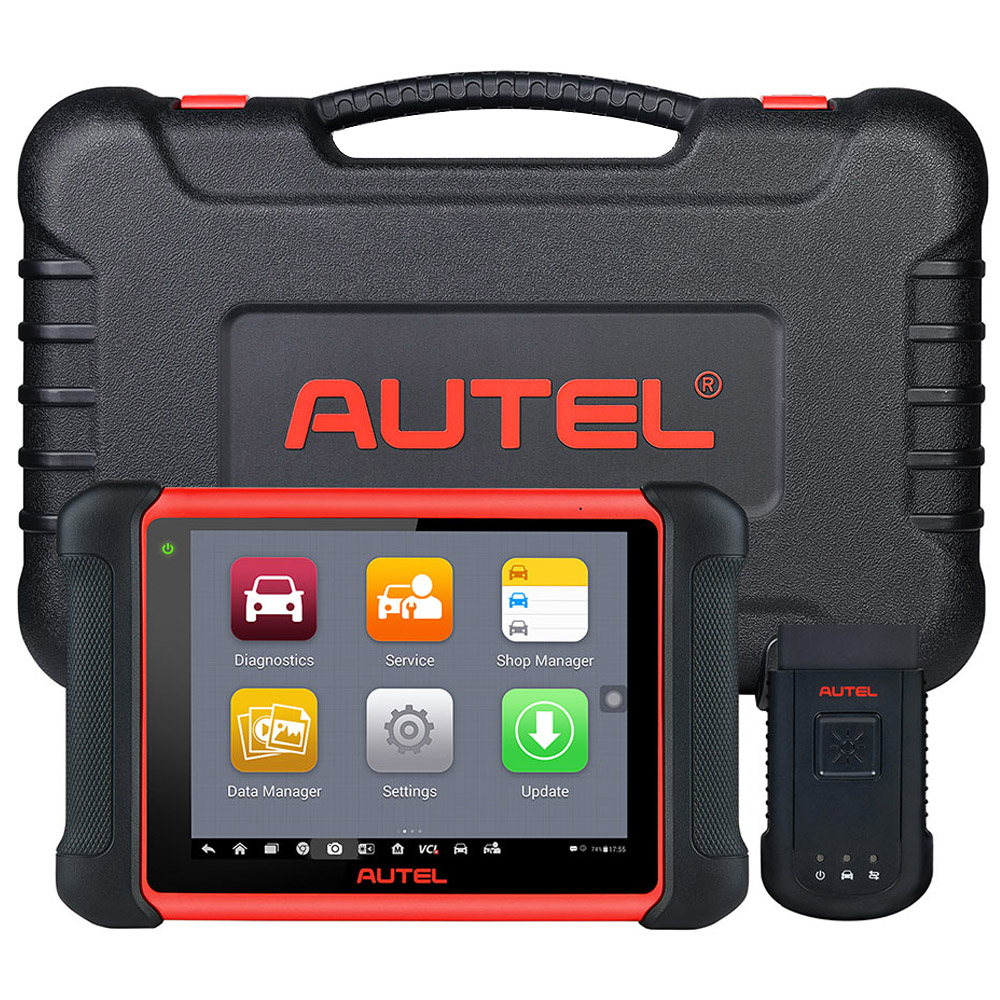

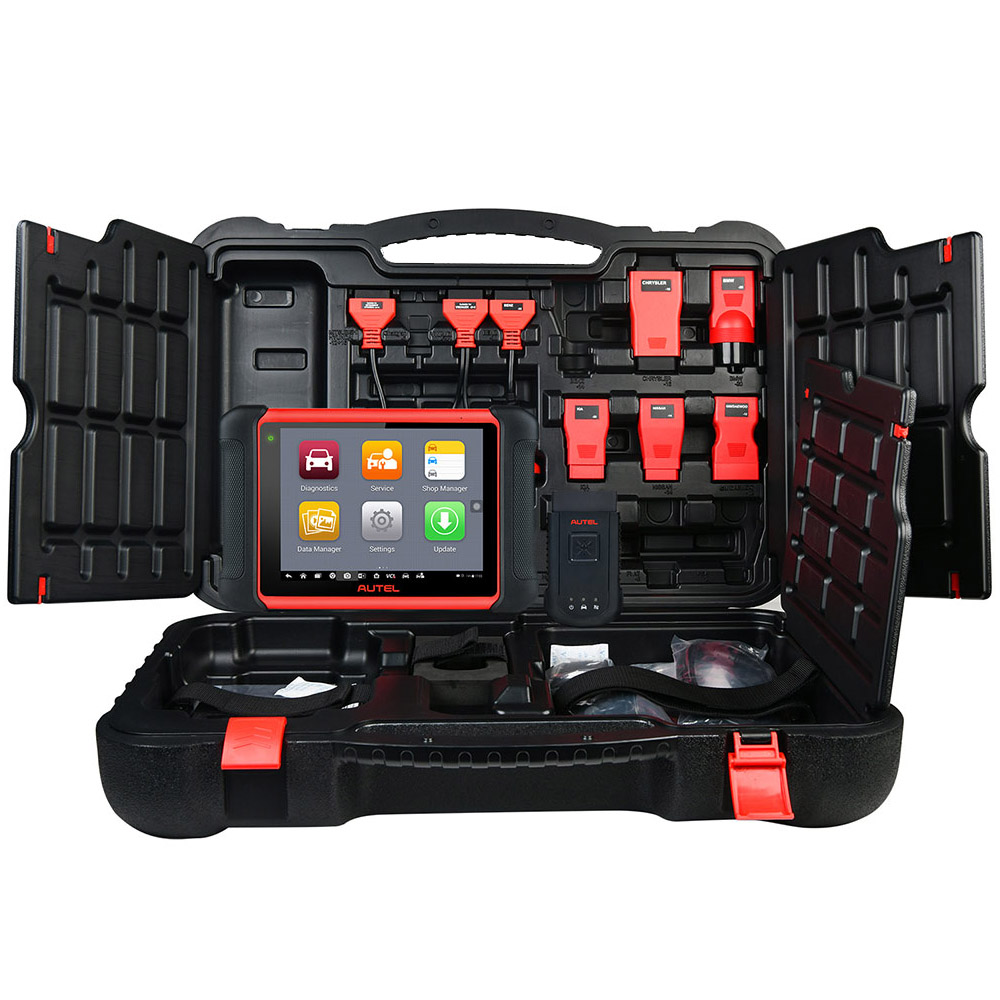

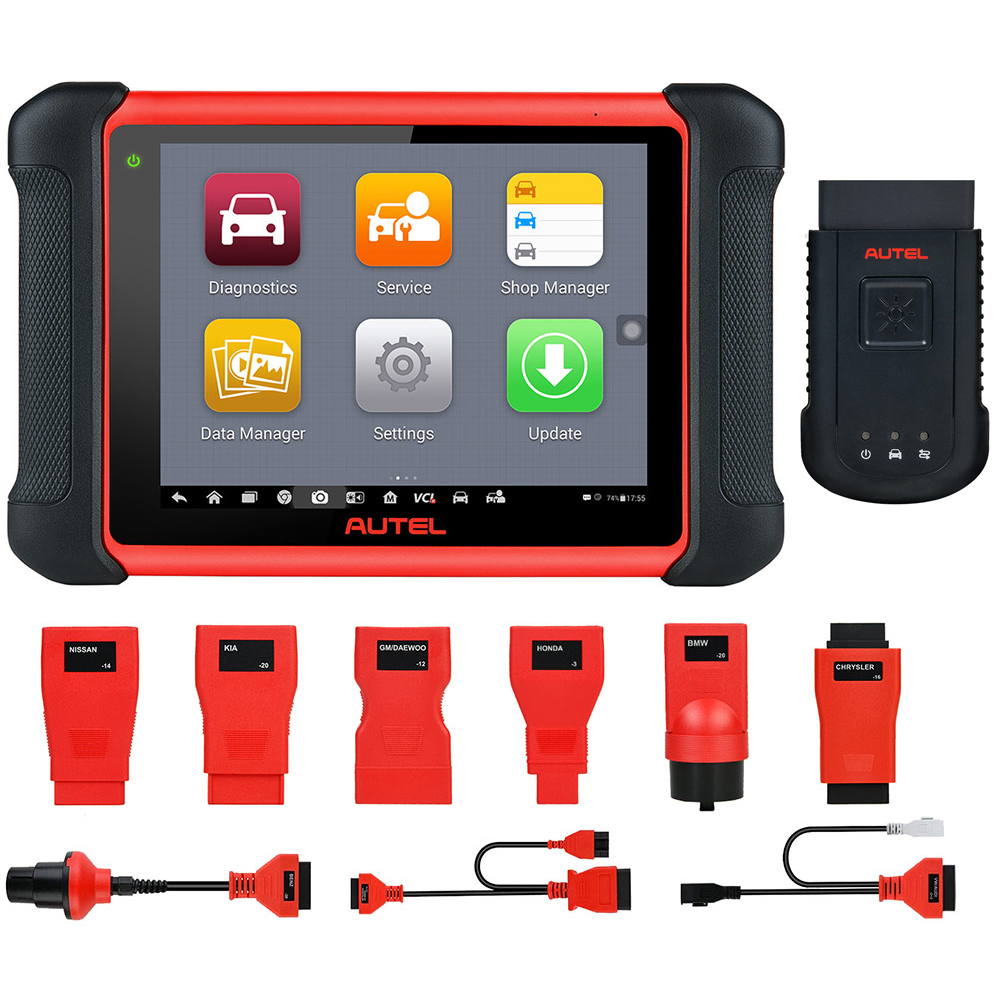

Packing List:



Autel MaxiCOM MK906BT

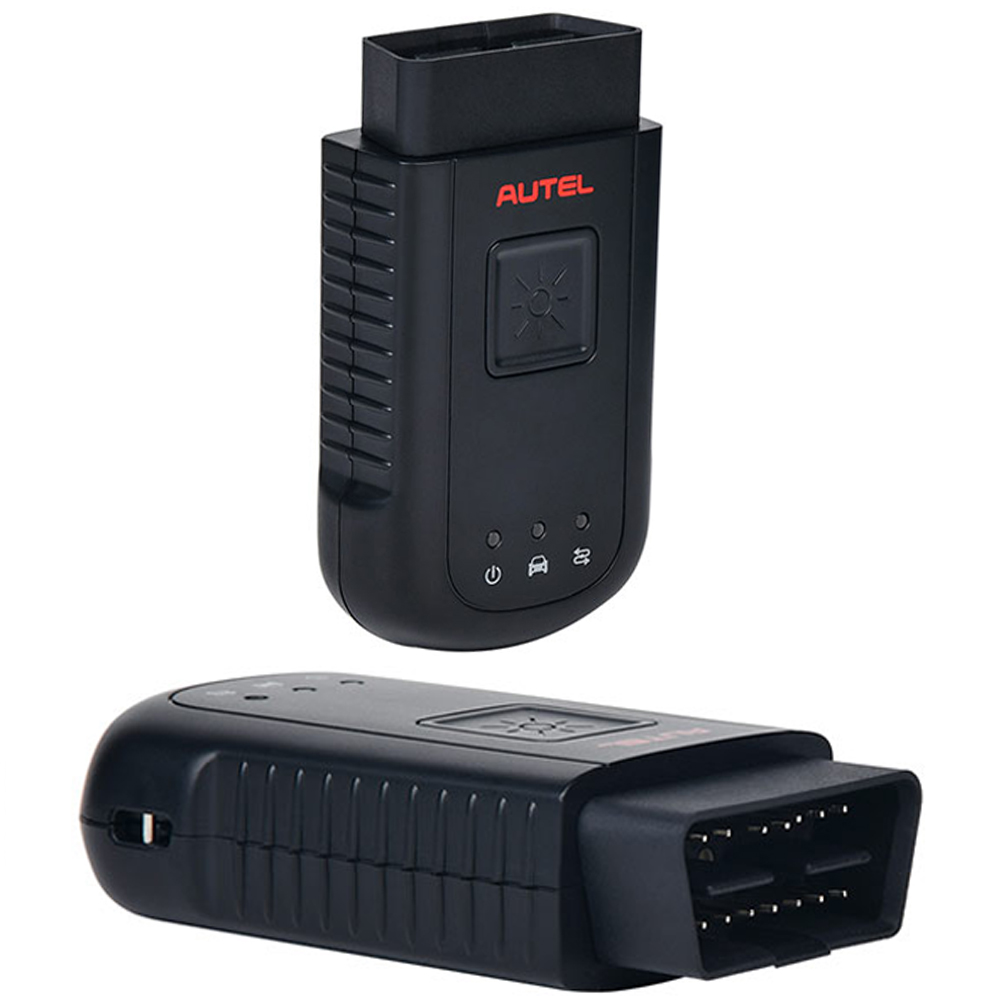

Autel MaxiVCI V100

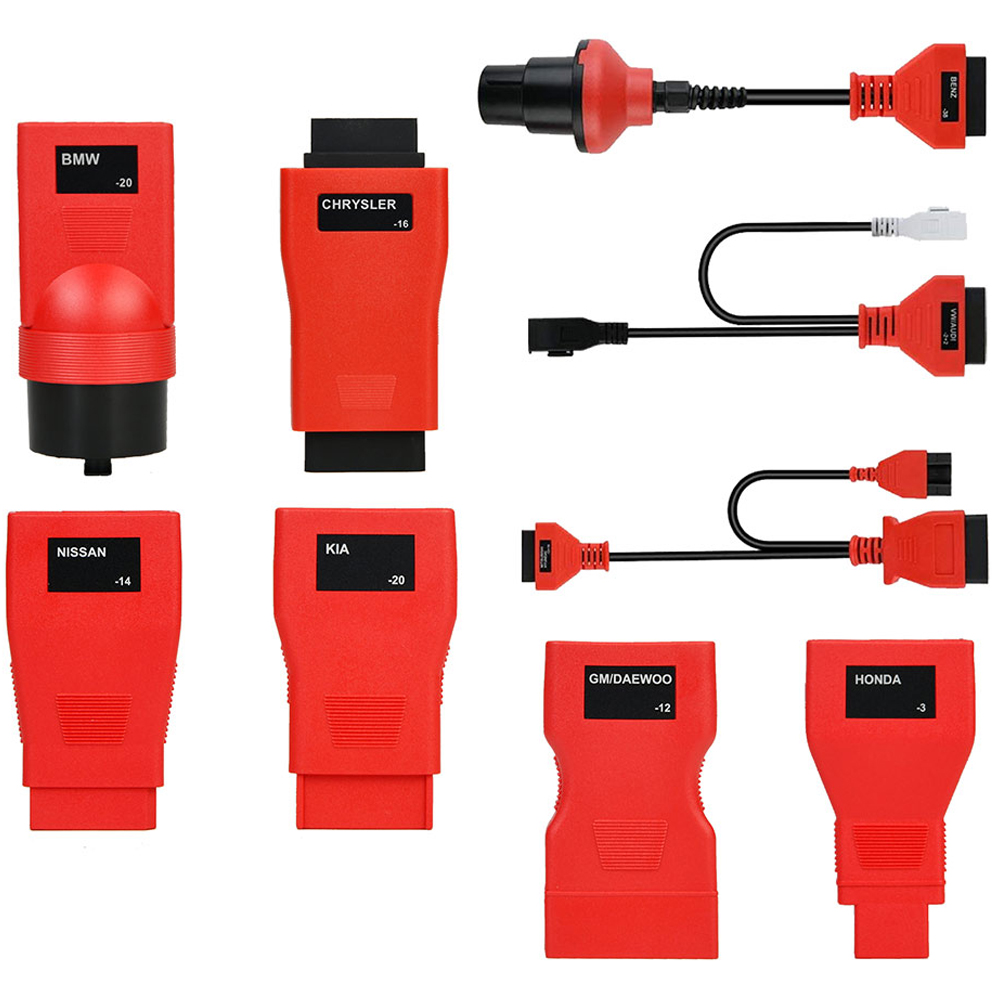

Benz-38 Adapter

BMW-20 Adapter

Chrysler-16 Adapter for (America Only)

GM/Daewoo-12 Adapter

Honda-3 Adapter

Kia-20 Adapter

Mitsubishi/Hyundai-12+16

Nissan-14 Adapter

VW/AUDI-2+2 Adapter

Cigarette Lighter

Lighter Fuse (2 pcs)

12V AC/DC Adapter

Soft Cloth

Mini USB Cable

User Manual

Quick Reference Guide

Packing List

Plastic Toolbox

Packing Box
