Description:

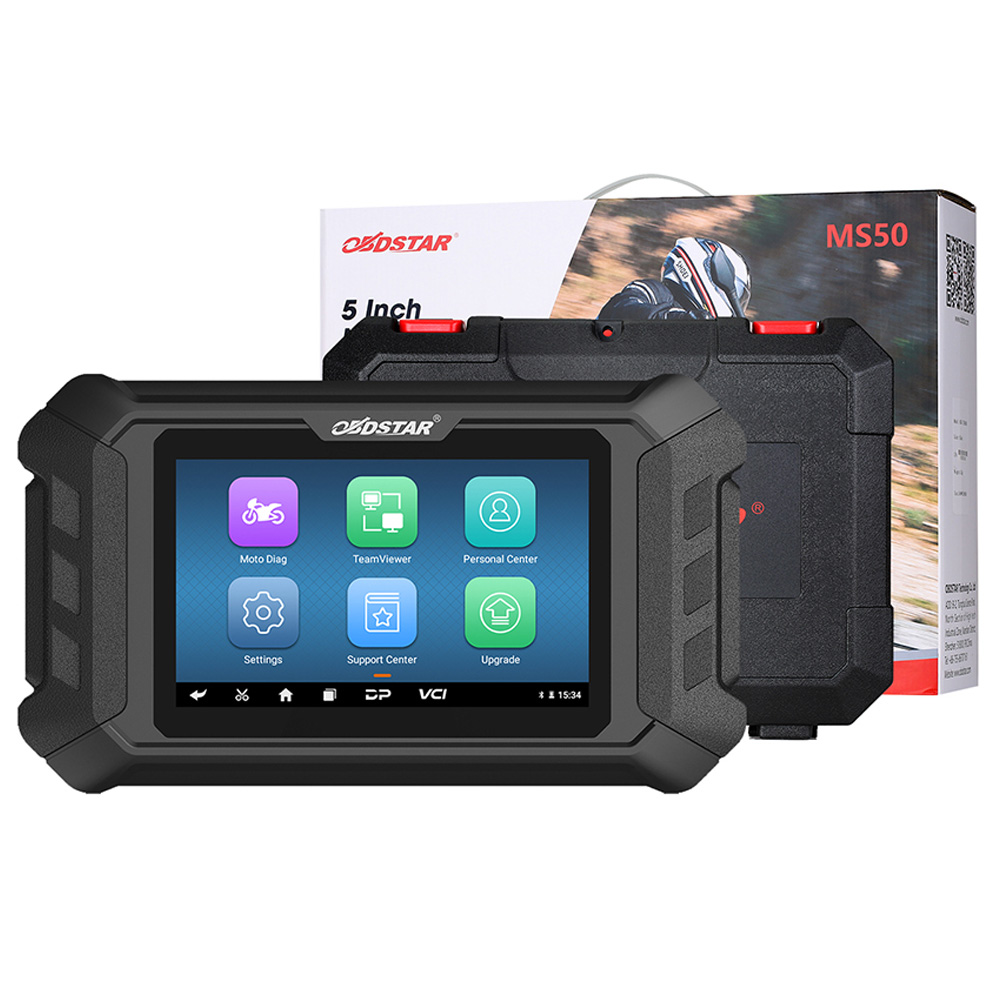

OBDSTAR MS50 Intelligent Motorcycle Diagnostic Tool is a portable tablet which has super performance and industrial appearance design. It is a new generation of intelligent motorcycle diagnostic equipment tailored for customers.



Based on RK3128 Quad-Core processor and equipped with a 5.0-inch capacitive touch screen, it brings customer professional diagnosis experience.

Supported Language: English

Software Update: 1 year free update online



Features:



1. New Android 5.1.1 operation system

2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;

3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding, etc.;

4. Menu Arbitrary selection is more convenient and quick;

5. Record and play back real-time data streams, quickly and accurately locate sensor and component faults;

6. Wi-Fi connection to the Internet for one-click software upgrade;

7. One-click remote function for OBDSTAR technician remote assistance;

8. Support most of the Asia and Europe models;



Advanced Functions:



1. The first fault guidance, help data, technical bulletin, diag socket, etc. help you diagnose accurately and efficiently;



2. Diversified data stream display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;

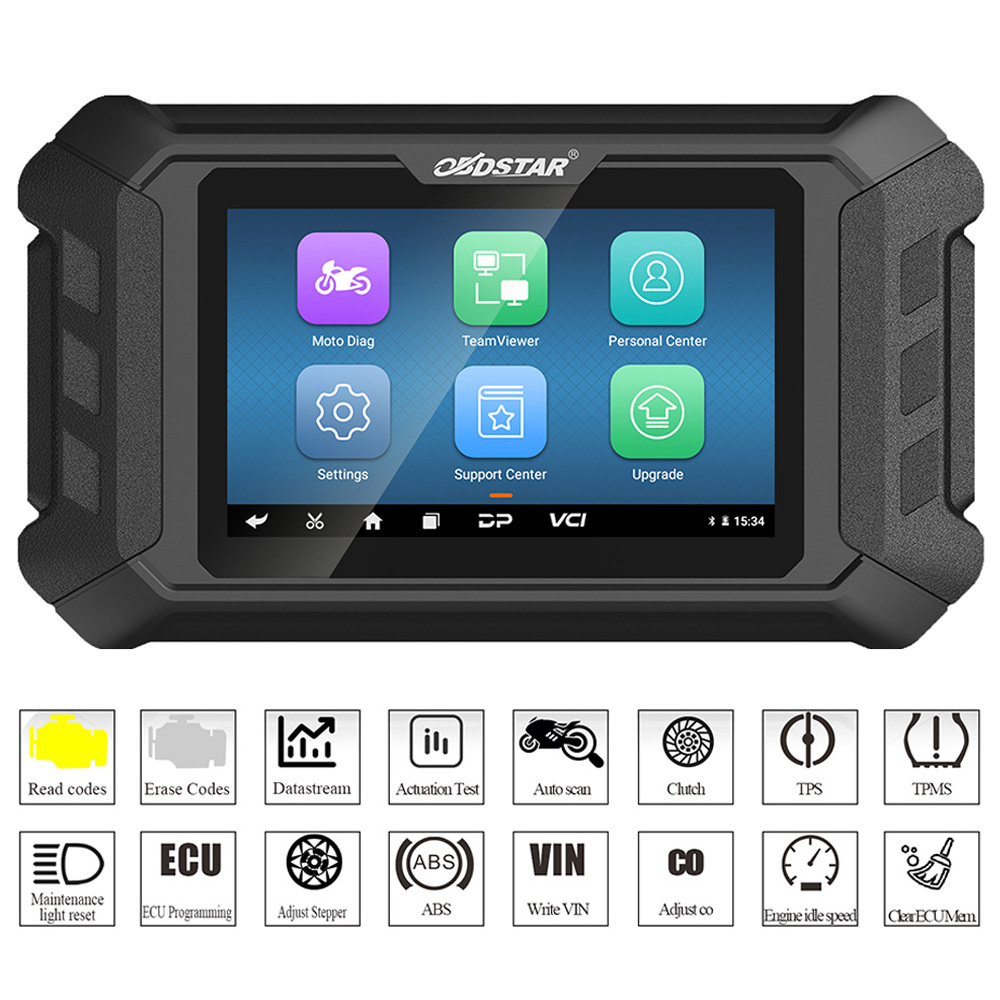

3. Automatic Scanning, Automatic VIN Recognition, Control Module Programming and Coding, ECU Setting, Instrument Coding, Tire Pressure Monitoring System, Maintenance Light Reset, CO Adjustment, Idle Speed Adjustment, A/F Value Reset, ABS Control Unit Setting , EOL Mode, Transmission Memory Reset, Clear Computer Memory, etc.

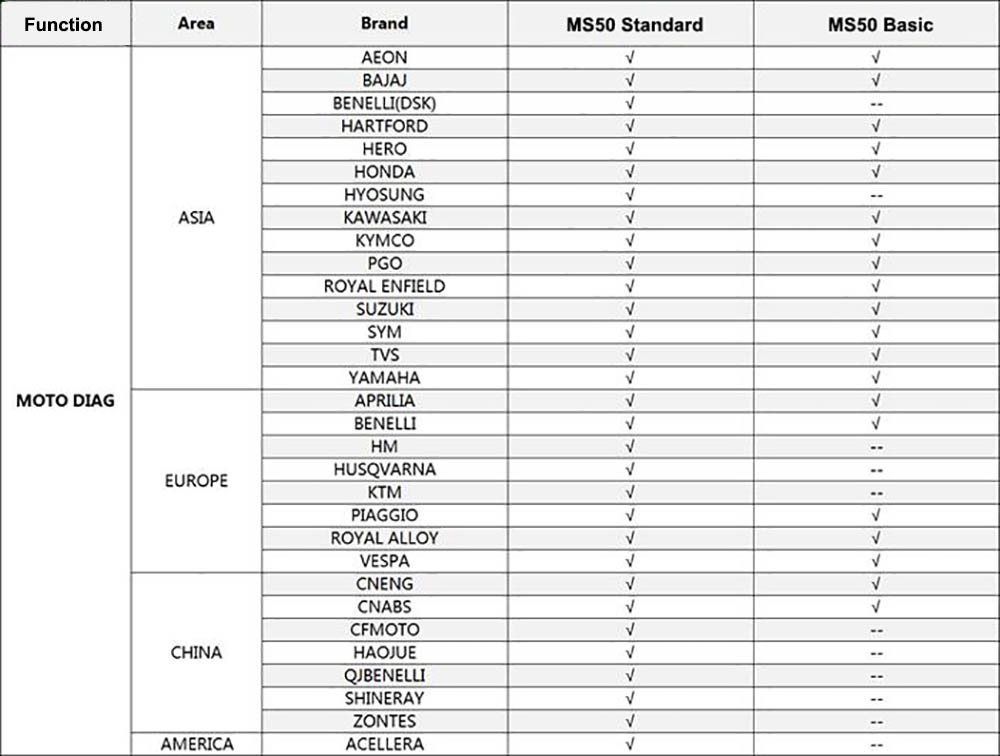

Supported Motorcycle / Snowmobile / ATV / UTV:



Asia: Honda, Kawasaki, Kymco, Suzuki, SYM, Yamaha, PGO, Hardford, AEON



Europe: Benelli, KTM, Piaggio, Vespa



Functions:



1) Main Page / Brand Supported



2) Help Data/Technical Bulletin/Fault Guidance



3) Supported System List/ Manual Service Function



4) Manual maintenance reset



5) Diag Socket / Diag Connector Location



6) Data Flow Text / Waveform Diagram/Instrument Diagram



7) Special Function-Benelli



8) Special Function-KTM



9) Special Function-Piaggio



10) Special Function-Vespa



Notice:



1. More functions under developing!

2. Different configurations include different software. Please contact us for more details.

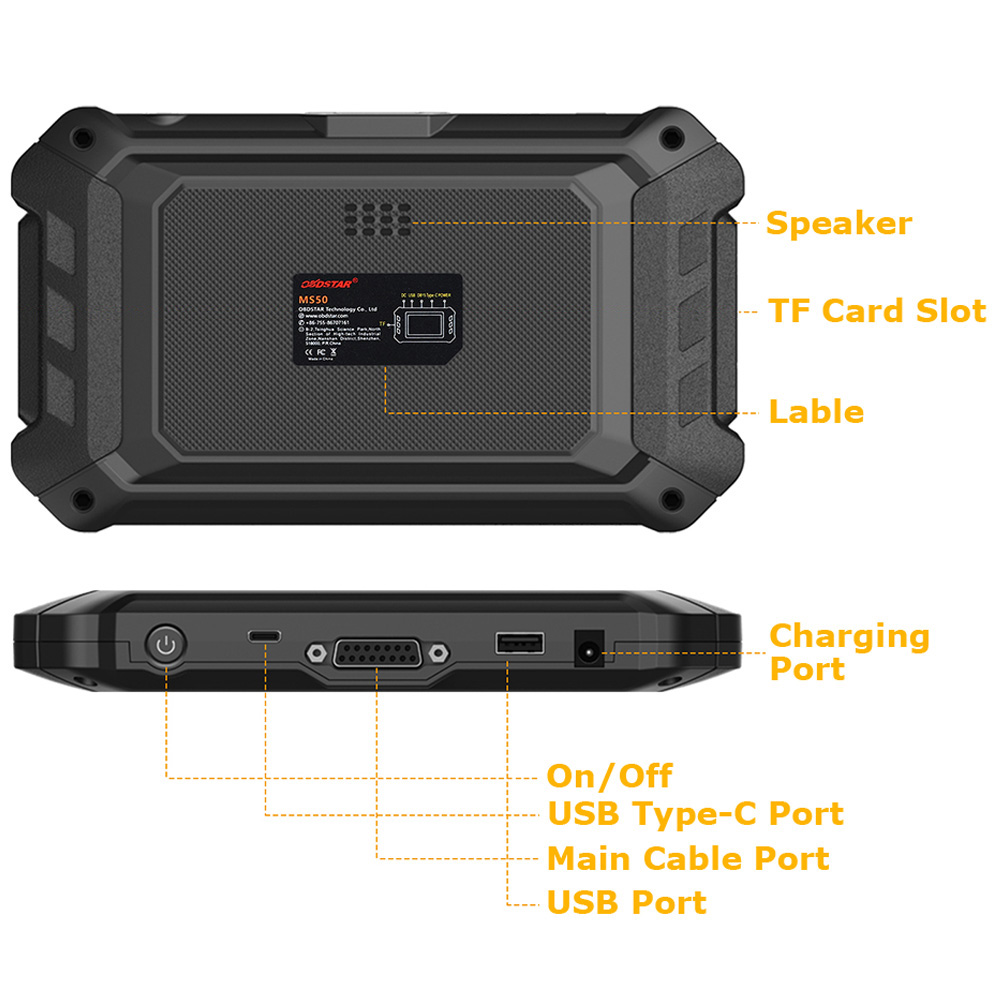

Specifications:



Operation System: Android 5.1.1

CPU: Exynos4418 Dual Core ARM Cortex A9

Battery: 2500mA rechargeable polymer lithium battery

Extension Memory Card:  32G micro SD (TF) card supported

Storage Capacity: 16GB

Display: 5.0 inch capacitive touch screen with 800*600 resolution

WiFi: supported

Camera: 5 mega pixel rear view camera

Working Temperature:  -20 to 55 degree centigrade

Storage Temperature: -20 to 70 degree centigrade

Main Unit Weight: 700g

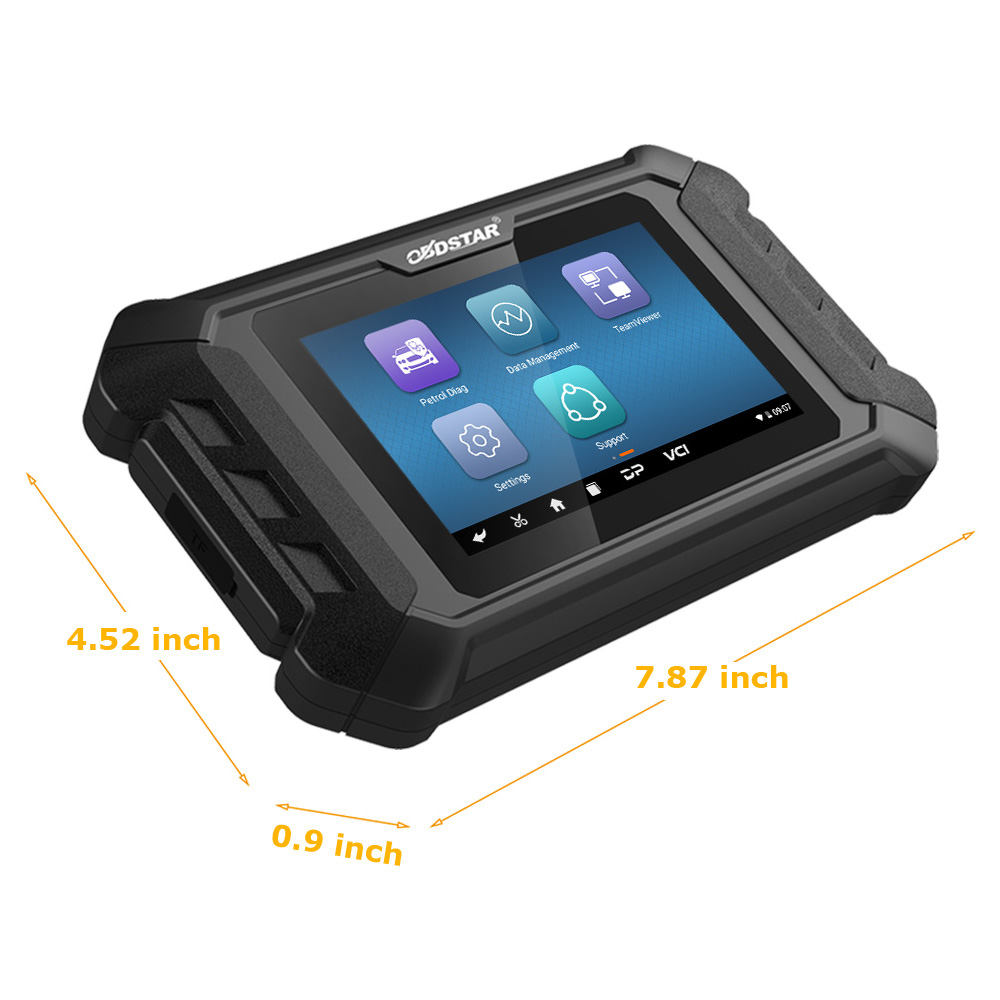

Dimension: 140*89*18mm

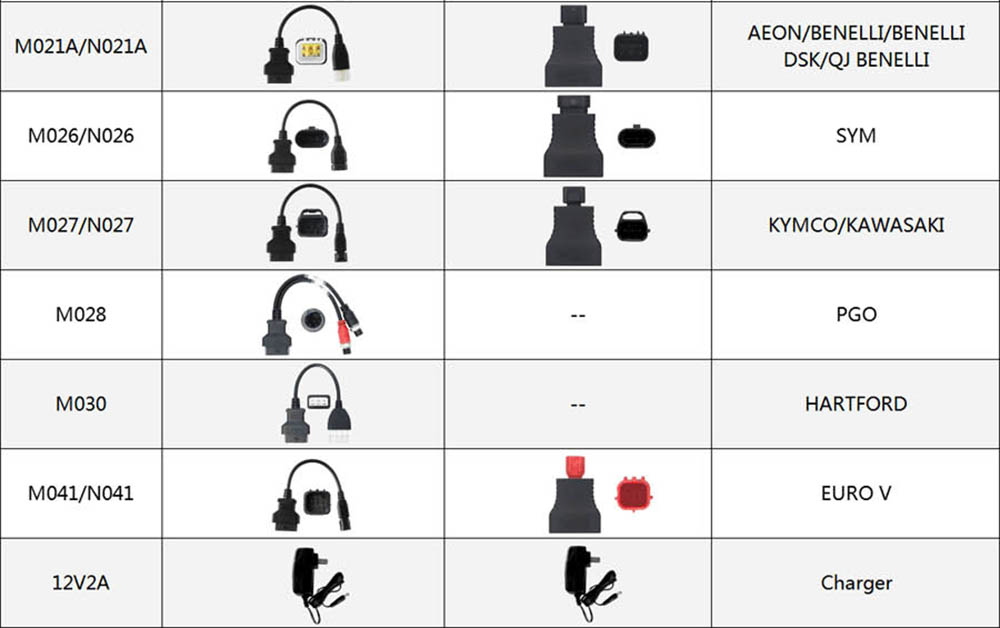

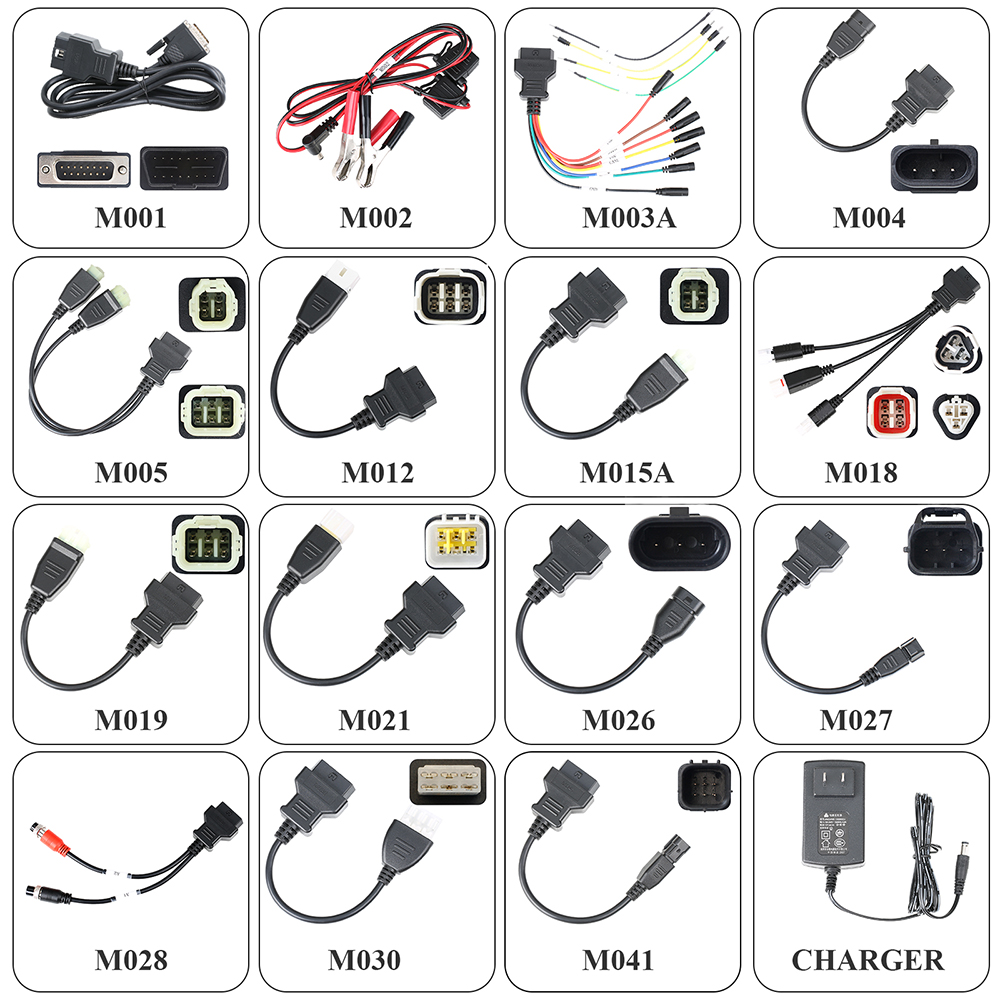

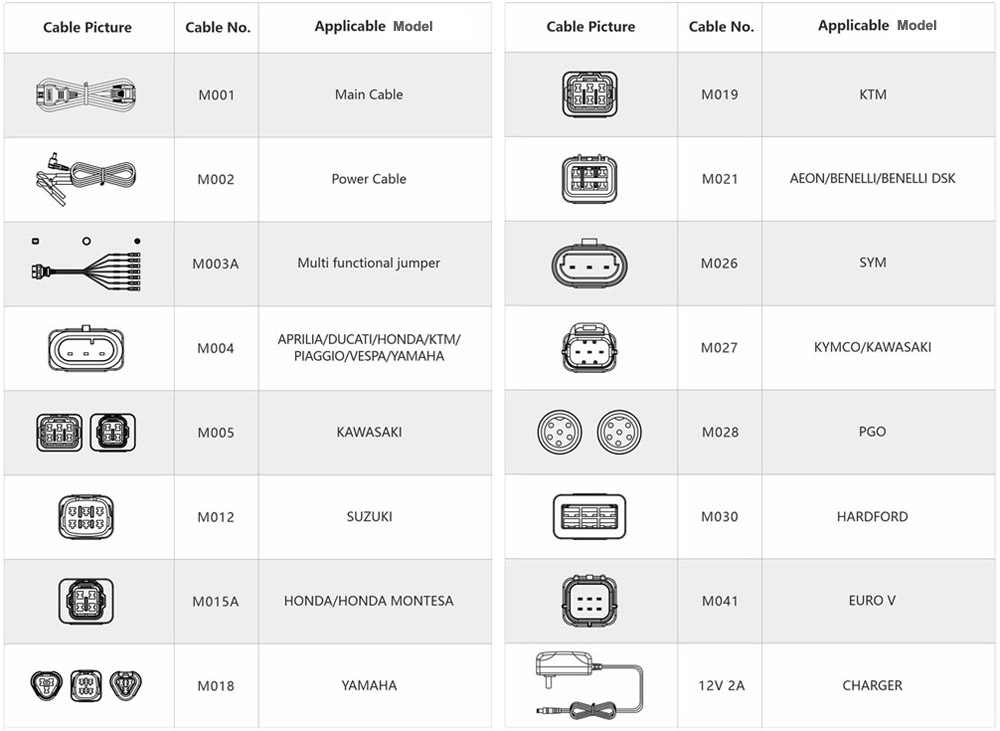

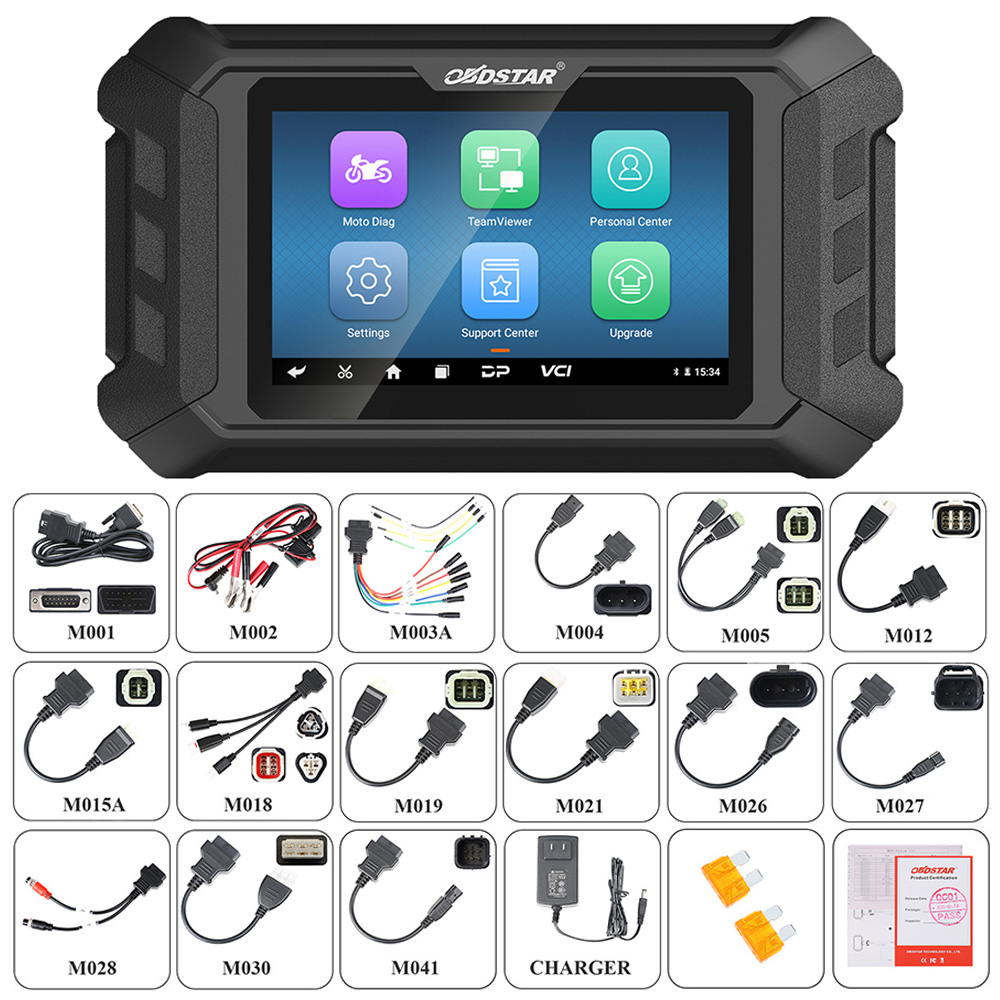

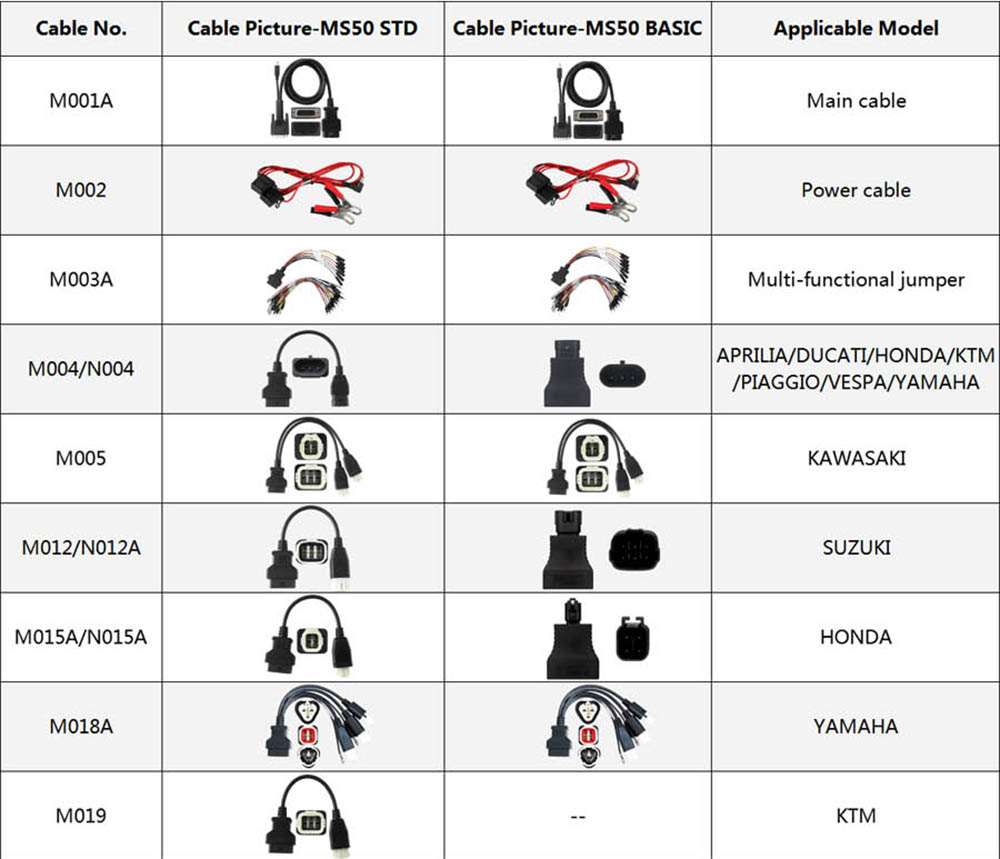

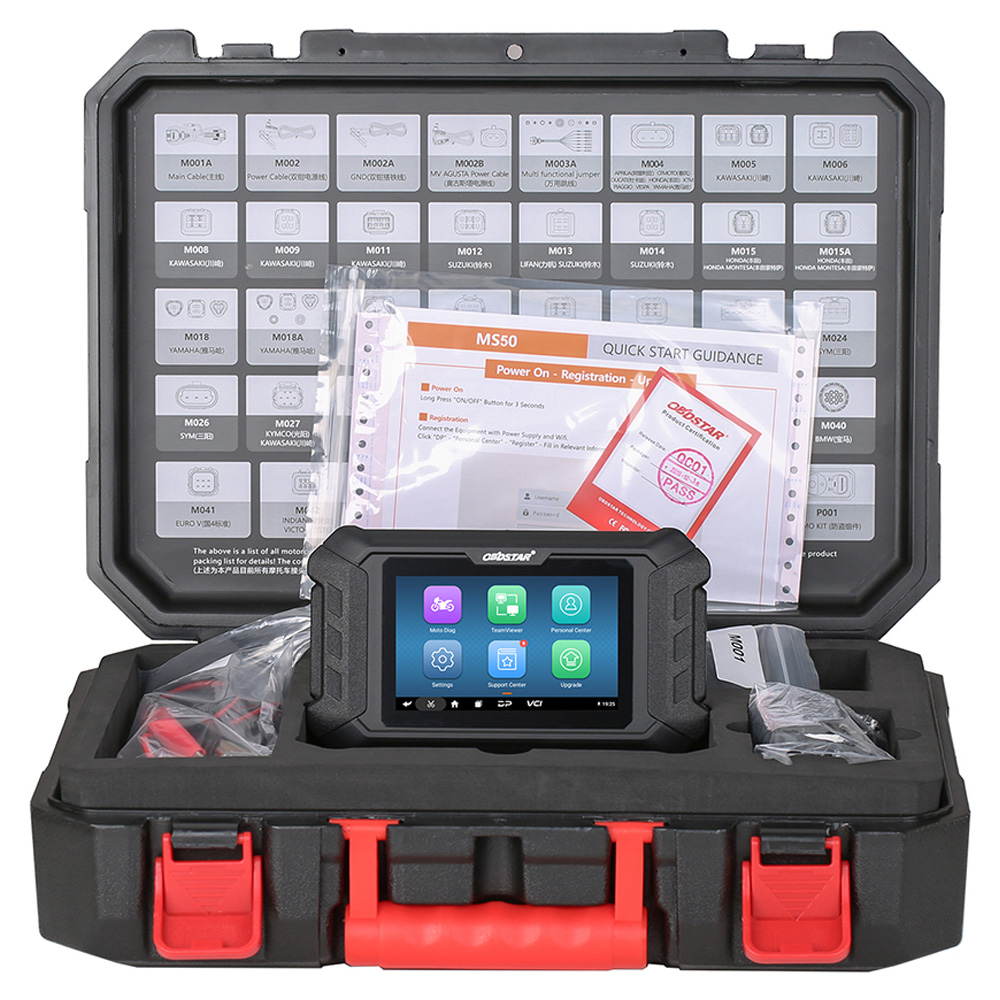

Packing List:



OBDSTAR MS50 Intelligent Motorcycle Scanner

M001 Main Cable

M002 Power Cable

M003A Multi Functional Jumper

M004 APRILIA/DUCATI/HONDA/KTM/PIAGGIO/VESPA/YAMAHA

M005 KAWASAKI

M012 SUZUKI

M015A HONDA/HONDAMONTESA

M018 YAMAHA

M019 KTM

M021 AEON/BENELLI/BENELLI DSK

M026 SYM

M027 KYMCO/KAWASAKI

M028 PGO

M030 HARTFORD

M041 EURO V

12V / 2A Power Charger

Packing Box
