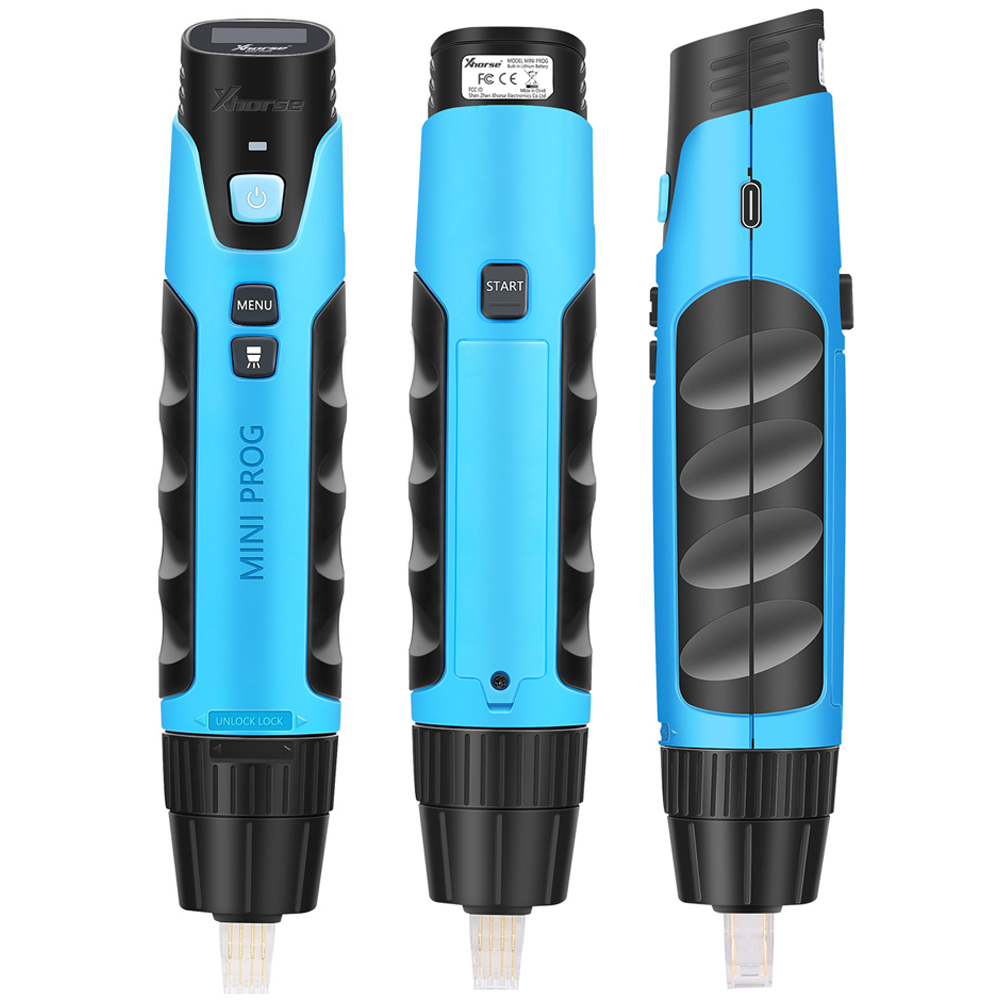

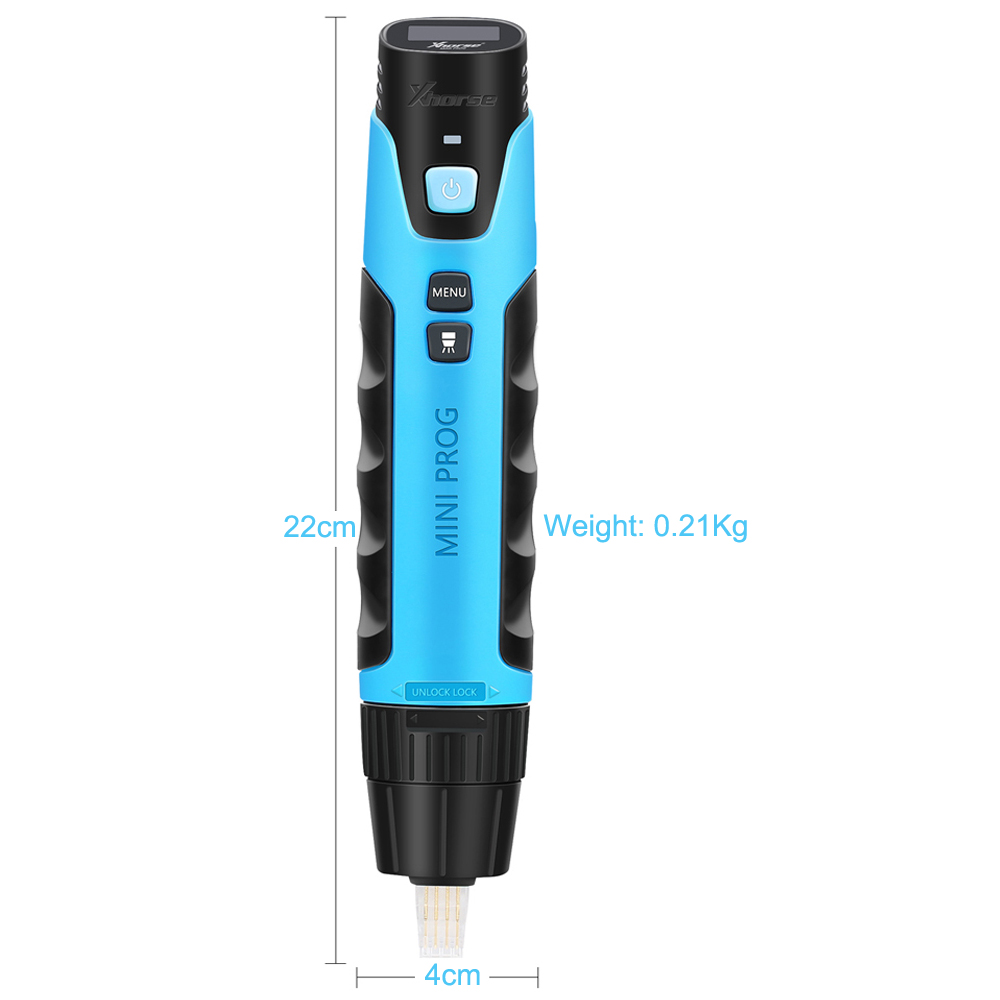

Name: XHorse Mini Prog Multi-functional Chip Programmer
Description:
XHorse Mini Prog Multi-functional Programming Device is a handheld chip programmer which can take it anywhere, make it anytime support repair multiple modules, read / write EEPROM data and MCU data. It works with XHorse app on iOS and Android via WiFi / Bluetooth.
XHorse Mini Prog is a professional smart programming device provides users the most portable chip programming solution.

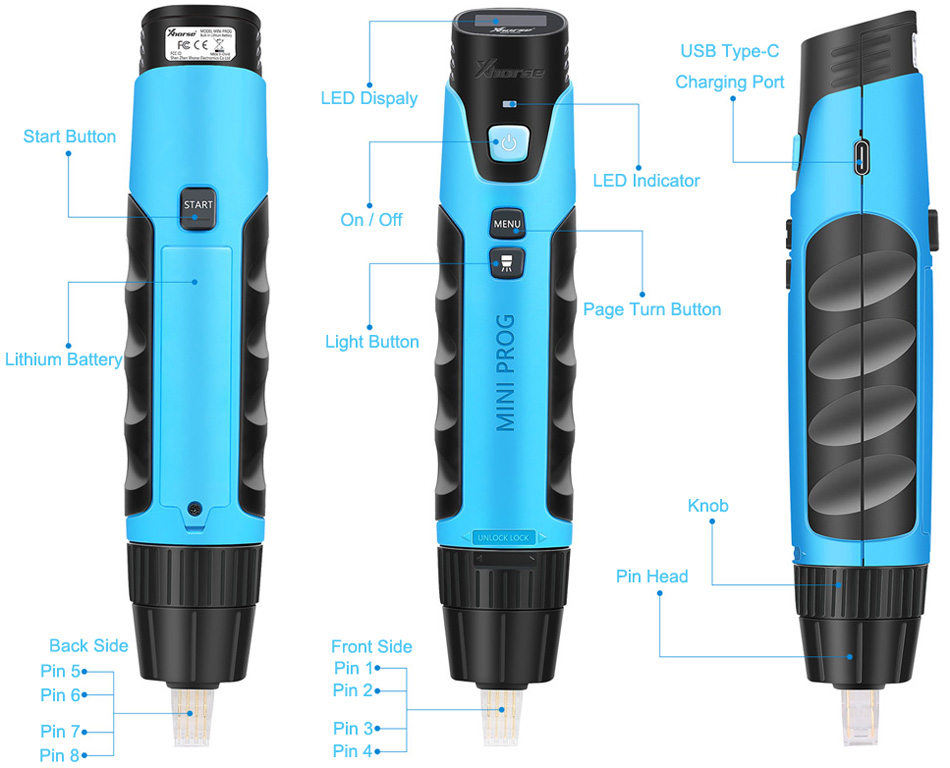

The 3 different pin headers can be easily switched to read and write different chips and to satisfy different demands. The smart screen on the top of MINI PROG clearly shows the real-time working status.
Mini Prog can be connected to your smart phone to intelligently complete the chip programming works via Bluetooth and WiFi.
You do not need to carry a computer or other devices anymore when working. What you need is only a mobile phone! Download XHorse application in APP store and find MINI PROG, then start working! It supports both of iOS and Andriod systems.
As a common advantage of all XHorse products, you will be instructed for every step. Each step such as reading or writing can be finished on your phone. What is more, you can directly resort to XHorse technicians on XHorse APP if you encounter any problems. We would be very happy to help!
Features:
Solder-free Programming
EEPROM Reading & Writing
Dashboard Data Reading & Writing
Data Editing
Press Header
PIN Status Detection
APP Control
Cloud Backup
Advantages:
Portable; Easy to use
No need to remove chip
No need soldering
No need to cut the wire
No need to lift the pin

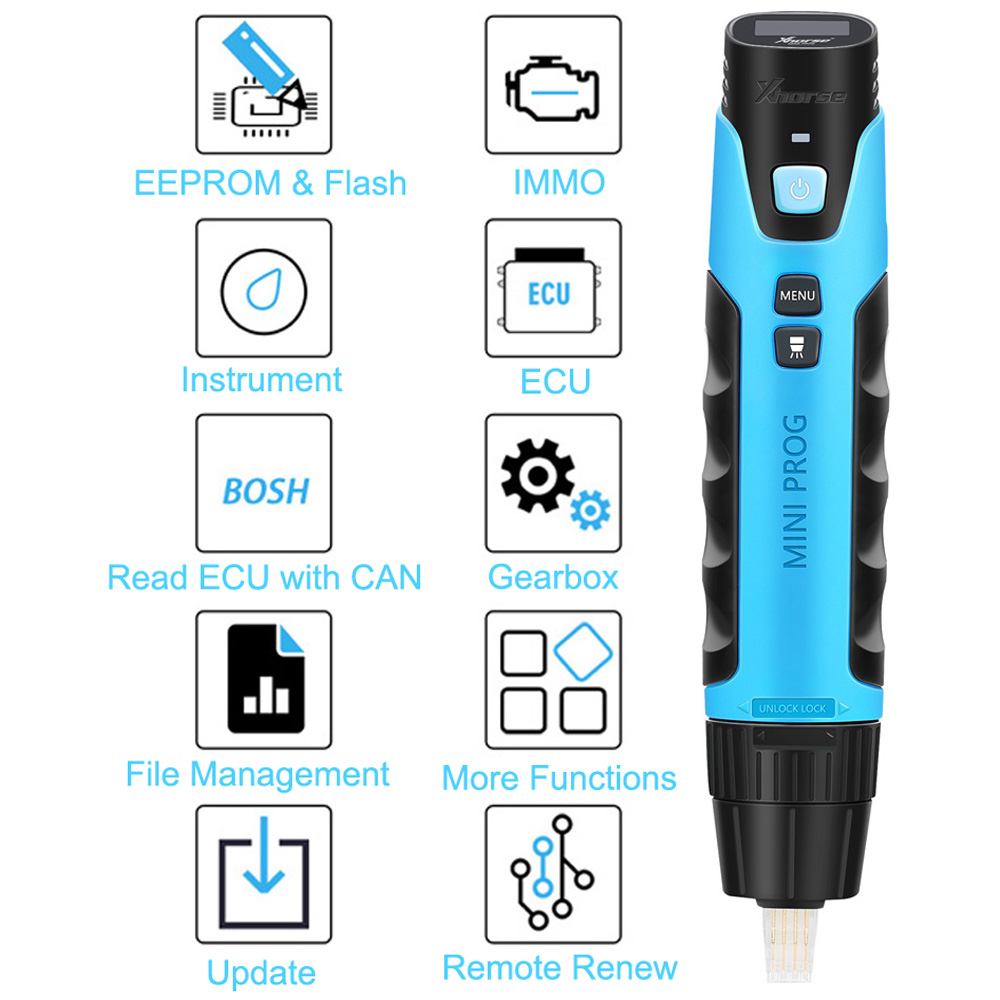

Main Functions:
Repair multiple modules
Data local & cloud storage
Edit Data on XHorse APP
Read & Write EEPROM data and MCU data
Directly Read & Write Data without soldering chips
Support reading & writing EEPROM data
Support reading & writing ECU data
Accurately identify the pin connection status
Connect to Android / iOS smart phone APP via WiFi or Bluetooth
Battery-powered device; Easy to use
More functions coming soon
Functions:
IMMO Data Reading & Writing
BMW: BDC / CAS3 / CAS3+ / CAS4 / CAS4+ / FEM
Benz: EIS / EIZ
Porsche: BCM
Land Rover: RFA
Volvo: CEM/KVM
EEPROM Reading & Writing
Support reading and writing 24C××, 93C××, 95×××, 25××× etc. EEPROM data.
Covering 95% of common EEPROM in market
ECU Data Reading & Writing
Support reading & writing DFLASH and PFLASH of BMW, Audi, VW
Dashboard Data Reading & Writing
Support Honda, Kia, Hyundai etc.

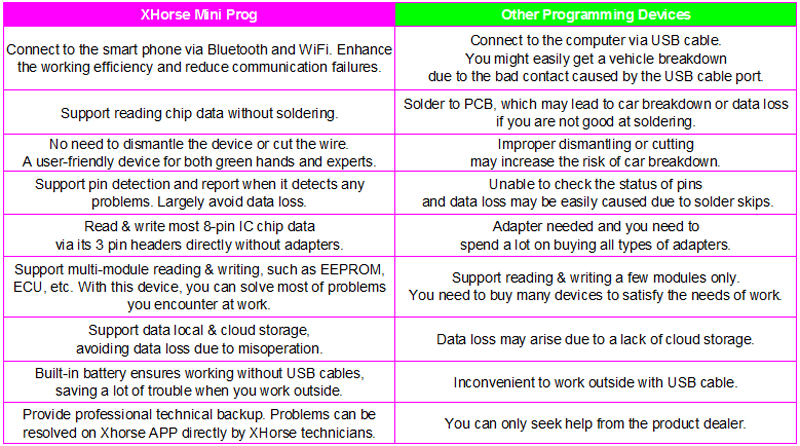

Highlights:
Pin Header Reading Chip Directly - Pioneer Technology in Industry
No need to remove the chip when reading. All you need is to press the pin header at the appropriate chip and then you can read and write data on XHorse APP.
Smart Detection - Detect Pin Connection Status with Great Accuracy
Mini Prog supports pin status detection and will give notice when poor contact arises, which makes it easy to operate and avoid data loss and damage.

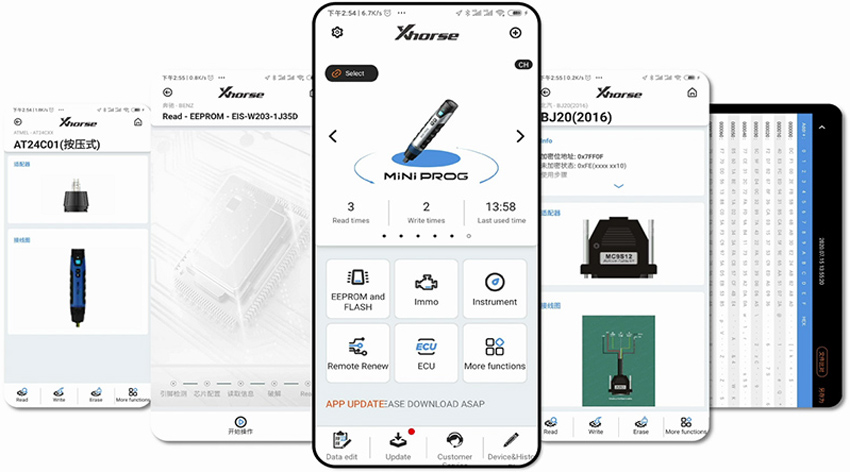

High-tech APP Control - No Need to Use Computer Anymore
Download XHorse APP and connect to your MINI PROG via Bluetooth or WiFi. MINI PROG allows you to finish works like data reading, writing and editing directly on your smart phone, providing greater convenience when working outside.
Cloud Storage - Safer than Ever
Data can be stored in Local File as well as Cloud to ensure the safety of data, avoiding data loss caused by misconduct.
Professional Online Customer Service Available
MINI PROG delivers firmware and database updating and functions adding from time to time. Stay tuned!
Log in to Xhorse APP and you can find related videos and technical articles that will help you transform from a green hand to an old hand.
XHorse provides professional after-sale service and you can contact the technical support team on Xhorse APP to solve your problems.
Multiple Solder-free Adapters Available (Optional):
BMW Adapters
BMW CAS3 / CAS3+, CAS4 / CAS4+, FRM, DB15-DB25 Adapter (for EWS4 Adapter only), D80 / 35080, ECU Interface Board Kit
Porsche IMMO Adapter
Porsche BCM
Land Rover IMMO Adapter
Land Rover KVM
Volvo IMMO Adapters
Volvo KVM, Volvo CEM-1, Volvo CEM-2
MB91F Dashboard Adapter
Honda FIT-H
Honda FIT-L
Hyundai SONATA
KIA K3
KIA K5
ECU Adapter
Remote Renew Adapter
9S12XE cable
MCU cable
DB9 cable
12V+5V power adapter
Pin Header 4

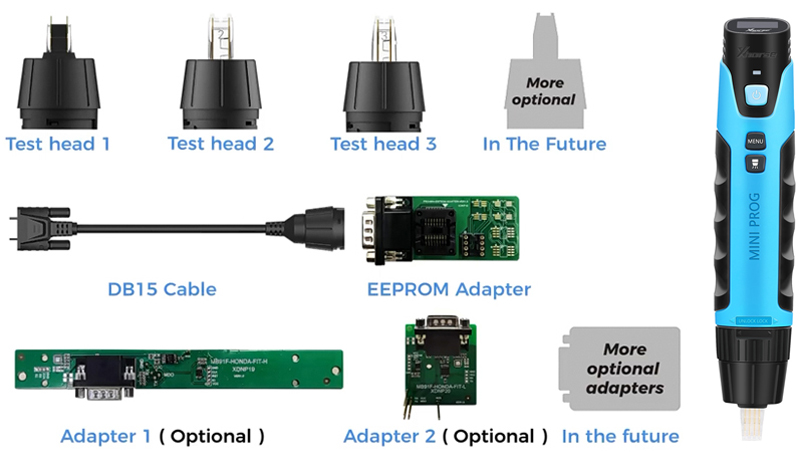

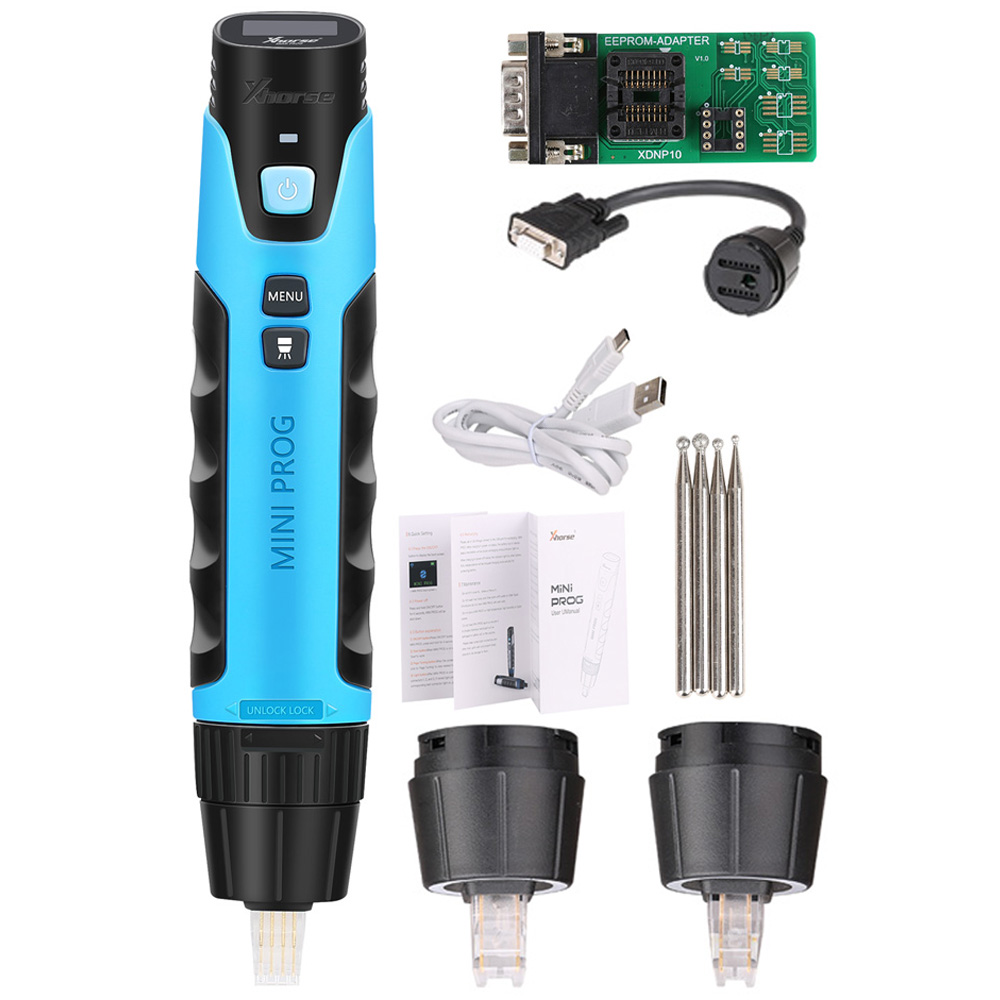

Packing List:
XHorse Mini Prog
DB15 Cable
USB Cable
EEPROM Adapter
Pin Header 1 Supports Reading DIP8 Chip
Pin Header 2 Supports Reading SOP8 Wide-type Package Chip
Pin Header 3 Supports Reading SOP8 Standard Package Chip
User Manual
Packing Box
