Description:

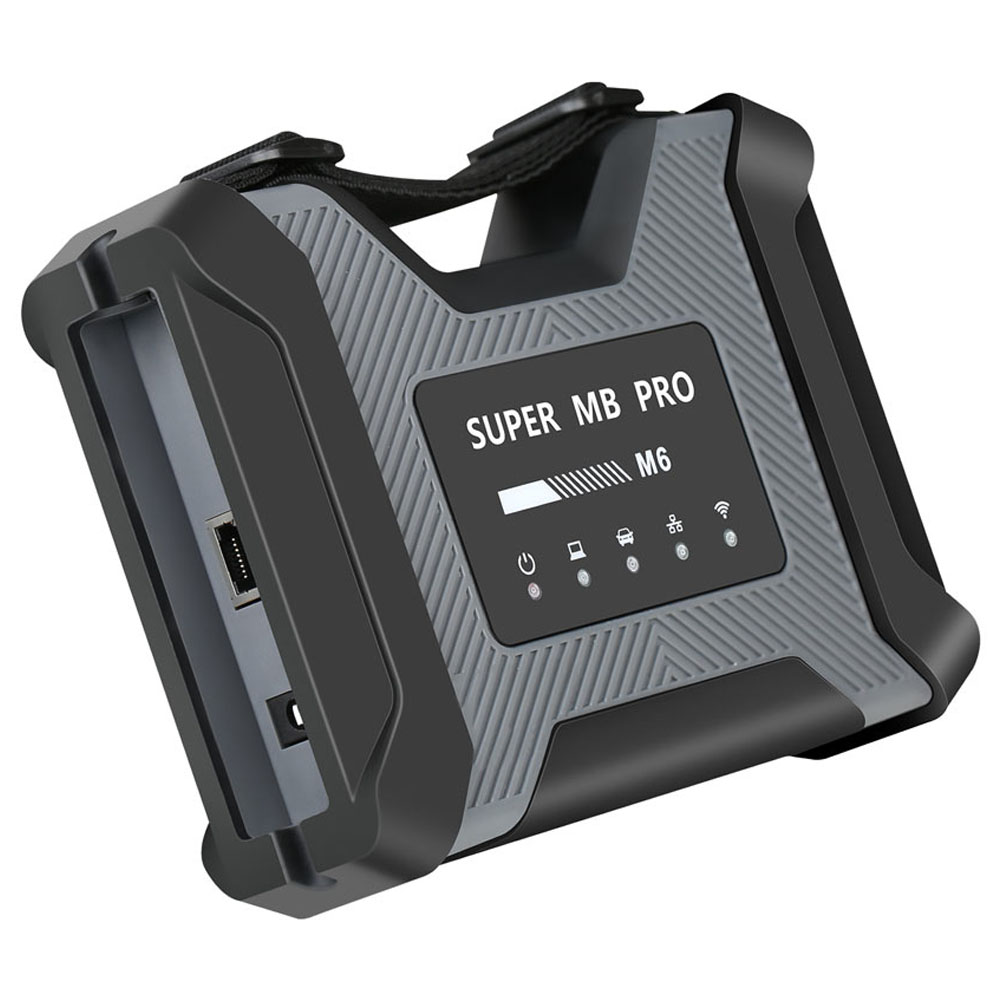

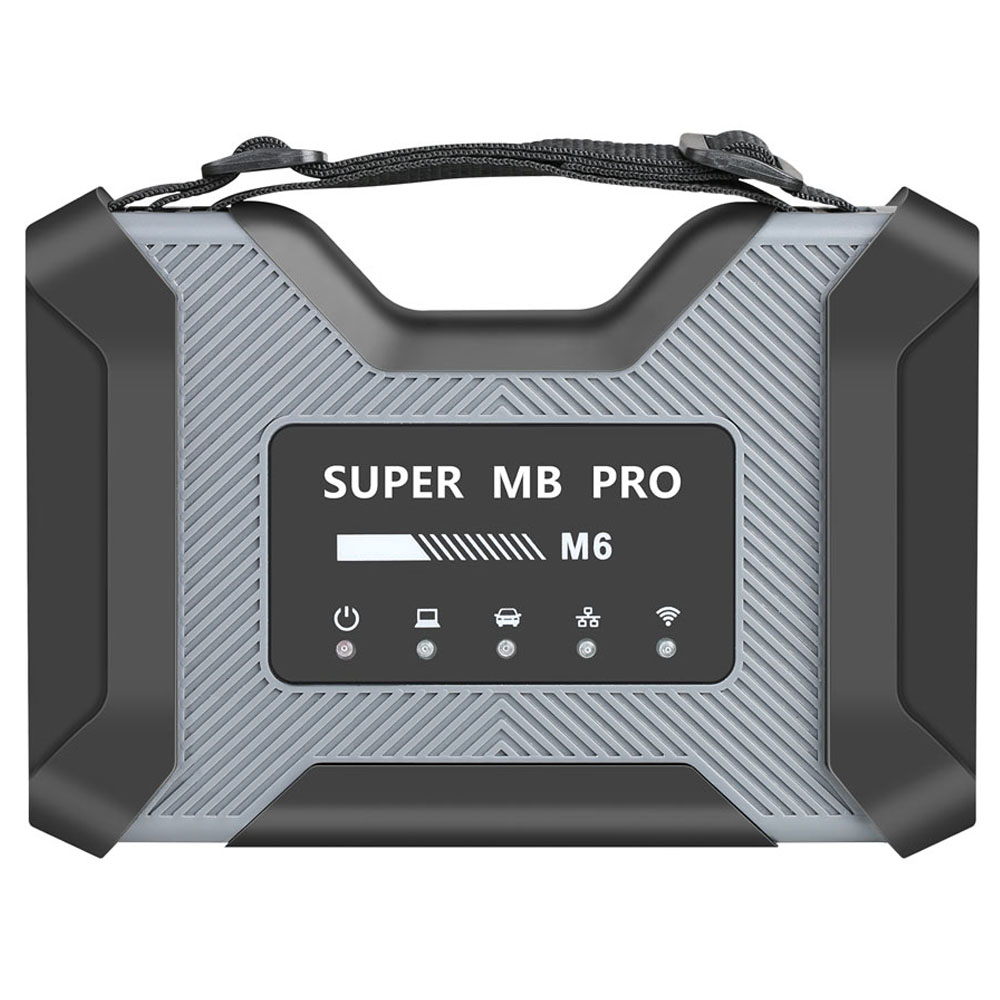

DoIP Super MB Pro M6 with WiFi Wireless Star Diagnosis Tool supports Mercedes-Benz cars and trucks.



Features:



1. Super MB Pro M6 DoIP has strong WiFi signal which can greatly reduces restriction on testing distance. It is able to replace original MB Star C3 / C4 Star, SDconnect Compact 4.  Multiplexer is durable and easy to carry.



2. ABS+PVT plastic structure adoption has following advantages:

1) Impact-proof & easy to carry

2) Lower consumption on product shell against wireless signal

3) Great advancement of wireless communication distance & stability



3. DoIP Super MB Pro M6 adopts double-radiation mode (radiation fan & radiation fin). Radiation fan will automatically turn on high-power radiation mode when multiplexer internal temperature is over 35 degree centigrade, greatly improving the stability and safety when programming.



4. Built -in network interface prevents deformation and damage from impact.



Functions:



1. Fully compatible with the original software.

2. You can directly upgrade the newest firmware without installing additional driver.

3. Compatible with Mercedes Benz models with protocol DoIP, K-Line, CAN Low, CAN High, LIN, RS485, etc.

4. Support diverse Mercedes-Benz 12V cars, 24V diesel trucks & buses, MPV etc.

5. Support firmware update without installing the battery, just directly plug the device to car OBD port for getting supply power, you do not need to worry about firmware damaged in the process of update.

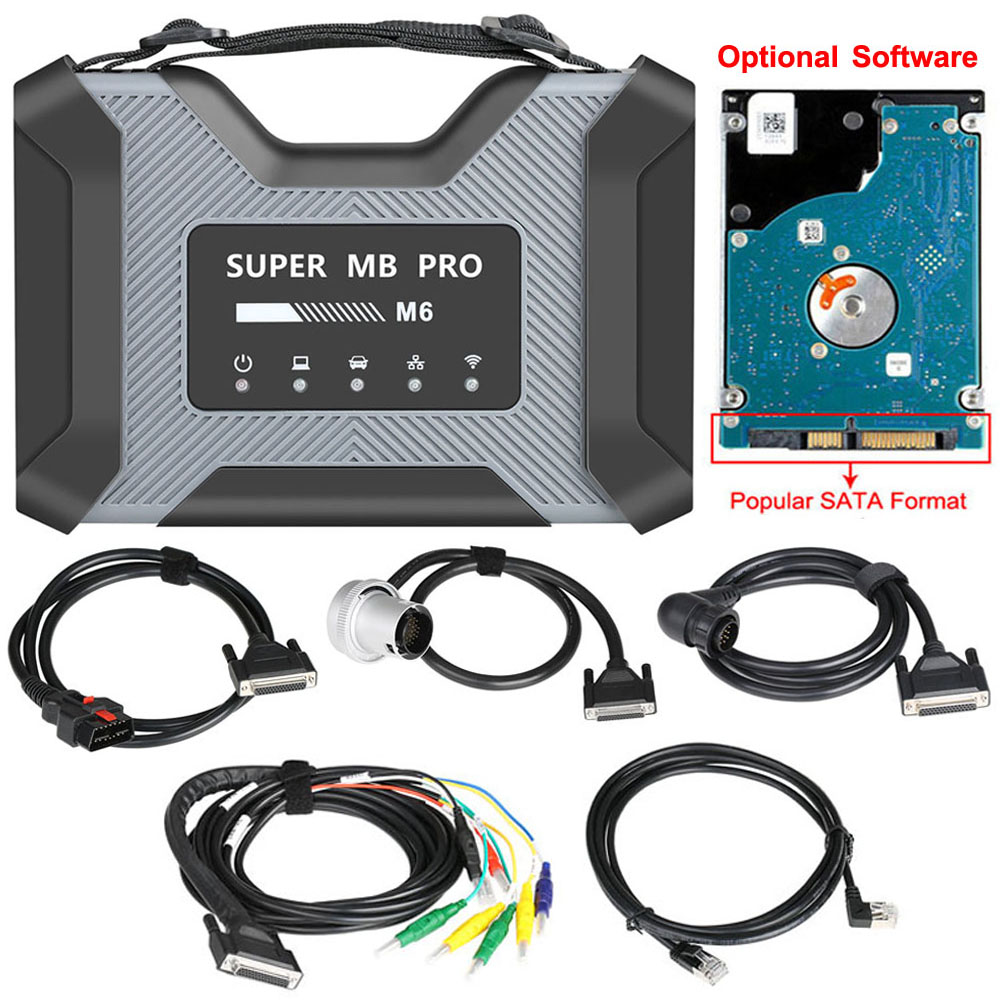

Packing List:



DoIP Super MB PRO M6 Multiplexer

OBD2 Cable

38-Pin Cable

14-Pin Cable

8-Pin Cable

LAN Cable

Software HDD / SSD (optional)
Plastic Toolbox

Packing Box
