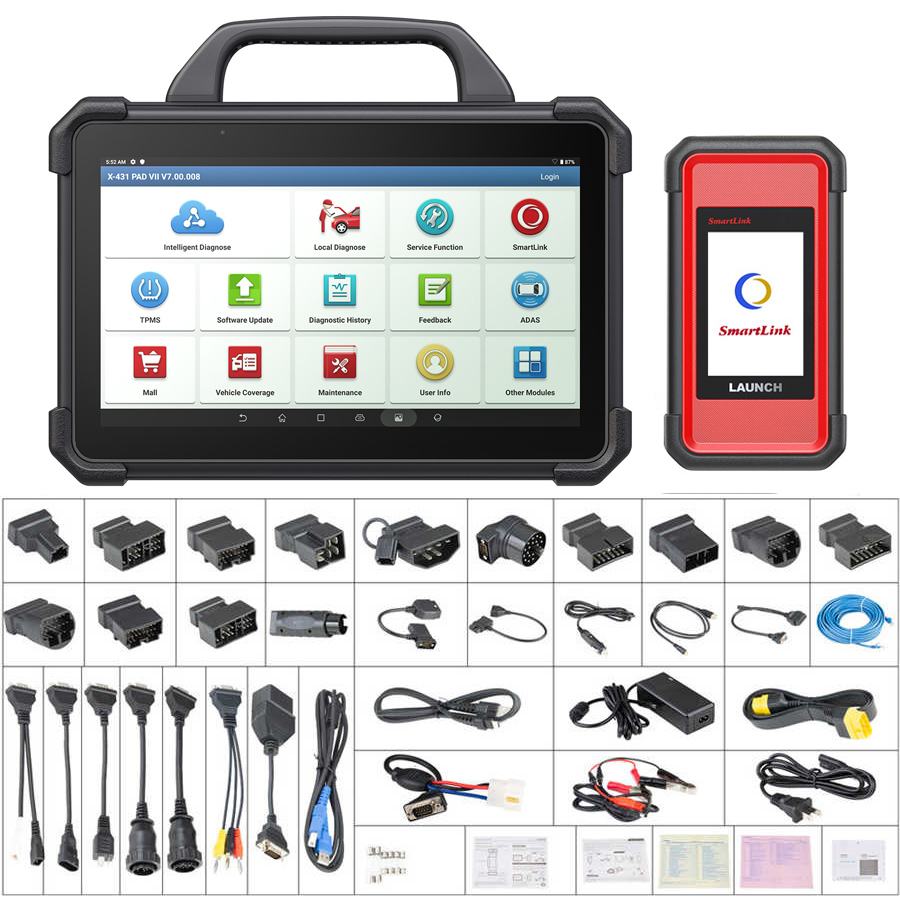

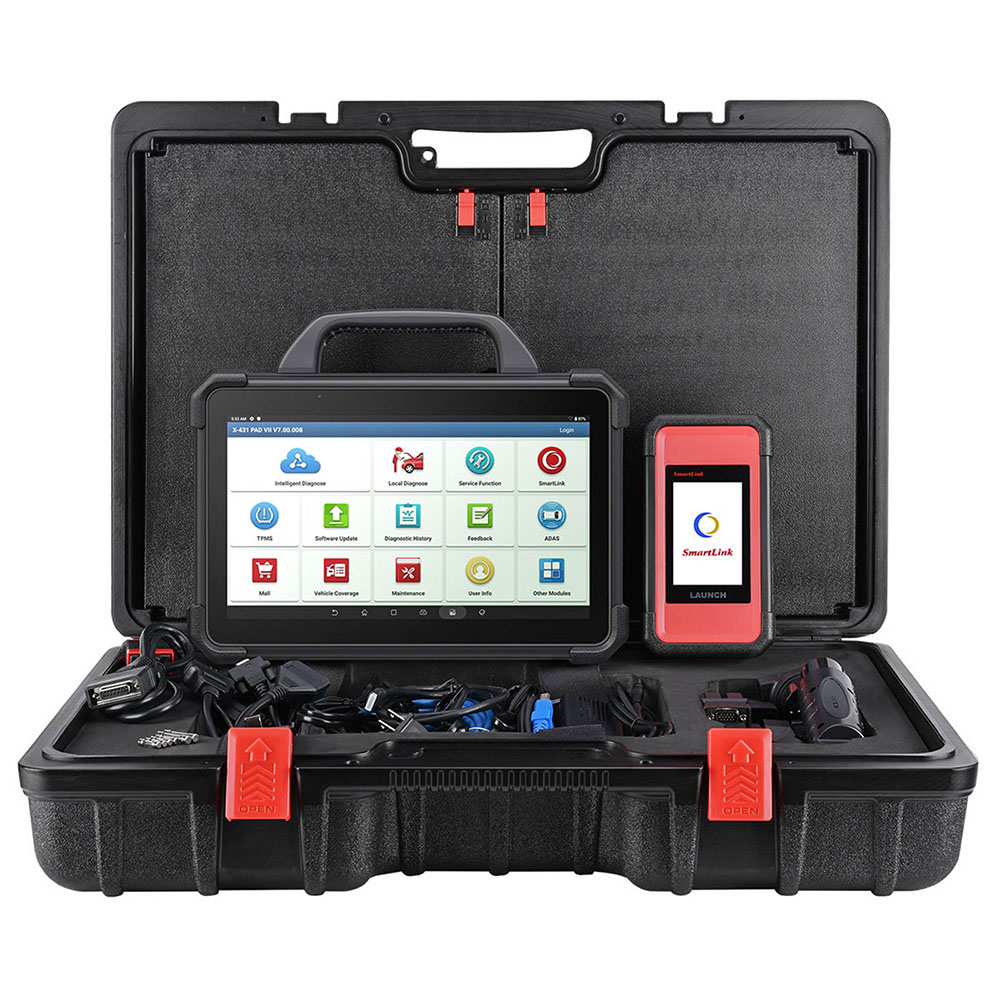

Name: Launch X431 PAD VII Elite Supports Online Coding Programming and ADAS Calibration



Description:



Launch X431 PAD 7 Elite with ADAS Calibration and Services Function supports Online Coding and Programming.


Notice:



1. Launch PAD7 Elite can support Mercedes and BMW Online Coding and Programming only in United States and Canada.

2. Online Coding and Programming functions are not supported in Spain and Portugal.

Functions:



1. Check the DTCs and all systems communication status visually by topology module mapping function.

2. Auto-detects the communications protocol of the vehicle uses, assist to check OBDII connector pin damaged or not.

3. Check the DTCs and all systems communication status visually by topology module mapping function.

4. Powerful diagnostic functions (intelligent diagnosis, remote diagnosis, read DTC, clear DTC, read data stream, actuation test), accurate diagnostic data, and abundant special functions.

5. Display I/M Readiness Status.

6. Read data stream: Support diverse data stream display modes and user-defined standard data stream.

7. Local diagnose: When the intelligent diagnosis is not available in an environment without network, choose traditional diagnosis. Select the vehicle make and model manually to perform the vehicle detection.

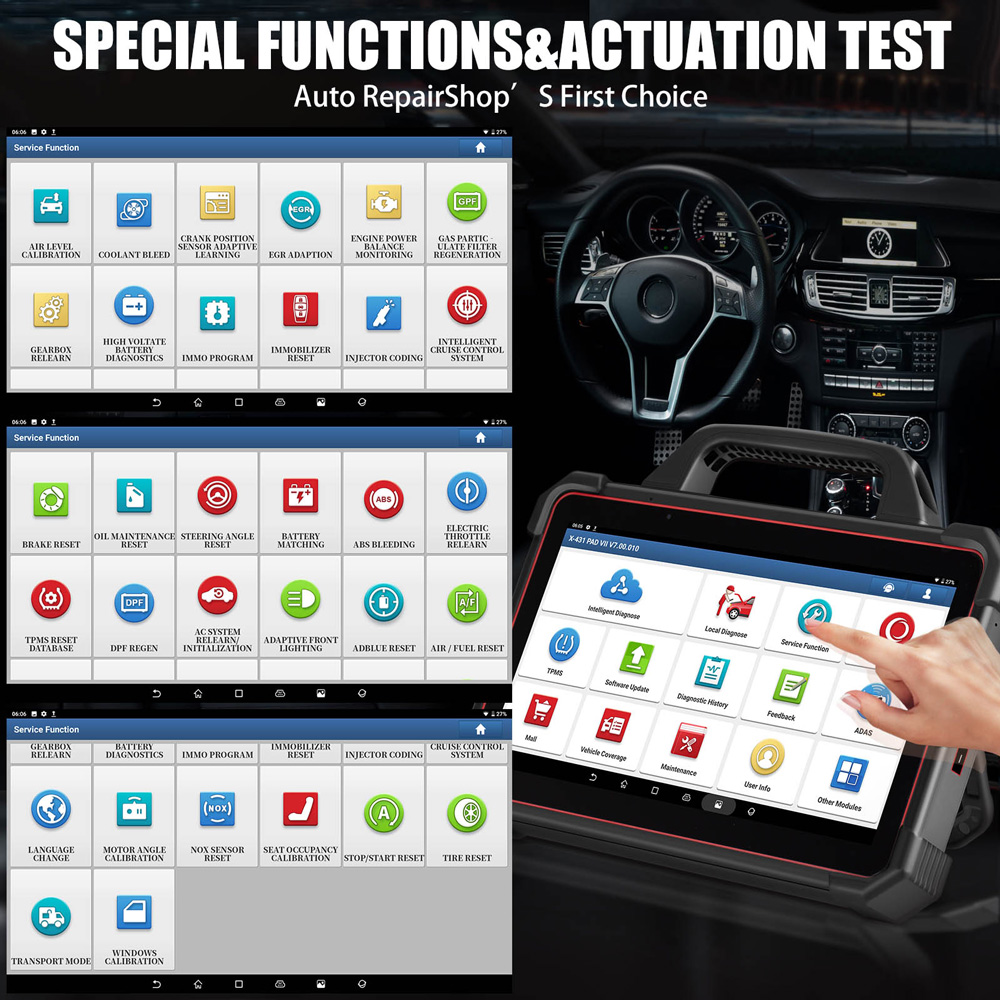

Powerful Special Functions:



1. Component Replacement, Cylinder Compression Test, Injector Cut Out Test, DPF Regeneration



2. Communicates with ABS & Transmissions from Bendix, Wabco and Allison Tech to Tech remote communication function.

J2534 ECU Programming & Coding:



X431 Pad VII comes with SmartLink C VCI box as a pass-thru tool to connect with OEM software for effective J2534 ECU programming, to replace the existing software/firmware in the ECU, program new ECUs, and fix software-controlled driving performance and emission issues. ECU Coding for Component Matching after replacement, or reflashing modules to active features / deactivate hidden features, without use of very expensive factory automotive scan tools.  Supports VAG Group Vehicles, Benz, BMW, and Porsche etc.

Bi-Directional Control [Active Test]:

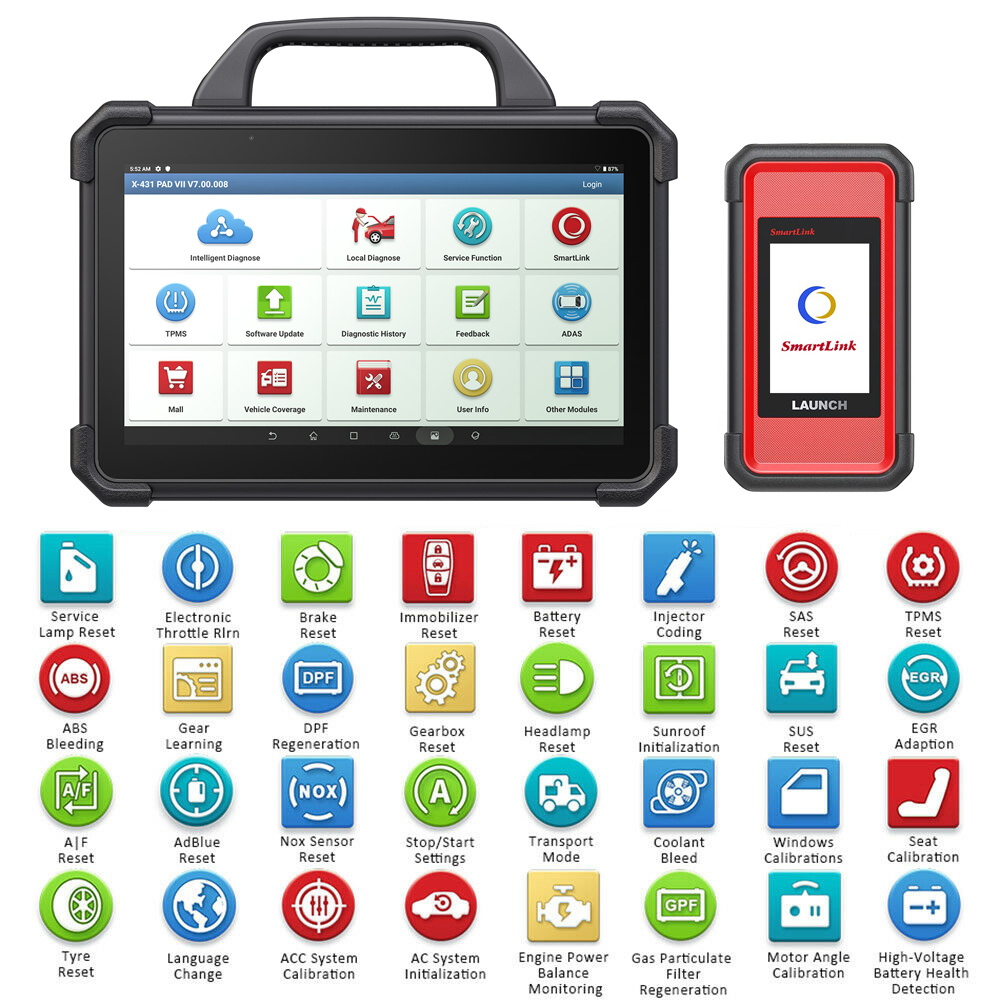

60+ Special Maintenance Services:



VAG Guided Functions

Skip the Security Access Code & Channel Number to perform matching, calibration and basic settings for VW / Audi / Skoda / Seat.



Component Matching

Rematch ECU (control module unit) after the replacement for VW / Audi / Skoda / Seat / BMW / Chrysler / GM / Ford / Opel / Mazda / Fiat / Honda / Nissan / Hyundai / Kia / Subaru etc.



Power Balance

Identify the less productive cylinder for Chrysler / GM / Ford.



Programmable Module Installation (PMI)

Ensure the correct software / calibration and configuration data are loaded onto the new module after replacement for Ford / Mazda.



Personalization

Compatible with BMW / Porsche / Toyota / Subaru.



Online Calibration

For some car systems’ calibration. Compatible with VW / Audi / Skoda / Seat.



Online Account Login Service

Access to the login codes for coding, matching, and basic settings of all available systems.



Online Parameterization



And many more are coming soon; expanding regularly.



Support Latest Protocols:

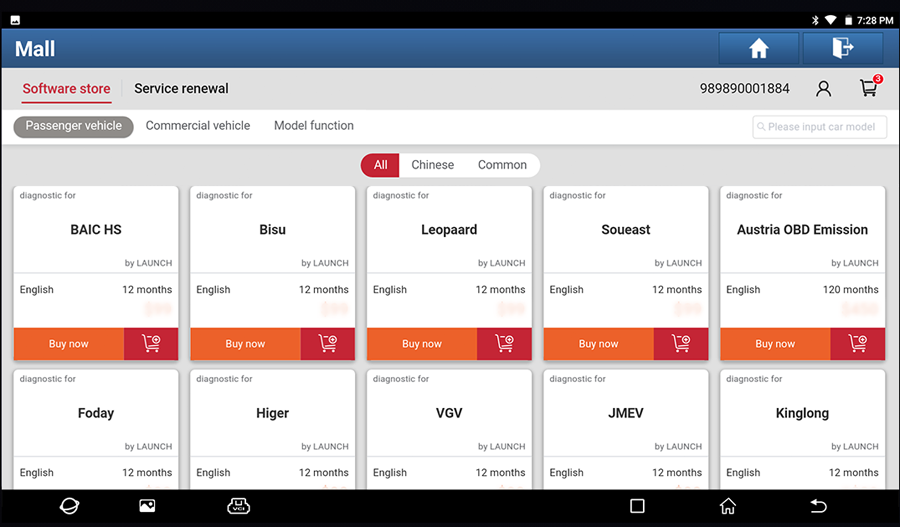

To diagnose the complex issues for passenger cars and even trucks, SmartLink C VCI Box is developed as a smart solution to support wide array of diagnostic protocols (J2534 / RP1210 / D-PDU - for passenger cars and commercial vehicles; CAN/DoIP/CAN FD - the latest protocols), covering U.S., Asian and European markets over 110 brands, and is continually updated. You may go to the “MALL” menu to make in-app purchase of HD vehicle software.



OE-Level Diagnostic Tool:



35+ Reset & Relearn Services (Oil Reset, Injector Coding …) for necessary repairs and adjustments in workshop; 60+ Advanced Special Functions (PMI, Power Balance, Online Calibration, Online Account Login Service …) for complete diagnostics to help grow customer base. Meanwhile, 8 extended modules include Videoscope, Oscilloscope, SensorBox, TPMS Tool, Key Immobilizer and Battery Tester. This pro-level diagnostic scanner has everything to meet your various diagnostic needs and scenarios. **See details on page.



User-Oriented Diagnostic Scanner:



1. Factory-level All System Diagnostics: In-depth inspection of all accessible car modules as ECM, transmission, ABS, airbag, EVAP, TPMS, BMS, etc. to troubleshoot complex manufacturer-specific issues.

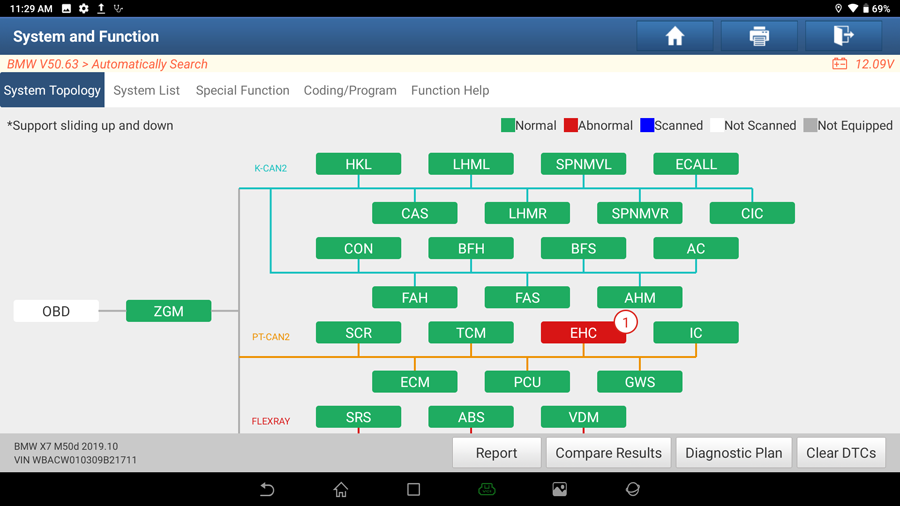

2. Topology Mapping: Check DTCs and all systems communication status visually.



3. Merged 4-in-1 Live Data Graph: Effortlessly detect problems during a test drive.



4. Auto-detects the communications protocol; check OBD-II connector pin damaged or not.



Great Combination:

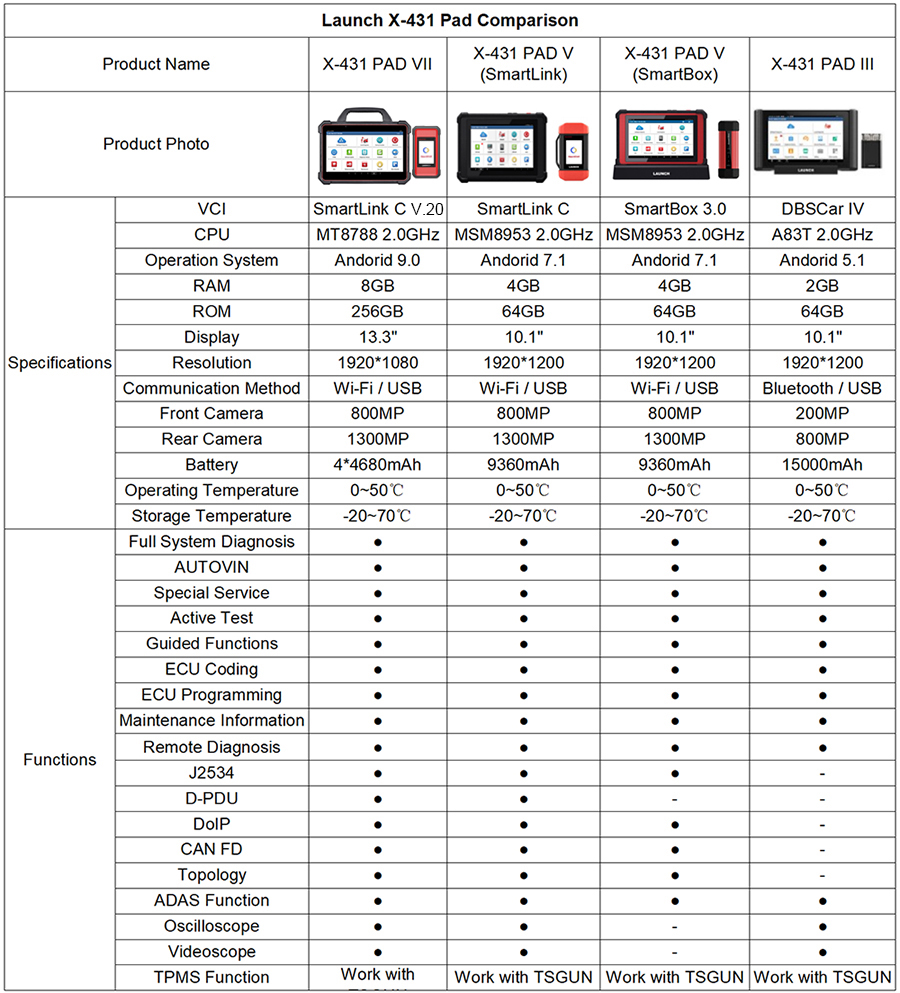

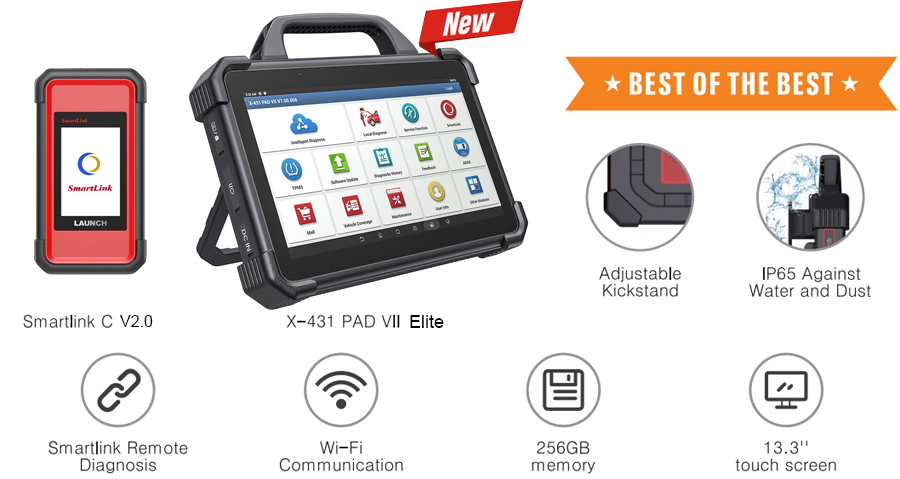

Based on Android 9.0 O.S, powered by fast 2.0GHz octa-core optimized chipset, with visually stunning 13.3 inch 1920*1080 touchscreen, 2.4/5GHz dual Wi-Fi connection, 8GB RAM + 256GB ROM. 9360mAh battery (20+ hours continuous work), AutoVIN & AutoSCAN (2006+), one-touch free software upgrade, massive built-in repair materials, etc., this newest diagnostic tool of LAUNCH X431 line makes your intelligent diagnosis faster than ever.

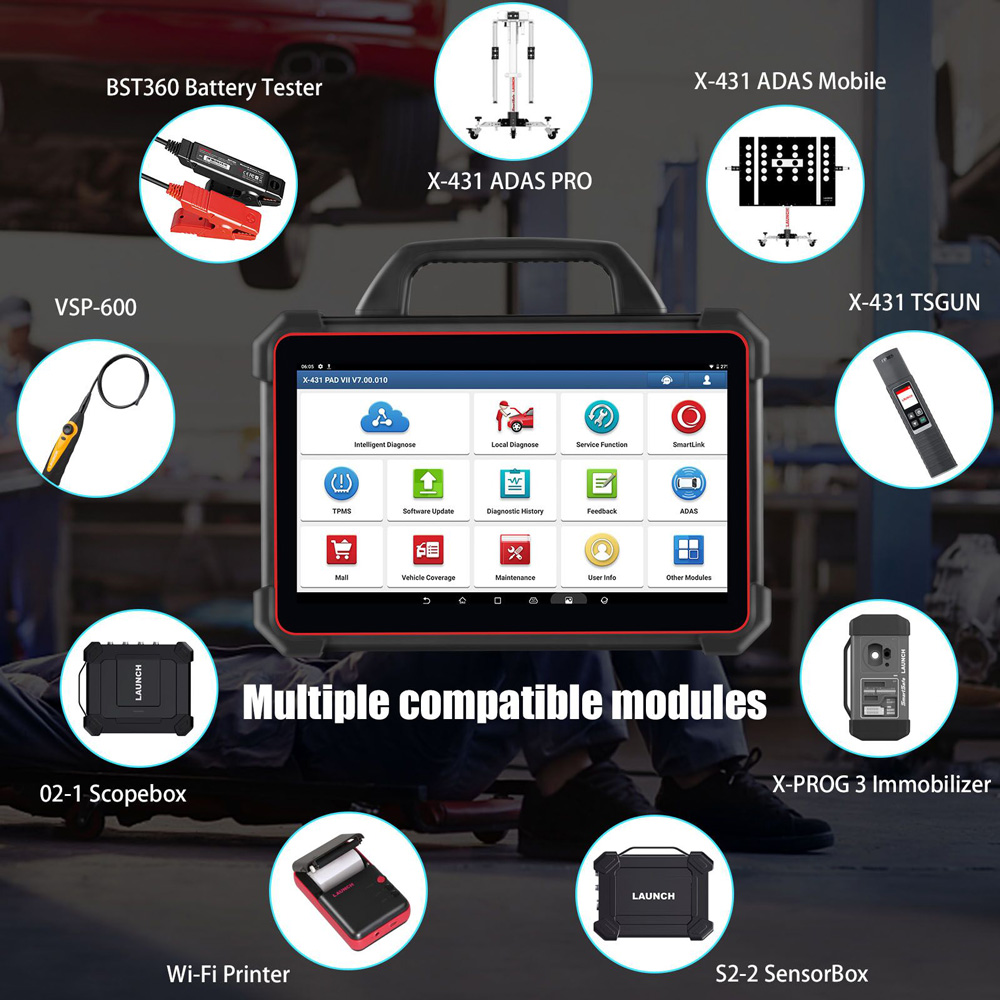

8 Extended Modules Design to Expand Your BusinessHorizons:



VSP-600 VideoScope: For up-close visual inspections in confined areas.



X-PROG & X-PROG3 Immobilizer: For locksmith level key programming & IMMO service.



S2-2 SensorBox: Diagnose and simulate vehicle sensor faults quickly.



O2-1 ScopeBox Oscilloscope: Quickly acquire the circuit signal, and slowly display the waveform to observe and analyze.



Wi-Fi Printer: Print out diagnostic data & reports.



X431 TSGUN: Activate all sensors, relearn & program LAUNCH sensors.



BTS360 Bluetooth Battery Tester: Get a thorough test of the vehicle battery.

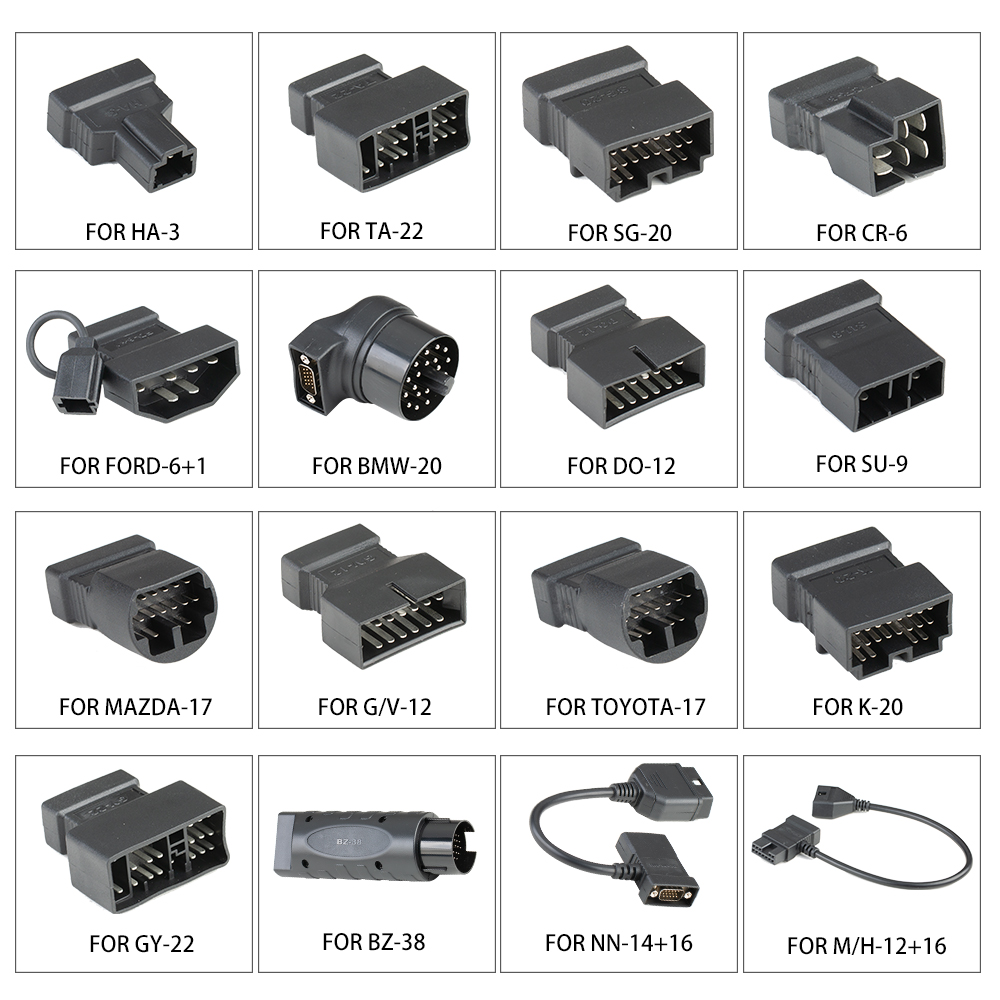

Heavy Duty Trucks (need to buy Heavy Duty Truck Software License with Adapter Kit):



Nissan (Diesel), Mitsubishi (Diesel), USA Ford Diesel, Kenworth, Astra, Benz Heavy Duty, Bosch Diesel, China Heavy Duty, Cummins Heavy Duty, DAF, Delphi Diesel, Denso Diesel, FAW Liberation, Foton Auman, FUSO, Hino, Hyundai Heavy Duty, Isuzu Heavy Duty, Iveco Heavy Duty, JAC Heavy Duty, Mack , MAN , OBD Heavy Duty, Scania, Shangchai Diesel, Volvo Heavy Duty, WP Diesel, Airbus, Allison Transmission Box, Ashok Rejlander, Bendix ABS, Caterpillar Heavy Duty, Chai Heavy Vehicle, Chaoyang Diesel, Construction Machinery, CREDO Heavy Vechicle, Detroit Engine, Dongfeng Commercial Vehicle, Dongfeng Yufeng, Doosan Engine, Freightliner Heavy Duty Truck, Full Diesel Diagnosis Software, Haldex ABS Heavy Duty, HD_ABS System, HD_GoldenDragon, HD_International, HD_Kinglong, HD_Maxxforce, HD_Tata, HD_Western_Star, Heavy Truck Presentation Software, IRISBUS HD, IRIZAR HD, NEOPLAN HD, Peter HD, Renault HD, SETRA HD, Stannic Bavin, Sterling HD, Sunlong Bus, Sunwin Bus, UD Trucks 2F Nissan Diesel, WABCO ABS, Yang Chai Engine
