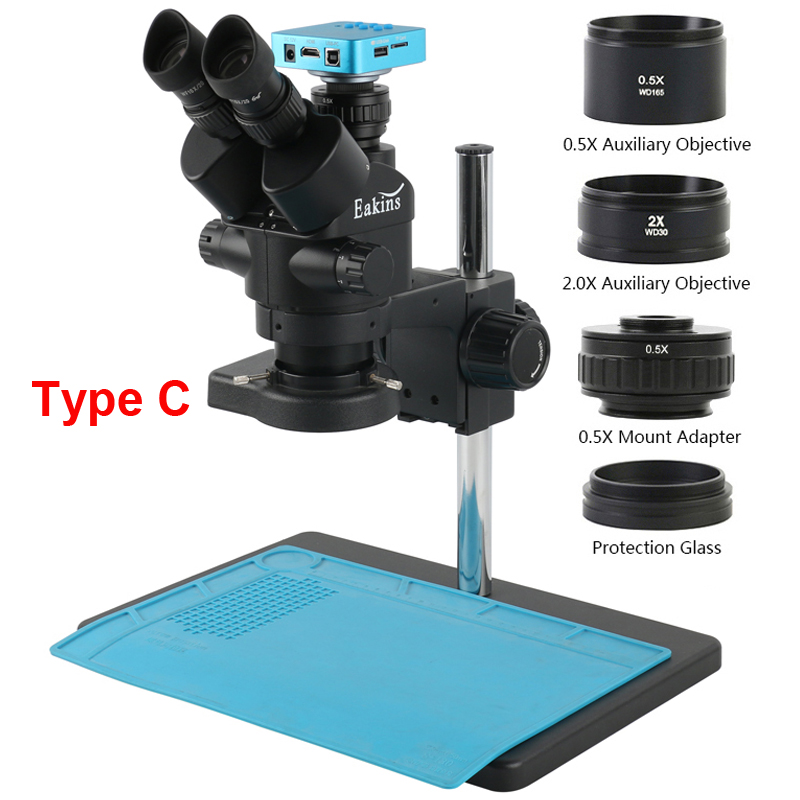

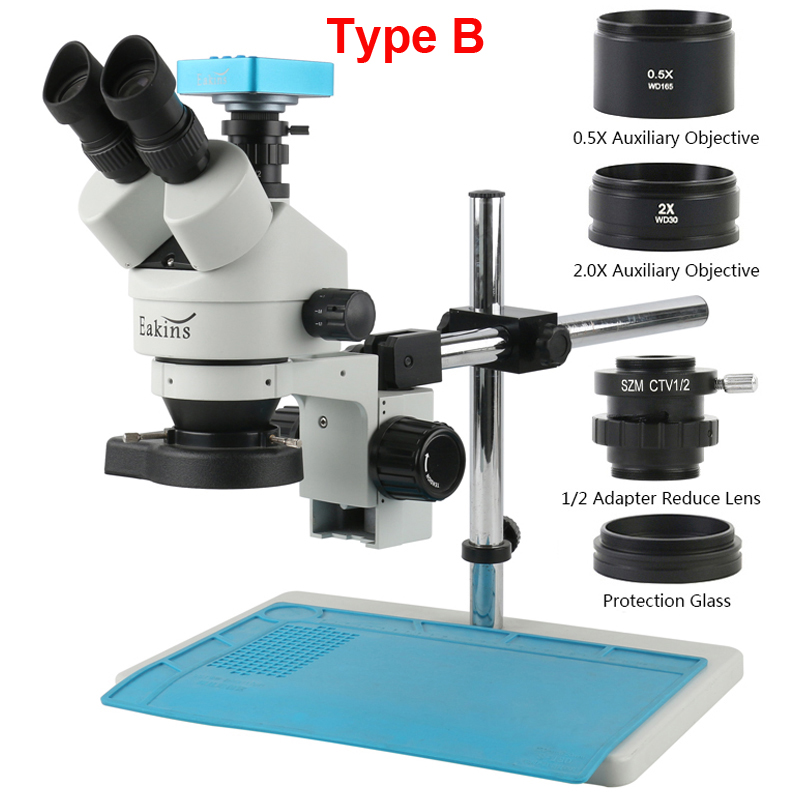

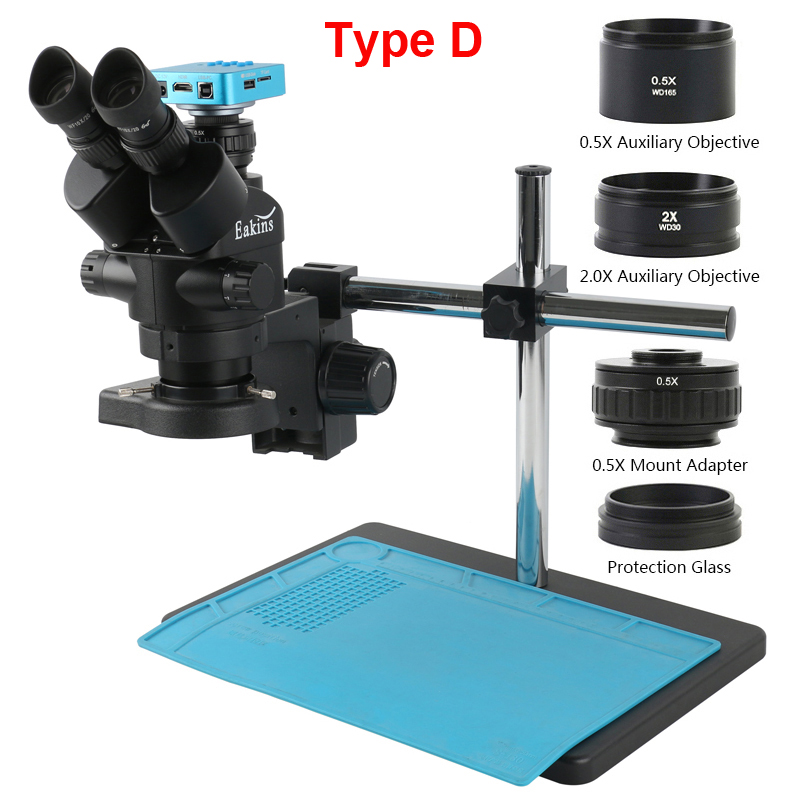

Name: 3.5X-90X Industrial Stereo Microscope
Description:
3.5X-90X Industrial Trinocular Stereo Microscope with Sony IMX307 Sensor / 1080P HDMI USB Video Microscope Camera for mobile phone PCB soldering repair.
An excellent stereo inspection microscope with intensity-adjustable 144-LED ring light.
Supported Languages: English, Simplified Chinese
Features:
High Quality, High Resolution, Clear Images
1/2.8 inch Sony IMX307 CMOS
1080P 1920*1080 Video Camera
HDMI USB Video Model
Added TF card and USB flash drive for picture and video storage

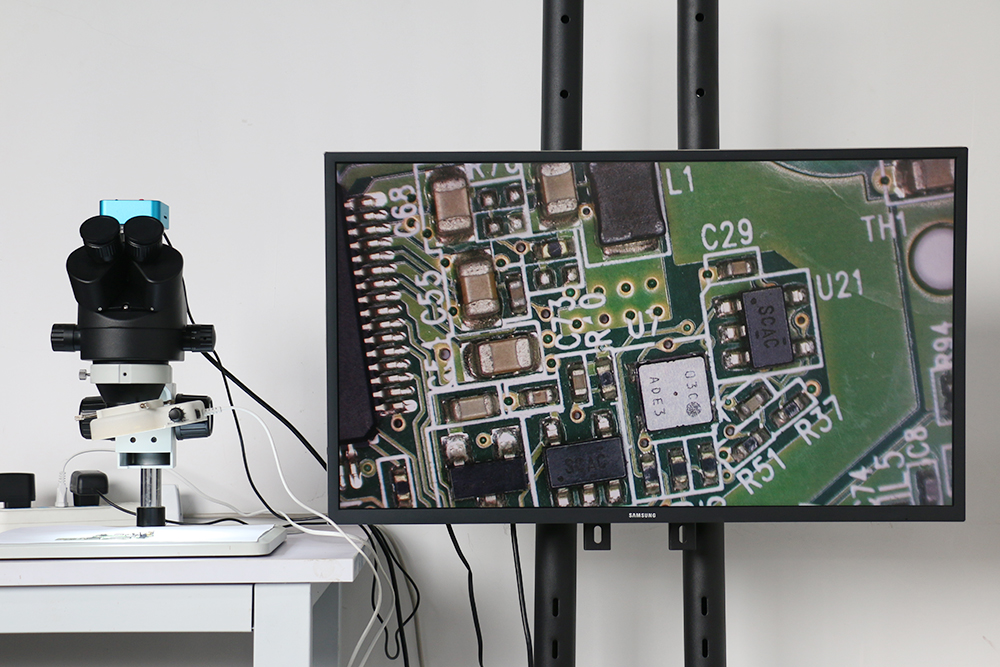

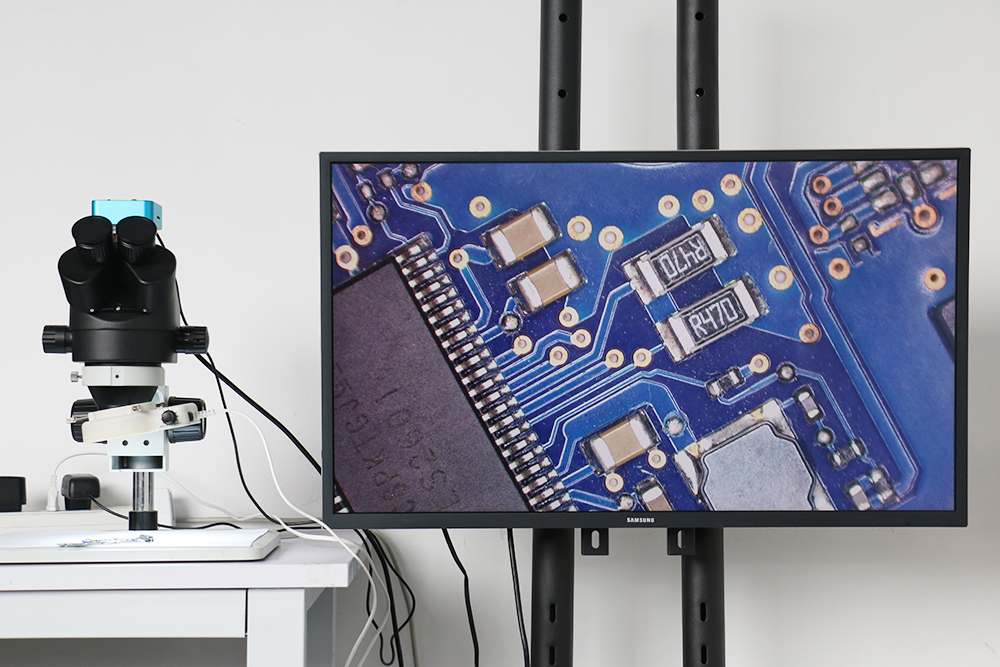

Industry MOS Camera. It can show the live image directly on any HDMI monitor / projector / TV / PC.
Advantages:
7x - 45x super wide zoom magnification power
Bright cool light 144-LED illumination system
High resolution with great flatness and contrast, giving sharp and clear images
Binocular head with 45 degree inclined 360 degree swiveling eye tubes
Sharp stereo erect images with a wide field of view
Crystal clear original true color microscope images
Dual eye tubes with adjustable diopters
Large working distance
Sturdy all-metal table stand
Accurate alignment reduces eye strain for longer periods of viewing
Full optical glass elements
Precise ground glass lenses
Full metal chrome-plated mechanical components
Adjustable interpupillary distance
Rubber eye-guards included

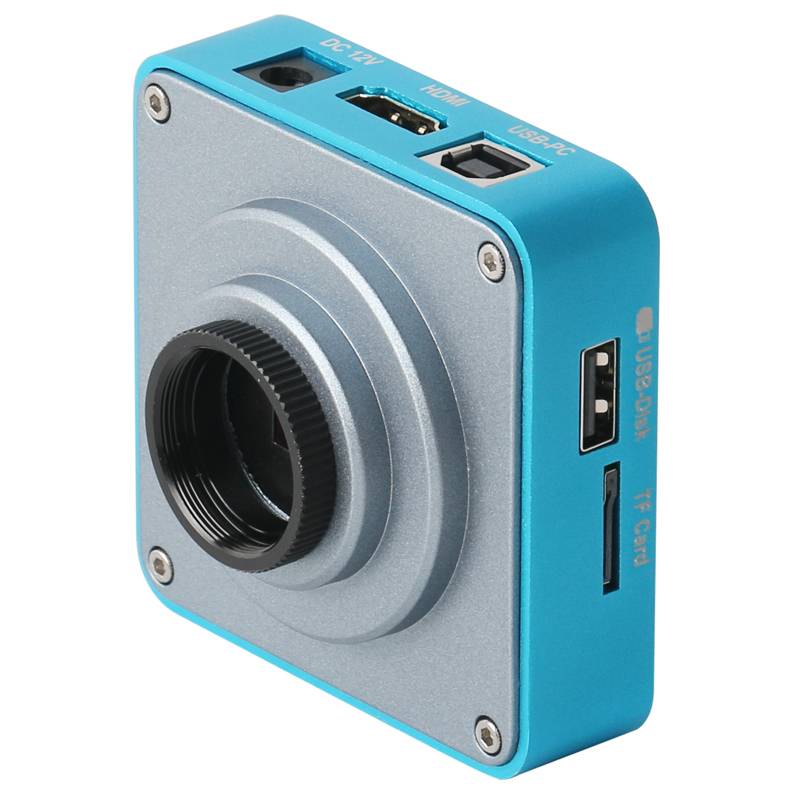

Specifications:
Sensor: Sony IMX307 CMOS
Optical Format:1/2.8 inch
Housing: aluminium alloy
Interface: HDMI (Type A) / USB(Type B) / TF Card, USB Flash Drive
Image Resolution: 1080P
Video Record Resolution: 1080P @ 60FPS
HDMI Resolution: 1920*1080P @ 60FPS
HDMI Scale: support 4:3 / 16:9
USB 2.0(drive free): 1920*1080 @ 30FPS / 1280*720 @ 30FPS / 640*480 @ 30FPS
TF Card: maximum 64GB
USB Flash Drive: maximum 128GB
Digital Zoom: 1X-4X
White Balance: one key white balance / manual balance
AWB: WB color correction / auto / manual
Brightness: 0-100% adjustable
Contrast: 0-100% adjustable
Saturation: 0-100% adjustable
Sharpness: 1-5 adjustable
Sharpness: 0-10 adjustable
Noise Reduction: 0-10 adjustable
Avoid Flicker: auto or 50Hz / 60Hz
Color: black / whit
R.G.B value setting independent
Exposure: auto / manual (can set AE value)
Cross Lines: 8 lines (can set color & width & position)
Scale Mark Lines: 2 lines.
Mirror:Horizontal / Vertical
IR Remoter: supported
Power Supply: 12V / 1A

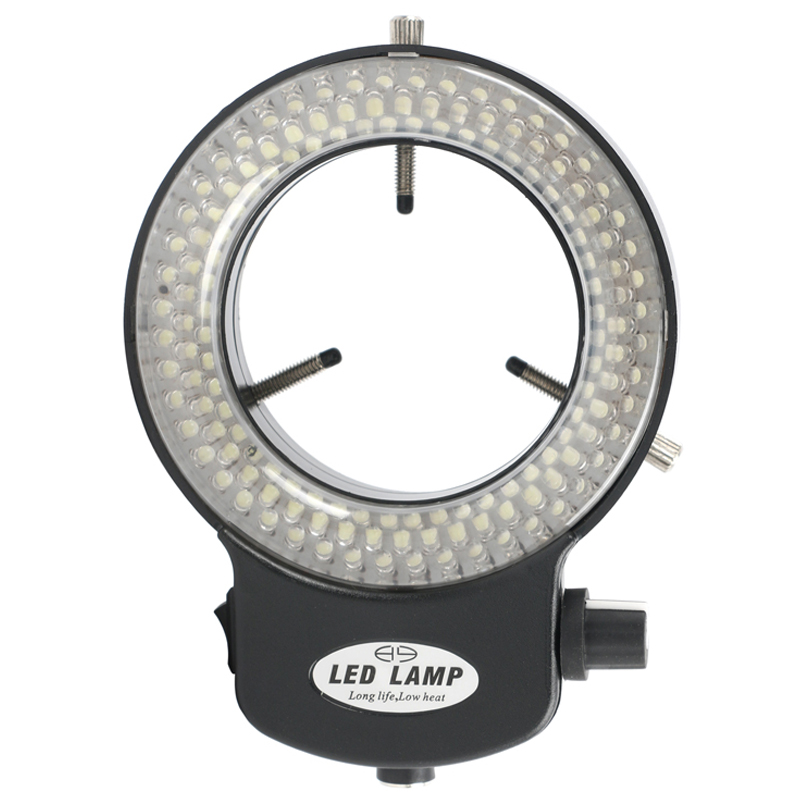

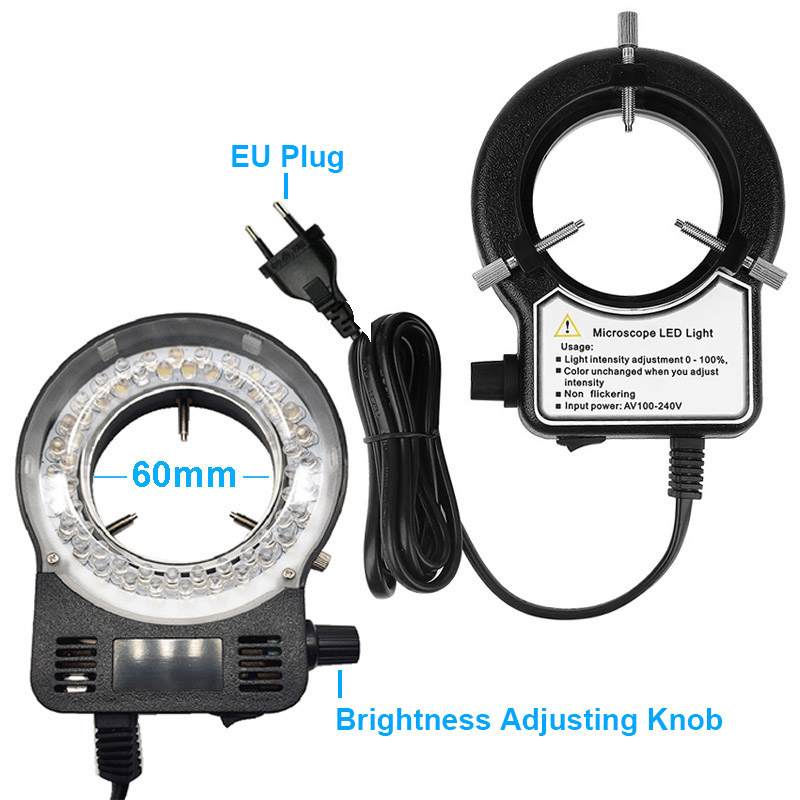

LED Ring Light Specifications:
144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100% adjustable,high brightness
Variable intensity control
Power input: 100-240V / 50-60HZ
Suitable Lens Diameter: 30mm-120mm

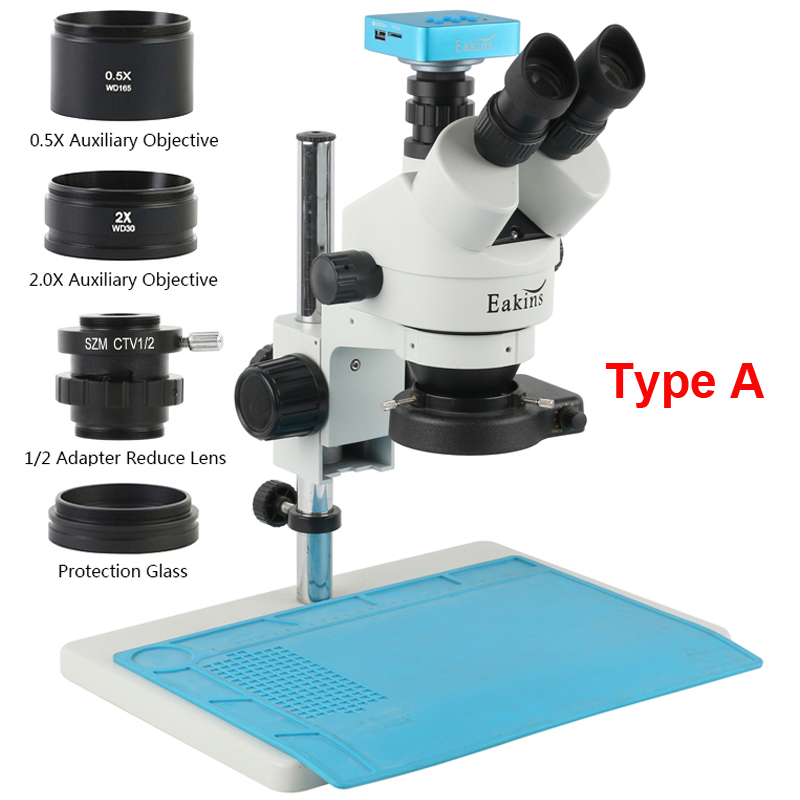

Packing List:

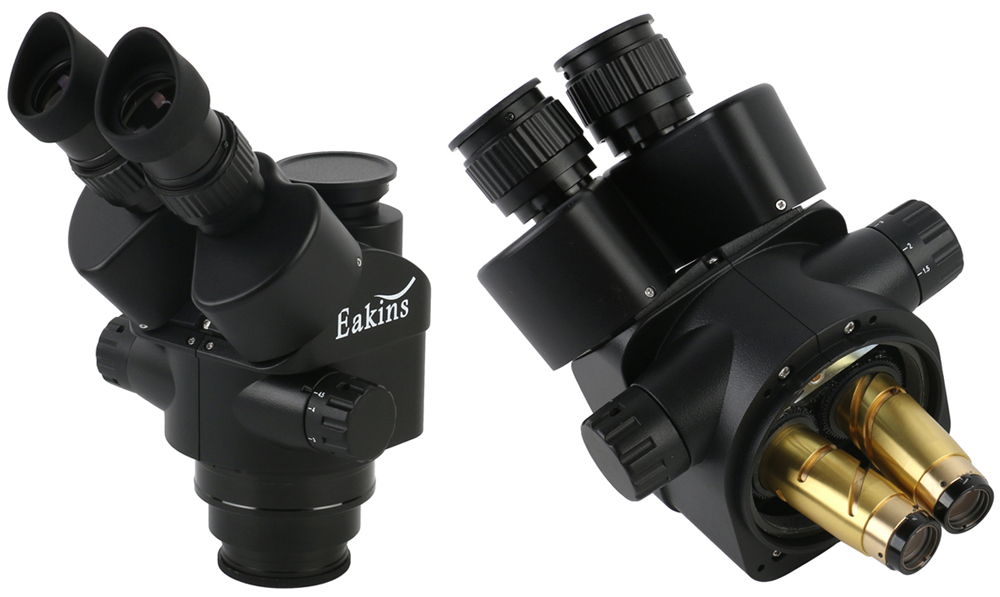

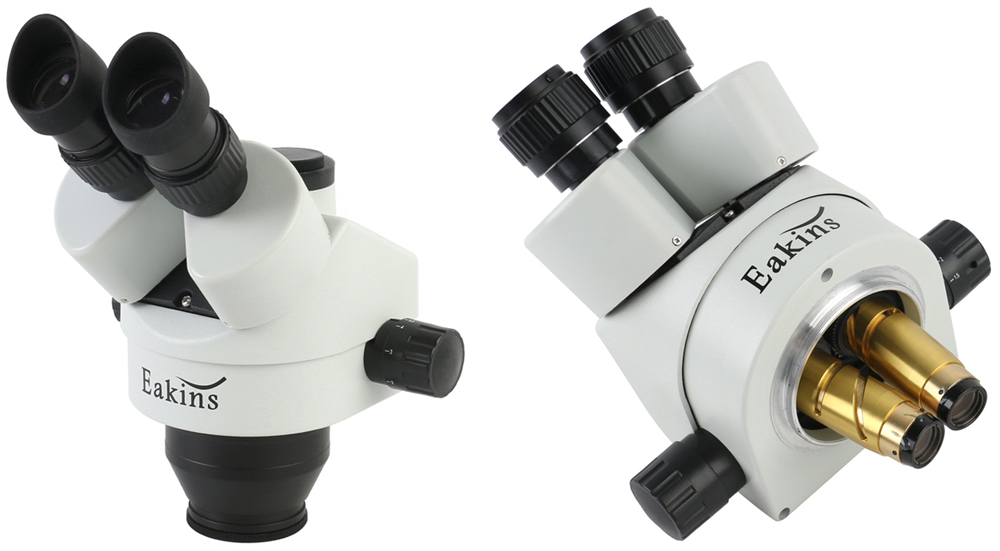

Trinocular Stereo Zoom Head (Working Distance: 10cm)

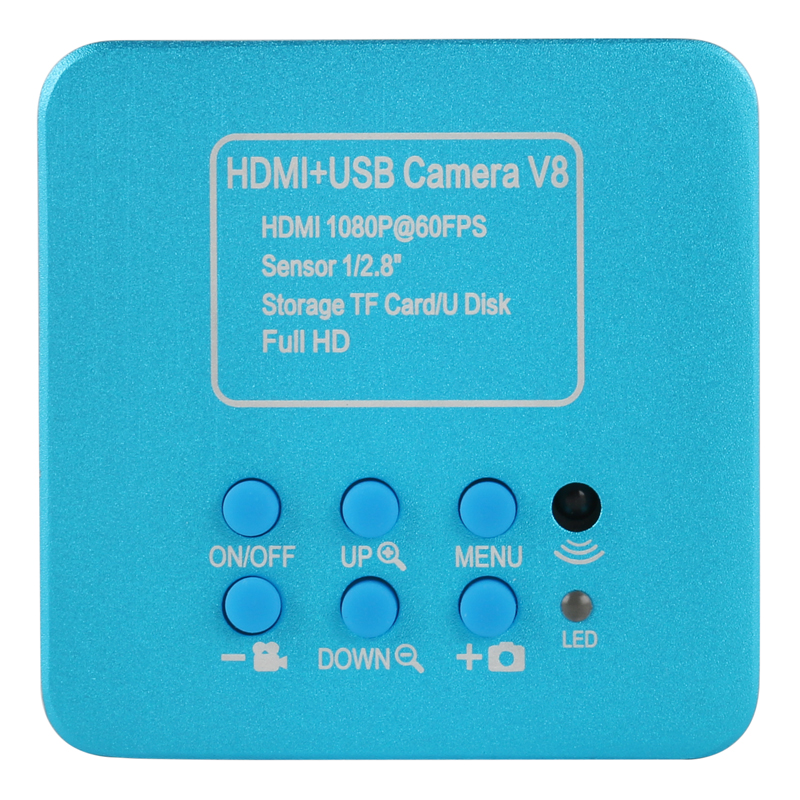

Video Camera
Pair of Super Widefield 10*20mm Eyepieces
Pair of Eye-Guards
144-LED Ring Light

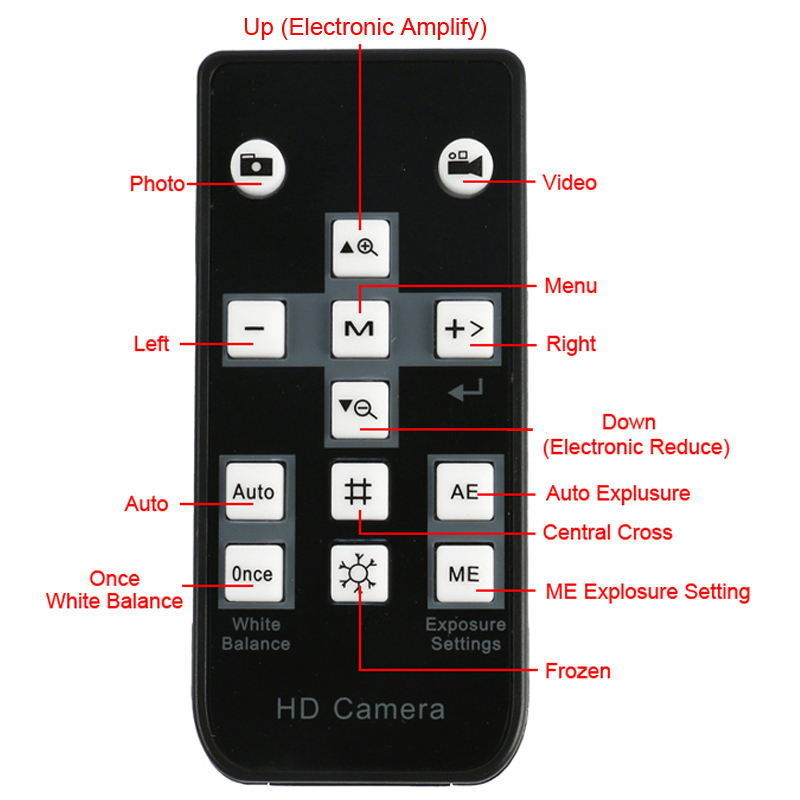

Remote Control
Dust Cover
76mm Focusing Holder
High Temperature Resistant Working Pad

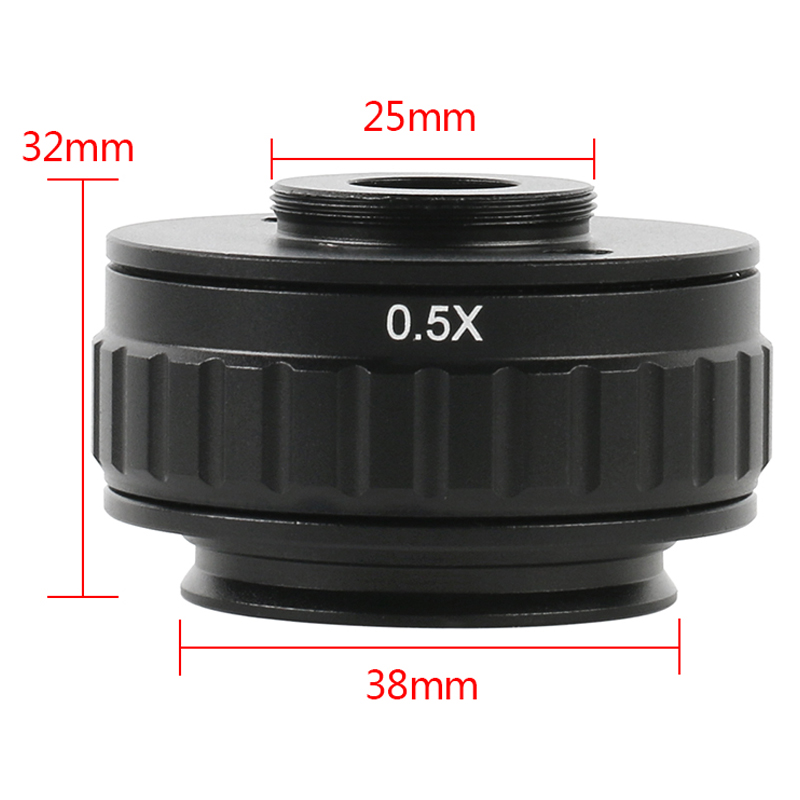

C-Mount Adapter

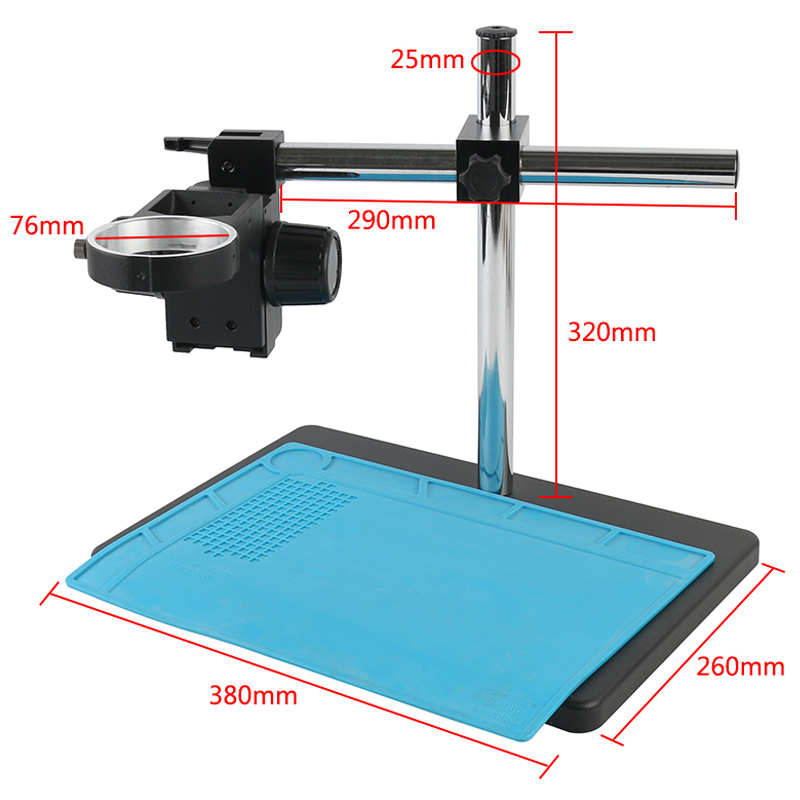

Big Stand
USB Cable
Power Supply Adapter
0.5X Microscope Auxiliary Objective Lens (Working Distance: 165mm)
2.0X Microscope Auxiliary Objective Lens (Working Distance: 40mm)
1.0X Microscope Auxiliary Objective Lens (Protective Function Lens)

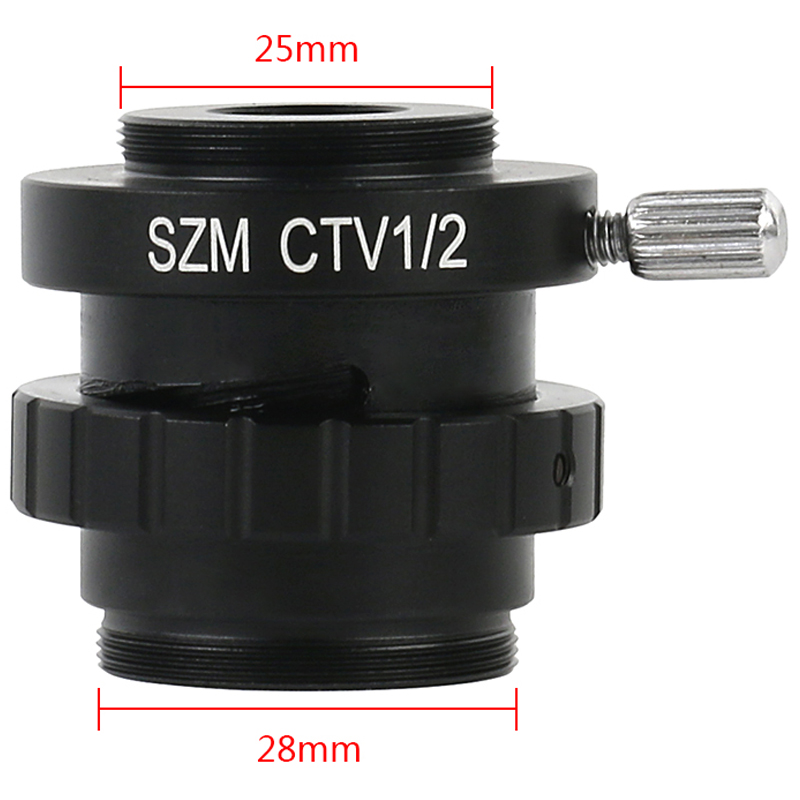

1/2 Adapter Reduce Lens (optional)
|
