Name: CG FC200 ECU Programmer Full Version
Description:

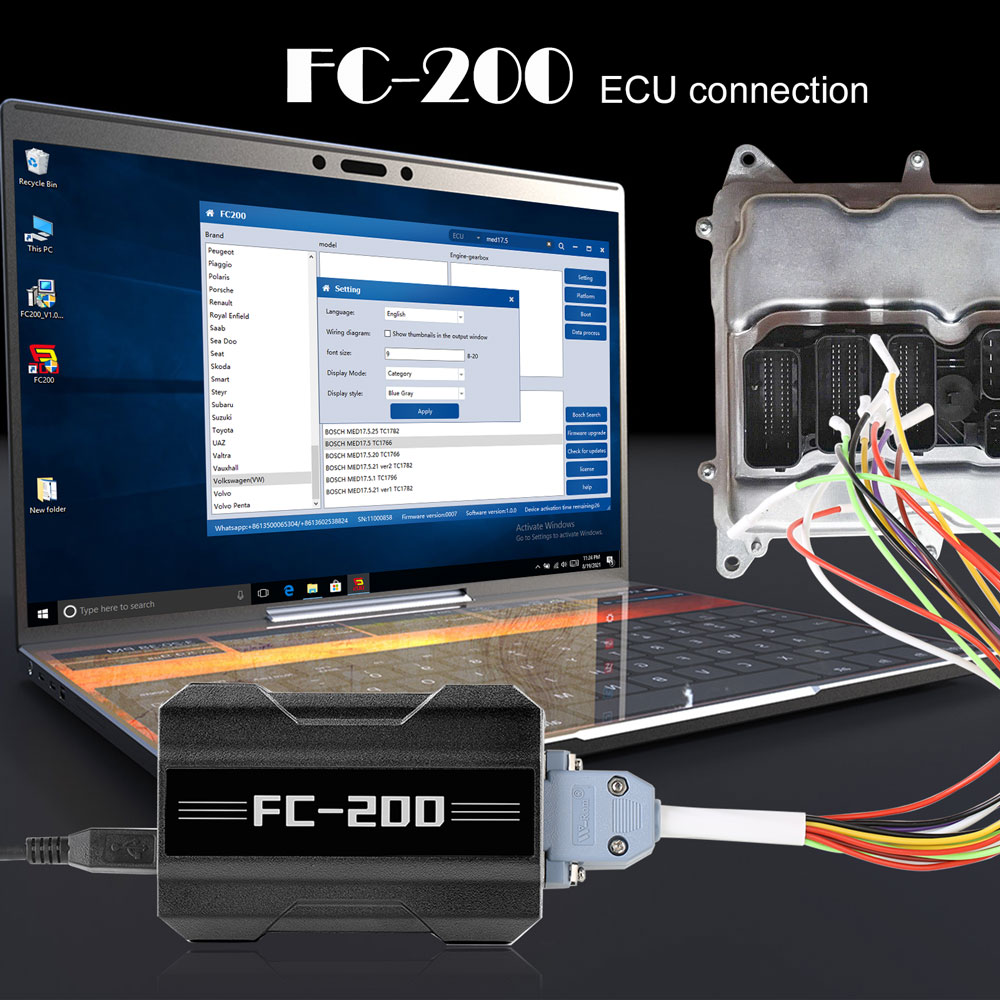

FC200 ecu programmer is new device which is designed for ECU/EGS clone, supports functions including Data Reading and Writing, ISN Acquisition, Disassembly Matching, Module Clone, VIN Modification and DTC Shielding ect.
FC200 supports 4200 kinds of ECU, 3 types of operation modes, and covers 80% of the models at the market.
Features:
1. No need to open shell, no punch, keep the original parts, support 4200 kinds of ECUS/EGS, involving 80% of the models on the market.
2. Data loss prevention, automatic verification, 100% accurate analysis of BMW's ISN code, support for VIN code modification and data cloning of various models.
3. Exclusive support for DTC shielding and function shutdown, exquisite design, adapt to various operating environments, FC200 is your trusted auto repair assistant.
4. Update Version of AT200, with All License Activated and Free Update Online for one year.
Software Update: free update online for one year
Supported Languages: English, French, German, Spanish, Turkish, Polish, Simplified Chinese, Traditional Chinese
Powerful Functions:
1. Original parts Protection
FC200 supports OBD and platform mode for more than 98% ecu and EGS, no need to open shell, no punch, protect original parts of the vehicle.
2. Smart Identification
The "identification" function can help users diagnose whether the ECU module is communicating and check whether the wiring is wrong.
If ECU module is not damaged and can be communicated, wiring is correct and identification is successful, can read chip and firmware information.
3. Module Clone
Supports ECU / EGS reading & writing and modules clone, synchronization matching free, no need online programming. Flash data by area, automatically check, protect chips and modules furthest.
4. ISN Reading and Writing
Supports all BMW series (including MINI) ECU ISN code acquisition , convenient for all keys lost matching and anti-theft fault maintenance.
5. VIN Writing
Solve the problem of double VIN or VIN mismatch of vehicles, convenient for vehicle maintenance.
6. Data Processing
1). Support data analysis and modification for the 4th and 5th generations of Audi / Seat / Skoda / Volkswagen ECUs.
2). Turn off anti-theft system for Bosch MED/EDC17 series ECU.
3). TPROT off function of Bosch VAG MEDC17 series, BMW / MINI MEVD17 / EDC17 series, Hyundai / Kia EDC17/MED(G)17 series.
Highlights:
1. Auto ECU Programmer for repair necessary-Support BMW ECU Data reading, writing and clone.
Effectively solve the problem of replacing the second-hand computer after the damage of BMW ECU control unit, just need to read the original computer data and then clone it.
Support almost all the BMW ECU model for reading and writing: MSV90/ MSD85 MSD87 N20 N55 B48 B58 etc.
Successfully make up the market for BMW ECU reading and writing equipment, save you high equipment costs.
2. Auto Locksmith necessary - Support BMW IMMO functions, Read BMW ISN Code by OBD.
Quickly solve the problem for data collection of BMW all key lost.
With more stable and efficient unremovable functions.
If you want to do all key lost for BMW 3 Series 5 Series 7 Series X5 X6 GT535 Six-cylinder engine, must need ISN code to program the keys.
3. FC200 not only support BMW ECU but also support over 3000 of ECUs like KTAG, Kess, Kessy, Dimsport etc.
4. Bosch search: Free to find out what ECU type.
5. With CAN-BUS, and No Disassembly (Platform Mode) and Boot mode

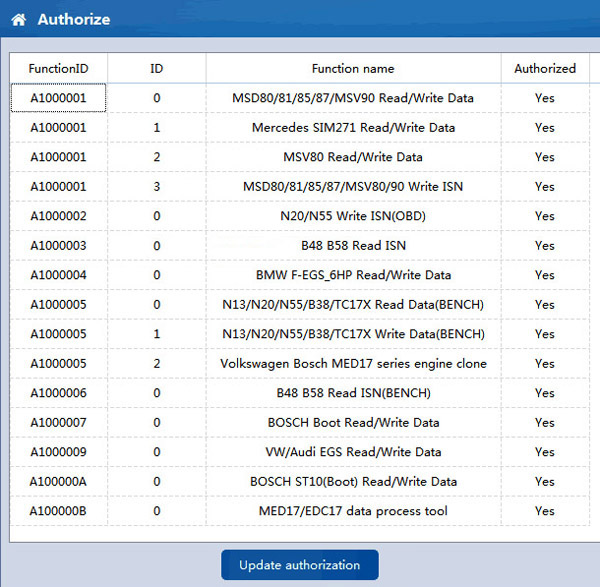

6. Full version with All License Activated and Free.
Software Features:
1. Interactive Software Interface
Brand - Model - Engine / Gearbox - ECU interface structure to help users save time and find the operating directory accurately.
2. Built-in Model Search Function

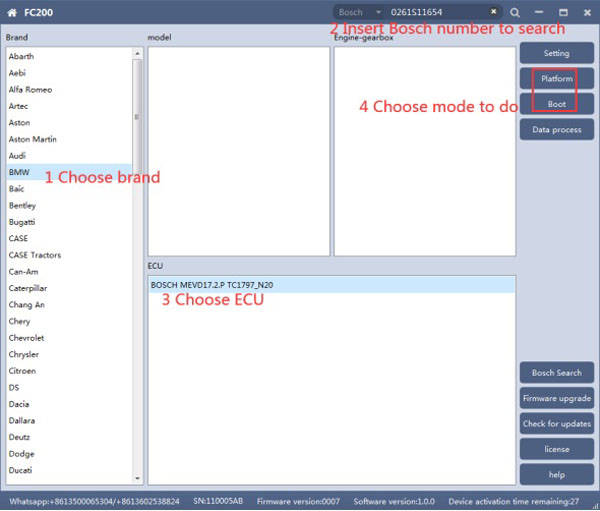

Support ECU model and Bosch search by number, avoid the trouble of level selection, and enter the function interface as quickly as possible.
3. ECU Search

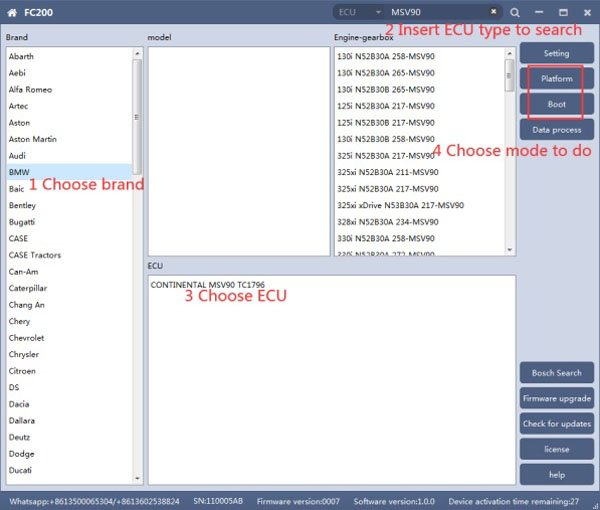

Take the BMW MSV90 ECU as an example, First select "BMW", select "ECU" as the search condition, enter "MSV90", click the search button, and the ECU type will show up. Same search procedure for Bosch ECUs.

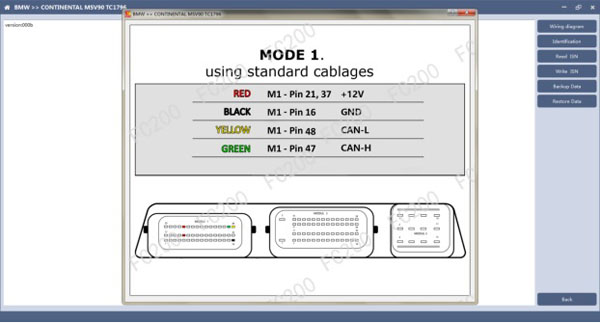

4. Visualized Wiring Diagram
1:1 simulation, bright colors, to avoid wiring errors.
Hardware Features:

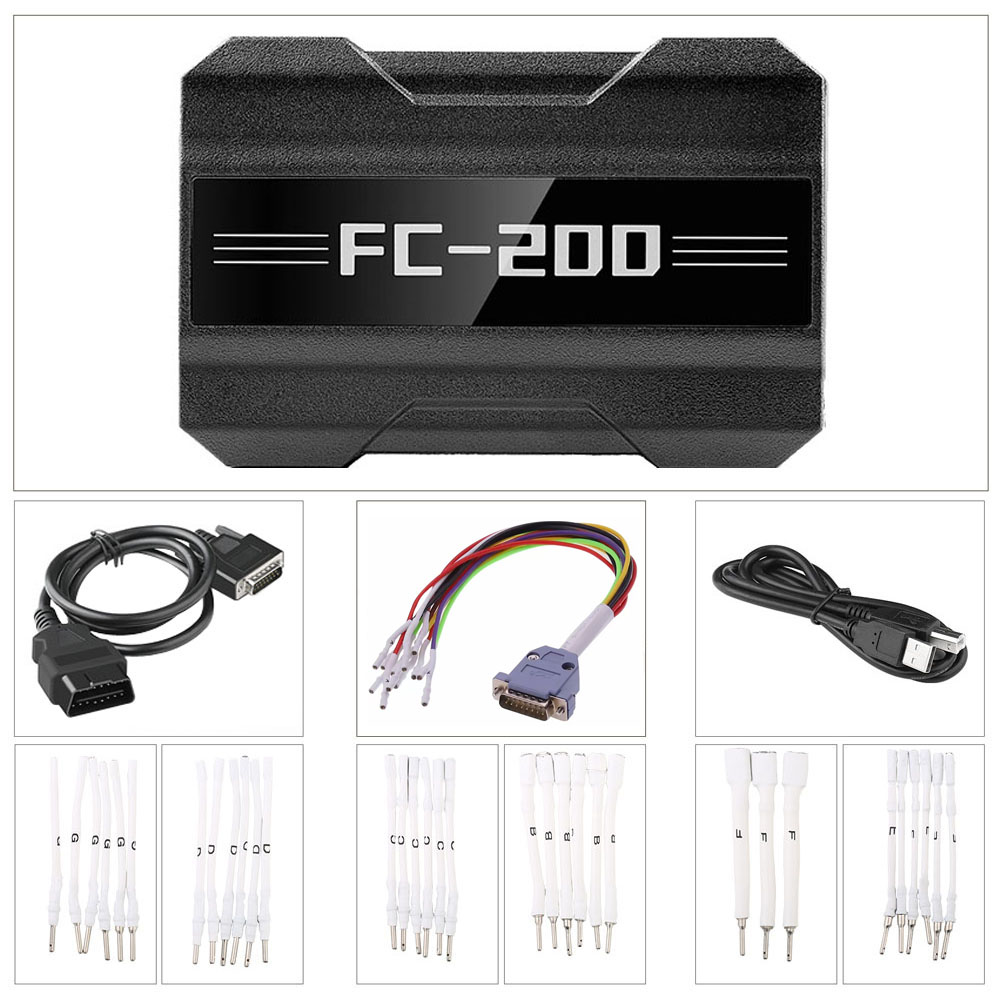

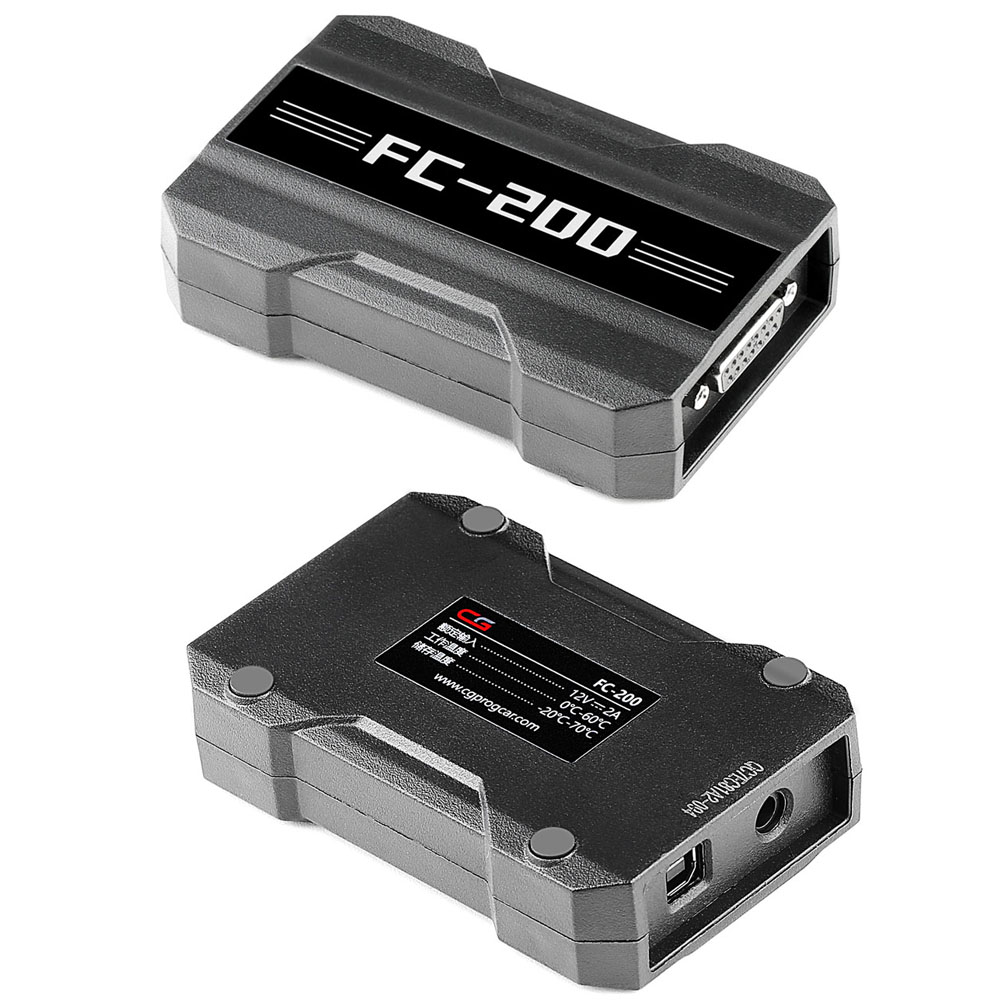

Main Unit
1. Integrated injection of polymer materials, professional customized internal circuit boards, national patent certification.
2. Exquisite design, easy to carry, can shield surrounding interference signals, adapt to various operating environments.
3. There are 3 expansion ports for peripherals, which are automatically diagnosed and identified. They are 12V power port, USB port and DB15 port.The DB15 port can be connected to a free-dismantling adapter and OBD cable.
Adapters

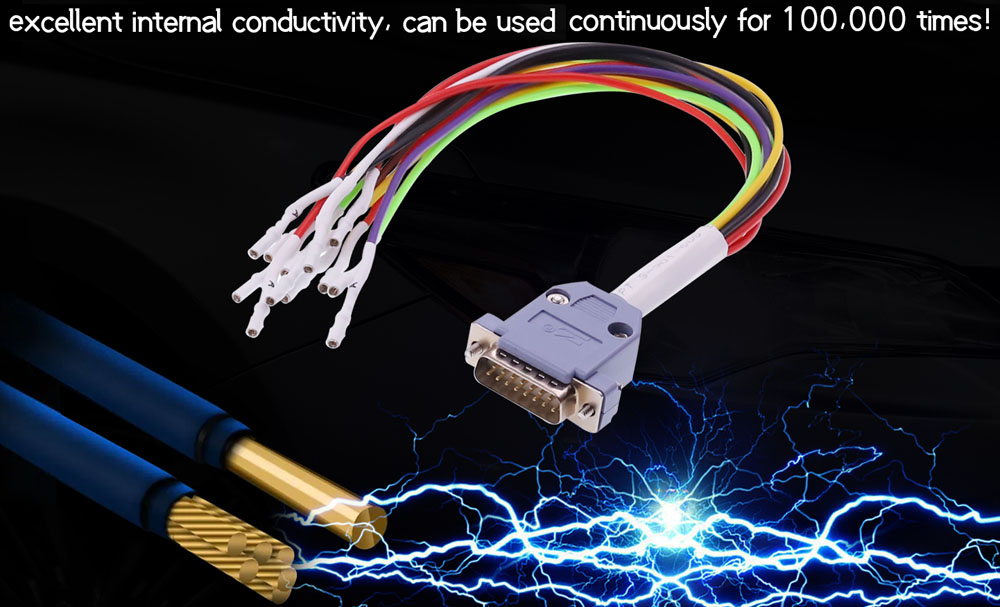

1. Vehicle-grade wiring harness, made of synthetic metal, has excellent internal conductivity, and can be used continuously for 10,0000 times.
2. Tight design, seamless connection between ECU and host to ensure continuous communication and escort your operation.

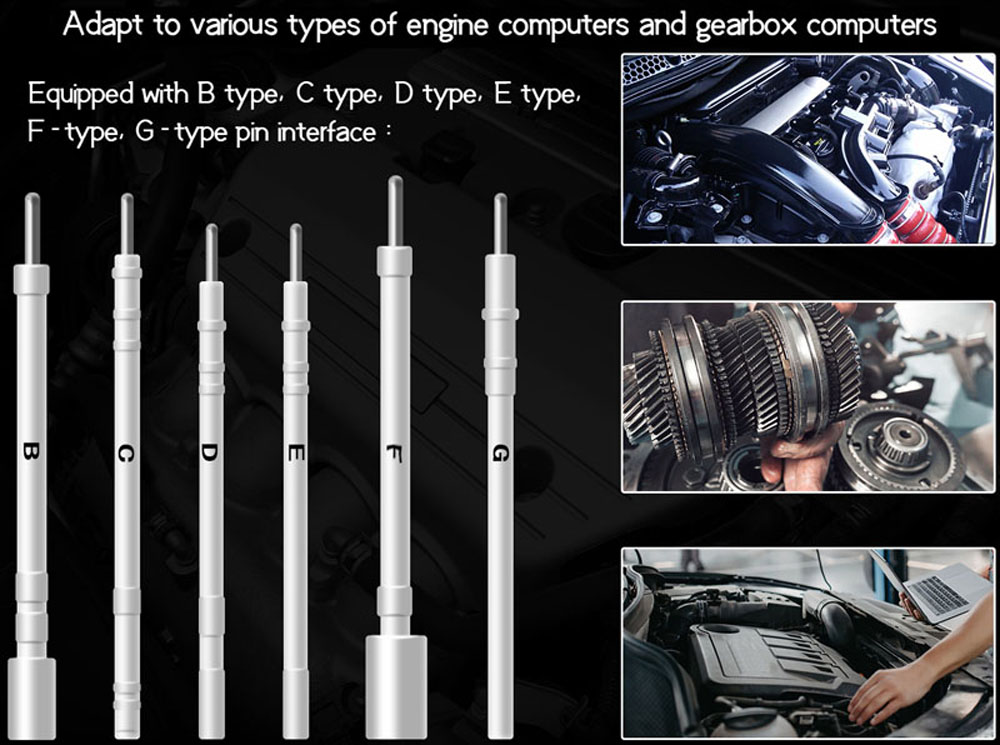

3. Equipped with B-type, C-type, D-type, F-type and G-Type pin interfaces, suitable for many types of ECU and EGS.

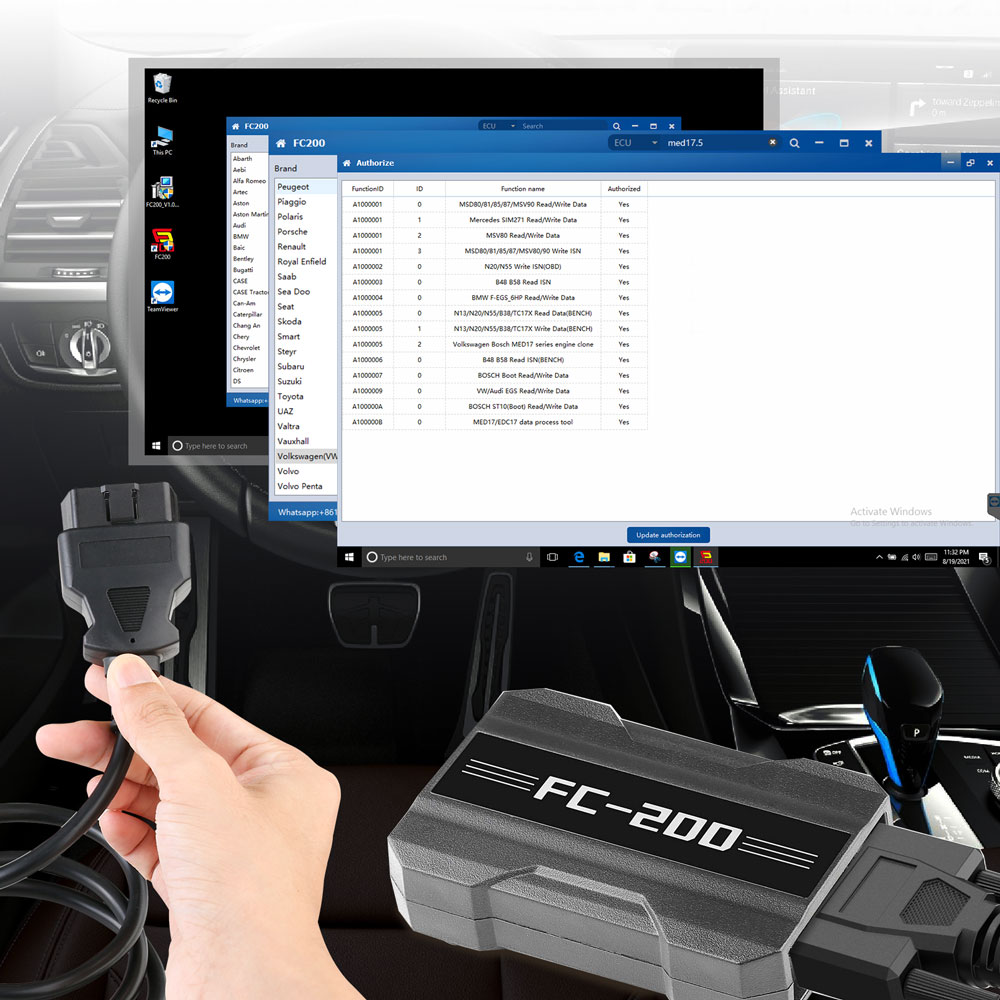

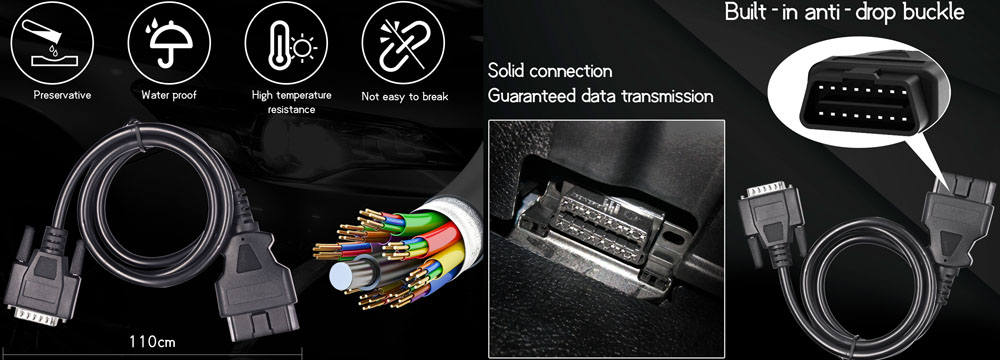

OBD2 Cable
1. FC200 OBD2 cable mainly suitable for BMW B48 / B58 ECU at present, read ISN via OBD without disassembly.
2. 110cm length, made of synthetic material, resistant to high temperature water-proof, anti-corrosion is designed according to OBD port of the vehicles, built-in anti-falling buckle make connection stable.
Software Update Log:
V1.2.1.0 Registered Version (2024.06.25)
1. Added China DELPHI ECU, supporting OBD and BENCH modes:
MT20U MC912DT128
MT22U MC9S12XET256
MT20U2 MC9S12KG256
MT22.1 MC9S12XEQ512
MT22.1.1 MC9S12XET256
2. Added DELPHI ECU:
BENCH mode:
China DCM7.24
China DCM7.1AP
Hyundai/Kia DCM7.1AP
Tata DCM2.5
BOOT mode:
DCM2.7AP
3. Added DENSO ECU:
Toyota:
GEN3 R7F701202
GEN3 R7F701216
Mazda:
Pxxx SH72543
S5xx SH72546
SHxx SH72543
Suzuki:
33920-xxxx_1N83 MPC5746
4. Add PFlash verification function to Denso ECU
5. Add PFlash/ExtFlash verification function to BOSCH MPC5xx ECU
6. Optimize Flash verification function for BOSCH MG1/MD1 ECU
-----------------------------------------------------------------------------------------------
V1.2.0.0 Registered Version (2024.05.11)
1. Added CONTINENT type ECU: SID209, SIM2K-341 (ECU)
2. Optimize the verification function of BOSCH/CONTINENTAL/KEFICO/DELPHI TC17 ECUs
3. MED17_China adds a new password reading function
4. Added BOSCH TC17 ECUs:
MINI: MED17.2.2
Ford/MB: DCU17PC01
Hyundai: DCU24
Peugeot: ME17.9.53
BOBCAT: EDC17C87
McLaren: ME17.8.33
5. Added Renesas chip ECU:
Honda: KEIHIN 37820-xxx-xxx SH7058, DELPHI DCM3.7AP_CHINA SH72544
FAW: DENSO TD112700-xxxx SH72530
Hyundai: DENSO 33910-05005 adds the function of reading DFlash
6. Added Delphi TC2xx ECU: DCM7.1A/DCM7.1B
-----------------------------------------------------------------------------------------------
V1.1.9.0 Registered Version (2024.03.23)
1. Add BOSCH ST10 ECU and add verification function:
Abarth: ME7.9.10
Alfa Romeo: ME7.9.10, MED7.1.1
Audi: ME7.5.30, ME7.5, MED7.5.10
Bentley: ME7.1.1
BMW: ME7.2
Chery: ME7.9.7, M7.9.7, ME7.9.71
Chrysler: ME2.8.1
Peugeot Citroen: M7.4.4, ME7.4.4, ME7.4.9, ME7.4.6, VALEO_J34P
Ferrari: ME7.1.1
Fiat: ME7.9.9, MED7.6.2, ME7.9.10, MED7.1.1, VALEO_J34P
Geely: M7.9.7
Honda: ME7.9.7, ME7.9.3
Hyundai Kia: M7.9.7, ME7.9
Lancia: MED7.6.2, MED7.1.1, ME7.9.10
Maserati: ME7.1.1
Mercedes: ME2.8, ME2.8.1
Mitsubishi: ME7.7.1
Opel: ME7.6.4
Polaris: M7.9.7
Porsche: ME7.5, ME7.8.1, ME7.2, ME7.8
SAIC: ME7.8.8
Volkswagen Seat Skoda: MED7.5.10, ME7.5.30, ME7.5
Toyota: ME7.9.5
Volvo: ME7.0, ME7.0.1
2. Added DENSO ECU:
Mazda: DENSO R2AA/R2AB/R2AC/R2AJ/R2AK/R2AW/R2AX/R2BG/R2BP/R2BR/R2BS, DENSO RF7x/RF8x
Hyundai/Kia: DENSO 33910-05005
Suzuki: DENSO 33920-67P0
3. Other new ECUs:
Chevrolet/Holden/Opel: DELPHI DCM3.7AP
Suzuki: ME17.9.64
Ford: MG1CS017
4. A new button for "Vehicle Fault Code Support List" is added to the main interface.
BUG FIXED:
1. Fix the problem of EEPROM reading error in ME7.5.20/ME7.5.10/ME7.5 and other ECUs
2. Fix the problem that some ECUs such as DQ380/1 report a program error when writing after verifying PFlash.
3. Fixed the problem of failure to modify VIN in new versions of Mercedes-Benz MED17.7.3/ME17.7.7 and Volkswagen MED17.5.25/MED17.5.5 models.
-----------------------------------------------------------------------------------------------
V1.1.8.0 Registered Version (2024.02.01)
1. Added Hyundai/Kia TCU: TC60.x.x
2. M7/ME7/M17 ST10F725/6 ECU adds the function of turning off the anti-theft system
3. GM E80 adds BOOT mode
4. BMW's new ECUs: MEVD17.8.4, ME17.2.42
5. Peugeot/Citroen MED17.4.2 TC1767 new platform mode
6. EDC17C84 adds the function of modifying VIN
BUG FIXED:
1. Fix the problem that some MD1CS089 cannot start the car after reading and writing data.
2. Fix the problem of Mercedes-Benz 9GT TCU cloning failure
3. Fix the problem of failure to write PFlash in GM 6T/6L gearbox
4. Fix GPEC2A and other unrecognized problems
5. Fix the problem that some ECUs such as EDC16C1 and EDC16CP35 fail to write to ExtFlash.
6. Volkswagen MED9.1 MPC563/4 supplementary wiring diagram
7. Hyundai/Kia EDC17CP14 corrected reading password wiring diagram
8. Volkswagen MED17.5 platform mode supplements other wiring diagrams
9. IVECO EDC17C69 supplementary wiring diagram
-----------------------------------------------------------------------------------------------
V1.0.1.0 (2021.09.11)
1. Added SH725XX gearbox computer clone: read and write MAPS, read and write EEPROM, backup data, and restore data.
(1) Support all ZF_8HP gearbox computer clones: Alfa Romeo /Alpina /Aston Martin /Audi /Bentley /BMW /Chrysler /Dodge /Great Wall /Iveco /Jaguar /Jeep /Lamborghini /Land Rover /Mann /Maserati /Porsche /Rolls-Royce /VinFast /Volkswagen
(2) Support VW/Audi/Skoda/Seat DQ380/DQ381 gearbox computer clone
(3) Support Benz/Nissan 9GTronic (VGS-NAG3) gearbox computer clone
(4) Support MINI/Renault/BMW 7-speed dual-clutch (Getarg 7DCT) gearbox computer clone
2. Added BMW gearbox clone model:
DKG(TC1766): Read and write DFLASH, EXT DFLASH, PFLASH
3. Added ECU (Chevrolet, Opel, Vauxhall) to read and write VIN: EDC17C59
4. New sub-function of BMW 6HP: Erase reset function
5. Added Bosch engine boot mode: MEVD17.2.7
6. Added Delphi engine boot mode: CRD2.x TC1797, CRD3.x TC1797
7. Optimize the engine computer read and write speed
8. Fix some bugs and optimize software performance
|
