Description:

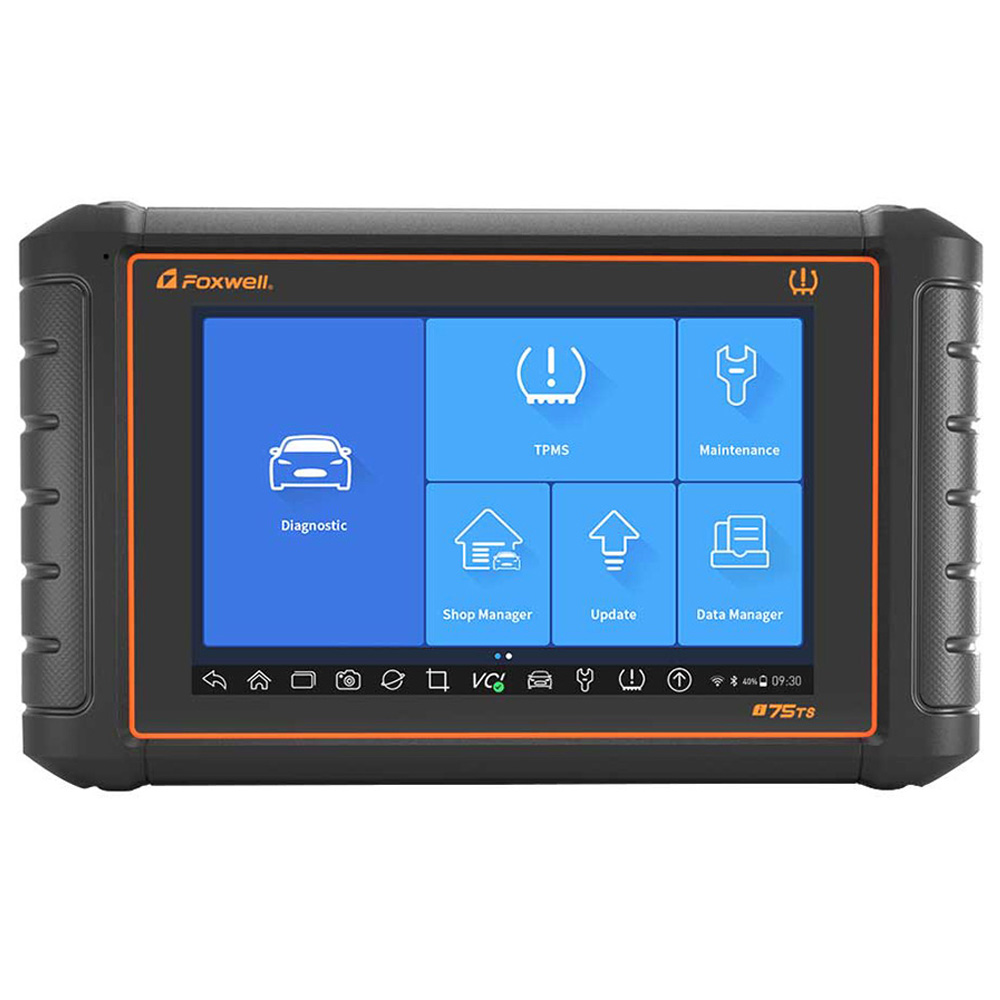

Latest tablet device Foxwell i75TS stands for Foxwell new generation of intelligent diagnosis revolution in automotive aftermarkets. The device does not only continue powerful OE-level diagnosis strength of Foxwell premier diagnostic platform series, but also initially integrates with TPMS service function, including TPMS Health Check, Sensor Activation & Programming and TPMS Relearn. It brings great convenience and efficiency for global workshops and technicians.



Supported Languages:  English, French, German, Spanish, Portuguese, Russian, Italian, Dutch, Polish, Swedish, Korean, Japanese, Traditional Chinese



Software Update: free update online for 3 years; for further update, USD400/1 year, / USD700/ 2 years / USD900/3 years



Highlights:



1. Compatible with the latest 2021 models, including cars, SUVs, mini vans,light-duty trucks sold worldwide.

2. Full system OE-level diagnostic to all systems including powertrain, chassis and body systems.

3. Supports 35 most commonly required service features like Brake Deactivation, Service Resets, and Transmission Adaptations

4. Provides a complete solution for TPMS service to activate / decode universal TPMS sensor and program the Foxwell T10 TPMS sensor and perform TPMS sensor relearn procedures.

5. Supports adaptations and control module coding for BMW, Toyota and Ford.

6. Key coding for several vehicles



Features:



Easy To Use

i75TS comes with menu-driven navigation. The operation process and vehicle information are so user friendly presented that you can quickly navigate through to find what you need to get the vehicle fixed.No training is needed.



Automatic VIN Reading

i75TS offers a variety of VIN recognition methods, eliminating the need for navigating through complicated car identification process. It saves your time and increases your productivity.



Auto Scan of Vehicle Systems

Auto Scan finds the electronic systems installed in your car automatically and provides you with an overall look at your vehicles status including trouble codes just in seconds.



Updates At Your Fingertips

One touch update via WIFI makes the scanner keep the latest system status at all times



Find Problems More Accurately

i75TS shows live vehicle sensors data in text, graph and gauge formats and allows you to focus on any suspicious or symptom-specific data parameters.



You can view multiple PID graphs simultaneously and merge them into one coordinate, so you can easily see how they affect each other, providing you with the most comprehensive and functional look at live data possible.



The unique data parameter self-learning technology from Foxwell gives you the ability to learn good live sensor data values during idle, KEKO, acceleration, deceleration, part load and heavy load on each vehicle comes into your shop and records them for future reference.



Adaptations and control module coding

i75TS cannot only read your codes, but it can also actuate components, run system tests, program control modules.It allows you to use the scan tool temporarily activate or control a vehicle system or component.



Provided that a module can be re-coded, i75TS allows for the coding and programming of a replacement control module or changing previously stored incorrect coding as expensive factory tools do.



Built-in Complete TPMS Functions

i75TS integrates TPMS antenna module and is designed to offer complete solution for TPMS service, including activate /decode universal TPMS sensors, program Foxwell T10 TPMS sensor, diagnose the original car tire pressure monitoring system and perform TPMS sensor relearn procedures etc. to help technicians complete multiple projects quickly with one wireless and touch screen scan tablet.



TPMS Service

Activate / Decode TPMS Sensors; Program Foxwell T10 TPMS sensor; Diagnose car tire pressure; TPMS sensor relearn.



Wireless Connection

The built-in Bluetooth module provides easy connection to vehicles in any location throughout the shop and lets you increase your productivity. It allows technicians to work comfortably inside, leaving bad weather outside, and allows the scanning of a vehicle that will not fit in a bay or is up on a lift.



Offers Excellent Shop Management Capability

The history diagnosis saves your time and increases your productivity.i75TS stores records of tested vehicles including vehicle information and DTCs from previous tests.



It also provides direct access to previously tested vehicles and allows you to restart a diagnostic session without the need to do vehicle identification again.



i75TS lets you create, edit and save customer information. It helps you organize alt customer information that is associated with the vehicle test records, which is a great support for the management of daily workshop business.



Instant Support

If a problem is encountered with the tool, upload the debug file and the problem via the i75TS debug log collection, and the Foxwell technical team will update the most appropriate solution in the shortest possible time for vehicles or systems.



Functions:



1. Full System Diagnose:

Read and Clear Codes of All Electronic Modules, help you accurately identify car problem! This option allows you to detect whether the system parameters are normal or not which Include :



ABS System,

Engine System,

SAS System ,

TPMS System ,

IMMO System ,

Battery System ,

Oil Service System ,

SRS System

DPF System

Air Conditioning System

Transmission System

ect...



2. Full System Active Test / Bi-directional Control

Also known as Actuator Tests, are bi-directional diagnostic tests on vehicle systems and components. The tests let you use the scanner to temporarily activate or control a vehicle system or component, and when you exit the test, the system/component returns to normal operation.

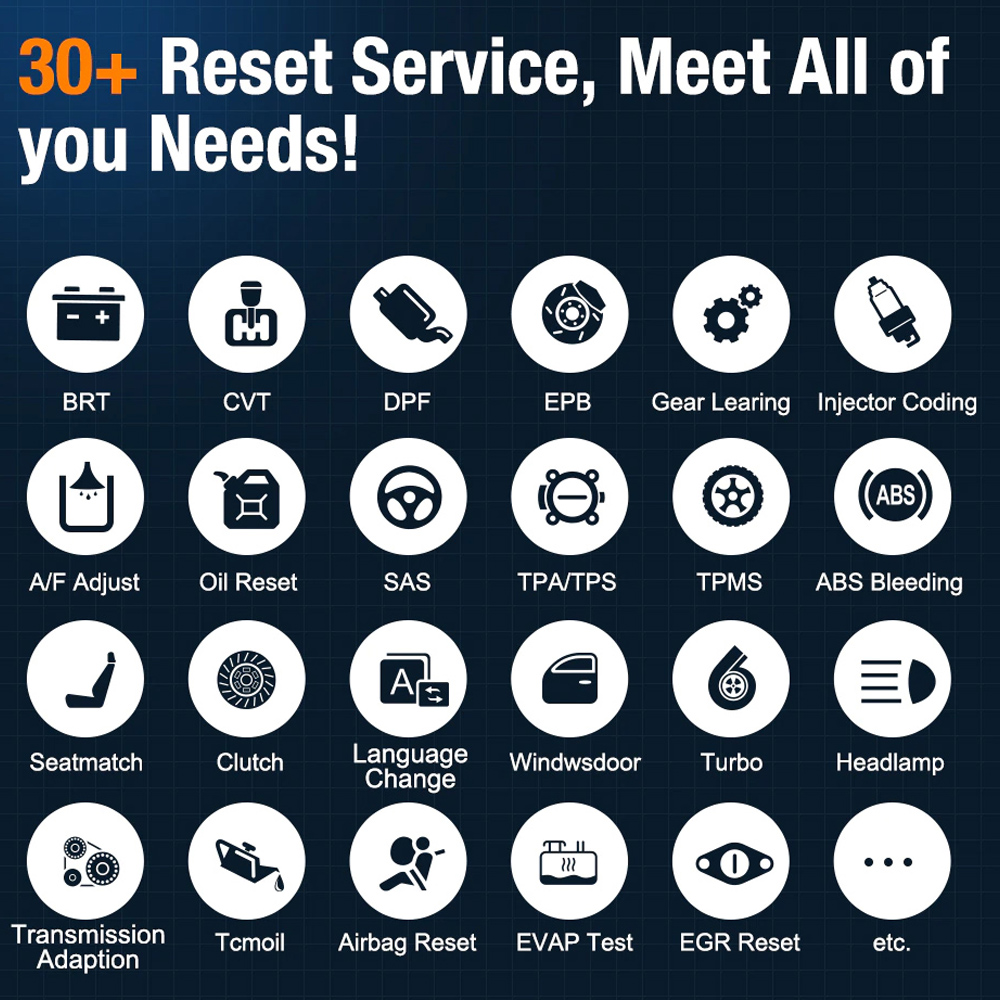

3. Support 35 Special Reset Functions

1). BAT Battery Service

Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.



2). CVT (Continuously Variable Transmission)

On these CVT transmissions, the timing of the release and application of elements (clutch packs and bands) is controlled by the transmission control module (a microprocessor).



3). DPF Diesel Particulate Filter Reset

Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.



4). EPB Electronic Park Brake Reset

It is important in the maintenance of electronic braking system's safety and efficiency.



5). Gear Learning

The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.



6). Injector Coding

Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.



7). Cluster Calibration

This function allows you to revise the data and write the original data into new instrument.



8). Oil Reset

Allows you to perform reset maintenance mileage and data intervals for a new calculation of Engine Oil Life system once changed the oil.



9). SAS Reset (Steering Angel Sensor)

Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.



10). TPS System

Also called TBA, throttle body alignment. Using the throttle position sensors in the throttle body, the ECU learns the full open and full closed positions through various states (idle, part throttle, WOT) known as a Throttle Body Alignment (TBA).



11). TPMS Reset (Tire Pressure Monitoring System)

Makes TPMS sensor in displaying sensor IDs from the vehicle ECU, inputting TPMS sensor replacement IDs and activate TPMS sensors.



12). ABS Bleeding ( Anti-lock Brake System)

Helps clear the fault Airbag memories to reset.



13). PFP



14). Seat Match

A memory seat is essentially an electrically-adjustable car seat which can be moved into pre-set positions at the push of a button. As a result of the removal of the DCC fuse, the "driving position memory" function of the driver and passenger side seat will be inoperative due to the loss of seat.



15). A/F Adjust

Correspondingly change the fuel supply to change the steam production of boiler and maintain the energy balance in the combustion process.



16). Clutch Adaptation

Importance of clutch pedal free-play. Anything less than the correct amount of free play (or clearance) will result in clutch slip, because the pressure plate will be unable to exert its full pressure on the friction plate, clutch linkage adjustment to compensate for clutch wear.



17). Language Change

This function is used to change the system language of the vehicle central control panel.



18). Windows Calibration

This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window.



19). Turbo

The routine is required if the secondary turbo charger is replaced. This will learn the offset values for the turbine shut-off value.



20). Headlamp

Allowing for adaptive headlights to be relearned.



21). Transmission Adaption

This command allows the adaptive shift points to be relearned.



22). TCMOIL

This routine is used to clear the oil degradation and downgrade counter.



23). Airbag Reset

This function resets the airbag data to clear the airbag collision fault indicator.



24). EVAP Test/Smog Test

The EVAP system monitor checks for fuel vapor leaks by performing either a pressure or vacuum test on the fuel system.



25). EGRRESET（Exhaust Gas Recirculation）

A. Reduce the exhaust temperature, reduce the production of NO compounds and CO carbon monoxide.

B. Can appropriately reduce fuel consumption and improve engine efficiency



26). ODS Initialization



27). OPDS Initialization



28). OSTEST

Nox sensor is a sensor used to detect the content of nitrogen oxides (Nox) in engine exhaust. lf the Nox fault is re-initialized and the Nox catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine ECU.



29) Fuel Pressure



30) Change Tire Size



31) GSENSOR



32) LIMIT



33) Power Balance



4. Complete TPMS Functions for Boost in TPMS Work



This tablet automotive diagnostic tool is built with complete TPMS Functions for you to quickly look up the tire sensor IDs from the vehicle ECU, knowing the running status of Tire Pressure Management System, further improving the diagnostic efficiency.



1). TPMS Check: allows users to activate TPMS sensors to view sensor data-sensor ID, tire pressure, tire temperature, battery condition and sensor location.

* Read and clear diagnostic trouble code of TPMS and view its live data stream;

* Perform the tire pressure and temperature resetting after TPMS maintenance;



2). TPMS Diagnosis: The Diagnosis function is used to check the status of the TPMS system. This function requires connection with the test vehicle.



3). Sensor Programming: The Programming function allows users to program the sensor data to the MX-Sensor and replace faulty sensor with low battery life or the one that is not functioning. There are four options available when programming MX-Sensor:

* Copy by Activation-Once the sensors mounted on the vehicle have been triggered and the sensor information displayed on the tool, the Copy by Activation can be used to program a new MX-Sensor.

* Copy by OBD -By using this function, the tablet will program the sensor IDs retrieved from the ECU of the test vehicle to the new MX-Sensors.

* Copy by Input-The Copy by Input allows users to program a new MX-Sensor with the ID of an original TPMS sensor.

* Auto Create-The Auto Create function is used to automatically create a random sensor ID to program a new MX-Sensor.



4). TPMS Relearn: This function is used to write the newly programmed sensor IDs into the vehicle ECU for sensor recognition. There are three ways for Relearn: Stationary Relearn; Active Relearn; OBD Relearn.



5). TPMS by OEM Part No.: If the sensor's OEM part number is known, this function is an efficient method to activate and program MX-Sensors.



5. Aadaptations and control module coding

i75TS can read not only your codes, but it can also actuate components, run system tests, program control modules.It allows you to use the scan tool temporarily activate or control a vehicle system or component.



Provided that a module can be re-coded, i75TS allows for the coding and programming of a replacement control module or changing previously stored incorrect coding as expensive factory tools do.



Supported Cars:



American

Chrysler, Ford, GM



Asian

Acura, Daewoo, Daihatsu, Fuso, Honda, Hyundai, Hyundai CV, Infiniti, lsuzu, Kia, Lexus, Mahindra, Mazda, Mitsubishi, Nissan, Perodua, Proton, Scion, Ssangyong, Subaru, Suzuki Samsung, Toyota



European

Abarth, Alfa-Romeo, Audi, Aston Martin, Bentley, BMW, Bugatti, Citroen, Dacia, EU Ford, Fiat, Ferrari, Jaguar, Lancia, Land Rover, Lamborghini, Maserati, Maybach, Mercedes Benz, Mini, Opel, Peugeot, Renault, Roll-Royce, Porsche, Saab, Seat, Skoda, Smart, Sprinter, Vauxhall, Volvo, VW, VW_CV.



Chinese

BJ Hyundai, Brilliant BMW, DF Honda, DYK, Ford China, GQ Fiat, GZ Honda, Mazda China, SAIC Skoda, SAIC VW, Toyota China, FAW Audi,FAW VW, DFXK/DFFG BAIC Motor, Brilliance, BYD, Changan, Changhe Suzuki, Changhe Auto, Chery, Karry, Rich, Rely, Chery_Ne, CMC,  FAW Daihatsu, Foton, FX Auto,  GAC Motor, Geely, Gleagle, Maple, Englon, Emgrand,  GM Brazil, Great Wall, Hafei, Haima, JAC, Jiangling, Land Wind, Lifan, Luxgen, SAIC Maxus, SAIC MG, Roewe,  SGWw, Soueast, TJ FAW, Zotye, Dorcen



Supported Protocols:



IS09141-2, IS014230-2, IS015765-4,K/L lines, Double K-lines, SAE-J1850 VPW, SAE-J1850PWM, CAN ISO 11898, High-speed / Middle-speed, Low-speed / Single-wire CAN, KW81, KW82, GM UART, UART Echo Byte Protocol, TP2.0, TP16, SAEJ1939, SAE J1708, Fault-Tolerant CAN



Specifications:



CPU: Quad-Core,2.0GHz

Operating System: Android

Memory: 2GB LPDDR4

Screen: 8 inch diagonal daylight readable color LCD screen with 1280*800 pixel

Touch with Gloves: supported

Hard Drive: 32GB

Communication Mode: Built-in WIFI 802.11 ac/a/g/b/n Wireless LAN / Micro USB 2.0 / OTG / USB2.0 / Bluetooth 5.0(10-20m)

HDMI: supported

Camera: 5 megapixels rear-facing

Battery: 8000mAh Lithium-polymer battery chargeable via 12V/3A USB power supply

Dimensions (L*W*H): 272*163*39mm

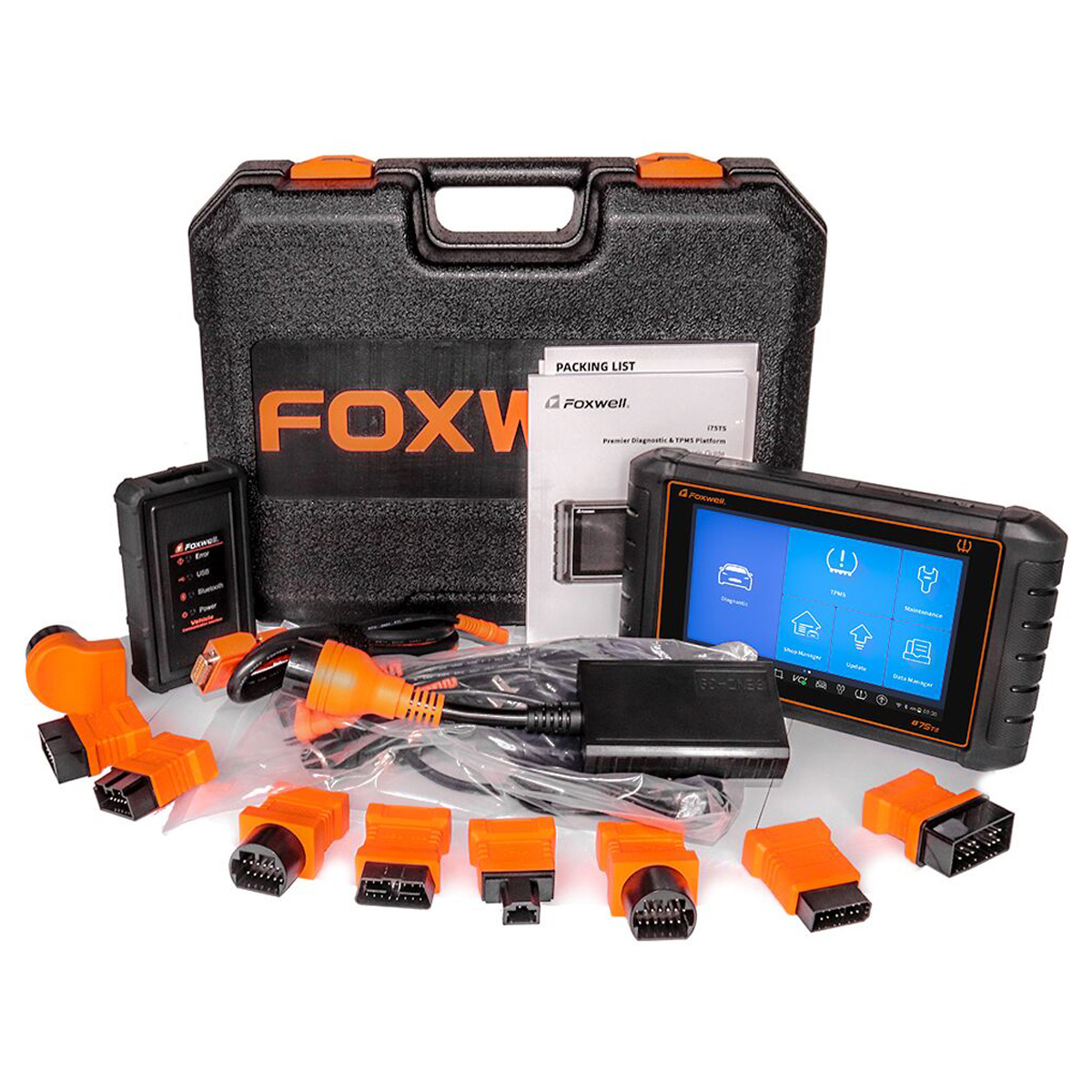

Packing List:



Foxwell i75TS Scanner

VCI Dongle

OBD-II Adapter

Diagnostic Cable

Cigarette Lighter

Nissan 14 Pin Adapter

Toyata 22 Pin Adapter

Audi 4 Pin Adapter

BMW 20 Pin Adapter

Fiat 3 Pin Adapter

GM / Daewoo 12 Pin Adapter

Honda 3 Pin Adapter

Kia 20 Pin Adapter

Mazda 17 Pin Adapter

Mercedes Benz 38 Pin Adapter

Mitsubishi 12+16 Pin Adapter

PSA 2 Pin Adapter

Toyota 17 Pin Adapter

Power Clipper Cable

USB Cable for VCI

USB Type C Cable

USB Charging Adapter

Sensor (8 pcs)

Magnet

Lighter Fuse

User Manual

Quick Start Guide

Warranty Card

Plastic Toolbox

Packing Box
