Description:



Autel MaxiSys MSOAK is compatible with the Autel MaxiFlash VCMI including the Autel MaxiSys Ultra, Autel MaxiSys MS919, Autel MaxiScope MP408 4-Channel Oscilloscope (sold separately).



Functions:



Current clamp measures a maximum current of 65A with a frequency up to 20KHz. It works with jaws that open to allow clamping around an electrical conductor. And the 650A AC/DC current clamp measures a maximum current of 650A with a frequency up to 400 KHz.



Coil on Plug Probe can catch the ignition waveform of automobile engine easily. The ignition waveform is a window, by which we can see what happened in the engine combustion chambers. It helps to determine whether the ignition plug needs to be replaced or cleaned.

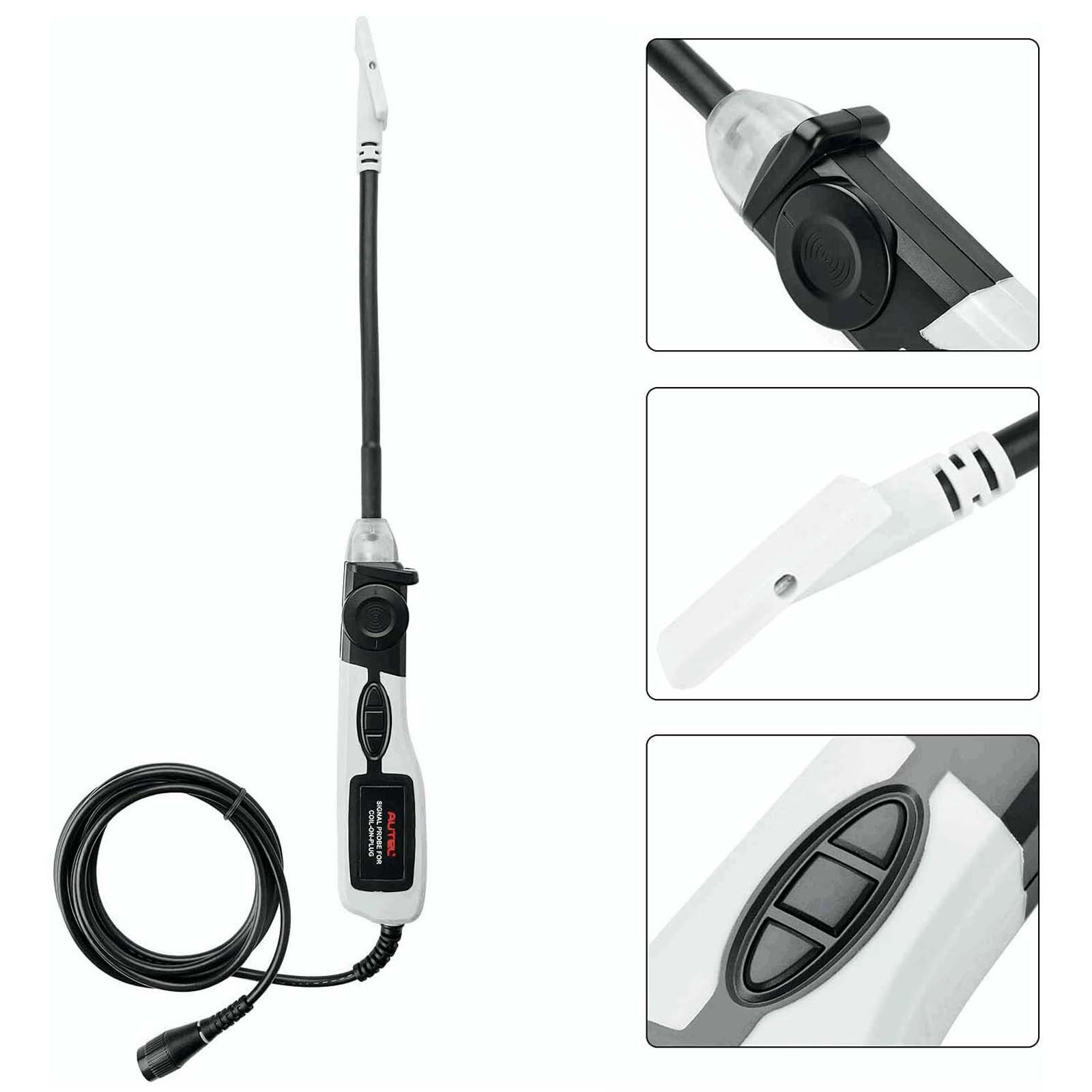

(COP) Coil On Plug Probe

It can catch the ignition waveform of automobile engine easily. The ignition waveform is a window, through which we can see what happened in the engine combustion chambers. It can be used with normal oscilloscope. Special anti-interference design, high accuracy of measurement. With highlight LED, can be arbitrary curved. Use it to check: ignition plug status; fuel injector; leakproofness of air cylinder; oil pollution; carbon deposition; storage battery.

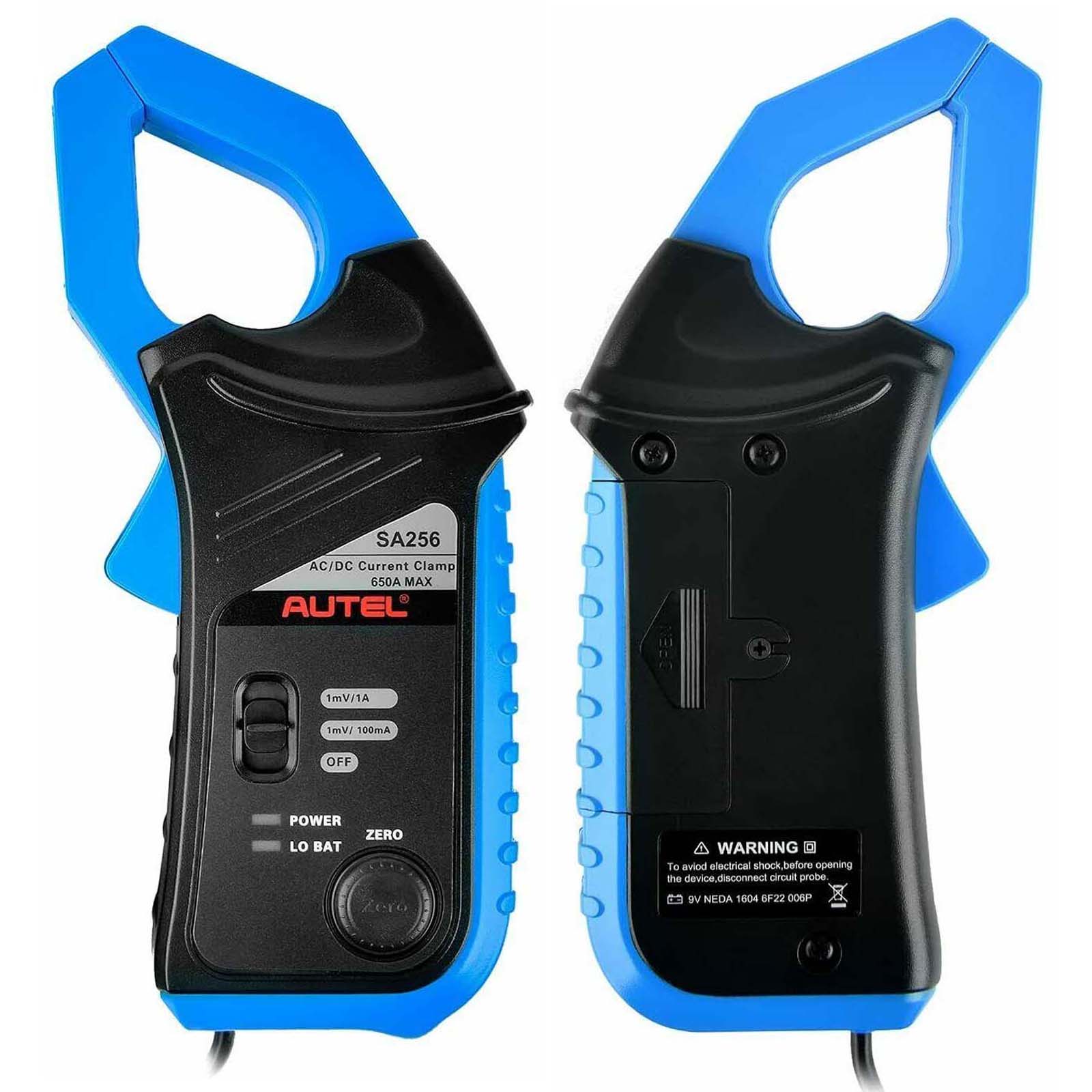

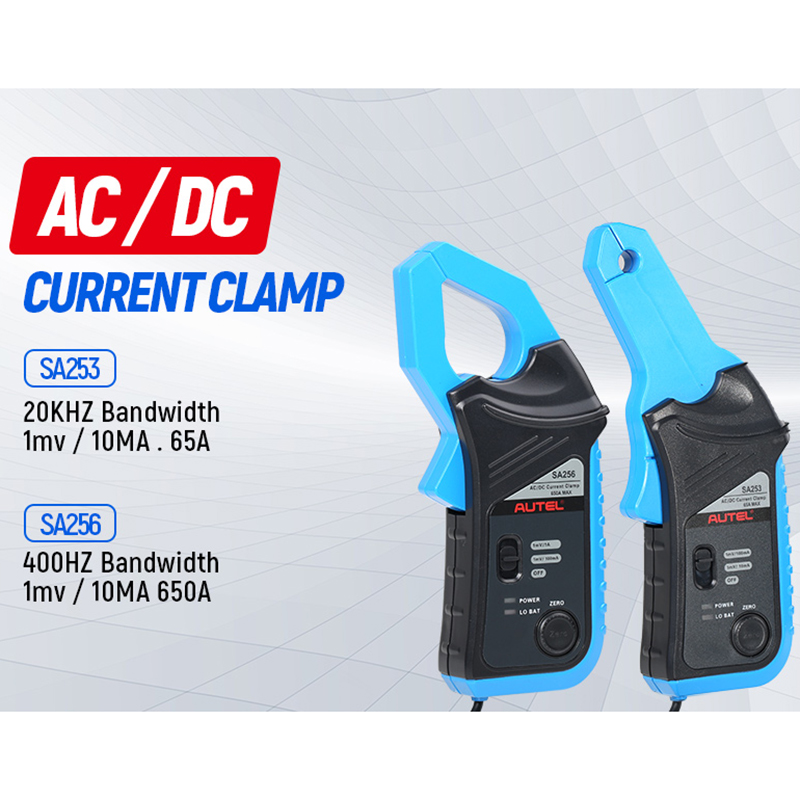

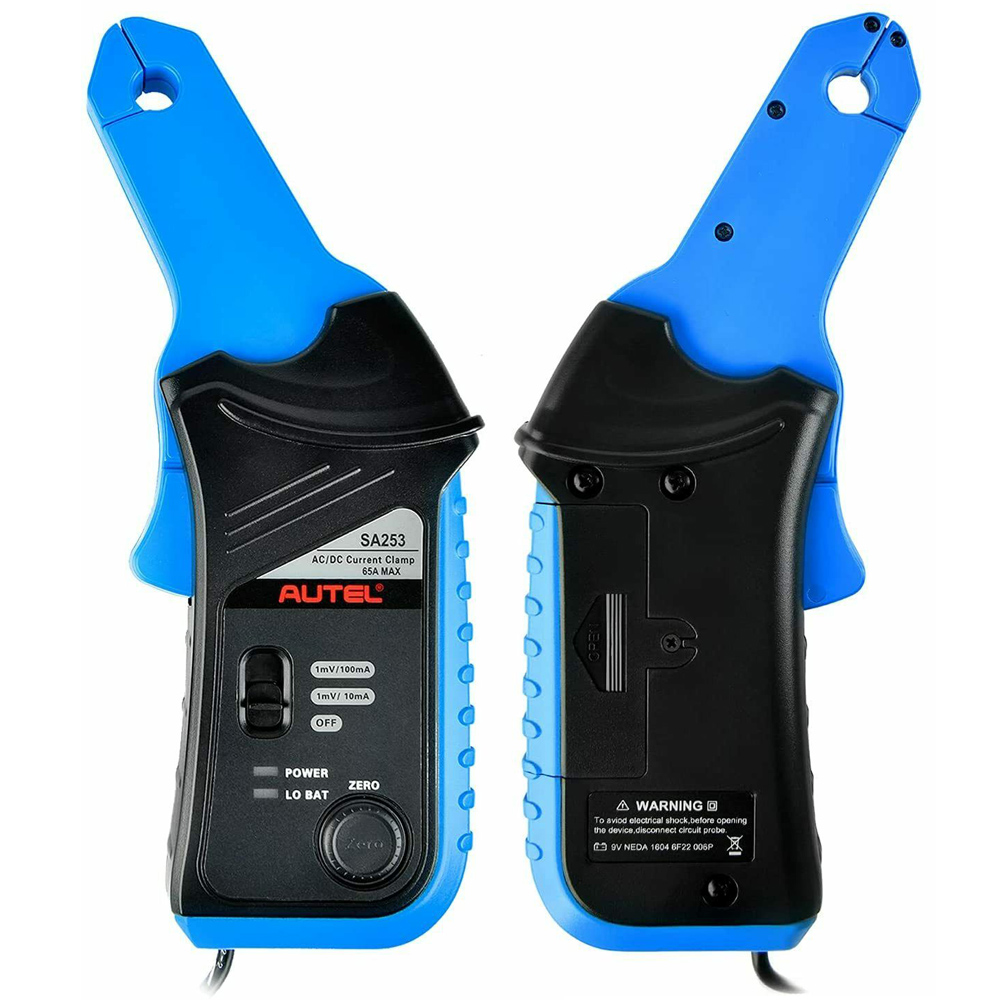

65A AC/DC Current Clamp & 650A AC/DC Current Clamp

When measuring AC or DC with the current clamp, you can connect it with a multimeter or an oscilloscope to directly read the current value without physical contact with the conductor. The current clamp measures a maximum current of 65A with a frequency up to 20KHz. It works with jaws that open to allow clamping around an electrical conductor. And the 650A AC/DC current clamp measures a maximum current of 650A with a frequency up to 400KHz.

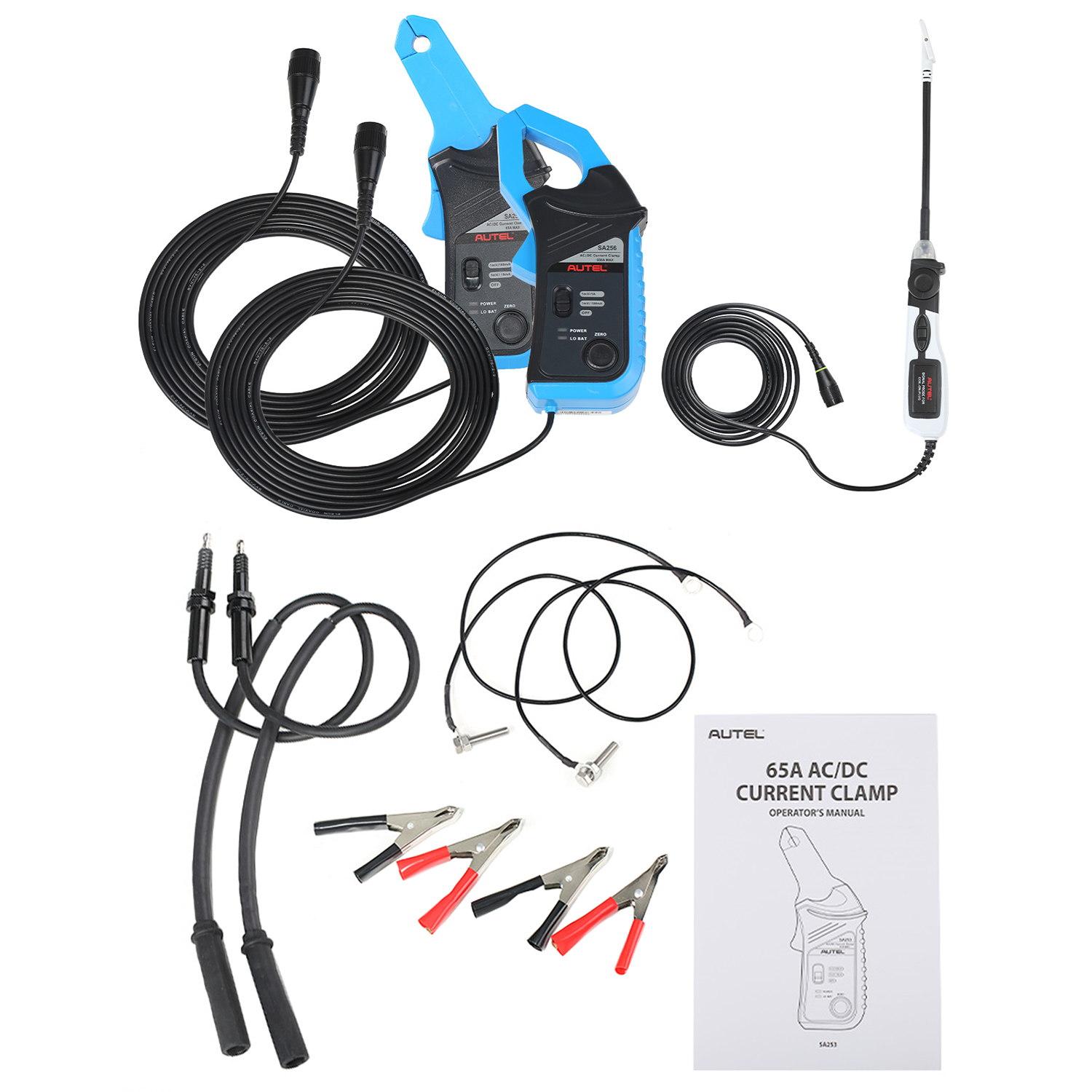

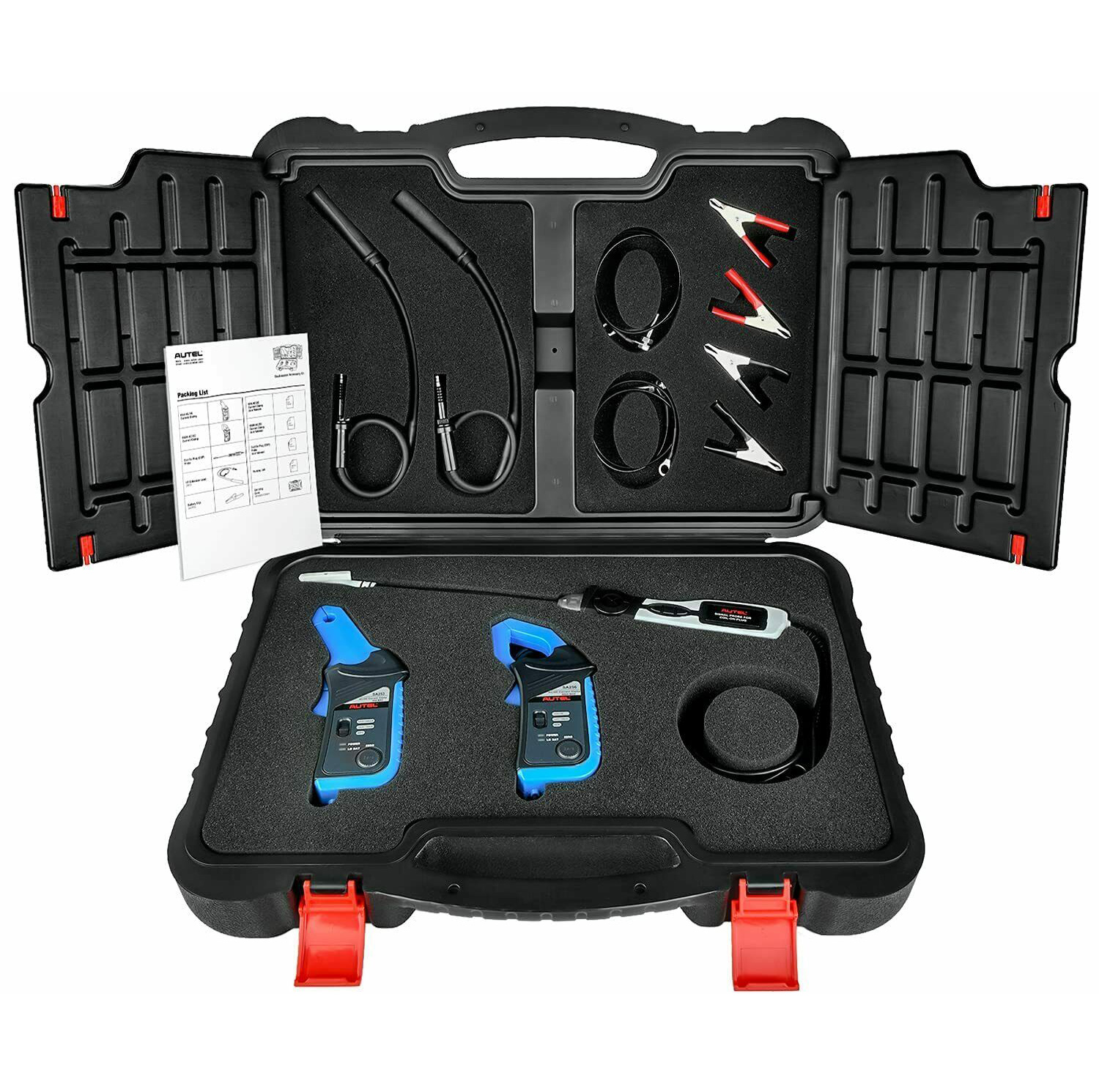

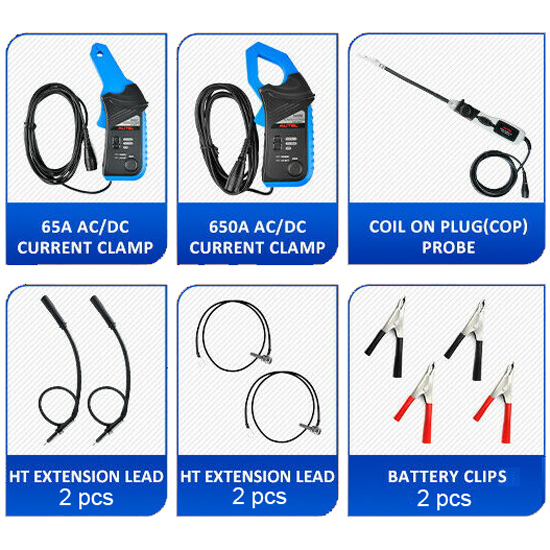

Packing List:



65A AC/DC Current Clamp

65A AC/DC Current Clamp User Manual

650A AC/DC Current Clamp

650A AC/DC Current Clamp User Manual

Coil on Plug Probe

Coil on Plug Probe User Manual

HT Extension Lead (2 pcs)

Battery Clips (2 pcs)

Packing List

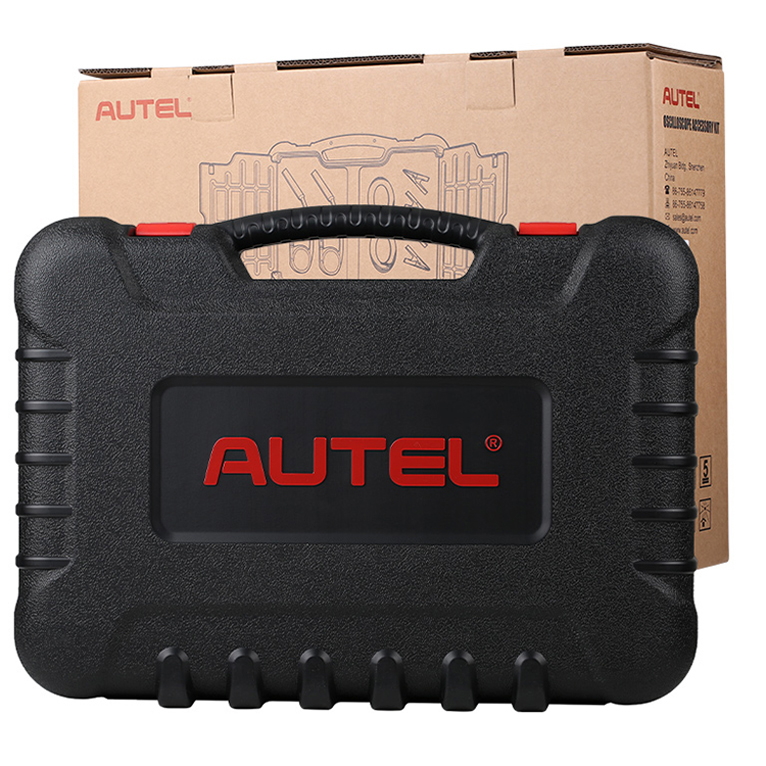

Plastic Toolbox
