Description:



SUMMARY PowerJet GDI S4 Injector Cleaner & Tester Machine Kit support for 110V 4-cylinder petrol cars and motorcycles.



SUMMARY PowerJet GDI S4 injector cleaner & tester uses ultrasonic technology and microprocessor fuel pressure control cleaning and testing technology to quickly remove carbon from the vehicle fuel system, and test leaking, uniformity, inbreath of injectors, so that the injectors can discharge fluid more quickly.



SUMMARY PowerJet GDI S4 injector cleaner & tester fits for most petrol cars and motorcycles injectors, but NOT for diesel injectors. It also can be used for cleaning and testing 4 injectors at the same time.



Features:



GDI Full Support

SUMMARY PowerJet GDI S4 supports testing of various GDI injectors, including Bosch, Denso, Delphi, etc. Supports long GDI injector detection, such as Mercedes-Benz and BMW.



Resistance Test

Supports the resistance measurement of the fuel injector to know the performance status of the fuel injector.



Quick Disassembly

The special structure design makes the disassembly and assembly of the fuel separator more efficient and quicker.



Small and Lightweight

SUMMARY PowerJet GDI S4 is very small and light and easy to move. It is currently the smallest full-function test equipment for GDI injectors.



Strong Cleaning

SUMMARY PowerJet GDI S4 has a strong ultrasonic cleaning ability, which can remove carbon deposits and impurities on the fuel injection nozzle to the greatest extent.



Humanization Design

Adopting humanization design can make the system pressure fast restored to the default values.



Functions:



Supports Various GDI Injectors

Injector Resistance Test

Full Test for Low Resistance Injectors

Side Feed Injectors Support (with Optional Spare Parts)



Ultrasonic Cleaning

Uniformity & Sprayability Test

Leakage Test



Injecting Volume Test

Working Modes Test

On-Vehicle Cleaning



Specifications:



Power Supply: AC 220V/110V±10% 60Hz

Input Power: 230W

Ultrasonic Cleaner Power: 100W

Fuel Tank Capacity: 2000ml

Simulated RPM Range: 100 to 9900rpm; step:10rpm

Time Range: 5 to 300s; step: 5s

Pulse Width: 0.1 to 25ms; step: 0.1ms

Work Pressure: 0 - 7bar

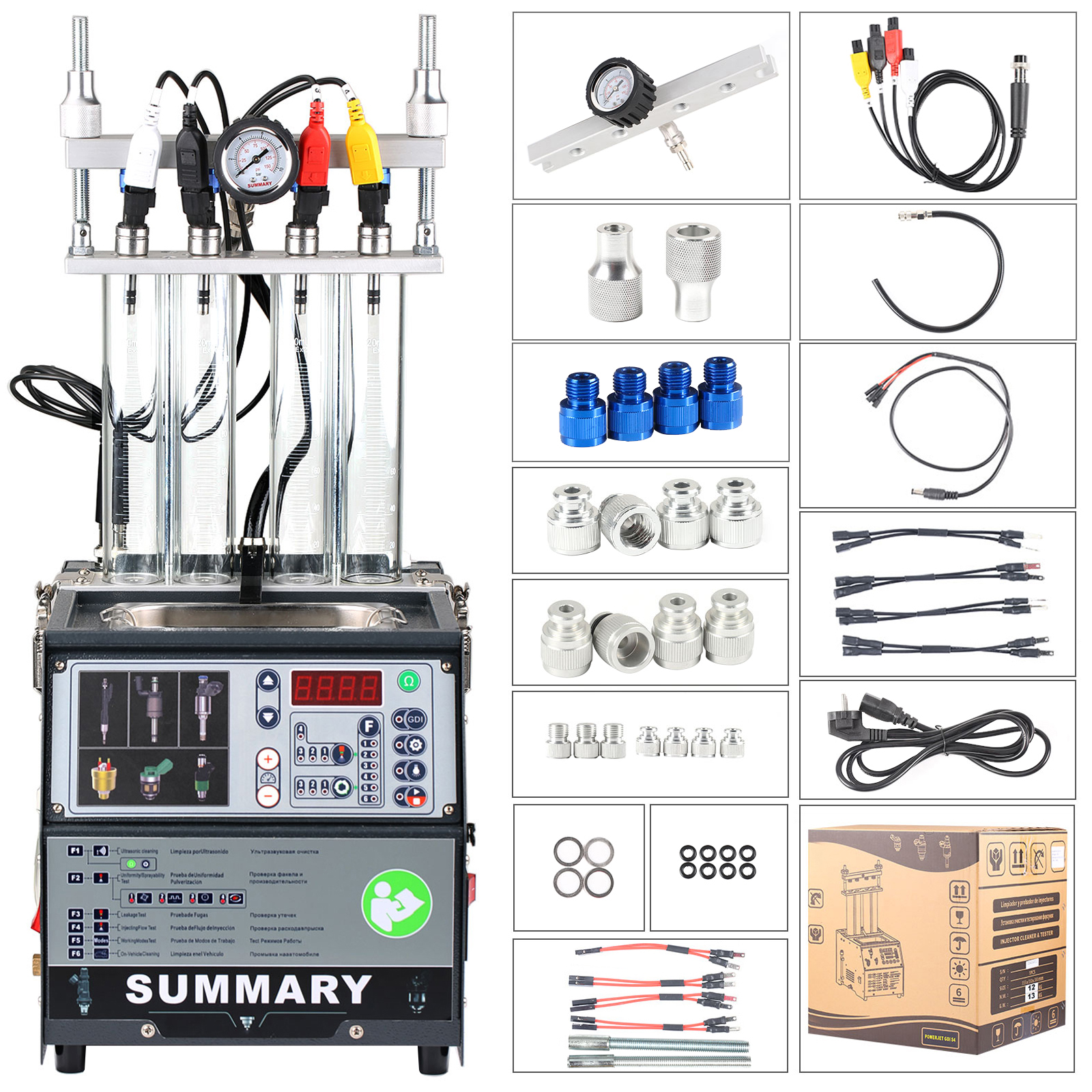

Packing List:



SUMMARY PowerJet GDI S4 Injector Cleaner & Tester

Main Adapter

Vice Adapter

Main Pulse Cable

Pulse Signal Cable

Universal GDI Adapter

Thread GDI Adapter

GM GDI Adapter

Fuel Separator

Fuel Separator Stopper

Resistance Test Cable

Extended Pole

Lock Handwheel
Injector Shims

O-Ring

Power Cable
User Manual

Packing Box
