Description:

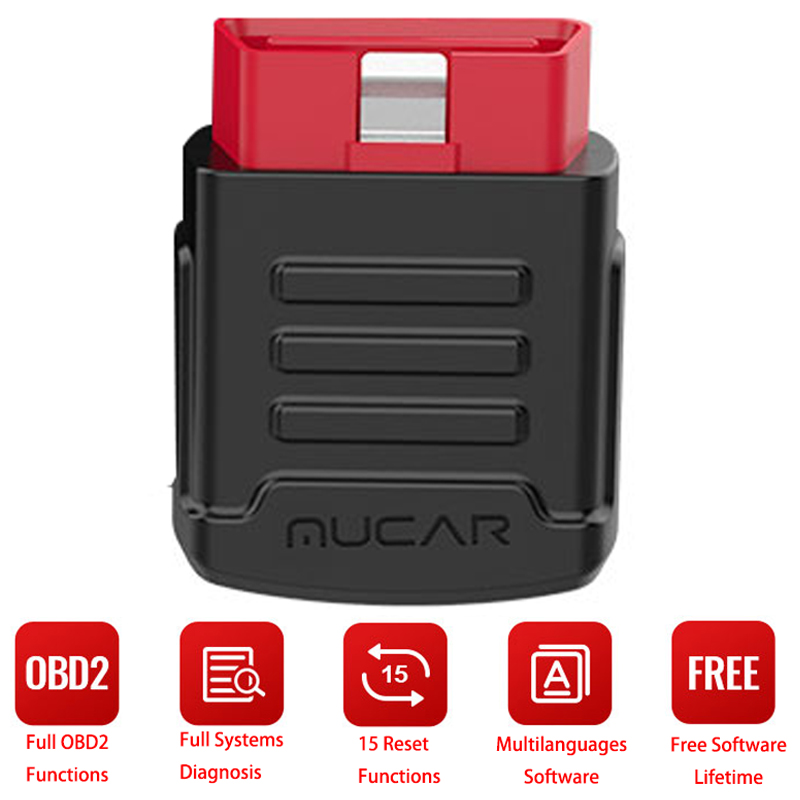

MUCAR BT200 is a portable and economical car fault diagnosis tool suitable for DIY individual users and small repair shops.

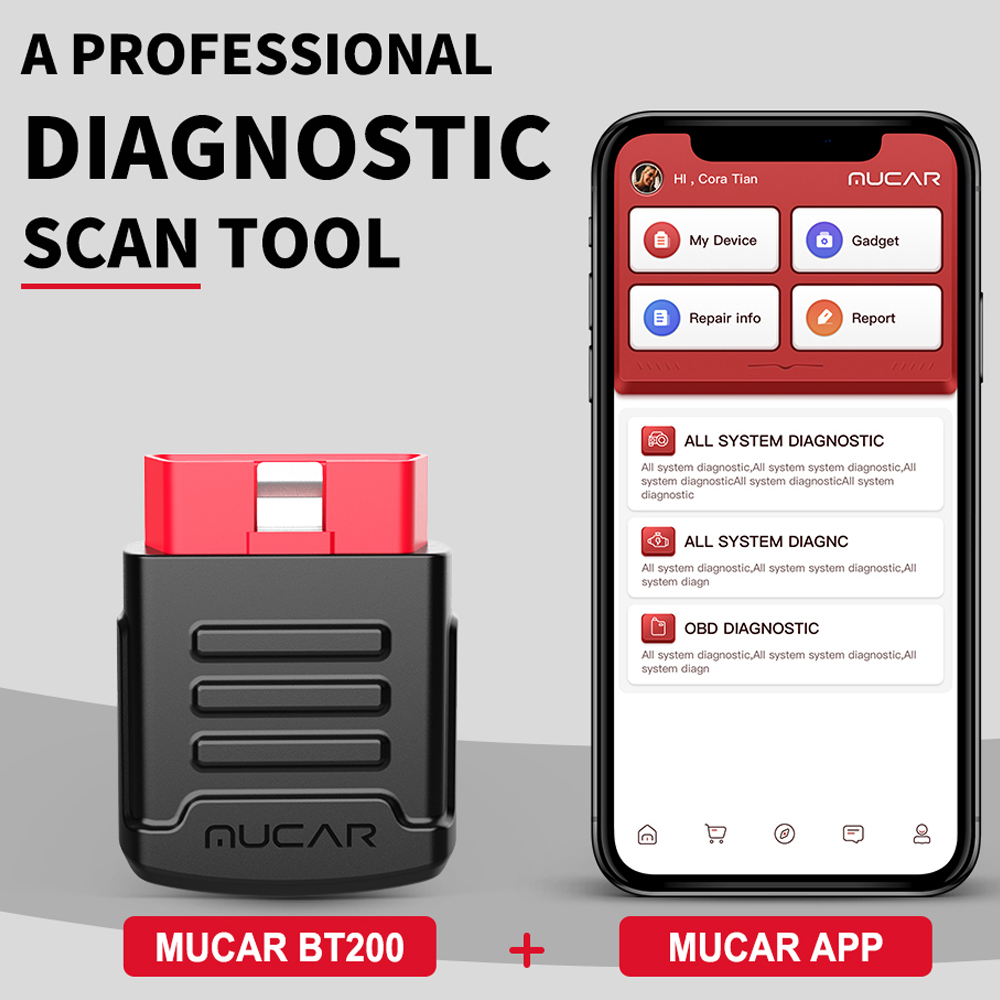

MUCAR BT 200 is composed of a Bluetooth Dongle and an APP, connected to the vehicle diagnostic socket, and wirelessly communicates with a smart phone or tablet PC through Bluetooth, perform car fault diagnosis including reading the version information, code reading, code clearing, reading data stream, special functions, etc.



Supported Languages:



English, French, German, Spanish, Portuguese, Italian, Russian, Polish, Turkish, Japanese, Chinese



Features:



1. Read DTC from all electronics modules lifetime free. Read your car full system fault code. You can lifetime free diagnosis more than 126 car brand full electronic control system. Functional testing application performance, retrieves vehicle diagnostic information such as trouble and event codes and live data for various vehicle control systems, such as ABS, SRS, Engine, Transmission, Brake System, Emission System, Fuel System , Light System, Wiper System.



2. You can lifetime free diagnosis engine compatible with all models that support OBD-II protocol after 1996. Such as Read Live Data Stream, Read Freeze Frame Data, Read DTC (Diagnostic Trouble Codes), Clear DTC, Monitoring of Oxygen Sensor, System Monitoring, Read Outstanding DTCs, Onboard System Control Operation, Read Vehicle Information, Request Emission-related Diagnostic Trouble Codes with permanent status after clear diagnostic information / emission-related reset.



3. Support 15 special functions to clear fault code.

1. Oil Lamp Reset Service

2. EPB Service

3. BAT Battery Service

4. DPF Service

5. SAS Service

6. TPMS Service

7. IMMO Key Programming

8. ABS Bleed

9. Sunroof Reset

10. Suspension Reset

11. Gearbox Reset

12. AFS Headlight Reset

13. Injector Coding

14. Throttle Adaptation

15. Gear Learning



Note: Oil and SAS two special functions free one year for all cars. Other 13 special functions need to buy. The fee is USD19.95 for one special functions for one year. USD70 for 15 special functions for one year. If you not buy special function after one year, not impact to other functions lifetime free.



Functions:

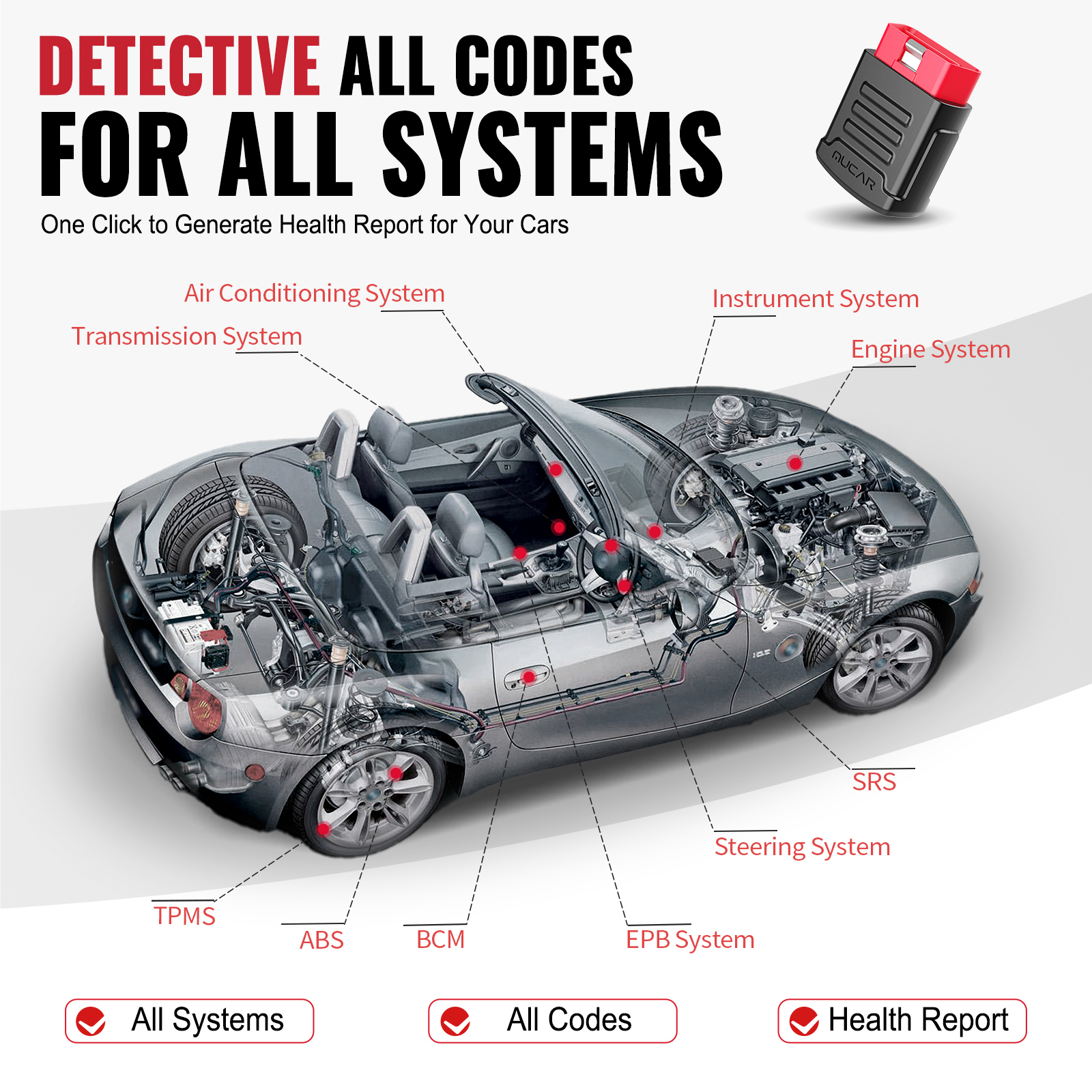

All Cars Lifetime Free Full System Diagnostic

The Diagnostics application enables a data link to the electronic control system of the test vehicle for vehicle diagnosis. The application performs functional tests, retrieves vehicle diagnostic information such as trouble and event codes and live data for various vehicle control systems, such as ABS, SRS, Engine, Transmission, Brake System, Emission System, Fuel System, Light System, Wiper System, etc.



Support 15 Maintenance Service



1. Oil Lamp Reset Service

Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.



2. EPB Service

It is important in the maintenance of electronic braking system's safety and efficiency.



3.BAT Battery Service

allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.



4. DPF Service

specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.



5. SAS Service

Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.



6. TPMS Service

Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.



7. IMMO Key Programming

The unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.



8. ABS Bleeding

ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.



9.Sunroof Reset

The sunroof memory generally needs to be reset when the vehicle’s battery is replaced or the car dies.



10. Suspension Reset

Try reset electronic suspension air ride with the massage system close all doors KOEO flip through massage system go to suspension reset or on off.



11. Gearbox Reset

Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / ECU drive the car.



12. AFS Headlamp Reset

'AFS' means Adaptive Front Lighting System (at night with the Bi-Xenon headlights). It swivels either side, pressing that button means they stay pointing straight ahead and do not turn when you turn the steering wheel



13. Injector Coding

Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.



14. Throttle Adaptation

The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.



15.Gear Learning

The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for engine running.



Lifetime Free All 10 Modes OBD-II/EOBD Functions



Mode 1: Read Live Data Stream

Mode 2: Read Freeze Frame Data

Mode 3: Read DTCs(Diagnostic Trouble Codes)

Mode 4: Clear DTCs

Mode 5: Oxygen Sensor Monitoring

Mode 6: System Monitoring

Mode 7: Read Pending DTCs

Mode 8: Control Operation of On-board System

Mode 9: Read Vehicle Information

Mode 10: Request emissions-related diagnostic trouble codes with permanent status after a clear/reset emission-related diagnostic information.

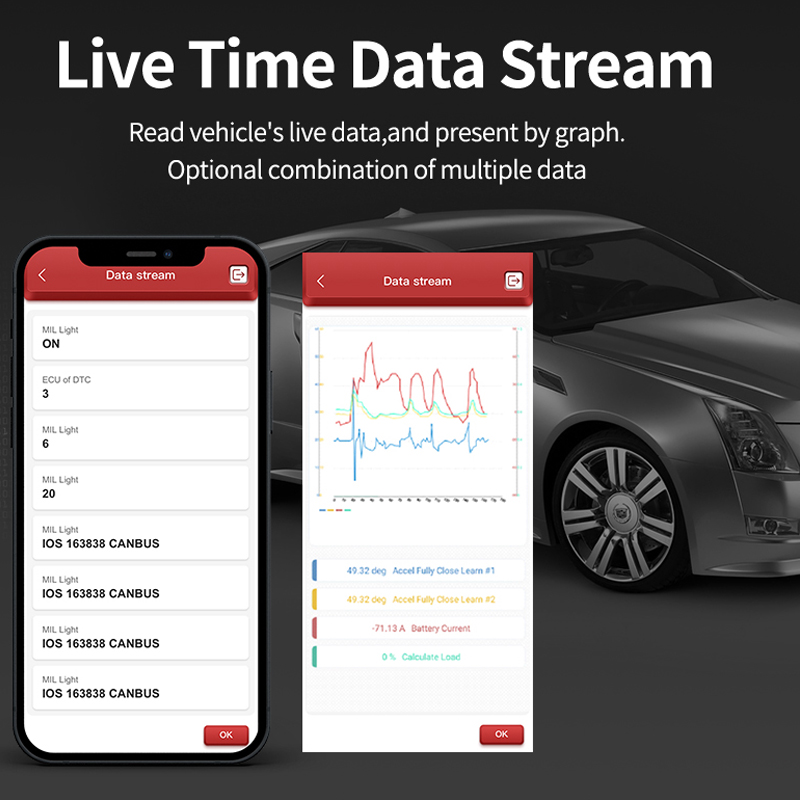

Read Live Data Stream



Show the information of continuous data stream from a vehicle in live graphic (waveform) display.



Support Vehicles Diagnostic Report



1. Generate diagnostic report in MUCAR APP.

2. Download the diagnosis report and transfer it to the computer to print the diagnosis report.



3. Share your diagnosis report with your partner or car owner.



Supported Cars:



European and American

Ford Europe, Mercedes-Benz Commercial Vehicles, MINI, West, Audi, GMSA, Fiat, Opel, GAZ, Peugeot, Volkswagen, Porsche, Citroen, Skoda, Rover, Land Rover, Volvo, VAZ, Renault, Elves, Mercedes-Benz, Jaguar, Dacia, Lancia, BMW, Romeo, SAAB, Ford, Chrysler, GM



Asia-Pacific

Thailand Isuzu, Acura, Daewoo, Jianghuai Cars (GM), Ssangyong, Infiniti, Proton, Honda, Mazda, Perodua, Jiangling, Mahindra, Isuzu, Suzuki, BYD, Chery, Toyota, Nissan, Kia, Great Wall, Daihatsu, Changan, Geely, Xiamen Jinlong, Zhongxing, Hafei, New Kay, Gonow, Changhe, Hyundai, Liuzhou Wuling, Subaru, Xiali, Australia Ford, Mitsubishi, TATA, Zotye, Horton, MAaruti, Lexus

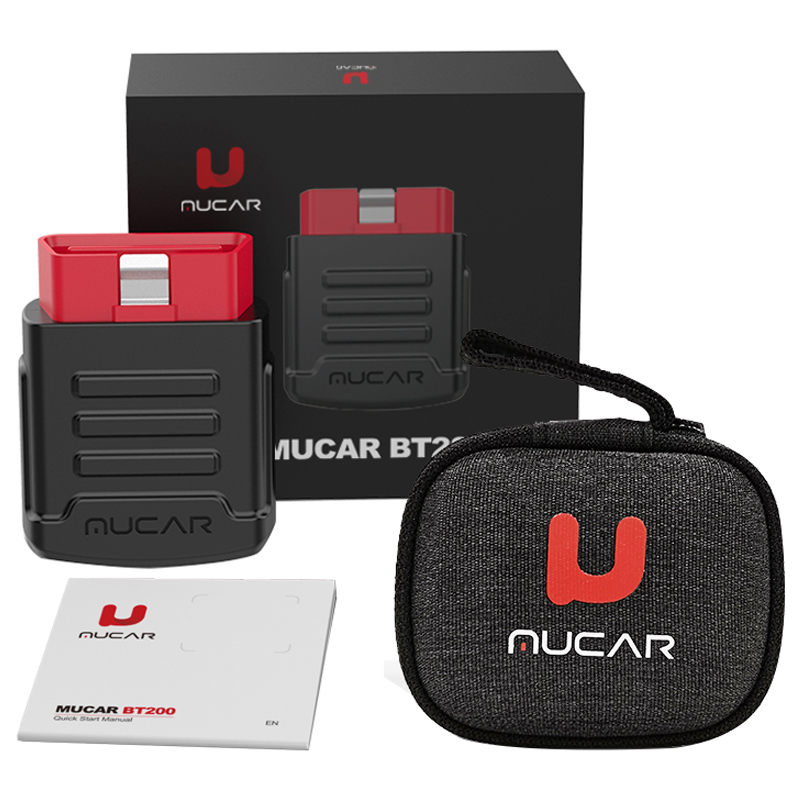

Packing List:



MUCAR BT-200 Bluetooth Connector

User Manual

Carrying Pouch

Packing Box
