Name: Original Bosch VI3 RNM Diagnostic Tool for Renault Nissan Mitsubishi
Description:
Bosch VI3 RNM Diagnostic Tool for Renault Nissan Mitsubishi Programming and Coding.
Specifications:
Microprocessor: Type I. MX6 Processor
Clock Speed: 800 MHz
RAM SDRAM: 1GB DDR3
ROM NAND Flash: 512MB
Mass Storage: 8GB MicroSD Card
Wired: USB High-Speed Client Port (480 Mbps)
Wireless: 802.11b/g/n on USB Dongle
Bluetooth: 2.0 EDR on USB Dongle
LED: 4 LEDs (2 LEDs are triple color)
Audio: Beeper (software frequency controlled)
Switch: Recovery Switch (for restoration of fail-safe software)
Power Supply: using diagnosis cable from vehicle battery or using USB cable from PC
Power Supply: 750mA
Operating Temperature: -20 to 70 degree centigrade
Storage Temperature: -40 to 80 degree centigrade
Humidity: 30% to 95% @ 25 degree centigrade
Maximum Operating Altitude: 4000m
Weight: 240 grams
Size: 171*118*41mm
Caution:
The diagnostic connector of the vehicle must be protected by a fuse with a maximum rating of 6 amps / 32 volts. 8 V to 28 V.
Degree of protection with the diagnostic connection cable
not connected IP30
Degree of protection with the diagnostic connection cable
connected according to IEC 60529 IP 54, cat. 2
Degree of contamination 2
Diagnosis Connection Cable J1962 (ISO 15031-3)
Voltage Resistance DLC 26 Pin 18 V, CAT 0

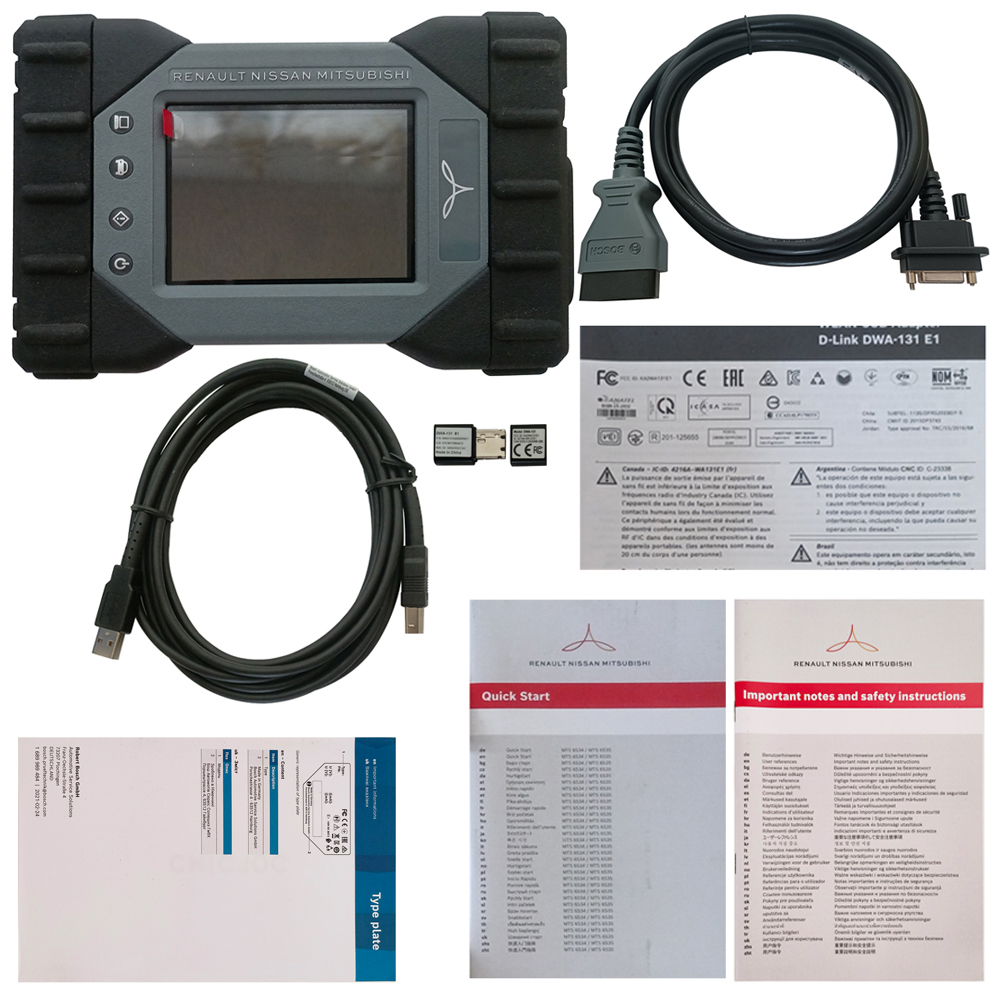

Packing List:

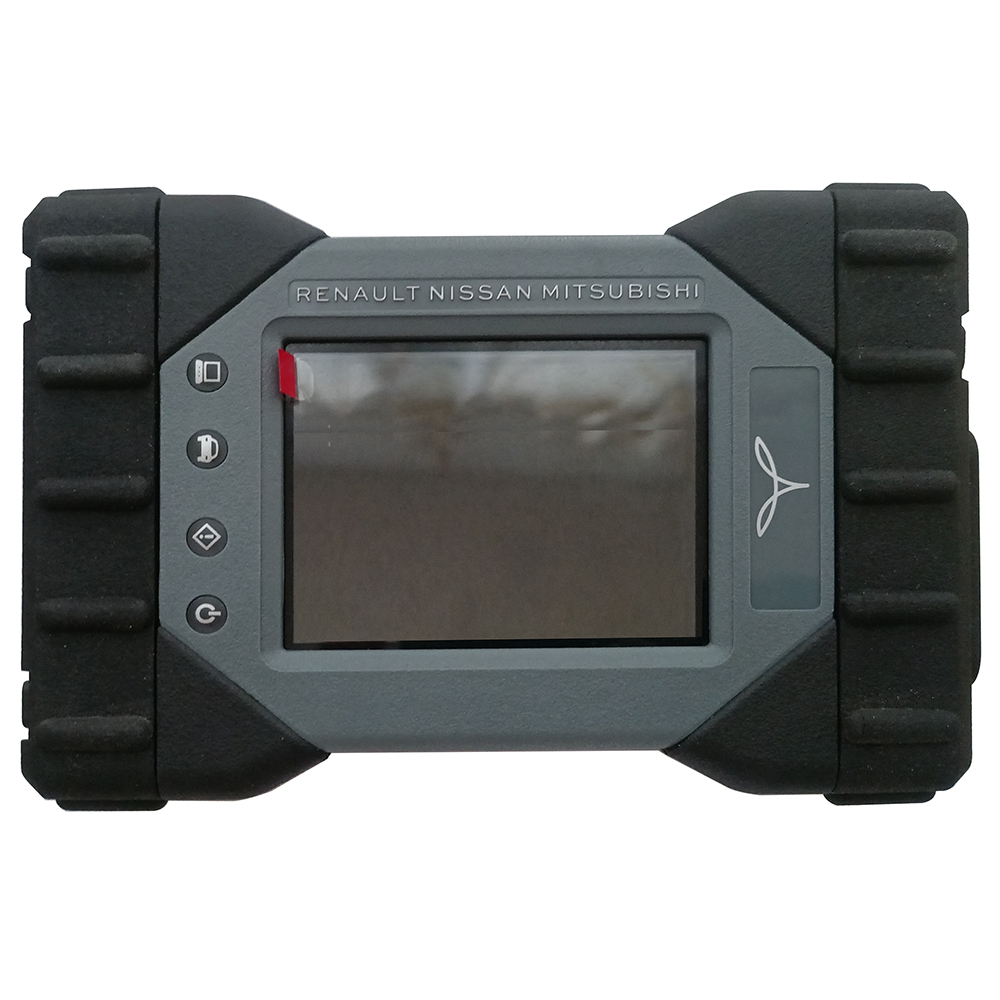

BOSCH MTS 6535 RNM VCI Alliance Unit (Part Number: 1699200633)

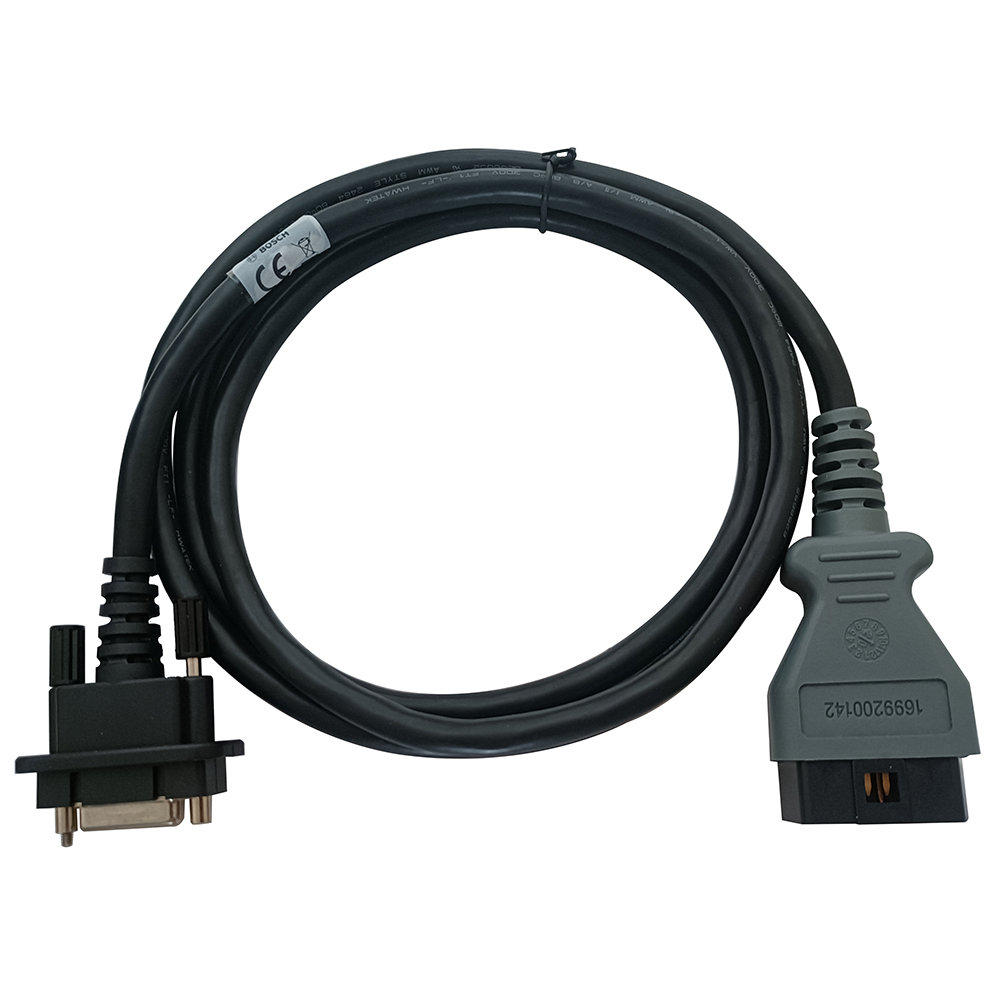

2M 16-Pin OBD2 DLC Cable

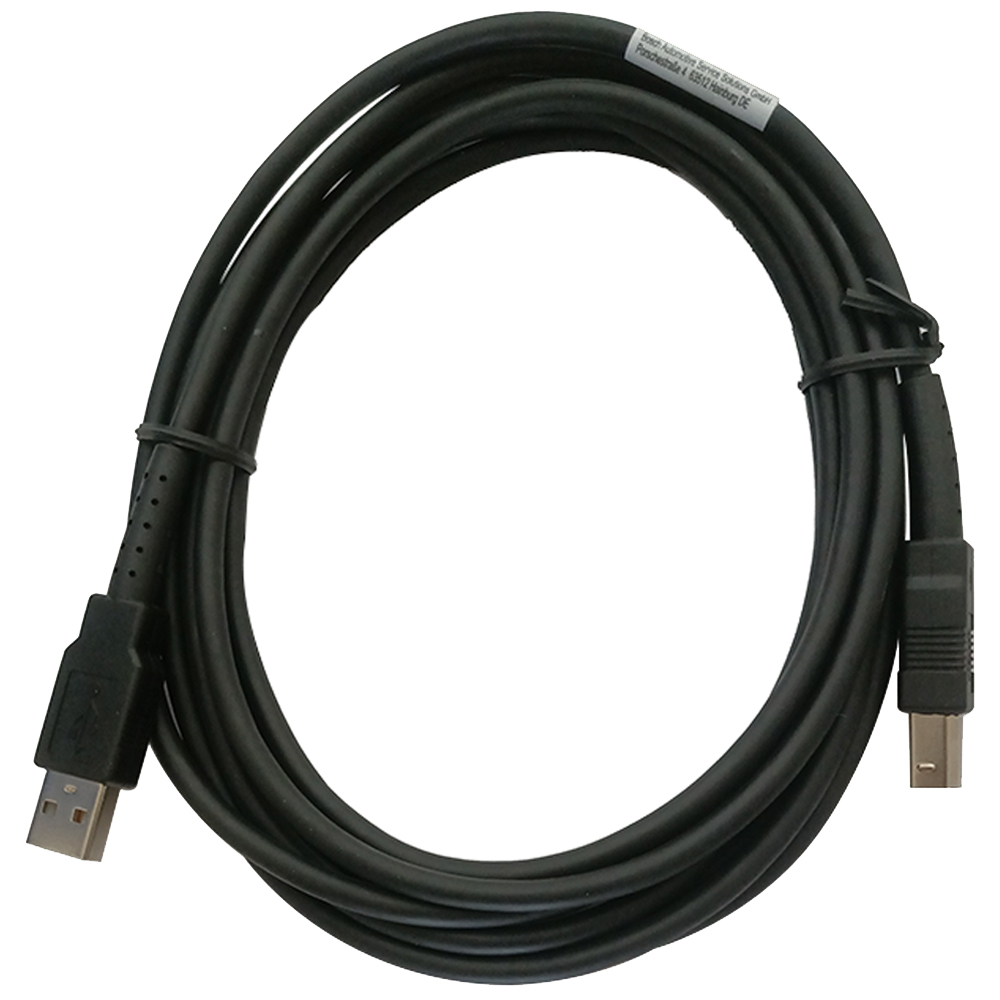

3M Rugged USB Cable

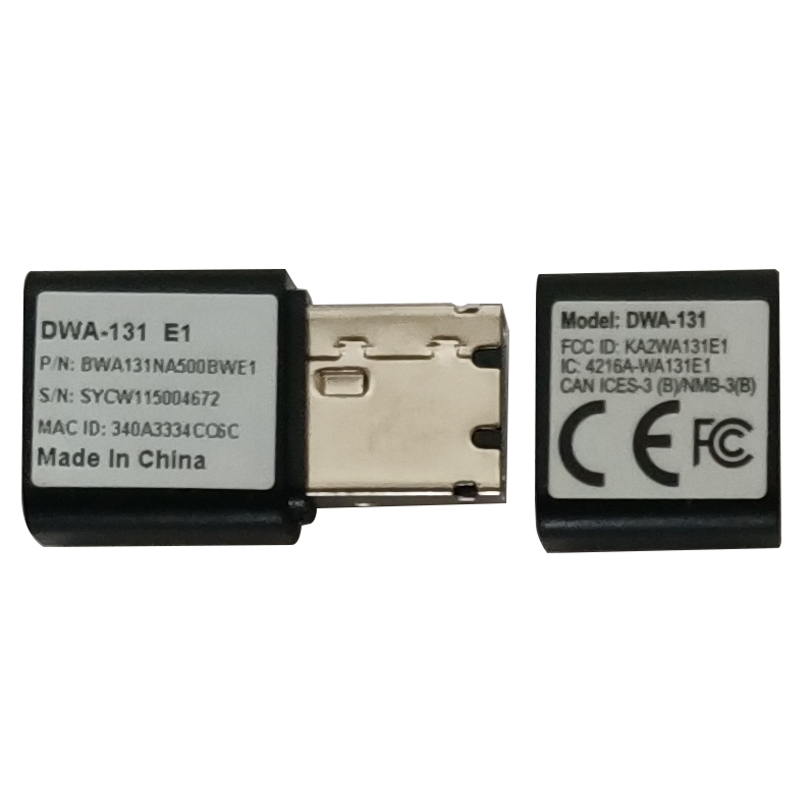

WLAN USB Adapter
VI3 RNM Quick Start

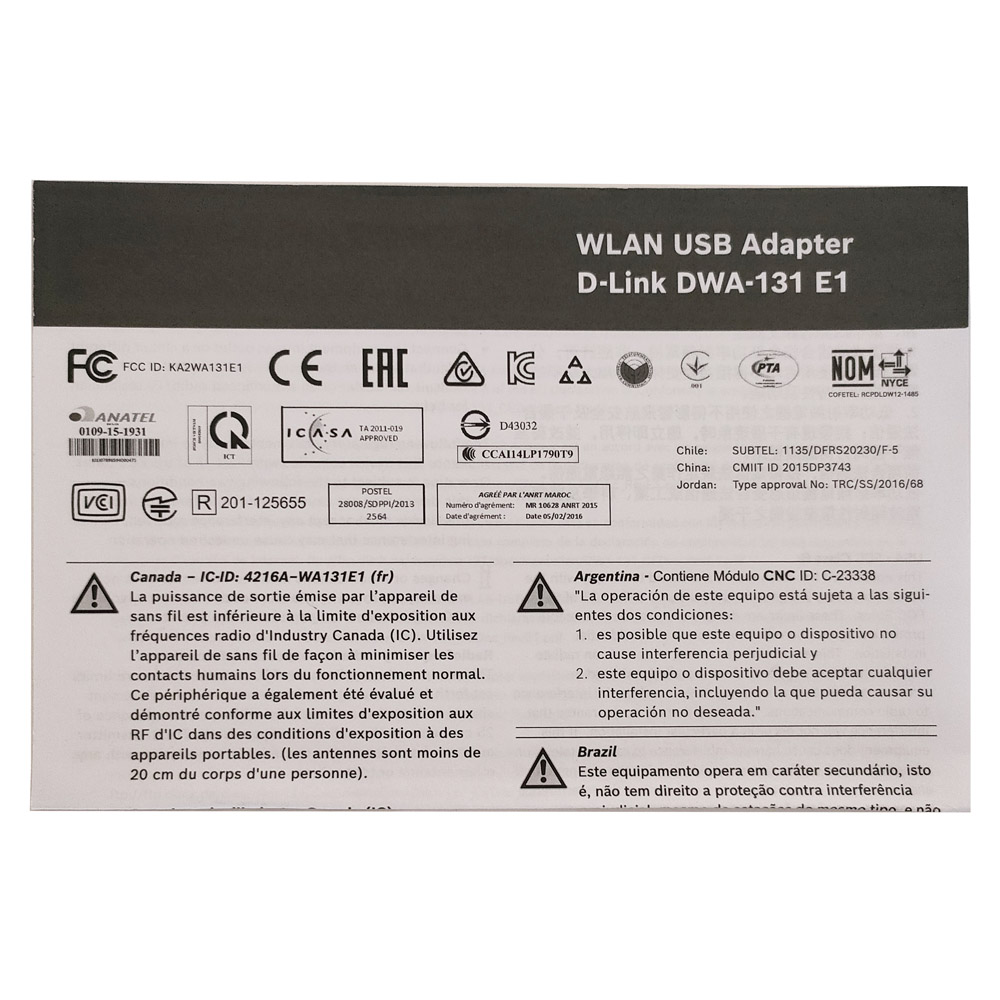

WLAN USB Adapter Quick Start
Important Notes and Safety Instructions

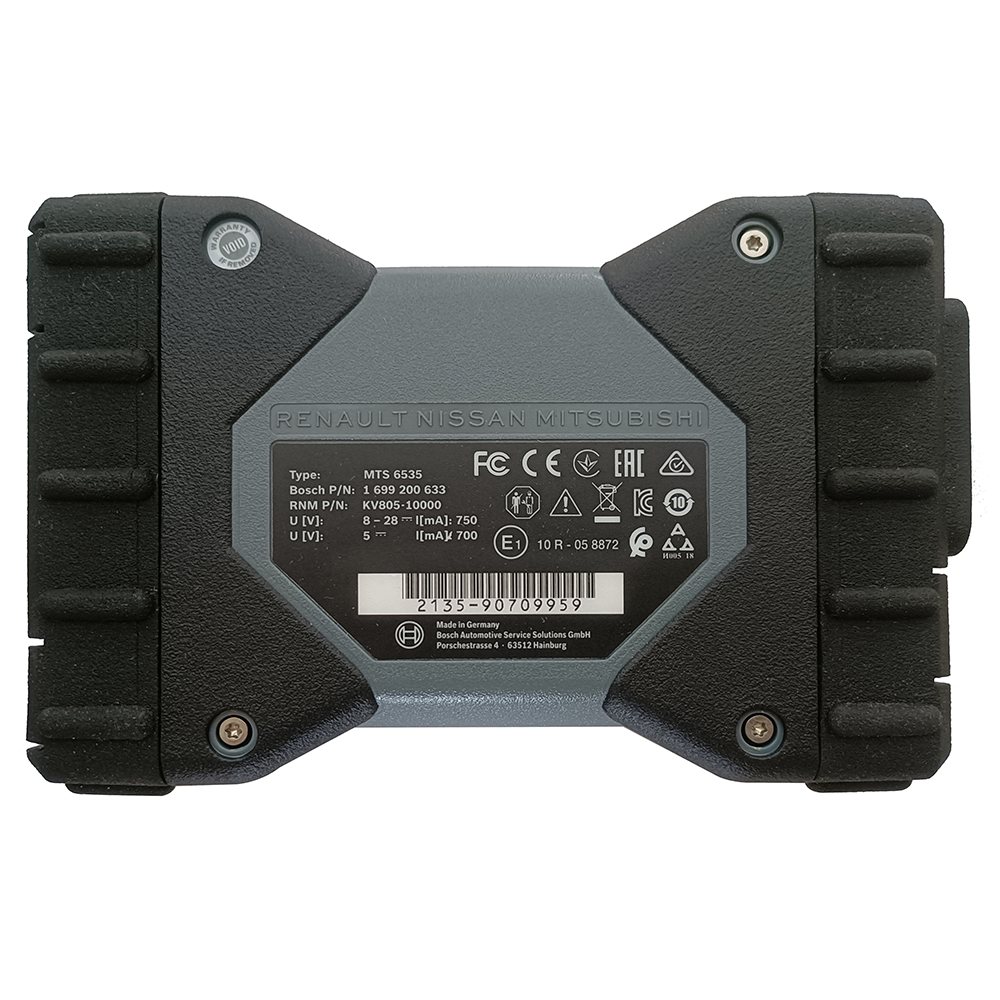

Type Plate
Packing Box
|
