Description:



ThinkCar ThinkTool Pros+ is a 10 inch car full system Android tablet diagnostic scanner with Bluetooth and WiFi. ThinkTool Pros Plus supports Special Service, supports ECU Coding, Online Programming, ADAS Calibration, Active Test...

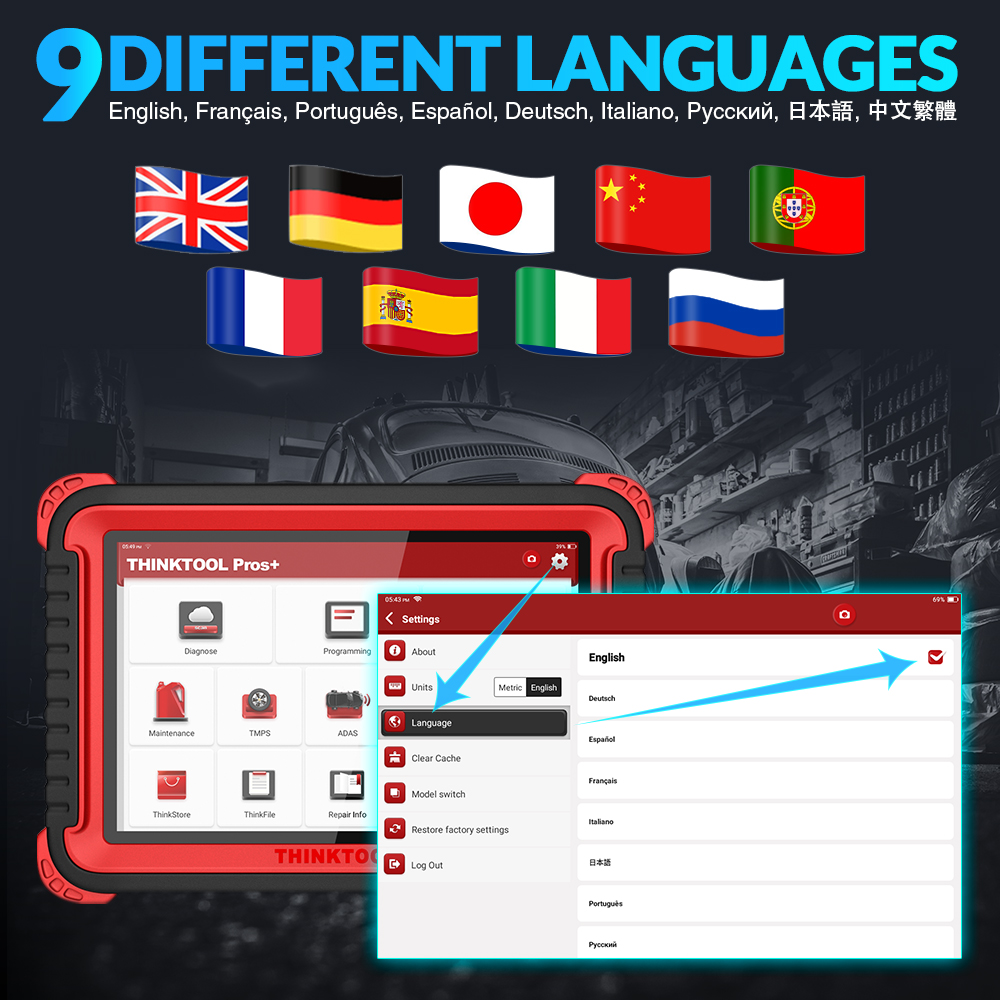

Supported Languages: English, French, German, Spanish, Portuguese, Italian, Russian, Japanese, Chinese

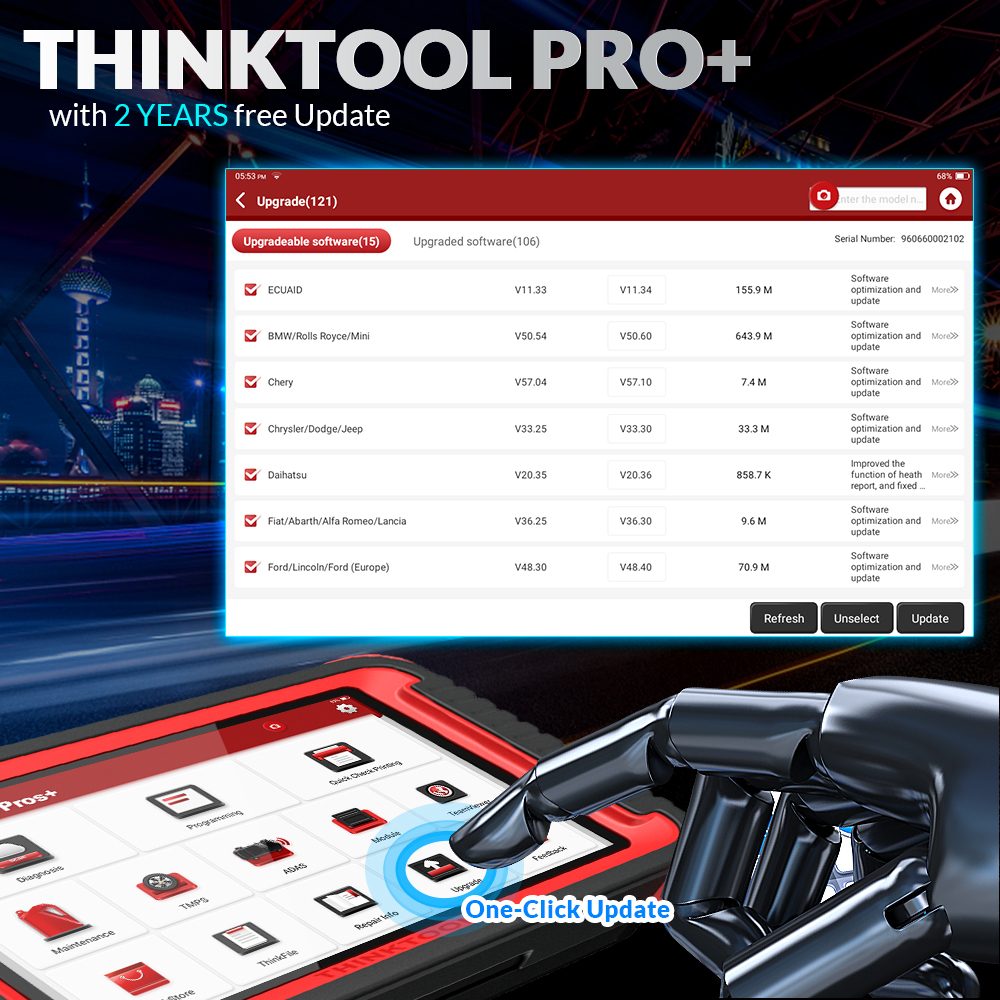

Software Update: 2 years free update online



Functions:

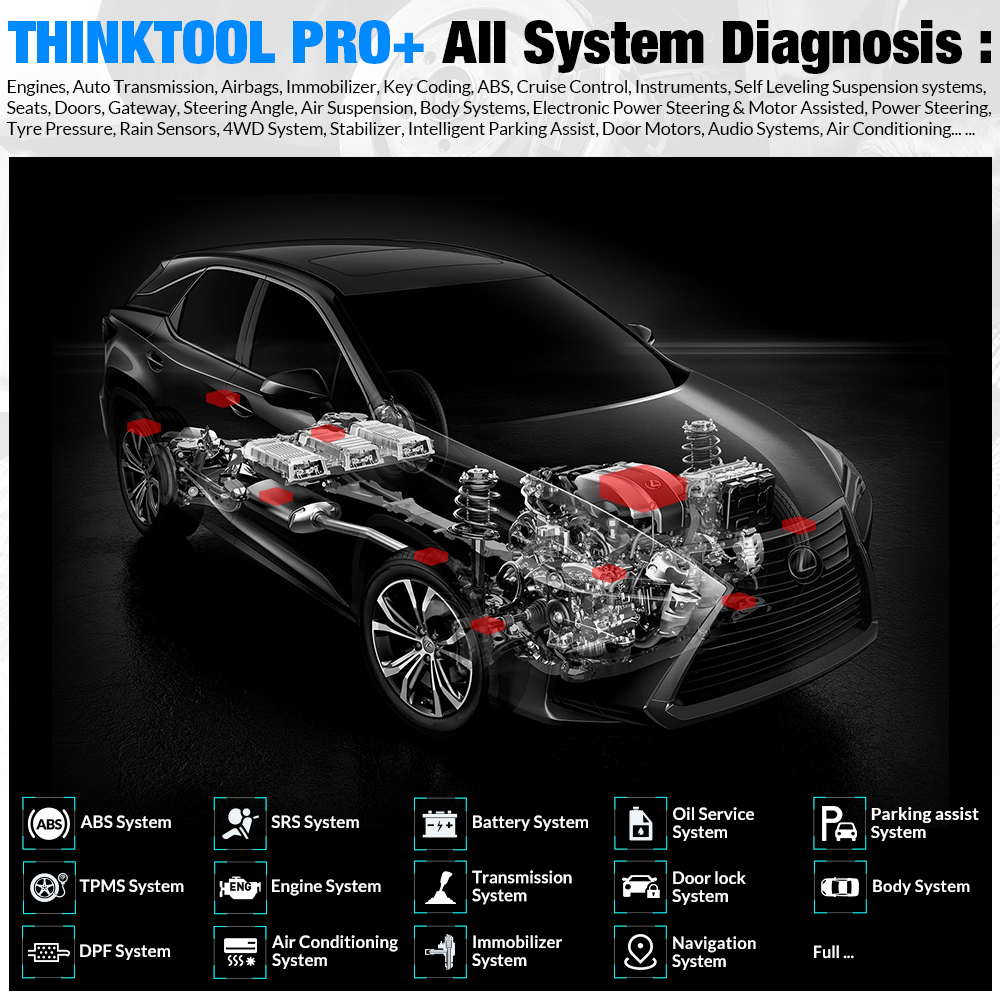

1. Full System Diagnostic

Engines, Auto Transmission, Airbags, Immobilizer, Key Coding, ABS, Cruise Control, Instruments,  Self Leveling Suspension Systems, Seats, Doors, Gateway, Steering Angle, Air Suspension, Body Systems, Electronic Power Steering & Motor Assisted, Power Steering, Tyre Pressure, Rain Sensors, 4WD System, Stabilizer, Intelligent Parking Assist, Door Motors, Audio Systems, Air Conditioning, Tiptronic, Anti Theft, Soft Top, Headlamp Leveling, Central Locking, Automatic Clutch, DPF Reset, Electric Windows, Plip Programming, Heated Rear Window, Xenon Headlights, Wash Wipe, Fuel Burning Heater, Transfer Box, Seat Memory, Oil Life Service Reset, Sliding Doors, Electronic Throttle, Navigation System, Rollover Sensor, Cruise Control, Multi Function Steering Wheel, Aux Heating, Electronic Parking Brake, Clutch Electronics...

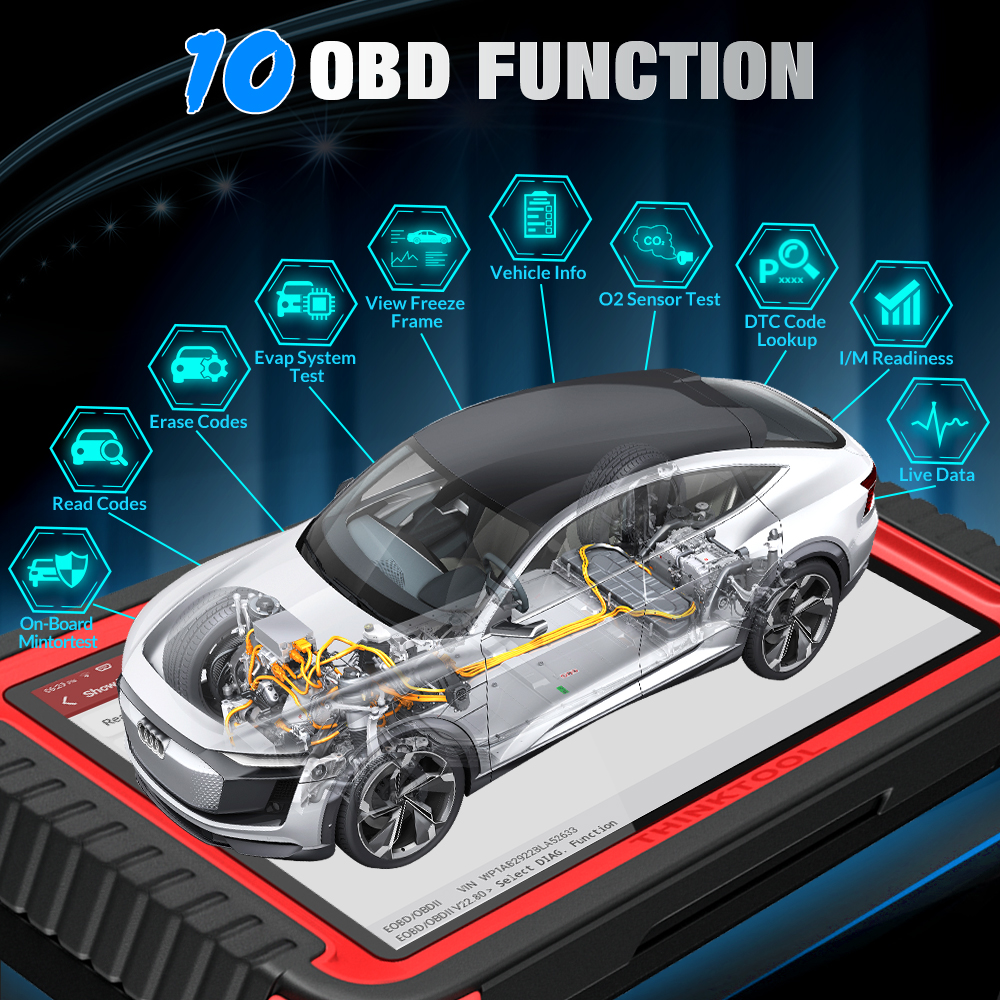

2. Complete 10 OBD2 Functions

1). Reading Codes

Show the detailed description of the Diagnostic Trouble Code (DTCs)



2). Erasing Codes & Reset

Turns off Check Engine Light (MIL), clears codes and resets monitors.



3). Data Stream

Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.



4). I/M Readiness Status

Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.



5). Read Live Data Stream

Show the information of continuous data stream from a vehicle in live graphic (waveform) display.



6). View Freeze Frame Data

Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.



7). O2 Sensor Test

Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.



8). On-Board Monitor Test

Retrieves and displays test results for emission-related powertrain components and systems.



9). Read Vehicle Information

Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.



10). Component Test

Certain vehicle components can be actuated by commands sent from the scanner to test their operability.



3. 28 Maintenance Function :

1). Oil Reset

The lightening of the car maintenance light indicates that the vehicle needs maintenance. Reset the mileage or driving time to zero after the maintenance, so the maintenance light will go out and the system will start a new maintenance cycle.



2). Elec.Throttle Adaption

Elec. Throttle Adaption is to utilize the car decoder to initialize the throttle actuator so that the learning value of the ECU returns to the initial state. By doing these, the movement of the throttle (or idle motor) can be more accurately controlled, thus adjust the intake volume.



3). Steering Angle Reset

To reset the steering angle, first find the relative zero point position for the car to drive in straight line. Taking this position as reference, the ECU can calculate the accurate angle for left and right steering. After replacing the steering angle position sensor, replacing steering mechanical parts (such as steering gearbox, steering column, end tie rod, steering knuckle), performing four-wheel alignment, or recovering car body, you must reset the steering angle.



4). Battery Matching

This function enables you to perform a resetting operation on the monitoring unit of vehicle battery, in which the original low battery fault information will be cleared and battery matching will be done.



5). ABS Bleeding

When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity. lf the ABS computer, ABS pump, brake master cylinder, brake cylinder, brake line, or brake fluid is replaced, the ABS bleeding function must be performed to bleed the ABS.



6). Break-Pad Reset

lf the brake pad wears the brake pad sense line, the brake pad sense line sends a signal sense line to the on-board computer to replace the brake pad. After replacing the brake pad, you must reset the brake pad. Otherwise, the car alarms.



7). DPF Regeneration DPF regeneration is used to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance.

8). Gear Learning

The crankshaft position sensor learns crankshaft gear machining tolerance and saves to the computer to more accurately diagnose engine misfires. lf gear learning is not performed for a car equipped with Delphi engine, the MlL turns on after the engine is started. The diagnostic device detects the DTC P1336'gear not learned'. In this case, you must use the diagnostic device to perform gear learning for the car. After gear learning is successful, the MIL turns off. After the engine ECU, crankshaft position sensor, or crankshaft flywheel is replaced, or the DTC 'gear not learned" is present, gear learning must be performed.



9). IMMO Service

To prevent the car being used by unauthorized keys, the anti-theft key matching function must be performed so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car. When the ignition switch key, ignition switch, combined instrument panel, ECU, BCM, or remote control battery is replaced, anti-theft key matching must be performed.



10). Injector Coding

Write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder so as to more accurately control or correct cylinder injection quantity. After the ECU or injector is replaced, injector code of each cylinder must be confirmed or re-coded so that the cylinder can better identify injectors to accurately control fuel injection.



11). TPMS Reset

After the tire pressure MIL turns on and maintenance is performed, the tire pressure resetting function must be performed to reset tire pressure and turn off the tire pressure MIL. Tire pressure resetting must be performed after maintenance is performed in the following cases: tire pressure is too low, tire leaks, tire pressure monitoring device is replaced or installed, tire is replaced, tire pressure sensor is damaged, and tire is replaced for the car with tire pressure monitoring function.



12). Suspension Matching

This function can adjust the height of the body. When replacing the body height sensor in the air suspension system, or control module or when the vehicle level is incorrect, you need to perform this function to adjust the body height sensor for level calibration.



13). AFS Reset

This feature is used to initialize the adaptive headlamp system. According to the ambient light intensity, the adaptive headlamp system may decide whether to automatically turn on the headlamps, and timely adjust the headlamp lighting angle while monitoring the vehicle speed and body posture.



14). A/T Learning

This function can complete the gearbox self-learning to improve gear shifting quality. When the gearbox is disassembled or repaired (or car battery is powered off), it will lead to shift delay or impact problem. In this case, this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift quality.



15). Sunroof Initialization

This function can set the sunroof lock off, closed when it rains, sliding / tilting sunroof memory function, temperature threshold outside the car etc.



16). EGR Adaption

This function is used to learn the EGR (Exhaust Gas Recirculation) valve after it is cleaned or replaced.



17). ODO Reset

A. ODo reset is to copy, write, or rewrite the value of kilometers in the chip of odometer by using a car diagnostic computer and data cable, so that the odometer shows the actual mileage.



B. Usually when the mileage is not correct due to the damaged vehicle speed sensor or odometer failure, it is necessary to do odo reset after maintenance.



18). Airbag Reset

This function resets the airbag data to clear the airbag collision fault indicator. When the vehicle collides and the airbag deploys, the corresponding fault code of the collision data appears, the airbag indicator lights up, and the fault code cannot be cleared. Since the data inside the airbag computer is disposable, it is required that all new accessories must be replaced, but after performing this function, the data of the airbag computer can be recovered and the fault code can be cleared, the airbag light will go out, and the airbag computer can continue to use.



19). Transport Mode

ln order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote control key, etc. At this time, the transport mode needs to be deactivated to restore the vehicle to normal.



20). A/F Reset

This function is applied to set or learn Air/Fuel ratio parameters.



21). Stop/Start Reset

This function is used to open or close the automatic start-stop function via setting the hidden function in ECU (provided that the vehicle has a hidden function and supported by hardware).



22). NOx Sensor Reset

NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) in engine exhaust. lf the NOx fault is re-initialized and the NOx catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine ECU.



23). AdBlue Reset (Diesel Engine Exhaust Gas Filter)

After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.



24). Seat Calibration

This function is applied to match the seats with memory function that are replaced and repaired.



25). Coolant Bleeding

Use this function to activate the electronic water pump before venting the cooling system.



26). Tyre Reset

This function is used to set the size parameters of the modified or replaced tire.



27). Windows Calibration

This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window.



28). Language Change

This function is used to change the system language of the vehicle central control panel.



More functions will be added with continuous update of ThinkCar ThinkTool Pro software and program.



Head light Fitting, Seat Matching, Door and Window Initialization Study, Sunroof Initialization, Air Suspension Matching, Gearbox Matching, Injector Calibration, Multimedia Video Reset, Cluster Reset, Immobilizer Service, Tire Change Reset, (depending on the specific car models, not for all cars, ) and more and more function will be improved and optimized...

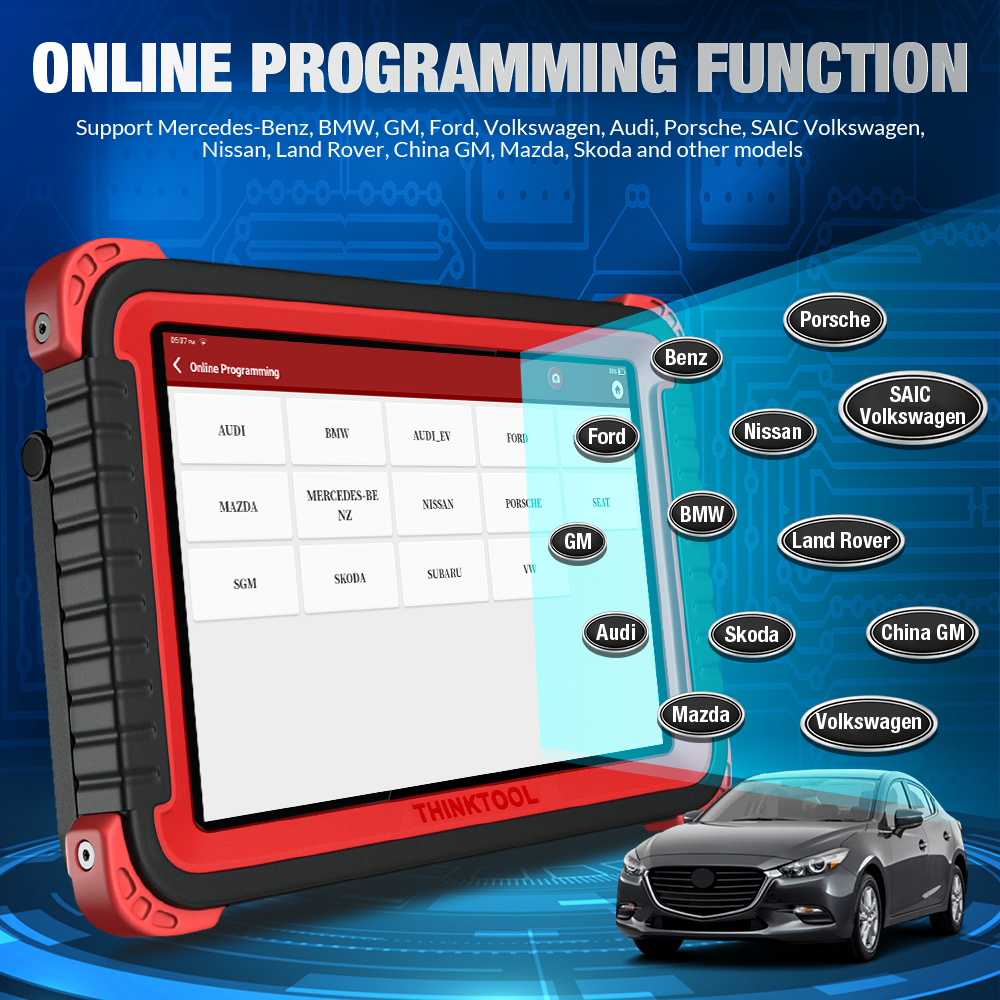

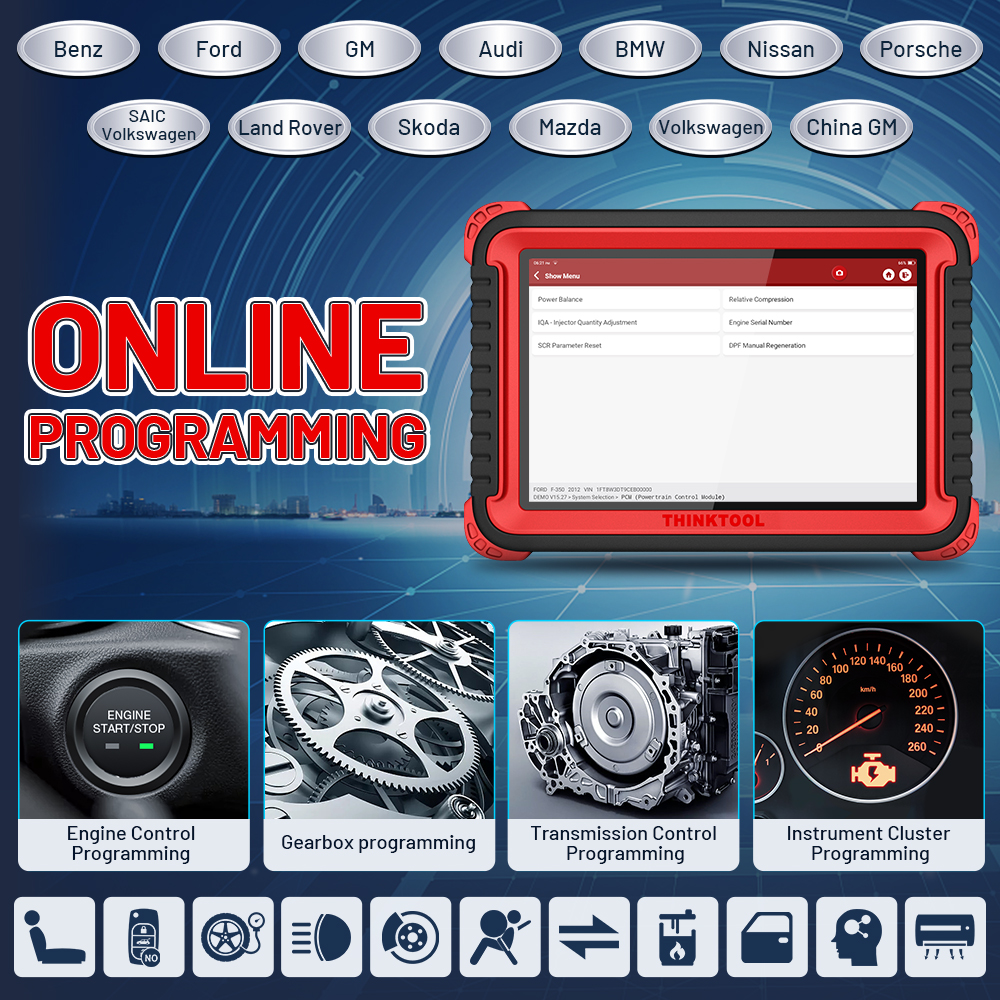

4. Online Programming

Think Tool Pros+ supports programming and coding, which is to write the relevant control information of the software into the automotive computer programmable EPROM or FLASH by making use of the electronic communication transmission technology. Supports Mercedes-Benz, BMW, Porsche, Audi, VW, Seat, Skoda, Land Rover, MINI, GM, MG(SAIC), Nissan, Renault, Mazda, Hyundai, Subaru...

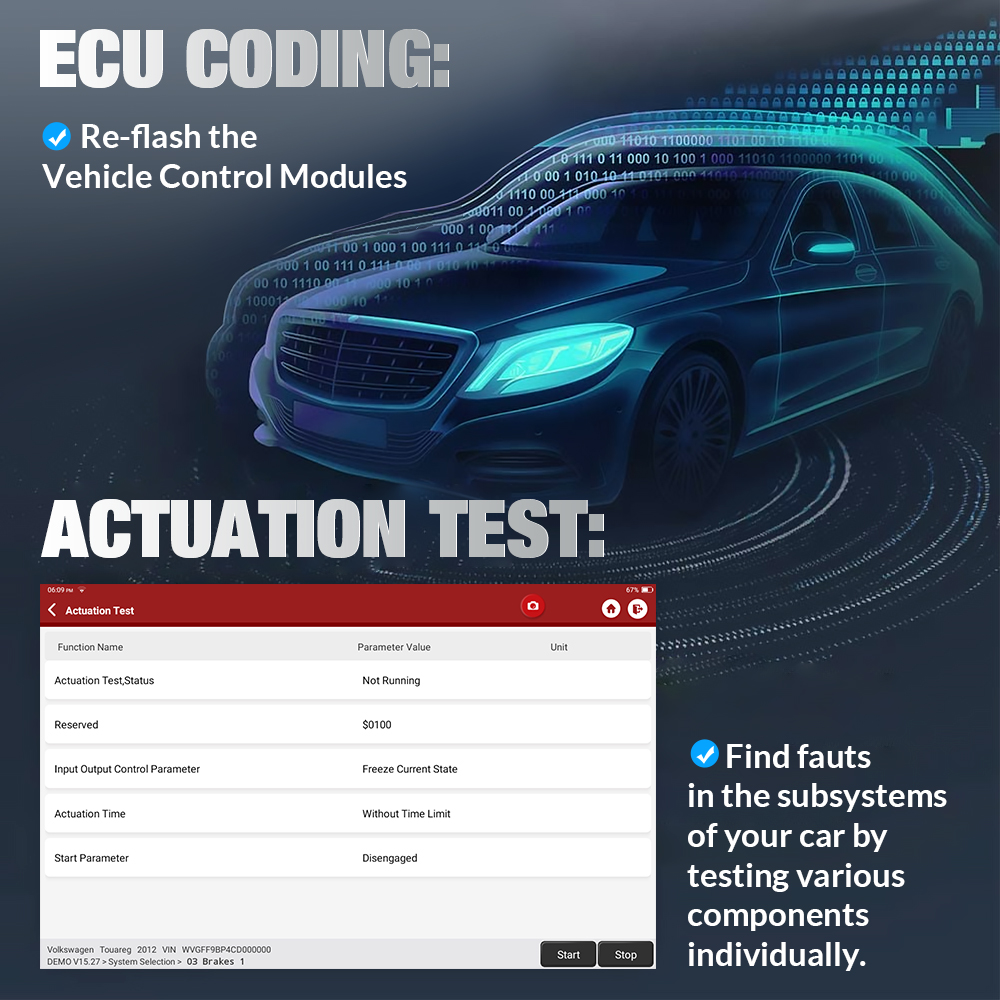

5. ECU Coding

ECU Coding function is used to re-flash the vehicle control modules, it allows you to reprogram adaptive data for certain components after making repairs or replacements.



6. Actuation Test

This function is used to test whether the execution components in the electronic control system can work.



7. ADAS Calibration

Advanced Driver Assistance System (ADAS) is an electronic component in a vehicle, including various safety functions of the vehicle, such as automatic emergency braking (AEB), lane departure warning (LDW), lane keeping assist, blind spot elimination, night vision camera and Adaptive lighting.



The function on the equipment is disabled by default, and the user needs to activate the function with an activation card before using it. And this function needs to be matched with ThinkCar ADAS calibration tools. Mainly used to calibrate various camera and radar of driver assistance systems.

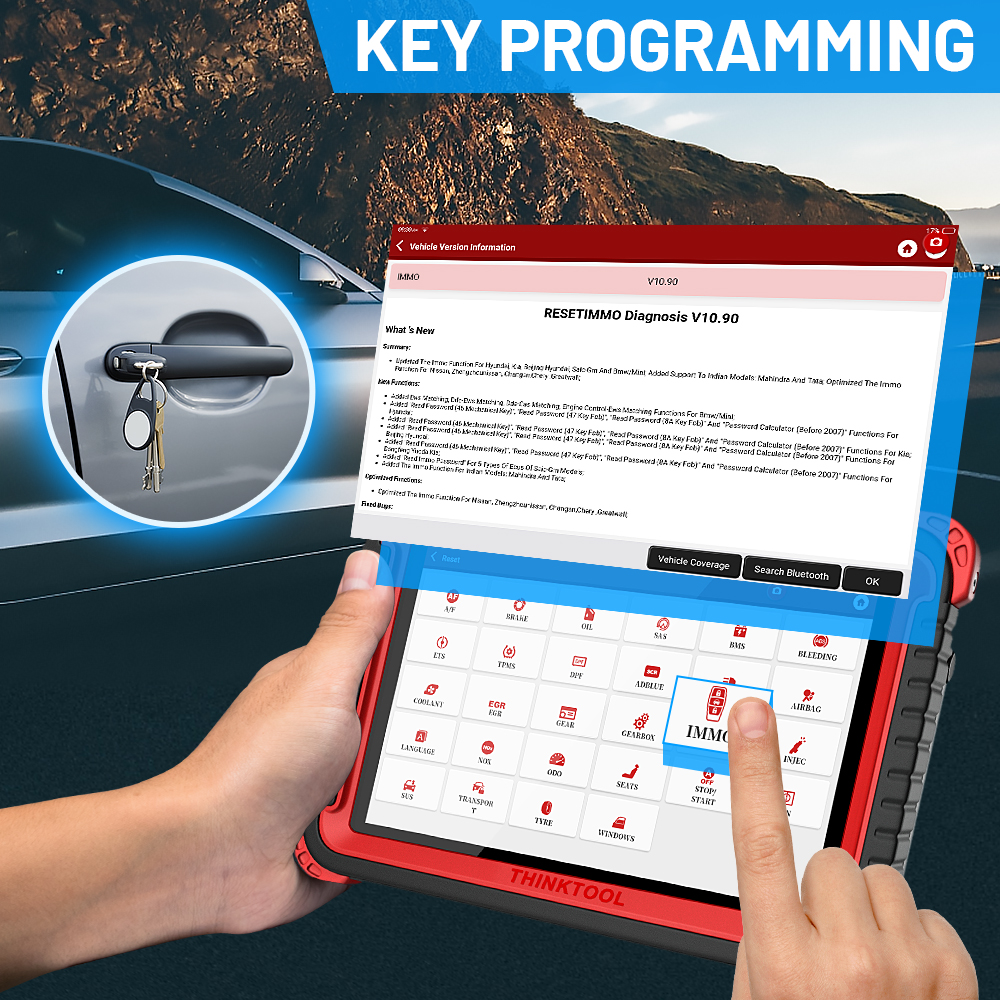

8. Key Programming

1). Add, Delete & Reprogram Keys

2). Rewrite Smart Keys, All Smart Keys Lost, Replace Smart Key ECU, Replace KNOB Ignition

3). Reset Key: Relearn A Key



(Note: Key Programming function is NOT universally compatible. Please check compatibility with us if necessary. ThinkTool Pros+ supports PIN Code Reading for most cars before 2008, for vehicles after 2008, you need to have PIN Code to do key programming.)



9. TPMS Diagnostic Function

ThinkTool Pros can work with wireless tire pressure diagnostic tool (optional accessory) to achieve the features of TPMS activation, programming and learning.

1). Activation: To activate the sensor's lD, wheel pressure, sensor frequency, tire temperature and battery status.



2). Programming: To program sensor data to a blank Thinkcar sensor, so as to replace a sensor that is in low battery and does not function properly. There are three sensor programming methods available: automatic, manual, and via activation replication.



3). Learning: To write the sensor ID into the vehicle ECU for sensor identification.

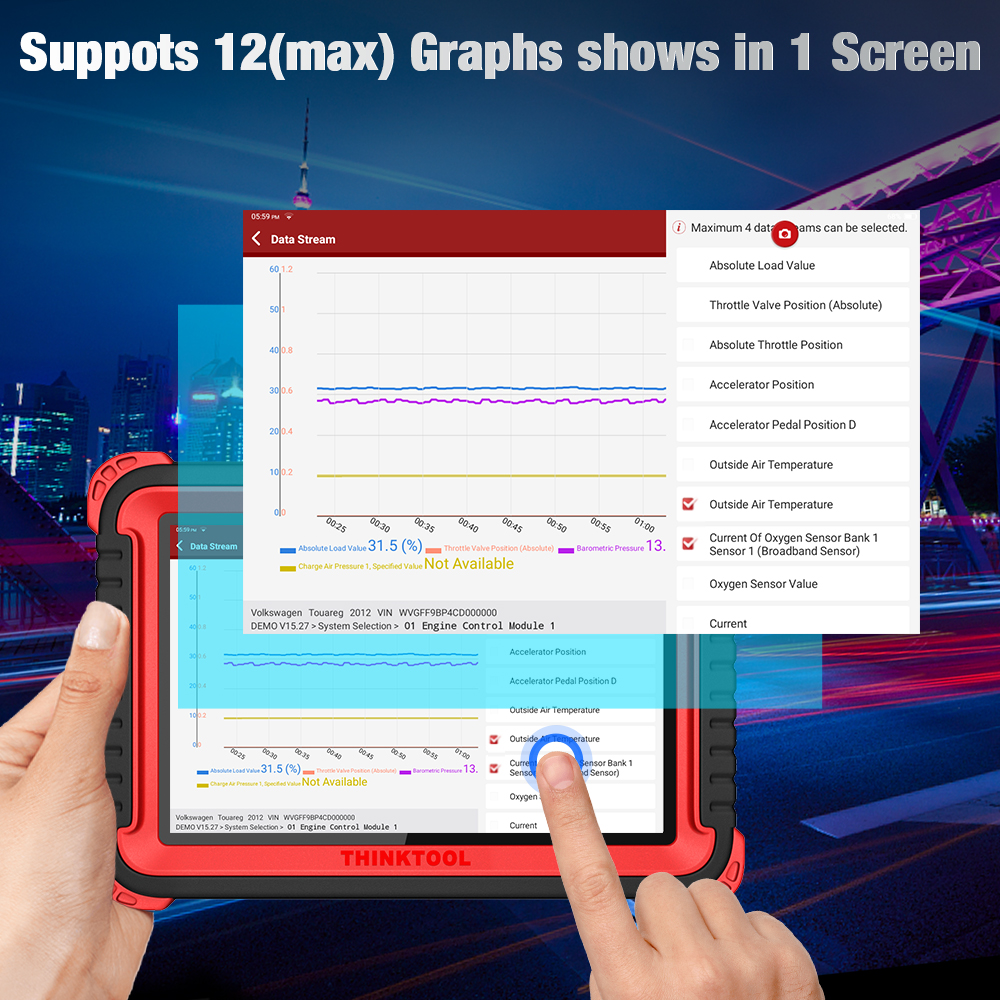

10. 12 Data Graphs shows in the Same Screen

It is better you can compare and analysis the data. Easy to find the problem of the car!

Value: Displayed the parameters in values and shown in list format.

Customize: Customize the data stream option to be viewed. Tap the button, a pull-down list of the data stream items appears on the screen. Select the desired items (maximum 12 items), and then screen will display the wave forms corresponding to these items immediately. If need to remove any items, just deselect them.



11. Supports HD Package

ThinkTool Pros Supports 12V cars and 24V trucks , but please note HD Package need to pay additional costs.

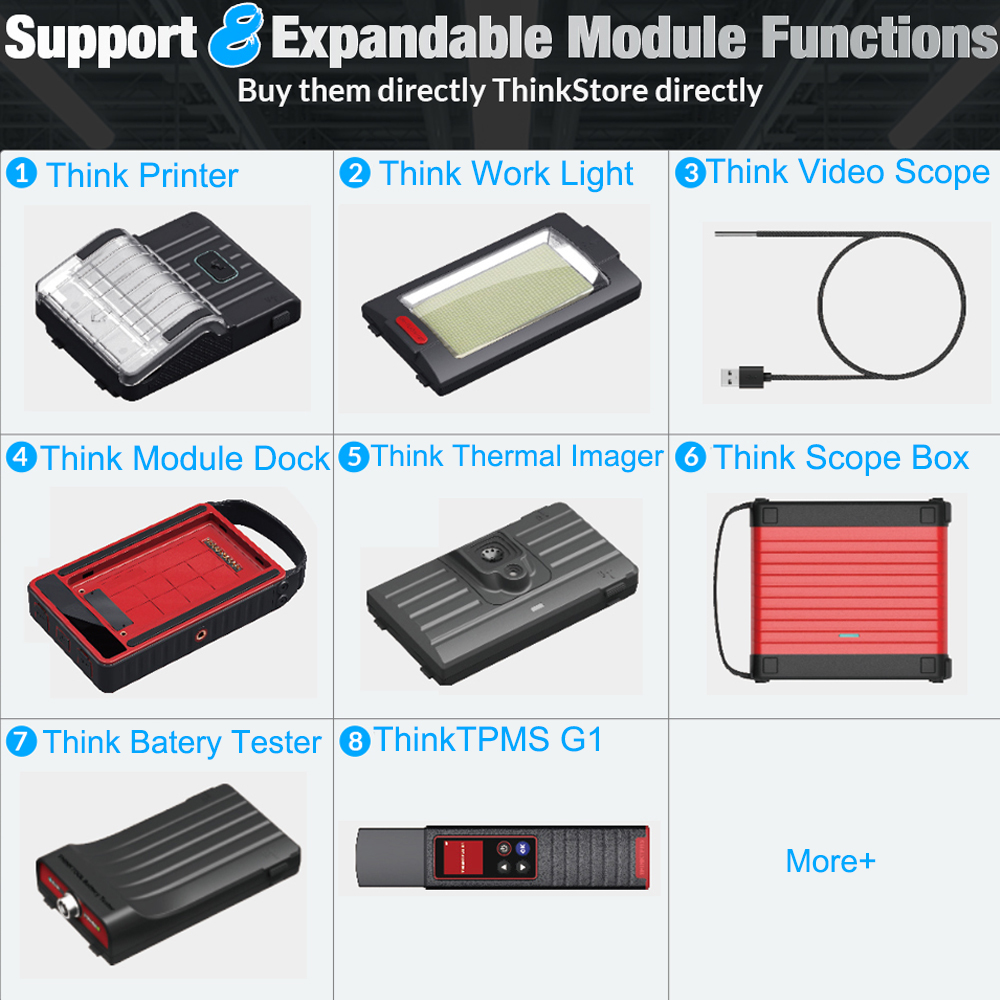

12. Module Expansion

Supported Optional Modules: Printer, Work light, Video Scope, Battery Tester, Scope Box, Thermal Imager, Module Dock, Wireless TPMS Tool, HD Package (Note: you can buy those modules on ThinkStore.)

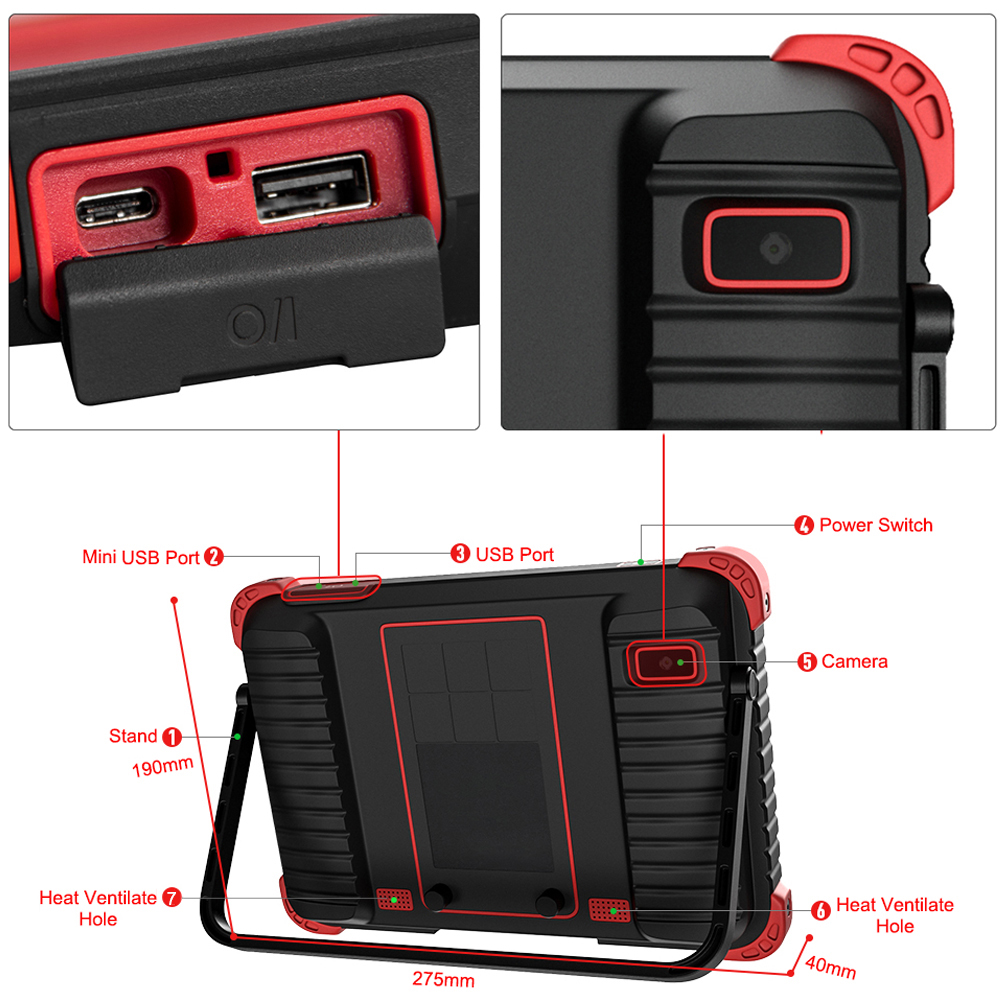

Specifications:



CPU: quad-core 2.0GHz

Display: 10-inch HD IPS touch screen

Operating System: Android 10

RAM: 4G

ROM: 128G

WiFi: WLAN 802.11b/g/n

Bluetooth: Bluetooth 5.0

Camera: 8.0MP rear camera

Battery: 6000mAh / 7.6V

Working Temperature: 0 to 50 degree centigrade

Storage Temperature:-20 to 60 degree centigrade

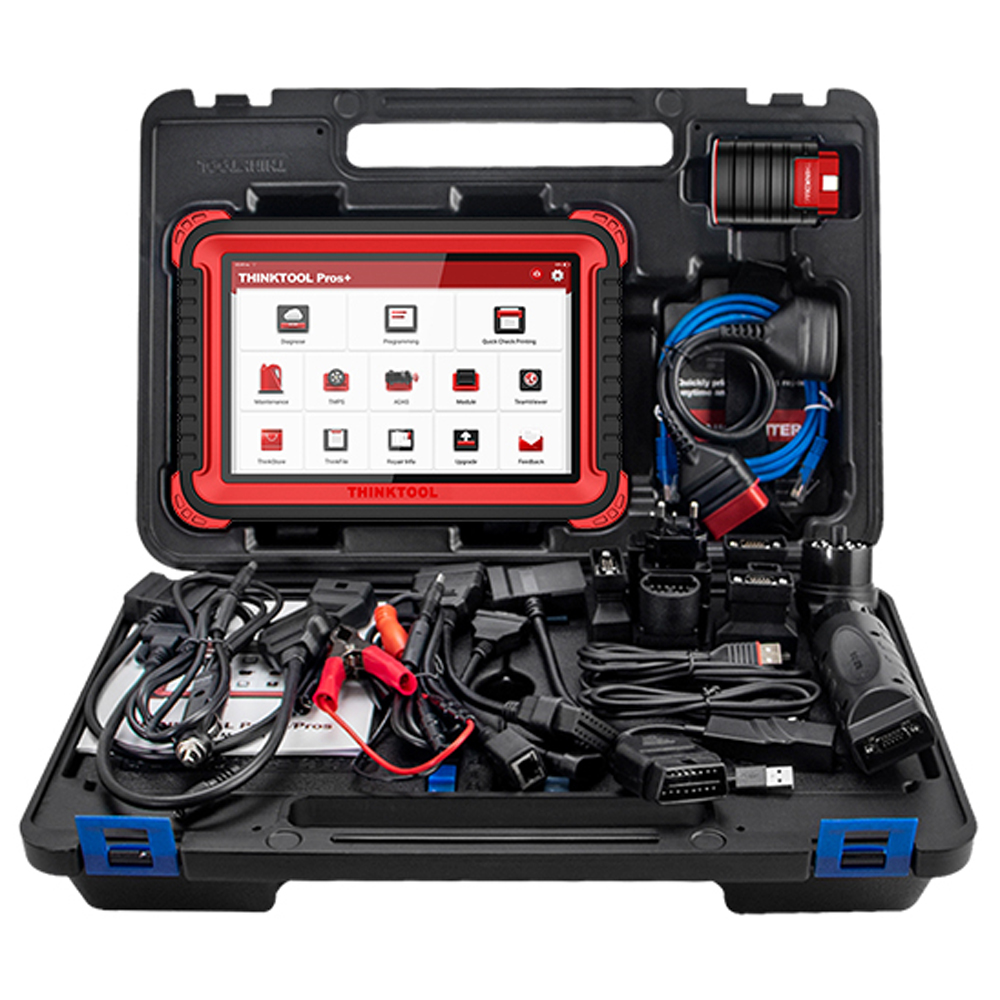

Packing List:



ThinkCar ThinkTool Pros+

ThinkDiag Bluetooth VCI

Benz-38 Connector

BMW-20 Connector

Chrysler-6 Connector

Fiat-3 Connector

GM/VAZ-12 Connector

Honda-3 Connector

Mitsubishi/Hyundai-12+16 Connector

Nissan-14+16 Connector

Toyota-17 Connector

Toyota-22 Connector

OBD-I Adapter

OBD2 Extension Cable

F-Chassis Programming Cable

LAN Cable

LAN to USB Adapter

Power Clipper Cable

Cigarette Lighter Cable

USB Cable

EU Charger Plug

US Charger Plug

Fuse (2 pcs)

User Manual

Password Envelope

Packing List

Plastic Toolbox

Packing Box
