Description:



Scanmatik 2 PRO Professional Multi-Diagnostic & SAE J2534 / RP1210 Programming Device



Scanmatik 2 PRO SM2 Pro is a professional multi-brands scanner designed for diagnostics of electronic control systems of American, European, Japanese and Russian vehicles. It can be used as a J2534 device with a large number of diagnostic programs and flashers made for standard interfaces SAE J2534 and RP1210.



Scanmatik2 PRO works with a personal computer, tablet or smart phone. The software for Windows and Android are included in the package. Driver included works with third-party software made for SAE J2534 and RP1210 standards. The kit includes the full current version of the program (all currently available software modules): VAZ, GAZ, UAZ, Oka, ZAZ, Daewoo, Chevrolet, Ravon, Chery, BYD, Geely, Great Wall, Lifan, Mitsubishi, Kia, Hyundai, Izh, KAMAZ, MAZ, PAZ, OBD2. It works with a large number of diagnostic programs and flashers made for standard interfaces SAE J2534 and RP1210.



Supported Languages: English, Russian



Supported OS: Windows XP, Windows 7, Android



Software Update: online update



Advantages:



1. The implementation of the standard RP1210C – without any restrictions;



2. Scanmatic 2 PRO completely replaces the DPA5 / Nexiq / Inline-6 devices with support for all protocols and a much more nimble and convenient connection via Bluetooth;



3. Full support for J2534 standard boot loaders such as Chrysler Flash Application, Combiloader, Chiploader, ECU Flasher, PCMFlash, Ford Module Programming Tool, Forscan, GM GDS-2 / SPS, Hino Diagnostic Explorer 150, Honda HDS, MMC Flasher, Cummins INSITE, Cummins Calterm III, as well as many others.



4. Supports 13*ISO-9141 / ISO-14230 (K-LINE), J1850VPW, J1850PWM, 4*CAN, Single Wire CAN.



Programming Modules:



VAZ, GAZ, UAZ, Oka, ZAZ, Daewoo, Chevrolet, Ravon, Chery, BYD, Geely, Great Wall, Lifan, Mitsubishi, Kia, Hyundai, Izh, KAMAZ, MAZ, PAZ, OBD2.



New Features:



1. Galvanic isolation of the USB port (with power).

2. Redesigned protection of K-lines and CAN buses on a new element base.

3. Increased speed of work via Bluetooth by about 20%.

4. Built-in multiplexer for switching diagnostic lines.

5. Pulsed power supplies of the company’s own design (no heating, wide input voltage range from 5 to 55V).

6. Load-Dump power surge protection (when the generator is switched off on a running engine).



Supports Widest J2534-1/2 Standards:



1. Supply of programming voltage (5-24V) to the OBD connector pins: 6, 8, 11, 12, 13,14;

2. AUX programming voltage output (via an additional cable).

3. For full support of peripheral units on GM (GDS2) and VAZ/Renault cars:

4. An additional CAN BUS on pins 12-13 running in 12H-13L or 12L-13H configuration.



Supported Data BUSes:



13*ISO-9141/ISO-14230 (K-LINE)

J1850VPW

J1850PWM

4*CAN

Single Wire CAN



Specifications:



Connection Mode: USB / Bluetooth

Power Supply Voltage: 5 to 36V from the vehicle or USB

Current Consumption: <350mA

Bluetooth Range: 10 meter

Weight: <1Kg

Dimensions(L*W*H): 970*750*220mm

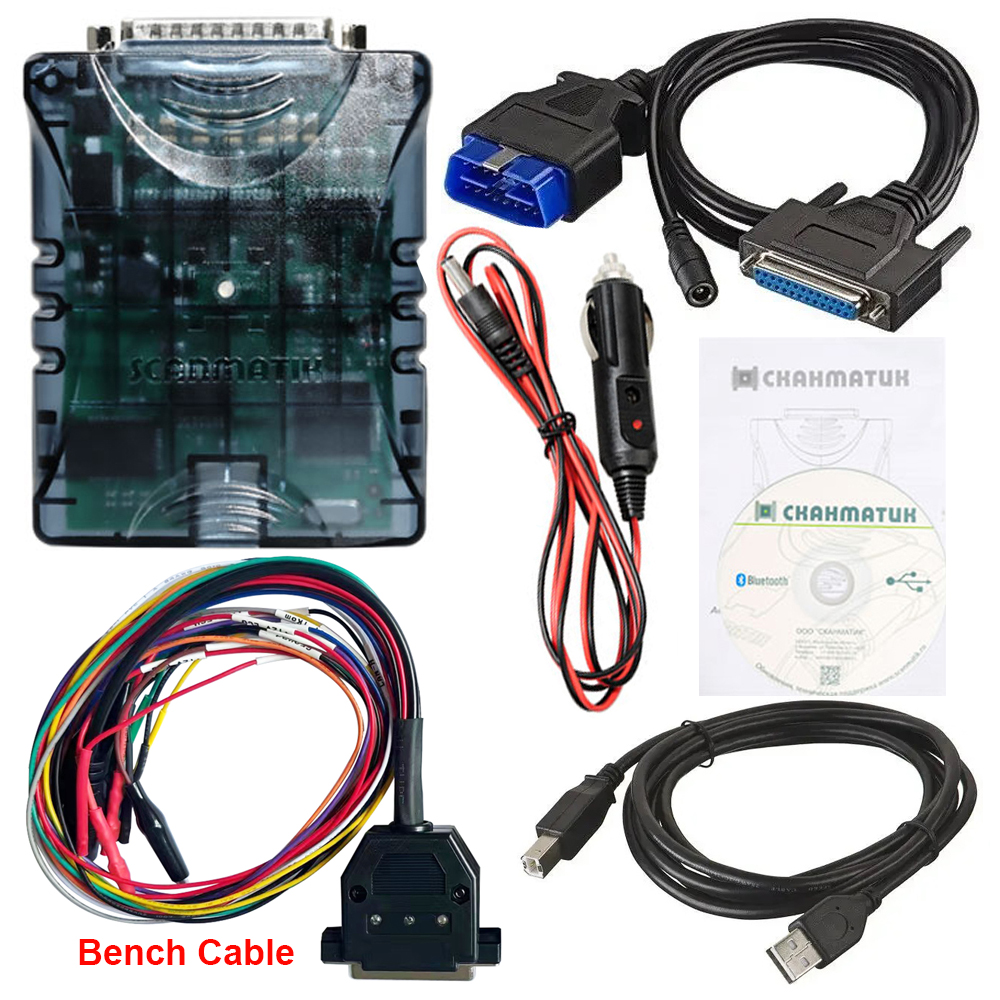

Packing List:

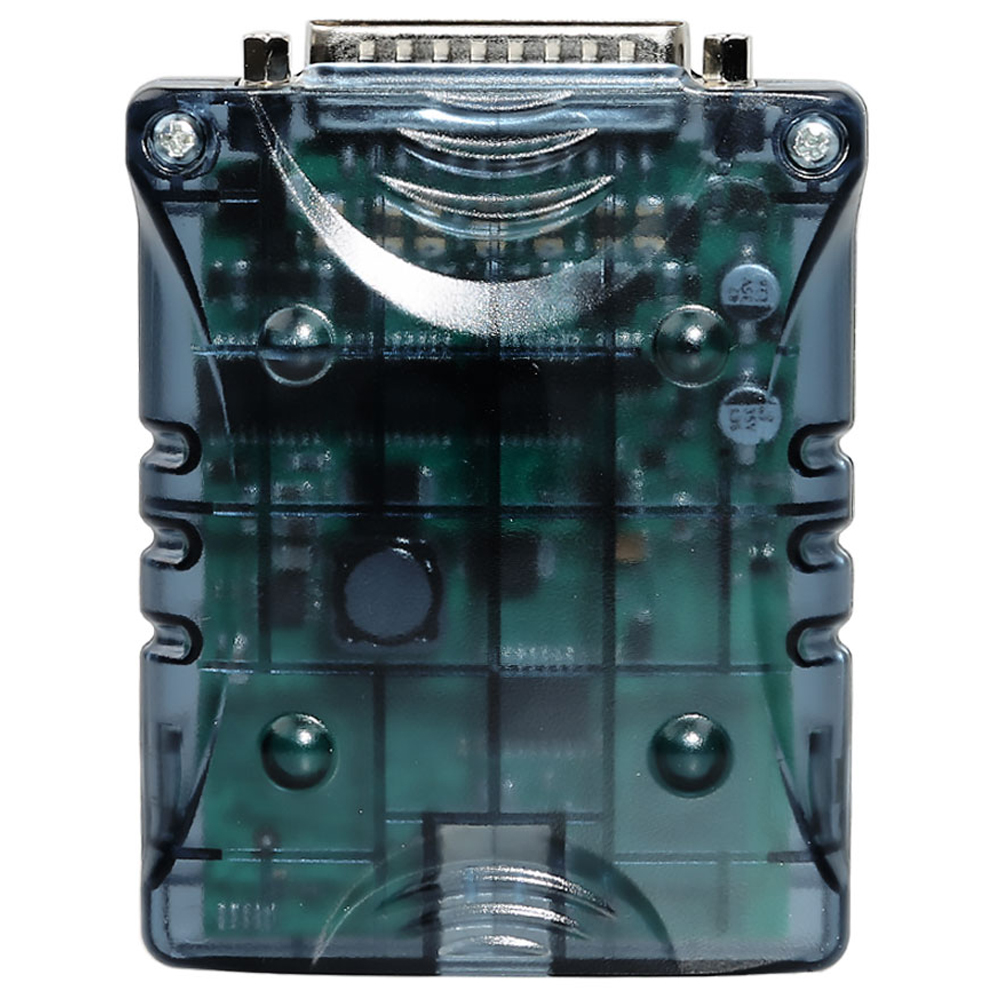

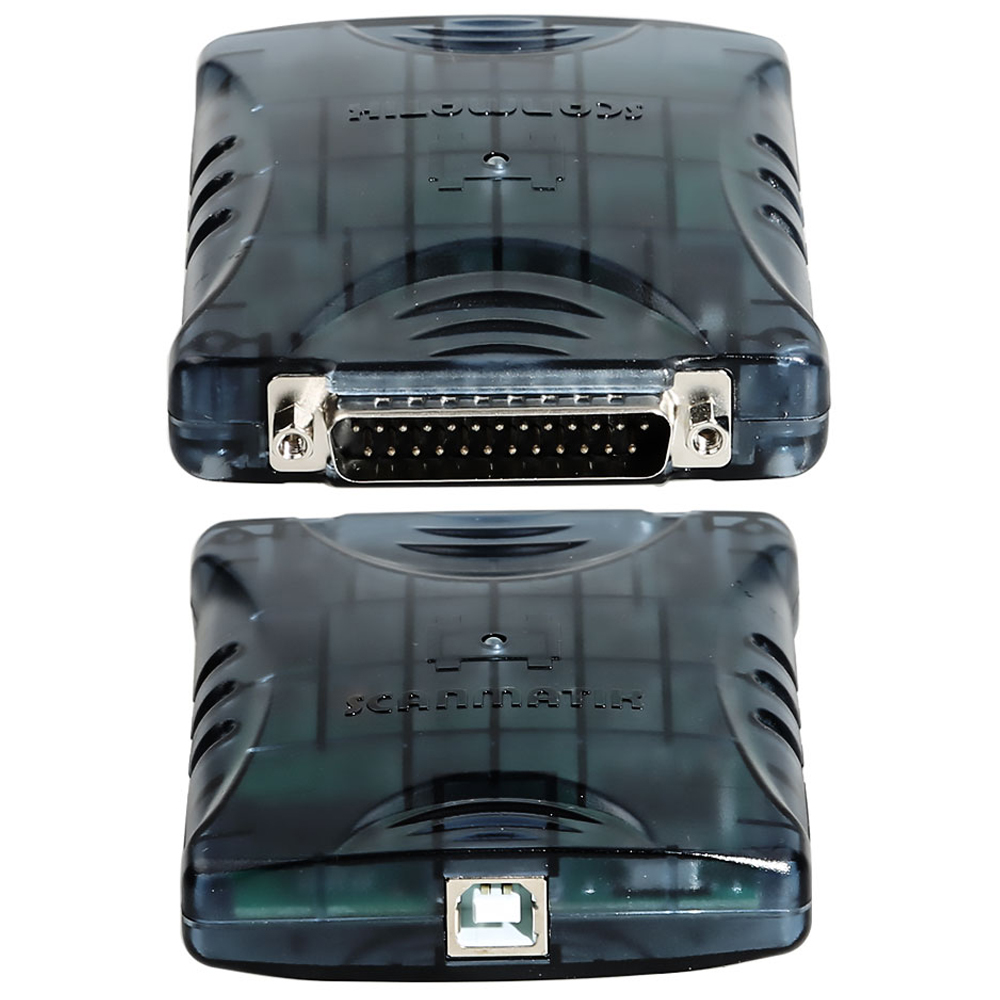

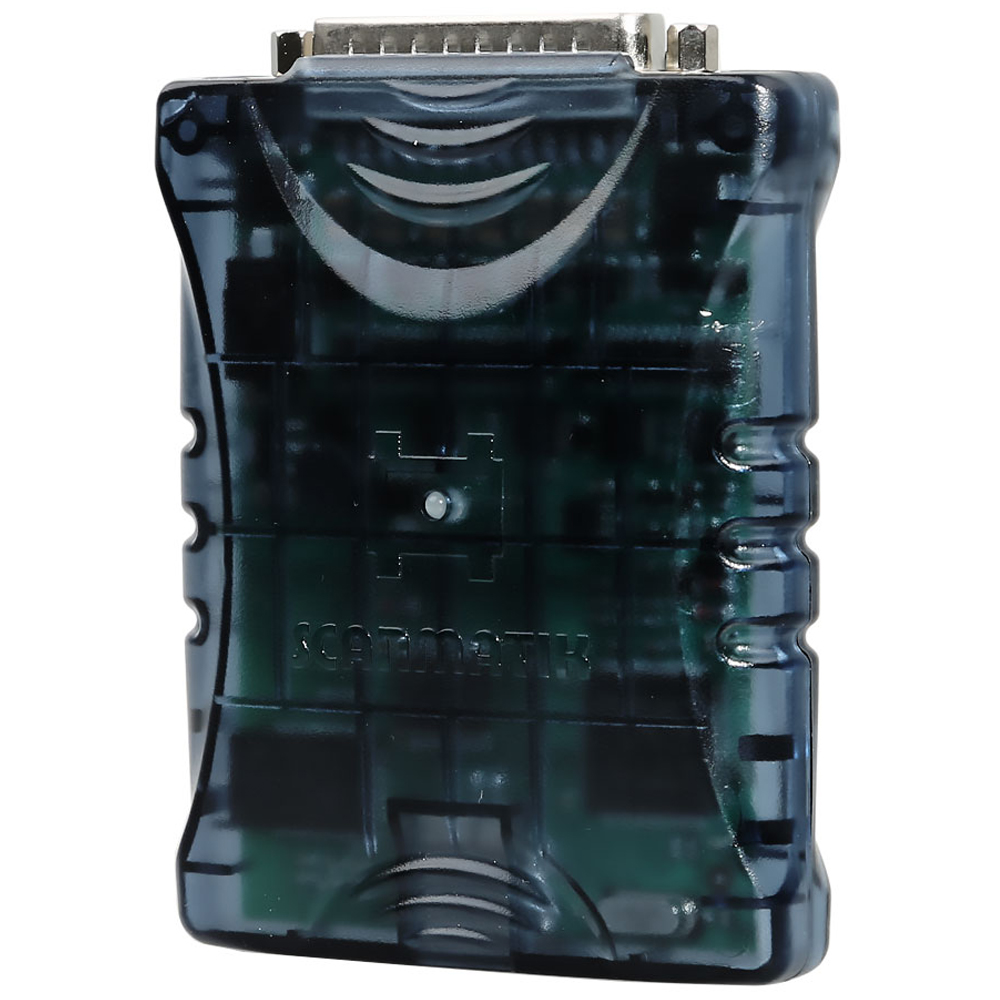

Scanmatik SM2-PRO Programmer

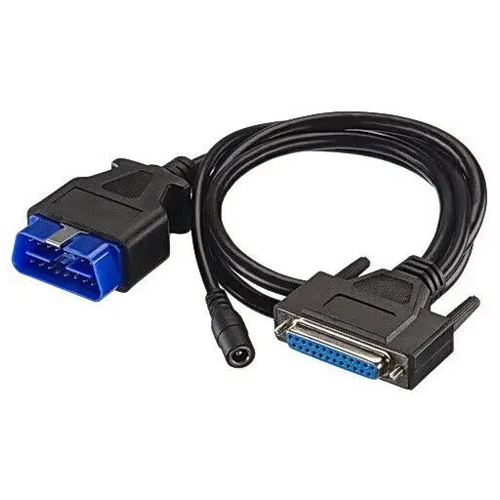

OBD2 Cable (1.8 meter)

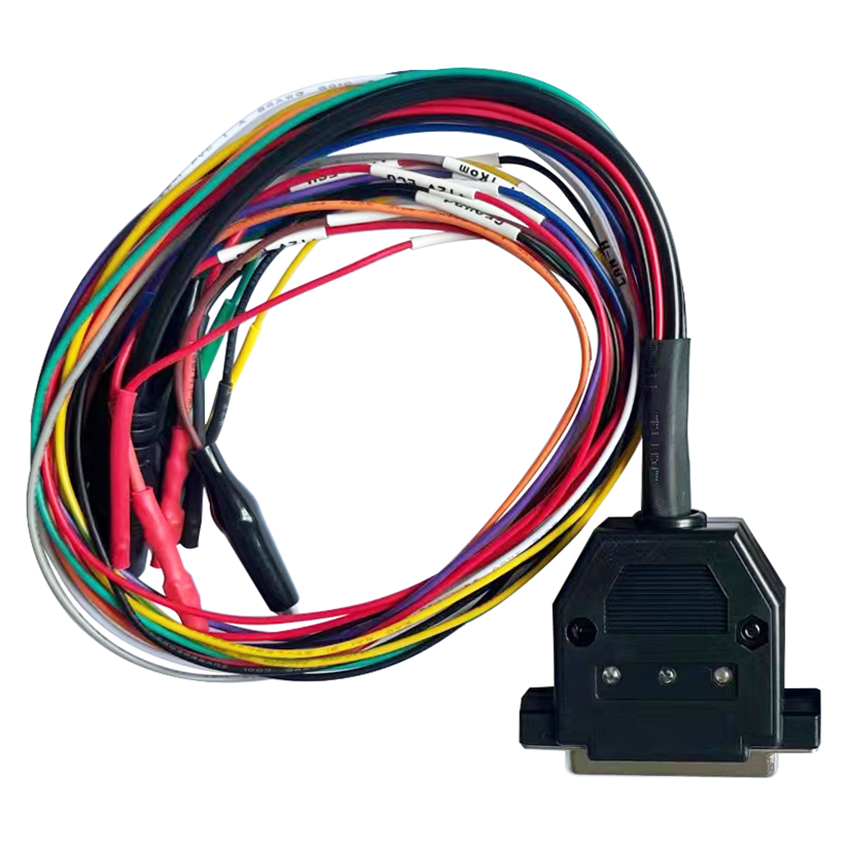

Bench Cable (optional)

Cigarette Lighter Power Cable

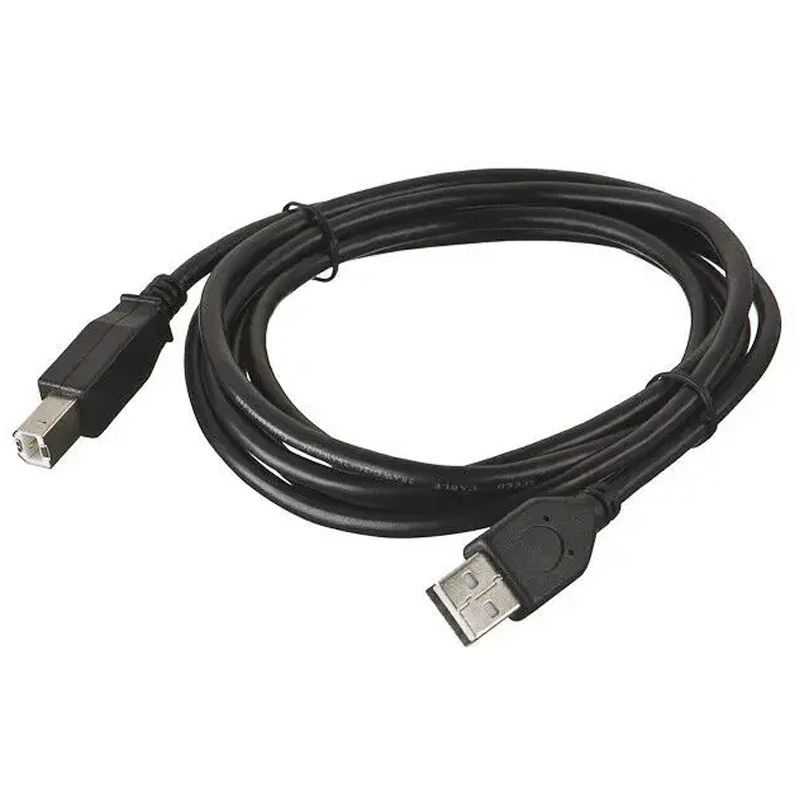

USB Cable (1.8 meter)

Instructions CD

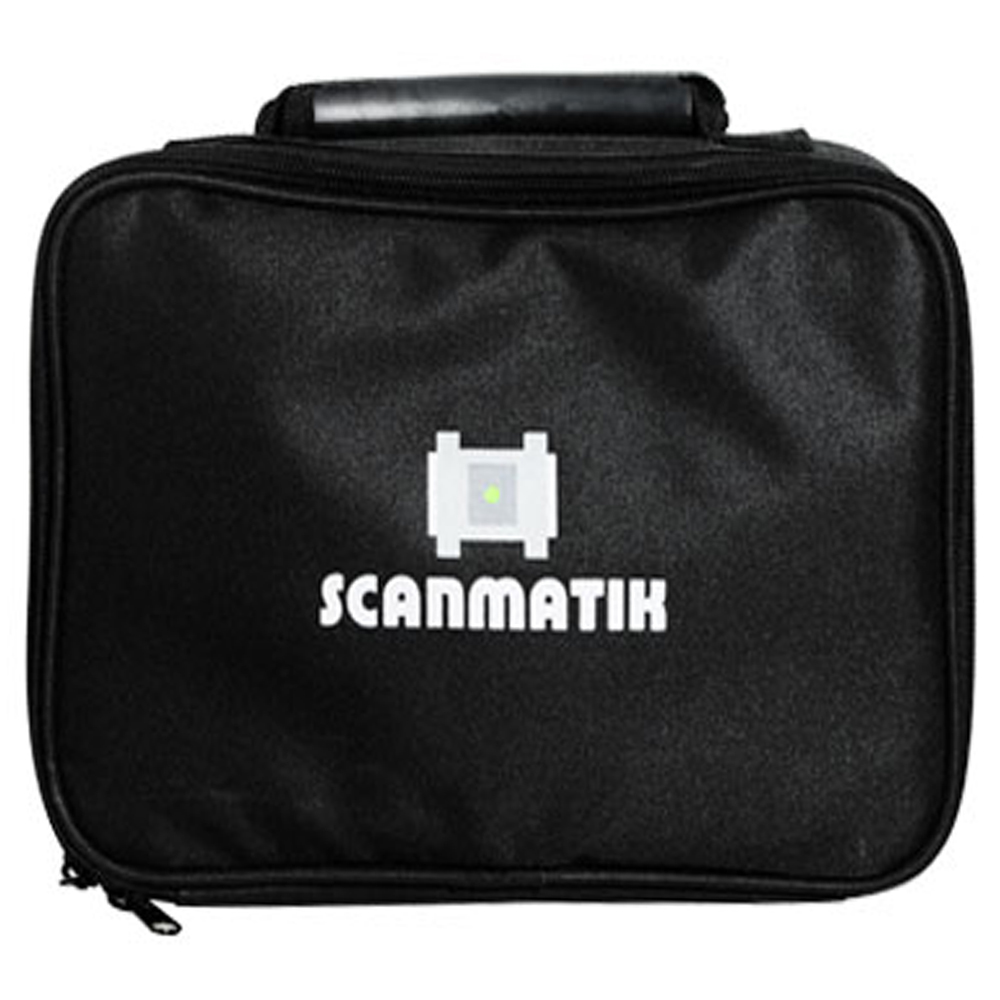

Carrying Pouch
