Name: GODIAG GD101 J2534 for Toyota Honda Acura JLR VAG Ford Mazda
Description:
GODIAG GD101 J2534 Diagnostic Cable supports J2534 & ELM327 diagnosis and J1979 compatible vehicles for Toyota / Honda Acura / JLR / VAG / Ford Mazda etc.

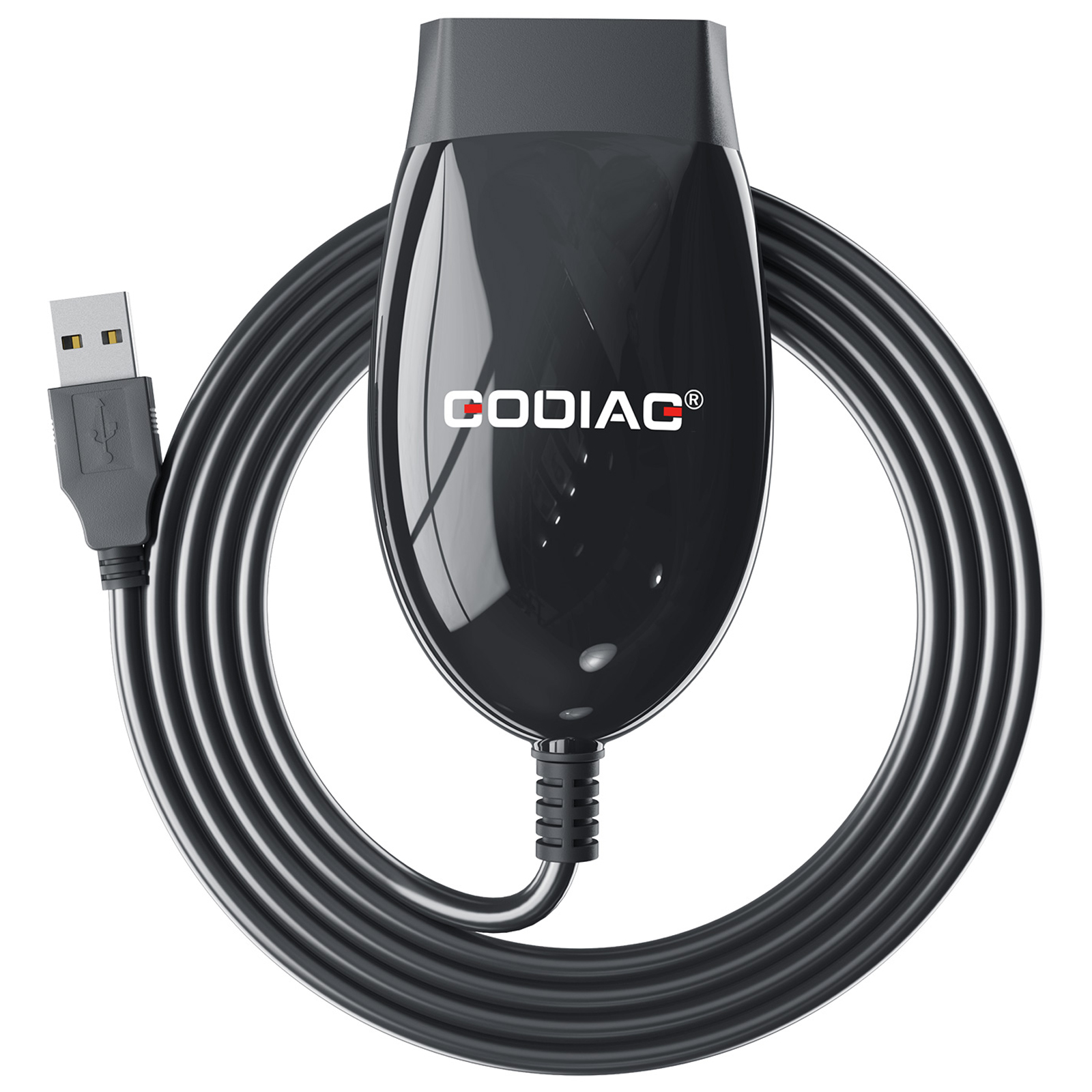

GODIAG GD101 J2534 is a interface that works between diagnostic software and vehicle. It is compatible with J2534 PassThru and ELM327.
Highlights:
1. Support J2534 and ELM327 mode in one device. Switch mode automatically.
2. More speedup. Faster communication and reprogramming.
3. More stability. Never let you down while reprogramming.
4. Portable and convenient. Small package and easy to carry.
Functions:

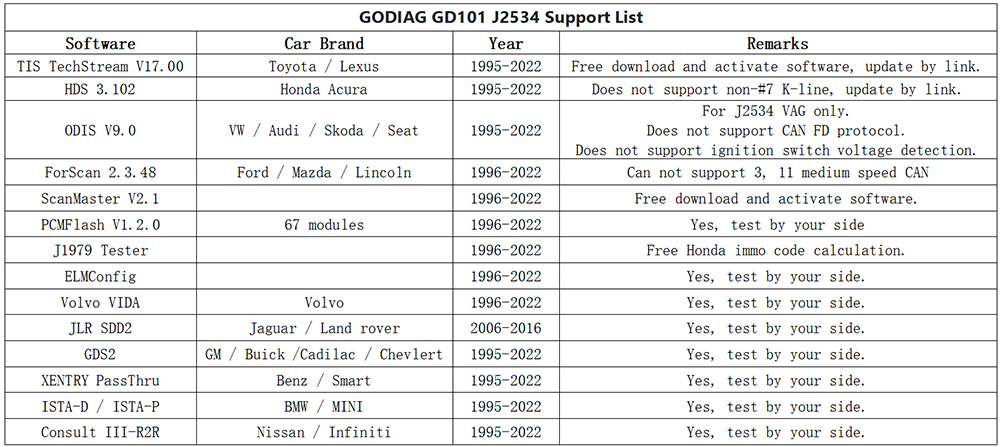

1. Support most all of J2534 compatible software (HDS, TIS, ODIS, JLR SDD, PCMFlash...).
2. Support most all of ELM327 software (ELMConfig, Forscan, ScanMaster...).
3. Support ECU reprogramming in J2534 mode with programming voltage.
4. Supply free software for diagnosing J1979 compatible vehicles.
Supported OS: Windows 8/10/11 32/64bit
Supported Languages:
VAG ODIS
English, French, German, Spanish, Portuguese, Italian, Russia, Turkish, Greek, Dutch, Croatian, Danish, Romanian, Polish, Swedish, Finnish, Slovenian, Czech, Japanese, Korean, Chinese
Toyota TIS
English, French, German, Spanish, Italian, Russian, Turkish, Japanese, Chinese
Honda HDS
English, French, German, Spanish, Portuguese, Italian, Russian, Turkish, Greek, Czech, Dutch, Finnish, Hungarian, Norwegian, Polish, Slovenian, Swedish, Japanese, Chinese
JLR SDD
English, French, German, Spanish, Portuguese, Italian, Russian, Dutch, Japanese, Korean, Chinese
ForScan
English, French, German, Portuguese, Italian, Russian, Turkish, Polish, Ukrainian, Hungarian, Finnish, Romanian, Czech, Lithuanian, Slovak, Latvian, Bosnian, Traditional Chinese, Simplified Chinese
ScanMaster ELM 327
English, French, German, Spanish, Italian, Turkish, Polish, Croatian, Serbian, Danish, Hungarian, Czech,
PCMFlash
English, Russian
Note for PCMFlash 1.20:
Customers need to buy a USB Dongle (PCMTuner Dongle ), and it supports only OBD part. It does not support Bench, Boot, VAG, DSG and Gearboxes.
Protocol Configuration:
1. ISO15765 (Standard/Extended frame).
2. ISO9141.
3. ISO14230.
4. J1850 PWM (Support IFR and 2X speed mode).
5. J1850 VPW (Support 4X speed mode).
6. Programming voltage.
7. Short to ground.
8. ELM327 with command set version 1.5a
Hardware Configuration:

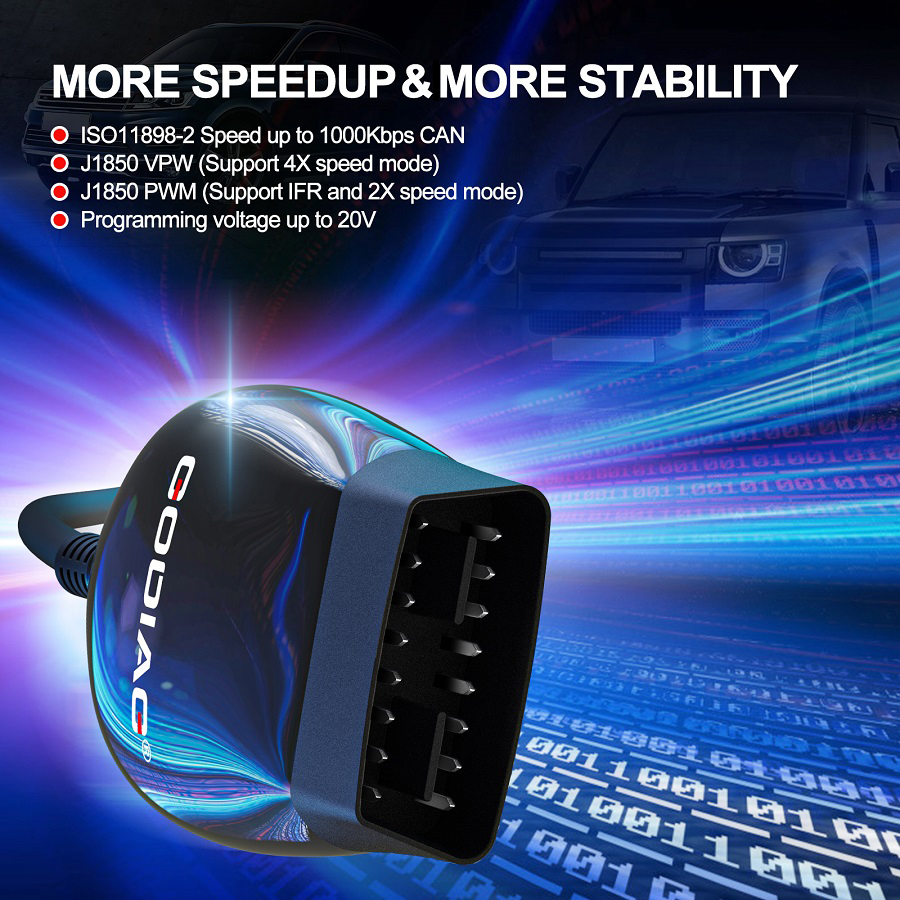

1. ISO11898-2 high speed CAN (OBD-II Pin 6 and Pin 14. Speed up to 1000Kbps).
2. ISO9141 and ISO14230 K line (OBD-II Pin 7 and Pin 15).
3. J1850 PWM (OBD-II Pin 2 and Pin 10).
4. J1850 VPW (OBD-II Pin 2).
5. Programming voltage (OBD-II Pin 12 or Pin 13. Programming voltage up to 20V).
6. Short to ground (OBD-II Pin 9 short to OBD-II Pin 5).
7. Vehicle Voltage Requirements: 8V to 18V DC

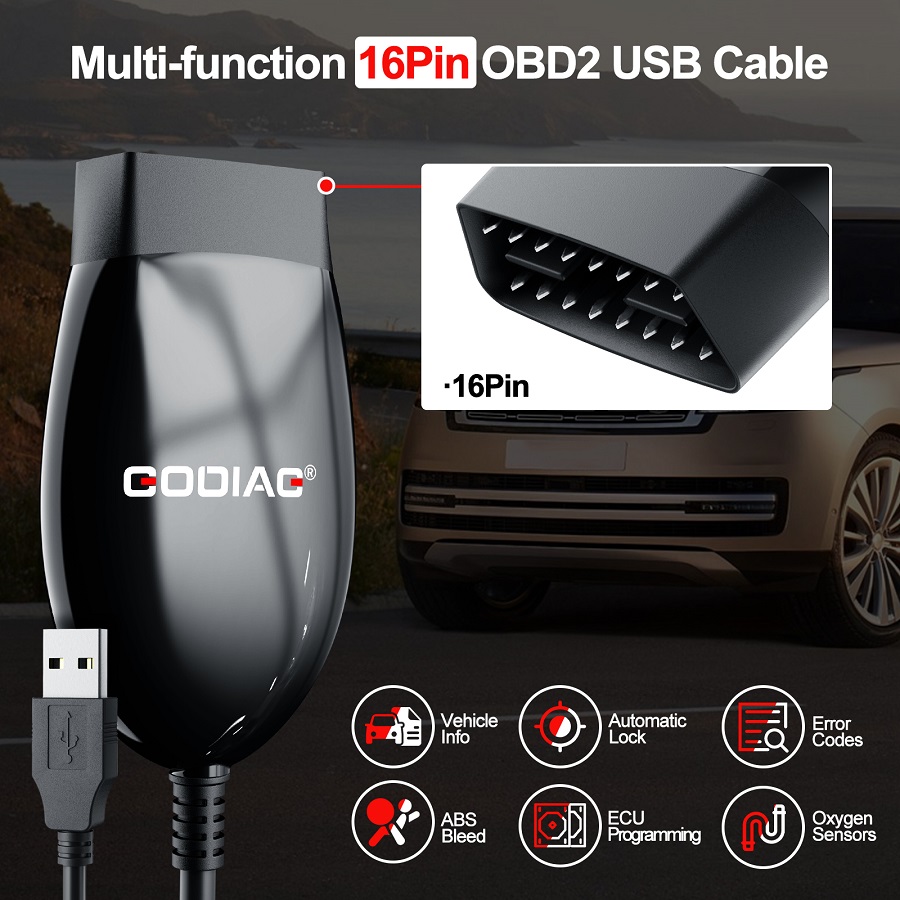

8. Vehicle Connection: OBD-II
9. Host Connection: USB 2.0

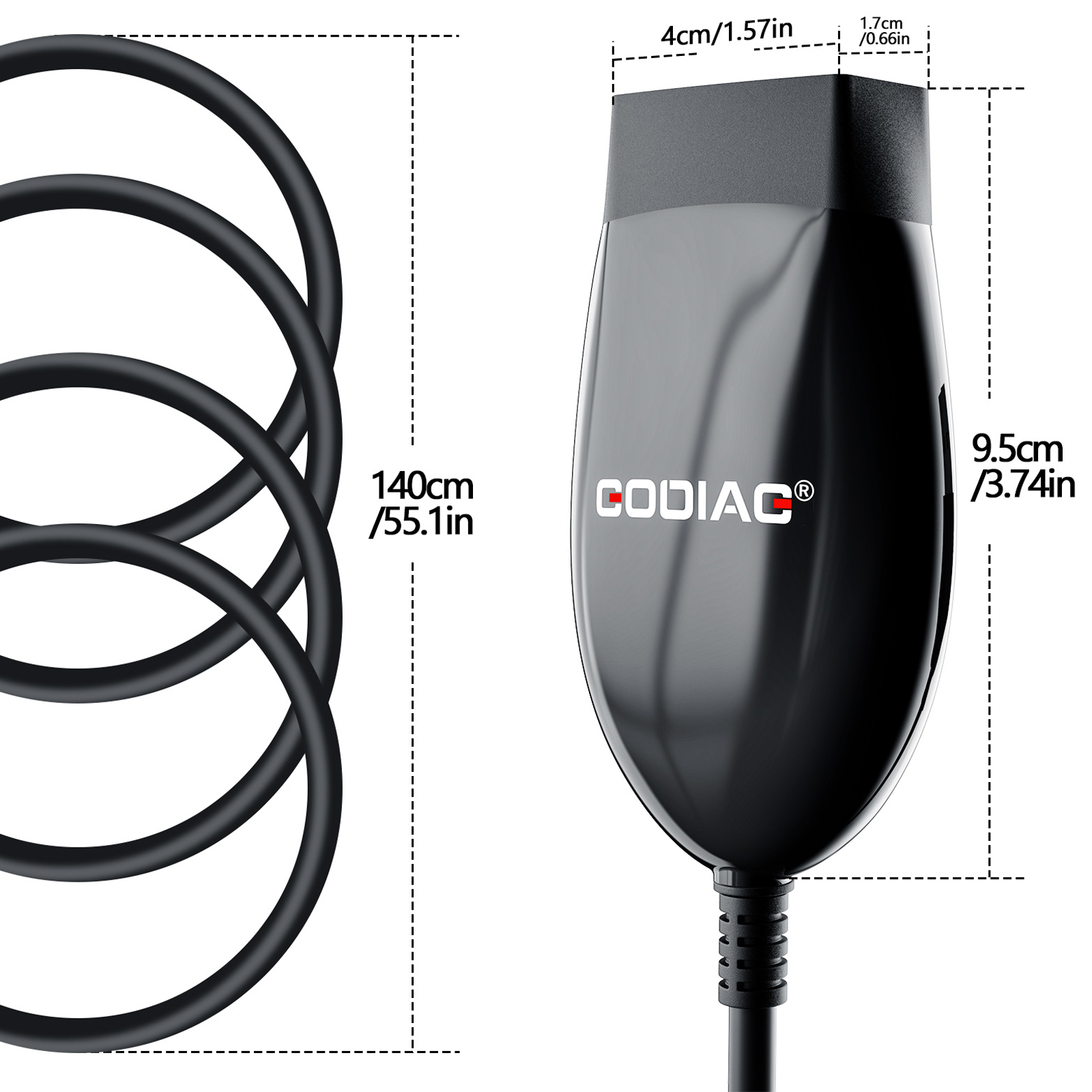

10. Dimension(L*W*H): 95*55*23mm
11. Environmental: -20 to 45 degree centigrade
 |
