Description:

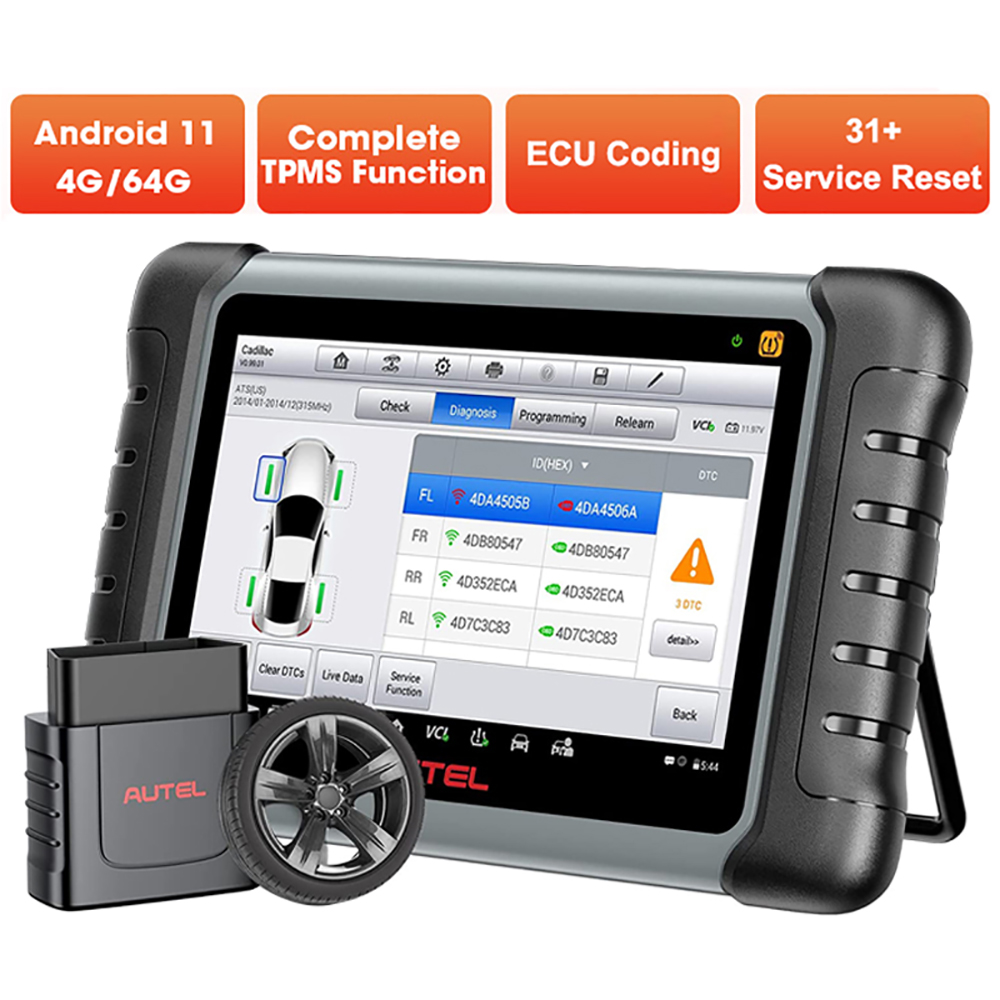

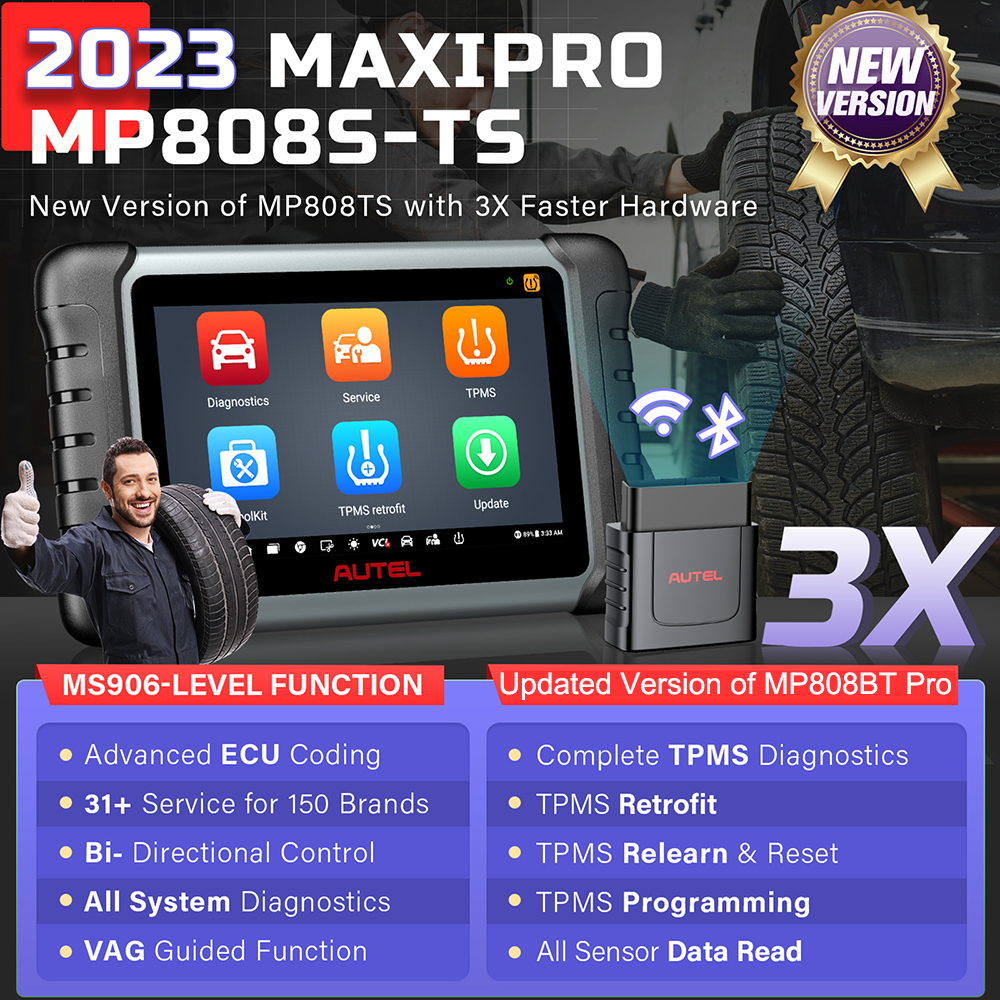

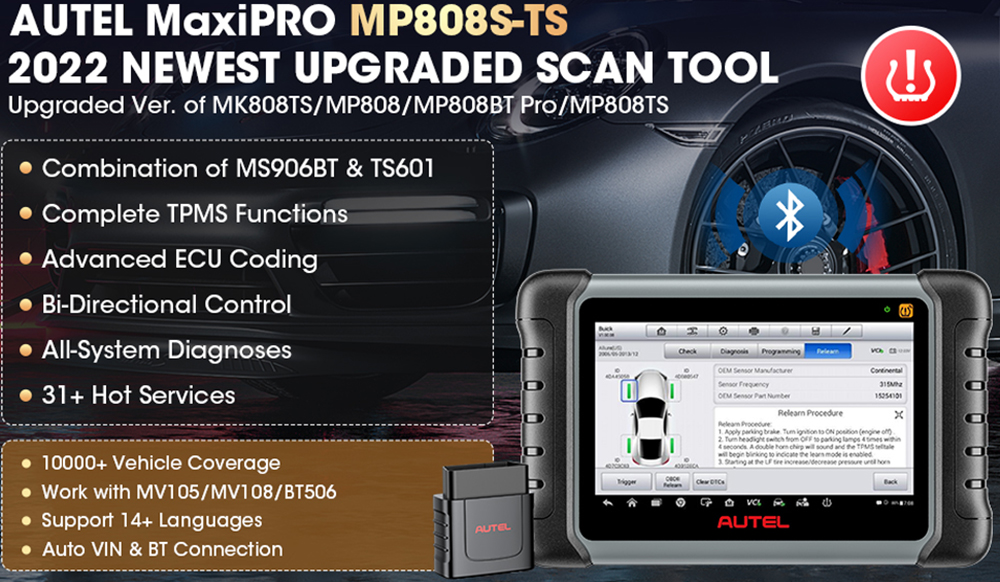

Autel MaxiPRO MP808S-TS works as a great combination of Autel MP808BT Pro + Autel MaxiSys MS906 + Autel MaxiTPMS TS608. It is not only an advanced car diagnostic tool for car repair shops but also an all-in-one TPMS reset tool for car tire shops.



Supported Languages:



English, French, German, Spanish, Portuguese, Russian, Italian, Dutch, Arabic, Turkish, Hebrew, Polish, Swedish, Persian, Japanese, Korean, Thai, Vietnamese, Indonesian, Simplified Chinese, Traditional Chinese



Highlights:



1. Works well on 150+ vehicle brands (from 1996 to 2023), including the latest models & the FCA models (after 2018).

2. Features 31+ Reset Services, ECU Coding, OE-Level All System Diagnostics, Bi-Directional Control, Full TPMS Functions,10+ High-End Features...

3. Complete TPMS diagnostics to Read/Clear TPMS Codes with on-screen DTC description, and Retrieve TPMS Live Data Stream.

4. Improved 99% TPMS-equipped car coverage being well-suited to mechanics in auto repair shops working on a wide range of vehicles.

5. Expand features with video scope Autel MaxiVideo MV105/MV108 and battery tester Autel MaxiBAS BT506.



Functions:



1. ECU Coding

Autel MaxiPRO MP808S-TS features the same ECU Coding functions as Autel MaxiSys MS906BT: Online Coding, Offline Coding, Activate Hidden Functions, Customize Oe-Settings, Auto Start/Stop/On/Off, Replacement Module Match/Code/Recode/Adaptation,VAG Guided Functions and more to improve drivability & comfortability as well as prolong parts services life. Functions vary by model and please consult us to check compatibility before buying.



1). Online Coding:

Enable you to access the online data to do high-level repairs, such as online coding for BMW, for VW, for Nissan, for Nissan-GTR, for Infiniti, for Hyundai, for Toyota, for Ford, for Mazda, etc.



2). Offline Coding/Adaptation:

Read the code from the original module, and then write the code to the new module, such as Offline Coding for Jaguar, for Vauxhall, for Opel, etc.



3). Refresh Hidden Functions:

Make full use of the hidden features; activate/disable differentiated features between high & low configurations of the same model. Such as activating auto side mirrors folding function, disabling automatic engine Start-Stop function, etc. Compatible with VW, with Audi, with Skoda, etc.



4). Component Matching:

Autel OBD2 Diagnostic Scanner MP808S-TS helps you match, learn, or code the newly replaced ECUs/modules on most vehicles, like Jaguar, Vauxhall, Opel, etc. To get it back on track and save you several trips to the dealership.



Note:



ECU Coding is NOT universally compatible with all vehicles models, and it varies depending on the make, model, and year.



2. Bi-Directional Control & All System Diagnosis

Autell MP808S- TS works as the bi-directional scan tool to diagnoses & locates car issues much faster via 2 OE-level functions: Bi-Directional Control & All System Diagnosis.



Exceeding OE performance and compatible with 150+ brands around the world.

Bi-Directional Control, also called Active/Actuator Tests, enables the Autel intelligent diagnostic tool MP808S-TS to command ECUs, read the ECU data, and monitor the operation of the actuators. Through Active Tests, Autel bi-directional scanner locates car issues precisely & quickly.



For example:

If a part is not working and leads to the failure, it could be a faulty component, wiring, relay, or command. By commanding component to do Active Tests, like switch on/off, with Autel MP808S-TS scanner you can quickly determine whether it is a wiring, relay, or component issue without removing any parts.



Active Tests are often widely performed on different parts, such as:

A/C Configuration; Adaptive Headlamp Adjustment; Window Wipers Setting; Doors Turn On/Off; Sunroof Switch On/Off; Mirrors Folding/Unfolding; Active Tests on Interior Lights, Inside Mirrors, Steering Wheel Heating, Windows, Horn, etc.



Note:



Bi-Directional Control is NOT universal for all vehicles models. Available tests vary depending on the make, model, and year.



3. OE-Level All System Diagnosis

Autel MaxiPRO MP808S-TS works well on 150+ car makes and models worldwide (1996 and newer) to Read/ Clear Codes, Read ECU Info., View Live Data, Active Tests, and perform Special Functions for all available systems.



1). Read ECU Information of the control units, including unit type, version numbers, etc.



2). Read / Clear DTCs to locate problems and clear the codes after certain repairs.



3). View Live Data of each parameter item in various modes, such as text, waveform, or combination (4-in-1 data stream).



4). Active Test / Bi-Directional Control to accurately figure out whether a specific system, component, or subsystem in certain parts goes well or not.



Supported Systems:

Engine System (ECM), Auto Transmission (TCM), Anti-lock Brake System (ABS), Electronic Parking Brake (EPB), Battery Manage System (BMS), Tire Pressure Monitoring System (TPMS), Supplemental Restraint System (SRS), Immobilizer (IMMO), Suspension, Cruise Control System, Steering Angle System, Air Conditioning System, Audio System, Body System, Gateway, etc.



4. Complete TPMS Functions

Autel MP808S-TS 2-in-1 Diagnostic & TPMS Scanner inherits all the advantages of Autel MaxiTPMS TS501 / TS508 / TS601 / TS608. It is designed for tire shops to solve 99% TPMS-related issues. Equipped with advanced complete TPMS functions, the MP808S-TS programmer can work as a professional TPMS tool to check the TPMS module health status and TPMS sensor conditions, turn off the MIL, activate almost all TPMS sensors on the market, program Autel MX-sensors to replace the broken sensors, and relearn 99% of TPMS sensors to cars after replacements. What is more, it can help install TPMS modules on vehicles without TPMS.



1). TPMS Diagnostics:

Check the TPMS Module Status: Read/Clear Trouble Codes from TPMS to check the module status and help turn off the light after certain repairs.



2). TPMS Sensor Activation:

Trigger almost all known TPMS sensors (315/433MHz), including the OE sensors, Autel MX-sensors, and other sensors in the market.



3). TPMS Sensor Data Reading:

Check the TPMS Sensor status quickly, read the sensor ID, pressure, temperature, battery condition, etc., to help you quickly know what’s wrong with the sensor.



4). Autel MX-Sensor Programming:

Wirelessly program the Autel MX-sensors (315/433MHz) to replace the broken TPMS sensors with low batteries. (*Only Autel MX-sensors can be programmed by Autel MP808S-TS).



5). 99% TPMS Sensor Relearn:

Relearn TPMS sensors to the vehicle ECU after changing or rotating tires, or installing new sensors.



6). TPMS Retrofit:

Help you install the TPMS system to the vehicles without the TPMS by default for safe driving. (*Only available for the low configuration car models whose high-end models are installed direct TPMS by default.)



7). TPMS by OEM Part No.:

An efficient method to activate and program MX-Sensors with the sensor OEM part number.



5. 31+ Special Functions

Autel MaxiPRO MP808S-TS diagnostic scanner features 31+ hot reset services for 99% of daily car maintenance/repairs, covering 99% of the global vehicles in the repair shops.



Oil Reset, EPB Reset, TPMS Reset, ABS Bleeding, IMMO (basic), BMS Reset, Throttle Matching, Injector Coding, SAS Calibration, Suspension Calibration, Trans Adaption, Airbag Reset, ABS & SRS, WIN DR Roof, Seats Calibration, Language Change, Headlamp Matching, CHG Tire Size, TEC Learn, Cylinder, Turbocharging, Clutch, A/F Setting…



6. AutoAuth for FCA SGW Access

Autel Scanner MP808S-TS supports AutoAuth for FCA SGW access, allowing you to clear codes, do Bi-Directional Control (Active Tests) and perform special functions for Chrysler FCA models after 2018 without special adapters. Compatible with Fiat, with Chrysler, with Alfa Romeo, with Dodge, etc. (2018-2023).



Notice: AutoAuth account needs to be purchased by yourself.



7. Renault Security Gateway Function

Renault Security Gateway function is used for unlocking gateway to perform service functions, active tests, coding…The Autel MP808S-TS Scanner supports Renault Security Gateway function and allows you to pay to perform those functions on these models (after 2019), such as CLIO V, CAPTUR II, CAPTUR II CN, MEGANE IV ph2, ESPACE V ph2, TALISMAN/SM6 ph2, NEW ZOE, ARKANA CN, XM3/NEW ARKANA, NEW SANDERO/LOGAN, etc.

Supported Cars:



Asia:

Acura, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mazda, Mitsubishi, Nissan, Scion, Subaru, Suzuki, Toyota...



Europe:

Abarth, Alfa, Audi, Bentley, Benz, BMW, Bugatti, Citroen, Dacia, EU Ford, Fiat, Jaguar, Lancia, Land Rover, Maybach, Mini, Opel, Peugeot, Porsche, Renault, Saab, Seat, Skoda, Smart, Sprinter, Vauxhall, Volvo, VW...



USA:

Chrysler, Ford, GM...



Australia:

AU Ford, Holden...



Specifications:



Operating System: Android 11

Processor: Rockchip RK3566

RAM: 4GB RAM

Storage: 64GB

Display: 7-inch LCD capacitive touchscreen with 1024*600 resolution

Connectivity: Wi-Fi(802.11a/b/g/n/ac) / USB 2.0 / Mini USB 2.0 / Wireless BT V2.1+EDR / HDMI Type A / SD Card: (support up to 64GB)

Battery: 3.7V/5000mAh lithium-polymer battery charges via 5V DC power supply

Input Voltage: 5V/1.5A

Operating Temperature: 0 to 50 degree centigrade

Storage Temperature: -20 to 60 degree centigrade

Dimensions(W*H*D): 270.8*176.0*36.0mm

Weight: 885g
Protocols: ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (High-Speed/Middle-Speed/Low-Speed/Single-Wire CAN, Fault-Tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6



Packing List:



Autel MaxiPRO MP808S-TS

USB Cable

USB Cable for Charging

Power Adapter

Quick Start Guide

Quick Reference Guide

Packing List

Plastic Toolbox
