Description:

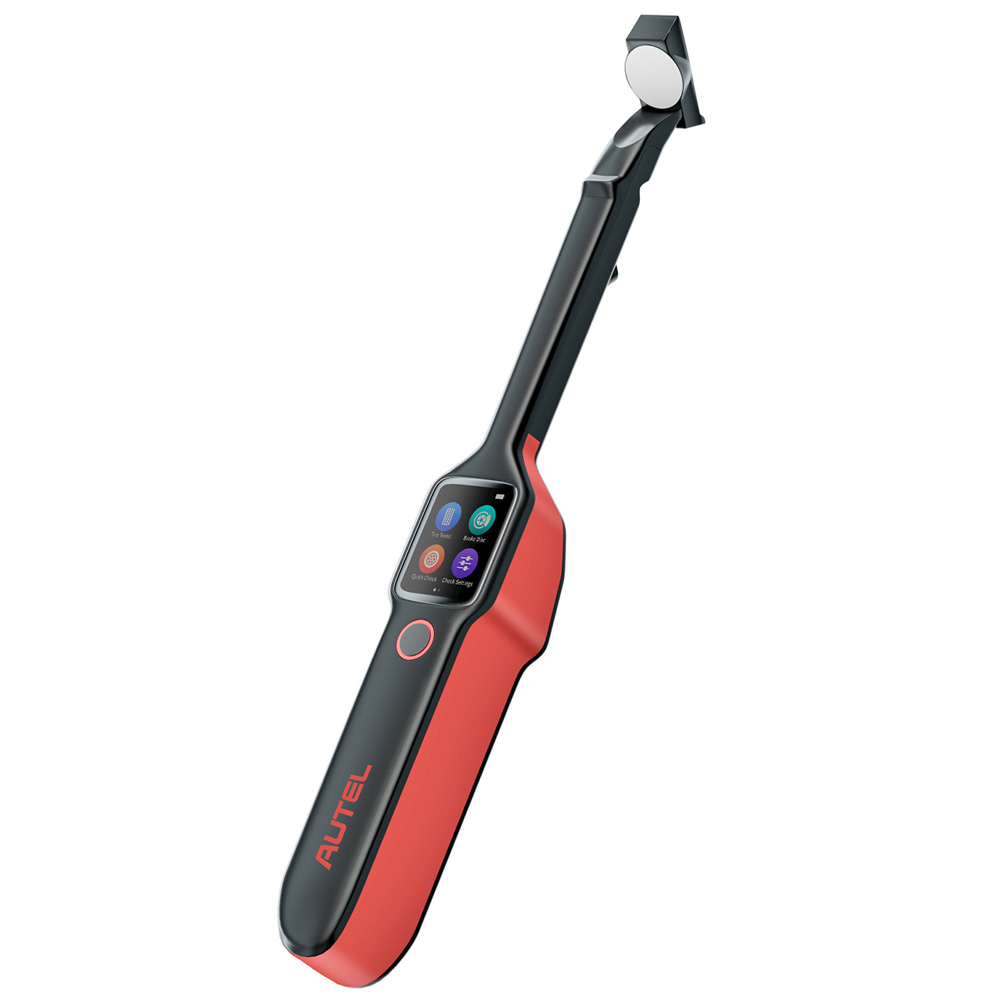

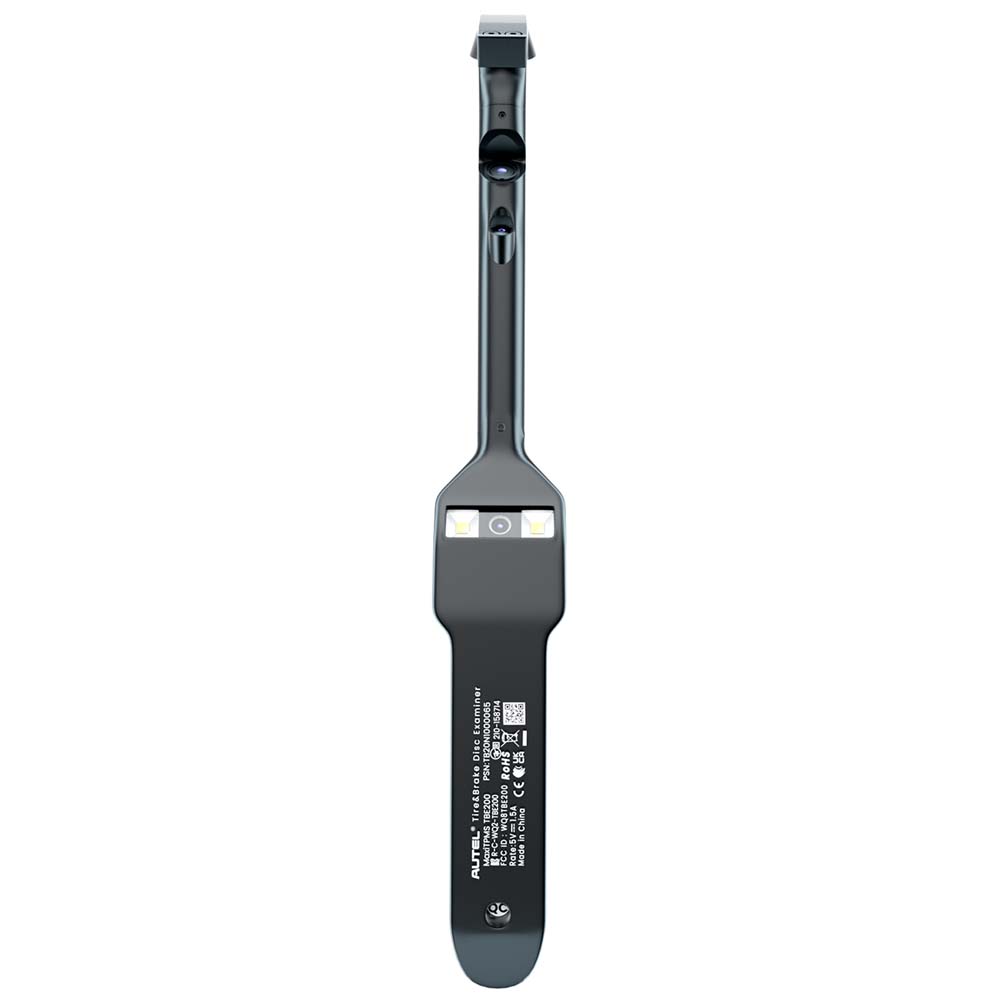

Autel MaxiTPMS TBE200 Tire Brake Examiner Laser Tire Tread Depth Brake Disc Wear 2-in-1 Tester works with Autel MaxiTPMS ITS600.

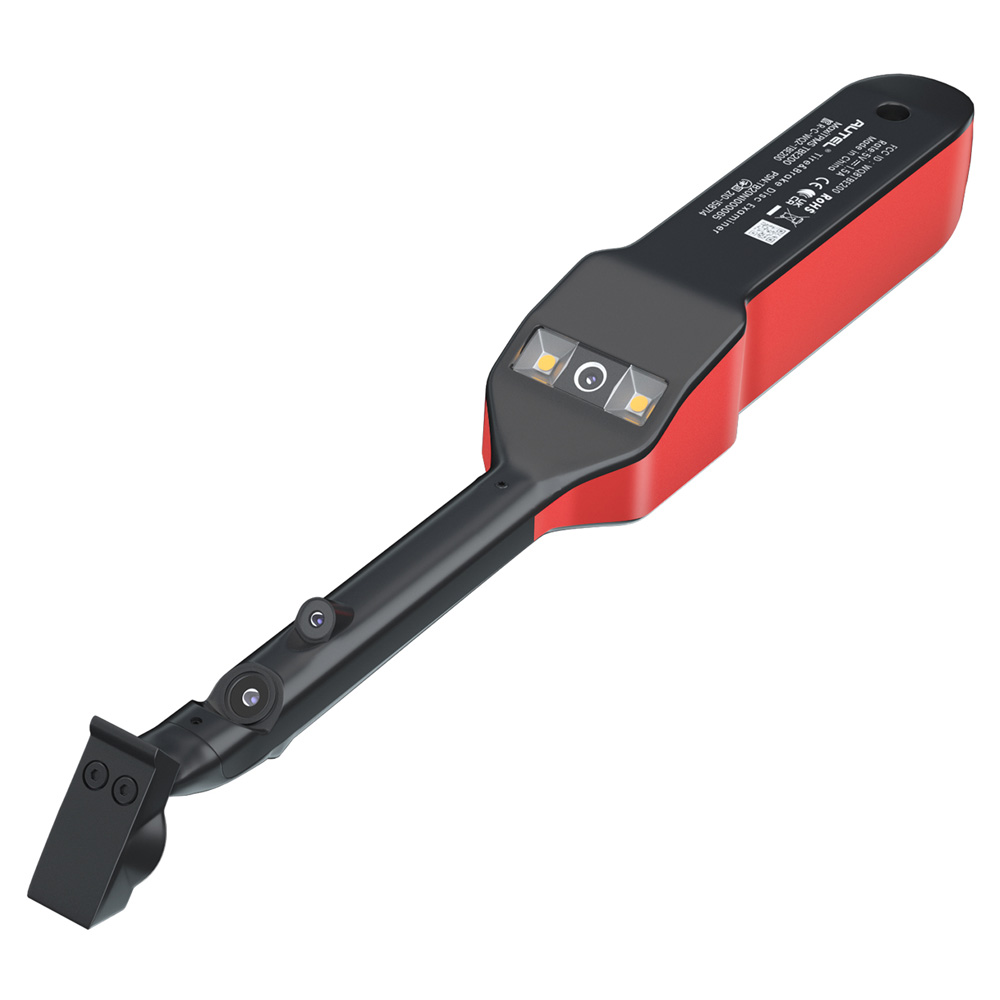

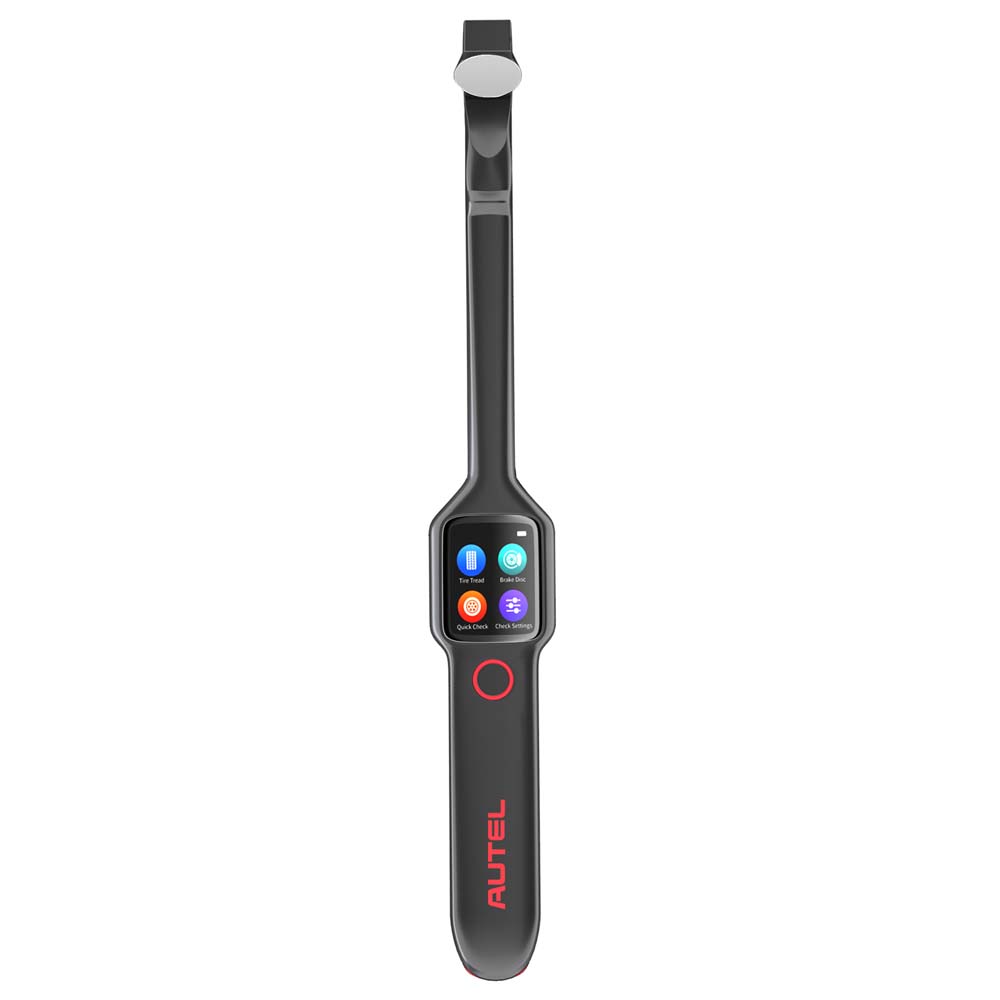

Autel MaxiTPMS TBE200 is a Laser Tire Tread Depth and Brake Disc Wear 2-in-1 Tester. MaxiTPMS TBE200 can provide users with fast and accurate wear measurement(0.1mm accuracy). It has a 1.65-inch AMOLED super retina touch screen, a 1-megapixel macro camera, and an 8-megapixel zoom camera to display the measurement data curve in real time. Autel TBE200 dual camera enables users to record tire wear and damage and scan the tire identification number (TIN).



Autel MaxiTPMS TBE200 has functions of Scanning DOT, Tire Expiration Notice, Tire Recall Lookup, Taking Photos of Tire Wear and Damage etc. TBE200 is equipped with a 1.65-inch AMOLED super retina touchscreen, dual camera, real-time tire health/uneven wear analysis, full tread measurement.



It supports almost all tire types, comprehensive test report (Need to work with Autel ITS600).



Features:



1. Tire Tread Depth & Brake Disc Wear Testers

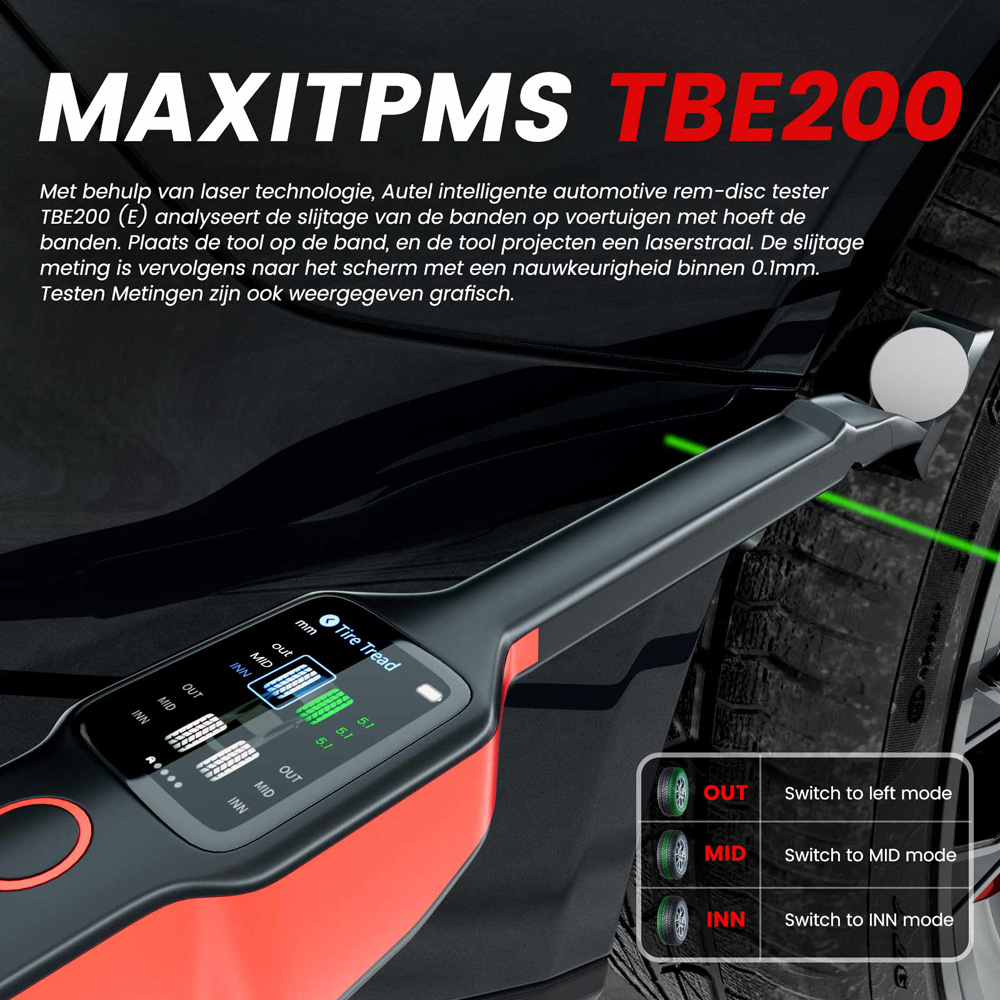

Why choose TBE200? Autel MaxiTPMS TBE200 is not only a laser inspector with a measuring accuracy of 0.1 mm, but also can display measurements graphically. It is convenient for technicians and repair shops workers to measure tread depth/brake disc wear without removing wheels. TBE200 provides 4 possible results (Gray, Green, Yellow, Red) are represented to the degrees of tire wear/wear status, it offers accurate analysis to ensure your driving safety.



2. Real-Time Tire Health Analysis

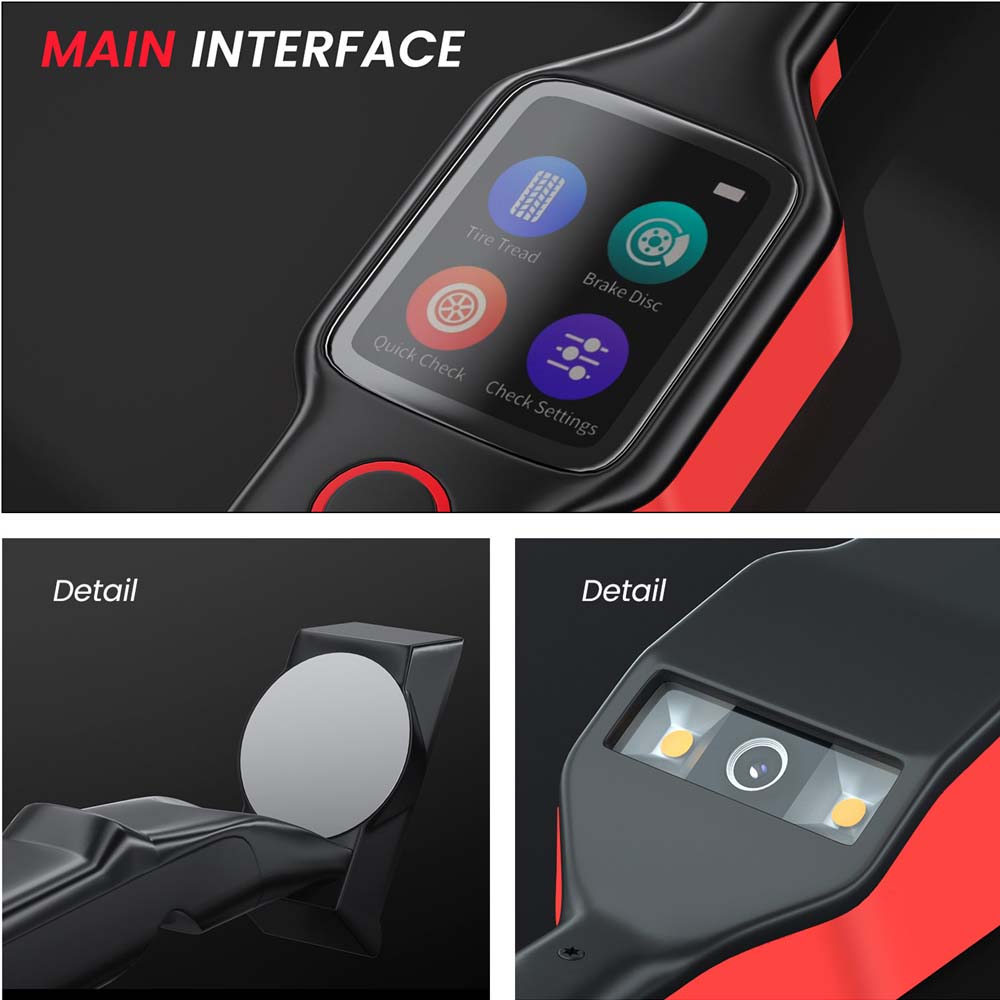

Autel TBE200 tread depth reader provides wear analysis and displays the measurement data curves in real-time and service advice on its 1.65-inch high resolution super Retina touchscreen AMOLED. The full-color graphical display illustrates wear and provides service advice, including tire and brake disc replacement, tire rotation, and 4-wheel alignment. Adding scan DOT, tire expiration notice, tire recall lookup functions help you get the tire data easier.



3. Enhancing TBE200 with Autel MaxiTPMS ITS600

TBE200 will offer optimal performance when paired with Autel ITS600 TPMS Tool(sold separately). When used with ITS600, Autel TBE200 will take advantage of the ITS600 larger screen to collect tire tread and brake disc wear information, combine it with TPMS information from ITS600 to produce comprehensive vehicle health reports that include detailed information for both service areas. These reports can be printed and presented or kept as records for the repairer.



4. Wide Vehicle Coverage & One-Year Warranty

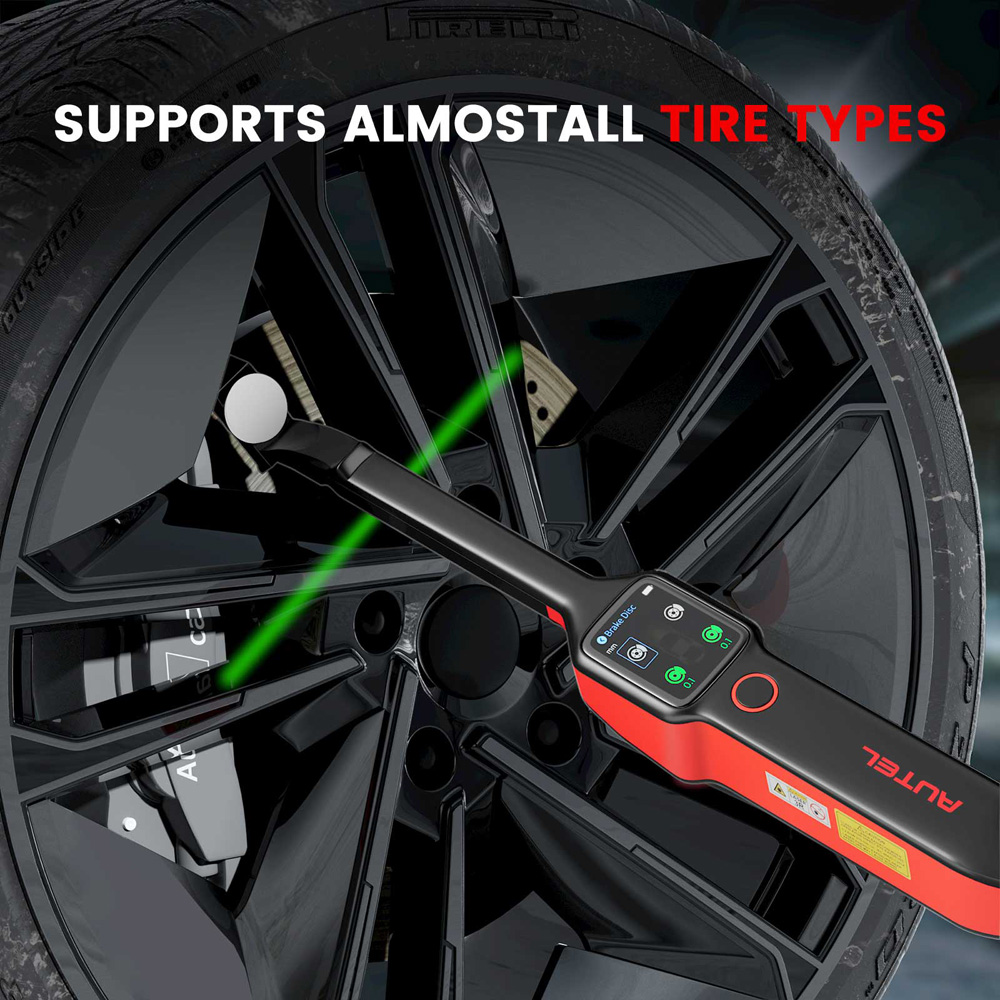

Autel TBE200 TMPS Tool not only supports 99% vehicle including passenger cars, off-roads and commercial vehicles, but also is compatible with almost all tire types (Goodyear, Continental, Bridgestone, Dunlop etc) on the market. TBE200 comes with one year warranty and 100% risk-free purchases. TBE200 will be your best choice!



Functions:



1. Laser Measurement

1). Tire Tread Depth & Brake Disc Wear check in one tool, no need to remove the wheel during measurement.

2). Laser measurement with 0.1mm accuracy.

3). Full tread measurement.

4). Quick Check both Tread Depth & Brake Disc.



2. Real-Time Tire Health Analysis

1). Real-time measurement data on touchscreen.

2). Measurement data curve display.

3). Uneven wear analysis.

4). Test detail for single tire tread / brake disc.

5). Detailed replacement & maintenance suggestions (tire/brake disc replacement, tire rotation/alignment servicing).

6). Scan DOT, tire expiration notice, tire recall lookup.

7). Take photos of tire wear & damage.



3. Comprehensive Test Report

TPMS Health, Tire Tread Depth & Brake Disc Wear characteristics & Repair Tips (Requires Autel ITS600).



4). Easy to Use QR Code Report Download & Sharing

Generate QR codes for tire tread depth and brake disc measurements to allow for easy report sharing & downloading via mobile phones or tablets.



Specifications:



Processor: 4*ARM Cortex-A35 (1.5GHz)

Display: 1.65-inch AMOLED capacitive touchscreen with 348*442 resolution

RAM: 1GB LPDDR3

ROM: 4GB

Camera: CMOS WXGA, 1 megapixel & 8 megapixel, 30fps

Connectivity: Wi-Fi; USB 2.0 ; Type-C

Audio Output: Beep

Power and Battery: 3.7V/3000mAh 18650 lithium-ion battery charges via 5V AC/DC power supply

Tested Battery Life: around 8 hours of continuous use

Battery Charging Input: 5V/1.5 A

Power Consumption: 300mA (AMOLED on with default brightness) @ 3.7V

Operating Temperature: -10 to 45 degree centigrade

Storage Temperature: -20 to 60 degree centigrade

Dimensions(W*H*D): 283*39mm*33.5mm

Net Weight: 188g

Recommended Use Environment: indoor

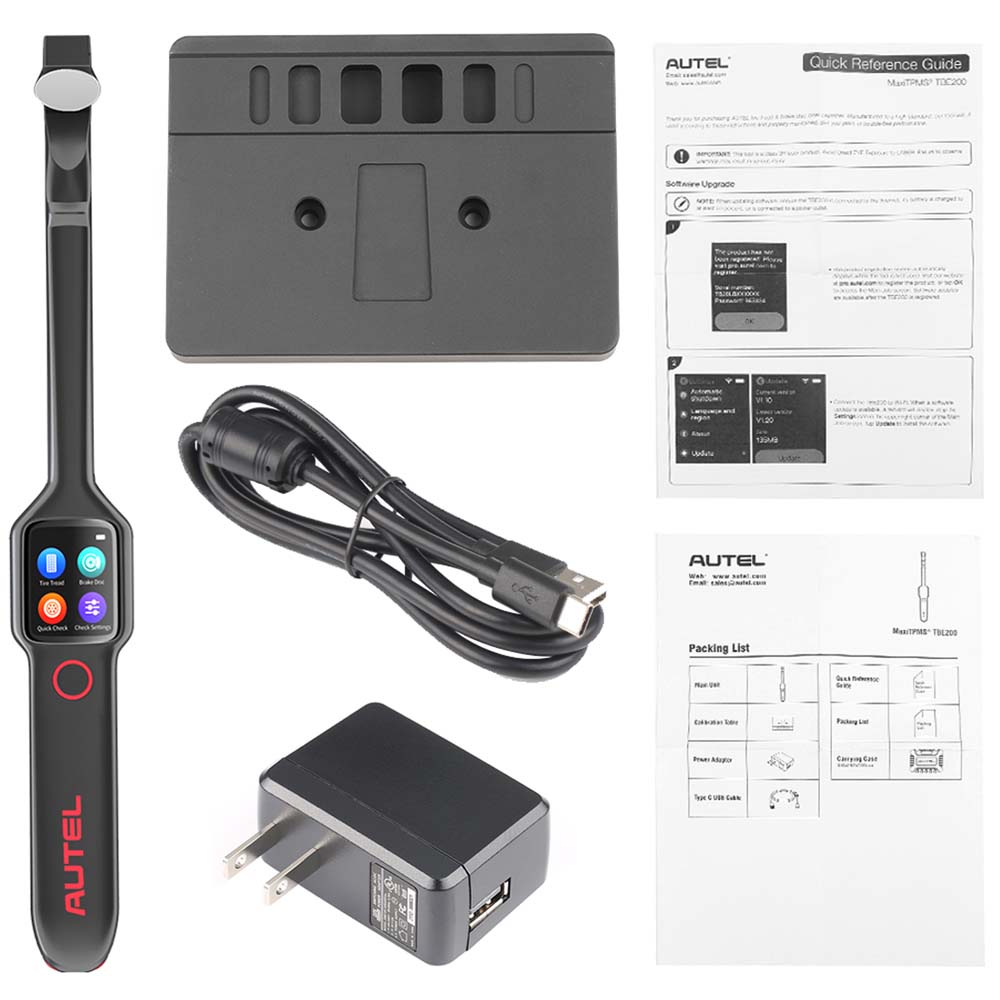

Packing List:



Autel MaxiTPMS TBE200

Calibration Table

Power Adapter

Type-C USB cable

Quick Reference Guide

Packing List

Plastic Toolbox
