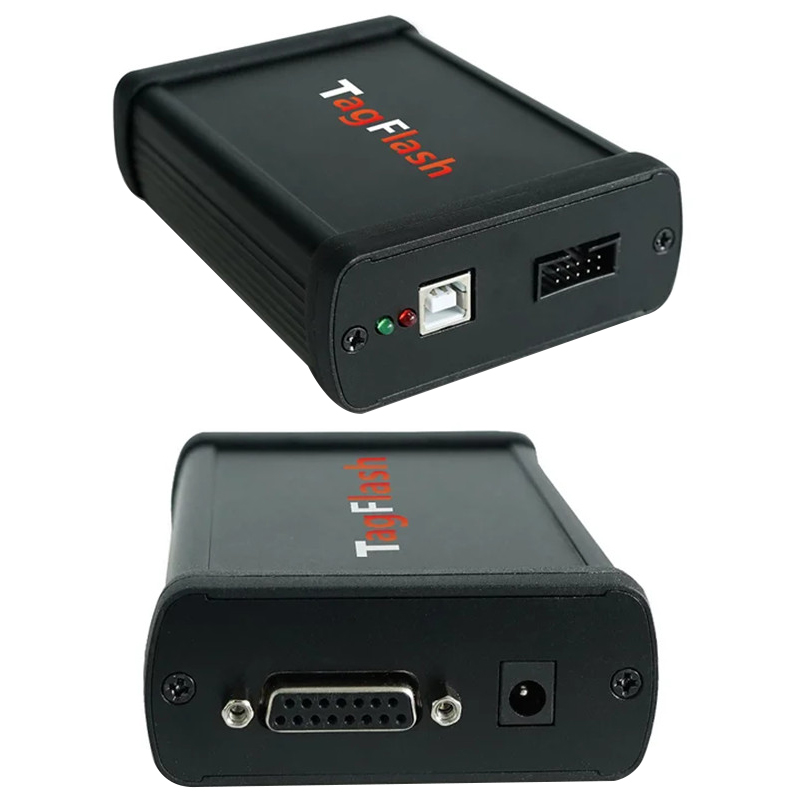

Name: ECUHELP TagFlash ECU Programmer
Description:
ECUHELP TagFlash is a powerful ECU Programmer that enables the reading and programming of Electronic Control Units (ECUs) and Transmission Control Units (TCUs) for various Cars, Trucks, Motorcycles, Marine worldwide from Europe, USA, Asia, India, China, etc.
TagFlash reads and writes EEPROM and flash memory of ECUs. i.e Bosch, Marelli, Siemens, Ford, Delphi, Denso, Transtron, Delco, Continental,Motorola, Valeo, Siemens Continental, etc.

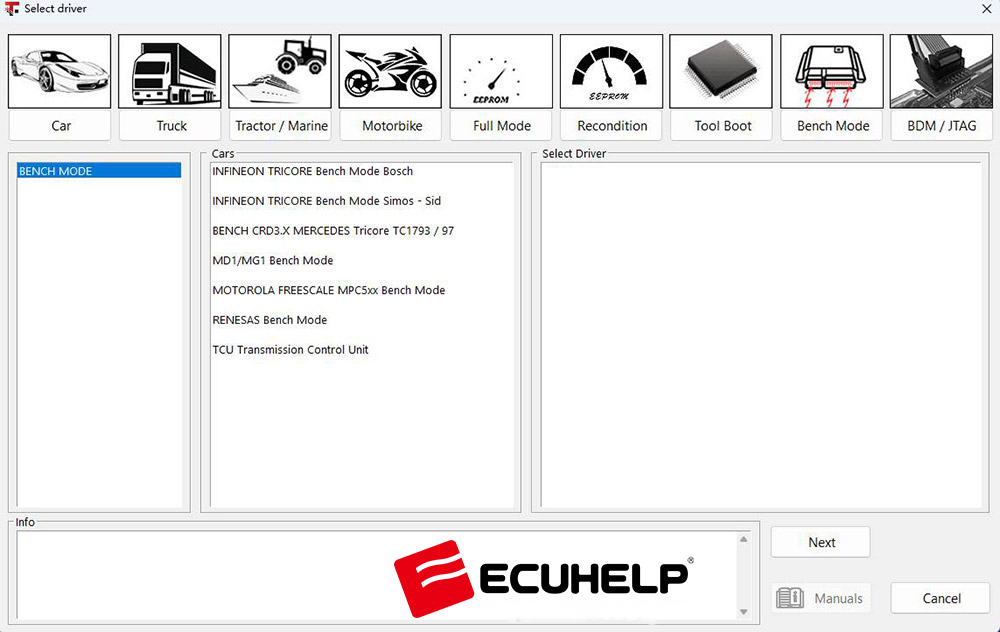

TagFlash reads / writes ECU in the mode of OBD, on Bench, Boot mode, BDM, and JTag systems.
Its versatility and broad compatibility make it a valuable tool for automotive technicians and enthusiasts.
TagFlash is more powerful functions than KT200 ECU Programming because it supports more and newer models!
Highlights:
1. ECUHELP TagFlash is developed with high-speed USB2.0 currently the fastest and safest production in the market.
2. It is easy to install and use by anyone.
3. The Driver will always be clickable, the options will not become gray.
4. Time synchronization is no need, it allows for some margin of error.
5. On bench mode, directly identify the chip type before reading/writing .
6. Stable to read / write eeprom & flash via OBD.
7. Reliable for checksum calculations.
8. Add speed limit off.
9. It is relatively up to date that the protocol is synchronized to the original tools.
10. It is not easy to damage the ecu. It can work directly if it can be written; if it cannot be written, it won't be possible from the beginning.
11. There is no need to restart the software when the software reports an error, and there is a direct reset function in the option.
12. Support working in Offline Mode.
13. Synchronize Agreements until April 01st., 2023.
14. Stability/Comprehensive: Yes
15. Own Servers in multiple countries

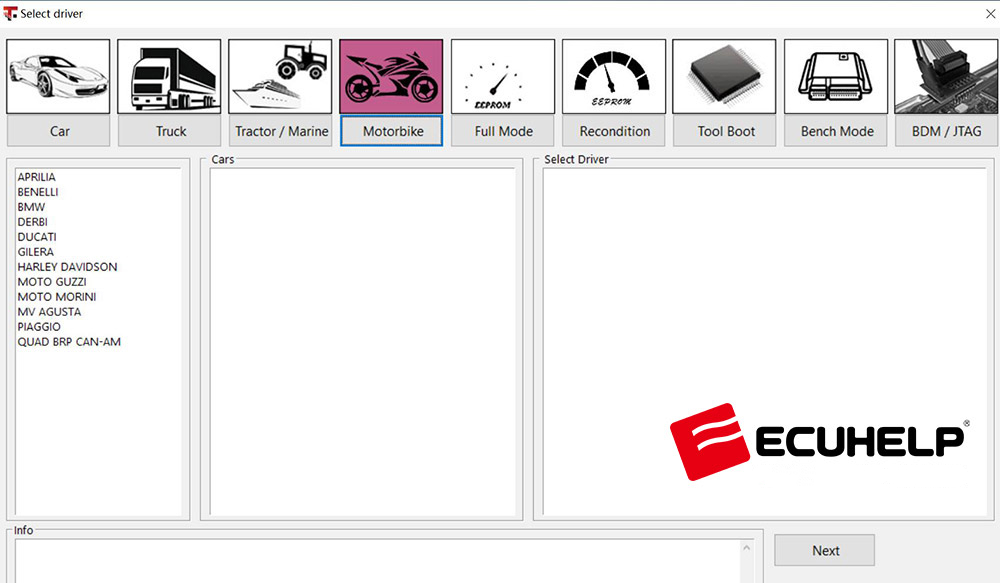

Compatible Vehicles:
Car
Truck
Tractor/Marine
Motorbike
Read / Write ECU
Read / Write TCU (a part)
TagFlash is confirmed to read/write ECU on many ECU types including following:

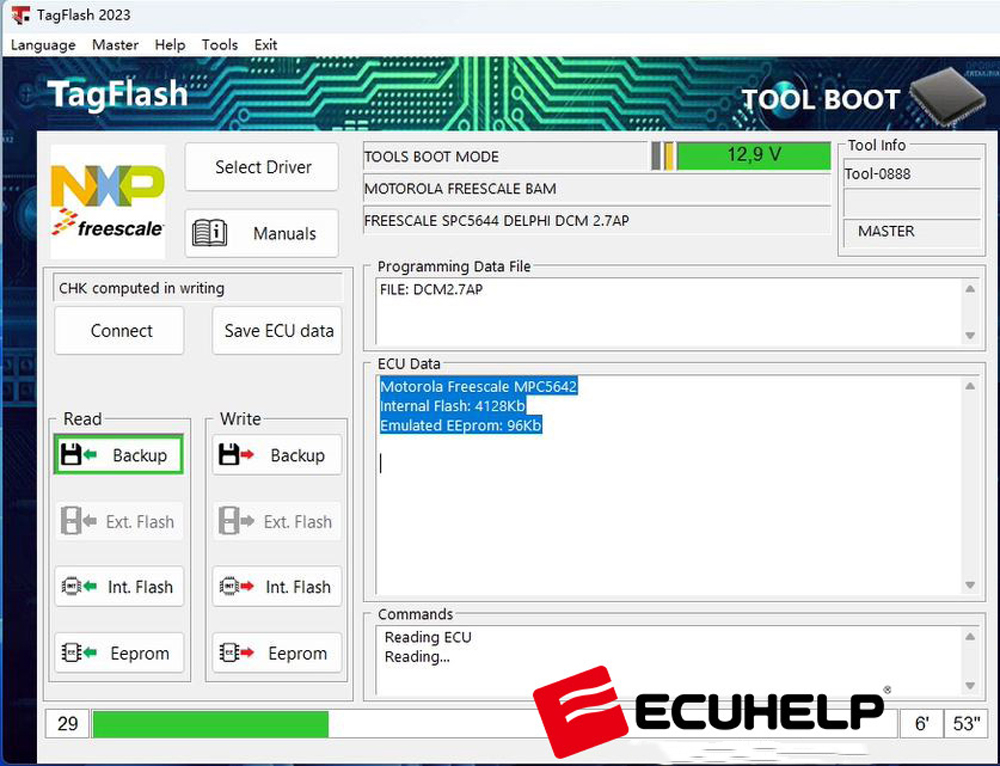

DCM2.7AP yes
DCM2.7 yes
MD1CS018 possible: choose the chip type spc58 to read/write
SID208-SID209 read write on bench OK
DCM7.1b can read via OBD OK
DCM6.2v read via OBD no problem
TagFlash is not able to read/write following:
SIM2k260 No
DCM7.1AP No
Compatible Operation System:
Windows XP 32/64 bit
Windows Vista 32/64 bit
Windows 7 32/64 bit
Windows 8
Windows10
Supported Languages:
English, Francais, Deutsch, Espanol, Portugues, Russian, Italiano, Turkish, Polish, Czech, Romana, Hungarian, Bulgarian, Serbian, Japanese, Korean, Chinese
Features:
5/30V Car, Industrial vehicles, WP
Boot Mode C167,ST10
RS232 RS485
CAN BUS V2.0 50 Kb>10 Nkb
J1850 VPW PWM GM-FORD
BDM MPC5XX
BOOT MODE TRICORE
Auto setup Pull up K-ine 250,500,1000Ohm
Auto setup termination CAN BUS 0,60,120Ohm
Master
Recovery mode
Checksum automatic
Following 11 ECU Software are provided via download link as free gifts (more than USD500 value):
1. 14G Tuning Files
(Database with more than 20.000 Files for Chip Tuning. Originals, Stage 1, Stage 2 and Stage 3 included. Stage 1 can increase 20% performance, Stage 2 increase 40%, Stage 3 increase 60%.)
2. Damos
(Damos is instruction for WinOLS to find maps, only we can send such amazing gift.)
3. Universal IMMO Decoding
4. ECU Fault DTC Remover
5. ECM Titanium
6. WinOLS
7. 2017 DPF/EGR/FLAP + CRACK + KeyGen
8. ECU Maps
9. Public-Archived WL
10. ECU Pinouts Collection
11. ECUSafe
Notes:
1. TagFlash works online, it has free update online , no need annual subscription. It also can work offline, but need extra Offline Dongle to work.
2. Anti-virus program and Firewall must be closed before installing software!
FAQ:
Q: Can I install ECUHELP TagFlash on same PC together with Kt200?
A: Yes, you can install both of TagFlash and KT200 on same PC, but need to switch the driver.
Q: Does TagFlash support online VR reading/writing?
A: Sorry, it does not support.
Q: Does TagFlash Offline Mode need one extra Offline Dongle？
A: Yes, it needs!
Q: Will TagFlash be connected to the computer when installing the driver?
|
