Description:

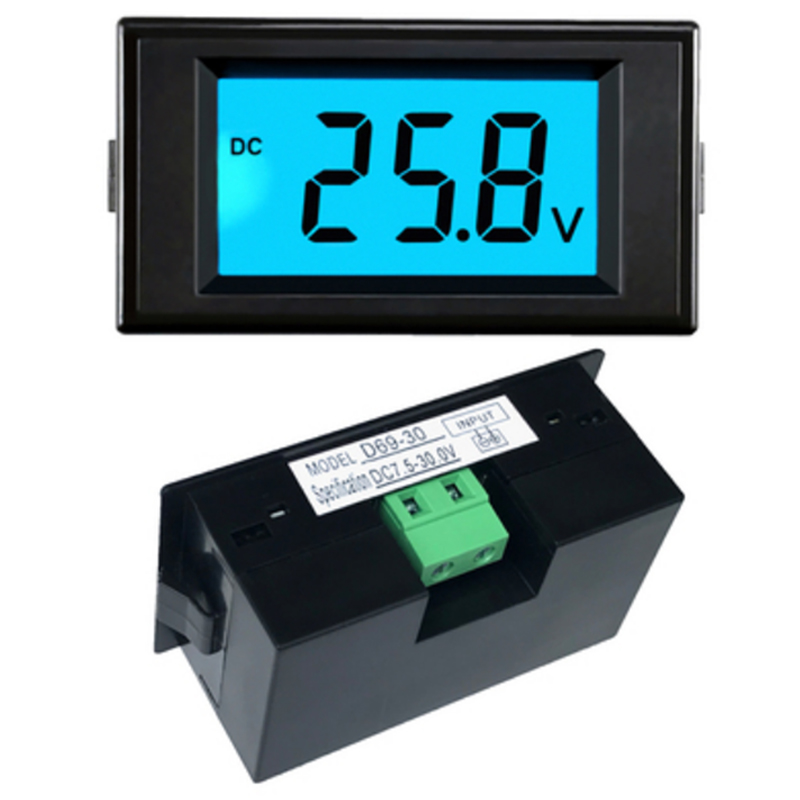

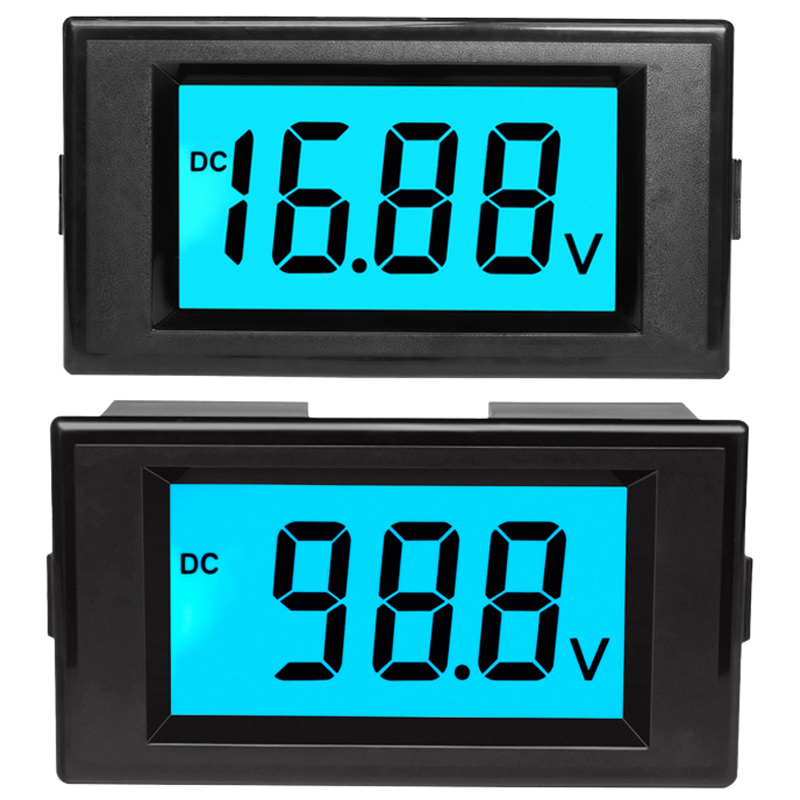

D69-30 LCD Digital DC Power Voltmeter is a small and economical digital measuring instrument which is mainly used to measure the DC voltage in electrical wires in real time and display it on digital LCD. It is widely used in electric vehicles, electric cars, automobiles, forklifts, pharmaceutical refrigerator to detect exact battery voltage.



D69-30 has high precision, high stability, high reliability, small power consumption, small size, easy installation, LCD with backlight for clear display.

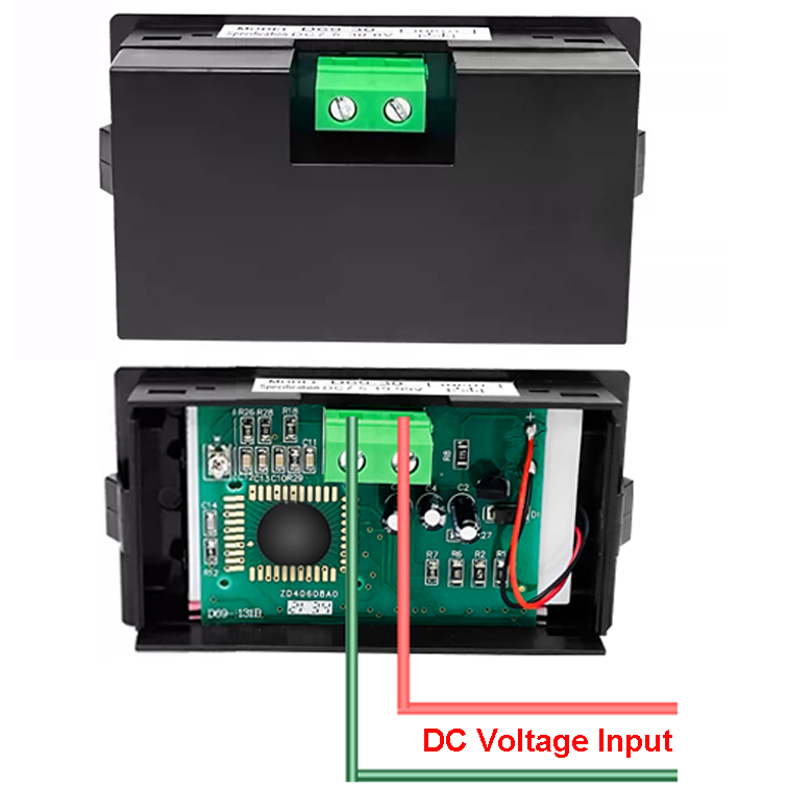

No extra power supply is required and positive and negative reverse input will not burn device!

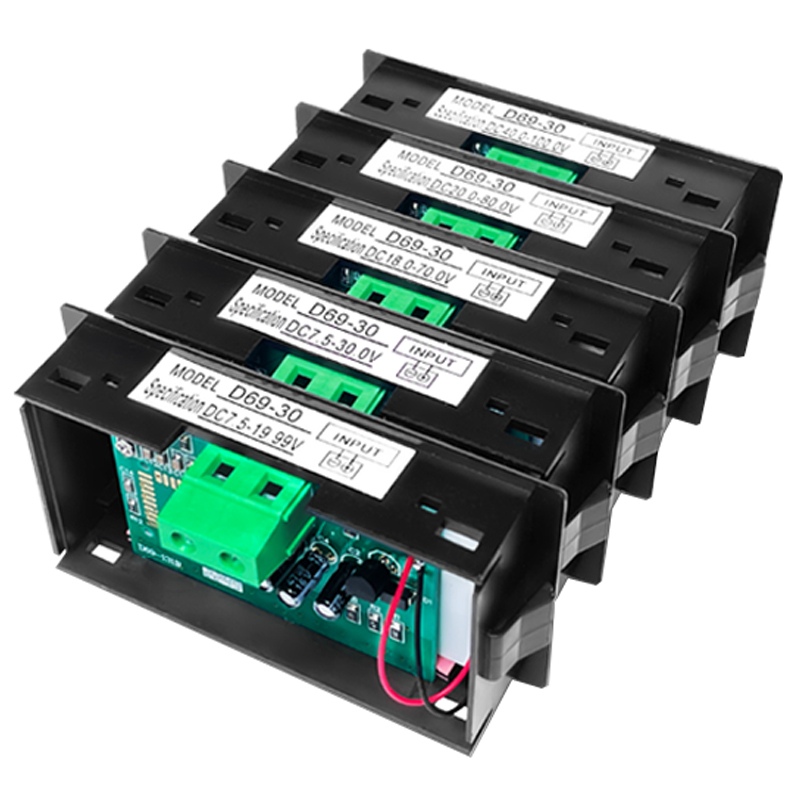

Measure Range:



7.5V - 19.99V

7.5V - 30V

18V - 70V
20V - 80V

40V - 100V



Specifications:



Accuracy: ±5%

Sample Frequency: 2 times/second

Operating Temperature: -10 to 50 degree centigrade

Operating Humidity: 10% to 80% (no condensation)

Operating Air Pressure: 80kPa to 106kPa
