Description:

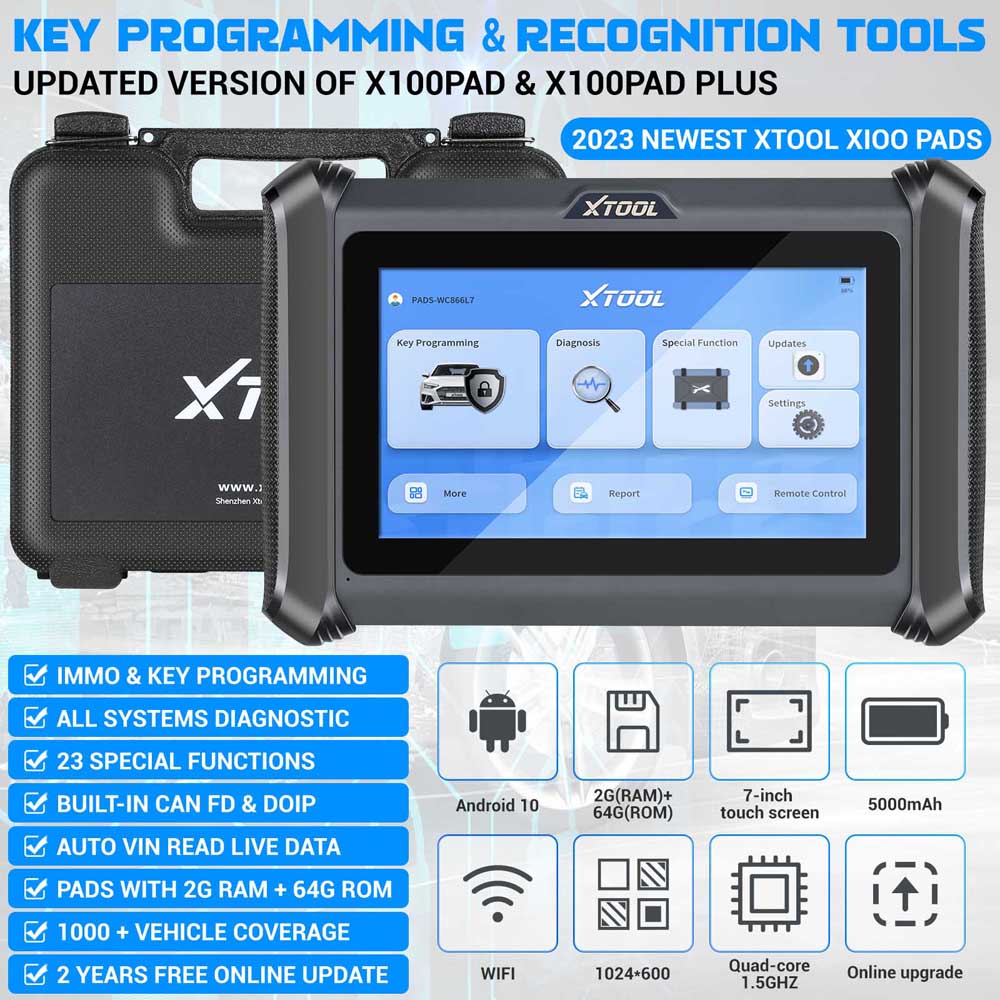

XTool X100 Pad S is an advanced tablet scan tool based on the Android operating system.

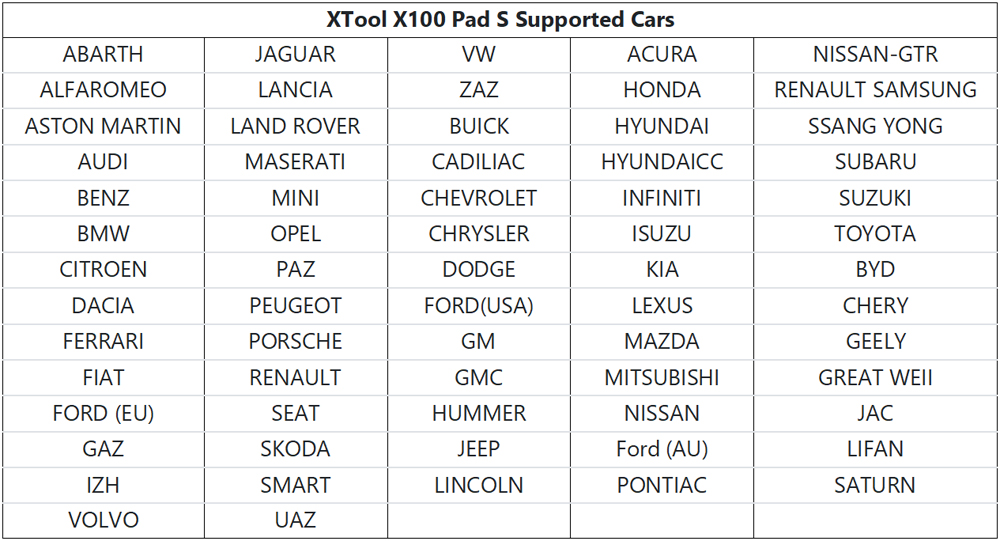

2023 new release key programmer XTool X100PAD S is an upgraded version of XTool X100 PAD Plus. XTool X100PADS supports All System Diagnosis, 23 Service Functions, CAN FD & DoIP Function. XTool X100 100 Pads can rea VIN / Live Data automatically, support 1000+ vehicle brands.



Supported Languages:



English, French, German, Spanish, Portuguese, Russian, Italian, Arabic, Turkey, Polish, Finnish, Japanese, Korean, Vietnamese, Traditional Chinese



Software Update: 2 years free update online



Features:

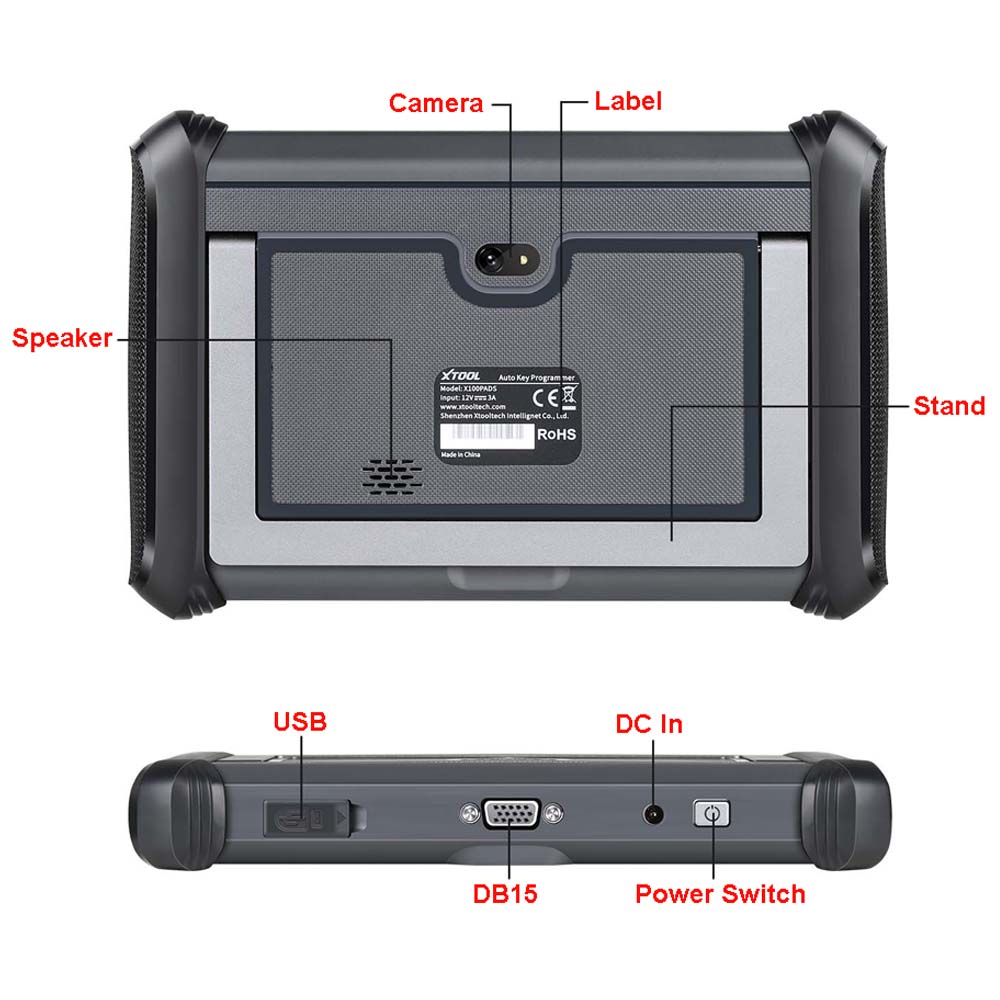

1. Added 8MP camera, self test, collapsible back stand.



2. Full System Diagnosis:

Access and scan on 80+ vehicles and all available models including ABS, SRS, TCM, Brakes, BCM, TPM and etc to Read and Clear Codes, Read Live Data, Read ECU Information.



3. Advanced Key Programming:

Read PIN, Add Transponder/Smart Key, Disable Lost Keys, Remote Learning, Make Dealer Key/All-Key-Lost, IMMO Data Backup, Key Learning/Matching, EEPROM Read & Write, etc.



4. 23+ Service Functions:

Oil Light, EPB, SAS, DPF, BMS Reset, Throttle, TPMS Reset, ABS Bleeding, Injector Coding, Gearbox Match, Suspension, Seat Calibration, Headlight, Airbag Repair, etc. Note: come to us with your car brand, year, VIN and function to check the compatibility firstly.



5. Added CAN FD & DoIP Protocol:

With CAN FD protocol covers for GM MY2020+ models. No extra CAN FD Adapter needed. With DoIP Protocol covers for BMW E/F/G Chassis/Jaguar/Land Rover vehicle makes.



6. Auto VIN Scan:

For quickly identify the vehicle and scan all available ECU and run diagnostics on the selected system.



7. Full OBD-II Function:

Read Codes, Clear Codes, Vehicle Information, Live Data, View Freeze Frame Data, I/M Readiness, O2 Monitor Test, On-Board Monitor Test, Component Test, Modules Present.



8. Works with XTool KC100 / XTool KC501:

Add Keys for Mercedes, Toyota, etc. Read PIN Codes, Program New Keys/Fobs, Perform Remote Learning, DisabIe Lost Keys, etc.



9. Works with XTool XV100:

Help you better check the vehicle by viewing details via the endoscope.



10. Upgraded Hardware:

2GB RAM+64GB storage, 5000mAh battery, 2.4G/5G WIFI, USB 2.0, movable navigation bar, electronic user manual, back bracket.



Functions:



1. IMMO Key Programming:

Read PIN, Add Transponder/Smart Key, Disable Lost Keys, Remote Learning, Make Dealer Key/All-Key-Lost, IMMO CAR MO Reset/Coding,IMMO Data Backup, Key grammer, Key Learning/Key Matching, EEPROM Read & Write, etc.



Advanced IMMO/Key Programming/Key Coding(X100 PADS + EEPROM Adapter)



The IMMO service can disable a lost vehicle key and program the replacement key fob. One or more replacement key fobs can be programmed. like programming new key fobs, Read PIN code/pin code calculation,Check number of keys, Generate key, Add key, All key lost.



Read Pincode

Generate Key, Key Refresh

Make Dealer Key

All Key Lost

Immobilizer Data Reading & Writing

Backup IMMO Data

Remote Frequency Detection

Immobilizer Module Replacement

IMMO ECU Reset & Coding

Mercedes lnfrared Key Read/Write



Note:



XTool X100PADS key programming function can not work for Benz/BMW/Audi/VW/Toyota Smart Key All Key Lost. For Chrysler Read Pin (Need XTool X100PAD3 + Adapter).



2. All System Diagnostics:

Access and scan on 80+ vehicles and all available models including ABS, SRS, TCM, Brakes, BCM, TPM and etc to read and clear codes, view live data, freeze frame, and retrieve CAR MO info.



XTool X100PADS automotive diagnostic scan tool enables a data link to the electronic control system of the test vehicle for vehicle diagnosis. The application performs functional tests, retrieves vehicle diagnostic information as trouble and event codes and live data for various vehicle control systems, such: ABS, SRS, Engine, Transmission, Brake System, Emission System, Fuel system, Light system, Wiper System, etc.



Read/Clear Codes

View the Live Data stream

View the Freeze Frame of Faults

Perform Active Tests

Read ECU Information



3. 23+ Special Functions:

Oil Reset: Reset service intervals after oil change and turn off the oil light.

EPB Reset: Reset brake pads after replacement of brake system.

BMS Reset: Register the new battery to the CAR MO after replacement.

Throttle Relearn: Enables you to make initial settings to throttle to adjust the amount of air intake.

EEPROM Adapter: Used to read, write and backup the EEPROM chip inside the immobilizer module.

Injector Coding: Coding injectors after replacement.

ABS Bleeding: Perform ABS Brake Bleed function to cycle ABS pump to bleed the air out of the ABS.

Gearbox Match: Reset the adaptive shifting points in your automatic Transmission Control Unit.

Headlight: Initialize the adaptive headlight system.

Air Suspension: Calibrate the suspension height.

Window Initialization: Match windows to restore initial memory of the CAR MO and restore the power window.

Airbag Repair: Allows you resets the airbag data to clear the airbag collision/crash data.



More Functions Include:

TPMS Reset, Seat Calibration, Cylinder, Transport Mode, Tire Upgrade, Electronic Pump Activation, DPF/GPF, SAS, Gear Learning, EPS, etc.



Note:



Please provide your specific car model and VIN number to check compatibility before purchasing.



4. Built-in CAN FD & DoIP Protocol:

Compatible with CAN FD Protocol vehicles (For GM Vehicles After 2020). No extra CAN FD Adapter needed.



Supports DoIP Protocol and covers for BMW E/F/G Chassis/Jaguar/Land Rover vehicle makes.



5. 8 In 1 Live Data Display:

Reads, graphs and combines 8 independent streams of sensor data. Real-time data export to CSV file and data recording, playback, viewing. Allows you to export live data to a csv file for storage and comparison over time, or to view its graphical changes and textual readouts later.



6. Fast Auto VIN Scan:

XTool X100 PADS is based on the latest VIN auto-scan function which can quickly identify the vehicle and scan all diagnosable ECUs and run diagnostics on the selected system. For vehicles that do not support the automatic VIN scan feature, you can manually enter the vehicle VIN.



7. Record & Print Report:

Share report to mobile phone, tablet PC or computer via Bluetooth and print report.



Specifications:



Operating System: Android 10

Processor: quad-core 1.5GHz

Display: 7 inch touch screen with 1024*600 resolution

RAM: 2GB

Storage: 64GB

WiFi: 2.4G/5G

Battery Capacity: 5000mAh

USB Interface: USB2.0 (supports KC100/KC501)

Dimension(L*W*H): 37*11*29cm

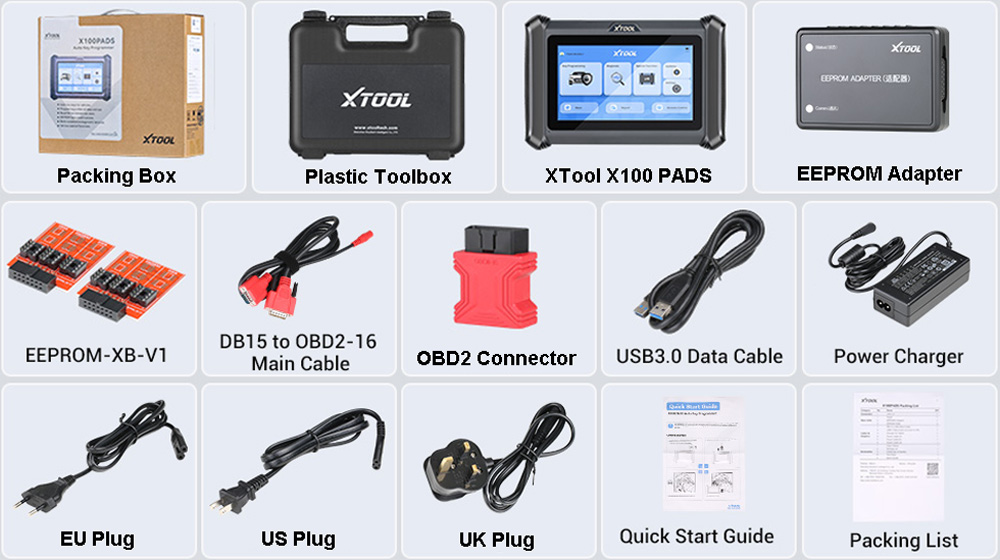

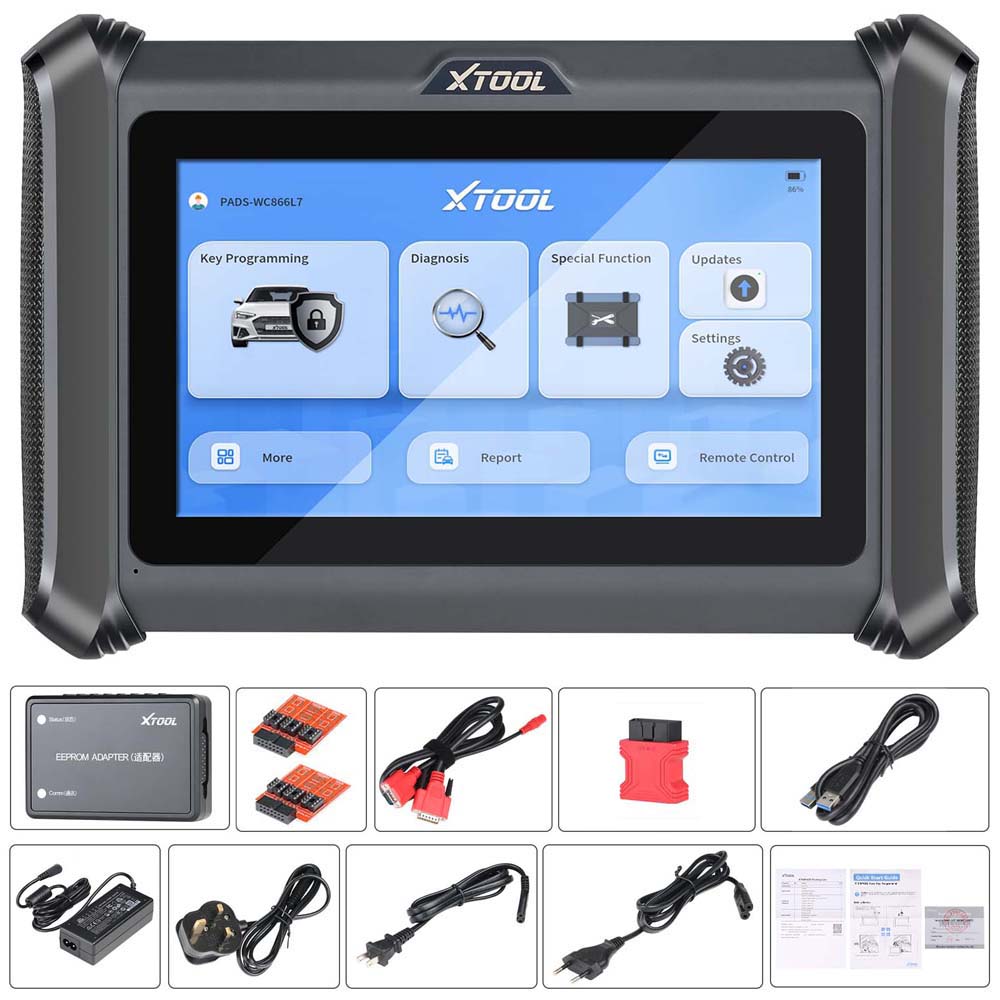

Packing List:



XTool X100 Pad S

EEPROM Adapter

EEPROM-XB-V1

OBD2 Connector

DB15 to OBD2 Main Cable

USB 3.0 Data Cable

Power Charger

Power Plug EU

Power Plug US

Power Plug UK

Quick Start Guide

Packing List

Plastic Toolbox

Packing Box
