Description:



Featuring the powerful quad-core processor and an 8.0-inch LCD capacitive touchscreen, based on the Android multitasking operating system, and combined with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, Autel MaxiPro MP900-BT Kit is your ideal auto diagnostics and service tool. Autel MP900-BT provides you with superior special functions including Oil Reset, EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), BMS (Battery Management System), DPF (Diesel Particulate Filter)...



Supported Languages:



English, French, German, Spanish, Portuguese, Italian, Russian, Dutch, Swedish, Polish, Japanese, Korean, Simplified Chinese, Traditional Chinese



Software Update: 1 year free update online



Highlights:



1. Full level-up of Autel MP808BT & MS906BT series.

2. 11 pcs OBD I Adapters & 5X faster hardware.

3. 40+ Hot Services and VAG-Guided function.

4. Supports CAN-FD, DoIP protocols.

5. Enhanced ECU Coding, same as Autel MS906 Pro.

6. OE Bi-Directional Control & All System Diagnostics.

7. Scan VIN/License

8. Supports Pre Scan & Post Scan

9. Supports FCA AutoAuth & Renault SGW Access.

10. Supports Battery Test & Endoscope

11. Wider Car Coverage: 150+ car brands and 10,000+ models from the US, European and Asian car markets

12. Software is updated to 2020/2021/2022/ and cover the recent new car makes & models in 2024.



Functions:



1. ECU Online/Offline Coding + Fresh Hidden Features + Guided Functions

1). ECU Online Coding

Do you think that coding is complex and do not know how to start? Autel online servers will send coding values in automatic your quick and precise procedure. This is developed as a smart coding solution that can be used by any technician or shop, regardless of experience; only available in pro-level Autel scanners like Autel MaxiPro MP900BT Kit, Autel MS906BT and MS906PRO.



This technology is compatible with Nissan, Infiniti, Renault, Kia, VW, VW Brazil, BMW, MINI, Peugeot, Citroen, Porsche, etc.



2). ECU Offline Coding

Want more freedom in coding procedures and get richer results? Autel MaxiPro MP900BT Kit also allows you to manually input coding values for more customized builds.



This technology is compatible with Nissan, Infiniti, Nissan GT-R, Toyota, Lexus, Scion, Daihatsu, Benz, Maybach, Land Rover, Jaguar, Subaru, Ford, Ford-AU, Ford-EU, Mazda, Hyundai, Kia, Chrysler, Audi, VW, Skoda, VW_Brazil, Bentley, Bugatti, Lamborghini, LT3, Seat, VW_CV, Man_LD, Peugeot, Citroen, DS_EU, Opel, Vauxhall, Porsche, Mitsubishi, etc.; compatible with more models being upgraded from Autel MP808S/MP808Z/MP808BT PRO/MP808BT KIT/MS906.



3). Fresh Hidden Features

Most car manufacturers include hidden features that are not available in ordinary car settings. Autel MP900BT scanner can simply open or close those hidden features via the OBD2 port and is pretty easy to operate. The application includes: revised fuel consumption calculation, seat belt alarm, automatic sta-rt/st-op, hidden menu, daytime running lights, cruise control, automatic locking and unlocking of the central lock, comfortable windscreen washer, welcome light, and others.



This technology is compatible with Nissan, Infiniti, Nissan GT-R, Audi, VW, VW Brazil, BMW, MINI, Toyota, Lexus, Scion, etc.



This feature is also called “Personalized Programming Settings” for Land Rover, Jaguar.



4). Guided Functions For VAG & ManLD

Are you struggling to find the correct Security Access Code and Channel Number for Audi, Volkswagen, Skoda, Seat, or ManLD vehicles? Check out this Autel scanner’s Guided Function (previously only available in Autel MS906BT/MS906PRO) to streamline your process greatly.



With it, you can easily skip the Security Access Code and Channel Number for diagnosing the VAG Group and ManLD vehicles, and navigate the steps required for matching, calibration, and basic settings by simply following the provided guidance.



2. 40+ Reset and Maintenance Functions

Oil Reset EPB Reset, SAS Reset, Airbag Reset, BMS Reset, Brake Bleed, TPMS Reset, DPF Regeneration, IMMO, Clutch, Trans Adaption, WIN DR ROOF, Headlamp, TEC Learn, A/F Setting, Injector Coding, Suspension Calibration, Throttle Adaption, ABS/SRS, Gear Learning, Sunroof Initialization, Seats Calibration, Language Change, Headlamp, CHG Tire Size, Cylinder, Turbocharging, Limit, Trans Adaption, VIN, ACC, HV Battery, Transport Mode, A/C, Rain/Light Sensor, and More.



Several car brands and functions for your reference:



For Ford:

Keyfob Training, Audio Configuration, Climate Control, Police Mode, Power Balance, Clear The Transmission Adaptive Tables, etc.



For GM:

Idle Learn Reset, Fuel Injector Tests, Crankshaft Position Variation Learn, Cylinder Power Balance, RPM Control, IAC Motor Position, Dolby Noise Reduction, etc.

For Honda:

Side Impact Sensors, ODS Sensors, Buckle Switch Seat Position Sensor, Torque Sensor Learn, TPMS Sensor Position Check, Brake Pressure Sensor, Steering End Position Learning, etc.



For Toyota:

Assist Map Confirmation/Clear, Torque Sensor Adjustment, Signal Check, Blower Motor Brush Wear Amount Initialization, Middle Differential Pressure Valve Status Check, Refrigerant Gas Volume Check, Servomotor Initialization, etc.



For Jeep: Trans Overhauled/Replaced, Mirror Actuation Test, Erase All Ignition Keys, PCM Replaced, ECU Initialization, Initialize ESP Sensor, Cylinder Balance Test, Activate/Deactivate Front Seat Video, etc.



3. OE-Level All System Diagnostics + Bi-Directional Control (Active Test)

Unlike many other brands OBD2 scanners on the market, Autel MaxiPro MP900 BT Kit scanner has the number one extensive field-tested database for all system diagnostics:



Engines, Auto Transmission, Airbags, Immobilizer, Key Coding, ABS, Cruise Control, Instruments, Self Leveling Suspension systems, Seats, Doors, Gateway, Steering Angle, Air Suspension, Body Systems, Electronic Power Steering & Motor Assisted, Power Steering, Tire Pressure, Rain Sensors, 4WD System, Stabilizer, Intelligent Parking Assist/Door Motors, Audio Systems, Air Conditioning...(Depending on the vehicle make/model/year.)



Pull 7,000+ OE & generic codes, clear codes, check freeze frame data, view live data (in text, merged graph & analog), and plot PIDs; covering a vast array of car models. Auto repair shops can use this all-system Autel scanner to diagnose even the most-recent cars.



What is more, Autel MP900-BT KIT features the complete active test covering more function lists than a dealer car scanner:



Turn On Radiator Fan, Modulate Throttle, Open/Close Windows, Operate Mirrors, Test Injector Buz, Turn On Interior/Exterior Lights & Sound Horn, Test Door Lock Actuators, Test Injector, Turn Off  ACC Lane Keeping Assist System (LKAS), Turn On/Off Front & Rear Side ACM Solenoid, Turn On/Off Fuel Pump, Cycle A/C, Clutch On/Off, Test Left Clutch Electromagnetic Coil, Test Acceleration Device, Test Oil Pressure Control, Aim Dynamic Camera, Calibrate Vehicle Level Position, Pump Brake Vacuum, Test Inlet & Outlet Valve, Test Open Brakes, Supply Wheel Speed Sensor, Test Parking Brake...(Depending on the vehicle make/model/year)



Manually activate mechanical & electronic components to test sensors, valves, and solenoids so you can more quickly locate and repair malfunctions.



4. AutoVIN & Scan VIN/License

Like many other Autel scanners MP808S/MP808Z/MP808BT PRO/MP808BT KIT/MS906/MS906BT/MS906PRO, Autel MaxiPro MP900-BT Kit scanner can automatically read and save your vehicle VIN number.



It can even get the VIN from a license plate or barcode scan acting as the higher-level Autel MS906 Pro. This saves you a lot of time and effort as you will not have to do much research on your vehicle.



Notice: This feature is mostly for 2006+ cars. If fails, please try “manual VIN input and scan''



5. Supports DoIP & CAN-FD Protocols

1). CAN-FD:

GM: Onix 2020-2024, Tracker 2020-2024, Suburban 2021-2024, Tahoe 2021-2024, Montana 2023-2024, Silverado 2024, Electra E5 2024, Escalade 2021-2024, Escalade ESV 2021-2024, Sierra 2024, Yukon 2021-2022/2024, Yukon XL 2021-2022/2024



Chrysler: Grand Cherokee(WL) 2021-2023, Grand Wagoneer 2022-2023.



2). DoIP: Volvo, Land Rover/Jaguar, BMW F/G Chassis, etc.



6. 2018+ FCA SGW (AutoAuth)

Working with the smart solution “AutoAuth”, you will gain diagnostic access to most FCA SGW-equipped cars made in 2018 - 2024: compatible with Chrysler 300, Pacifica; Dodge Challenger, Charger, Durango, Journey, Ram (1000, 1500(DS), 1500(DT), 2500, 3500 Cab Chassis, 3500 Cab Chassis 10K, 3500 Pickup, 4500, 5500, Mexico), ProMaster City; Jeep Cherokee, Compass (Brazil, China, India, Italy, Mexico), Gladiator, Grand Cherokee (W2, WK), Grand Commander, Renegade (B1, BQ-China, BU, BV), Wrangler (JL); Alfa Romeo Giulia, Giulietta/Stelvio; Fiat 500X, 500L, 500BEV, Toro, Doblo, Ducato, Novo Strada, Mobi, etc.



7. 2015+ Renault SGW Access

With the use of Renault unlocking software & device, you can diagnose 2015+ Renault RGW-equipped vehicles: Kadjar, Megane IV, Scenic IV, Talisman, Espace V, Koleos II, and Captur II, etc.



High-End Features:



1). Personalized Programming Setting

This is the high-end function specialized for Land Rover, Jaguar models, which most aftermarket scan tools do not support. It allows open/close some of the Land Rover, Jaguar’s original functions to be better suited to your specific needs.



2). Autel Cloud-Based Report Manage

With Autel MaxiPro MP900BT Kit, you can also save information such as fault codes detected, component tests performed, and repairs made to the Autel cloud server. These reports can be shared via QR codes/e-mails/text messages, etc., and view them on other smart devices such as tablets/phones/PCs. This way, you can easily get expert advice rather than having the confusing hassle.



3). Pre-Scan & Post-Scan Report

A. Pre-Scan can identify any potential problems with the vehicle before any repairs are made. This Autel scanner can help to prevent unnecessary repairs and reduce the risk of further damage to the vehicle.



B. Post-Scan Report can verify that the repairs have been made correctly and that all issues have been resolved. Autel MP900 BT Kit scanner will back you with evidence if anything wrong happens to the car while repairing.



4). Wireless Wi-Fi Printing

You can save, share, and print the overall inspection report wirelessly via the Wi-Fi printer. This will help you easily maintain vehicle health logs or share the information with mechanics.



5). Expanded Service Tools

Pair with Autel MV105S: Have close-up inspection in hard-to-access areas. (MV105S is old separately.)



6). Pair with Autel BT506: Get effective vehicle battery system analysis. (BT506 is sold separately.)



Hardware Advantages:



1). Operating System:

Autel MaxiPro MP900-BT KIT adopts the US most-popular Android system: Android 11.0 OS: a mature and highly-refined system for fast processing and multitasking; yet most Autel scanners are based on outdated Android 4.4.4.



2). Processor CPU

4-Core, 1.8GHz (Rockchip RK3566), a lightning-fast processor allows you to keep pace with fast processing. While other Autel scanners normally adopt dual-core processor that could lead to clumsy operation.



3). Touchscreen

8 inch 1280*800 screen displays clearly in HD; is larger than you’ll find on most diagnostic scanners; easier to use in a dark garage, under the hood, or even under natural daylight.



4). Memory

Autel MaxiPro MP900BT Kit can launch APPs 20% faster than other 2GB/32GB Autel scanners, thanks to the increased built-in 4GB/64GB memory.



5). Battery

The massive 3.7V / 7700mAh battery allows you to enjoy up to 13 hours of uninterrupted operation. Upgraded from MP808S/MP808Z/MP808BT PRO/MP808BT KIT/MS906 which only have 5000mAh batteries.

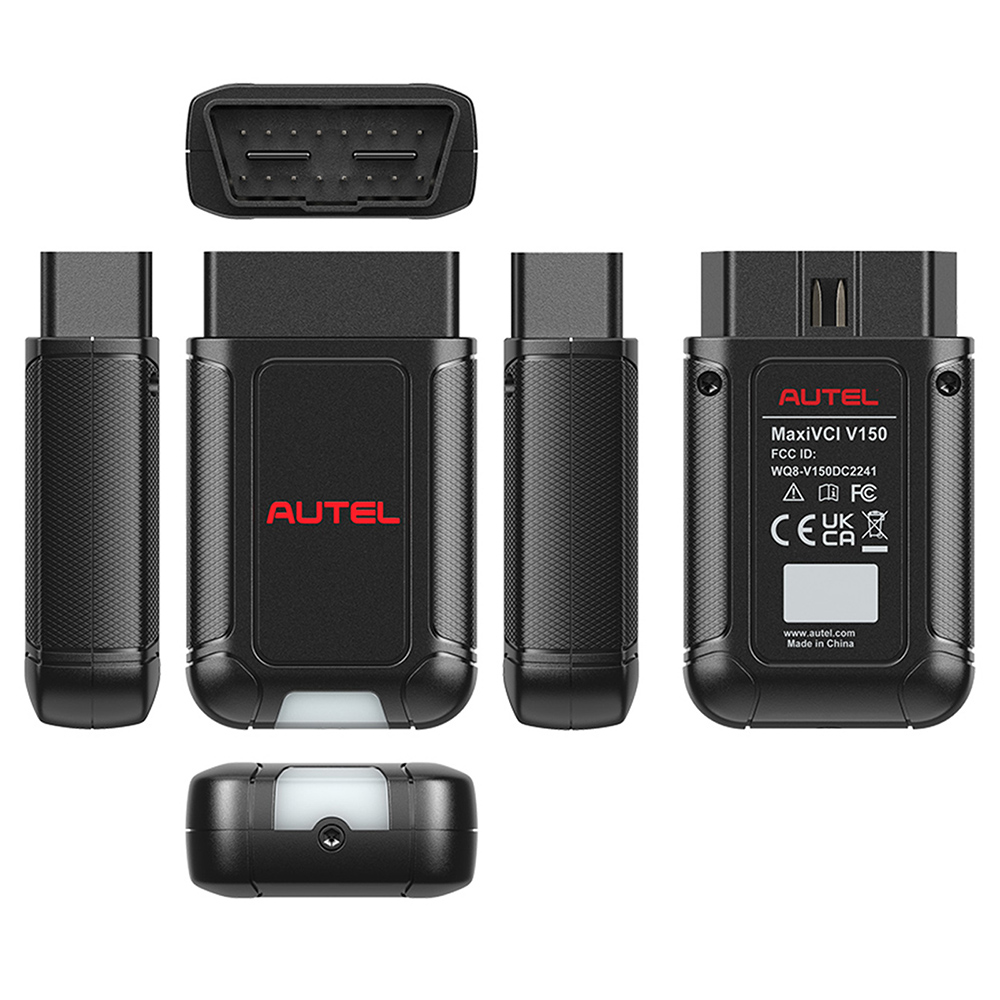

6). Wireless VCI

2024 new VCI V150 connects to the Autel MaxiPro MP900BT wirelessly with up to 10 meters (33 feet) working range. Unlike the old version V100, it can work with DoIP/Can-FD new protocol-compliant vehicles.

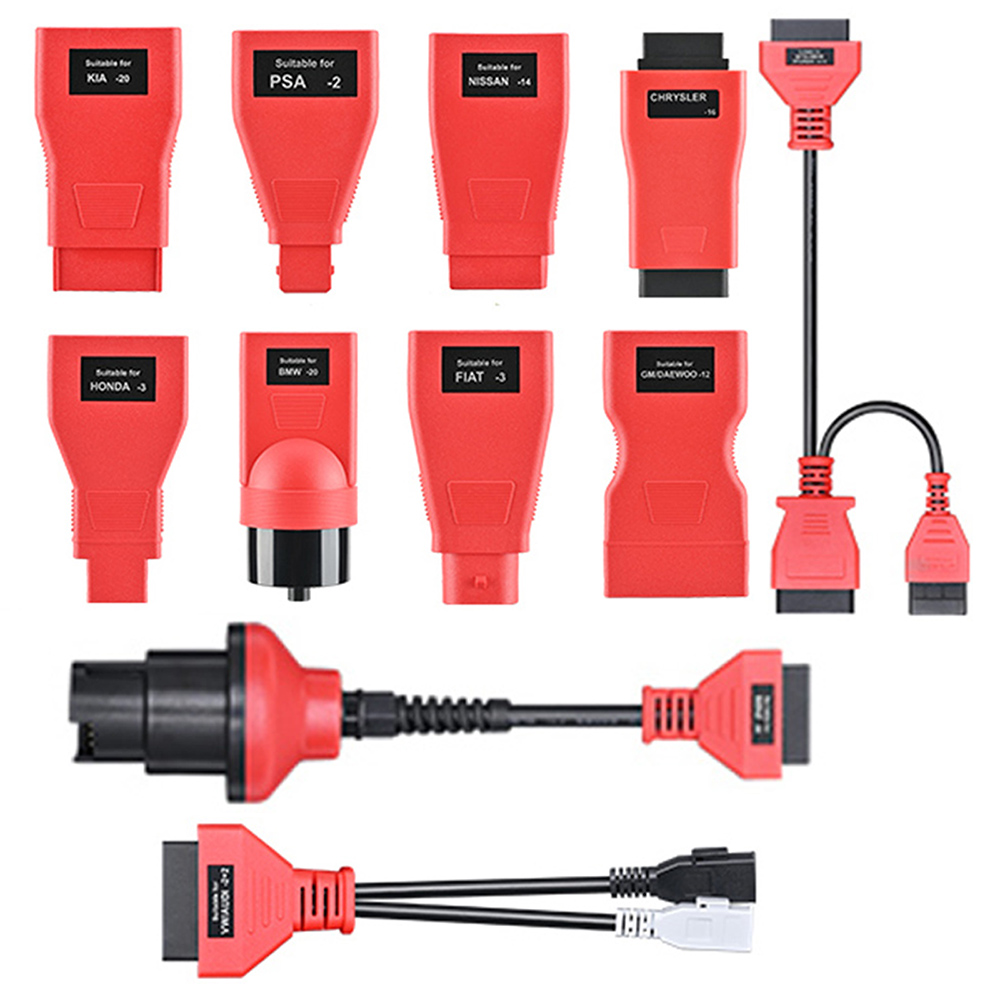

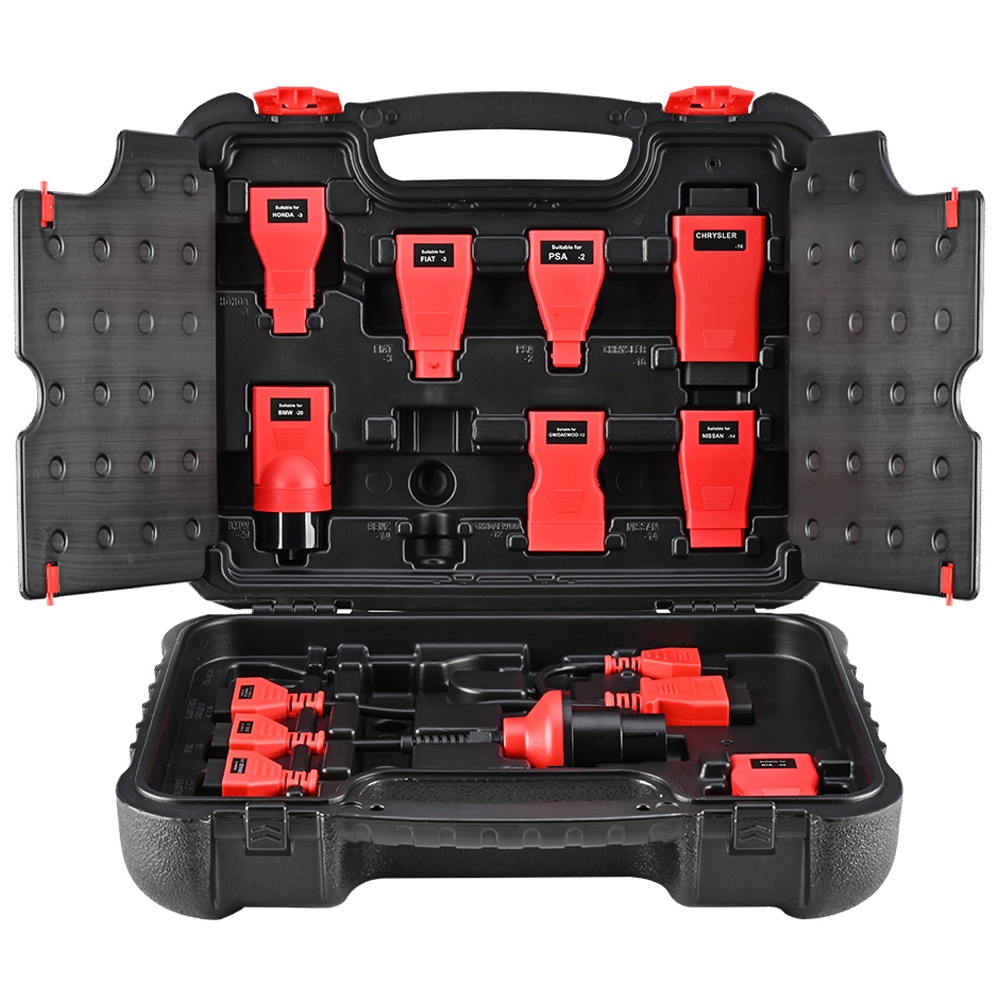

7). Full Kit with 11 pcs OBD-I Adapters

Although Autel MaxiPro MP900-BT Kit is primarily an OBD2 Autel scanner, it also supports OBD-I OE-level diagnostics fully. Package comes with 11 pieces of OBD1 Adapters for accessing cars that have specialized diagnostic ports.

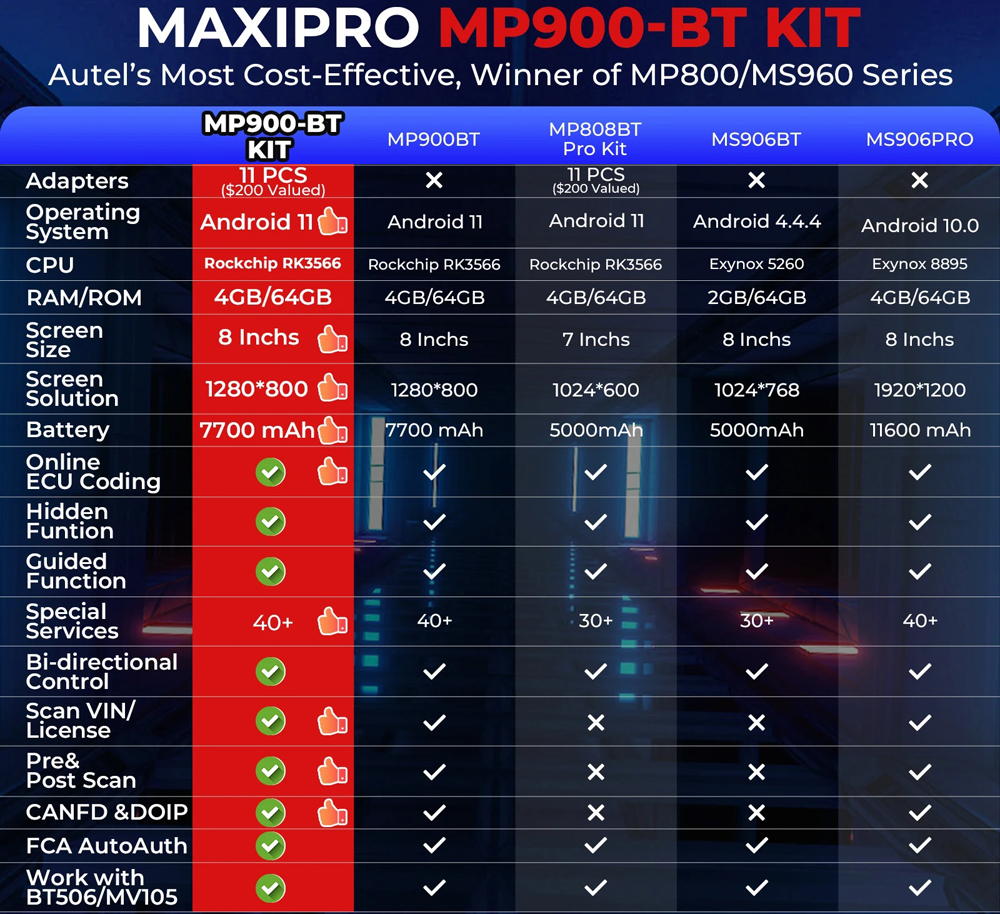

7). 5X Faster Than Old Version MK808BT PRO MK808BT KIT...



99% Worldwide Vehicles Coverage:



Unlike factory diagnostic tools which are often limited to specific vehicles and functions, Autel MP900-BT KIT offers a comprehensive database that covers over 99% of vehicles from 150+ different brands and more than 10,000 models. It also supports newer protocols like 2018+ FCA SGW, 2015+ Renault SGW, DoIP & CAN-FD.



No IP Limit, Use Anywhere

There is no regional locking for Autel MP900-BT KIT, which means this Autel scanner is fully-capable to use across the world without the restrictions of using features or programs in a certain region.



150+ Brands (US/EU/Asia…) & 10000+ Models (1996 - 2024):



Asia:

Acura, Daewoo, Daihatsu, Fuso, Honda, Hyundai, Hyundai CV, Infiniti, Isuzu, Kia, Lexus, Mahindra, Maruti Suzuki, Mazda, Mitsubishi, Nissan, Nissan GTR, Perodua, Proton, Samsung, Scion, Ssang Yong, Subaru, Suzuki, Tata, Toyota...



Europe:

Abarth, Alfa, Aston Martin, Audi, Bentley, Benz, BMW, Bugatti, Citroen, Dacia, Ferrari, Fiat, Ford-EU, Jaguar, Lamborghini, Lancia, Land Rover, LT3, Maserati, Maybach, MINI, Opel, Peugeot, Porsche, Renault, Rolls-Royce, Saab, Seat, Skoda, Smart, Vauxhall, Volvo, Volkswagen, Volkswagen CV...



American:

Chrysler, Dodge, For.d, GM, Jeep...



Supported Protocols:



ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing   Code, SAE-J1850 VPW, SAE-J1850PWM,   ISO11898(High-Speed, Middle-Speed, Low-Speed and Single-Wire CAN, Fault-Tolerant CAN) , SAE J2610, GM UART, UART   Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CAN FD



Specifications:



Operating System: Android 11

Processor: quad core processor(1.8GHz)

RAM: 4GB RAM

Storage: 64GB

Display: 8-inch capacitive touchscreen with 1280*800 resolution

Rear Camera: 8 MP

Connectivity: USB Type-C / USB 2.0 / Wi-Fi / Bluetooth / MicroSD card (maximum 64GB)

Audio Input: N/A

Audio Output: buzzer

Power and Battery: 3.7V / 7700mAh lithium-polymer battery charges via 5V DC power supply

Battery Charging Input: 5 V/3 A

Operating Temperature: 0 to 50°C

Storage Temperature: -10 to 60°C

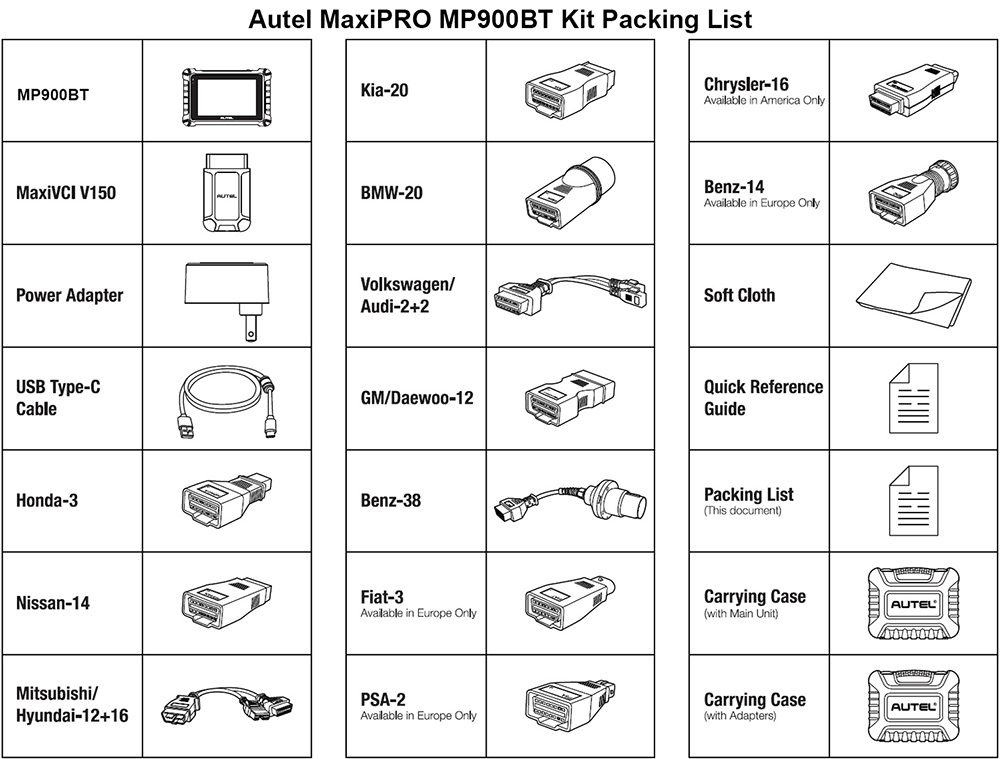

Packing List:

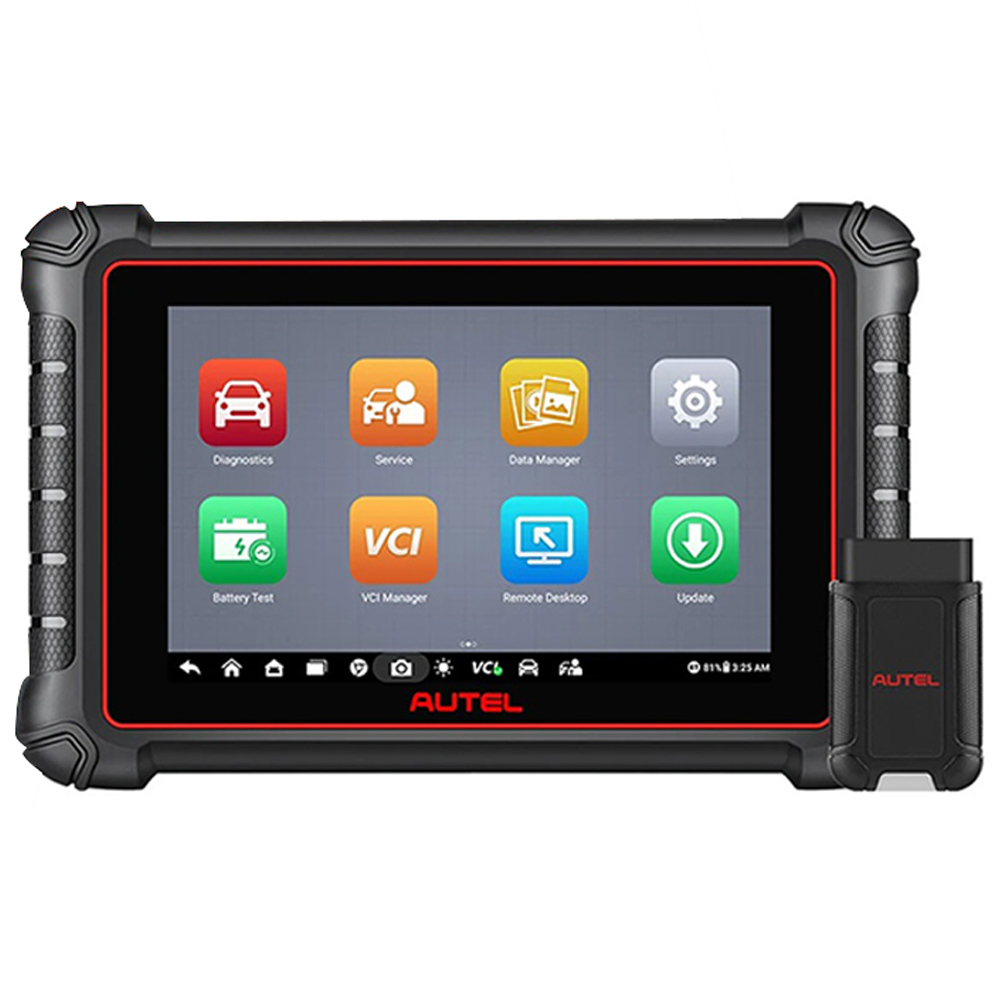

Autel MaxiPro MP900BT Kit

Autel MaxiVCI V150

Power Adapter

USB Type-C cable

Benz-14 Adapter

Benz-38 Adapter

BMW-20 Adapter

Chrysler-16 Adapter

Fiat-3 Adapter

GM/Daewoo-12 Adapter

Honda-3 Adapter

Kia-20 Adapter

Mitsubishi/Hyundai-12+16 Adapter

Nissan-14 Adapter

PSA-2 Adapter

Volkswagen/Audi-2+2 Adapter

Soft Cloth

Quick Reference Guide

Packing List

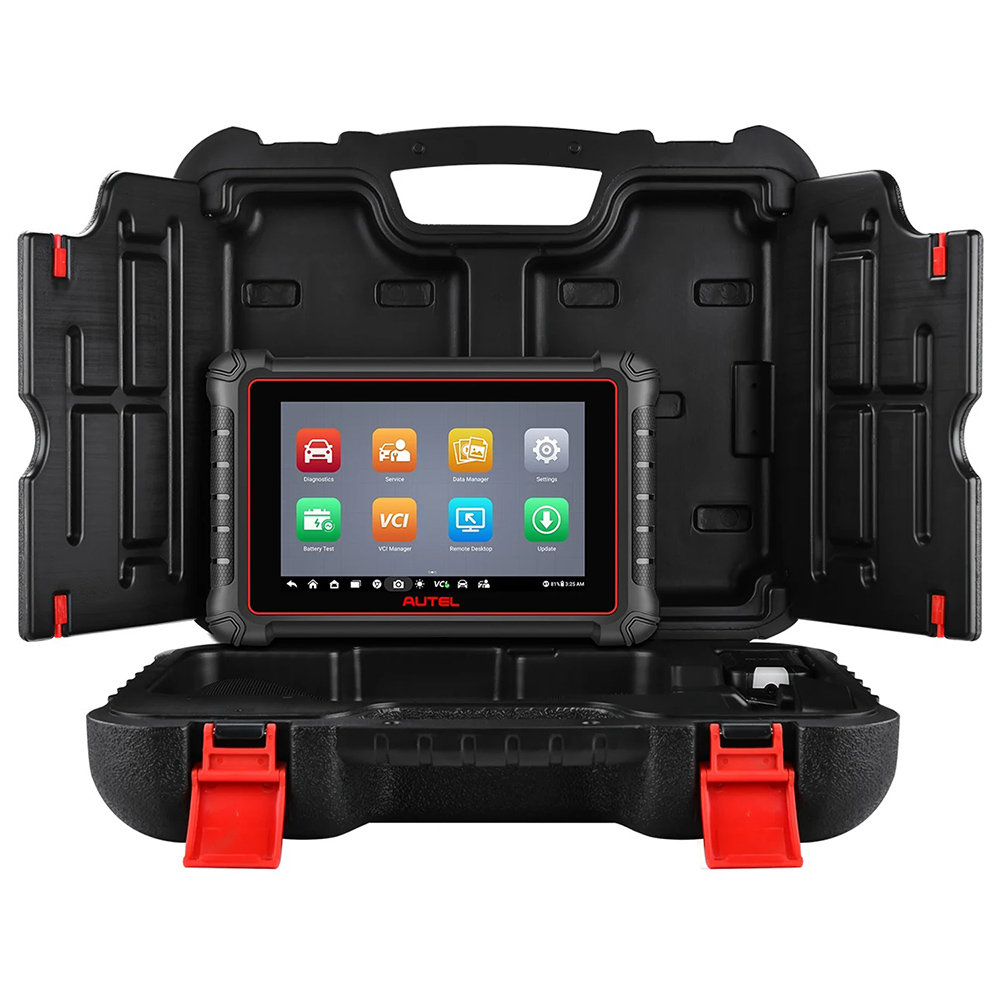

Plastic Toolbox (2 pcs)

Packing Box (2 pcs)
