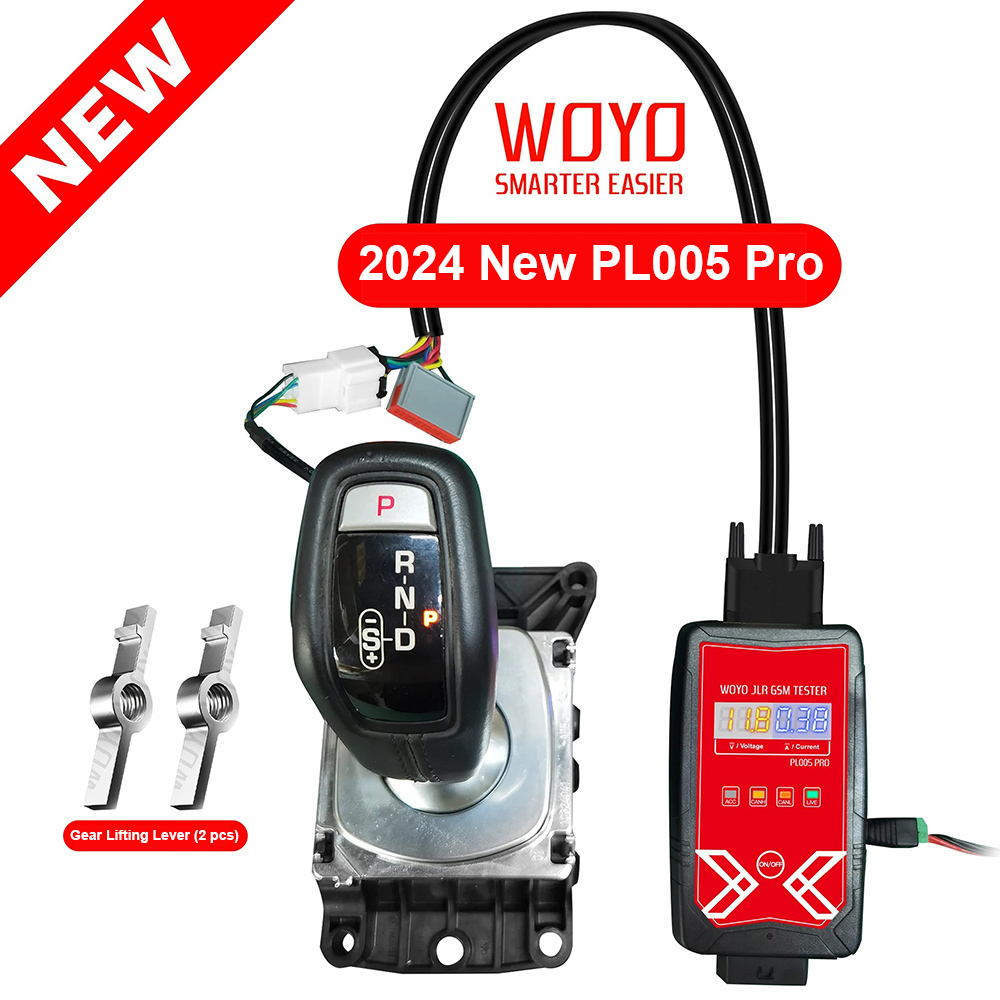

Name: JLR Gear Shift Module Tester
Description:
The plastic gear lifting lever inside Land Rover / Jaguar GSM is easy to get broken and damaged, and then it will cause the GSM stuck problem or unusable.
WOYO GSM Tester Kit includes metal levers for replacement.
After repair, use Land Rover Jaguar Gear Shift Module Tester to test GSM without assembling it to vehicle, which avoids malfunction after assembling on vehicle, avoid repeated disassembly and time wasting.
Solution for Following Problems:
1. Knob unable to rise.
2. Knob unable to rotate.
3. Common Fault Codes: P176C -11 - Transmission Range Selector Lock Control Error

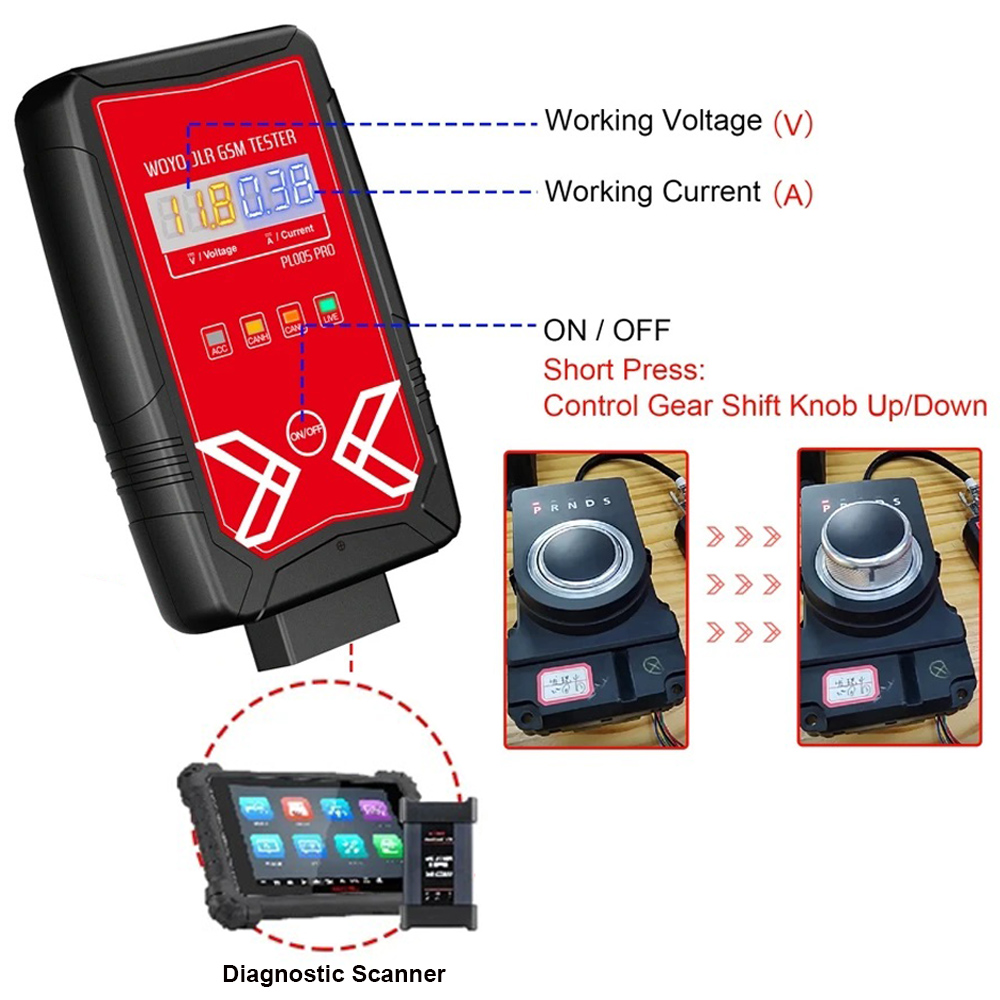

Functions:
1. Control the GSM up and down when it doesn't assembly to vehicle.
2. Identify vehicle model automatically, saving the query time.
3. Simple operation, one button control of up and down, gear switching supported.
Operation Instructions:

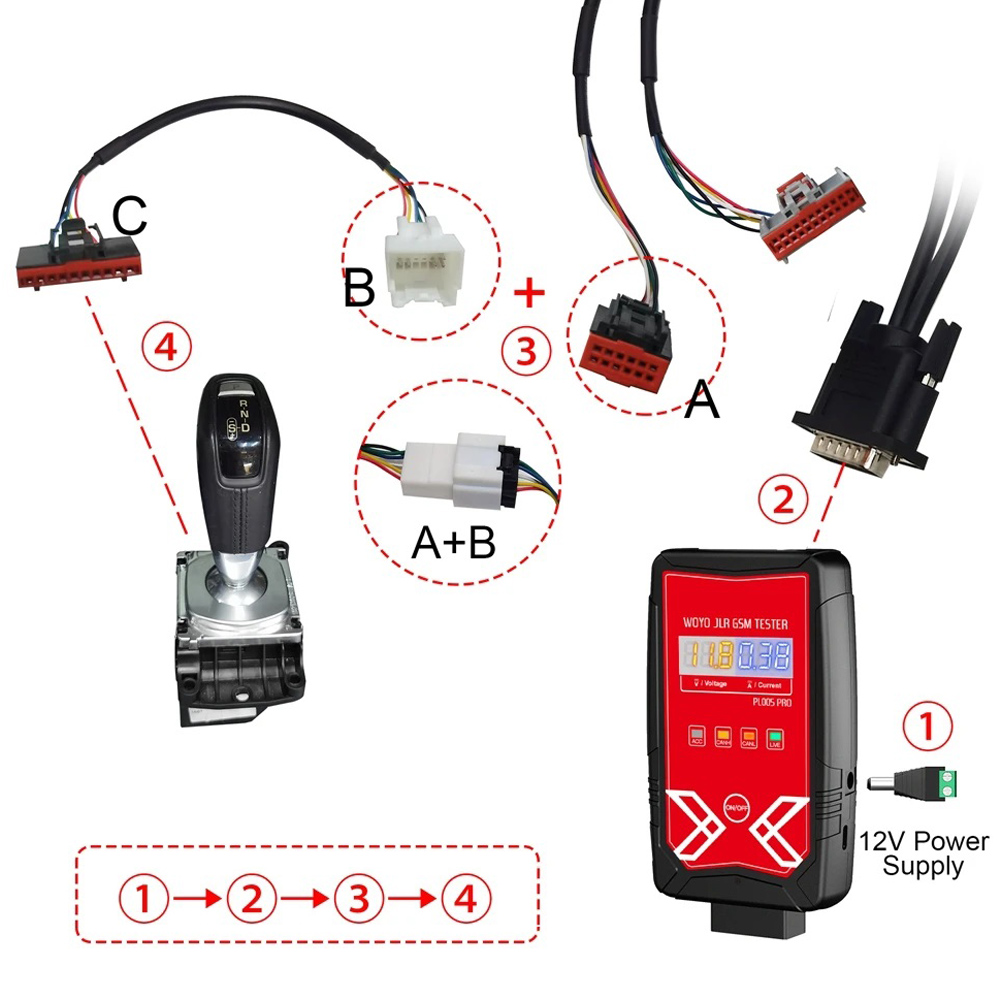

For the new Transmission Gear Shift Module:
1. Offer 12V/2A power supply to tester.
2. Connect to long connector cable to tester.
3. Connect to Adapter Cable (A+ B).
4. Connect to the Transmission Gear Shift Module.
5. Press ON/OFF button to activate the GSM, and then switch the gear to check the working voltage & current on the tester, or you can read the real-data on the diagnostic scanner.

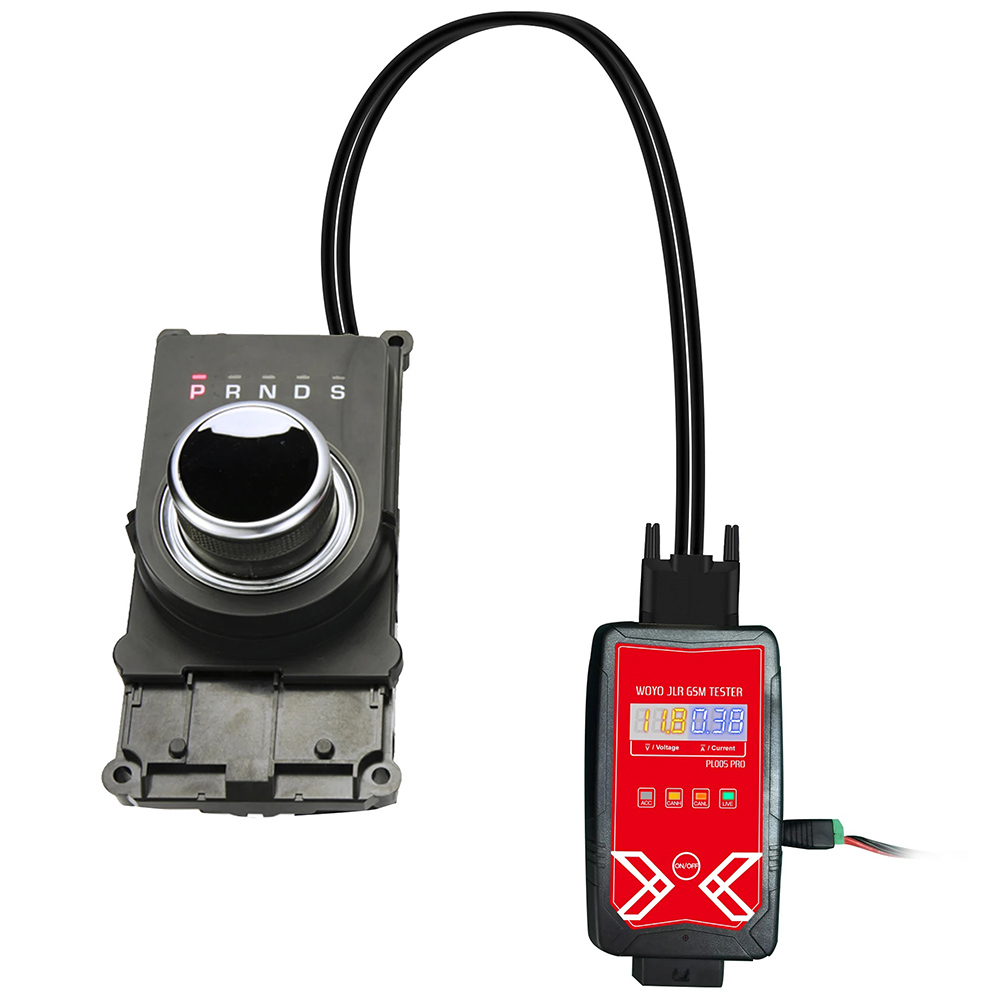

For Gear Shift Module with Knob:
1. Connect 12-Pin + 22-Pin Cable.
2. Connect to Gear Shelf Module.
3. Offer 12V/2A power supply to tester.
4. Press ON/OFF button to drive the GSM up and down.
5. Switch the gear to check the working voltage & current on the tester, or you can read the real-data on the diagnostic scanner.
Note: When you connect to the diagnostic scanner, you need to select the GSM model manually.

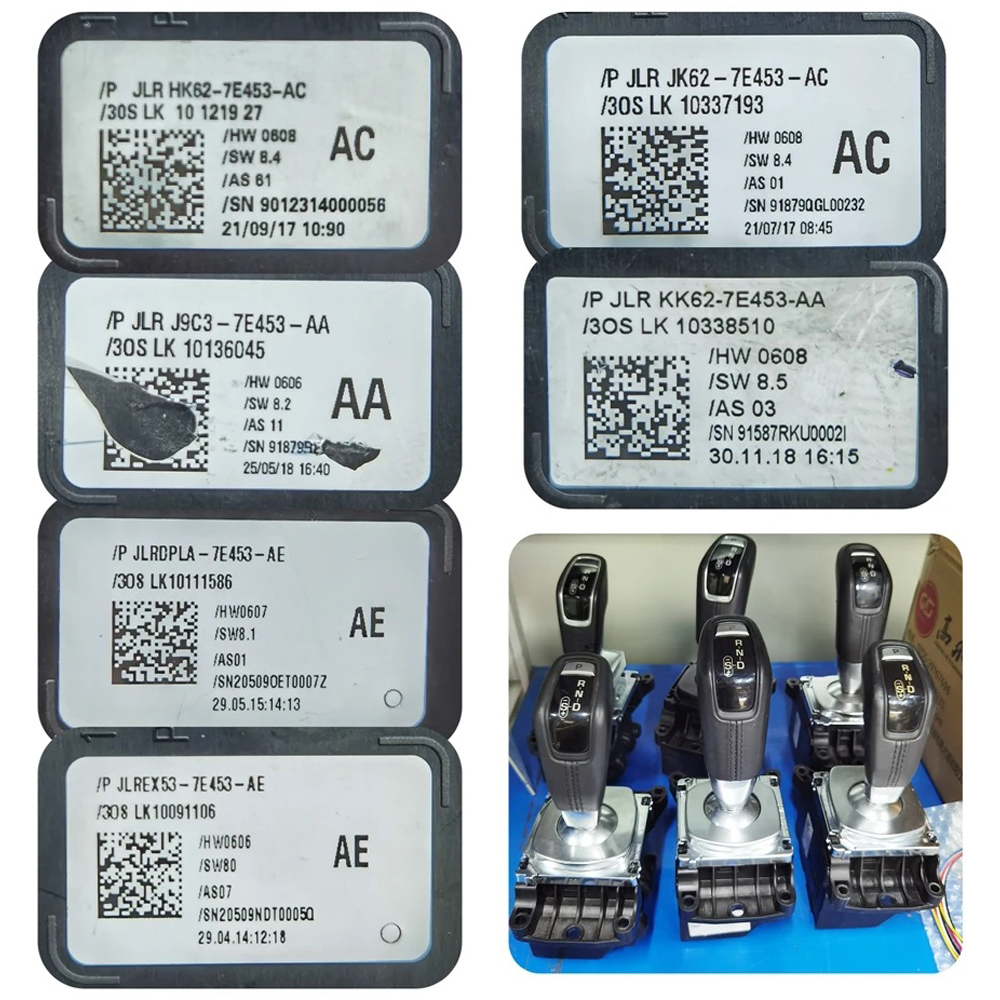

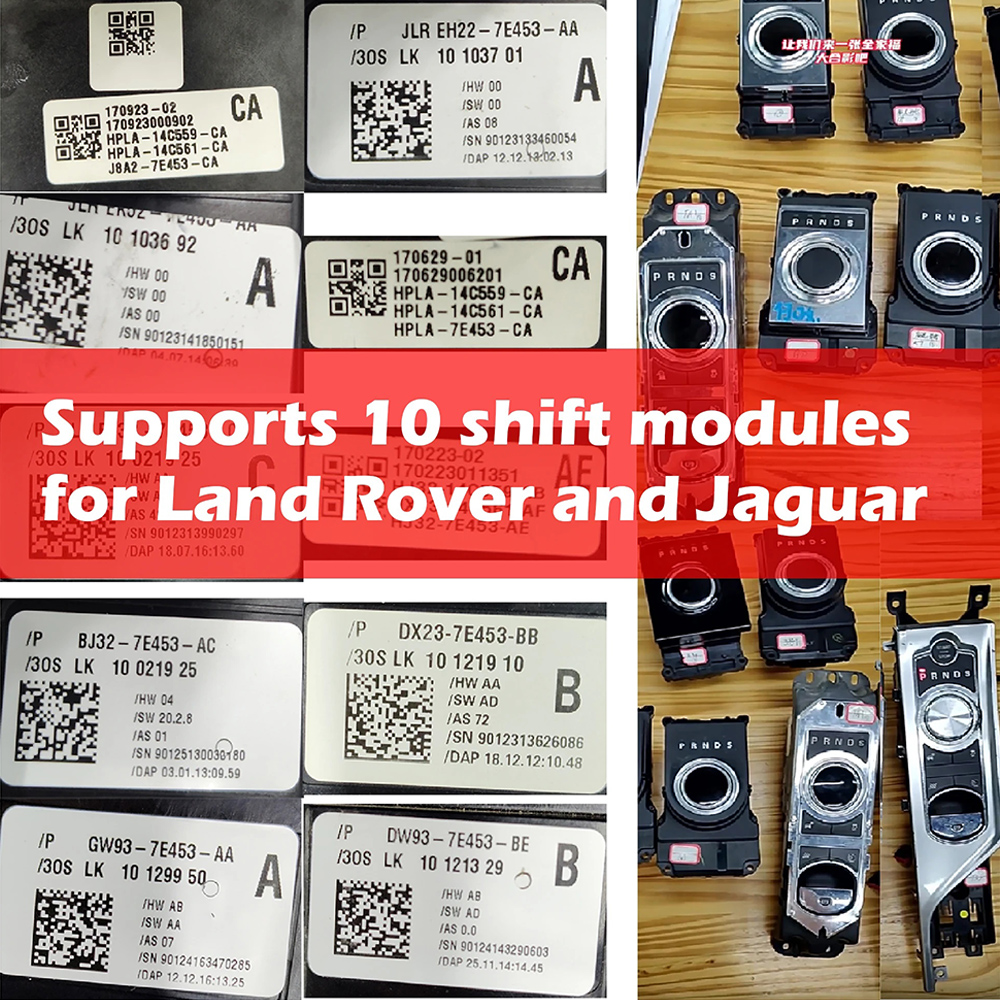

Supported Models:
Land Rover:
Freelander
Freelander(New)
Evoque 6 Speed
Evoque 9 Speed
Discoverer 3
Discoverer 4
Discoverer 4(Old)
Discoverer 4(New)
Discoverer 5
Discoverer Sport
Defender
Defender(New)
Range Rover(Old)
Range Rover
Range Rover(New)
Range Rover Sport(Old)
Range Rover Sport
Range Rover Sport(New)
Range Rover Evoque(New)
Range Rover Evoque II
Range Rover Velar
L319(EH22)
L319(BH42)
L405(CPLA)
L405(DPLA)
L405(EK52)
L405(GK52)
L405(HPLA)
L462(HPLA)
L538(BJ32)
L538(EJ32)
L538(GJ32)
L538(HJ32)
L550(EJ32)
L550(GJ32)
L550(HJ32)
L560(J8A2)
Jaguar:
F-TYPE
F-TYPE(New)
S-TYPE
E-PACE
F-PACE(Old)
F-PACE(New)
F-PACE
I-PACE
XFL
XFL(Old)
XFL(New)
XJ
XJ(New)
XJL
XJL(New)
XK
XE
XE(Old)
XE(New)
XF
XF(XXX)
XF(Old)
XF(New)
X250(8X23)
X250(DX23)
X250(9X23)
X260(HX73)
X260(JX73)
X260(GX73)
X351(DW93)
X351(GW93)
X760(JX73)
X760(GX73)
X760(HX73)
X761(HX73)
X761(JX73)

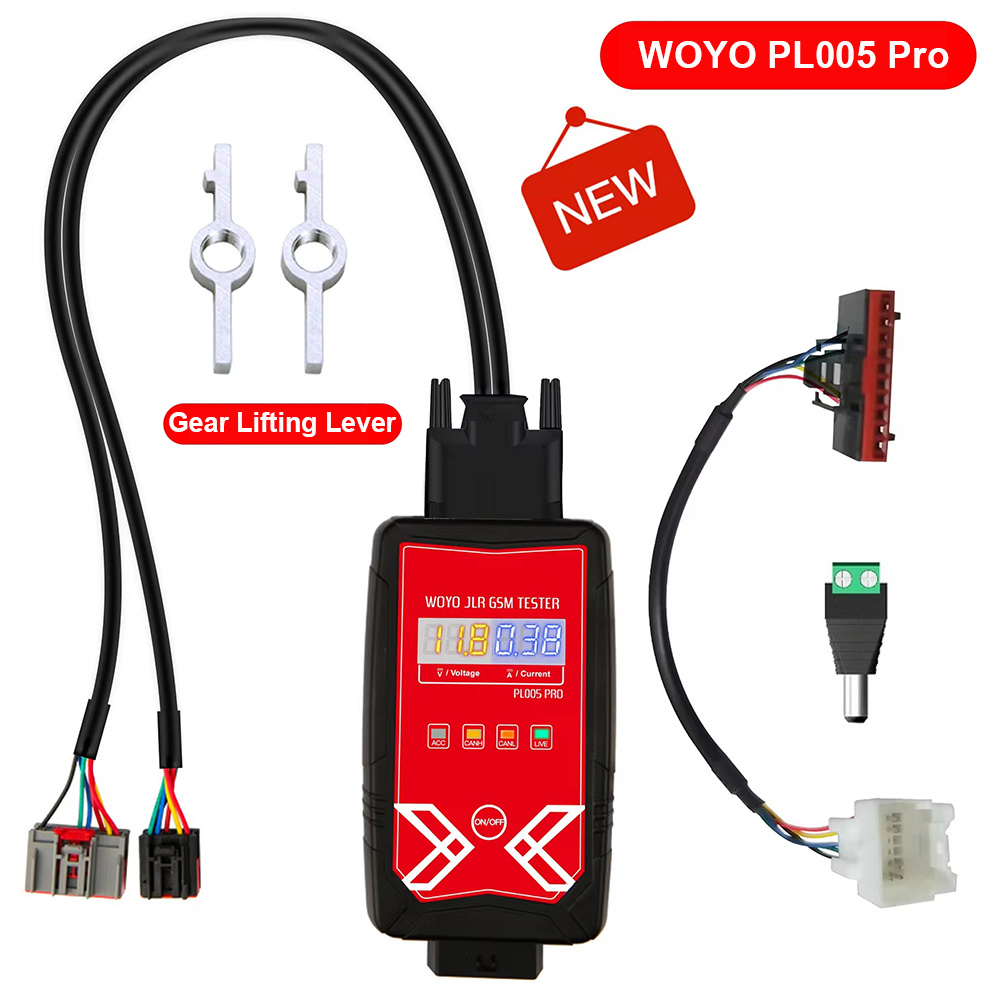

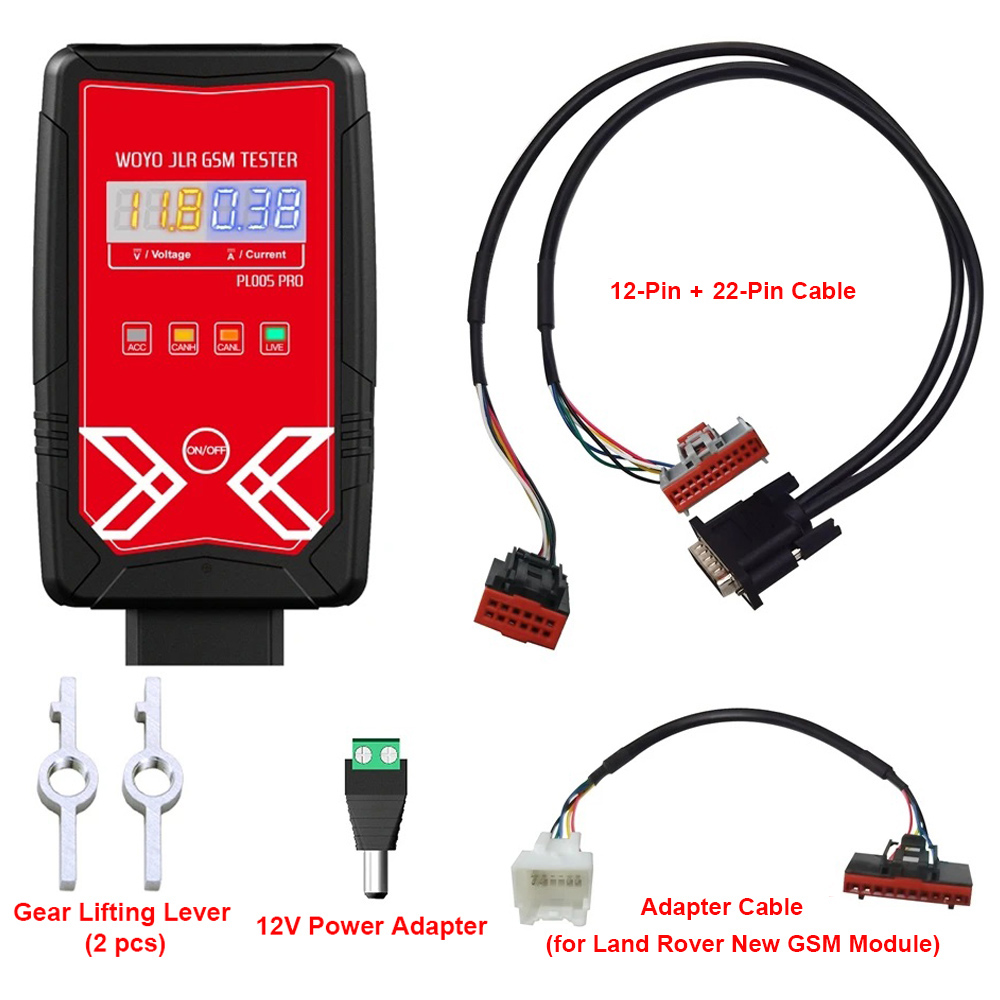

Packing List:
WOYO PL005 Pro JLR Gear Shift Module Tester
12-Pin + 22-Pin Cable
Adapter Cable
Metal Lifting Gear Lever (2 pcs)
12V Power Adapter
Packing Box
|
