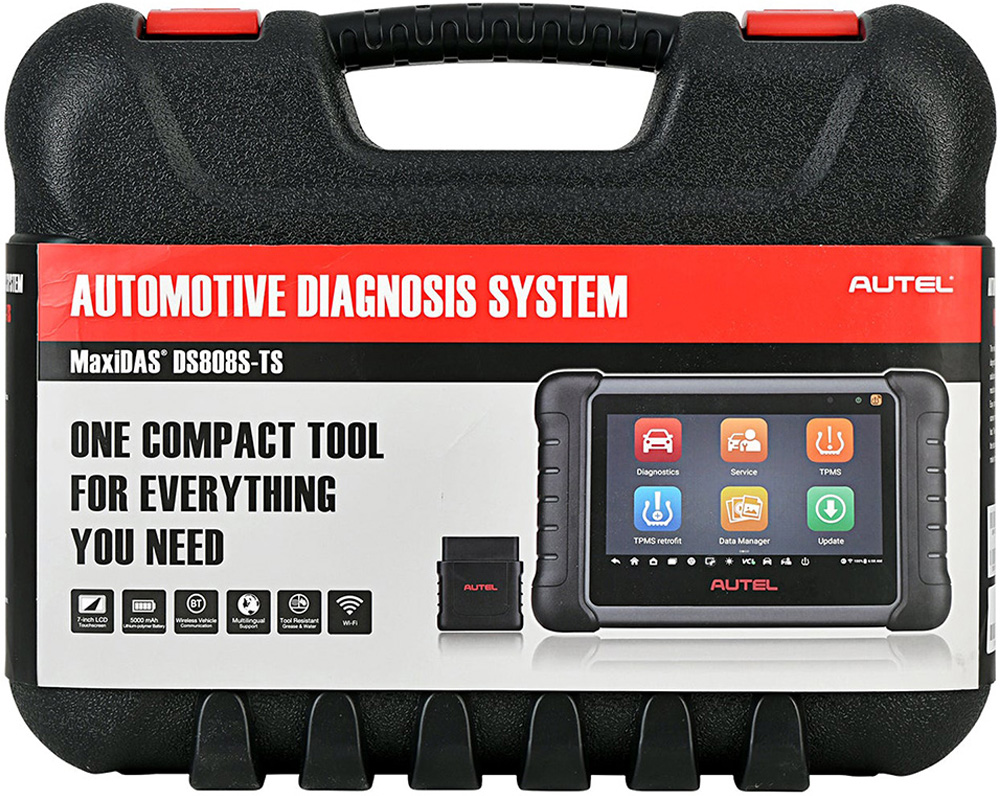

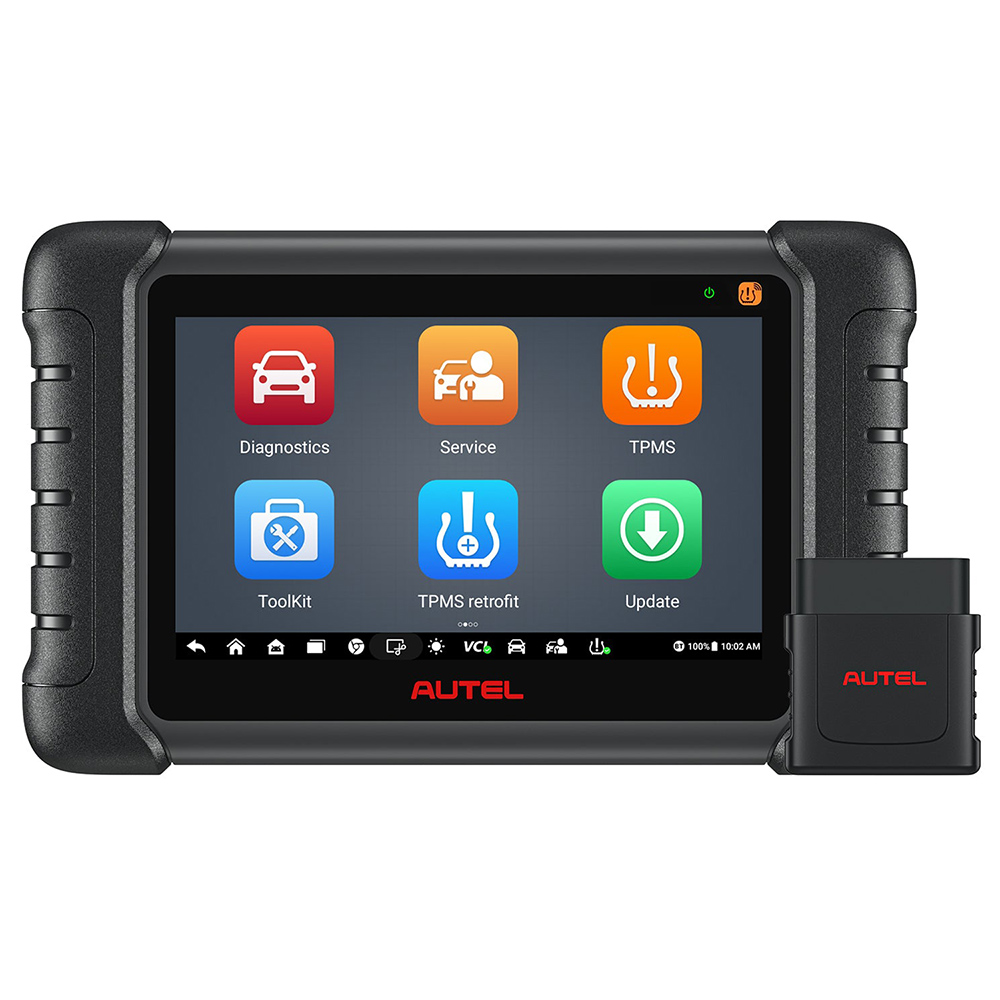

Name: Autel MaxiDAS DS808S-TS with Complete TPMS Functions
Description:
Autel MaxiDAS DS808S-TS, featuring a fast quad-core processor,offers maximum convenience and swift diagnosis. Together with the ability to quickly read and clear OEM enhanced codes for TPMS module of the majority of the makes and models on the market, DS808S-TS provides you with superior special functions for TPMS services with ease.
Autel MaxiDAS DS808S-TS is equipped with Full TPMS and Diagnostics. Autel DS808S-TS performs well both in your vehicle diagnosis and in Full TPMS. Autel DS808S TS is upgraded from Autel MaxPro MP808S / MP808BT PRO which do not support TPMS functions, thus this scanner has complete TPMS services which same as Autel MS906TS / MS906Pro-TS / MK906Pro-TS to solve the TPMS issues. If you want a scan tool to meet your diagnostic and TPMS need, then Autel DS808S-TS will be your best choice.
Together with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, Autel MaxiDAS DS808S TS provides superior special functions, including Oil Reset, EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), and BMS (Battery Management System). In addition to OBD-II Diagnostics and Special Functions, DS808S-TS can perform comprehensive TPMS Services with ease.
Highlights:
1. 99% of Vehicles Covered
Autel Scanner DS808S-TS is capable to diagnose almost all vehicles in the market, making it an one-for-all diagnostic scanner.
2. 1-Year Free Software Update
After 1 year, if you do not choose to continue to purchase the upgrade service, it will not affect the normal use of the device
3. A Key to Access Onboard Systems
ABS, SRS, Engine, Transmission, Brake System, Emission System, Fuel system, Light system, Wiper System.. Autel Newest Diagnostic tool MaxiPro MP808TS can solve the vast majority of problems with your vehicle.
4. Wireless Diagnosis
Conducting wireless diagnostics through VCI module, Newest diagnostic tool MP808TS will set you free from entangled wires.
5. Complete TPMS Services
Same as Autel MS906TS/ MS906 PRO-TS/ MK906 PRO-TS. Combination of MS906 and hand held TS601 which is a solid and well respected TPMS tool. As Advanced TPMS diagnostics for complete TPMS health check. Autel DS808S-TS can activate sensors, retrieve data, clone and program Autel MX-Sensors and pinpoint faults on exclusive TPMS Status Screen.
6. Bi-Directional Control
Autel DS808S-TS builds a mutual communication with onboard ECUs and execute every single one of your commands
7. 40+ Special Functions
Autel DS808S-TS Supports 30+ commonly used hot functions to meet the needs of daily maintenance diagnostic and reset.
8. ECU Coding Functions:
Same as Autel MaxiSys MS906BT / MS906 PRO / MS906 PRO-TS / Autel MaxiCOM MK906 PRO / MK906 PRO-TS/ MK908 / MK908 II.
Features:
1. Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes and models.
2. Exceptional OE-level system coverage for all electronic systems.
3. Read and Erase codes, View and Graph Live Data, Perform Bi-Directional Active Tests, Perform Adaptations.
4. AutoVIN Technology automatically identifies vehicle make, model, and year.
5. 7-inch LCD capacitive touchscreen with 1024*600 resolution display.
6. Powerful Cortex-A55 processor (1.8GHz) processor.
7. 64GB on-board memory for better performance.
8. Android 11 operating system for fast boot-up and multitasking.
9. Wi-Fi-enabled automatic software and system updates.
10. Instant remote control tech support anytime, anywhere.
11. Advanced TPMS diagnostics with DTC description.
12. At-a-glance TPMS status screen.
13. Activate all known TPMS sensors.
14. Program Autel MX-Sensor to replace TPMS 99% of sensors on vehicles today.
15. Comprehensive OBD-II Relearn coverage.
16. Displays vehicle-specific relearn instructions.
17. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized.
18. Cloud-based Report Management allows you to view, save, print, and share reports on mobile phones, tablets, and computer browsers.
19. Compatible with Videoscope and Autel MaxiBAS BT506 to perform Battery Tests and Analysis.

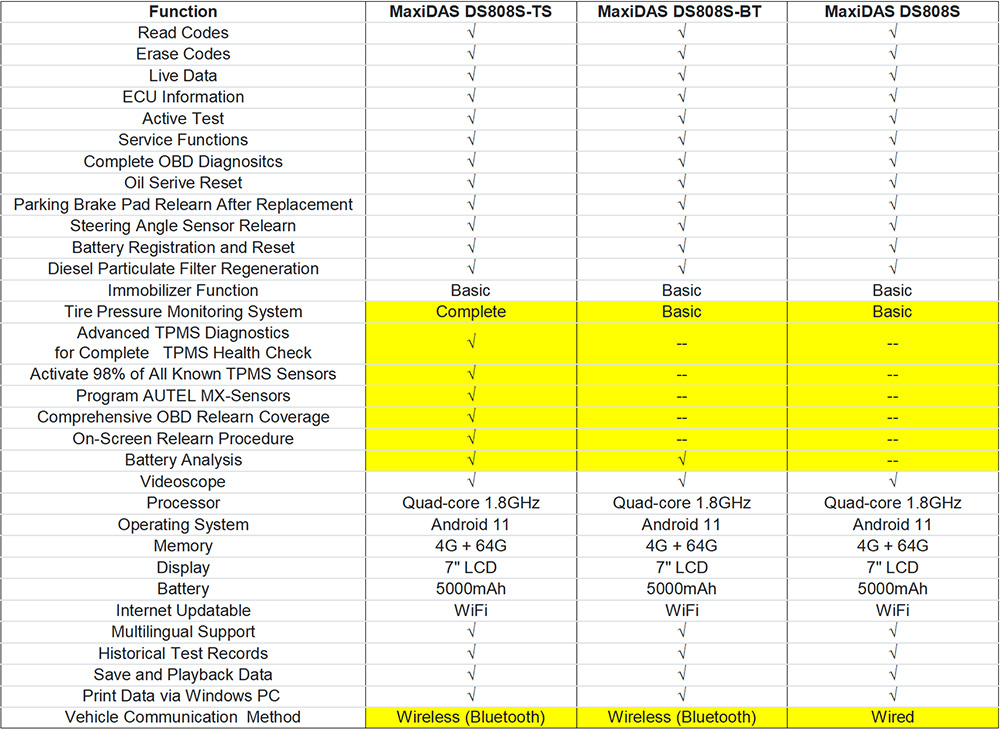

All Enhanced Hardware, 5X Faster than MS906TS/ MS906BT/ MP808TS
Comprehensive TPMS Solution Provider, Works Effectively Same as MS906TS / MS906 PRO-TS / MK906 PRO-TS
Functions:
1. OE-Level Full Systems Diagnosis
Full System Diagnosis give you a key to access every on-board system to root out those invisible problems such as PCM, ECM, EPS, PDM, BCM, TPM, SCCM, RADIO, etc. The Autel DS808S-TS can read and clear codes on all systems and subsystems so as to present you a clear picture of multiple sensors in different formats. And also it empowers you to read ECU information, live data and conduct active test.
Read DTCs: It can access to the depth of every onboard systems to read and analysis the DTCs
Clear DTCs: After tune-up or changing certain components, it can clear the DTCs hidden in the ECU and kill the lights on the dashboard.
ECU Information: Get the retrieved ECU information in detail.
Live Data Stream: A valuable reference to determine the specific problems accurately.
2. ECU Coding:
Same functions as Autel MaxiSys MS906BT / MS906 PRO/ MS906 PRO-TS / Autel MaxiCOM MK906 PRO / MK906 PRO-TS / MK908/ MK908 II.
3. 40+ Maintenance Service
A real comprehensive OBD diagnostic scanner requires all-in-one functions. Autel DS808S-TS diagnostic tool has been upgraded with over 40 service functions, such as Oil Reset, EPB, BMS, SRS, ABS Bleed, SAS Calibration, DPF Generation, Injector Coding, Throttle Matching, Suspension Matching, TPMS, etc. Moreover, DS808S-TS can be constantly upgraded with more functions to meet your various maintenance needs.
1). Oil Reset
Reset the oil life system and turn off the oil light after oil or oil filter replacements.
2). EPB Reset
Reset the brake pad after replacing the brake pad, the servo motor, etc., deactivate/activate the brake control system, assist with brake fluid control, open and close brake pads, etc.
3). BMS
Reset the monitoring unit of the car battery after replacing battery or battery monitoring sensors.
4). Brake/ABS Bleed: bleed the brake system when the ABS system contains air to restore its braking sensitivity.
5). DPF Regeneration
Clear particulate matter from the DPF filter through continuous combustion oxidation mode to stabilize the filter performance.
6). Injector Coding
Write the actual code of the fuel injection nozzle or rewrite the code in the ECU to the code corresponding to the fuel nozzle of each cylinder after replacing the ECU and the fuel injector, to accurately control or correct the fuel injection amount of each cylinder.
7). SAS Calibration
Calibrate the steering angle after replacing steering related parts.
8). Suspension Level Calibration
Adjust the vehicle height sensor for level calibration when replacing the vehicle height sensor or control module in the air suspension system.
9). Throttle Adaption
Initialize the throttle actuators so that the “learned” values stored on ECU are returned to the default state.
10). Sunroof Initialization
Initialize the sunroof data to set the sunroof lock off, close in rain, memory function of sliding/tilting sunroof, outside temperature threshold, etc.
11). Seats Calibration
Specially designed for the seats with memory functions. Match the seat after repairing or replacing the seat.
And more...
Note: The reset service feature is not available on all models.
4. More Extended Functions for Better Performance
Provide access to FCA cars with AutoAuth, including Chrysler, Dodge, Jeep, Fiat etc made in and after 2018.
Compatible with Autel MaxiBAS BT506 for battery & cranking test and Autel MaxiVdio MV108 for visual inspection.
Added with HDMI interface for easy demonstration on a larger screen.
Specifications:
Operating System: Android 11
Processor: Cortex-A55 quad-core processor (1.8GHz)
RAM: 4GB RAM
Storage: 64GB
Display: 7-inch LCD capacitive touchscreen with 1024*600 resolution
Connectivity: Wi-Fi(802.11a/b/g/n/ac) / USB 2.0 / Mini USB 2.0 / Wireless BT V2.1+EDR / HDMI Type A / SD Card (max. 64GB)
Sensors: light sensor for brightness auto adjust
Audio Input: N/A
Audio Output: Beep
Power and Battery: 3.7V/5000mAh lithium-polymer battery charges via 5V DC power supply
Input Voltage: 5V/1.5A
Operating Temperature: 0 to 50°C
Storage Temperature: -20 to 60°C
Weight: 885g
Dimensions(W*H*D): 270.8*176.0*36.0mm
Supported Protocols:
ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898(High-Speed, Middle-Speed, Low-Speed and Single-Wire CAN, Fault-Tolerant CAN) SAE J2610, GM UART UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

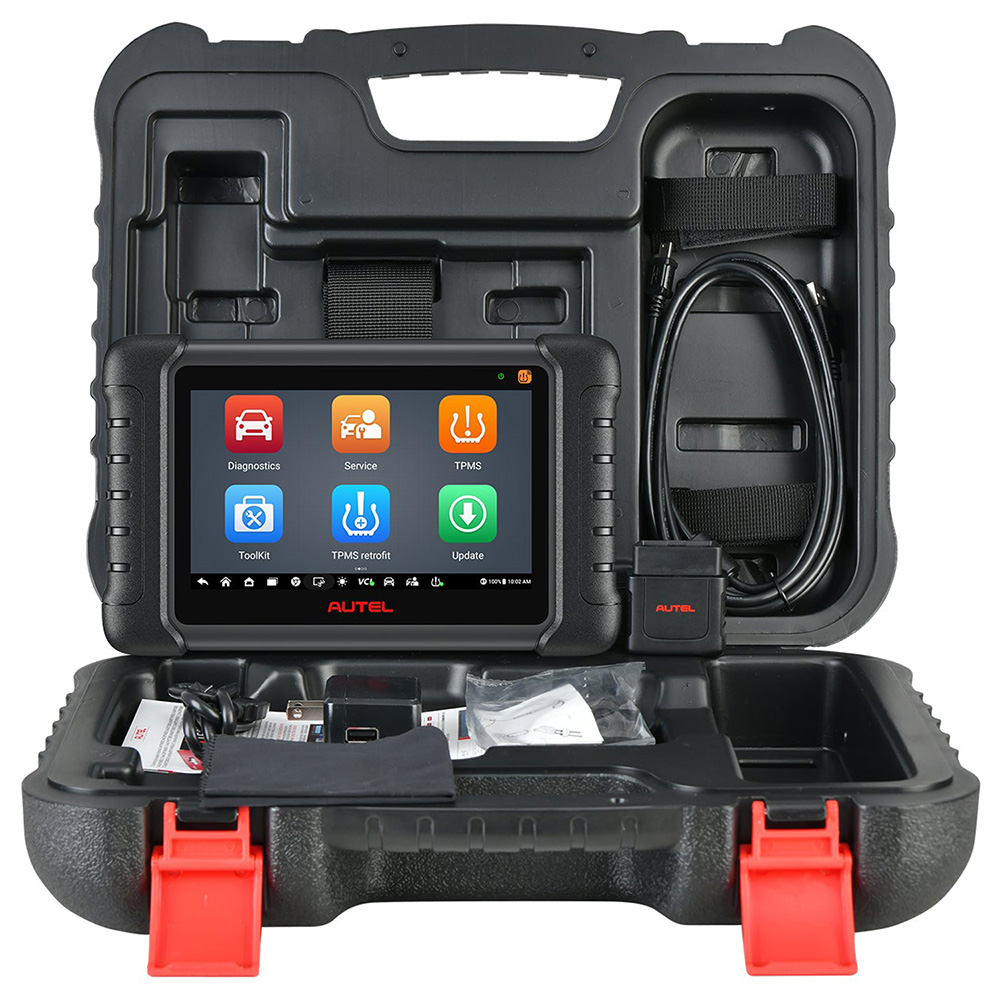

Packing List:
Autel MaxiDAS DS808S-TS
Autel VCI Mini
Mini USB Cable (2 pcs)
Power Adapter
Soft Cloth
Strap
Quick Reference Guide
Packing List
|
