Description:

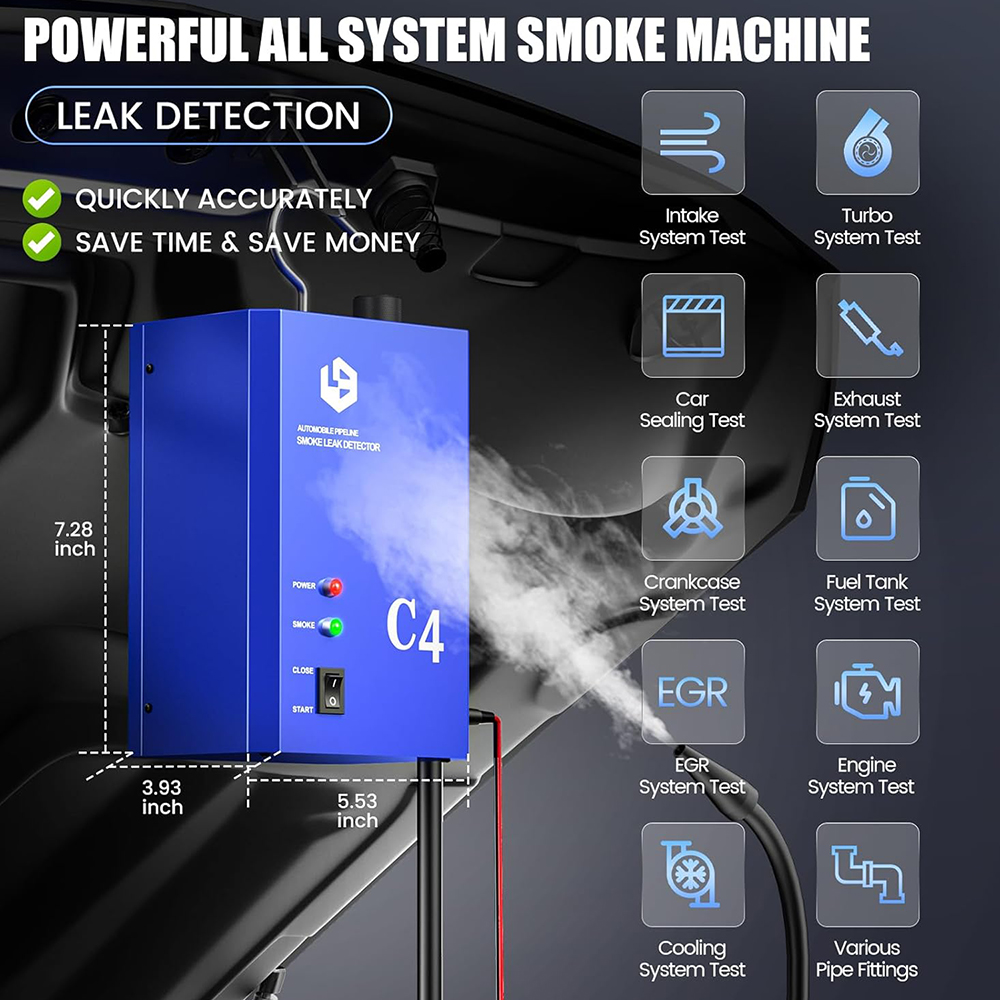

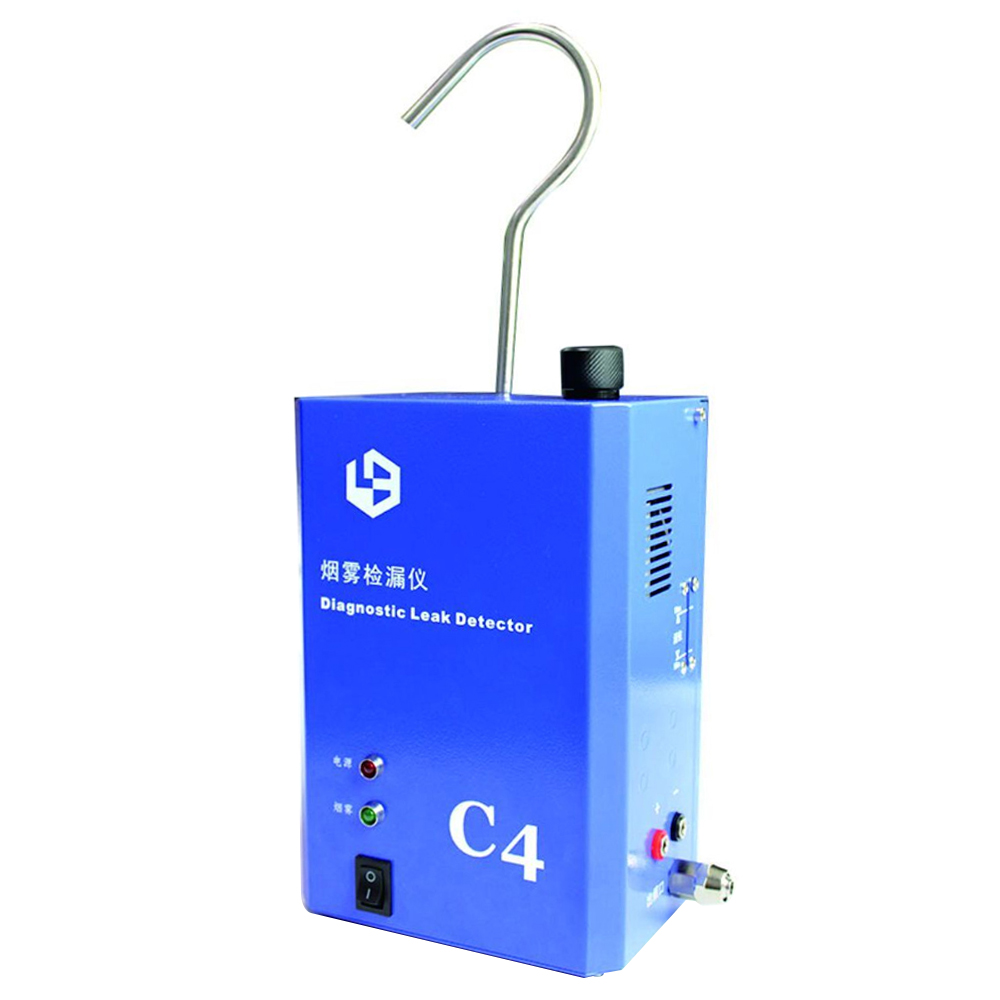

GODIAG C4 Smoke Leak Detector tests leak in Vehicle Pipe Systems for Cars, Motorcycles, Snowmobiles, ATV, Light Trucks, Boats...



Note:



Please note that GODIAG C4 Smoke Leak Detector cannot test the EVAP system, if you want to EVAP system, please check ALL-300 Pro EVAP Automotive Diagnostic Leak Detector.



Features:



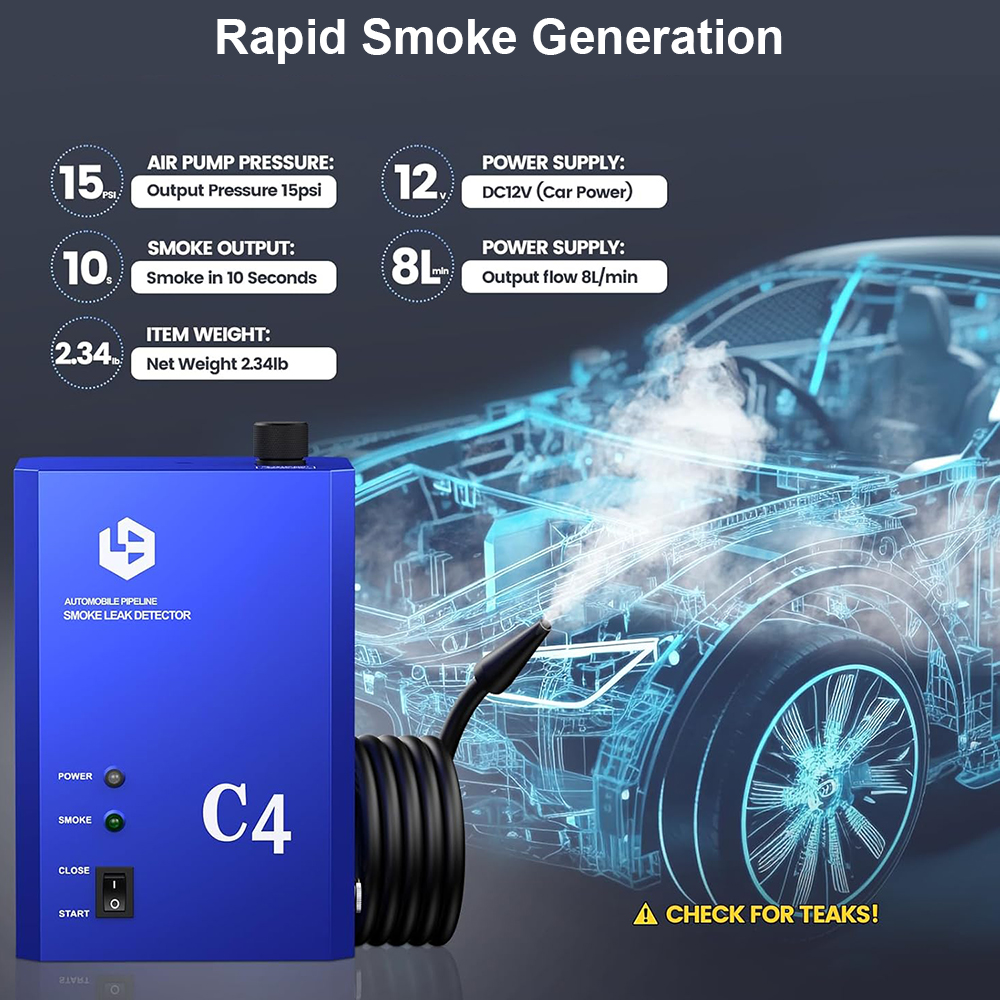

Smoke Establishment More Quickly

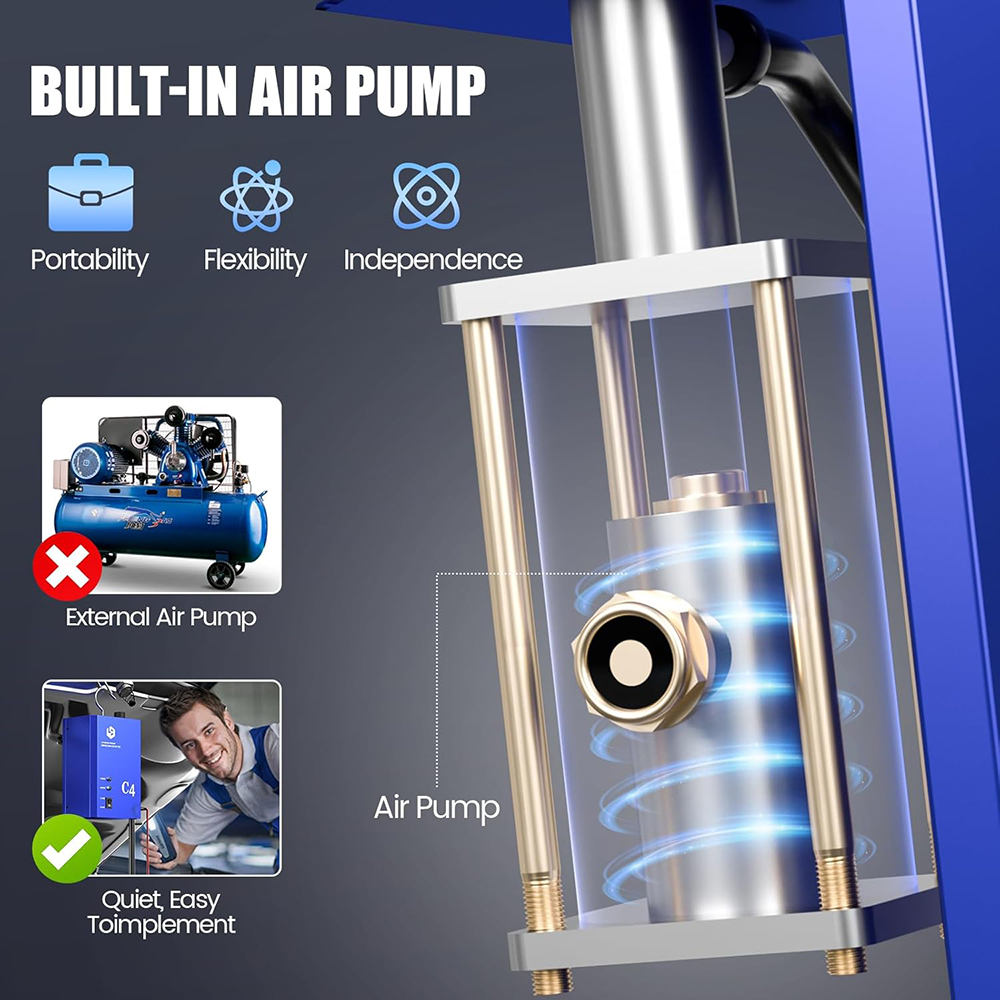

Built-In Air Pump, Not Limited By The Site

Liquid Observation Window

Equipped with Overheat Protection Device

Equipped with Cooling Fan, Stable Operation

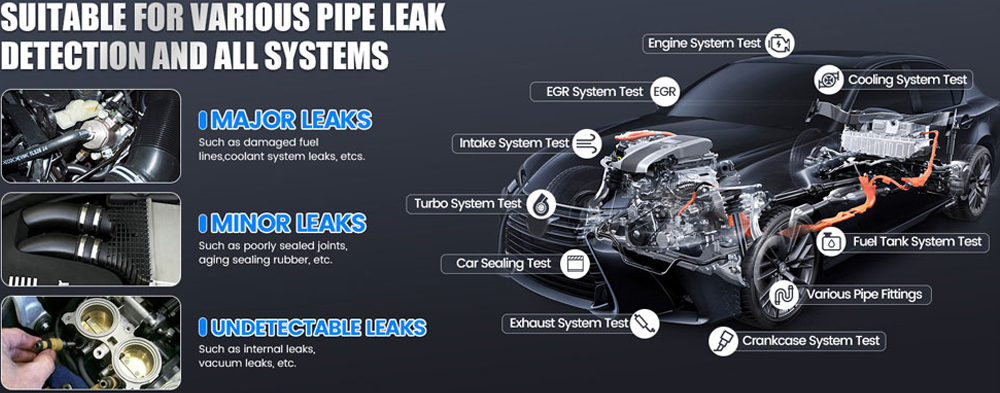

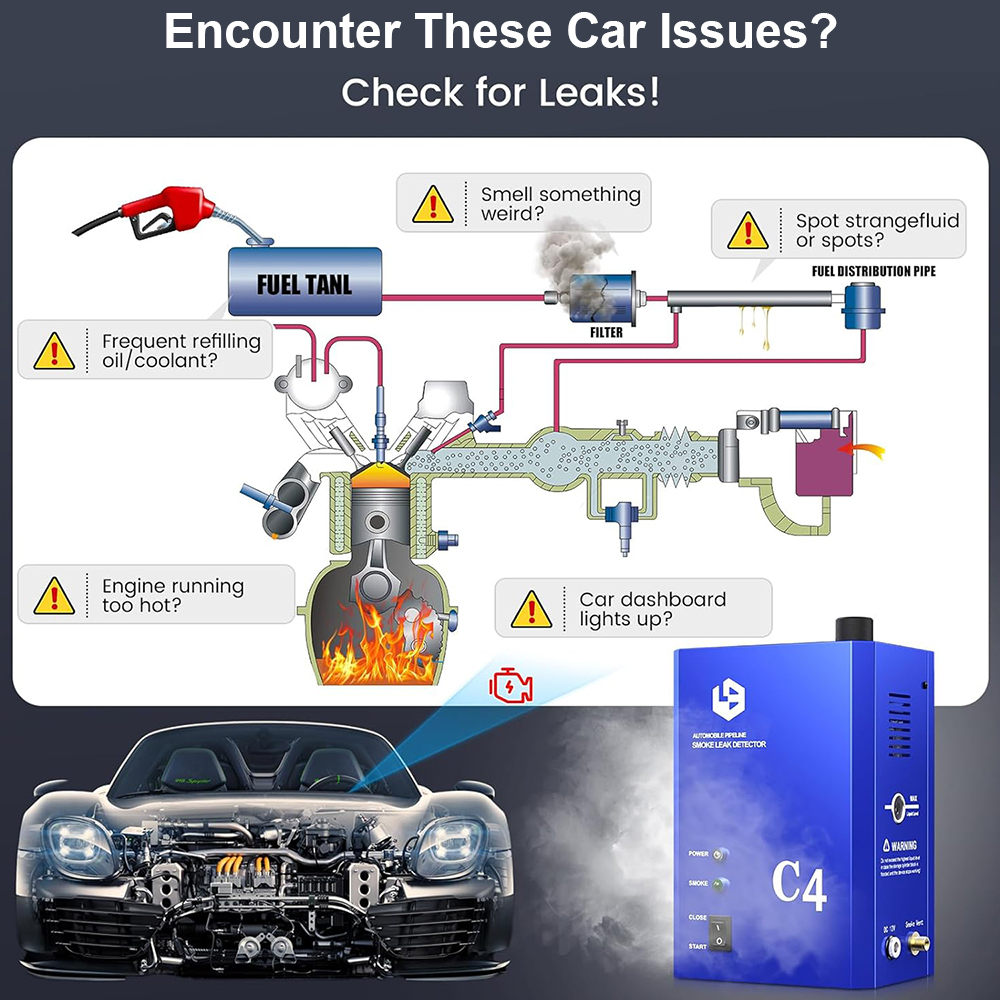

Leakage Detection of Various Pipeline Systems

Air Test Mode

Smoke Test Mode

Light Weight, Simple and Durable

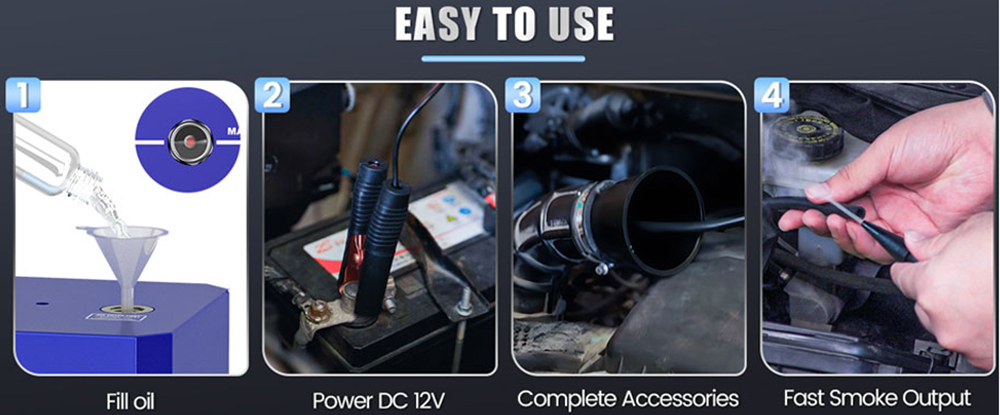

Operation Steps:

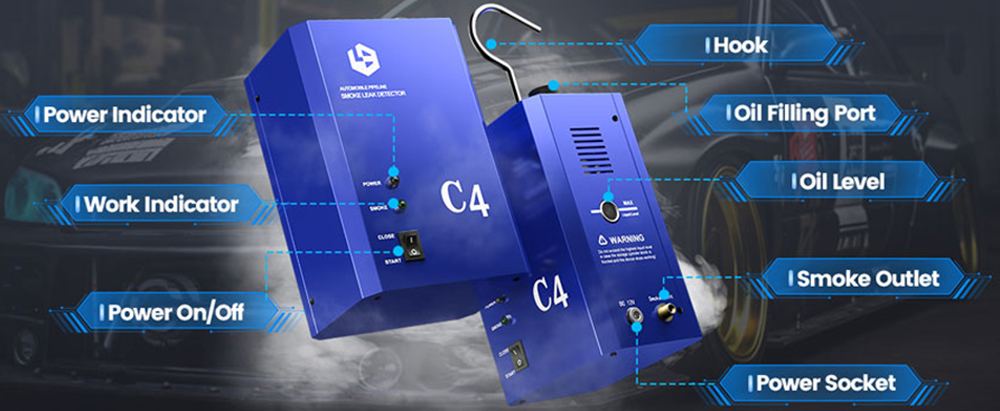

1. Mount the hook to the D screw hole.

2. Plug the power cable in the G socket on device and 12V vehicle battery(Red for +, Black for -).

3. Connect the smoke tube to the H vent on device.

4. Unscrew the E cap and fill amount of smoke oil and view the oil level through the F window make sure the oil within the rank of scale.



Note:

1. Too much oil will inundate the hydro-cylinder and too less oil will make less smoke.

2. The equipment will be in self-protection state after a long working time to avoid the smoke maker overheated, the B indicator light will be off. And the equipment will stop making smoke, until the temperature comes to safety level. Users can cool the equipment with the air pump. Do not fill oil while working.



Test Run:



1. Connect power cable to device DC in jack and 12V vehicle battery(Red for +, Black for -). The Power Indicator will be on and GODIAG C4 will start generating air pressure.



2. Block off the smoke nozzle on the Smoke Tube with fingertip, the Pressure Gauge will indicate the real time output pressure.



3.Switch on the smoke mode switch, the smoke mode indicator will be on. GODIAG C4 Smoke Leak Tester will start producing smoke.



Specifications:



Power Supply: DC 12V/6A

Flow Rate: about 10L/Min. (0-15L/Min.)

Test Hose Length:1.8m

Power Cable Length:1.6m

Filling Oil: 30ml

Air Source: internal air pump

Size: 350*130*240mm

Gross Weight: 2.5KG

Working Time: 10 minutes for each work period

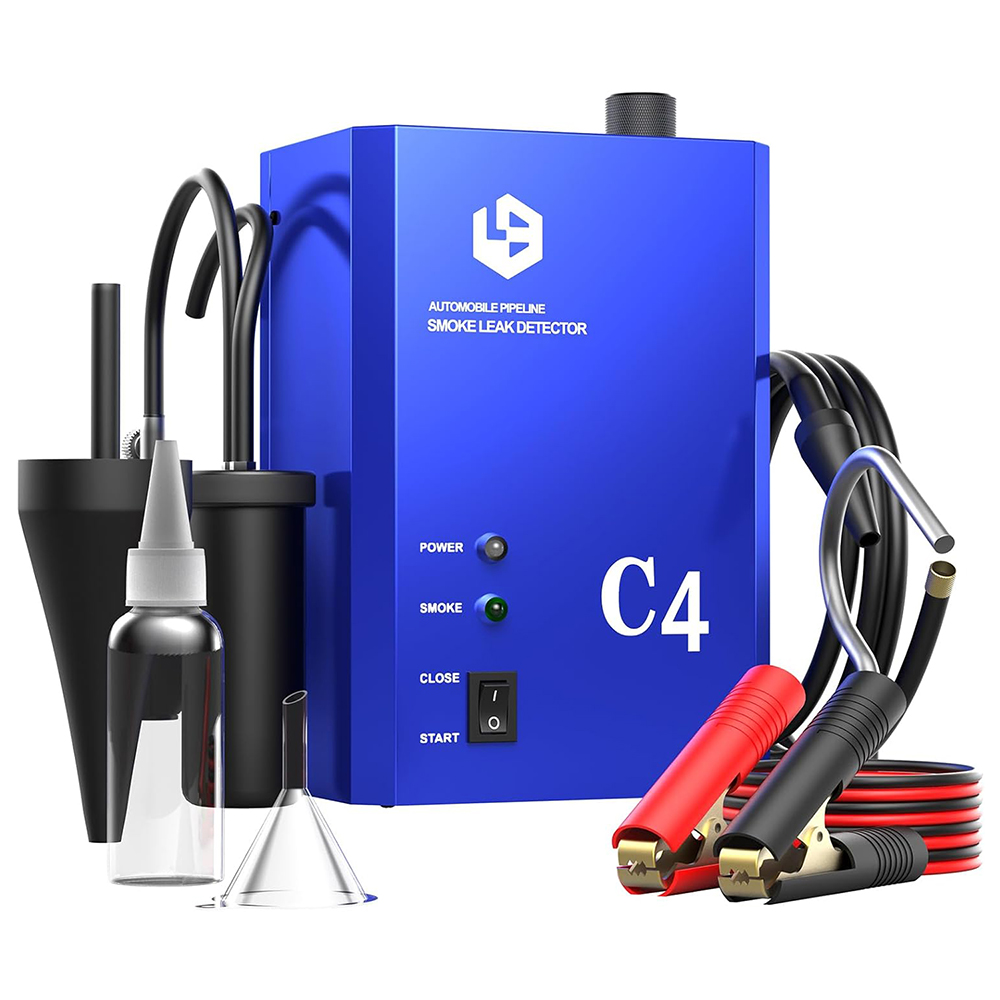

Packing List:



GODIAG C4 Smoke Leak Detector

Intake Bladder

Intake Bladder Cable

Cone Adapter

Smoke Tube

Funnel

Oil Bottle

Battery Clamps Power Cable

Hook

User Manual

Certification

Packing Box
